FlexPoint FP15 - Loudspeaker Martin Audio - Free user manual and instructions

Product Type	Passive 2-way loudspeaker
Woofer	15" (380mm) neodymium magnet
HF Driver	1.4" (35mm) exit, 3" (75mm) diaphragm
Frequency Response	55 Hz - 20 kHz (±3 dB)
Power Handling (AES)	400 W continuous, 1600 W peak
Impedance	8 ohms nominal
Sensitivity	98 dB SPL (1W/1m)
Maximum SPL	133 dB continuous, 139 dB peak
Dispersion	80° H x 50° V rotatable horn
Crossover	1.7 kHz passive
Connectors	2 x Neutrik speakON NL4
Enclosure	15 mm birch plywood, black textured finish
Grille	Hex perforated steel with acoustic foam
Rigging	M10 threaded inserts, optional flying hardware
Dimensions (H x W x D)	700 x 430 x 400 mm (27.6 x 16.9 x 15.7 in)
Weight	27 kg (59.5 lbs)
Power Supply	Passive, requires external amplifier
Main Functions	Full-range sound reinforcement for live and installed applications
Cleaning	Wipe with a soft dry cloth; do not use solvents or water
Safety	Use only with certified mounting hardware; verify load capacity
Repairability	Replaceable woofer, HF driver and crossover assembly
General Information	Designed for portable and permanent installations; covers large venues

Frequently Asked Questions - FlexPoint FP15 Martin Audio

What amplifier power is recommended for the FP15?

A professional amplifier delivering 800-1600W into 8 ohms per speaker is recommended to achieve full performance.

Can I use the FP15 as a stage monitor?

Yes, the FP15 can be used as a floor monitor. The rotatable horn allows coverage to be directed vertically or horizontally as needed.

How do I connect the FP15 to an amplifier?

Use a Neutrik speakON NL4 cable. Connect pin 1+ and 1- for the full-range input. The second speakON can be used to loop through to another speaker.

What is the correct impedance setting for multiple FP15s?

When daisy-chaining, the total impedance drops. For two FP15s in parallel, the load is 4 ohms. Ensure your amplifier can handle the load.

Are the FP15 weather-resistant?

Standard FP15 is for indoor use only. For outdoor applications, use a cover or install in a sheltered location. Martin Audio offers weather-resistant options separately.

How do I rotate the horn?

Remove the front grille, unscrew the horn mounting screws, rotate the horn 90°, then reassemble. The horn can be set to 80°H x 50°V or 50°H x 80°V.

What is the maximum flying weight?

The FP15 weighs 27 kg. When flying, use only M10 forged eyebolts and certified rigging hardware. Do not exceed the working load limit of the hardware.

Can I bi-amp the FP15?

No, the FP15 is a passive two-way speaker with an internal crossover. Bi-amping is not possible without modifying the speaker.

How do I clean the grille?

Vacuum the grille with a soft brush attachment. For stubborn dirt, remove the grille and gently wash with mild soap and water. Dry completely before reattaching.

Are replacement parts available?

Yes, Martin Audio offers replacement drivers, diaphragms, and crossover boards. Contact an authorized dealer for parts and service.

USER MANUAL FlexPoint FP15 Martin Audio

Portable coaxial point source loudspeakers

User Guide

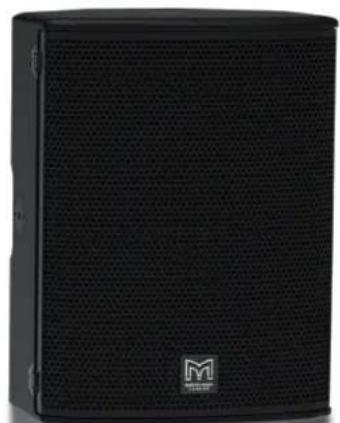

Black rectangular speaker with mesh grille and logo, no visible text or symbols on body

Black audio amplifier speaker with mesh grille and 'M' logo (no visible text or symbols beyond branding)

Contents

Rigging

Accessories List. 4

Accessories. 5

Integrated Pole Mount. 9

Touring Yoke Installation Portrait, 10 Installation for FP6 (FP6YPT) & FP8 (FP8YPT). 10

Touring Yoke Installation Landscape. 12 Installation for FP6 (FP6YLT) & FP8 (FP8YLT). 12

Touring Yoke Installation Portrait, 14 Installation for FP12(FP12YPT) & FP15(FP15YPT). 14

Touring Yoke Installation Landscape. 16 Installation for FP12(FP12YLT) & FP15(FP15YLT). 16

Touring & Install Yoke Installation. 18 Installation for FP4 (FP4Y). 18

Lower Mounting Position. 19

Upper Slot Mounting Position. 20

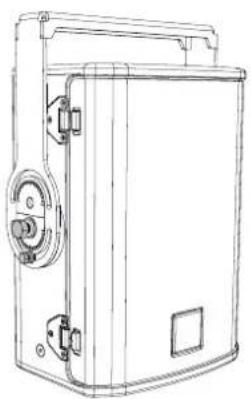

Yoke Installation Install Portrait. 21 Installation for FP6 (FP6YPI), FP8( FP8YPI), FP12 (FPYPI), FP15 (FP5YPI). 21

Lower Mounting Position Portrait. 22

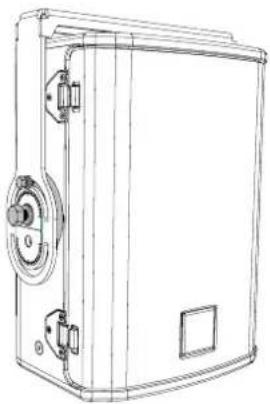

Upper Mounting Position Portrait. 23

Yoke Installation Install Landscape. 24 Installation for FP6 (FP6YLI), FP8( FP8YLI), FP12 (FPYLI), FP15 (FP5YLI). 24

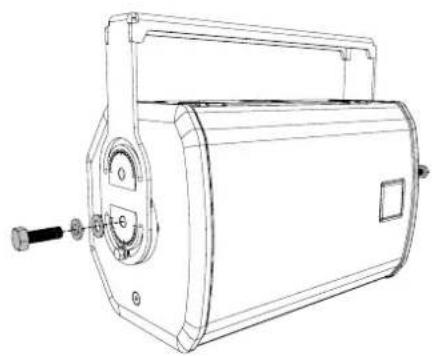

Lower Mounting Position Landscape. 25

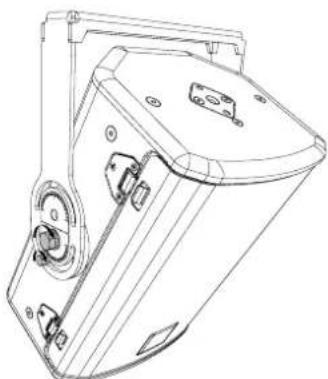

Upper Mounting Position Landscape. 26

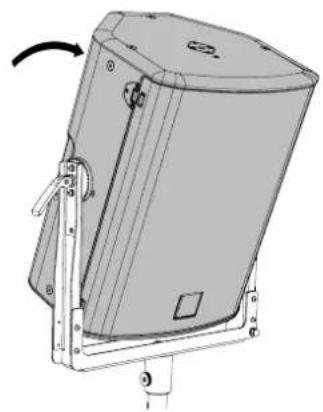

Pole Adaptor (ASF20045) Touring Yokes. 27
Installation for FP6, FP8, FP12, FP15. 27

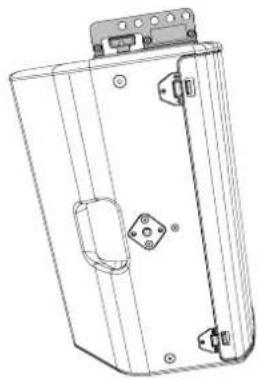

Simple Rigging Bar (SBAR40) Portrait. 29 Installation for FP6, FP8, FP12, FP15. 29

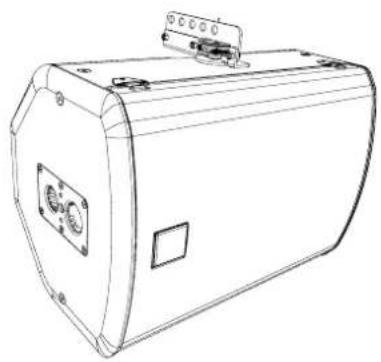

Simple Rigging Bar (SBAR40) Landscape. 30 Installation for FP6, FP8, FP12, FP15. 30

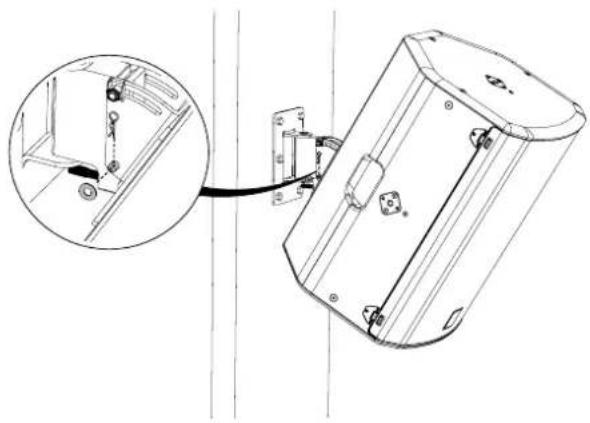

Wall Mounting Brackets (WB) Portrait 31 Installation for FP6, FP8, FP12, FP15. 31

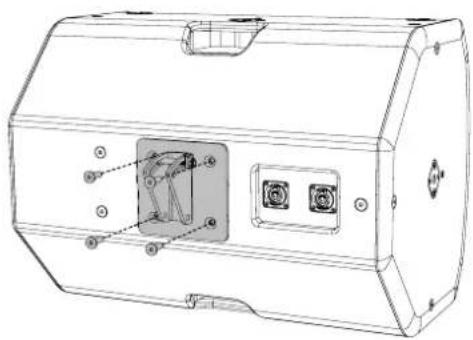

Wall Mounting Brackets (WB) Landscape. 34
Installation for FP6, FP8, FP12, FP15. 34

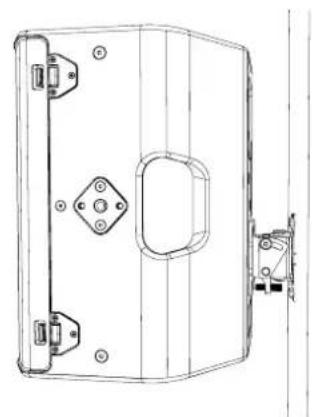

WB Spacers (WB6/8 & WB10/12) Portrait/Landscape. 37
Installation for FP6, FP8, FP12. 37

Driver Rotation FP6. 38

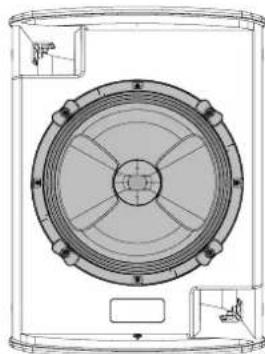

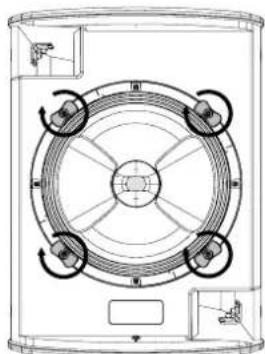

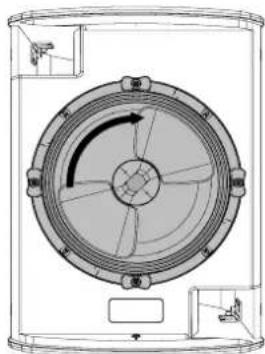

Driver Rotation FP8, FP12, FP15. 39

Rigging

Accessories List.

Part

ASF20045

SBAR40

ASF20071

WB6/8

WB10/12

WB15

FP4Y

FP6YLI

FP6YPI

FP6YLT

FP6YPT

FP8YLI

FP8YPI

FP8YLT

FP8YPT

FP12YLI

FP12YPI

FP12YLT

FP12YPT

FP15YLI

FP15YPI

FP15YLT

FP15YPT

Description

Pole mount adoptor for FP4, FP6, FP8, FP12, FP15

Flying Bracket for FP6, FP8, FP12, FP15

Wind-up telescopic pole

Wall mount bracket for FP6, FP8

Wall mount bracket for FP12

Wall mount bracket for FP15

Touring & install yoke for FP4

Install yoke for FP6 (Landscape)

Install yoke for FP6 (Portrait)

Touring yoke for FP6 (Landscape)

Touring yoke for FP6 (Portrait)

Install yoke for FP8 (Landscape)

Install yoke for FP8 (Portrait)

Touring yoke for FP8 (Landscape)

Touring yoke for FP8 (Portrait)

Install yoke for FP12 (Landscape)

Install yoke for FP12 (Portrait)

Touring yoke for FP12 (Landscape)

Touring yoke for FP12 (Portrait)

Install yoke for FP15 (Landscape)

Install yoke for FP15 (Portrait)

Touring yoke for FP15 (Landscape)

Touring yoke for FP15 (Portrait)

Accessories.

ASF20045 SBAR40

Simple line drawing of a cylindrical container with a side knob (no text or symbols)

Technical line drawing of a mechanical assembly with mounting flanges and a central component (no text or symbols)

ASF20071 WB6/8

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Technical line drawing of a mechanical bracket assembly (no text or symbols)

WB10/12 WB15

Technical line drawing of a mechanical bracket assembly (no text or symbols)

Technical line drawing of two metal bracket plates with mounting holes (no text or symbols)

FP4Y FP6YLI

Line drawing of a mechanical lever assembly (no text or symbols)

Line drawing of a mechanical lifting device with two pulleys and a handle (no text or symbols)

FP6YPI FP6YLT

Technical line drawing of a mechanical pulley system with two wheels and a handle (no text or symbols)

Line drawing of a mechanical lever system with two wheels and a handle (no text or symbols)

FP6YPT FP8YLI

Line drawing of a mechanical lever system with two pulleys and a handle (no text or symbols)

Technical line drawing of a mechanical pulley system with two arms and a central knob (no text or symbols)

FP8YPI FP8YLT

Line drawing of a mechanical lifting lever with two wheels and a handle (no text or symbols)

Line drawing of a mechanical lifting lever system with two pulleys and a wheel (no text or symbols)

FP8YPT FP12YLI

Line drawing of a mechanical support frame with two wheels and a pulley (no text or symbols)

Line drawing of a mechanical lever with two wheels and a handle (no text or symbols)

FP12YPI FP12YLT

Line drawing of a two-legged support frame with wheels and a handle (no text or symbols)

Line drawing of a mechanical linkage with two wheels and a handle (no text or symbols)

FP12YPT FP15YLI

Line drawing of a mechanical linkage with labeled joints (no text or symbols)

Simple line drawing of a horizontal support frame with two circular buttons at the ends (no text or symbols)

FP15YPI FP15YLT

Line drawing of a mechanical lever with two wheels and a handle (no text or symbols)

Line drawing of a mechanical lever mechanism with two wheels and a handle (no text or symbols)

FP15YPT

Line drawing of a mechanical linkage or support structure (no text or symbols)

Integrated Pole Mount.

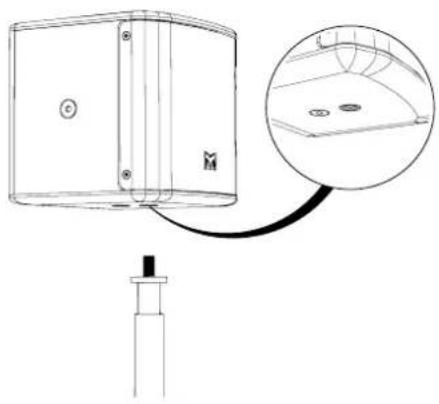

FP4 has a 3/8" insert for a microphone stand.

Align the insert on the FP4 with the Microphone stand. Mount the FP4 to the microphone stand.

Technical line drawing of a device with a close-up inset showing internal components (no text or symbols)

Simple line drawing of a cylindrical device with a handle and a label 'M' on the top (no text or symbols beyond the label)

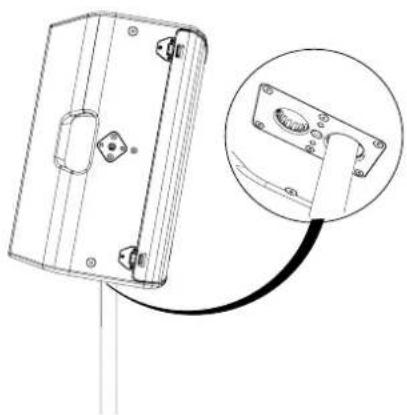

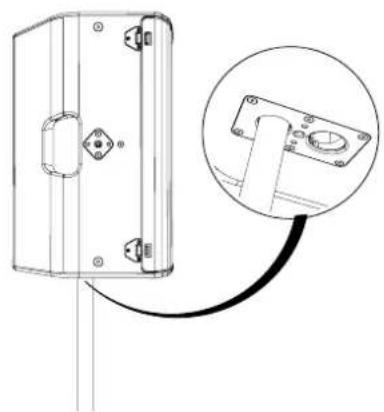

FP6, FP8, FP12 & FP15 have an integrated 35mm dual pole mount for deployment on SX Series subwoofers or speaker stands.

The rear mount sets the angle at 0^ . The front mount sets the angle at 20^ .

Technical line drawing of a mechanical housing component with an inset close-up showing a mounting bracket (no text or symbols)

Technical line drawing of a mechanical component with a magnified inset showing a detail view (no text or symbols)

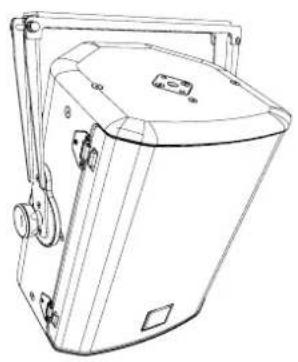

Touring Yoke Installation Portrait.

Installation for FP6 (FP6YPT) & FP8 (FP8YPT).

FP6 & FP8 have an integrated M10 mounts for rigging accessories. Quick release touring yokes can be fixed to the mounts without the use of any tools.

Pull the floating arm out before aligning to the mounts on the speaker.

Mechanical linkage diagram showing a curved arm and pulley (no text or symbols)

Mechanical linkage diagram showing a lever and handle assembly (no text or symbols)

Align the arms to the M10 mounts on the speaker.

Line drawing of a portable electronic device with a handle and control panel (no text or symbols)

Secure the yoke to the speaker using the handwheels.

Line drawing of a portable electronic device with handle and control panel (no text or symbols)

Line drawing of a portable electronic device with handle and control panel (no text or symbols)

Set the desired angle for the speaker. Tighten the hand wheels on both sides to secure.

Mechanical assembly diagram showing a rotating shaft and housing with mounting holes (no text or symbols)

Line drawing of a mechanical device with no visible text or symbols

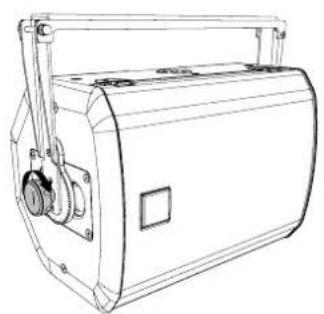

Touring Yoke Installation Landscape.

Installation for FP6 (FP6YLT) & FP8 (FP8YLT).

FP6 & FP8 have an integrated M10 mounts for rigging accessories. Quick release touring yokes can be fixed to the mounts without the use of any tools.

Pull the floating arm out before aligning to the mounts on the speaker.

Mechanical linkage diagram showing a lever with two pulleys and a curved arrow indicating rotational motion (no text or symbols)

Mechanical linkage diagram showing a lever and pulley assembly (no text or symbols)

Align the arms to the M10 mounts on the speaker.

Line drawing of a portable electronic device with control panel and scroll wheel (no text or symbols)

Secure the yoke to the speaker using the handwheels.

Line drawing of a mechanical device with no visible text or symbols

Line drawing of a cylindrical device with handle and mounting bracket (no text or symbols)

Set the desired angle for the speaker. Tighten the hand wheels on both sides to secure.

Technical diagram of a mechanical assembly with a central component and curved arrow indicating motion (no text or symbols)

Line drawing of a portable electronic device with control panel and buttons (no text or symbols)

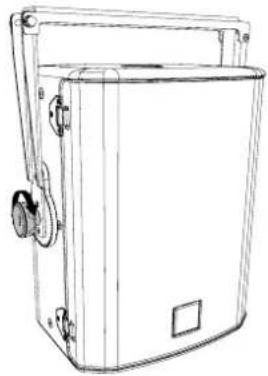

Touring Yoke Installation Portrait.

Installation for FP12(FP12YPT) & FP15(FP15YPT).

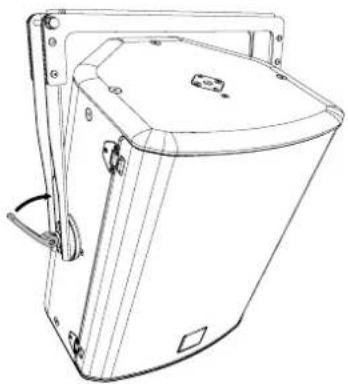

FP12 & FP15 have an integrated M10 mounts for rigging accessories. Quick release touring yokes can be fixed to the mounts without the use of any tools.

Release the clamp levers on both sides of the yoke.

Line drawing of a mechanical frame with two wheels and a handle (no text or symbols)

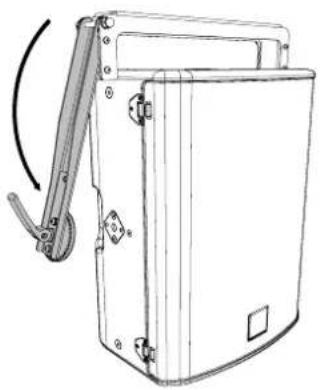

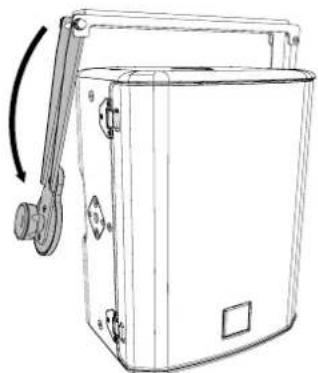

Pull the floating arm out before aligning to the mounts on the speaker.

Mechanical linkage diagram showing a frame with curved joints and a wheel (no text or symbols)

Technical line drawing of a mechanical lever mechanism (no text or symbols)

Align the arms to the M10 mounts on the speaker. Secure the yoke to the speaker using the clamp levers on both sides.

Line drawing of a mechanical device with a curved handle and mounting holes (no text or symbols)

Line drawing of a rectangular device with a handle and mounting bracket (no text or symbols)

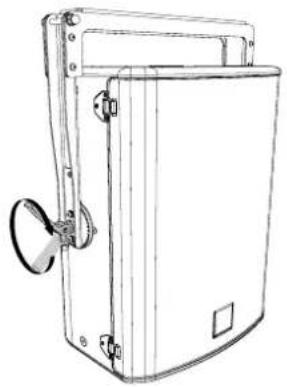

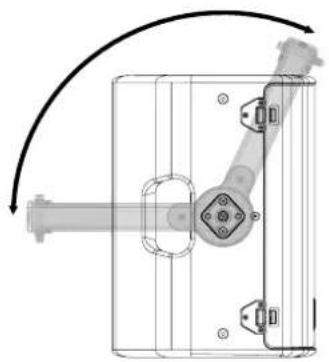

Set the desired angle for the speaker. Tighten the clamp levers on both sides to secure.

Pure mechanical diagram showing a lever mechanism inside a rectangular frame with no text or symbols

Line drawing of a mechanical device with mounting brackets and a central lid (no text or symbols)

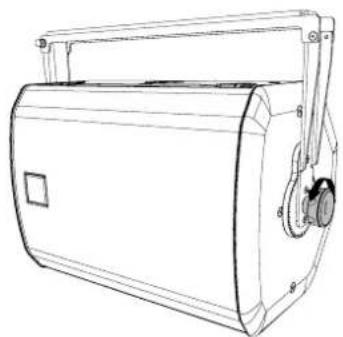

Touring Yoke Installation Landscape.

Installation for FP12(FP12YLT) & FP15(FP15YLT).

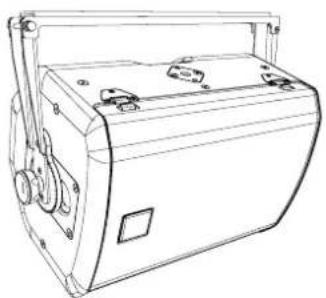

FP12 & FP15 have an integrated M10 mounts for rigging accessories. Quick release touring yokes can be fixed to the mounts without the use of any tools.

Release the clamp levers on both sides of the yoke.

Technical line drawing of a mechanical lever or support structure (no text or symbols)

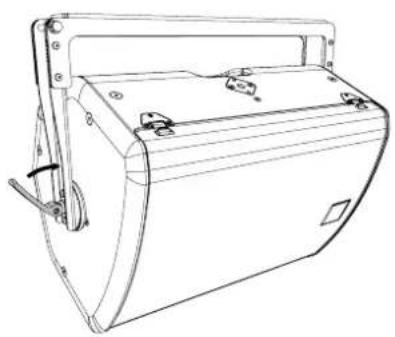

Pull the floating arm out before aligning to the mounts on the speaker.

Mechanical linkage diagram showing a frame with handle and wheel (no text or symbols)

Mechanical linkage diagram with two wheels and a handle (no text or symbols)

Align the arms to the M10 mounts on the speaker. Secure the yoke to the speaker using the clamp levers on both sides.

Line drawing of a portable electronic device with handle and side panel (no text or symbols)

Line drawing of a cylindrical mechanical device with mounting brackets and a handle (no text or symbols)

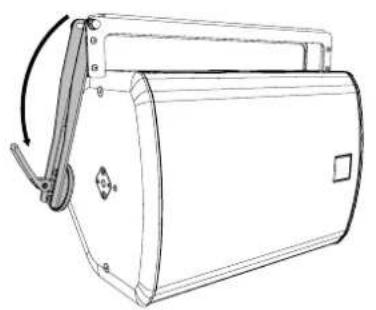

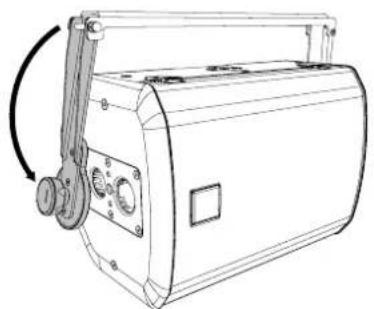

Set the desired angle for the speaker. Tighten the clamp levers on both sides to secure.

Mechanical linkage diagram showing a rotating arm with joints and pivot point (no text or labels)

Line drawing of a mechanical device with handle and internal components (no text or symbols)

Touring & Install Yoke Installation.

Installation for FP4 (FP4Y).

The FP4 has integrated M6 mounts for the FP4Y yoke assembly. The quick release yoke can be secured to the mounts with the use of any tools.

The FP4Y has a lower mounting hole and a slot above for close coupled installation.

Lower mounting position allows for any vertical angle desired.

Upper mounting slot reduces the gap between the yoke and the speaker for close coupled mounting and low ceilings.

Close coupled has limited vertical angle adjustment.

Line drawing of a portable electronic device with handle and control panel (no text or symbols)

Line drawing of a mechanical device with a central knob and mounting bracket (no text or symbols)

Lower Mounting Position.

Remove the M6 fixings from the sides of the cabinet.

Secure the yoke to the speaker using the clamp levers on both sides.

Technical line drawing of a rectangular device with mounting holes and a central panel (no text or symbols)

Technical line drawing of a mechanical device with mounting flanges and a central housing (no text or symbols)

Set the desired angle for the speaker. Tighten the thumb wheels on both sides to secure.

Pure technical diagram of a mechanical component with no text, numbers, or symbols

Line drawing of a portable water heater device (no text or symbols)

Upper Slot Mounting Position.

Remove the M6 fixings from the sides of the cabinet.

Secure the yoke to the speaker using the clamp levers on both sides.

Technical line drawing of a rectangular enclosure with mounting holes and a central label (no text or symbols present)

Technical line drawing of a mechanical device with two ports and a base (no text or symbols)

Set the desired angle for the speaker. Tighten the thumb wheels on both sides to secure.

Technical line drawing of a mechanical component with a central pin and flange (no text or symbols)

Line drawing of a mechanical device with a central knob and mounting bracket (no text or symbols)

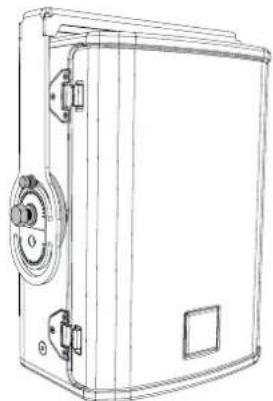

Yoke Installation Install Portrait.

Installation for FP6 (FP6YPI), FP8 (FP8YPI), FP12 (FPYPI), FP15 (FP5YPI).

Flexpoint install yokes can be fixed to the M10 mounting points, but tools are required. A 17mm socket or spanner for the yoke and 10mm socket or spanner to securely lock the yoke angle.

There are two available mounting postions for the install yokes.

Lower mounting position allows for any vertical angle desired.

Line drawing of a mechanical enclosure or enclosure with mounting brackets and a central door (no text or symbols)

Upper mounting position reduces the gap between the yoke and the speaker for close coupled mounting and low ceilings.

Close coupled mounting has limited vertical angle adjustment.

Line drawing of a mechanical device with no visible text or symbols

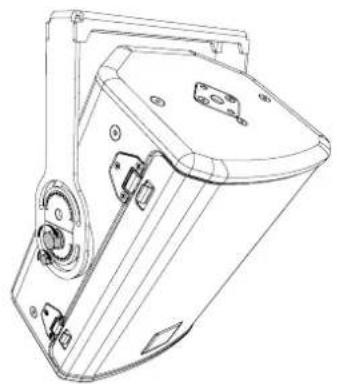

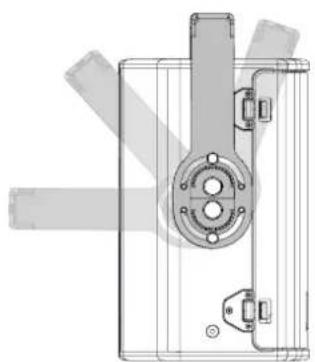

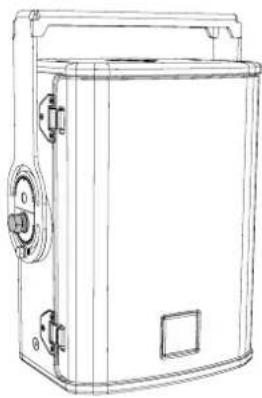

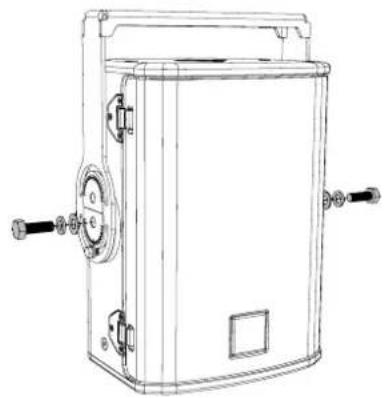

Lower Mounting Position Portrait.

Position the friction pads and fixings on the lower mounting holes and secure into place with a 17mm socket or spanner.

Line drawing of a mechanical device with handle and mounting flanges (no text or symbols)

Set the desired angle for the speaker.

Line drawing of a rectangular industrial machine with control panel and door (no text or symbols)

Lock into place using a 17mm socket or spanner for the M10 mounting points (both sides) and a 10mm for the secondary fixing.

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical device with mounting flanges and internal components (no text or symbols)

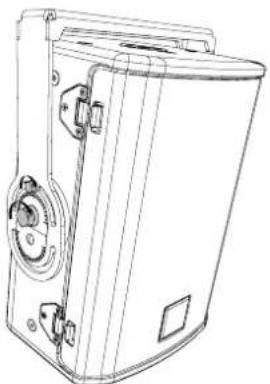

Upper Mounting Position Portrait.

Position the friction pads and fixings on the upper mounting holes and secure into place with a 10mm socket or spanner.

Technical line drawing of a mechanical lifting device with two wheels and adjustment knobs (no text or symbols)

Attach to the cabinet with a 17mm socket or spanner.

Technical line drawing of a mechanical clamp or lever assembly with two circular components and adjustment knobs (no text or symbols)

Set the desired angle, which is limited to the yokes close proximity to the cabinet.

Line drawing of a rectangular industrial enclosure with internal components and mounting holes (no text or symbols)

Lock into place using a 17mm socket or spanner for the M10 mounting points (both sides) and a 10mm for the secondary fixing.

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a mechanical device with no visible text or symbols

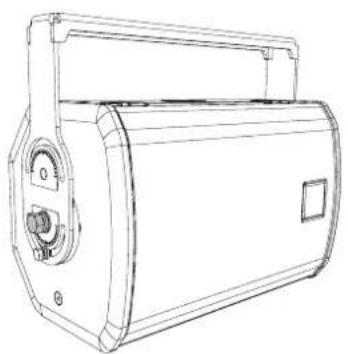

Yoke Installation Install Landscape.

Installation for FP6 (FP6YLI), FP8( FP8YLI), FP12 (FPYLI), FP15 (FP5YLI).

Flexpoint install yokes can be fixed to the M10 mounting points, but tools are required. A 17mm socket or spanner for the yoke and 10mm socket or spanner to securely lock the yoke angle.

There are two available mounting postions for the install yokes.

Lower mounting position allows for any vertical angle desired.

Upper mounting position reduces the gap between the yoke and the speaker for close coupled mounting and low ceilings.

Close coupled mounting has limited vertical angle adjustment.

Line drawing of a portable radio or megaphone device with control knobs and a handle (no text or symbols)

Line drawing of a cylindrical mechanical device with mounting flanges and a side panel (no text or symbols)

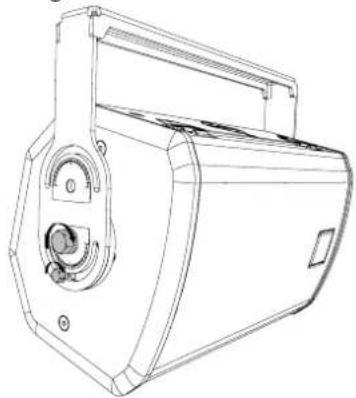

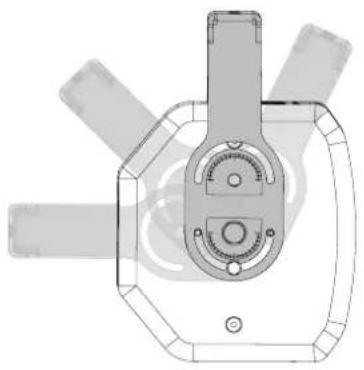

Lower Mounting Position Landscape.

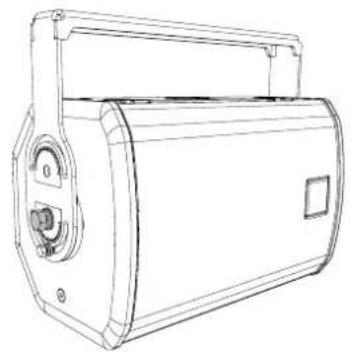

Position the friction pads and fixings on the lower mounting holes and secure into place with a 17mm socket or spanner.

Line drawing of a portable radio or megaphone device with handle and control knob (no text or symbols)

Line drawing of a portable electronic device with handle and control panel (no text or symbols)

Set the desired angle for the speaker. Lock into place using a 17mm socket or spanner for the

M10 mounting points (both sides) and a 10mm for the secondary fixing.

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Upper Mounting Position Landscape.

Position the friction pads and fixings on the upper mounting holes and secure into place with a 10mm socket or spanner.

Technical line drawing of a mechanical lifting bracket with attached components (no text or symbols)

Attach to the cabinet with a 17mm socket or spanner.

Technical line drawing of a mechanical pulley system with two wheels and connecting rods (no text or symbols)

Set the desired angle, which is limited to the yokes close proximity to the cabinet.

Line drawing of a cylindrical mechanical device with control knob and mounting bracket (no text or symbols)

Lock into place using a 17mm socket or spanner for the M10 mounting points (both sides) and a 10mm for the secondary fixing.

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical device with mounting brackets and control buttons (no text or symbols)

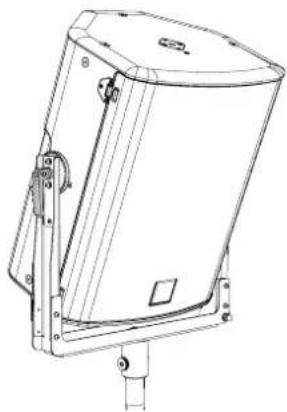

Pole Adaptor (ASF20045) Touring Yokes.

Installation for FP6, FP8, FP12, FP15.

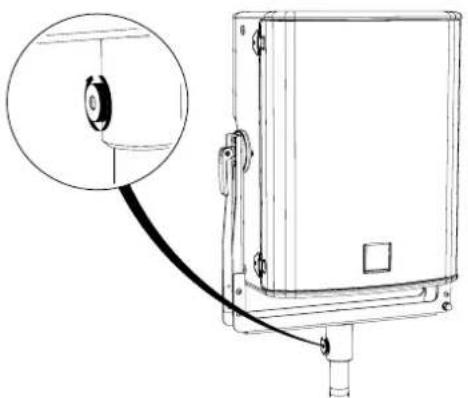

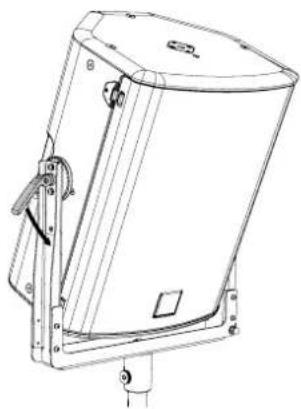

Secure the pole mount adaptor to the yoke using the included fixings.

Mechanical linkage assembly diagram with no visible text or symbols

Technical line drawing of a mechanical support bracket with mounting holes and a central shaft (no text or symbols)

Attached the speaker to the yoke as per instructions starting on page 12.

Mount onto the pole and tighten the thumb screw on the pole mount adaptor to secure.

Technical line drawing of a rectangular enclosure with mounting brackets and mounting holes (no text or symbols)

Technical line drawing of an electrical enclosure with a cable and a magnified inset showing a circular component (no text or symbols)

Release the clamp levers on both sides of the yoke. Rotate the cabinet to the dired angle.

Technical line drawing of a rectangular enclosure with mounting feet and a vertical support (no text or symbols)

Technical line drawing of a mechanical device with mounting brackets and a curved arrow indicating rotation (no text or symbols)

Tighten clamp levers to secure the cabinet in place.

Technical line drawing of a mechanical device with mounting bracket and control panel (no text or symbols)

Technical line drawing of a mechanical device with mounting bracket and vertical support (no text or symbols)

Simple Rigging Bar (SBAR40) Portrait.

Installation for FP6, FP8, FP12, FP15.

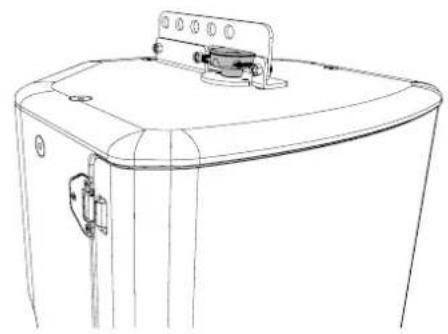

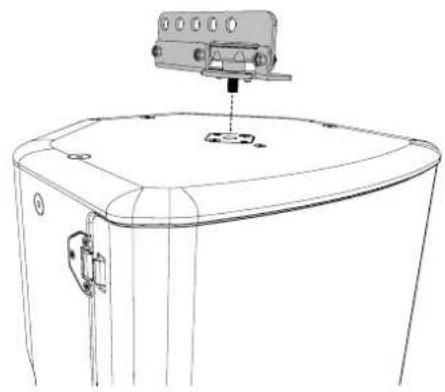

Locate the SBAR40 on to the M10 mounting plate. Tighten hand wheel to secure.

Technical line drawing of a mechanical device with mounting bracket and control panel (no text or symbols)

Line drawing of a front-loading washing machine (no text or symbols)

The SBAR40 can be mounted at the rear for negative angles.

Technical line drawing of a rectangular electronic device with mounting holes and internal components (no text or symbols)

Mounted at the front for positive angles.

Technical line drawing of a rectangular electronic device with mounting brackets and internal components (no text or symbols)

Simple Rigging Bar (SBAR40) Landscape.

Installation for FP6, FP8, FP12, FP15.

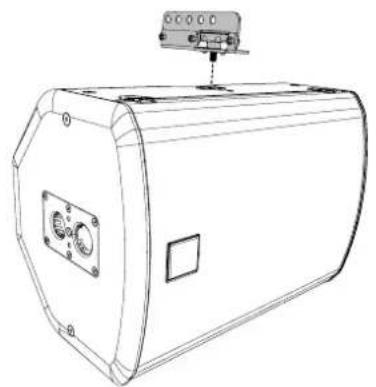

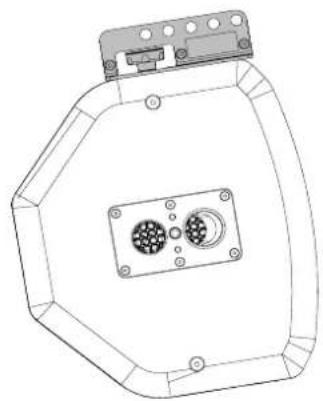

Locate the SBAR40 on to the M10 mounting plate. Tighten hand wheel to secure.

Technical line drawing of a cylindrical industrial device with mounting bracket and control panel (no text or symbols)

Line drawing of a rectangular electronic device with a control panel and mounting bracket (no text or symbols)

The SBAR40 can be mounted at the rear for negative angles.

Mounted at the front for positive angles.

Technical line drawing of a mechanical component with two circular ports and mounting bracket (no text or symbols)

Technical line drawing of a mechanical component with hexagonal base and central mounting holes (no text or symbols)

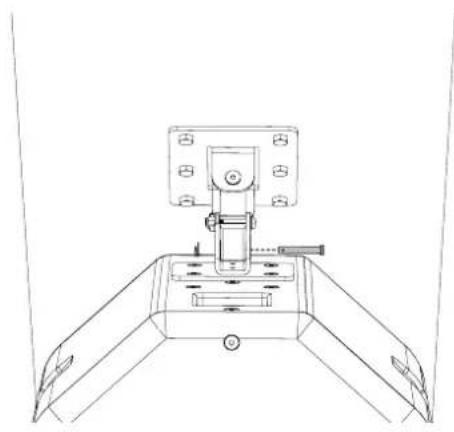

Wall Mounting Brackets (WB) Portrait.

Installation for FP6, FP8, FP12, FP15.

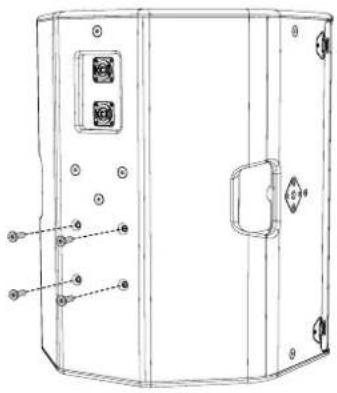

Remove the middle and lower fixings from the cabinet.

Technical line drawing of a rectangular device with mounting holes and internal components (no text or symbols)

Remove the R-Clip and washer from the WB bracket.

Technical line drawing of a mechanical lock assembly with mounting flanges and handle (no text or symbols)

Remove the pivot pin from the WB assembly.

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Separate the two parts of the WB bracket.

Technical line drawing of two mechanical components with mounting holes and a handle (no text or symbols)

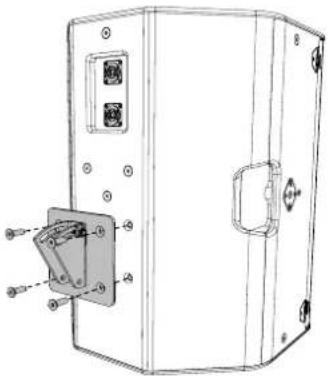

Attach the speaker part of the WB assembly to the cabinet, using the fixings that were removed from the cabinet.

Technical line drawing of a mechanical device with a bracket and mounting holes (no text or symbols)

Line drawing of a rectangular electronic device with switches and buttons (no text or symbols)

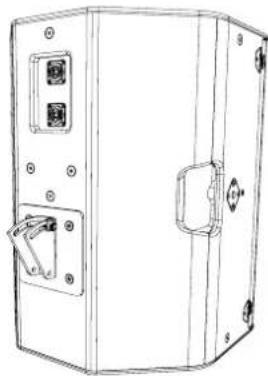

Attach the wall part of the WB assembly to a suitable structure using rated fixings.

Note: These fixings are not supplied by Martin Audio.

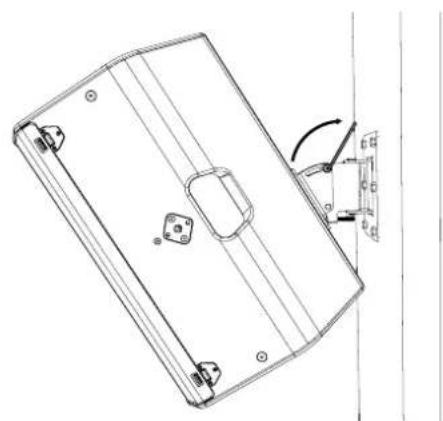

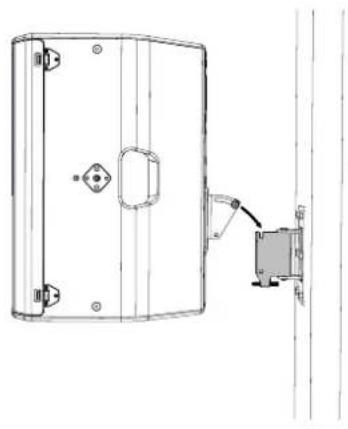

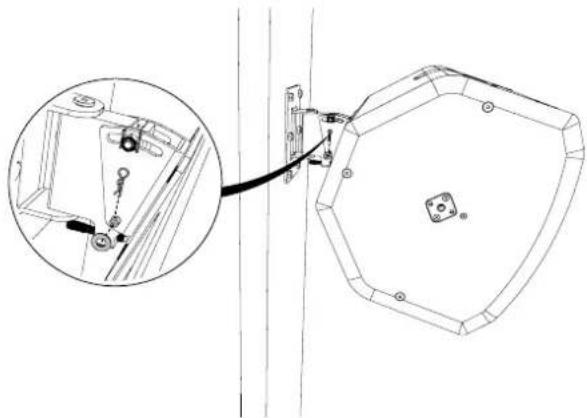

Offer the speaker up to the wall bracket and hook the horizontal bolt into the curved slot.

Technical line drawing of a mechanical component with mounting holes and a close-up view of a bracket (no text or symbols)

Replace the washer and R-Clip to sucure the pivot pin in place.

Technical line drawing of a mechanical device with an inset showing a close-up of a component detail (no text or symbols present)

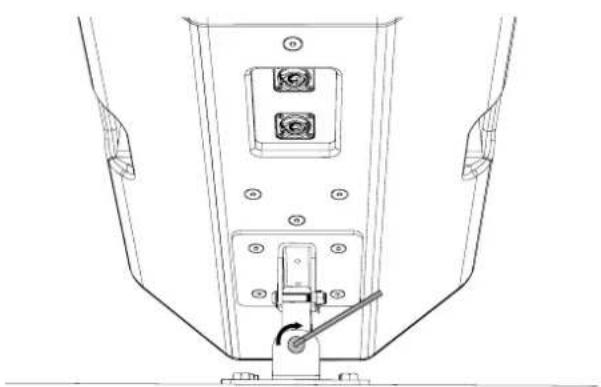

Once the vertical angle is set tighten the top bolt with a 5mm hex tool.

Technical line drawing of a rectangular electronic component with mounting holes and a curved arrow indicating rotation (no text or symbols)

Replace the pivot pin.

Technical line drawing of a mechanical support structure with mounting base and mounting bracket (no text or symbols)

Set the desired downward tilt angle and hold in place with the grub screw.

Set the hozontal angle, then secure using a 5mm hex tool.

Technical line drawing of a mechanical component with mounting holes and a lever mechanism (no text or symbols)

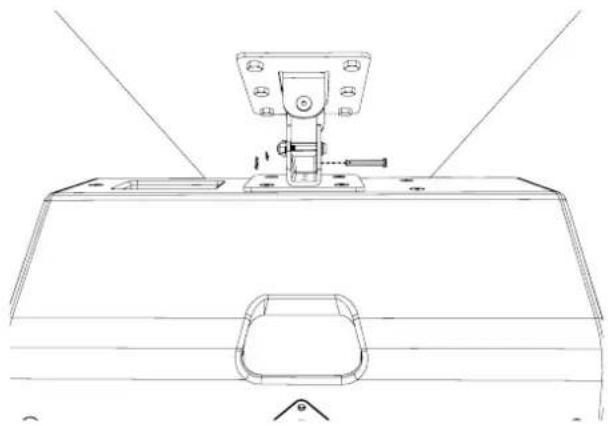

Wall Mounting Brackets (WB) Landscape.

Installation for FP6, FP8, FP12, FP15.

Remove the middle and lower fixings from the cabinet.

Technical line drawing of a device casing with labeled components (no text or symbols)

Remove the R-Clip and washer from the WB bracket.

Technical line drawing of a mechanical assembly with mounting flanges and a handle (no text or symbols)

Remove the pivot pin from the WB assembly. Separate the two parts of the WB bracket.

Technical line drawing of a mechanical assembly with mounting flanges and a handle (no text or symbols)

Technical line drawing of a mechanical bracket assembly (no text or symbols)

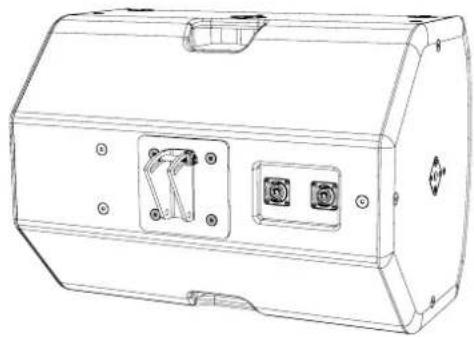

Attach the speaker part of the WB assembly to the cabinet, using the fixings that were removed from the cabinet.

Technical line drawing of a device casing with internal components and mounting holes (no text or symbols)

Technical line drawing of a rectangular electronic device with two internal components and mounting holes (no text or symbols)

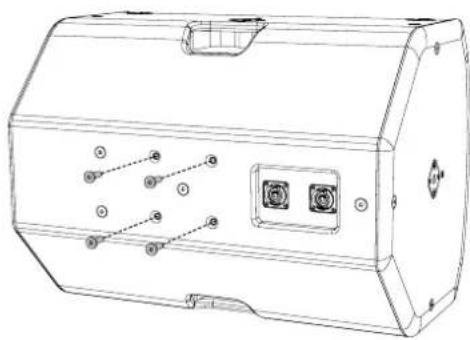

Attach the wall part of the WB assembly to a suitable structure using rated fixings.

Note: These fixings are not supplied by Martin Audio.

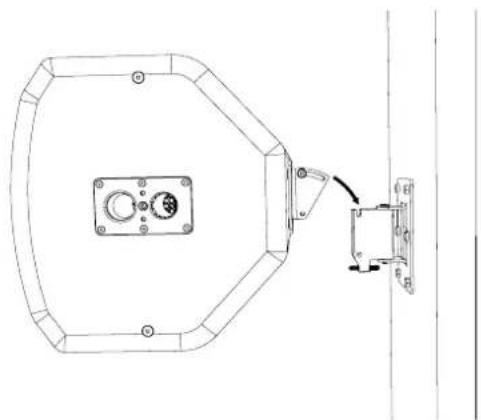

Offer the speaker up to the wall bracket and hook the horizontal bolt into the curved slot.

Technical line drawing of a mechanical assembly with a central component and attached bracket (no text or symbols)

Replace the washer and R-Clip to sucure the pivot pin in place.

Technical line drawing of a mechanical assembly with an inset showing a close-up of a component detail (no text or symbols)

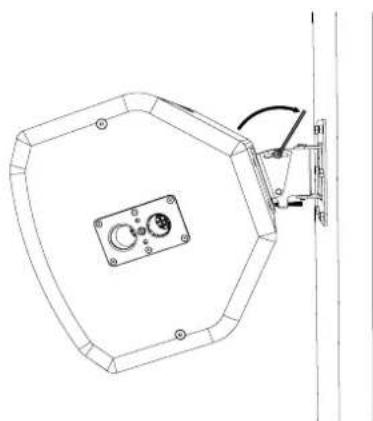

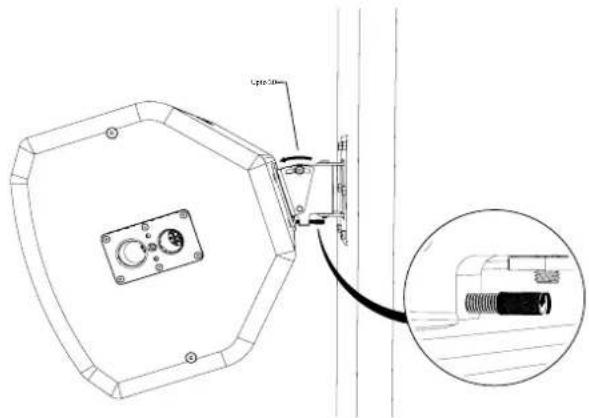

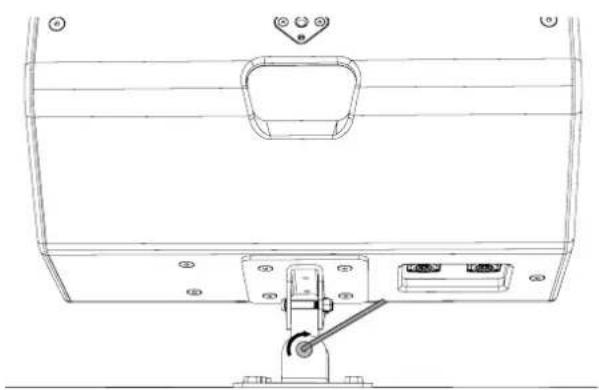

Once the vertical angle is set tighten the top bolt with a 5mm hex tool.

Technical line drawing of a hexagonal mechanical component with mounting holes and a vertical rail (no text or symbols)

Replace the pivot pin.

Technical line drawing of a mechanical assembly with no visible text or symbols

Set the desired downward tilt angle and hold in place with the grub screw.

Set the hozontal angle, then secure using a 5mm hex tool.

Technical line drawing of a mechanical device with mounting bracket and control panel (no text or symbols)

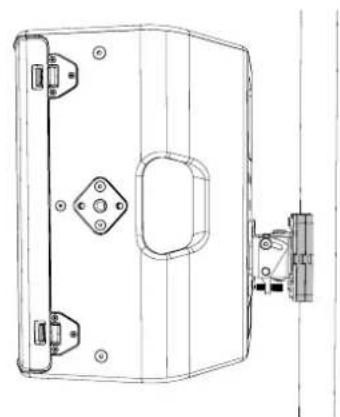

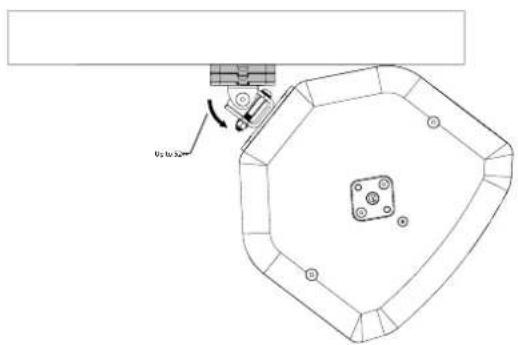

WB Spacers (WB6/8 & WB10/12) Portrait/Landscape.

Installation for FP6, FP8, FP12.

WB6/8 & WB10/12 are designed to be unobtrusive low profile wall brackets for neat and professional installation. When mounted the speaker sits very close to the wall and although maximum tilt angle is available, there is a limit to how much horizontal panning can be achieved.

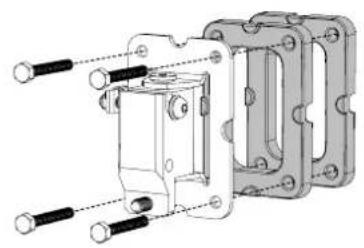

Included with the WB brackets are two spacers, these can be inserted between the bracket and the wall. The spacers allow for more horizontal adjustment with or without vertical adjustment applied.

Attach the wall part of the WB without spacers.

Attach the wall part of the WB with spacers.

Technical line drawing of a mechanical component with multiple cylindrical pins and mounting holes (no text or symbols)

Mechanical assembly diagram showing a housing with mounting flanges and bolted joints (no text or labels)

Technical line drawing of a mechanical housing or enclosure with mounting holes and a central oval component (no text or symbols)

Technical line drawing of a mechanical housing or enclosure with mounting holes and a central oval component (no text or symbols)

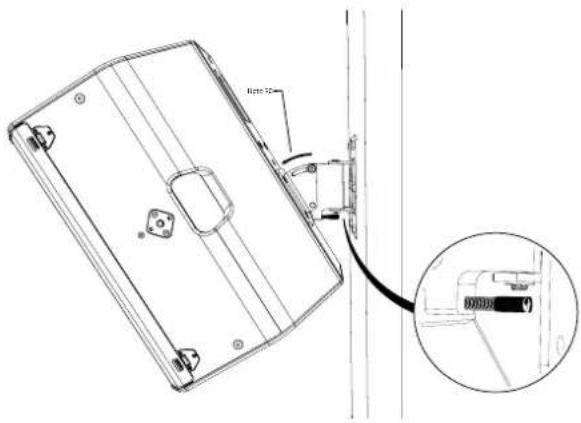

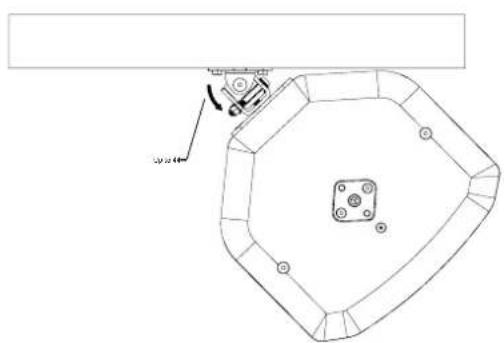

Max angle without spacers up to 44 degrees. Max angle with spacers up to 52 degrees.

Technical line drawing of a mechanical component with no visible text or symbols

Driver Rotation FP6.

Remove the grille by pressing the quick release catches.

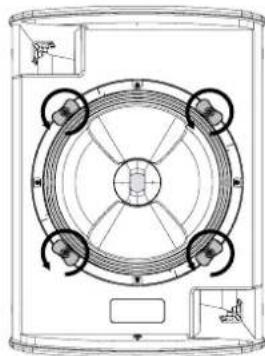

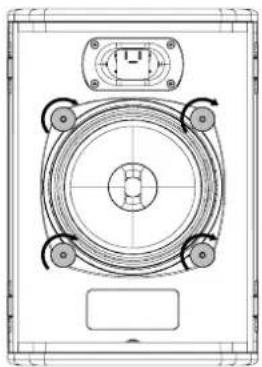

Loosen the captive driver fixings until they are completely free of the cabinet inserts.

Technical line drawing of a rectangular enclosure with mounting holes and a central diamond-shaped component (no text or symbols)

Technical line drawing of a mechanical component with mounting holes and central hub (no text or symbols)

Lift the driver free of the recess in the baffle using two of the driver fixings and rotate through 90 degrees.

Technical line drawing of a speaker or amplifier component with mounting flanges and central hub (no text or symbols)

Technical line drawing of a speaker component with mounting holes and central hub (no text or symbols)

Tighten all thumb wheels to secure the driver.

Replace the grille by lining up the grille slots and pushing into place on both sides.

Technical line drawing of a mechanical component with central hub and mounting holes (no text or symbols)

Line drawing of a rectangular enclosure with mounting brackets and a square opening (no text or symbols)

Driver Rotation FP8, FP12, FP15.

Remove the grille by pressing the quick release catches.

Loosen the captive driver fixings until they are completely free of the cabinet inserts.

Line drawing of a rectangular electronic device with mounting holes and a curved top panel (no text or symbols)

Technical line drawing of a circular mechanical component with four arms and central hub (no text or symbols)

Lift the driver free of the recess in the baffle using two of the driver fixings and rotate through 90 degrees.

Technical line drawing of a circular mechanical component with internal rotation arrow (no text or symbols)

Technical line drawing of a circular mechanical component with mounting holes and internal structure (no text or symbols)

Tighten all thumb wheels to secure the driver.

Replace the grille by lining up the grille slots and pushing into place on both sides.

Technical line drawing of a circular mechanical component with four directional arrows indicating rotation or flow (no text or symbols)

Line drawing of a white cylindrical device with mounting holes and a side panel (no text or symbols)

Pull and rotate the badge through 90 degrees for landscape deployment.

Simple line drawing of a cylindrical container with a small star-shaped symbol on the side (no text or labels)

Simple line drawing of a rectangular container with a small M logo on the side (no text or symbols)

Martin Audio Limited

Century Point

Halifax Road

Cressex Business Park

High Wycombe

Buckinghamshire

HP12 3SL

England

FOR SALES ENQUIRIES:

UK

Telephone: [phone]

E-mail: [e-mail]

NORTH AMERICA

Telephone: [phone]

martin-audio.com

All information is Copyright © 2023 Martin Audio Ltd.

Martin Audio, the Martin Audio logo are registered trademarks of Martin Audio Ltd. in the United Kingdom, United States and other countries; all other Martin Audio trademarks are the property of Martin Audio Ltd.
