USER MANUAL HandStand2 PSW2-1000 PolyJohn

Drain Plug Replacement Instructions

General Overview

This drain plug can be used in any holding tank or sink in which a drain is needed. The opening of the drain is almost 4 times larger than the standard 1/2'' drain which means that your sink can drain about 4 times faster. This drain can be fitted directly where a 1'' drain plug currently is or in any accessible fl at spot in a holding tank or sink. It uses a simple quarter turn locking feature which makes draining the sink faster and easier.

POLYJOHN

USA

PolyJohn Enterprises Corp

2500 Gaspar Ave.

Whiting, IN 46394

Phone: [phone]

Fax: [phone]

www.polyjohn.com

[e-mail]

POLYJOHN

WORLDWIDE

PolyJohn (UK) Ltd.

Equinox 1 Audby Lane

Wetherby, England LS22 7RD

Phone: [phone]

Fax: [phone]

[e-mail]

POLYJOHN

CANADA

PolyJohn Canada

P.O. Box 2300

199 Forest Plain Rd.

Orillia, Ontario LV3 652

Phone: [phone]

Fax: [phone]

[e-mail]

PC-100421 Drain Plug-March 2015

Page 1 of 4

\~\~Tools Required\~\~

- Drill with 1-3/4" Hole Saw - Razor Knife

Installation

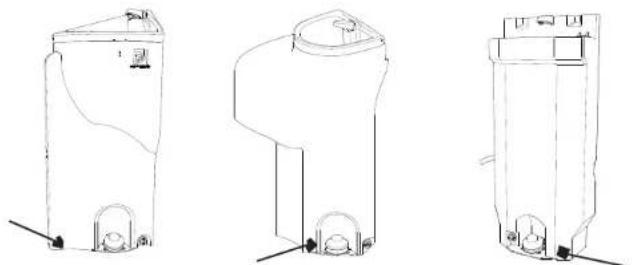

Step 1: If adding this drain to a sink that currently has a 1/2" drain plug, locate a fl at area where there is enough space to put the 1" uniseal (2-1/2' Diameter). The recommended locations for PolyJohn sinks are located below.

Step 2: Using a drill with a 1-3/4" hole saw, drill a hole in the location where the new drain plug is to be located. Clean any burrs or shavings off of the edge of the hole.

Step 2: If replacing a 1" drain plug as used on the Applause and Bravo sinks, remove the drain plug and drill over the spinweld using a drill with a 1-3/4" hole saw as shown in the picture below. Clean any burrs or shavings off of the edge of the hole. NOTE: The fresh water drain plug on the Applause sink cannot be replaced with this drain plug.

Close-up of a mechanical component with a blue and green cylindrical part, possibly a pump or motor, in operation (no visible text or symbols)

PC-100421 Drain Plug-March 2015

Page 2 of 4

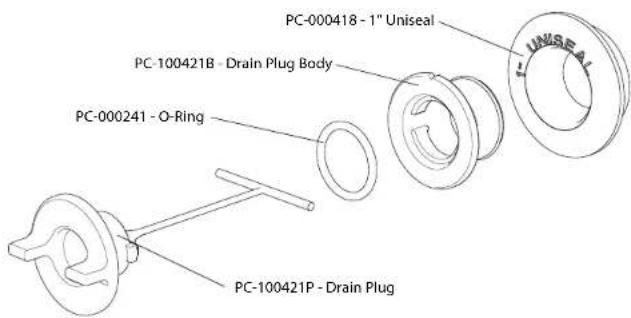

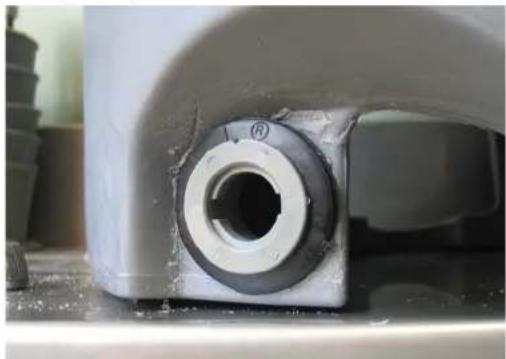

Step 3: Insert the uniseal in the hole. Push the drain plug body into the uniseal. If necessary, apply a bit of dishwashing soap around it and the inside surface of the uniseal to help.

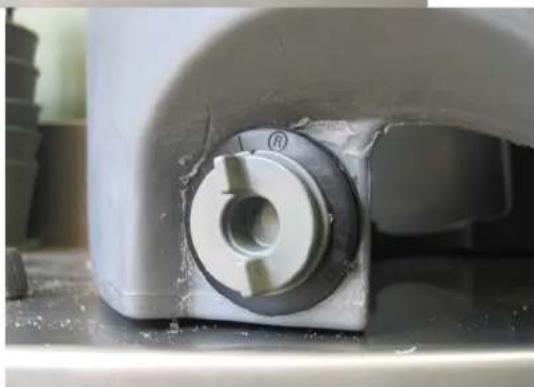

Step 4: Making sure the o-ring is in place under the head of the drain plug, insert the drain plug into the body and turn clockwise until snug.

Close-up of a mechanical component with a central hole and circular shaft, no visible text or symbols

Close-up of a mechanical component with a circular hole and a registered trademark symbol (no readable text or labels)

PC-100421 Drain Plug-March 2015

Page 3 of 4

CLEANING

Use a mild soap to clean all surfaces and component parts.

For a source of cleaning, deodorizing and paper products contact:

COOPER'S OWN

2500 GASPAR AVE.

WHITING, IN 46394-2175

800-292-1305 EXTENSION 514

www.polyjohn.com/products/supplies/cooper-s-own

We highly recommend membership in the Portable Sanitation Association International (PSAI); the worldwide authority on portable sanitation services. The PSAI, "Portable Sanitation Industry Certification Program" manual contains a wealth of information on standards and service procedures. For more information contact the PSAI:

PORTABLE SANITATION ASSOCIATION INTERNATIONAL (PSAI)

7800 METRO PARKWAY, SUITE 104

BLOOMINGTON, MINNESOTA 55425 USA

800-822-3020 / 612-854-8300 FAX [phone]

www.psai.org

MISSION STATEMENT

"Poly John is a family owned, state of the art, plastics manufacturing company dedicated to providing its employees with a work environment committed to excellence, and its customers with innovative products, services and technology that meet or exceed their requirements."
