USER MANUAL BDM8331 HP Becken

Line drawing of a beige washing machine with control panel and buttons (no text or symbols on the device itself)

BDM8331 HP

Tumble Dryer

Secadora

Máquina de Secar Roupa

Instruction Manual

Thank you for purchasing this product. The quality of this appliance has been certified by several laboratory tests. This instructions manual is provided to simplify the use of the appliance as well as to guarantee a safe use. Please read carefully the instructions and safety measures described in this manual.

We sincerely hope you will be satisfied when using your new appliance.

INDEX

1. SAFETY INSTRUCTIONS 4

1.1. Power Supply 4

1.2. Power Cord and Other Cables 4

1.3. Humidity and Water 5

1.4. Cleaning 5

1.5. General Precautions 5

1. OPERATING INSTRUCTIONS 7

2.1. Product Description 7

2.2. Using the Product 9

2.3. Maintenance 14

2.4. Troubleshooting 15

1. TECHNICAL SPECIFICATIONS 16

2. POST-SALE SERVICE 17

3. ENVIRONMENTAL PROTECTION 17

BECKEN

1. SAFETY INSTRUCTIONS

Important Warnings

Before using your appliance read this instructions manual carefully and keep it in a safe place as you may need to consult it in the future.

Before turning on your appliance, and to ensure a safe and correct operation, do not use if:

It has fallen to the ground;
You notice any evidence of damage;
Any anomaly occurs during its operation.

To avoid hazards or deterioration of your appliance through incorrect use it is advisable to read these instructions thoroughly.

Your appliance may not be used for other purposes than the ones intended and solely for household use. Any damage resulting from using the appliance outside this scope, any incorrect use, as well as any manual modifications to the product will not be covered and automatically voids the warranty.

Assistance

Be sure that, in case of malfunction, you take your appliance to a qualified technician for assistance.

This appliance can be used by children from the age of 8 and by people with reduced physical, sensorial or mental capabilities and/or lack of experience and knowledge if they have been given instructions on using the appliance safely and if they understand the hazards involved. Children may not play with the appliance. Cleaning and maintenance must not be carried out by children without supervision.

These instructions are also available on www.suporteworten.pt

1.1. Power Supply

Make sure the main voltage is compatible with the appliance's. If this is not the case please consult the Customer Support Service.
1.2. Power Cord and Other Cables

[you can trust]

Do not tangle the cord or pull it to disconnect the appliance. Also, keep the cord away from warm surfaces.

Never use the appliance if it has a damaged cable or socket.

Take it to the Technical Support Service for replacement.

1.3. Humidity and Water

Do not use your appliance in humid places. Do not allow the appliance to become wet under any circumstances as this may be dangerous. To avoid fire hazard or electric shock do not expose your appliance to humidity or water. Furthermore, do not place your appliance under water (e.g. for cleaning).

1.4. Cleaning

• Before cleaning, be sure to switch off the appliance and remove the plug from the main power supply. Always allow the unit to cool down before cleaning.
  • To clean the exterior of the product use a dry soft cloth only.

1.5. General Precautions

• Please follow the instructions in the user manual which help to properly install and operate this product and enjoy its advanced features. Please keep the instructions for future reference.
• Read all instructions before using the product.
• Maintenance and service operations are only to be carried out by authorized professionals.
• Any damage caused by manual modifications to the product is not covered by the warranty.
• If this product is used for other purposes than the ones originally intended, or if it is not correctly connected, the product may become damaged and the warranty will be voided.
• This product is a class Category electrical appliance, and is only intended for drying textiles which have been washed with water in the household. Please pay ensure power is used safely during operation!
• A power source with reliable earthing must be used. By rule, the power supply must be earthed and not in contact with public infrastructure such as gas or water pipes etc. Ensure these different networks are identified and that they are non in contact with each other at any point.
• The maximum load of dry textile material which can be used in the appliance is 8 kilograms.
• The tumble dryer is not to be used if industrial chemicals have been used for cleaning.
• Do not dry unwashed items in the tumble dryer.
• Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot water with extra detergent before being dried in the tumble dryer.
• Items such as foam rubber (latex), shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the tumble dryer.
• Fabric softeners, or similar products, should be used as specified by the fabric softener instructions.
• The final part of a tumble dryer cycle occurs without heat (cool down cycle) to ensure that the items are left at a temperature that ensures that they will not be

Tumble Dryer | Secadora | Máquina de Secar Roupa

BECKEN

damaged.

• The lint trap has to be cleaned frequently.
- Lint must not to be allowed to accumulate around the tumble dryer.
- Adequate ventilation has to be provided to avoid the back flow of gases into the room from appliance burning other fuels, including open fires.

WARNING: never turn off a tumble dryer before the end of the drying cycle, and if you do so for whatever reason, quickly remove and spread out all items so that the heat is dissipated.

• The exhaust air must not be discharged into a flue which is used for exhausting fumes from appliances which burn gas or other fuels.
• The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge facing the tumble dryer, in such a way that the tumble dryer door cannot be fully opened.
• Keep pets away from this appliance.
• Items containing oil can ignite spontaneously, especially when exposed to sources of heat such as a tumble dryer. The items become warm, causing an oxidation reaction in the oil. Oxidation creates heat. If the heat cannot escape, the items can become hot enough to catch fire. Piling, stacking or storing items containing oil can prevent heat from escaping and pose a fire hazard.
• If fabrics that contain vegetable/cooking oil or hair care products must be placed in a tumble dryer, they should first be washed in hot water with extra detergent – this will reduce, but not eliminate, the risk.
• The appliance should not be overturned during normal use or maintenance.
• Remove all objects from pockets such as lighters and matches.
• This appliance can be used by children aged 8 years old and above and persons with reduced physical, sensory or mental capabilities or who lack the necessary experience and knowledge provided they are supervised or have been given instruction concerning the use of the appliance in a safe way, and that they understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance must not be done by children without supervision.
• If the power cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
  • This appliance is for indoor use only.
  • The openings must not be obstructed by a carpet.
• Children aged 3 or under should be kept away from the appliance unless under constant supervision.
• If the appliance appears abnormally hot, please immediately unplug it from the mains.
• The power cord must meet IEC standards and must be able to withstand the currents listed in the table below.

[you can trust]

2. OPERATING INSTRUCTIONS

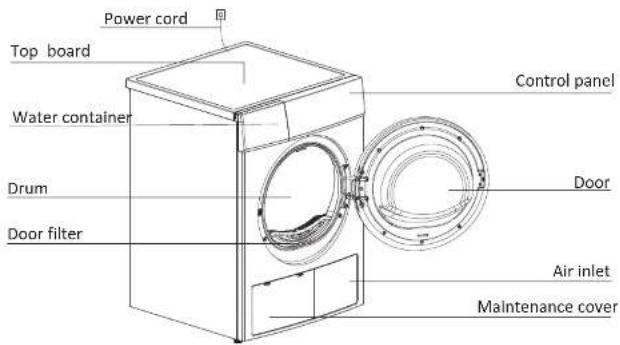

2.1. Product Description

Accessories

The following parts are optional for specific models.

If your dryer has the following parts, please install using the installation steps below.

Installation steps:

Step 1: remove the drain hose from the hose connector using pliers.

Step 2: insert the external drainage hose.

Step 3: place the hose holder in a washing basin or any other sink.

Tumble Dryer | Secadora | Máquina de Secar Roupa

BECKEN

Quick start

1. Check if the water condensation container and filters have been cleaned out
2. Open the door and load the laundry
3. Close the door
4. Plug in the power cord, press the [On/Off] button
5. Select the desired programme
6. Press the [Start/Pause] button
7. Remove the laundry when finished
8. Press the [On/Off] button
9. Clean the filters and empty the condensed water container
10. Unplug the power cord

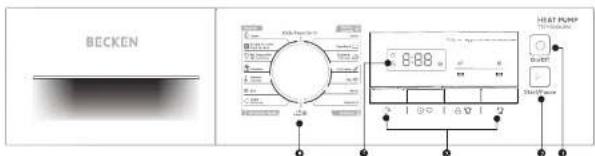

Control-panel description

① On/Off

Product is switched on or off.

2 Start/Pause

Press the button to start or pause the drying cycle.

Option

These buttons are used for setting additional functions.

4 Display

The display shows the setting, estimated program time remaining and status messages of your dryer.

5 Programmes

Different drying cycles can be selected according to the users need and the type of laundry to be dried.

[you can trust]

2.2. Using the Product

Dry Care Symbols

When using your dryer, please pay attention to whether or not the fabrics can be tumble dried and to the following symbols which may be present on your clothes:

Dry	Normal[0224]	Do not tumble dry	Do not dry
Line dry / hang to dry	Drip dry	Dry flat	Dry in the shade
Dry clean[0Y3T]	Do not dry clean[00A5]	Dry clean, any solvent[22ZW]	Dry clean, hydrocarbon solvent only[00Y6]

Electric shock hazard

1. Do not unplug the appliance by pulling on the power cord. Pull the plug instead.
2. Please do not plug/unplug the mains plug with wet hands.
3. Do not damage the power cord and the power plug as this may pose a hazard.
4. Do not disassemble and install the dryer without instructions or supervision.
5. Do not stack this dryer on a washing machine without stacking kits. (if you wish to stack it on washing machine, please purchase the requisite parts and have them installed by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.)
6. Do not lean on the open dryer door.
7. Do not place any pyrotoxin on the dryer, such as the candle, electric cooker.

Damage danger

1. Do not load the dryer beyond capacity.
2. Do not operate the dryer without the filter door and the filter base.
3. Do not dry the clothes before spinning them.
4. Do not expose the dryer directly to sunlight – for indoor use only.
5. Do not install the dryer in a damp or wet environment.
6. When cleaning or performing maintenance, please remember to disconnect the power plug and do not directly wash the dryer with water.

Explosion danger

Please do not dry clothes with flammable substances such as coal, oil or alcohol as this may result in an explosion.

Tumble Dryer | Secadora | Máquina de Secar Roupa

BECKEN

Transport

Be cautious. Do not grasp any salient parts of the machine. The machine door cannot be used as a support during transport. If the dryer can't be transported in an upright position, it can be slanted at just under 30°.

Installation Position

1. For your convenience, it is recommended that the machine is positioned close to your washing machine.
2. The tumble dryer must be installed in a clean place, where dirt does not build up. Air must be able to circulate freely all around the appliance. Do not obstruct the frontal air inlet or the air intake grills at the back of the machine.
3. To keep noise and vibration to a minimum when the dryer is in use, it should be placed on a firm and level surface.
4. The feet must never be removed. Do not restrict the floor clearance through deep pile carpets, strips of wood or similar. This might cause heat built-up which will interfere with the appliance's operation.

Three identical line drawings of a washing machine with cross symbols, placed on a textured surface (no text or labels)

Ensuring the dryer is level

Once in its permanent operating position, check that the dryer is absolutely level with the aid of a spirit level. If it is not, adjust the feet with a tool.

Power Supply Connection

1. Make sure that the power supply voltage is the same as the electric specification of the dryer.
2. Do not connect the dryer to a power extension, a universal plug or socket.

Warnings

! Let the dryer stand for 2 hours after transport (BDM2741 HP only). Before first use, please use a piece of soft fabric to clean the inside of the drum.

a) Put some clean rags into the drum.
b) Plug in the power cord, press [On/Off].
c) Select the [Refresh] Programme, press the [Start/Pause] button.
d) After finishing this programme, please follow the "cleaning and routine maintenance" instructions (refer to page 16) to clean the filter door.
! During drying, the compressor and the water pump generate some noise which is entirely normal (BDM2741 HP only).

[you can trust]

Advice

1. Before drying, thoroughly spin the laundry in the washing machine. High spin speed can reduce the drying time and reduce energy consumption.
2. For a uniform drying result, sort the laundry according to fabric type and drying programme.
3. Before drying, please close zips, hooks and eyelets, do up any buttons, tie fabric belts, etc.
4. Do not over dry the clothes, because over dried clothes can easily get creases or shrink.
5. Do not dry articles containing rubber or similar elastic materials such as raincoats, bicycle covers, etc.
6. The door must only be opened after the drying programme is over. Do not open the door before the programme finishes to avoid scalding yourself with hot steam or on the drying machine itself.
7. Clean the lint filter and empty the condensed water container after each use to avoid extended drying time and additional energy consumption.
8. The reference weight of dry clothes

Mixed-fabric coats (about 800 g)	Jacket (about 800 g, cotton)	Jeans Trousers (about 800 g)	Towel Quilts (about 900 g, cotton)
Single Sheets (about 600 g, cotton)	Work Clothes (upper and lower) (about 1120 g in cotton)	Pyjamas (about 200 g)	Long sleeve shirts (about 300g in cotton)
Short sleeve shirts (about 180g in cotton)	Underpants (about 70 g, cotton)	Socks (about 30 g, mixed)

Select the programme

1. Press the [On/Off] button. When the working state LED lights up, rotate the programme knob to select the desired programme.
2. Select the [Delay], or [Anti-Crease] functions for additional options.
3. Press the [Start/Pause] button.
   Start of the Programme
   The drum will keep rotating after the start of the programme, and the working state LED will flash in sequence.

Note:

Occasionally, the drum might suspend for about 40 seconds during the drying procedure, but the working state LED flashes normally. The dryer is automatically adjusted during this time and will continue operating.

Tumble Dryer | Secadora | Máquina de Secar Roupa

BECKEN

End of the Programme

1. The drum will stop turning after the end of the programme, the working state LED will stay lit and a buzzer will go off. The "Filter" and "Full" LEDs will remind the user to clean the filters and the condensed water container. The dryer will start the [Anti-crease] function if the user doesn't remove the load in time [refer to page 15]. Please press the [On/Off] button to cut off power and pull the plug out.
2. Deal with the problem according to the "Malfunction warnings and solutions", if there is an unexpected stop during the drying procedure and the dryer displays a warning signal [refer to page 18].

Programme table

Programme		Max Load	Application/Properties
Cotton	Extra	8.0kg	For single or multi-layer cotton laundry to be dried completely direct storage.for
	Standard
	Iron		For single layer cotton laundry to remain damp ironing.for
Delicate		1.0kg	For delicate laundry that is suitable for drying or laundry to be hand washed at low temperature.adviced
Mix		3.5kg	For mixed fabrics from cotton and synthetics.
Synthetics	Extra	3.5kg	For thick or multi-layer synthetic to be dried completely .fabrics
	Standard		To dry thin synthetic textiles, which are not ironed, such as easy care shirts, baby cloths or socks.
Wool		1.0kg	To refresh you wool items and make them more fresh and fluffy.
Special	Jeans	4.0kg	To dry jeans or leisure clothes that are spun at high speed in the washing machine.
	Bed Linen	4.0kg	To dry bed linen, bed sheets or other large items.
	Sports	3.0kg	To dry sportswear and thin fabrics from polyester, which are not ironed.
	Shirts	1.0kg	For easy care laundry, such as shirts and blouses equipped with anti-crease functionality to minimize the ironing effort . Place clothes loosely in the dryer. Once dried, remove quickly and hang it on a clothes hanger.
My Cycle		—	Define and save your favourite programme.
Time	Warm	—	To dry individual items or complete the drying process of multi-layer fabrics with different drying behavior, such as jackets, pillows or voluminous items. Min 10 min. to max. 120 min.(in 10 min.steps)
	Cool	—	To air items without heating. Min. 10 min to max. 30 min.(in 10 min. steps)
	Refresh	1.0kg	To refresh clothes kept at closed environment for a long time or to remove odors. Min. 20 min to max. 150 min.(in 10 min. steps)

[you can trust]

Special drying functions

1. Instruction to Delay the drying procedure

To delay the drying programme 3h, 6h, 9h or 12h.

When the delayed programme starts, the time starts to decrease and the LED lights up.

Detailed steps

(1) Load your laundry into the dryer and make sure the door is closed.
(2) Press the [On/Off] button, then turn the programme selector knob and select the desired programme.
(3) You can select the [Anti-Crease] function according to your needs.
(4) Press the [Delay] button.
(5) Continue to press the [Delay] to select the delay time.
(6) After the [Start/Pause] button is pushed, the dryer is in operation. The drying procedure will automatically be performed when the delay time is over.
(7) If you push the [Start/Pause] button again, the delay function will be paused.
(8) If you want to cancel the "Delay" function, please press the [On/Off] button.

2. Instructions for the (Anti-Crease) function

At the end of the drying cycle, the anti-crease operation time is 30 minutes [default] or 120 minutes [selected].

The [Anti-Crease] LED shall light up when the anti-crease function is selected. This function prevents the laundry from becoming creased. The laundry can be removed during the anti-crease phase. With the exception of [Cool], [Refresh], [Warm 30'] and (Warm 60'), all the other programmes have this function.

3. Instructions for the (Child Lock) feature

(1) This machine incorporates a special child safety lock, which can prevent children from carelessly pressing buttons or making a faulty operation.
(2) When the dryer is operational, press the [Anti-Crease] and [Delay] buttons at the same time for over 3 seconds to start the child lock function. When the child lock function is set, the corresponding LED will be lit, and no button will work on the dryer except the [On/Off] button. Once the child lock is on, pressing the [Anti-Crease] and [Delay] buttons simultaneously for over 3 seconds will turn off the child lock function.

Tumble Dryer | Secadora | Máquina de Secar Roupa

BECKEN

2.3. Maintenance

Cleaning and routine maintenance

Empty the condensed water container

1. Hold and pull out the condensed water container with two hands;
2. Tilt the condensed water container, pour out the condensed water into a basin;
3. Install the condensed water container.

WARNING:

1. Empty the condensed water container after each use. Any ongoing programme will be paused and the Full LED lit if the condensed water container is full during the drying process. After the container is emptied, the dryer can be restarted by pressing the [Start/Pause] button.
2. Do not drink the collected water.
3. Do not use the dryer without the condensed water container.

Clean the filter door

1.Open the door.
2. Take out the filter door.
3. Clean the filter door; wipe off the scrap threads accumulated on the filter door.
4. Reinsert the filter door.

Filter door

Clean filter base (Only BDM2741 HP)

1. Open the maintenance cover.
2. Untighten both locking leavers towards each other.
3. Clean the filter base completely.
4. Re-insert the filter base!
5. Tighten both locking levers.
6. Push the maintenance cover closed until it locks into position.

Maintenance cover

NOTE!

1. The fluff accumulated on the filter will block air circulation, which will prolong drying time and increase energy consumption;
2. You must disconnect the power cord before cleaning!
3. You must not operate the dryer without the filter!
4. Clean the filter after each use to prevent lint accumulation inside the dryer.

[you can trust]

Clean heat exchanger (only BDM2741 HP)

As necessary (approx. once every 2 months) remove the fluff from the heat exchanger using the sponge or a soft brush. When doing this, please use gloves.

Note: The fluff can be removed more easily if it is first dampened e. g. with a laundry dampener.

Wash air condenser (only BDM2741 HP)

Let the dryer to cool down.
Residual water may escape, place an absorbent cloth
under the maintenance cover.

1. Unlock the maintenance cover.
2. Fully open maintenance cover.
3. Tighten both locking levers towards each other.
4. Pull out the air condenser.
5. Clean the air condenser completely and drain it thoroughly.
6. Clean the seals.
7. Re-insert the air condenser, handle at the button!
8. Untighten both locking levers.
9. Close the maintenance flap until it locks into position.

Please clean the air condenser approx. once every 3 months if frequently used. Do not damage the air condenser!

A. Clean with water only; do not use hard/sharp-edged objects!
Do not operate the dryer without the air condenser!
B. During drying, water may collect between the window and the seal, but this does not affect your dryer's working condition!
To ensure your and your family's safety, if your home power supply does not meet the above-mentioned requirements please make the necessary improvements immediately.

2.4. Troubleshooting

Display	Reason	Solutions
"Full" LED on permanently	Container is full	Empty the condensed water container
	Water pump failure or water level sensor failure	Please contact your local service centre if the problem persists
Child Lock + 9h	Temperature sensor failure
Child Lock + 6h	Humidity sensor failure
Child Lock + 3h (BDM2741 HP only)	Heater failure

Tumble Dryer | Secadora | Máquina de Secar Roupa

Line drawing of a device with attached cable and connector (no text or symbols)

BECKEN

Precautions

Only authorised technicians can carry out repairs.

Before you call customer service, please ensure you have tried to correctly identify the problem following the appropriate instructions.

A technician will charge you for advice, even during the warranty period.

Problem	Solution
Working state LED not on	Check the mains plug is connected.Check the selected programme.Check all the relevant fuses.
“Full” LED on permanently	Empty the condensed water container.If failure, check the condensation outlet hose.
Dryer does not start	Check the start button is engaged.Check the door is closed.Check the programme is set.
Water is leaking	Ensure the dryer is level.Clean the air condenser and the door seals.
Door opens by itself	Press door until it “clicks” into position.Ensure the dryer is not overloaded.
Humidity in the room increases significantly	Ventilate room adequately.Clean the cooling grill.Ensure that the air condenser has been inserted.
Dry Level was not reached or the drying time is too long	Clean the lint filter and wash the condenser.Empty the condensed water container.Check water outlet.Dryer installation too restricted.Clean the moisture sensors.Try the next Dry Level up or a Timer programme.

If you cannot deal with the faulty by yourself and need help:

1. Press the [On/Off] button.

2. Pull out the mains plug and call the service centre.

3. TECHNICAL SPECIFICATIONS

Power supply	220-240V~50Hz	Note:1. The rated capacity is the maximum capacity, ensure that the dry weight of the clothes does not exceed the rated capacity each time they are loaded into the appliance.2. Do not install the tumble dryer in a room when there is a risk of frost occurring. At temperatures around freezing point, the tumble dryer may not be able to operate properly.3. There is a risk of damage if the condensed water is allowed to freeze in the pump, hoses and/or condensed water.
Rated input power	800 W
Refrigerant	R290
Ambient temperature	+ 5°C ~ +35°C
Overall Size	650*595*845(mm)
Rated Drying Capacity	8.0kg
Net Weight	49kg

Contains fluorinated greenhouse gases covered by the Kyoto Protocol. Hermetically sealed

Product datasheet

• Brand: BECKEN
  • Model: BDM8331 HP
• Rated capacity: 8kg
• Dryer Type: Condenser
  • Energy efficiency class: A++
  • Energy consumption 234.2kWh per year, based on 160 drying cycles of the

standard cotton programme at full and partial load, and the consumption of the low-power modes. Actual energy consumption per cycle will depend on how the appliance is used.

• Automatic or non-automatic: Automatic
• EU Ecolabel: N/A
• Energy consumption for the standard cotton programme at full load: 1.90 kWh
• Energy consumption for the standard cotton programme at partial load: 1.10 kWh
• Power consumption for the off-mode (PO): 0.4 W
• Power consumption for the left-on mode (PLO): 0.8 W
• Left-on mode duration: 10 min

The 'standard cotton programme' used at full and partial load is the standard drying programme on which the information on the datasheet is based. This programme is suitable for drying normal wet cotton laundry and is the most efficient programme in terms of energy consumption for cotton.

Weighted programme time for the standard cotton programme at full and partial load: 135 min

Programme time for the standard cotton programme at full load: 175 min Programme time for the standard cotton programme at partial load: 105 min

Condensation efficiency class B on a scale from G (least efficient) to A (most efficient).

Average condensation efficiency for the standard cotton programme at full load: 81% Average condensation efficiency for the standard cotton programme at partial load: 81% Weighted condensation efficiency for the standard cotton programme at full and partial load: 81%

Noise level for the standard cotton programme at full load: 69dB

4. POST-SALE SERVICE

BECKEN has designed this appliance in order to guarantee maximum reliability. However, if a problem occurs do not attempt to open the appliance - there is a risk of electrical shock. If you are not able to solve the problem, please contact the Costumer Support Service of any Worten, Modelo or Continente store in order to be assisted. Worten Equipamentos para o Lar provides a 2-year warranty for manufacturing defects from the date of purchase of the appliance.

WARNING: Any attempt to repair the appliance without contacting the manufacturer or seller will void the warranty.

All users must be familiar with these instructions. Knowing what could go wrong can help prevent problems from occurring.

5. ENVIRONMENTAL PROTECTION

In order to protect the environment we strive to reduce the volume of packaging used, limiting it to three easily sorted materials: cardboard, paper and plastic. The appliance is manufactured using recyclable materials after disassembled by a specialized company. Please comply with local regulations concerning the recycling of all materials.

[you can trust]

Tumble Dryer | Secadora | Máquina de Secar Roupa

Estimado cliente:

Three identical diagrams showing a washing machine placed on a surface, with no text or symbols present.

Two technical diagrams showing hands installing or adjusting a mechanical component, with no visible text or symbols.

ADVERTENCIA:

Diagram of a device with a plug inserted into a container, showing mechanical components and wiring (no text or symbols)

Tumble Dryer | Secadora | Máquina de Secar Roupa

BECKEN

Three identical diagrams showing a washing machine on a surface, with no text or symbols present.

Diagram of a device with attached components, showing no text or symbols

Tumble Dryer | Secadora | Máquina de Secar Roupa

BECKEN

Imported, produced and distributed by:

Worten Equipamentos p/o Lar S.A.
