PDWM223RD - Microphone Pyle - Free user manual and instructions

Product Type	Dual Wireless Microphone System
Model	PDWM223RD
Brand	Pyle
Microphone Type	Handheld Dynamic Microphones
Number of Microphones	2
Frequency Band	UHF 500-900 MHz (varies by region)
Operating Range	Up to 100 meters (300 feet) line-of-sight
Power Source (Receiver)	DC 12V adapter (included)
Power Source (Microphones)	2 x AA batteries per microphone (not included)
Battery Life	Approximately 8-10 hours (alkaline)
Audio Output	1/4" (6.3mm) unbalanced and XLR balanced
Frequency Response	50 Hz - 15 kHz
S/N Ratio	> 100 dB
THD	< 0.5%
Dimensions (Receiver)	19" rack mountable, 1U height
Weight (Receiver)	Approximately 2.5 kg (5.5 lbs)
Dimensions (Microphone)	Length: 25 cm (10"), diameter: 5 cm (2")
Weight (Microphone)	Approximately 250 g each (with batteries)
Main Features	Dual independent channels, LCD display, adjustable squelch, infrared sync
Maintenance	Clean with a dry cloth; avoid moisture and extreme temperatures; remove batteries when not in use
Safety	Do not expose to rain; use only specified power adapter; keep away from heat sources
Spare Parts / Repairability	Contact Pyle customer service for replacement parts; user-replaceable batteries only
General Information	Ideal for karaoke, presentations, and live events; includes two microphones and one receiver

Frequently Asked Questions - PDWM223RD Pyle

How do I pair the microphones to the receiver?

Turn on the receiver and press the 'SYNC' button on the receiver. Then turn on the microphone. The infrared sensor on the microphone should face the receiver. The receiver will automatically sync the frequency. If pairing fails, try replacing batteries or moving closer.

What type of batteries does the microphone use?

Each microphone requires 2 x AA batteries. Alkaline batteries are recommended for best performance. Do not mix old and new batteries.

How long does the battery last?

With fresh alkaline batteries, the microphone can operate for approximately 8-10 hours. Battery life may vary depending on usage and battery quality.

What is the operating range of the wireless system?

The system has an operating range of up to 100 meters (300 feet) in open line-of-sight conditions. Walls and obstacles can reduce the range significantly.

Can I use both microphones simultaneously?

Yes, the receiver is designed to handle two microphones simultaneously on separate channels. Each microphone operates on its own frequency to avoid interference.

How do I adjust the volume or squelch?

The receiver has separate volume controls for each channel (AF level) and an adjustable squelch control. Use a small screwdriver to adjust the squelch to minimize background noise while maintaining range.

What should I do if I experience interference or dropouts?

First, check that the microphones and receiver are on the same frequency. Move the receiver away from metal objects and other wireless devices. Try changing the frequency using the 'UP/DOWN' buttons on the receiver and resyncing the microphones.

Is the receiver compatible with other audio equipment?

Yes, the receiver provides both XLR balanced and 1/4'' unbalanced outputs. Connect to mixers, amplifiers, or speakers using standard audio cables.

Can I mount the receiver in a rack?

Yes, the receiver is designed as a 1U rackmount unit. It comes with rack ears that can be attached for mounting in a standard 19-inch rack.

How do I clean and maintain the microphones?

Wipe the microphone body with a soft, dry cloth. Do not use liquids or abrasive cleaners. Store in a cool, dry place. Remove batteries if storing for long periods.

USER MANUAL PDWM223RD Pyle

Questions? Comments?

We are here to help!

Phone: [phone]

Email: [e-mail]

PYLE®

PyleUSA.com

Black hard case with open case containing multiple microphones and a handheld device (no visible text or symbols)

PDWM221WT - PDWM223RD - PDWM224BK - PDWM226GR

Portable Universal Wireless Microphone System

UHF Quad Channel Addressable Frequency,

Includes (4) Handheld Microphones

USER GUIDE

PLEASE READ THIS MANUAL CAREFULLY BEFORE OPERATION

Features:

• UHF Band Receiver System
• Quad Frequency 4-Channel Design (Channel 1, 2, 3, 4) Addressable Frequency
- Broad Frequency Response Range & Low Distortion
• High Signal/Noise Ratio Performance
• RF Signal Indicator on LCD Screen
• Radio Frequency Display on LCD Screen
• 1 XLR Output Connector Jacks (as only one receiver)
• Independent Channel Adjustable Frequency Controls
• Universal Portable Microphone System

What's in the Box:

• (4) Wireless Microphone
• (8) 'AA' Battery
• (1) USB to Micro USB Charging Cable
• (4) Plastic Microphone Anti-Drop Rubber Ring
• (4) Microphone Sponge
• (1) Microphone Receiver
• (1) 3.5mm Jack Audio Input Connector
• (1) 18650mA Battery
• (1) Plastic Case

Transmitter Technical Specs:

• Frequency Range: 500-938MHz
• Number of Channels: 16
• Oscillation Mode: DSP Chip Frequency Lock
• Stability: ±10ppm
• RF Power: 10dBm
• Audio Frequency Response: 40-18000Hz
• Distortion Degree: <0.5%
• Battery Type: 1.5V, 'AA' Alkaline Battery
• Battery Life: 4-8 Hours

Receiver Technical Specs:

• Frequency Response: 500-938MHz
- Use LCD Screen Display
• Oscillation Mode: DSP Chip Frequency Lock
• Stability: ±10ppm
• Receiving Sensitivity: -95-72 dBm
• Audio Frequency Response: 40-18000Hz
• Distortion Degree: <0.5%
• Signal To Noise Ratio: >90dB
• Audio Output: 300mv (Maximum)

Pairing (pairing ID code + pairing frequency):

The "Frequency Hopping Mode" is a brandnew operation mode introduced by this program. The data is sent wirelessly by the hand microphone to the receiver for pairing. After the pairing is successful, the frequency point of the hand microphone will switch between these 10 frequency points.

The hand microphone can manually change the frequency at any time.

The receiver will automatically follow and jump to the corresponding frequency. In this way, it not only solves the crosstalk problem, but also provides the flexibility of frequency setting. Products using frequency hopping have been widely recognized by the market and meet the requirements of most products. KTV rooms, hand boxes, teaching, personal entertainment and other occasions to be applicable.

Performance and Characteristics

1. UHF 500MHz-938MHz frequency band is used.
2. Using one-dimensional code + frequency for data encryption and frequency (even when the same frequency is used to receive, the internal chip and is interfered by RF, it will only affect the connection range. If the two receivers are separated by a certain distance (for example, 10 meters), the frequency re-use can be considered.
3. With automatic mute and impact elimination circuit, help to avoid the impact and noise of the mic switch.

1. The hand microphone has an LED digital tube display function that can intuitively display the current frequency.
2. The effective distance of wireless transmission is 50-80 meters.
3. The handheld microphone adopts lithium battery circuit design, with overcharge and over-discharge protection.
4. The simple operation interface and few adjustable parts can completely avoid malfunction caused by incorrect operation.
5. The transmitter has a low-voltage detection function. When the battery voltage drops to 2.2V, the battery character flashes.
6. Extremely high pickup sensitivity and excellent sound quality make it easy for you to speak or sing.
7. Multiple devices can be used at the same time, no interference and cross-frequency phenomenon.
8. With power and wireless indicator lights.

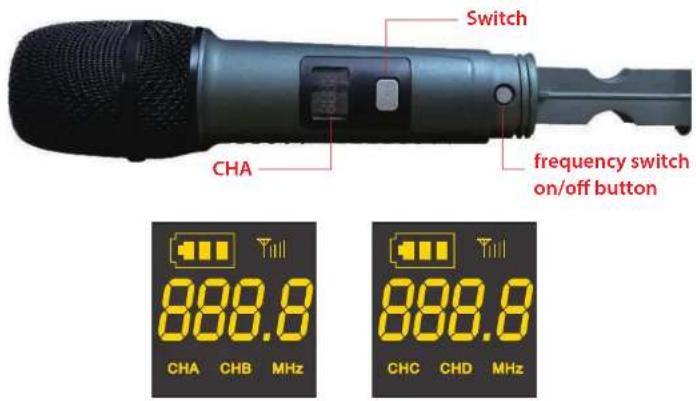

Launch Function Indication:

Switching Frequency:

When powered ON, short press the hidden switch of the battery compartment to switch one frequency at a time.

Paring:

Paring handheld A: When powered ON, press and hold the POWER button for 10 seconds to automatically skip to BCD.

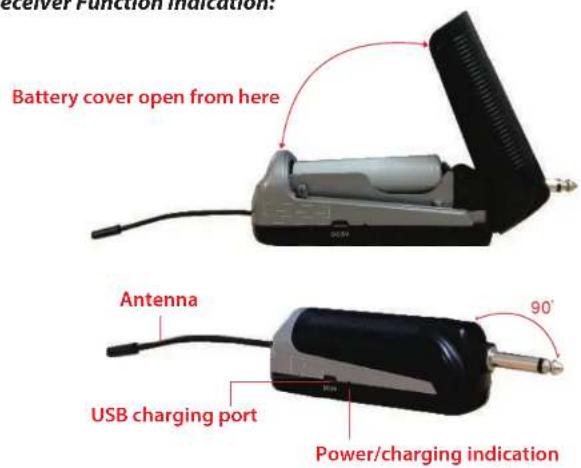

Receiver Function Indication:

Sound Quality

This way of connection can achieve the sound quality effect as using wired connection, its effect can be very close. No compression or expansion is needed to preserve the original sound. The frequency response, transience and linearity of the sound are excellent, very close to the sound quality of the wired microphone.

Crosstalk

The wireless microphone uses all-digital wireless transmission chip which is different from the traditional modulation and demoduation method which keeps the sound real. The system's transmitter and receiver chip uses digital encryption for transmission even if the same frequency is used. As long as the ID code is set differently, there will be no crosstalk.
