PPT220-11 - Vacuum Cleaner Numatic - Free user manual and instructions

Product Type	Canister Vacuum Cleaner
Brand	Numatic
Model	PPT220-11
Dimensions (L x W x H)	Approx. 40 cm x 40 cm x 45 cm
Weight	Approx. 8.5 kg
Power Consumption	1400 W
Dust Capacity	15 L
Filtration System	HEPA H10 filter
Noise Level	~72 dB(A)
Cord Length	12 m
Hose Length	2.5 m
Accessories Included	Crevice tool, upholstery nozzle, floor brush
Color	Red and gray
Material	High impact plastic
Voltage	220-240 VAC, 50/60 Hz
Motor Type	Dry only motor with thermal protection
Filter Maintenance	Washable HEPA filter, replace every 6 months
Safety Features	Overheat protection, large on/off pedal
Repairability	Spare parts available; brush bar and filters user-replaceable

Frequently Asked Questions - PPT220-11 Numatic

How do I assemble the Numatic PPT220-11?

Attach the hose to the inlet on the front of the cleaner. Secure the floor tool to the wand. Push the wand onto the hose handle. Ensure all connections click into place.

What filter does my PPT220-11 use and how do I clean it?

It uses a HEPA H10 washable filter. Turn off and unplug the vacuum. Remove the top cover and lift out the filter. Rinse under cold water, let dry completely before reinstalling.

How do I change the dust bag?

No dust bag is used; the PPT220-11 is a bagless model. Empty the translucent tank by releasing the clips, removing the motor head, and tipping contents into a trash bag.

Why is the vacuum losing suction?

Check if the tank is full, the filter is clogged, or there is a blockage in the hose or wand. Also ensure the HEPA filter is not overloaded with fine dust.

Can I use the PPT220-11 for wet vacuuming?

No, this model is designed for dry pickup only. Using it to pick up liquids may damage the motor and void the warranty.

How often should I replace the HEPA filter?

Replace every 6 months or sooner if suction remains poor after cleaning. Use only genuine Numatic replacement filters.

The vacuum overheats and turns off. What should I do?

Turn off and unplug. Allow to cool for at least 30 minutes. Check for blockages and clean the filter before restarting. If issue persists, contact support.

Where can I purchase spare parts for the PPT220-11?

Spare parts like filters, hoses, and brush bars are available from Numatic authorized dealers or online via the official website. Use model number PPT220-11.

How do I store the PT220-11 when not in use?

Wind the power cord around the cord hooks. Place the hose and wand onto the storage clips on the side of the unit. Store upright in a dry place.

Is the PPT220-11 suitable for pet hair?

Yes, the included floor brush works on hard floors and low-pile carpets. For upholstery, use the crevice tool to remove stubborn pet hair. Regular filter cleaning is recommended.

USER MANUAL PPT220-11 Numatic

Owner InstructionsOwn

Original Instructions Original Instruction

CAUTION, Read instructions before using the machine

PPT 220-11 PPT 220-11 PPT 390-11 PPT 390-11

www.numatic.com

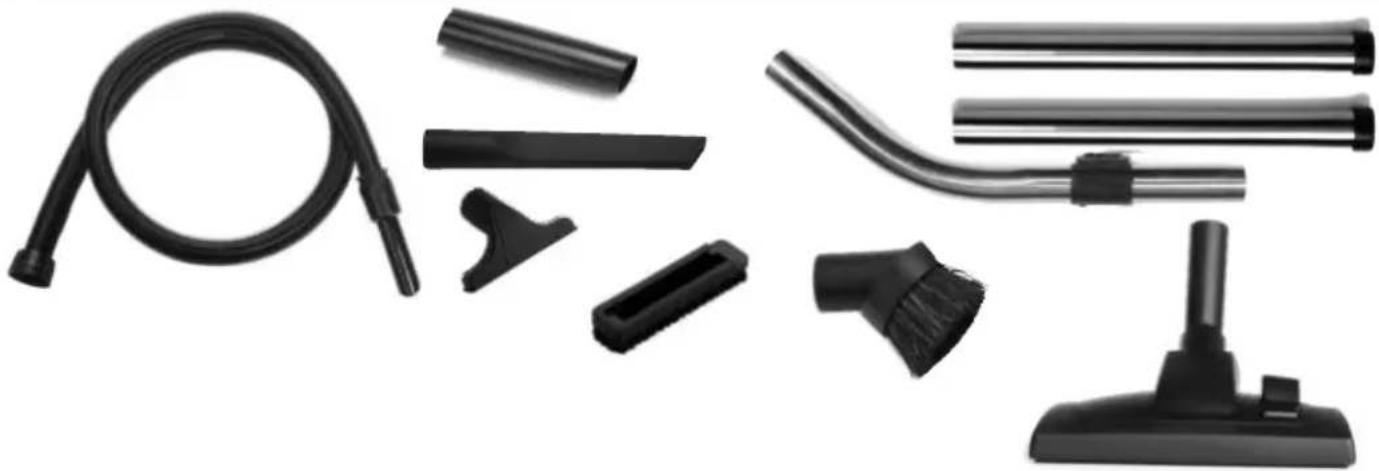

Collection of black vacuum cleaner components including hose, clip, brush, and pushener (no text or labels visible)

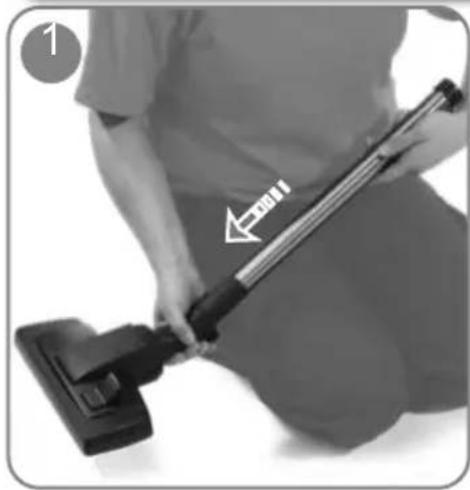

Assembly

Person using a vacuum cleaner to lift a bag, no text or symbols visible

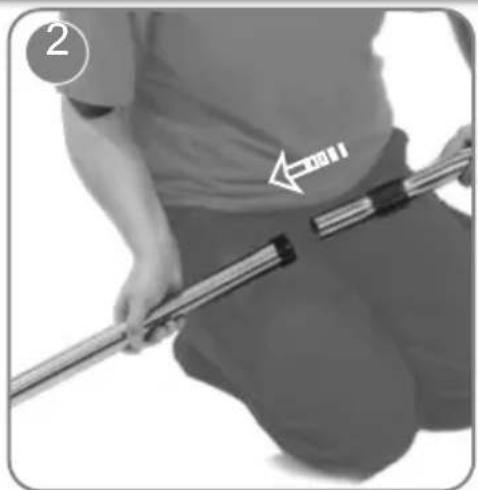

Person kneeling with a tool, showing motion direction (no text or symbols)

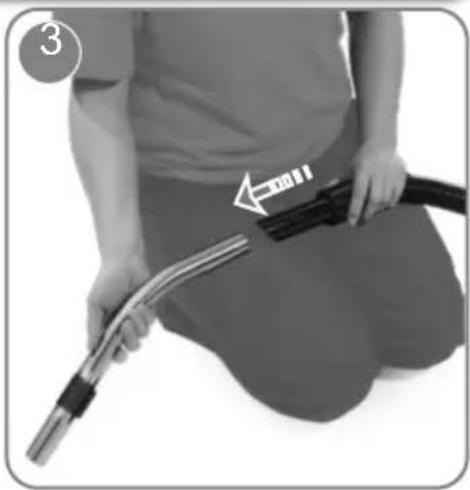

Person kneeling with a hose and belt, showing a directional arrow indicating movement (no text or symbols present)

Replacement parts

TriTex / Microfresh Filter
604165 TriTex	Filter

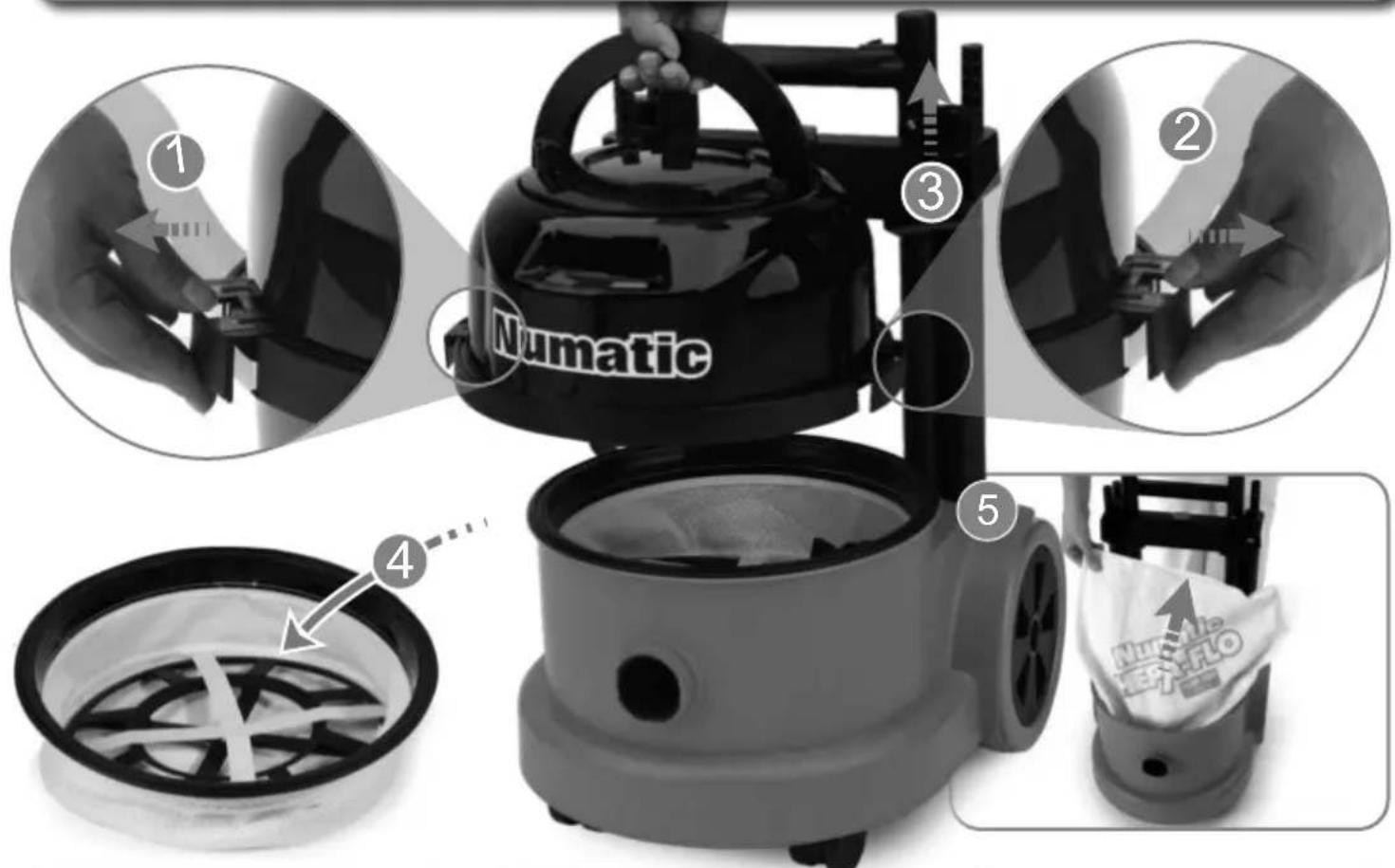

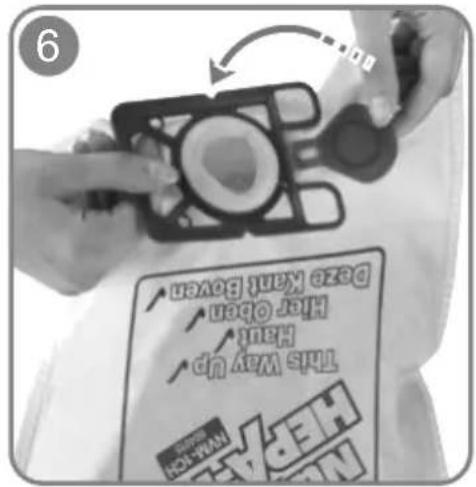

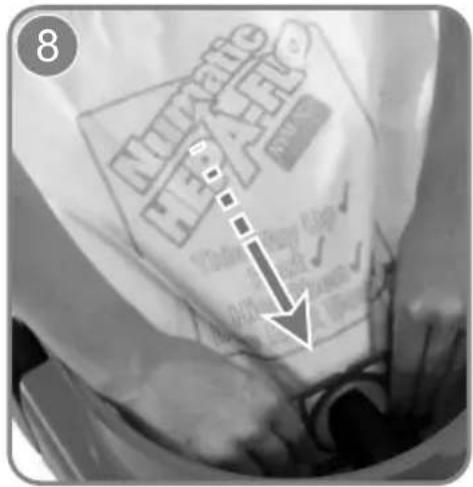

HepaFlo Dust Bags
604015 NVM 1	CH (Pack of 10) (220 Drum)
604016 NVM 2	BH (Pack of 10) (390 Drum)

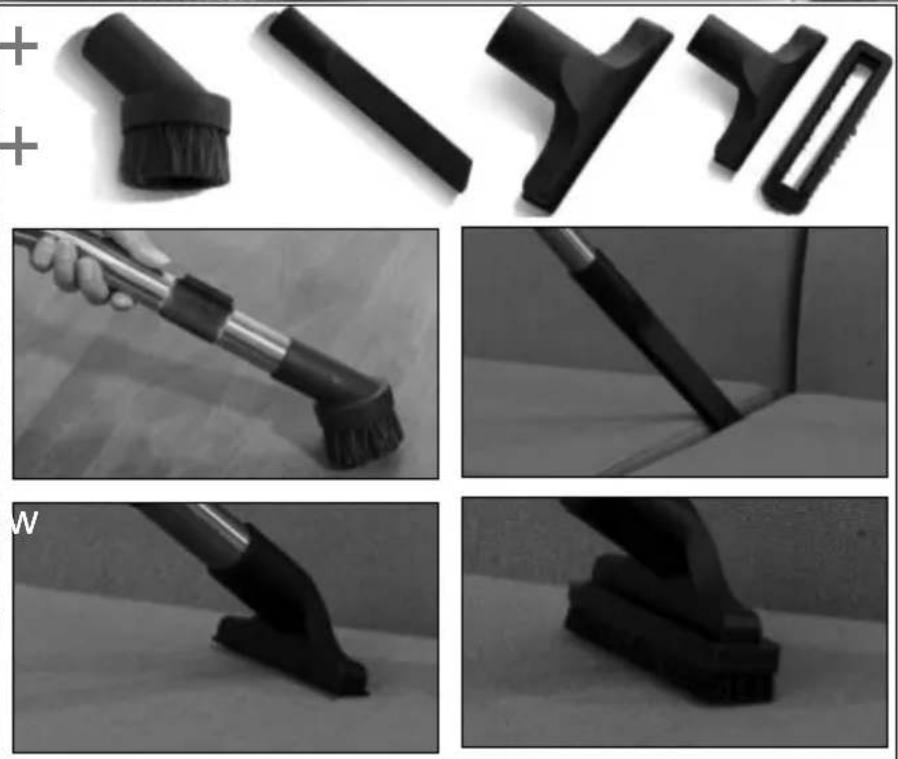

Using your machine

Black-and-white collage showing various cleaning tools including a brush, pushpin, and vacuum cleaner (no text or symbols visible)

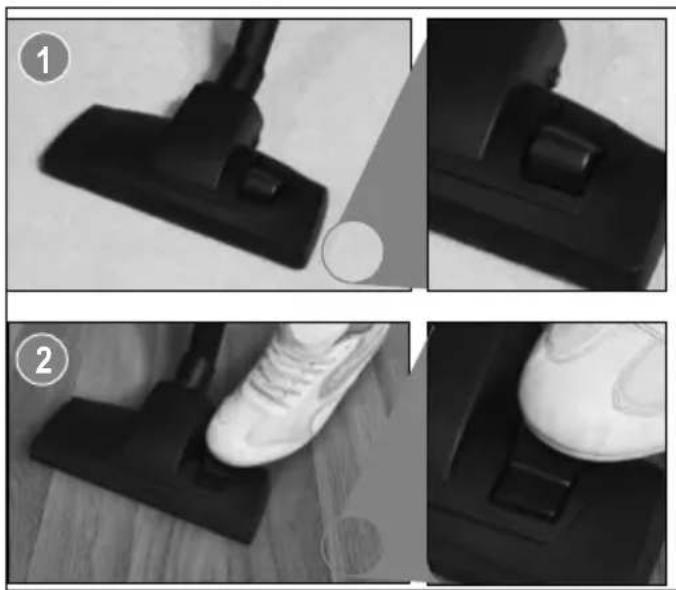

Four-panel black-and-white photo sequence showing a vacuum cleaner on a wooden floor, with foot pressing the sole and a white sneaker visible (no text or symbols)

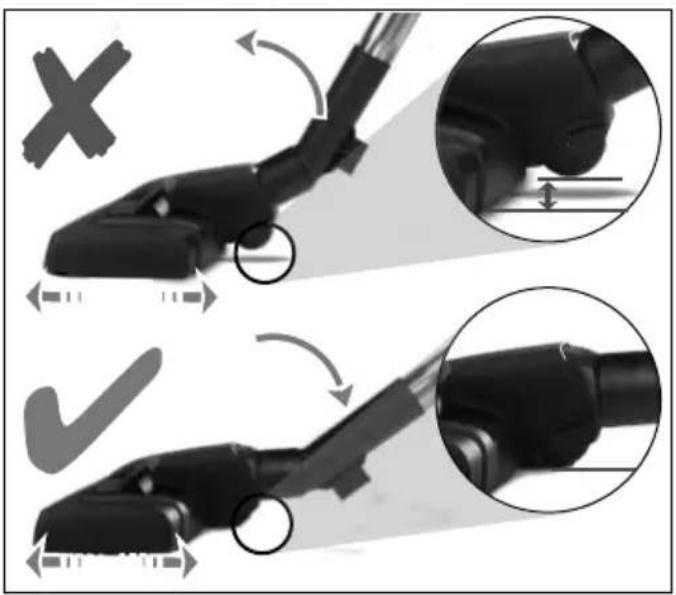

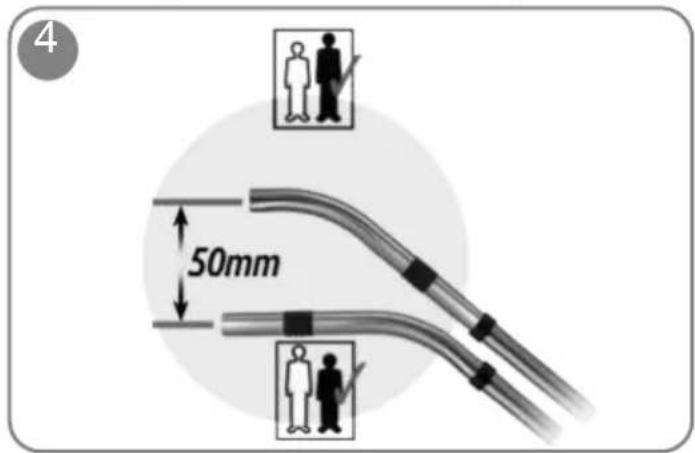

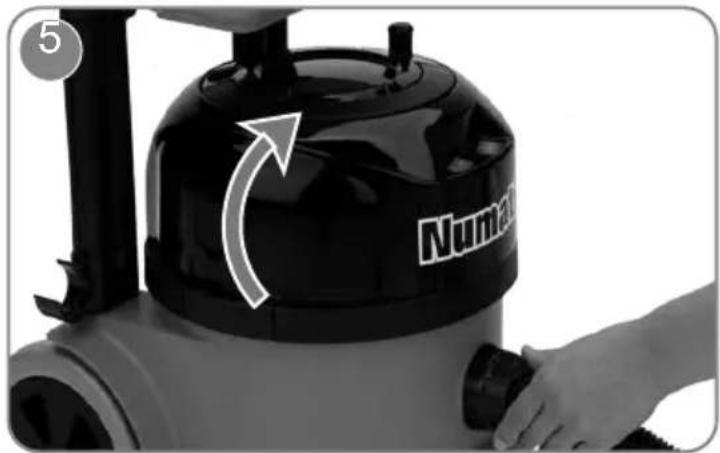

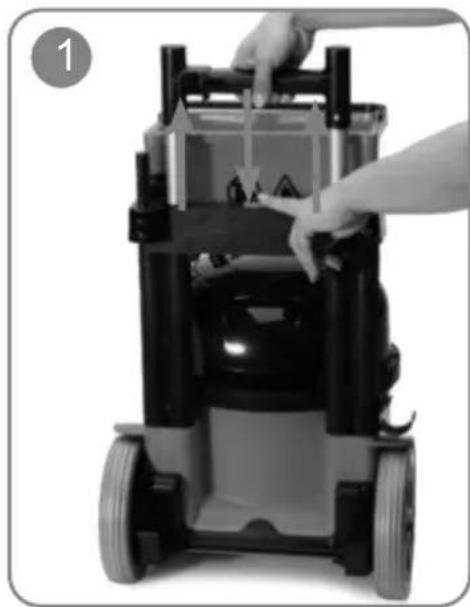

Using the Machine

Close-up of hands operating a mechanical device with visible wheels and a handle (no text or symbols)

Close-up of hands performing a finger pressing down on a black exercise machine (no text or symbols visible)

Person operating a mobile lawn mower with a hand adjusting the frame (no text or symbols visible)

Person pouring liquid into a container on a 3D-printed vacuum cleaner (no text or symbols visible)

Black and white photo of a vacuum cleaner with a transparent cover, no visible text or symbols on the device itself.

Mechanical device with two white bins and a black base, showing a downward arrow indicating motion (no text or symbols visible)

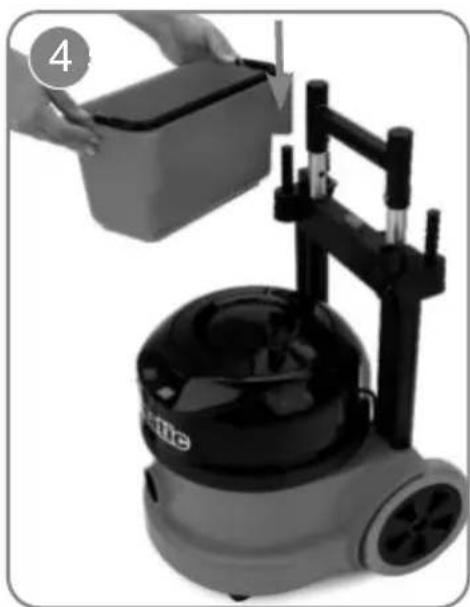

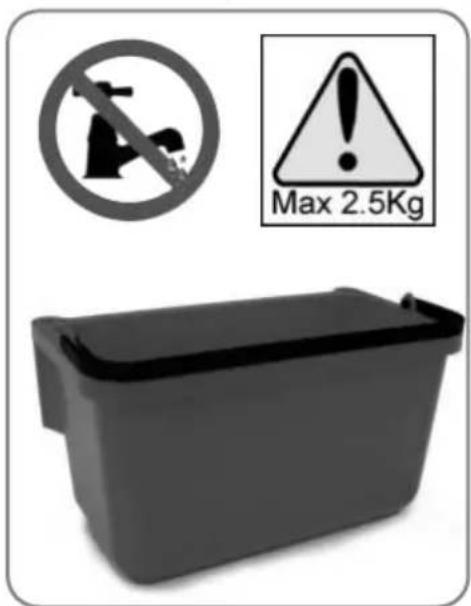

NPT / PPT Extra Caddy Kit

Black plastic container with rounded edges and a flat top (no text or symbols visible)

607233 Red Caddy

Black plastic recycling container with rounded corners and a narrow neck (no text or symbols visible)

607222 Blue Caddy

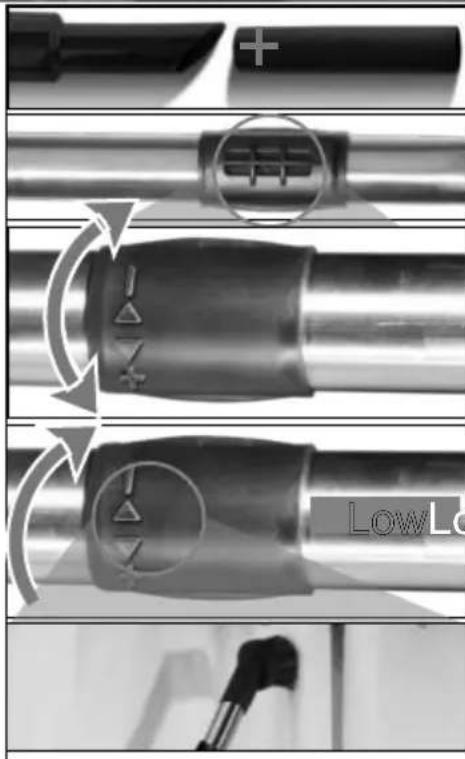

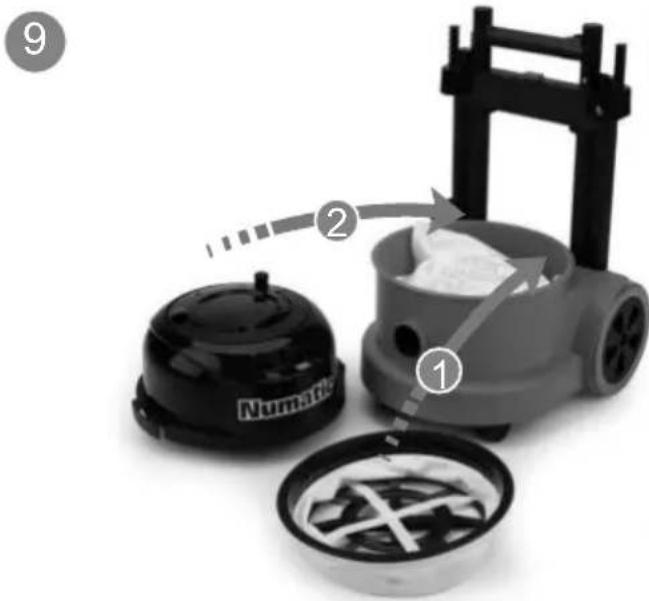

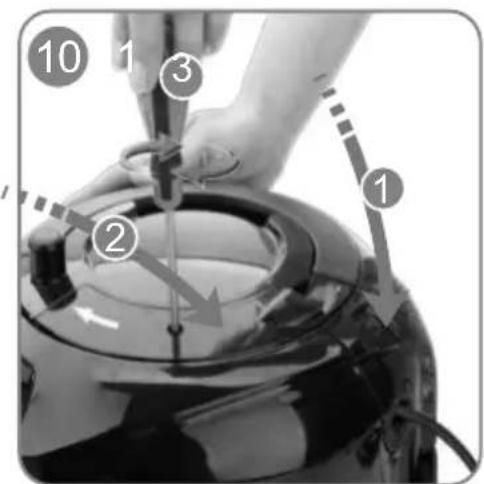

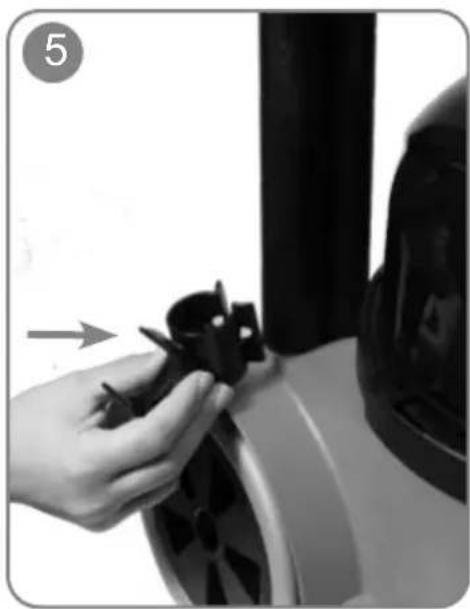

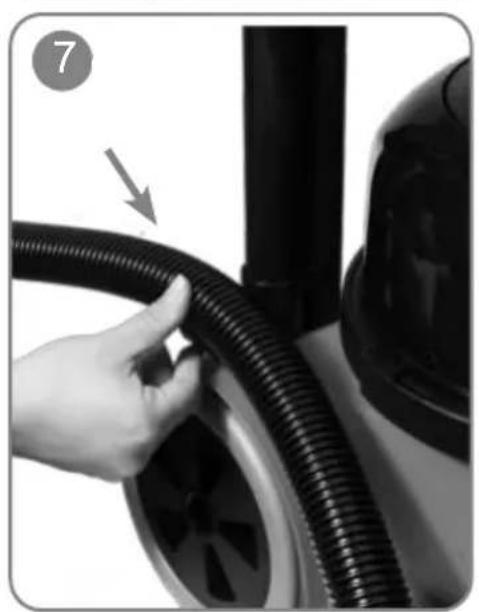

Using the Machine

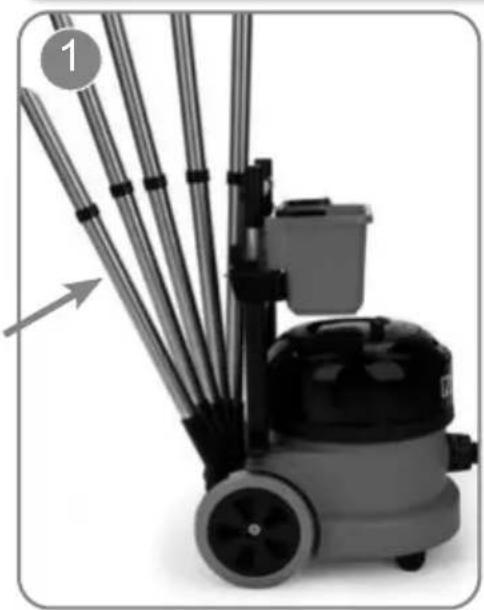

Black and white photo of a vacuum cleaner with multiple tubes extending outward (no text or symbols visible)

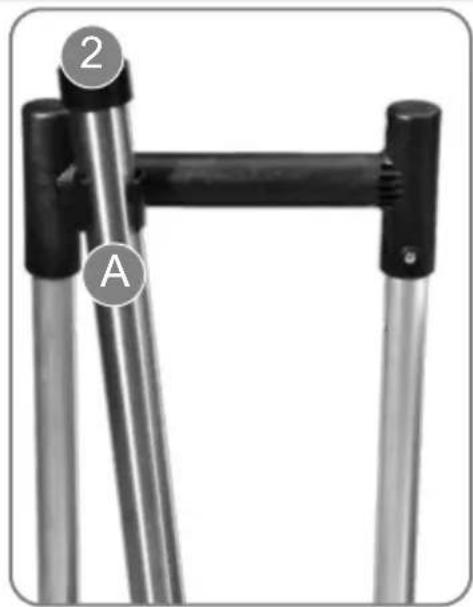

Close-up of a metal tripod support frame with labeled points A and 2 (no text or symbols beyond labels)

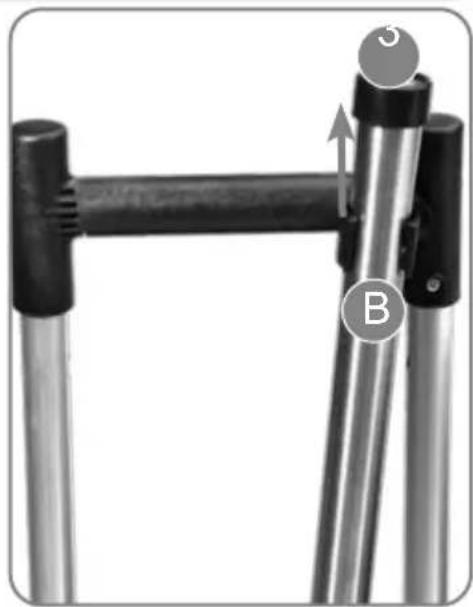

Close-up of a mechanical lever mechanism with labeled component B (no text or symbols on the lever itself)

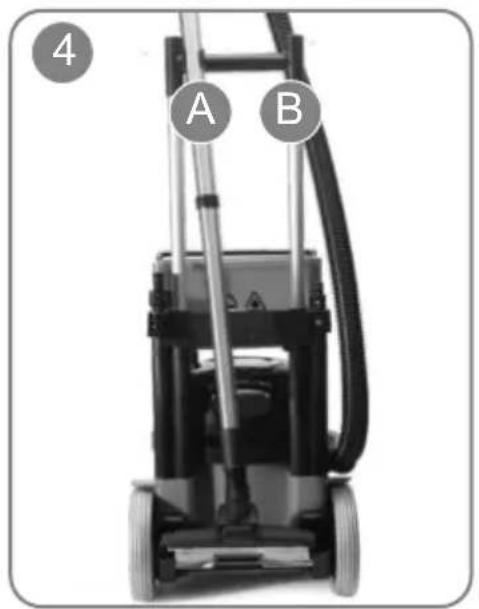

Black and white photo of a vacuum cleaner with labeled parts A and B, no visible text or symbols on the device itself.

Close-up of a hand adjusting a small black plastic component on a white surface, with no visible text or symbols.

Close-up of a hand adjusting a small black component on a mechanical device (no visible text or symbols)

Close-up of a hand adjusting a black rubber hose on a car wheel, with no visible text or symbols.

Close-up of a hand adjusting a black threaded component, no visible text or symbols

Black and white photo of a vacuum cleaner with coiled tubing and control panel (no visible text or symbols)

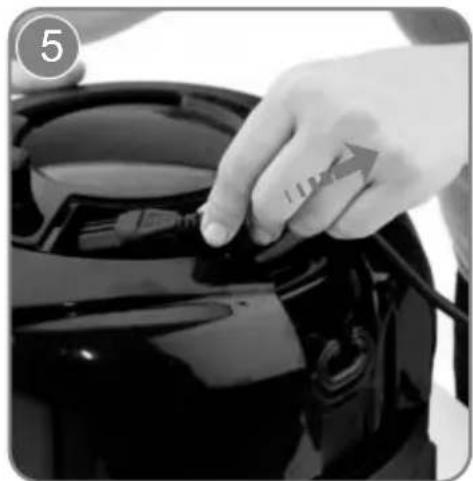

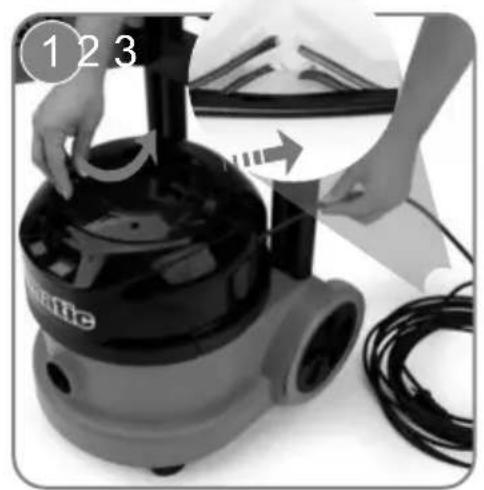

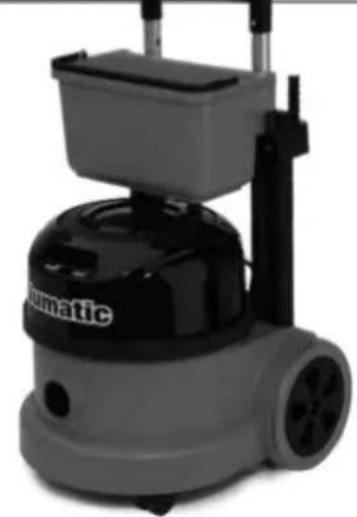

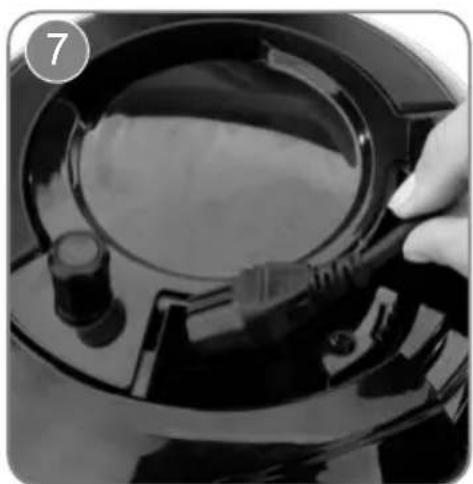

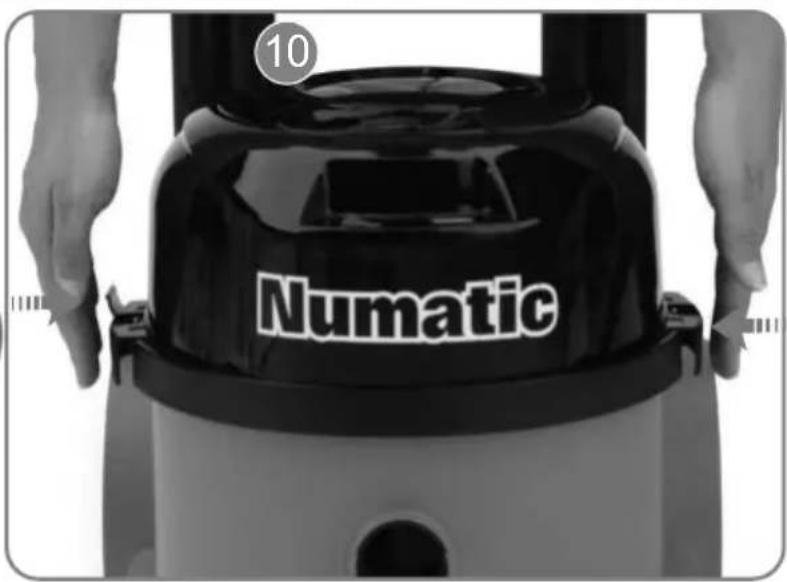

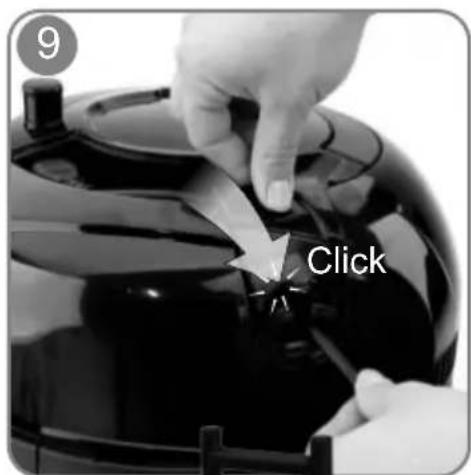

Cleaning the machine

Close-up of a black-and-white photo of a vacuum cleaner with hands adjusting its lid, next to a coiled cable (no visible text or symbols)

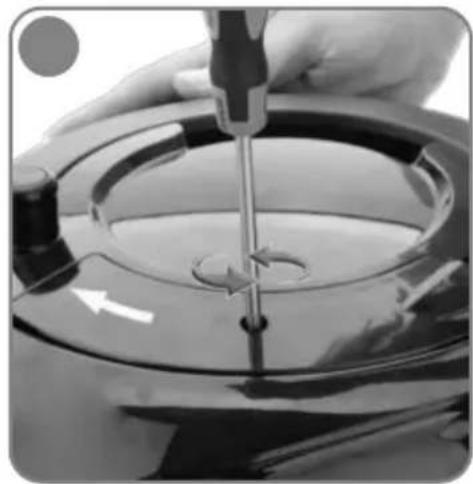

Close-up of a hand using a screwdriver to adjust a circular component on a glossy black surface (no text or symbols visible)

Close-up of a hand adjusting a black plastic container with arrows indicating motion (no text or symbols visible)

Close-up of a hand pressing down on a glossy black surface, no visible text or symbols

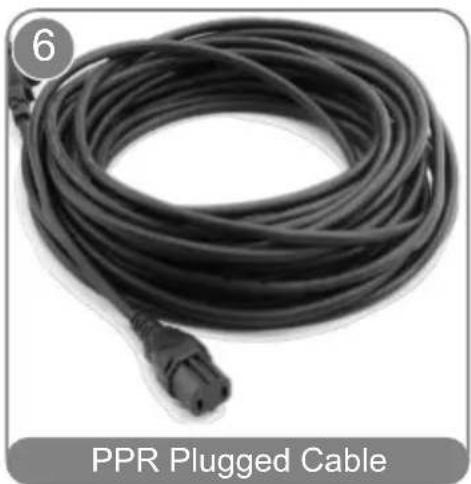

Coiled black cable with a plug, labeled 'PPR Plugged Cable' at the bottom (no other text or symbols visible)

Close-up of a hand holding a black cable with a connector, partially enclosed in a circular frame (no visible text or symbols)

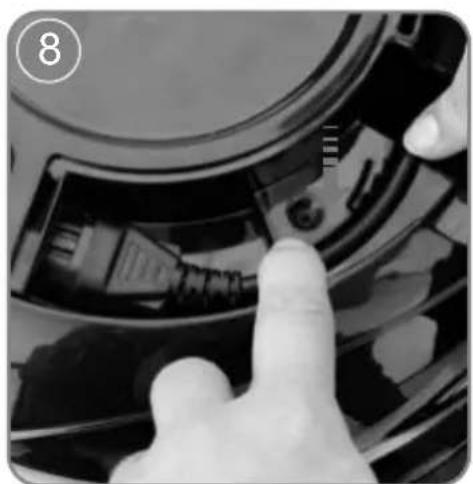

Close-up of a finger pressing down on a mechanical component (no visible text or symbols)

Person using a vacuum cleaner to lift a cable, no visible text or symbols

Close-up of a vacuum cleaner with black and gray casing (no visible text or symbols)

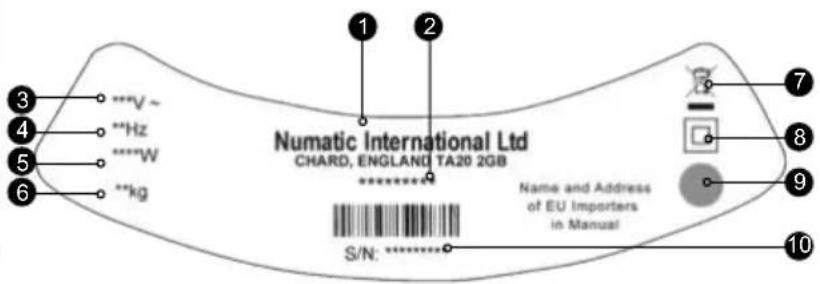

Rating Label

About your machine (GB)

1	ompany Name & Address
2	Model
3	Voltage / Alternating Current
4	frequency
5	Rated Input Power
6	/eight
7	/EEE Logo
8	Protection Class 2 Symbol
9	approval Mark
10	Machine yr/wk Serial Number

Daily

Keep the machine clean, including hoses and tubes.

Ensure the bag and fi iter are fi tted.

Regularly examine the power cord.

Check dust bag frequently.

Check filters are clean.

Weekly - as daily and:-

Check for any worn or damaged parts and replace immediately.

Maintenance

WEEE Legislation (Waste, Electrical and Electronic Equipment)

Vacuum cleaner, accessories and packaging should be sorted for environmentally - friendly recycling.

(Only for UK/EU Countries)

Do not dispose of vacuum cleaner into household waste! According to the European Directive 2012/19/EU on waste electrical and electronic equipment and its incorporation into national law. Vacuum cleaners that are no longer suitable for use must be separately collected and sent for recovery in an environmentally - friendly manner.

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

PPE (personal protective equipment). That may be required for certain operations.

Ear Protection Safety Footwear Head Protection Safety Gloves
Eye Protection Protective Clothing		Dust / Allergens Protection	Hi Viz Jacket Caution Floor Sign
NOTE: A risk assessment should be conducted to determine which PPE should be worn.

NOTE: A risk assessment should be conducted to determine which PPE should be worn.

Failure to rectify the problem or in the event of a breakdown contact your Numatic dealer or the Numatic Technical helpline [phone]

Safety Critical Components

Mains leads: HO5-V2V2-F 12.5 m x 2 Core x 0.75 mm ^4

WARNING

Read the instruction manual before using the machine.

Operators shall be adequately instructed on the use of their machine.

As with all electrical equipment, care and attention must be exercised at all times during use, in addition to ensuring that routine and preventative maintenance is carried out periodically to ensure safe operation.

Failure to carry out maintenance as necessary, including the replacement of parts to the correct standard could render this equipment unsafe and the manufacturer can accept no responsibility in this respect.

Maintenance should only be carried out by a qualified person.

This machine is for DRY USE only and must not be stored outside or used in wet conditions.

The machine shall be disconnected from the mains power by removing the plug from the power supply socket during cleaning or maintenance and when replacing parts or converting the machine to another function.

Only use the socket outlet on the machine for purposes specified in the instructions (if fitted).

This machine is not to be used by children or persons with reduced physical, sensory or mental capabilities, or lack of experience or knowledge.

This appliance is intended to be cleaned and maintained by an adult.

Children being supervised are not to play with the machine.

This machine is not a toy.

This machine is not suitable for picking up hazardous or explosive dust.

Contact your local distributor if you require a machine capable of performing these tasks.

CAUTION

Ensure that the fi ltration system fi tted to the machine is suitable for the material being collected.

This vacuum cleaner is intended for indoor use in the collection of dry materials.

This machine should be stored indoors only.

NOTES

The primary use for this machine is commercial, for example in hotels, schools, hospitals, factories, shops and offices.

This product complies with the requirements of clause 20 of IEC/EN 60335-2-69 Stability and Mechanical Hazards.

This vacuum cleaner is fitted with a thermal protection device. If the vacuum cleaner stops working, remove the plug from the wall before investigating where the fault lies.

If the vacuum cleaner has a blockage, switch off, remove the plug from the power socket, inspect the floor tool, tubes and hose for debris. If the floor tool, tubes and hose are clear, replace the dust bag and clean the filter.

The vacuum cleaner should be inspected after use for damage.

The vacuum cleaner should be stored in a dry place.

When moving from one place to another, consider the weight of the machine.

DO

• Keep your machine clean including hoses and tubes.
• Change dust bag frequently.
• Keep fi Iters clean.
• Keep diff user fi iter (where fi tted) clean.
• Use fi Iter bags, they will enhance performance and help keep machine clean.
• Use a Numatic Original fi Iter bag under fi ne dust conditions.
• Keep hoses and tubes clear.
• Replace any worn or damaged parts immediately.
• Only use the brushes provided with the machine. The use of other brushes may impair safety.
• Regularly examine the power cord. If damage is found such as cracking or ageing the power cord must be replaced by a qualified person.
• Only replace the power cord with the correct Numatic approved replacement part.

DO NOT

• Pull on the cable to unplug the machine from the power supply.
• Use to suck up hot ashes or lighted cigarette ends.
• Use steam cleaners or pressure washers to clean the machine or use in the rain.
• Immerse in water for cleaning.
• Attempt machine maintenance or cleaning unless the power supply plug has been removed from the supply outlet.
• Use in wet environments or to collect wet materials.
• Under any circumstances place foreign objects including (but not limited to) air fresheners, air freshener capsules or scented beads of any type into the top filter of the machine. Doing so can be dangerous and risk damage to the machine and may invalidate the machine warranty.

Data

Drum Size Cleaning Range Weight (Ready to work)				Sound Pressure
220	9 L	31.0 m	12.3 kg	LpA ≤ 70 dB (A)
390	15 L		12.6 kg
Protection Class Size
220	Class II		355 mm x 355 mm x 615 mm
390			355 mm x 355 mm x 655 mm

Numatic International Warranty matic International Limited warrant to the original purchaser

Numatic International Limited warrant to the original purchaser that its products are free of defects in both material or workmanship for the period shown below:

Homecare and Cleancare Vacuum cleaners	2 Years
Rotary Floor Machines	2 Years
Twintec Auto Scrubber Dryer	1 Year
Vario Ride-On Scrubber Dryer	1 Year / 1500 hours
Mopping, Compacts, Combi and Servocare Products	1 Year
Individual Accessories and Spare Parts	6 Months

Note: This warranty expressly excludes consumable parts such as carbon brushes, floor brushes, mops, batteries etc; that are considered replaceable from time to time during the normal working life of the machine.

Using non-Numatic dustbags can be detrimental to both machine performance and life and may invalidate the Warranty.

A. The warranty period commences from the date the goods are purchased.
B. All warranty claims must be processed through the Dealer from whom the equipment was purchased. The Dealer will co-operate with the purchaser throughout the warranty claims procedure and will arrange any necessary repairs using genuine Numatic parts.
C. If the original Dealer is no longer able to fulfill his obligations please contact Numatic International Limited with full details of the claim and proof of purchase so that this may be processed without delay.
D. Any warranty claim can only relate to the specific part that is proven to be at fault and for which a replacement will be supplied but cannot be extended to constitute a claim against the complete machine.
E. Numatic International will supply the Dealer with any warranty parts required, subject to the claim being validated, after return of the faulty items in accordance with Numatic International Limited's General Conditions of Sale.
F. Claims will not be accepted if they are the result of fair wear and tear, misuse or abuse of any kind.
G. No replacement will be given unless the appropriate evidence of the validity of the claim has been provided to the satisfaction of Numatic International Limited.
H. Numatic International Limited reserve the right to charge for any unnecessary work carried out as a result of an invalid claim.
1. No variation to this warranty may be made or implied by any member of Numatic International Limited or its Dealers unless such variation is in writing and authorised by the Company

Numatic International Limited. Chard, Somerset, TA20 2GB

Telephone: [phone] Fax: [phone]

© Numatic International Limited

EU, EC, EL, UE, ES:Declaration of ConformityProhlăšeni o shodëKonformitätserklarungOverensstemmelseserklæringDeclaració de conformidadVastavusdeklaratsioonDéclaration de conformitê		Декларация за съответствиеДілшою ощадорфюєнсMegfelelőségi nyilatkozatDichiarazione di conformitàAttikties deklaracijaConformiteitsverklaringSamsvarserklæringDeclaração de conformidade	Deklaracja zgodnościDeclaratie de conformitateДекларация о соответствииFörsäkran om överensstämmelseIzjava o skladnostiVaatimustenmukaisuusvakuutus
Manufacturer: / Výrobce / Hersteller / Fabrikant / Fabricante / Tootja/ Fabricant / производитель / Катаосквостіңг / Gyártó / Fabbricante/Gamintojas / Fabrikant / Produsent / Fabricante / Producent /Producător / производитель / Tillverkare / Prolzvalalca / Valmistala:			Numatic International LimitedChardSomersetTA20 2GBwww.numatic.co.uk[IMAGE]
Product: / Produkt / Produkt / Produkt / Produkt, Toodet, Produit /Продукт / Пролów / Termék / Prodotto / Produktas / Artikel / Produkt/ Produtos / Produkt / Produs / Tosap / Produkt / Izdelka / Tuote:			PPR, PPT, PPH, NPR, NPT, NRP, EPR
Description: / Popis / Beschreibung / Beskrivelse / Descripción /Kirjeldus / La description / Описание / Перурафі / Leirás /Descrizione / Apibudinimas / Omschrijving / Beskrivelse / Descrição /Opls / Descriere / Описание / Beskrivning / Opls / Kuvaus:			Vacuum Cleaner – Commercial – Dry
BG We, Numatic hereby declare under oursole responsibility, that the above-mentioned product(s) is/are in conformitywith the following directives and standards.CZ My, Numatic prohlažujeme na svouvýlučnou odpovědnost, že výše uvedenývýrobek je ve shodě s následujícímsměrnici em normami.DE Wir, Numatic erklären in alleinigerVerantwortung, dass das oben genannteProdukt den folgenden Richtlinien undNormen entspricht.DK Vi, Numatic erklærer hermed undereget ansvar at ovennævnte produkt(er) er ioverensstemmelse med fölgende direktiverog standarder.ES Nosotros, Numatic declaramos bajounuestra única responsabilidad que elproducto antes mencionado está enconformidad con las siguientes directivas ynormasEE Mele, Numatic Käesolevaga kinnitame jakanname ainuisikulist vastutust, et eespoolnimetatud toode on kooskõlas järgmistedirektlivide jarFR Numatic déclare sous notre seuleresponsabilité que le produit mentionné ci-dessus est conforme aux directives et normessuivantes.		BG Ние, Numatic С настоящотодекларираме на своя лична отговорност,че посочените по-горе продуктът е всъответствие със следните директив истандарти.GREmušć, Numatic δηλώνουρε μεαποκλειστική μας ευθύνη, ότι τопроанафероје́мо προϊόν συμμορφώνεταιμε τις ακόλουθες οδηγίες και πρότυπα.HU MI, Numatic Kijelentjük, egyedüllfelelősséggel, hogy a fent emlittett termékmegfelei az alabbi irányelveknek ésszabványoknakIT Noi, Numatic dichiara sotto la propriaresponsabilità, che il prodotto di cui sopra èconforme alle seguenti direttive e norme.LT Mes, "Numatic pareiškiu vienašališkosatsakomybes, kad pirmiau minetasproduktas atitinka šias direktyvas irstandartusNL We verklaren Numatic hierbij op eigenverantwoordelijkheid, dat hetbovengenoemde product voldoet aan devolgende richtilijnen en normenNO VI, Numatic erklærer herved undereget ansvar, at det ovennevnte produktet eri samsvar med fölgende direktiver ogstandarder	PT Nós, a Numatic declaramos, sob nossaexclusiva responsabilidade, que o produtacima mencionado está em conformidadecom as diretrizes e normas a seguir.PL My, Numatic Niniejszym oświadczamy zpełną odpowiedzialnością, ze wyżejwymleniony produkt jest zgodny znastępującymi dyrektywami i normami.RO Noi, Numatic Prin prezenta declarâmpe propria răspundere, că produsul mai susmentionat este în conformitate cuurmäcoarele standarde și directive.RU Mi, Нилфиск овим изјављујем подпуном одговорношћу, да наведеногпроизвод je y складу са следећимдирективама и стандардима.SE Vi Numatic förklarar härmed undereget ansvar att ovan nämnda produktöverensstämmer med följande direktiv ochnormer.SI Mi, Numatic izjavljamo s polnoodgovornostjo, da je zgoraj omenjenizdelek v skladu z naslednjimi smernicami instandardi.FI Me, Numatic taten vakuutamme omailavastuulla, että edellä mainittu tuote onyhdenmukainen seuraavlen direktiivlen jastandardlen mukaisesti
2006/42/EC	Machinery Directive	EN60335-1:2012 + AC:2014 + A11:2014 + A13:2017EN60335-2:69:2012EN62233:2008
2014/30/EU	EMC Directive	EN55014-1:2017 + A11:2020EN55014-2:1997 + A1:2001 + A2:2008EN61000-3-2:2014EN61000-3-3:2013
2009/125/ECEU/666/2013	Ecodesign Requirements forVacuum Cleaners
2011/65/EU	RoHS Directive
Authorised Signatory: Mr. Matthew ColesPosition: Head of TechnologyNumatic International LimitedChard,th May 2022 Somerset, TA20 2GB, UK

UKCA Declaration of Conformity

Manufacturer:	Numatic International LimitedChardSomerset TA20 2GBwww.numatic.co.uk
Product:	PPR, PPT, PPH, NPR, NPT, NRP, EPR
Description:	Vacuum Cleaner – Commercial – Dry
We, Numatic hereby declare under our sole responsibility, that the above-mentioned product(s) is/are in conformity with the following directives and standards.

S.I. 2008: 1597	Supply of Machinery Regulations	EN60335-1:2012 + AC:2014 + A11:2014 + A13:2017EN60335-2-69:2012EN62233:2008
S.I. 2016: 1091	EMC Regulations	EN55014-1:2017 + A11:2020EN55014-2:1997 + A1:2001 + A2:2008EN61000-3-2:2014EN61000-3-3:2013
S.I. 2010: 2617	Ecodesign Requirements for Vacuum Cleaners	EN60312-1:2017
S.I. 2012: 3032	RoHS Regulations

Position: Head of Technology

Numatic International Limited, Chard, Somerset, TA20 2GB, UK

Signed: M Cus Date: 1 ^st Dec 2021

2006/42/EC	Machinery Directive	EN60335-1:2012 + AC:2014 + A11:2014 + A13:2017EN60335-2-69:2012EN62233:2008
2014/30/EU	EMC Directive	EN55014-1:2017 + A11:2020EN55014-2:1997 + A1:2001 + A2:2008EN61000-3-2:2014EN61000-3-3:2013
2009/125/ECEU/666/2013	Ecodesign Requirements forVacuum Cleaners
2011/65/EU	RoHS Directive

Position: Head of Technology
Numatic International Limited

Numatic INTERNATIONAL

Numatic International Limited.

Chard, Somerset TA20 2GB ENGLAND

Tel: [phone] www.numatic.co.uk

Numatic International GmbH. Fränkische Straße 15–19

D-30455 Hannover, DEUTSCHLAND

Tel: [phone] www.numatic.de

Numatic International SAS. 13 / 17 rue du Valengelier

EAE La Tuilerie – 77500 CHELLES, FRANCE

Tel: [phone] www.numatic.fr

Numatic International BV

16th & Pharmaceutical Roads, Midrand, Gauteng,

SOUTH AFRICA 1685

Tel: [phone] www.numatic.co.za

Numatic International Schweiz AG.

Sihlbruggstrasse 3A, 6340 Baar. SCHWEIZ

Tel: [phone] - 0 www.numatic.ch

Specification subject to change without prior notice

www.numatic.co.uk © Numatic International Limited
