V5T1M - Camera Speco Technologies - Free user manual and instructions

Product Type	HD Security Camera
Model	V5T1M
Image Sensor	1/2.7" CMOS
Resolution	5MP (2560 × 1936)
Video Output	AHD, TVI, CVI, CVBS (default HD-TVI)
Lens	2.8 ~ 12mm motorized varifocal
IR Distance	98.4 ~ 164.0 ft (30 ~ 50 m)
Minimum Illumination	Color: 0.01 lux @ F1.2, AGC ON; B/W: 0 lux with IR
Electronic Shutter	Auto; 1/50s ~ 1/100000s (PAL); 1/60s ~ 1/100000s (NTSC)
Frame Rate	20 fps
Day & Night	ICR auto switch
Wide Dynamic Range (WDR)	Yes
Digital Noise Reduction (DNR)	Yes
AGC	Yes
Auto White Balance	Yes
Backlight Compensation (BLC)	Yes
OSD Menu	UTC control
Smart IR	Yes
Mirror / Sharpness	Yes / Yes
Power Supply	DC 12V (±10%)
Power Consumption	IR OFF: <1W; IR ON: <6W
Working Temperature	-22°F ~ 122°F (-30°C ~ 50°C)
Dimensions (Diameter × Height)	Φ4.4 × 3.5 in (Φ112 × 89 mm)
Ingress Protection	IP67
Safety Warnings	Keep away from liquid; use correct voltage; avoid extreme temperatures

Frequently Asked Questions - V5T1M Speco Technologies

How do I switch the video output mode of the V5T1M?

Remove the cover of the video switch cable, then press and hold the button inside for 5 seconds to cycle through AHD, TVI, CVI, and CVBS modes. The camera defaults to HD-TVI.

What is the IR range of the V5T1M?

The IR distance is 98.4 to 164.0 feet (30 to 50 meters), depending on environmental conditions.

Can I adjust the lens remotely?

No, the lens is motorized but must be adjusted manually via the OSD menu or by physically zooming/focusing. The camera supports UTC control for OSD settings.

Is the V5T1M suitable for outdoor use?

Yes, it has an IP67 rating, meaning it is dust-tight and protected against temporary immersion in water. Operating temperature is -22°F to 122°F.

How do I mount the V5T1M?

Drill screw holes and a cable hole according to the template. Loosen the fixed screw to disassemble the camera, route and connect cables, then secure the mounting base to the wall or ceiling. Finally, install the dome and adjust the angle before tightening the fixed screw.

What is WDR and how does it help?

Wide Dynamic Range (WDR) balances very bright and very dark areas in the same scene, providing clear images with visible details in both highlights and shadows.

Can I use this camera with an existing analog DVR?

Yes, the V5T1M supports CVBS (analog) output in addition to HD-TVI, AHD, and CVI. It can work with analog DVRs that accept CVBS input, but for full 5MP resolution, use an HD-TVI, AHD, or CVI compatible recorder.

How do I access the camera's OSD menu?

Use a DVR or monitor that supports UTC (Up-the-Coax) control. Connect the camera via coaxial cable, then navigate the OSD menu using the DVR's remote or front panel controls.

What is the power consumption of the V5T1M?

Power consumption is less than 1W with IR off and less than 6W with IR on, using a 12V DC power supply (±10%).

Does the camera have built-in audio?

No, the V5T1M does not feature audio input or output. It is a video-only camera.

USER MANUAL V5T1M Speco Technologies

Collection of white space technology security cameras with lens images (no visible text or symbols)

V /V5T1// 5B1 V5D1 V5B1M/V5D1M/V5T1M

USER MANUAL

Thank you for purchasing our product. Speco Technologies is constantly developing and improving products. We reserve the right to modify product design and specifications without notice and without incurring any obligation.

Warnings

If the product does not work properly, please contact the dealer or where the product was purchased. Speco Technologies is not responsible for any problems caused by improper operation or repair.
- Keep away from liquid while in use.
■ All installation and operation here should conform to local electrical safety codes.
■ Make sure the power supply voltage is correct before using the camera.
■ Do not drop the camera or subject it to physical shock.
■ Do not use the device beyond specified voltage range.
- Do not place the camera in extremely hot, cold (the operating temperature shall be (-4^ 122^) , dusty or damp locations, and do not expose it to high electromagnetic radiation.
■ To avoid heat accumulation, good ventilation is required for operating environment.

Introduction

This camera series is the latest technology and advanced circuit design, which features high definition and sensitivity, low noise and distortion and supports HD video transmission with the common coaxial cable, ensuring the requirement of the HD monitoring in the traditional surveillance system.

● High Resolution

Adopt high performance sensor, providing high definition and clear image.

● High Transmission Performance

Real-time transmission with high speed and long distance.

● DNR

Reduce noise from brightness and color signal.

● OSD

Access the camera settings which can be clearly displayed through the main menu.

● White Balance

Adjust the color temperature according to the environment automatically.

- ICR Auto Switch

The filter will filter infrared light during the daytime and change to normal at night to ensure a high sensitivity and clear image.

● AGC

Adjust the gain of amplifier, enabling the camera to output the standard video signal in different lighting condition.

● Wide Dynamic Range (WDR)

When there are both very bright and very dark areas simultaneously in the field of view, this function will balance the brightness level and provide clear images.

● Backlight Compensation (BLC)

When the back of the captured object is too much bright, you can set BLC for the captured object to make it clearer.

Cables

Video Switch: Four video output modes can be optional--AHD, TVI, CVI and CVBS (a) remove the cover of the video switch cable; (b) hold and press the button in the video switch cable for 5 seconds to switch the current video output.

Installation

Before you start, please make sure that the wall or ceiling is strong enough to withstand three times the weight of the camera. Please install and use the camera in the dry environment.

You'd better install back the lens cover or lower dome less than 4 hours after removing it.

The mounting types of cameras are only for reference.

▶Mounting for V5B1/V5T1

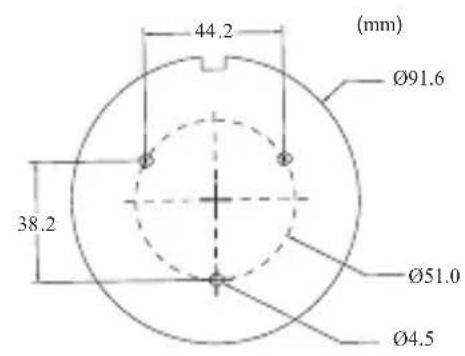

1. Drill the screw holes and the cable hole on the wall according to the drill template.

V5B1

V5B1M

1. Route and connect the cables.

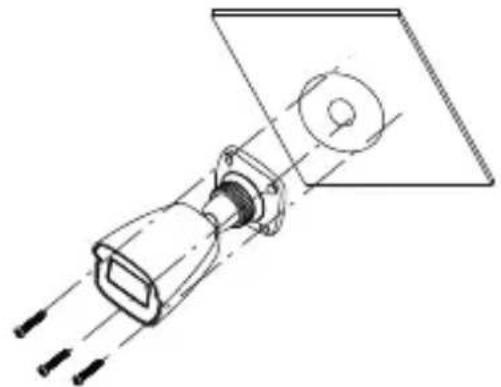

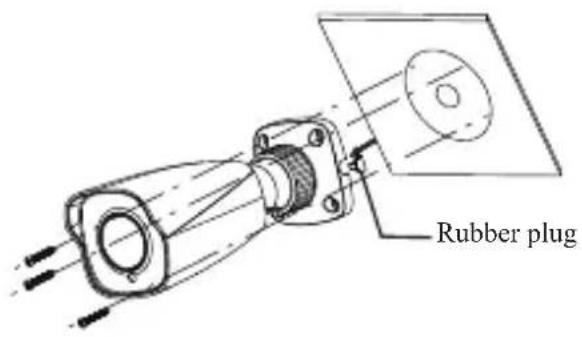

2. Secure the mounting base with camera to the wall with screws as shown below.

Technical line drawing of a mechanical component with no visible text or symbols

V5B1

V5B1M

1. Bracket adjustment. Before adjustment, preview the image of the camera on a monitor and then loosen the fixed ring to adjust the view angle of the camera. Tighten the fixed ring after the adjustment.

V5B1

V5B1M

▶Mounting for Dome Camera

● Mounting for V5D1/V5D1M

1. Attach the drill template to the place where you want to fix the camera and then drill the screw holes and the cable hole on the wall according to the drill template.

V5D1

V5D1M

1. Rotate the trim ring anticlockwise to remove it from the camera.
2. Loosen the screws to open the lower dome. Then route and connect the cables.
3. Secure the camera to the wall with screws provided as shown below.

1. Three-axis adjustment. Before adjustment, preview the image of the camera on a monitor and then adjust the camera according to the figure below to get an optimum angle.

1. Install the lower dome back to the camera and fix it with screws. Then put the trim ring onto the lower dome and then rotate it clockwise until it is locked. Finally, remove the protection film softly.

● Mounting for V5T1/V5T1M

1. Drill the screw holes and the cable hole on the wall according to the drill template.

V5T1

V5T1M

1. Loosen the fixed screw to disassemble the camera.
2. Route and connect the cables. Then secure the mounting base to the ceiling or wall with the screws provided.

Fixed Screw

Pure diagram of a mechanical or electrical component with three hanging tassels and a grid-patterned top bar (no text or symbols)

1. Install the dome and enclosure to the mounting base and then adjust the dome to obtain an optimum view angle. Finally, secure the camera with the fixed screw.

Technical line drawing of a mechanical component with no visible text or symbols

Specifications\Models	V5B1	V5B1M	V5D1
Camera
Image Sensor	1/2.7" CM Ⓔ
Resolution	5MP
Image size	2560×1936
Video Output	AHD/TVI/CVI/CVBS (*camera comes defaulted to HD-TVI)
Image System	PAL/NTSC
Electronic Shutter	Auto; 1/50s~1/100000s(PAL);1/60s~1/100000s (NTSC)
IR Distance (feet)	65.6~98.4	98.4~164.0	65.6~98.4
Frame Rate	20fps
Min. Illumination	Color:0.01lux@F1.2, AGC ON; B/W: 0lux with IR
Lens	2.8mm	2.8~12mm (motorized)	2.8mm
Lens Mount	M12	D14	M12
S/N Ratio	≥52dB(AGC OFF)
Ingress Protection	IP67	IP67	IP67&IK10
Functions
Function Control	OSD (UTC control)
Day &Night	ICR
WDR	Yes
Digital NR	Yes
AGC	Yes
Auto White Balance	Yes
Defog	No
BLC	Yes
LSC	Yes
Mirror	Yes
Sharpness	Yes
Smart IR	Yes
Image Setting	Yes
Defect Correction	Auto
Others
Power Supply	DC12V (± 10%)
Power Consumption	IR OFF: < 1W; IR ON : < 4W	IR OFF: < 1W; IR ON : < 6W	IR OFF: < 1W; IR ON : < 4W
Working Environment	-22 °F ~ 122 °F, 10 % ~ 90 %(relative humidity)
Dimensions (inch)	6.6 2.9 2.9× ×	8.6 3.2 3.2× ×	Φ4.7 3.5×
Specifications\Models	V5D1M	V5T1	V5T1M
Camera
Image Sensor	1/2.7" CM Θ
Resolution	5MP
Image size	2560×1936
Video Output	AHD/TVI/CVI/CVBS (*camera comes defaulted to HD-TVI)
Image System	PAL/NTSC
Electronic Shutter	Auto; 1/50s~1/100000s(PAL);1/60s~1/100000s (NTSC)
IR Distance (feet)	98.4~164.0	65.6~98.4	98.4~164.0
Frame Rate	20fps
Min. Illumination	Color:0.01lux@F1.2, AGC ON; B/W: 0lux with IR
Lens	2.8~12mm (motorized)	2.8mm	2.8~12mm (motorized)
Lens Mount	D14	MD124
S/N Ratio	≥52dB(AGC OFF)
Ingress Protection	IP67&IK10	IP67	IP67
Functions
Function Control	OSD (UTC control)
Day &Night	ICR
WDR	Yes
Digital NR	Yes
AGC	Yes
Auto White Balance	Yes
Defog	No
BLC	Yes
LSC	Yes
Mirror	Yes
Sharpness	Yes
Smart IR	Yes
Image Setting	Yes
Defect Correction	Auto
Others
Power Supply	DC12V (± 10%)
Power Consumption	IR OFF: < 1W; IR ON : < 6W	IR OFF: < 1W; IR ON : < 4W	IR OFF: < 1W; IR ON : < 6W
Working Environment	-22 °F ~ 122 °F, 10 % ~ 90 %(relative humidity)
Dimensions (inch)	Φ5.6 3.9×	Φ3.7 3.3×	Φ4.4 3.5×

Model: V5B1/V5B1M/V5D1/V5D1M/V5T1/V5T1M

Federal Communications Commission (FCC) Statements

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

FCC Responsible Party:

Speco Technologies

200 New Highway

Amityville, NY 11701

www.specotech.com
