PSB5 - Accessoire d'éclairage studio Ikan - Free user manual and instructions

Product Type	Soft Box for Half x 1 LED Lights
Brand	Ikan
Model	PSB5
Operational Dimensions	18 x 16 x 8 in (45.7 x 40.6 x 20.3 cm)
Shipping Dimensions	10 x 10 x 4 in (25.4 x 25.4 x 10.2 cm)
Product Weight	1 lb (0.45 kg)
Shipping Weight	3 lb (1.36 kg)
Build Material	Canvas, Metal, Rayon
Compatible Light Models	LB5, LBX5, LW5, LWX5, RB5, RBX5, RW5, RWX5, MB8
What's Included	1x Soft box, 1x Egg crate, 1x Storage pouch
Setup	Remove from pouch, gently open frame, straighten rods to lock, attach to light using back flaps and hook & loop straps
Egg Crate Usage	Optional attachment to control light spill and increase directionality
Warranty	1 year free service for manufacturing errors
Maintenance	Clean with a soft dry cloth; do not use harsh chemicals
Safety Warning	Handle with care to avoid sudden spring opening; ensure all rods are locked before use
Contact Support	[e-mail]
Additional Info	Visit www.ikancorp.com for more details

Frequently Asked Questions - PSB5 Ikan

How do I set up the PSB5 Presto Soft Box?

Remove the soft box from the carrying pouch carefully to avoid it springing open. Gently allow the frame to open and take shape. Straighten the rods at each corner so the magnets attach and form a solid rod locked in open position. Check inside that all material is fully expanded. Then place it over the light, slipping it over barn doors and securing with back flaps and hook straps.

Which lights are compatible with the PSB5?

The PSB5 is compatible with Ikan Lyra and Rayden Half x 1 LED panels: LB5, LBX5, LW5, LWX5, RB5, RBX5, RW5, RWX5, and also the Mylo MB8 portable LED panel.

What is the egg crate used for?

The included egg crate is optional and attaches to the front of the soft box. It helps control the light spill and makes the light more directional, giving you a more focused beam.

How do I clean the soft box?

Clean the soft box with a soft dry cloth. For stubborn dirt, lightly dampen the cloth with water. Do not use harsh chemicals or abrasive cleaners, as they may damage the fabric.

What is the warranty period for the PSB5?

Ikan offers free service for one year from the date of purchase if the problem is caused by manufacturing errors. After the warranty expires, components and service fees are charged.

Can I use the PSB5 with lights from other brands?

The PSB5 is specifically designed for Ikan Half x 1 LED light panels. While it may physically fit other lights, it is not guaranteed and compatibility is only assured with the listed Ikan models.

What should I do if the soft box does not open properly?

Ensure you are gently allowing the frame to open from the carrying pouch. If the rods are bent or the magnets do not align, carefully straighten the rods by hand. If issues persist, contact Ikan support.

Does the PSB5 come with a carrying case?

Yes, the PSB5 includes a storage pouch for easy transport and storage of the soft box and egg crate.

What are the dimensions of the PSB5 when in use?

The operational dimensions are 18 x 16 x 8 inches (45.7 x 40.6 x 20.3 cm). When folded for shipping, it measures 10 x 10 x 4 inches.

How do I attach the soft box to the light?

Slip the soft box over the barn doors of the light and slide it around the edges. The back flaps fit around the light, and the hook straps attach to the loop patches on the side flaps. For better hold, push the barn doors out through the front diffusion.

USER MANUAL PSB5 Ikan

Presto Soft Boxes for Half x 1 LED Lights

Black and white photo of a rectangular object with a rounded top and inner side, resembling a lampshade or cover (no text or symbols visible)

What's Included

□ 1 x Soft box
□ 1 x Egg crate
□ 1 x Storage pouch

Getting Started

Thank you for buying the Presto Soft Box from Ikan. Please carefully read the instructions and guide before operating the products. The guide includes product usage and maintenance. When you operate the product, please make sure that you have read the instructions carefully. All the content of the manual is based on up-to-date information; technical data subject to change without notice.

Step-by-Step Guide to preparing and installing your Presto Soft Box

Close-up of hands holding a black bag with Hebrew text (no readable signage or symbols)

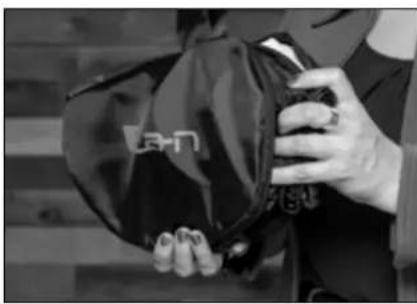

Step 1: Remove the Presto soft box from the carrying pouch. (Note: be careful that the box doesn't spring open when removing it from carrying pouch.)

Person holding a black bag with a string, no visible text or symbols

Step 2: Gently allow the frame of the soft box to open and take shape. This allows the box to take shape and start forming the frame.

Close-up of a metallic rod inserted into a textured surface (no visible text or symbols)

Step 3: Straighten the rods at each corner of the box. Allow the magnets to attach and form a solid rod locking the box in open position.

Person holding a black bag with 'Bakam' printed on it, no visible text or symbols on the bag itself

Step 4: Check the inside of the soft box to make sure that all of the material is fully expanded and there are no cuts or openings.

Person holding a large rectangular object on a wooden surface (no visible text or symbols)

Step 5: Placing the soft box on the light and fitting it into place. The soft box will slip over the barn doors and slid around the edges of the light. The back flaps will fit around the light and the hook straps will attach to the loop patches on the side flaps.

Close-up of hands adjusting a black fabric item with a partially visible internal component (no text or symbols)

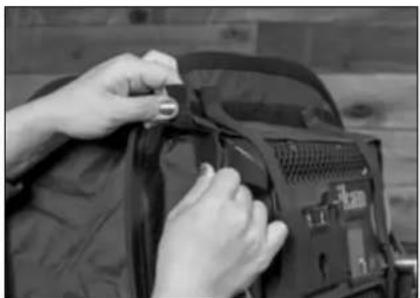

Step 6: Once the back flaps have been set take the two long elastic straps and attach them over the back of the light. (Note: Pushing the barn doors out from the front of the box through the diffusion will allow the box to stay on better.)

Person holding a black square cushion with a grid pattern, standing on a wooden surface (no text or symbols visible)

Step 7: (Optional) The included egg crate can be placed on the soft box to allow the soft light to be more controlled with less light spill.

Compatibility

The PSB5 Presto Soft Box is compatible with the following Ikan lights:

LB5	Lyra Bi-Color Half x 1 LED Panel
LBX5	Lyra Bi-Color Half x 1 LED Panel w/ DMX Control
LW5	Lyra Daylight Half x 1 LED Panel
LWX5	Lyra Daylight Half x 1 LED Panel w/ DMX Control
RB5	Rayden Bi-Color Half x 1 LED Panel
RBX5	Rayden Bi-Color Half x 1 LED Panel w/ DMX Control
RW5	Rayden Daylight Half x 1 LED Panel
RWX5	Rayden Daylight Half x 1 LED Panel w/ DMX Control
MB8	Mylo Bi-Color Half x 1 Portable LED Panel

Specifications

Shipping Weight 3 lb
Shipping Dimensions 10 x 10 x 4 in
Product Weight 1 lb
Operational Dimensions 18 x 16 x 8 in
Build Material Canvas, Metal, Rayon

Learn More

More dynamic information at official website: www.ikancorp.com

Support

Contact email: [e-mail]

CONDITIONS OF WARRANTY SERVICE

• Free service for one year from the day of purchase if the problem is caused by manufacturing errors.
• The components and maintenance service fee will be charged if the warranty period is expired.

Free Service will not be Provided in the Following Situations:(*Even if the product is still within the warranty period.)

• Damage caused by abuse or misuse, dismantling, or changes to the product not made by the company.
• Damage caused by natural disaster, abnormal voltage, and environmental factors, etc.

©2019 Ikan International. All rights reserved.
