USER MANUAL MVS-8 Osprey

natural_image Black rectangular device with multiple video frames showing sports activities including badminton, running, and track running (no text or symbols visible)

Osprey®

Video

FEATURES:

  • 1RU rack mount monitor with eight 2" displays
  • 8x 3G-SDI Inputs, 8x 3G-SDI Loopouts
    • Audio Meters, Time Stamp
  • Custom Text Overlay
  • 2yr Warranty.

Content

  1. PRODUCT DESCRIPTION ......2
    2 CONTROL SOFTWARE ....3
  2. SPECIFICATIONS....4
  3. ACCESSORIES .... 4

1. PRODUCT DESCRIPTION

MONITOR1 MONITOR2 MONITOR3 MONITOR4 MONITOR5 MONITOR6 MONITOR7 MONITOR8

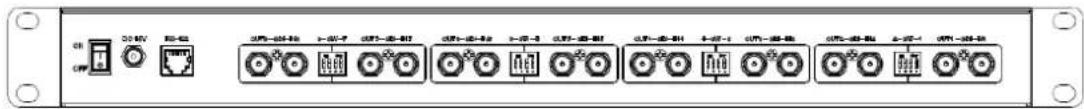

Osprey MVS-8 - PRODUCT DESCRIPTION - 2

  1. Power switch

  2. 15V Locking DC power jack.

  3. RS422 input. RJ12 to DB9 Adapter Included

SDI OUT

  1. SDI output BNC.

SDI IN

  1. SDI input BNC.

  2. ON 12 DIF

6-1. Switch 1&2 control the (even number) monitors on the left of DIP Switch; Switch 3&4 control the (uneven number) monitors on the left of DIP Switch.

For example, Switch 1&2 control monitor2; Switch 3&4 control monitor1.

MONITOR1 MONITOR2

6-2. Switch 1&3 as time code switch.

00:00:00:00

6-3. Switch 2&4 as audio level meter switch.

Osprey MVS-8 - PRODUCT DESCRIPTION - 5

bar | Category | Value | |---|---| | 0 | -12 | | -6 | -12 | | -4 | -12 | | -2 | -12 | | -1 | -12 | | 0 | -8 | | 2 | -8 | | 4 | -8 | | 6 | -8 | | 8 | -8 | | 10 | -8 | | 12 | -8 | | 14 | -8 | | 16 | -8 | | 18 | -8 | | 20 | -8 | | 22 | -8 | | 24 | -8 | | 26 | -8 | | 28 | -8 | | 30 | -8 | | 32 | -8 | | 34 | -8 | | 36 | -8 | | 38 | -8 | | 40 | -8 | | 42 | -8 | | 44 | -8 | | 46 | -8 | | 48 | -8 | | 50 | -8 | | 52 | -8 | | 54 | -8 | | 56 | -8 | | 58 | -8 | | 60 | -8 | | 62 | -8 | | 64 | -8 | | 66 | -8 | | 68 | -8 | | 70 | -8 | | 72 | -8 | | 74 | -8 | | 76 | -8 | | 78 | -8 | | 80 | -8 | | 82 | -8 | | 84 | -8 | | 86 | -8 | | 88 | -8 | | 90 | -8 | | 92 | -8 | | 94 | -8 | | 96 | -8 | | 98 | -8 | | 100 | -8 |

2. RS422 Control Software

  1. Connect your PC's RS422 port to MVS-8, Power Up the unit and launch the PC software "MVS8_Controls.exe" which is available for download at www.ospreyvideo.com

COM Settings COM: COM1 Open Select Monitor: Monitor 1 Monitor 2 Monitor 3 Monitor 4 Monitor 5 Monitor 6 Monitor 7 Monitor 8 ALL Monitor Return Data Settings Brightness Contrast TimeCode OFF LTC VITC Level Meter OFF ON UMD switch OFF ON UMD data Data Send Reset

  1. In Com Settings, select the serial interface, click the Open button to open the serial port.
  2. Choose the monitor you want to control.
  3. The following settings can be changed:

(1) Brightness control
(2) Contrast control
(3) Time code switch
(4) Level meter function switch
(5) UMD switch function. Enables the user to add text overlay to each display up to 32 half-width characters. Click the Data Send button to apply the setting.

3. Specifications

Panel2 inch
Physical Resolution640×240
Aspect Ratio4 : 3
Brightness250 cd/m2
Contrast300: 1
Viewing Angle80°/ 70°(H/V)
Input Signal8×3G-SDI, RS422
Output Signal8×3G-SDI
Input VoltageDC12-24V
Operating Temperature-20°C ~ 55°C
Storage Temperature-30°C ~ 70°C
Power Consumption≤23W
Dimension (LWD)482.5×105×44mm
Weight1555g

4. Included Accessories

  1. 15V DC power supply
  2. RJ12 to DB9 Adapter for RS422

Note: Due to constant efforts of product improvements, specifications may change without notice.
