Product Type	Digital Camera
Brand	Sanyo
Model	VPC-E1075
Effective Pixels	10.1 Megapixels
Optical Zoom	3x
Digital Zoom	4x
Display Size	2.5 inches
Display Resolution	230,000 dots
Storage Type	SD / SDHC Memory Card
Internal Memory	Approx. 32 MB
Power Source	2 AA Batteries (Alkaline or Ni-MH)
Battery Life	Approx. 200 shots (Alkaline)
Dimensions (W x H x D)	89.5 x 57.0 x 26.1 mm
Weight (without batteries)	Approx. 130 g
Image Sensor	1/2.33-inch CCD
Image Stabilization	Electronic
Maximum Aperture	f/2.8 - f/5.2
Focus Range	Normal: 50 cm to infinity; Macro: 10 cm
ISO Sensitivity	Auto, 80, 100, 200, 400, 800, 1600
Shutter Speed	1/2 - 1/2000 seconds
White Balance	Auto, Daylight, Cloudy, Fluorescent, Incandescent
Scene Modes	Portrait, Landscape, Night, Sports, etc.
Video Recording	640 x 480 (30fps) with sound
Interface	USB 2.0, AV output

Frequently Asked Questions - VPC-E1075 SANYO

How to extend battery life on the Sanyo VPC-E1075?

Use Ni-MH rechargeable batteries instead of alkaline. Turn off the LCD when not needed and reduce flash usage. Set the camera to Power Saving Mode in the menu.

What memory card does the VPC-E1075 support?

It supports SD and SDHC memory cards up to 32GB. For best performance, use Class 4 or higher cards.

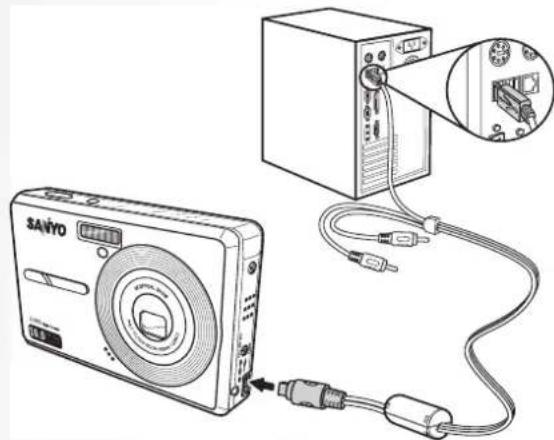

How to transfer photos to a computer?

Connect the camera to your computer using the supplied USB cable. Set the camera to PC Mode (usually appears automatically). The camera will appear as a removable drive; copy files from the DCIM folder.

The camera won't turn on. What should I do?

First, check the batteries: ensure they are inserted correctly and have charge. If using alkaline, try fresh ones. Clean the battery contacts with a dry cloth. If still not working, the batteries may be drained; replace them.

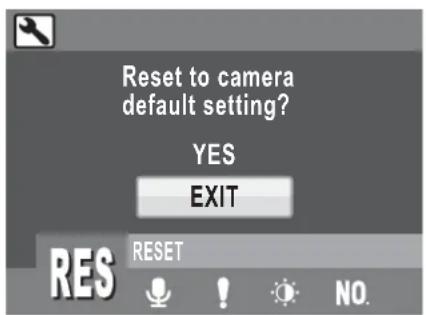

How to reset the Sanyo VPC-E1075 to factory settings?

Go to the Setup menu, select Reset or Initialize. Confirm the action. This will erase all custom settings but not your photos.

How to clean the lens?

Use a soft, lint-free cloth (microfiber) slightly dampened with lens cleaning solution. Gently wipe in a circular motion from the center outward. Never use paper towels or harsh chemicals.

Why are my photos blurry?

Blurry photos can result from camera shake, low light, or incorrect focus. Use a faster shutter speed (increase ISO) or enable Image Stabilization. Ensure the subject is in the focus area and half-press the shutter to lock focus.

Can I record videos with the VPC-E1075?

Yes, it records VGA video (640 x 480) at 30fps with mono sound. To record, set the mode dial to Movie (if available) or press the movie button. Note: video length is limited by memory card capacity.

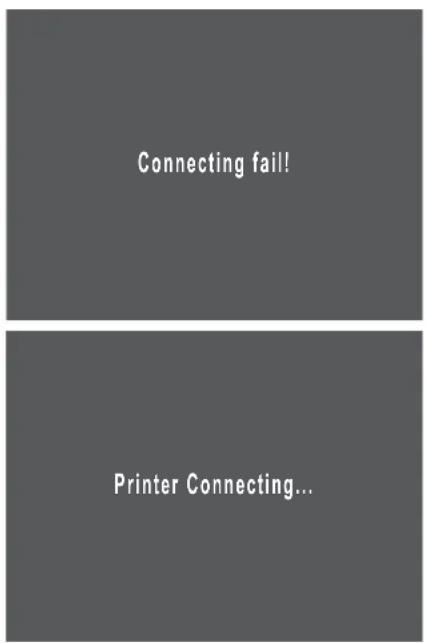

How to print directly from the camera?

The VPC-E1075 supports PictBridge. Connect the camera to a compatible printer via USB, turn on the printer, then select Print from the camera's playback menu.

Error message 'Card Locked' appears. How to fix?

The SD card has a write-protect switch on the side. Ensure it is slid upward (unlock position). If it's already unlocked, the card may be faulty; try formatting in the camera (backup data first).

USER MANUAL VPC-E1075 SANYO

This manual is designed to assist you in using your new digital camera. All information presented is as accurate as possible but is subject to change without notice.

Copyright

This manual contains proprietary information protected by copyright. All rights are reserved. No part of this manual may be reproduced by any mechanical, electronic or other means, in any form, without prior written permission of the manufacturer.

© Copyright 2008

Federal Communications Commission (FCC) Compliance

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the distance between the equipment and the receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Warning: A shielded-type power cord is required in order to meet FCC emission limits and to prevent interference to radio and television reception. Use only shielded cable to connect I/O devices to this equipment. Any changes or modifications not expressly approved by the manufacturer may void your warranty and service agreement.

Declaration of Conformity

This device complies with Part 15 of the FCC rules. Operation is subject to the following conditions:

• This device may not cause harmful interference.
• This device must accept any interference received, including interference that may cause undersired operation.

ii Preface

Trademark Recognition

Windows 2000/XP/Vista are registered trademarks of Microsoft Corporation in the United States and/or other countries. Windows is an abbreviated term referring to the Microsoft Windows Operation System. Adobe is a trademark of Adobe Corporation. ArcSoft is the trademark of ArcSoft System, Inc. All other companies or product names are trademarks or registered trademarks of their respective companies.

Safety and Handling Precautions

Camera Information

• Do not take apart or attempt to service the camera yourself.
• Do not expose the camera to moisture, or extreme temperatures.
• Allow the camera to warm up when moving from cold to warm temperatures.
• Do not touch the camera lens.
• Do not expose the lens to direct sunlight for extended periods.
• Do not use abrasive chemicals, cleaning solvents or strong detergents to clean the product. Wipe the product with a slightly damp soft cloth.

Battery Information

• Turn off the camera before installing or removing the battery.
• Use only the type of battery. Using other types of battery may damage the equipment and invalidate the warranty.
• Inserting the battery upside down can cause damage to the product and possibly start a fire.
• Download all pictures and remove the battery from the camera if you are going to store the camera for long periods.

Safety Instructions

Read and understand all Warnings and Cautions before using this product.

WARNING

Do not disassemble, change or repair the camera.

This might cause fire or electric shock. For repair or internal inspection, ask the store of purchase.

Do not use the camera in areas near water.

This might cause fire or electric shock. Take special care during rain, snow, on the beach, or near the shore.

Do not place the camera on inclined or unstable surfaces.

This might cause the camera to fall or tilt over, causing injury.

Keep the battery out of the reach of children.

Swallowing battery might cause poisoning. If the battery is accidentally swallowed, immediately consult a physician.

Do not use the camera while you are walking, driving or riding a vehicle.

This might cause you to fall over or result in traffic accident.

iv Preface

CAUTION

Insert the battery paying careful attention to the polarity (+ or -) of the terminals.

Inserting the battery with its polarities inverted might cause fire and injury, or damage to the surrounding areas due to the battery rupturing or leaking.

Do not fire the flash close to anyone's eyes.

This might cause damage to the person's eyesight.

Do not subject the LCD monitor to impact.

This might damage the glass on the screen or cause the internal fluid to leak. If the internal fluid enters your eyes or comes into contact with your body or clothes, rinse with fresh water.

If the internal fluid has entered your eyes, consult a physician to receive treatment.

A camera is a precision instrument. Do not drop it, strike it or use excessive force when handling the camera.

This might cause damage to the camera.

Do not use the camera in humid, steamy, smoky, or dusty places.

This might cause fire or electric shock.

Do not remove the battery immediately after long period of continuous use.

The battery becomes hot during use. Touching a hot battery might cause burns.

Do not wrap the camera or place it in cloth or blankets.

This might cause heat to build up and deform the case, resulting in fire. Use the camera in a well-ventilated place.

Do not leave the camera in places where the temperature may rise significantly, such as inside a car.

This might adversely affect the case or the parts inside, resulting in fire.

Before you move the camera, disconnect cords and cables.

Failure to do this might damage cords and cables, resulting in fire and electric shock.

Warning:

TO PREVENT THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE

FOR AMERICAN USERS

The following advisory is included in accordance with the laws of the State of California (USA):

WARNING:

This product contains chemicals, including lead, known to the States of California to cause cancer, birth defects or other reproductive harm. Wash hands after handling.

Safety Instructions

- This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designated to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
* Consult the dealer or an experienced radio/TV technician for help.

- Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

FOR CANADIAN USERS

This Class B digital apparatus complies with Canadian ICES-003

vi Preface

FOR EU USERS

This symbol mark and recycling systems described below apply to EU countries and do not apply to countries in other areas of the world.

Your SANYO product is designed and manufactured with high quality materials and components which can be recycled and/or reused.

The symbol mark means that electrical and electronic equipment, batteries and accumulstors, at their end-of-life, should be disposed of separately from your household waste.

Note:

If a chemical symbol is printed beneath the symbol mark, this chemical symbol means that the battery or accumulator contains a heavy metal at a certain concentration.

This will be indicated as follows: Hg: mercury. Cd: cadmium. Pb: lead.

In the European Union there are separate collection systems for used electrical and electronic equipment, batteries and accumulators.

Please, despose of them correctly at your local community waste collection/recycling centre.

Please, help us to conserve the environment we live in!

Manufacturer and Address

SANYO Electric Co., Ltd.

5-5, Keihan-hondori, 2-chome,

Moriguchi City, Osaka, Japan

Authorized Representative and Address

SANYO FISHER Sales (Europe) GmbH

Stahlgruberring 4, D-81829 Munich, Germany

Symbols used in this manual

Points giving some extended instructions or special points to pay attention to.

You many find the answers to questions or problems concerning camera operation in the sections “Troubleshooting”.

FCC Information

Tested To Comply With FCC Standards

FOR HOME OR OFFICE USE

Declaration of Conformity

Model number: VPC-E1075

Trade Name: SANYO

Responsible party: SANYO FISHER COMPANY

Address: 21605 Plummer Street

Chatsworth, California 91311

Telephone No.: [phone]

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

Canadian ICES-003 Information

This class B digital apparatus complies with Canadian ICES-003.

viii Preface

TRADEMARK INFORMATION

• Micr® and Windows® are U.S. registered trademarks of Microsoft Corporation.
• Pentium ^® is a registered trademark of Intel Corporation.
• M a c i n ^ is a trademark of Apple Computer, Inc.
• SD ^TM is a trademark.
• SDHC ^TM is a trademark.

- Other names and products may be trademarks or registered trademarks of their respective owners.

READ THIS FIRST

Notice:

• Product design and specifications are subject to change without notice. This includes primary product specifications, software, software drivers, and user's manual. This User Manual is a general reference guide for the product.
• The product and accessories that come with your camera may be different from those described in this manual. This is due to the fact that different retailers often specify slightly different product inclusions and accessories to suit their market requirements, customer demographics, and geographical preferences. Products very often vary between retailers especially with accessories such as batteries, memory cards, cables, pouches, and language support. Occasionally a retailer will specify a unique product color, appearance, and internal memory capacity. Contact your dealer for precise product definition and included accessories.
• The illustrations in this manual are for the purpose of explanation and may differ from the actual design of your camera.
• The manufacturer assumes no liability for any errors or discrepancies in this user manual.

Table of Contents

Preface ....i

About this Manual ....i

Copyright ...... i

Federal Communications Commission (FCC) Compliance ...... i

Declaration of Conformity .... i

Trademark Recognition ....ii

Safety and Handling Precautions ......ii

Camera Information ....ii

Battery Information ....ii

Safety Instructions ....iii

WARNING ....iii

CAUTION iv

FOR AMERICAN USERS ....iv

FOR CANADIAN USERS ...... v

FOR EU USERS ......vi

Symbols used in this manual ......vi

FCC Information ......vii

Declaration of Conformity ......vii

Canadian ICES-003 Information ......vii

TRADEMARK INFORMATION ......viii

READ THIS FIRST ......viii

Introduction .... 1

System Requirements ....1

Package Contents ....1

Main Features ....1

Camera Views 2

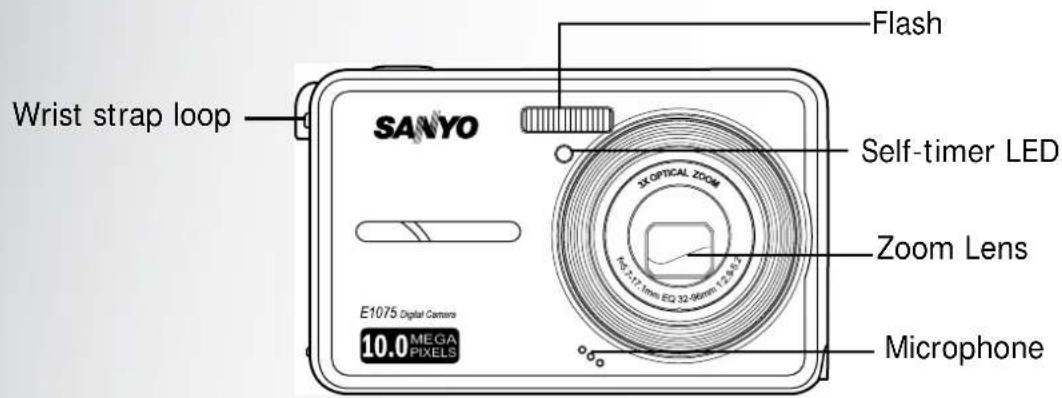

Front View 2

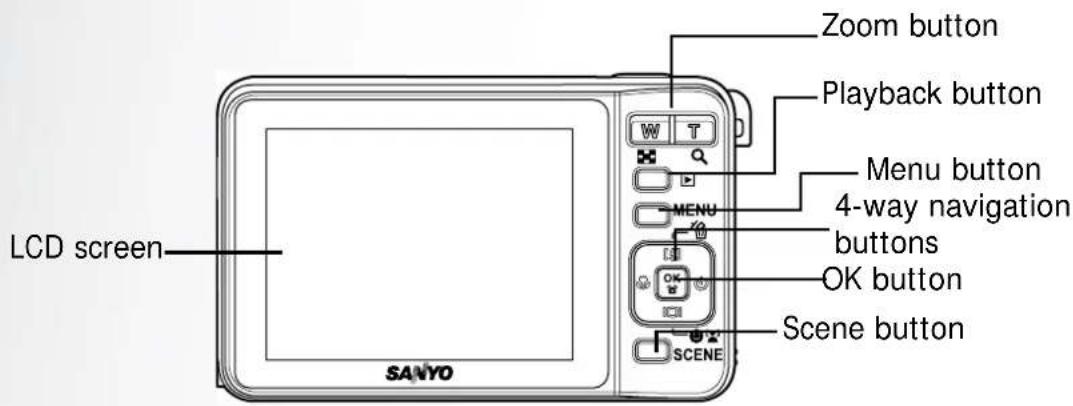

Back View 2

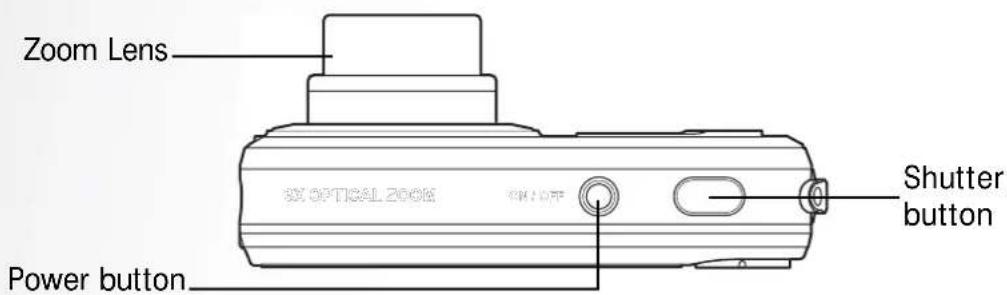

Top View 2

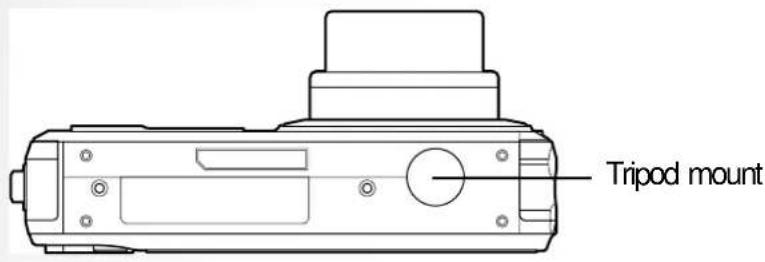

Bottom View 3

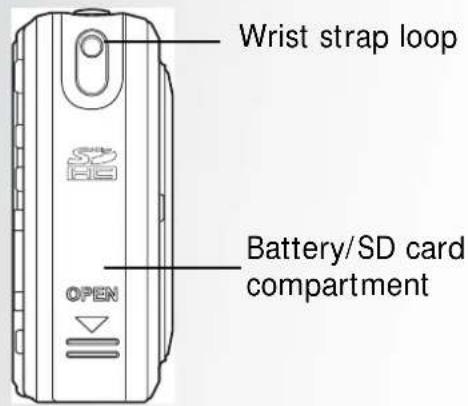

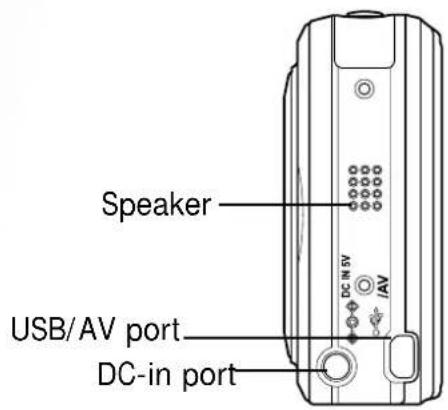

Left / Right View 3

LED Indicators 3

Camera Buttons 4

Navigation Buttons 4

The Scene Button 7

Function Buttons 8

LCD screen 9

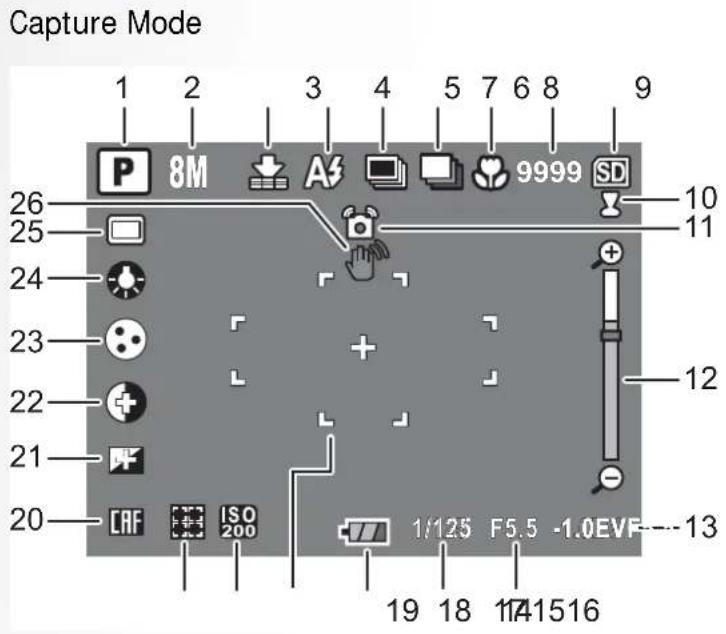

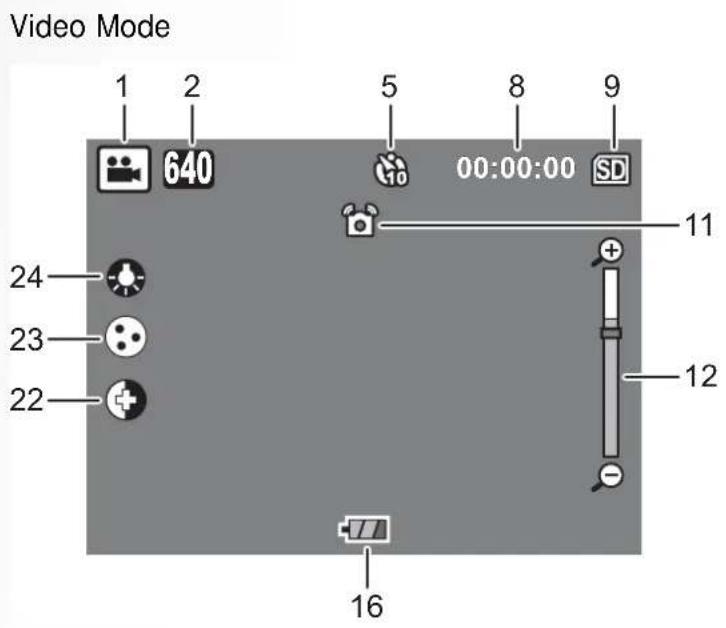

Capture/Video Mode Display 9

Camera Setup 15

Attaching the Wrist Strap ....15

Inserting the Battery 15

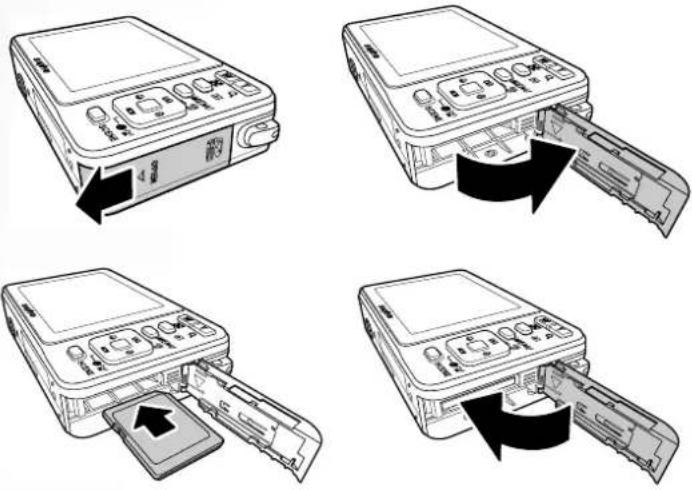

Inserting an SD/MMC Memory Card 16

Charging the Battery 16

Turning On 16

First Time Use ....17

Getting Started 18

Taking your First Photo ....18

Anti-Shake Function 18

Using Macro Mode 18

Setting the Flash Mode 18

Using the Zoom in/out Function 19

Using the Self-timer and Burst Photography 19

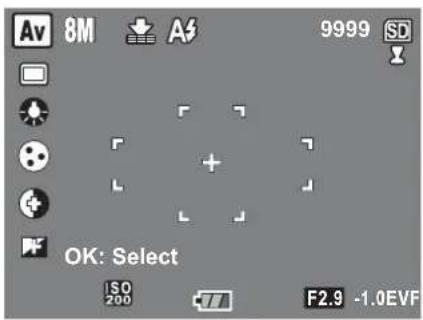

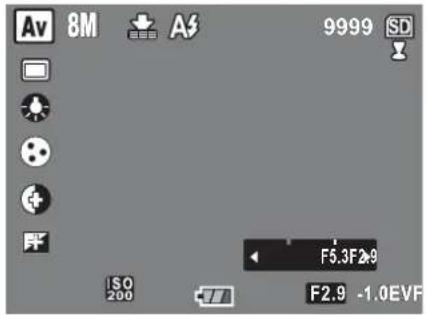

Using the Av Mode 20

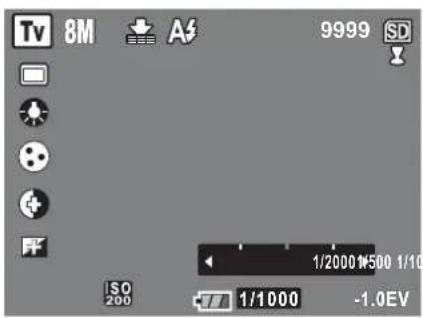

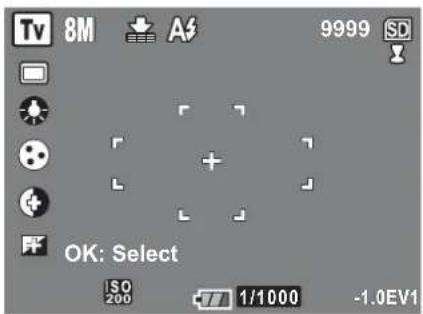

Using the Tv Mode 20

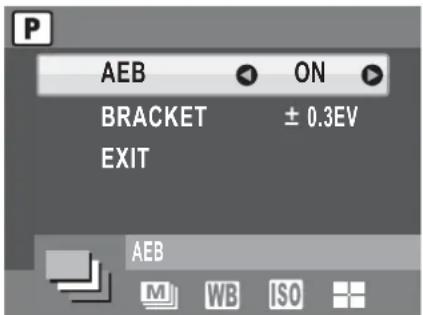

Using the AEB (Auto Exposure Bracketing) Function 21

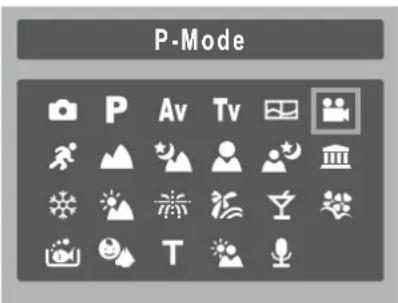

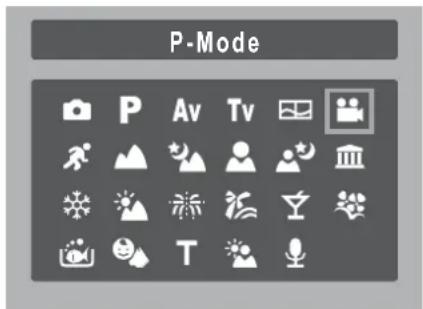

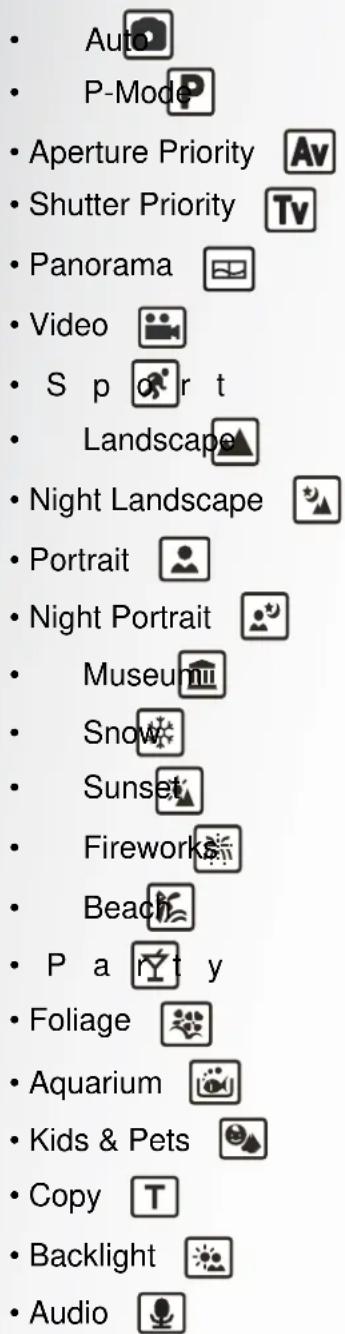

Setting the Scene Mode 22

Face and Smile Detection AF/AE Function 23

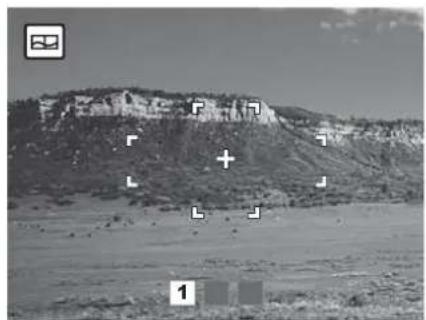

Taking Panoramic Pictures ....23

Recording your First Video 24

Recording Audio Files 24

Recording Voice Memos ....25

Capture Settings 26

The Capture Menu 26

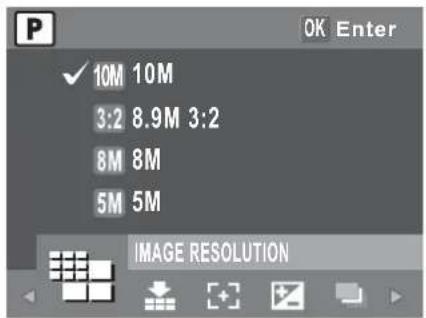

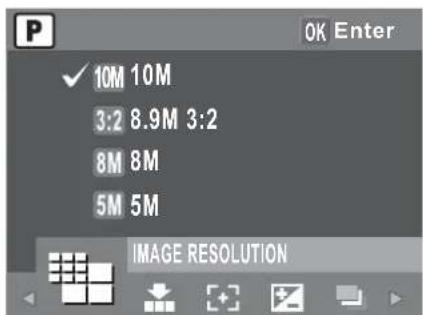

Image Resolution 26

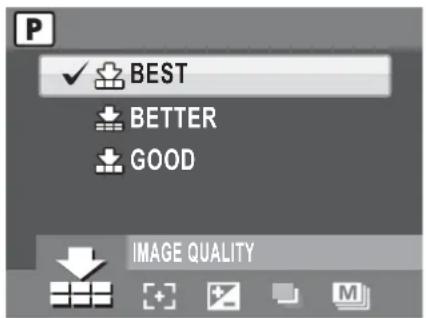

Image Quality 27

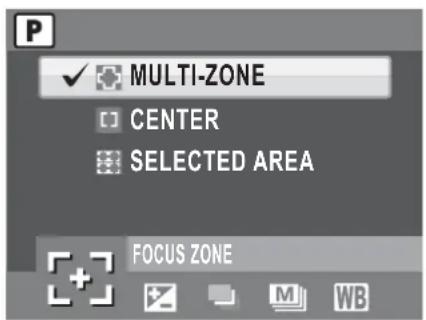

Focus Zone 27

EV Compensation 27

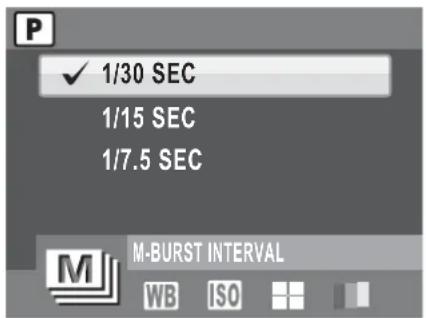

M-Burst Interval 28

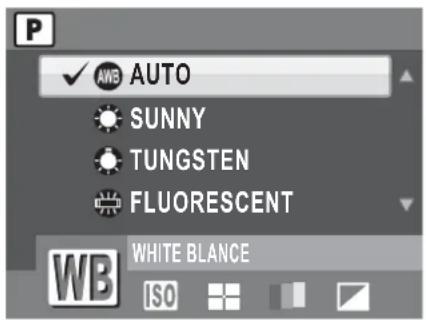

White Balance 28

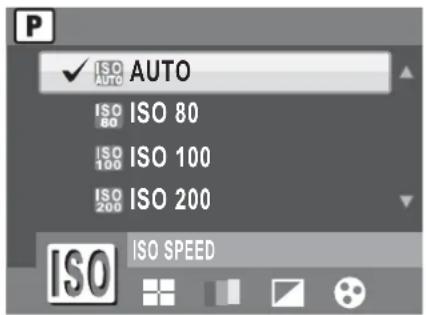

ISO Speed 28

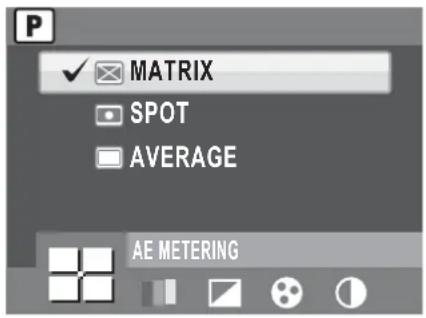

AE Metering 29

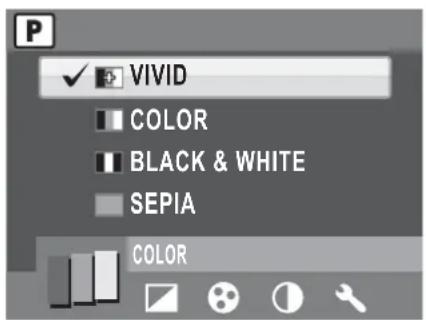

Color 29

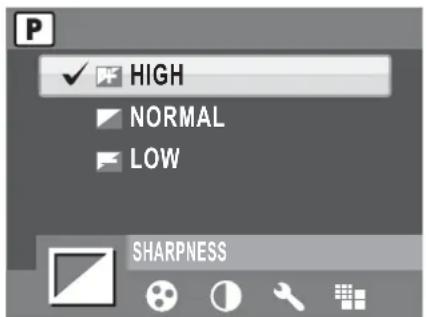

Sharpness 29

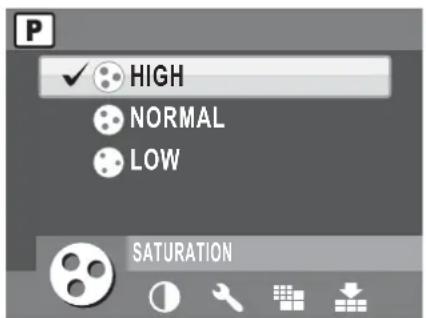

Saturation 29

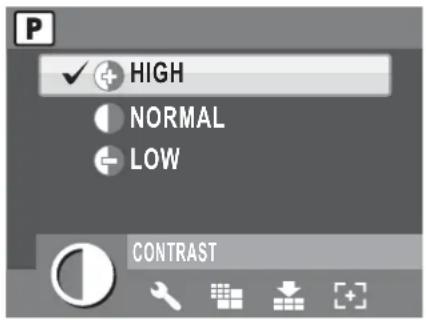

Contrast 30

Setup 30

Video Capture Menu ....30

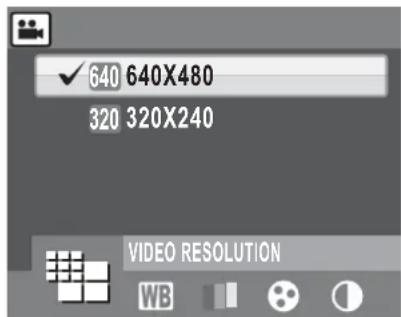

Video Resolution 30

White Balance 30

Color 30

Saturation 30

Contrast 31

Setup 31

Photo & Video Playback 32

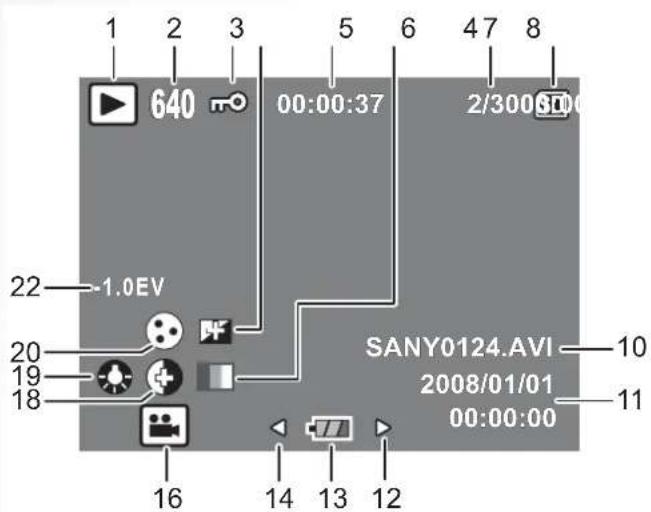

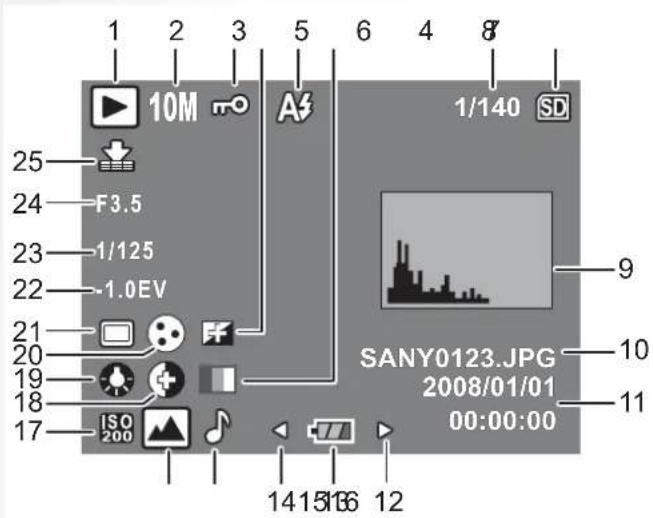

Playback Mode Display 32

Viewing Photos/Videos on the LCD Screen 34

Viewing M-Burst Photos 34

Listening to Voice Memo 35

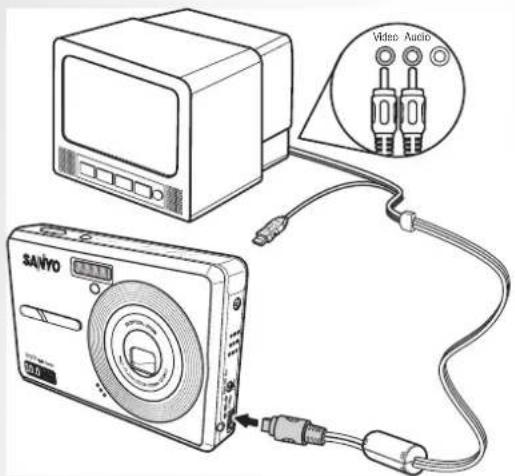

Viewing Photos/Videos on your TV 35

Zooming In/Out During Playback 36

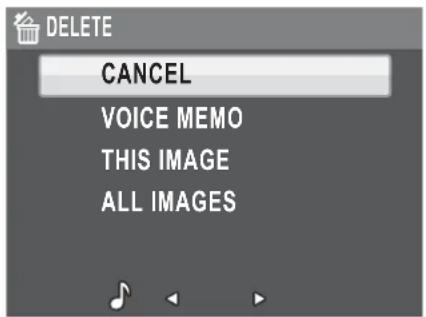

Deleting Photos/Videos 36

Using the Playback Menu 36

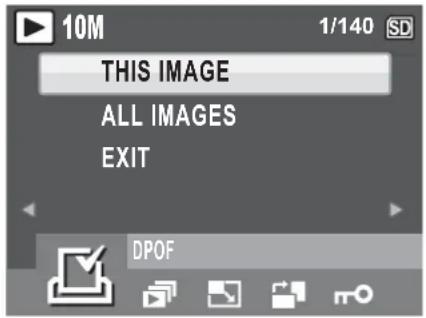

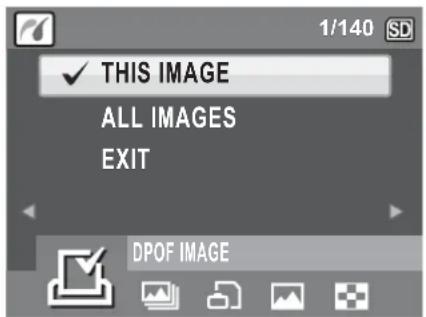

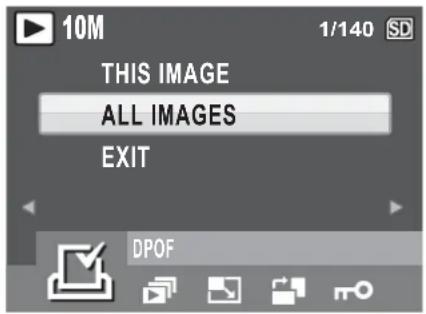

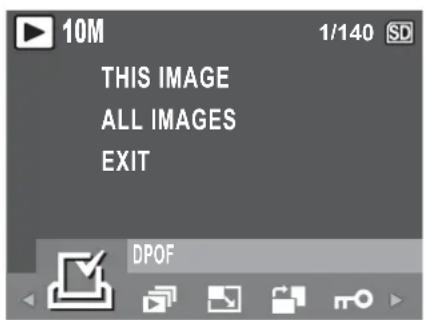

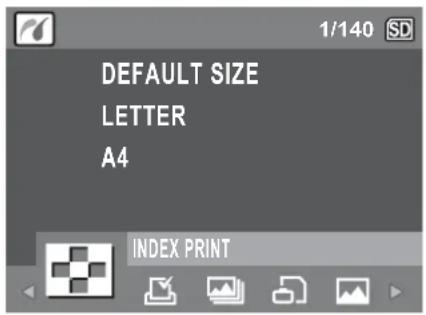

DPOF 37

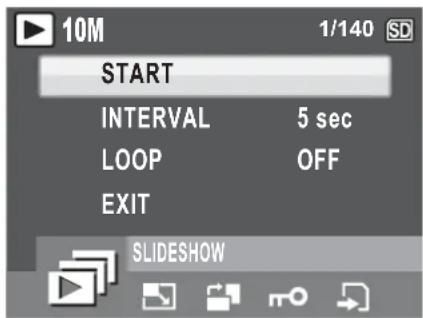

Slideshow 38

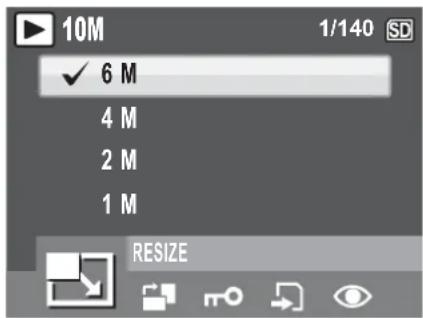

Resize 38

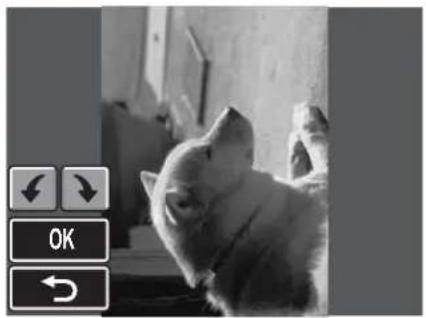

Rotate 39

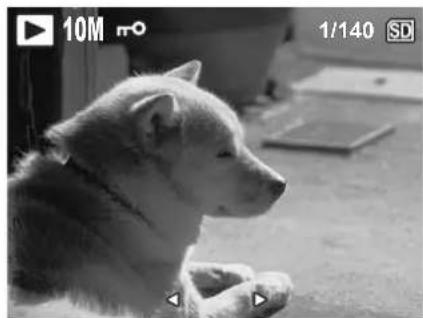

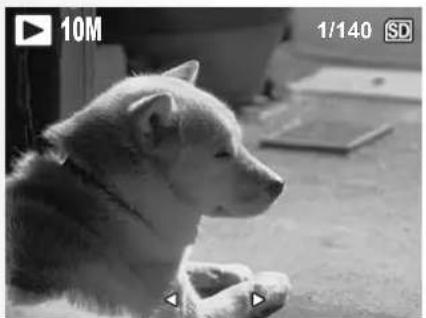

Protect 39

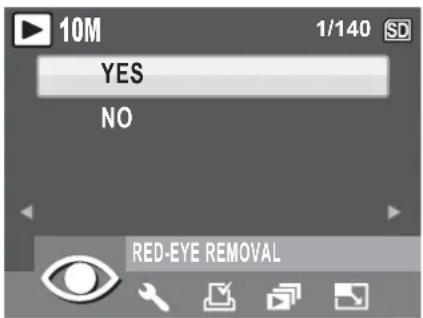

Red-Eye Removal 40

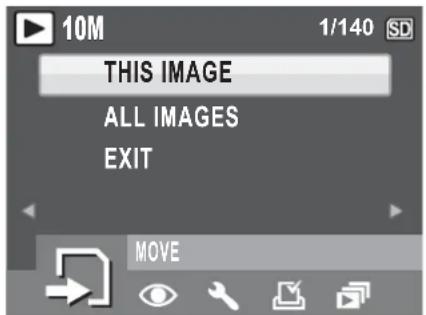

Move 40

Transferring Photos/Videos to your PC 41

Camera Settings 42

The Setup Menu 42

LCD Brightness 42

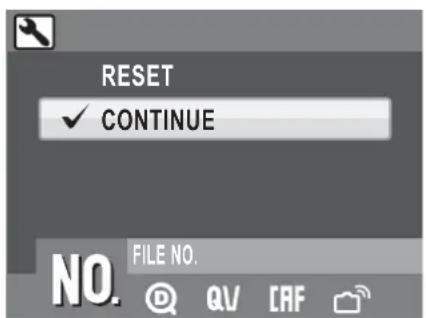

File Number 42

Digital Zoom 43

Quick View 43

Continuous AF 43

Camera Sound 43

Auto LCD Off 44

Auto Power Off 44

Video Out 44

USB Mode 44

Date Stamp 45

Date and Time 45

Language 45

Image Storage 46

Format 46

Reset 46

Voice Memo 47

About 47

PictBridge Print (PTP) 47

Image Storage 48

This Image 49

Index Print 50

DPOF Image 50

All Images 51

Specifications 52

Troubleshooting 56

English

Introduction

Congratulations on the purchase of your new digital camera. This manual provides step-by-step instructions on how to use your camera, and is intended for your reference only.

System Requirements

In order to get the most out of your camera, your computer must meet the following system requirements:

• OS: Windows 2000/XP/Vista
• Memory: 128MB or above
• HDD space: 40 MB or above
- USB port

Package Contents

Check the contents of your camera package. It should contain:

• Digital camera
- USB/AV 3-in-1 cable
- Wrist strap
- One Li-ion battery
- Battery charger and power cord
- Camera pouch
- Quick start guide for all regions

- Bundled CD-ROM (Application Software and User's Manual for all regions)

Main Features

• 10.0 mega pixels resolution
- 15x zoom (Up to 3x optical zoom and 5x digital zoom)
• 1/2.33 inch CCD image sensor
• 2.7 inch GPT TFT LCD monitor
- 16MB internal flash memory, support SD/MMC memory card from 32MB to 16GB.
- Sleek and slim design
- Easy-to-use button interface
- PictBridge compatibility
- Slideshow feature to review your pictures and movies
• A/V output to view your pictures and movies on your TV
- USB port to transfer photos and movies to your PC

2 Introduction

Camera Views

Front View

Back View

Top View

Camera Views

Bottom View

Left / Right View

LED Indicators

LED LED Status Camera Status

Power/Flash LED	Off Power Off.
	Blue (steady) Ready to take picture.
	Blue (blinking) Camera busy
Self-timer LED	Off Self-timer off.
	Red (blinking) (10 sec)	Timer count down, flash after 10 seconds.
	Red (blinking) (2 sec)	Timer count down, flash after 2 seconds.

4 Introduction

Camera Buttons

Navigation Buttons

The 4-way navigation buttons and the OK button allow you to access the various options available from the On Screen Display (OSD) menu. You can configure a wide range of settings to ensure maximum results from your photos and videos.

IconButtonFunction

OK/ OK/ Anti-shake

1. Confirm a selection when using the OSD menus2. In Capture mode:Press to enable/disable the Anti-Shake in Auto modePress to enable AF area selection using 4-way navigation buttons (except Auto/ AV/ TV/ Panorama/ Video/ Audio/ Landscape/ Night Landscape/ Fireworks)Press to enable Aperture selection in Aperture Priority mode (Av)Press to enable Shutter Speed selection in Shutter Priority mode (Tv)3. In Playback mode:Press to start and pause the video playbackPress to play and pause the audio playbackPress to stop the voice memo playback4. In USB mode:MSDC: N/APTP: Press to confirm the selection5. In Video mode:Press to enable/disable the anti-shake function

Icon Button Function

[5]	Up/Flash/Delete	1. Move up in the OSD menus2. In Capture mode:• Scroll through the flash mode options (Auto, Off, Fill and Anti Red-eye.)• Press to pan up in AF area selection• Press to delete in QUICK VIEW (QV) “ON” at SETUP ( )mode during mark appears on LCD.3. In Playback mode:• Press to pan up in zoom in mode• Press to move up in the thumbnail display• Press to delete images4. In USB mode:• MSDC: N/A• PTP: Press to scroll up through a menu
	Right/Self-timer/Burst mode	1. Move right in the OSD menus2. In Capture mode:• Press to scroll through the Self-timer/Burst/Multi-Burst mode• Press to pan right in AF area selection3. In Video mode:• Press to scroll through the Self-timer options4. In Playback mode:• Press to pan right in zoom in mode• Press to navigate to next image in single up• Press to move right in the thumbnail display• Press to fast forward video playback during Pause || mode5. In USB mode:• MSDC: N/A• PTP: Press to select the next image in This Image submenu

6 Introduction

Icon Button Function
IOI	Down/Screen/Face Detection/Smile Detection	1. Move down in the OSD menus2. In Capture mode:Once press to exit histogram,twice press to enter face detection, one more press to enter smile detection,press again to turn off extra icons on the LCD screen,then press to turn all icons back on the LCD screenPress to pan down in AF area selection3. In Video mode:Press to turn off extra icons on the LCD screen, press again to turn all icons back on the LCD screen4. In Playback mode:Press to pan down in zoom in modePress to move down in the thumbnail displayPress to show the file information5. In USB mode:MSDC: N/APTP: Press to scroll down through a menu
	Left/Macro	1. Move left in the OSD menus2. Go up to the previous level in the OSD menus3. In Capture mode:Press to enable Macro mode. Macro icon displays on the LCD screenPress to pan left in AF area selection4. In Playback mode:Press to pan left in zoom in modePress to navigate to previous image in single upPress to move left in the thumbnail displayPress to fast rewind video playback during Pause III mode5. In USB mode:MSDC: N/APTP: Press to select the previous image in This Image submenu

The Scene Button

The camera is equipped with a convenient SCENE button that takes you to the Scene Menu where you can scroll between different modes and choose different scene options. Use the Left/ Right/ Up/ Down navigation buttons to scroll and use the OK button to select. Use the SCENE button to:

Mode Type Icon Function

Auto Scroll to Auto mode.
P-Mode(Program Mode)	Scroll to Program mode.
Av (Aperture Priority) Scroll to Aperture Priority mode.
Tv (Shutter Priority) Scroll to Shutter Priority mode.
Panorama Scroll to Panorama mode.
Video Scroll to Video mode.
Sport Scroll to Sport mode.
Landscape Scroll to Landscape mode.
Night Landscape Scroll to Night Landscape mode.
Portrait Scroll to Portrait mode.
Night Portrait Scroll to Night Portrait mode.
Museum Scroll to Museum mode.
Snow	Scroll to Snow mode.
Sunset	Scroll to Sunset mode.
Fireworks	Scroll to Fireworks mode.
Beach	Scroll to Beach mode.

8 Introduction

Party Scroll to Party mode.

Foliage Scroll to Foliage mode.

Aquarium Scroll to Aquarium mode.

Kids & Pets Scroll to Kids & Pets mode.

Copy Scroll to Copy mode. T

Backlight Scroll to Backlight mode.

Audio Scroll to Audio mode

Function Buttons

Icon Button Function

MENU Menu Press to display the Menu options

	Playback	Press to review photos/videos clips saved in the internal memory or on the memory card
T/Q	Zoom in	In Capture mode:Press to zoom in on subject to be takenIn Playback mode:Press to zoom in on saved photos
W/☐	Zoom out	In Capture mode:Press to zoom out from the subject to be takenIn Playback mode:Press to zoom out of saved photosPress to view thumbnails of all current saved media

LCD screen

The high resolution 2.7" TFT LCD screen shows all important information regarding camera settings as well as the visual image for your photo or video.

Use the SCENE button to switch between screen modes. Press the Down IOI/Screen S/C Face Detection / Smile Detection button to switch among a Full display with histogram and without histogram, Face detection, Smile detection or a Simple display (only mode icon and focus area are shown while other icons are hidden).

Capture/Video Mode Display

10 Introduction

No. Name Scene Icon

1 Scene indicator	Auto
	P-Mode
	Av(Aperture Priority)
	Tv(Shutter Priority)
	Panorama
	Video
	Sport		[GDSY]
	Landscape
	Night Landscape
	Portrait
	Night Portrait
	Museum
	Snow
	Sunset
	Fireworks
	Beach
	Party
	Foliage
	Aquarium
	Kids & Pets

		Copy		T
		Backlight
		Audio
2 Image Resolution		10M		10M
		8.9M 3:2		32
		8M		8M
		5M		5M
		3M		3M
		2.1M 16:9		16:9
		2M		2M
		VGA		VGA
3 Image Quality		Best
		Better
		Good
4	F I a	Auto Flash		A3
		Flash Off
		Fill Flash
		Anti Red-eye
5 Self-timer/Burst mode		Self Timer	10 Seconds
			2 Seconds
		Burst Mode
		M-Burst
6 AEB		AEB OFF
		Bracket +/- 0.3 EV
		Exit -

12 Introduction

7 Macro indicator Macro Mode
8 Image Counter Capture		Mode Quantity 9999
		Video Mode Time 00:00:00
9 Memory Interface		SD Card
		Internal Memory		[BZ68]
10 Date Stamp -
11 Anti-Shake		-
12 Zoom Bar		-		[###v1]
13	EVCompensation	-
14 Aperture Value - F2.9/F5.5
15 Shutter Speed - 2~1/2000
16 Battery Indicator		Battery Full		[YA44]
		Battery Low
		Battery Insufficient		(Blink)
17 AF Frame - -
18 ISO Speed		Auto
		ISO 80
		ISO 100
		ISO 200
		ISO 400
		ISO 800
		ISO 1600
19 Focus Zone		Multi-Zone
		Center
		Selected Area
20 Continuous AF		-
21 Sharpness		High
		Normal
		Low		[SK72]
22 Contrast		High
		Normal
		Low
23 Saturation		High
		Normal
		Low
24 White Balance		Auto
		Sunny
		Tungsten		[WKBX]
		Fluorescent
		Cloudy
25 AE Metering		Matrix
		Spot
		Average

14 Introduction

26

Camera Steady Warning

-

Camera Setup

Attaching the Wrist Strap

Follow these instructions to attach the wrist strap to your camera to facilitate easy carrying:

1. Insert the short loop of the strap in the strap eyelet.
2. String the larger loop of the strap through the short loop and pull tight to attach the strap to the camera.

Inserting the Battery

Follow these instructions to insert one Li-ion battery into the battery compartment.

1. Open the battery compartment on the left of the camera.

2. Insert the battery into the compartment observing the correct polarity. (Label side up)

3. Close the battery compartment.

Line drawing of a portable electronic device with control buttons and an arrow pointing to the left side (no text or symbols)

Diagram of a device with ports and a scroll, showing internal components (no text or symbols)

Diagram of a device with an open lid and internal components, showing no text or symbols.

Line drawing of a printer with an open slot and control panel (no text or symbols)

Line drawing of a portable electronic device with control buttons and a scroll (no text or symbols)

Note: The Li-ion battery should be fully charged before using for the first time.

16 Camera Setup

Inserting an SD/MMC Memory Card

The camera features 16 MB internal flash memory but you may also use an optional SD/MMC memory card for additional storage.

Follow these instructions to insert the SD/MMC card.

1. Open the battery compartment on the left of the camera.

1. Insert the SD/MMC card into the memory card slot as shown. (Label side up)

2. Close the battery compartment.

To remove the SD/MMC card, gently push the card until it pops out. Pull out the card carefully.

Note: Please don't take in and out the SD card while camera is processing. It will make unexpected error or image damaged.

Charging the Battery

Insert the battery into the battery charger as shown (Label side down). Connect the power supply to the charging unit and the mains supply.

Diagram of a power cord connection with a switch and socket, showing cable routing (no text or symbols)

Turning On

Press and hold the Power button to turn on the camera. To turn off the camera, press the Power button again.

Inserting an SD/MMC Memory Card

First Time Use

Press the Power button as described in "Turning On" on page 16, a welcome screen displays momentarily on the LCD screen.

If the camera is turned on for the first time, the Language menu pops up automatically after powering on the camera. Press the OK button and select the desired language by up/down navigation buttons, then press the OK button to confirm.

After the desired language is selected, the Date and Time menu pops up. Press the OK button. Select each field and adjust the value using the navigation buttons. Press the OK button to confirm.

Note:

If the Date and Time is reset (when running out the battery and not in use for a long period), the Date and Time setup screen displays automatically.

18 Getting Started

Getting Started

Now that you are familiar with the layout of your camera, you are ready to start taking photos and movies.

Taking your First Photo

Taking a photo with the camera is very simple.

Turn the camera on and press the SCENE button to access the Auto mode.

1. Frame the shot on the LCD screen and press the Shutter button halfway. The camera automatically adjusts the focus and exposure. The focus bracket turns green when ready.
2. Press fully and hold the Shutter button to capture the image.

When a camera steady warning icon 🎨 appears, hold the camera as still as possible, as a longer exposure time (more than 1/30 second) is required.

Anti-Shake Function

This function is available in Auto ☐ capture mode. Press the OK button to enable the Anti-Shake function, and press again to disable it. An

Anti-Shake icon 📷 displays on the LCD screen when the function is activated.

Gray-scale image placeholder with camera icon, plus signs, and battery symbol (no readable text or symbols)

Using Macro Mode

Macro mode is designed for close-up photography and can capture all detail even when your subject is very close to the camera. Press the Left/ Macro navigation button. The Macro icon displays on the LCD screen.

Setting the Flash Mode

You can choose from four flash modes to suit various lighting conditions.

Press the Up/ Flash/ Delete [⚡] navigation button to scroll through the four modes on the LCD screen. The flash setting remains the same for subsequent photos until you change it as described above.

Auto flash: The flash fires automatically when needed.

Flash off: The flash is turned off.

Fill flash: The flash always fires.

Taking your First Photo

Anti Red-eye: The flash fires twice so as to reduce the red-eye effect.

Using the Zoom in/out Function

The camera comes equipped with 3x optical zoom and 5x digital zoom that allows you to zoom in on your subject.

To use the zoom:

1. Press the right side of the Zoom button T to zoom in on your subject.
2. Press the left side of the Zoom button W ☐ to zoom out from your subject.

Using the Self-timer and Burst Photography

The camera comes equipped with a self-timer which allows you to take photos after a pre-defined delay. The burst photography feature allows you to take multiple consecutive photos by pressing and holding the Shutter button. The multi-burst photography feature allows you to take multiple (16) consecutive VGA photos by pressing the Shutter button once.

To set the self-timer/burst mode:

1. Press the Right/ Self-timer/ Burst mode ⏻ navigation button to cycle

through the self-timer( or ) and burst photography options ( or ) on the LCD screen.

1. Once you have selected an option, frame and take your shot. In self-timer mode, the icon will flash until the time expires and the photo is taken.
2. After taking a photo, the Self-timer automatically exit. If you want to use these functions for the next photo, press the Right/ Self-timer/ Burst mode navigation button again to activate the function.

Note:

Burst Mode

Take photos until all free memory space is used.

: Multi-Burst Mode

16 photos continuously by 1 press of the Shutter button.

20 Getting Started

Using the Av Mode

Aperture priority mode allows you to manually select the aperture and the camera automatically decides adequate exposure time. Use large aperture to get images with soft background, small aperture to get images with clear depth of field (DOF).

To set the aperture:

1. Press the SCENE button and select Av mode, press OK button to confirm. The Av icon displays on the LCD screen. Press the OK button to enter aperture selection mode.

2. Use the Left/Right navigation buttons to select an aperture value. Many options are available depending on the lens zoom position:

3. Wide: F2.9 or F5.5

4. Tele: F5.2 or F10.0

5. Press the OK button to confirm the selection and return to the capture mode.

Using the Tv Mode

Shutter priority mode allows you to take photos with a fixed shutter speed, and the camera automatically selects the proper aperture. This mode is used to control how you capture moving objects. Use faster shutter speed to freeze the motion of moving objects or slower shutter speed to blur the image.

To set the shutter speed:

1. Press the SCENE button and select Tv mode, press OK button to confirm. The Tv icon displays on the LCD screen. Press the OK button to enter shutter speed selection mode.
2. Use the Left/Right navigation buttons to cycle through the shutter speed in the following steps: 2, 1, 1/2, 1/4, 1/8, 1/15, 1/30, 1/60, 1/125, 1/250, 1/500, 1/1000, and 1/2000 seconds.
3. Press the OK button to confirm the selection and return to the capture mode.

Using the AEB (Auto Exposure Bracketing) Function

When using the AEB (Auto Exposure Bracketing) function, the camera automatically takes 3 consecutive photos with different exposures by pressing the Shutter button once. For example, when the current EV compensation value is +0.3 EV and the AEB bracket interval value is set to ±0.3, the camera takes shots of the same scene with 3 varying levels of exposure: 0 EV, +0.3 EV, and -0.3 EV.

This function is only available in Auto, P-Mode, Av and Tv modes. To set the AEB mode:

1. Press the MENU button to display menu options.
2. Press the Left/Right navigation buttons to select AEB setting and press the OK button.
3. Press the Up/Down navigation buttons to select from the available options:

- AEB: Select to enable (ON) or disable (OFF) the AEB function.

- BRACKET: Select to set the bracket interval value ranging from ± 0.3 to ± 2.0 EV in 0.3 or 0.4 EV increments.

- EXIT: Select to apply new settings to the camera and return to the setup menu.

Note:

1. When taking AEB shots, hold the camera steadily. For the best result, use the tripod.
2. Flash, Burst, and M-Burst modes are not allowed when the AEB function is enabled.

22 Getting Started

Setting the Scene Mode

The camera supports various preset modes for shooting in different environments and conditions. Each setting is configured automatically by the camera.

To select scene modes:

Press the SCENE button to access Scene menu which displays the Scene menu options.

1. Use the Left/ Right/ Up/ Down navigation buttons to scroll through the modes.

1. Press OK to confirm your selection.

Face and Smile Detection AF/AE Function

The face ( [ ] and smile ( ) detection functions can be set on and off with each press of the Down/ Screen Navigation button in most capture modes. When the subject's face/ smile is detected, the white bracket appears to track faces/ smiles while the camera or people are moving.

When the Shutter button is pressed halfway, the green focus frames appear on the LCD screen. Then the camera automatically adjusts the focus

Two people in winter clothing posing outdoors with mountainous background (no visible text or symbols)

point and exposure to the optimized value. Press the Shutter button all the way to take pictures with detected face. When a detected face smiles, the shutter automatically fires.

However, when the camera fails to detect your subject's face, a white focus bracket will be displayed according to the selected focus mode.

To disable the face and smile detection function, press the Down/ Screen |0| navigation button again.

Taking Panoramic Pictures

Panorama mode allows you to shoot ultra wide panoramic shots. You can create wide-view photos by stitching three images into a single panoramic scene.

To take a panoramic picture:

1. Press the SCENE button and select Panorama mode, then press the OK button to confirm. The Panorama icon displays on the LCD screen.

2. You can take panoramic shots in either left-to-right ( ) or right-to-left ( ). Press the Up/ Down navigation buttons to select the direction. Then press the OK button.

3. Frame the first view on the LCD screen and press the Shutter button. The frame record icon will display under the focus frame to indicate the number of photos you have taken.

4. After a quick preview, the LCD screen shows an overlay from the first picture.

5. Capture the second and third views as taking the first view, making sure that the edges of pictures overlap.

Black-and-white landscape photo showing a rocky hill with scattered shrubs and a marked location marker (no text or symbols)

24 Getting Started

1. You can press the Up/ Flash/ Delete ( / ) to retake the picture. If you are taking only second picture, press the OK button to stitch them together.

2. After you take third picture, the camera will automatically stitch them together into one panorama shot.

3. Press the Playback ▶ button to enter Play-back mode to view the result.

Black-and-white landscape photo of a desert landscape with rocky mountains and a small water body, no visible text or symbols.

Black-and-white landscape photo of a rugged mountain range with a small lake and scattered clouds (no text or symbols visible)

Recording your First Video

You can also record video clips with the camera.

To record a video clip:

1. Turn the camera on and press the SCENE button. Use the 4-way navigation buttons to locate Video mode. Press the OK button to select.
2. Frame your subject using the LCD screen and press the Shutter button to start recording. The self-timer LED is steady on to indicate recording is in progress.
3. Press the Shutter button again to stop recording.
4. In playback mode (Press the ▶ button), press the OK button to playback the video. Press the Up/ Flash/ Delete [⚡] navigation button to delete the recording if needed.

Recording Audio Files

You can also record audio files with the camera.

To record an audio file:

1. Press the SCENE button and select the Audio mode with 4-way navigation buttons, then press the OK button to confirm.
2. Press the Shutter button to start recording. A counting up timer will be displayed during audio recording.

3. Press the Shutter button again to stop recording, and ready to the next audio recording.

4. In playback mode (press the ▶ button), press the OK button to playback the audio. Press the Up/ Flash/ Delete [⚡] navigation button to delete the recording if needed.

Recording Voice Memos

The voice memo should be activated (ON) on the VOICE MEMO submenu of SETUP menu at first.

In Capture mode:

You can add a 1-minute voice memo to an image right after it's taken.

1. Hold the Shutter button to start recording and release the Shutter button to stop recording.
2. While recording, the captured image and the elapsed time are shown on the LCD screen.
3. For the playback, press the ▶ button, and the playback of the voice memo automatically starts.
4. Press the OK button once for playback again.

In Playback mode:

1. Press the shutter button to start recording and press again to stop recording.
2. While recording, the selected image and the elapsed time are shown on the LCD screen.
3. The playback of the voice memo automatically starts.
4. Press the OK button once for playback again.

Capture Settings

This section describes the various settings you can modify to get better results when taking photos and video clips.

The Capture Menu

To access the Capture menu:

1. Press the SCENE button. Use the 4-way navigation buttons to select the capture mode you need.
2. Press the MENU button to display menu options and use the Left/ Right navigation buttons to select the function you need, then press the OK button to enter the selection function.
3. Press the Up/Down navigation buttons to highlight an option and press the OK button to confirm.

Refer to the following sections for more detailed information about each setting.

Note: All the options in this section may vary according to the different modes.

Image Resolution

The Image Resolution setting refers to the size of the image in pixels. Use the Up/Down navigation buttons to select from the options. 8 settings for image resolution are available:

• 10M (3664x2748)
  • 8.9M (3664×2442)
  • 8M (3264×2448)
• 5M (2576x1932)
  • 3M (2048×1536)
  • 2.1M (1920x1080)
• 2M (1600×1200)
  • VGA (640x480)

Image Quality

The Image Quality setting refers to the compression ratio of the JPG. The higher image quality, more memory space is required. Use the Up/Down navigation buttons to select from the options. 3 settings for image quality are available:

• Best (default)
• Better
  • Good

Focus Zone

Auto Mode

The Focus Zone setting allows you to select the number of zones the camera will focus on when taking a photo. Use the Up/ Down navigation buttons to select from the options and press the OK button to enter. 2 settings for focus zone are available:

• Multi-Zone (default)
• Center

P-Mode

The Focus Zone setting allows you to select the number of zones the camera will focus on when taking a photo. Use the Up/ Down navigation buttons to select from the options and press the OK button to enter. 3 settings for focus zone are available:

• Multi-Zone (default)
• Center
• Selected Area

EV Compensation

The EV Compensation menu allows you to adjust the exposure or amount of light that enters the lens while capturing photos or videos. Use this feature to lighten or darken the image when the brightness between the subject and background is not balanced or when the subject occupies only a small part of the photograph. Use a positive (+) EV compensation for spotlight subjects, especially against dark backgrounds or scenes with low reflectivity, such as green or dark foliage.

Use the Up/Down navigation buttons to modify the value. This setting can be modified from -2.0 to +2.0 in a 0.3/0.4 increment/decrement.

28 Capture Settings

M-Burst Interval

The M-Burst Interval setting allows you to adjust the burst interval when the multi-burst function is enabled. Use the Up/Down navigation buttons to select from the options.

• 1/30 Sec (default)
• 1/15 Sec
• 1/7.5 Sec

White Balance

The White Balance setting allows you to adjust the camera setting according to the ambient white light when shooting. White balance represents the degree of coolness of the light. If the light has a yellowish or reddish tinge, it is said to be warm; if it has a bluish tinge, it is said to be cool. You can select the setting and preview it on screen before confirming your choice. Use the Up/Down navigation buttons to select from the options. 5 white balance settings are available:

• Auto (default)
• Sunny
  • Tungsten
• Fluorescent
• Cloudy

ISO Speed

The ISO Speed setting allows you to adjust the CCD light-sensitivity. Use the Up/Down navigation buttons to select from the options. 7 ISO settings are available:

• Auto (default)
• ISO 80: For outdoor photography in bright sunlight.
  • ISO 100: For outdoor photography in bright sunlight.

• ISO 200: For outdoor or indoor photography in bright light.
- ISO 400: For indoor photography or low light environments.
- ISO 800: For moving object photography or low light environments without using flash.
- ISO 1600: For moving object photography or low light environments without using flash.

AE Metering

AE Metering allows you to select the area of the subject or frame by which the camera measures light. Use the Up/Down navigation buttons to select from the options. 3 AE metering settings are available:

• Matrix (default): Camera metering is set for evaluating 16 zones of objects with intelligent weighting in the frame.
• Spot: Camera metering is set for the brightness of a single object in the center of the frame.
• Average: Camera metering is set for the average brightness of objects in the frame.

Color

The Color setting allows you to take photos and apply different colors or color tones for an artistic effect. Use the Up/Down navigation buttons to select from the options. 4 color settings are available:

• Vivid
- Color (default)
- Black & White
- Sepia

Sharpness

The Sharpness setting allows you to enhance the finer details of your photos. Use a higher setting for very sharp photos and a lower setting for a soft-toned photo. Use the Up/Down navigation buttons to select from the options. 3 sharpness settings are available:

• High
• Normal (default)
• Low

Saturation

The Saturation setting allows you to adjust the saturation of the colors in your photos. Use a high saturation setting for rich colors and a lower saturation setting for more natural tones. Use the Up/Down navigation buttons to select from the options. 3 saturation settings are available:

• High
• Normal (default)
• Low

30 Capture Settings

Contrast

The Contrast setting allows you to adjust the contrast of your photos. Use the Up/Down navigation buttons to select from the options. 3 contrast settings are available:

• High
- Normal (default)
- Low

Setup

See "The Setup Menu" on page 42 for more details on the setup menu options.

Video Capture Menu

To access the video menu:

1. Press the SCENE button and scroll to Video mode and press the OK button to enable the Video function. Press again to enable the anti-shake function.
2. Press the MENU button to display the menu options.
3. Refer to the following sections for more detailed information about each setting.

Video Resolution

The Video Resolution setting allows you to adjust the resolution at which your videos are recorded. 2 video size settings are available:

• 640X480
  • 320X240

White Balance

See "White Balance" on page 28 for more details on the setup menu options.

Color

See "Color" on page 29 for more details on the setup menu options.

Saturation

See "Saturation" on page 29 for more details on the setup menu options.

Video Capture Menu

Contrast

See "Contrast" on page 30 for more details on the setup menu options.

Setup

See "The Setup Menu" on page 42 for more details on the setup menu options

Note: All the options in the Capture Menu may vary according to the different modes.

32 Photo & Video Playback

Photo & Video Playback

Playback Mode Display

Press the Down 10I navigation button at Playback mode.

Photo Playback

Video Playback

No. Name Icon

1 Playback mode
2 Image resolution Photo mode:	Video mode:640 (640x480), 320 (320x240)
3 P r o t e c
4 Sharpness
5 Flash mode	Photo mode:A3 🎨 🎨 🎨Video mode:00:00:00(Time of the video clip.)
6 Color mode
7 Quantity 1/140, 2/30
8 SD card / Internal memory
9 Histogram
10 File Name Photo mode:SANY0001.JPG	Video mode:SANY0001.AVI
11 Date and Time	2008/08/0100:00:00
12 Next	Move to next item.
13 Battery status
14 Previous	Move to previous item.
15 Voice memo
16 Mode icons	Please see “Capture/Video Mode Display” on page 9 for detailed information.
17 ISO Speed
18 Contrast

34 Photo & Video Playback

19 White balance
20 Saturation
21 AE Metering
22 EV Compensation +2.0EV ~ -2.0EV
23 Shutter speed 1/2000 sec. ~ 2 sec.
24 Aperture value Wide: F2.9~F5.5/ Tele: F5.2~F10.0
25 Image quality

Viewing Photos/Videos on the LCD Screen

To view your photos and video files on the LCD screen:

1. Press the Playback button ▶. The most recent photo or video clip is displayed.
2. Use the Left/Right navigation buttons to scroll through photos and video clips.
3. Press the OK button to begin playback of a video clip.
4. Press the Left/ Right navigation buttons at any time during playback to skip to the previous/next photo or video.
5. Press the OK button then press the Left/Right navigation buttons to fast-rewind/fast-forward during video playback.
6. Press the OK button at any time during playback to pause the video.
7. After the video clip finishes playing, the LCD screen displays the first frame of the clip.

Viewing M-Burst Photos

To view your multi-burst photos on the LCD screen:

1. Press the Playback button ▶. The most recent photo or video clip is displayed.
2. Use the Left/Right navigation buttons to scroll through photos.
3. When reviewing a multi-burst image, it will be displayed from the 1^st frame to the 16^th frame at 2 frames per second like a slideshow.
4. To stop the M-Burst slideshow, press the Left/Right navigation buttons and skip to the previous/next image.

Listening to Voice Memo

A voice memo plays simultaneously when playing a saved image with voice memo.

To stop a voice memo while reviewing an image, press the OK button.

To skip to previous/next image, press the Left/Right navigation buttons.

Viewing Photos/Videos on your TV

To view images stored on the camera on your TV, you must connect via the

- AV port on the side of the camera. To connect your camera to a TV:

1. Turn on the camera and make sure that the camera's video out format is set to the same as that of the TV. See "Video Out" on page 44 for more information.
2. Connect the USB/AV 3-in-1 cable to the ••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••
3. Connect the other end of the cable to the TV's AV input sockets.

1. The LCD screen turns black and all images and video clips are displayed on the TV screen. Follow the same steps described in "Viewing Photos/Videos on the LCD Screen" on page 34.

Zooming In/Out During Playback

The camera's zoom feature can also be used during playback. This allows you to view photos in greater detail.

To zoom in/out on saved photos:

1. Press on the right side of the Zoom button T to zoom in and on the left side of the Zoom button W to zoom out of the photo.
2. Use the 4-way navigation buttons to pan across the image.
3. When zoomed in on a photo, press the OK button to crop the image. When zoomed out to the minimum, the LCD screen will display all photos and videos as a series of thumbnails.

Deleting Photos/Videos

The Delete function allows you to remove unwanted files stored on internal memory or a memory card.

To delete a photo/video:

1. In Playback mode, press the Up/Flash/Delete navigation button to display the Delete menu.

1. Press the Up/Down navigation buttons and the OK button to select from the 4 available options:

2. Cancel: Select to cancel the action and exit to the main menu.

3. Voice Memo/This Video: Select to delete the voice/the video of the current image.
4. This Image: Select to delete the current image.
   • A | | Images: Select to delete all images.

Using the Playback Menu

Access the playback menu to view further information, configure printing settings, view a slideshow, or delete photos or movies.

To access the playback menu:

1. Press the Playback button ▶.
2. Press the MENU button to display the menu options. Use the Left/Right navigation to select the function from the menu, and press the OK button to enter.

1. Use the Up/Down navigation buttons to highlight an option and press the OK button to confirm.

DPOF

DPOF (Digital Print Order Format) allows you to specify the number of copies of a certain image that you want to print at a later date.

Use this function to tag pictures stored in your memory card with print information. You can tag all pictures to be printed or just the current picture. You can also select how many copies print and whether to include the date and time.

When all images to be printed are tagged, remove the memory card and take it to a photographic shop for printing, or use it with a DPOF compatible printer.

To set DPOF:

1. Press the MENU button to select DPOF from the menu at the playback mode, then press the OK button to enter the DPOF function.

2. Press the Up/Down navigation buttons and the OK button to select from the available options:

3. This Image: Select to print the current image.

4. All Images: Select to print all images.

5. Exit: Select to exit to the main menu.

6. Use the Up/Down navigation buttons to set the number of copies you wish to print.

38 Photo & Video Playback

Slideshow

The Slideshow function allows you to view all stored photos in a continuous sequence.

To view a slideshow:

1. Press the MENU button to select Slideshow from the menu, then press the OK button to enter the Slideshow function.

2. Press the Up/Down navigation buttons and the OK button to select from the available options:

3. Start: Select to start the slideshow.

4. Interval: Select to set the interval time between each photo during the slideshow. Use the Left/Right navigation buttons to set a value in seconds. The default setting is 5 seconds.
5. Loop: Select to enable/disable a continuous loop of the slideshow. Select On or Off (default) from the submenu.
6. Exit: Select to exit to the main menu.

Resize

The Resize function allows you to change the image resolution.

To resize a photo:

1. Press the MENU button to select Resize from the menu, then press the OK button to enter the Resize function.
2. Press the Up/Down navigation buttons and the OK button to select the resize ratio you require: 6M, 4M, 2M, 1M, VGA and EXIT.
3. Select Exit to return to the main menu.

Note: It is only possible to scale-down image resolutions. If the current image resolution is VGA, this menu item is disabled in the Resize submenu. The ratio of the image (3:2 or 16:9) remains unchanged after resizing.

• This function only supports native pictures
- Cropped images cannot be resized
- If there is not sufficient storage space, images cannot be resized
- If the SD/MMC card is locked, images cannot be resized
• VGA images cannot be resized

Rotate

The Rotate function allows you to change the orientation of a saved photo.

To rotate an image:

1. Press the MENU button to select Rotate from the menu. Press the OK button to enter.

2. Press the Left/Right navigation buttons and the OK button to rotate the select image.

- OK: Select to rotate the image.

• ←: Select to exit to the main menu.

Black-and-white photo of a cat looking upward, with no visible text or symbols in the main image area.

Black-and-white photo of a small dog resting its chin on a surface, with no visible text or symbols.

Protect

You can lock a photo or video to protect it from being accidentally erased.

To lock a photo or video:

1. Press the MENU button to select Protect from the menu and press the OK button to enter.

2. Use the Up/Down navigation buttons to select Lock ☐ or EXIT, then press the OK button to confirm the one you needed.

3. A key icon displays at the top of the screen to indicate the photo/video is now locked.

Black-and-white photo of a small dog resting on the ground, looking upward (no text or symbols visible)

Black-and-white photo of a young dog resting in a corner, no visible text or symbols

40 Photo & Video Playback

Red-Eye Removal

The Red-Eye Compensation function allows you to perform red-eye reduction on a saved photo.

To remove red-eye from a photo:

1. Press the MENU button to select Red-Eye Removal from the menu and press the OK button to enter.

2. Use the Up/Down navigation buttons to select YES or NO.

Note:

1. If the image is protected, the fixed image will be saved as a new file directly without asking.
2. If a failure occurs, the message "Cannot Processing Correctly" appears on the screen.

Move

The Move function allows you to move images stored in internal memory to a memory card.

To move an image:

1. Press the MENU button to select SETUP from the menu. Press the OK button to confirm.
2. Select the IMAGE STORAGE from the menu. Press the OK button to confirm. Select the INTERNAL MEMORY from the menu. Press the OK button to confirm.

1. Press the MENU button to select MOVE from the menu. Press the OK button to confirm.

2. Press the Up/Down navigation buttons and the OK button to select from the 3 available options:

- This Image: Select to move the current image to a memory card.

- All Images: Select to move all images to a memory card.

- Exit: Select to exit to the main menu.

Note: The Move function is only available when you choose internal memory as the storage media and an SD card has been inserted into the camera.

Back to AUTO memory mode:

1. Press the MENU button. Select SETUP from the menu and press the OK button to confirm.
2. Select the IMAGE STORAGE from the menu. Press the OK button to confirm.
3. Select AUTO from the menu. Press the OK button to confirm.
4. Press the PLAYBACK button.

Transferring Photos/Videos to your PC

To transfer photos and videos to your PC:

Connect the camera's /AV port to a free USB port on your PC using the USB cable.

Diagram showing a Sanyo camera connected to a server via cable, with an inset close-up of the device (no text or symbols present)

The camera's internal memory and/or SD/MMC card appear as removable drives in the file manager. Copy the files from the drives to the directory on your PC.

Use ArcSoft PhotoImpression and ArcSoft VideoImpression (provided on the software CD) to view or edit the photos and videos respectively.

42 Camera Settings

Camera Settings

The Setup Menu

The setup menu, available in capture and playback modes, allows you to configure the camera's general settings according to your preferences.

To access the setup menu:

1. Press the MENU button when in Playback or any of the capture modes.
2. Select Setup from the menu. Press the OK button to enter, then the submenu appears.
3. Use the Left/Right navigation buttons to scroll through the options and press the OK button to enter further submenus and to confirm your selection. Refer to the following sections for more detailed information about each setting.

LCD Brightness

The LCD Brightness setting allows you to brighten or darken the LCD backlight. Press the OK button to enter. Use the Left/ Right navigation buttons to increase or decrease the brightness.

File Number

The File No. setting allows you to reset all file numbers assigned to each of the files on your camera. Press the OK button to confirm. Select RESET to reset or CONTINUE to set the file numbers in continuous order.

Digital Zoom

The Digital Zoom setting allows you to turn the digital zoom function on or off. Press the OK button to confirm. Select ON to enable the function or OFF (default) to disable it.

Quick View

The Quick View setting allows you to view the photo that you have just taken. Once you have taken your photo, it displays on the LCD screen. If you are not satisfied with the result, you can press the button to delete the photo immediately. Press the OK button to confirm. Select ON (default) to enable the function or OFF to disable it.

Note: The Quick View function is not available in Burst and M-Burst modes.

Continuous AF

The Continuous AF setting allows you to turn the continuous auto focus function ON or OFF. Press the OK button to enter. Select ON to enable the function or OFF (default) to disable it.

Camera Sound

The Camera Sound setting allows you to adjust the camera sound level. You can also set the start-up and shutter sound when you turn on the camera and press the shutter button. Available options are as follows:

• Volume: Off, Low (default), Normal, High
- Start-up: Sound 1 (default), Sound 2, Sound 3
- Shutter: Sound 1 (default), Sound 2, Sound 3
- Exit: Select to discard the changes and return to the main menu.

44 Camera Settings

Auto LCD Off

The Auto LCD Off setting allows you to adjust the length of time that the LCD screen will remain lit before turning off to save battery power. 3 options are available:

• OFF (default)
  • 30 SEC
  • 1 MIN

Auto Power Off

The Auto Power Off setting allows you to adjust the length of time after which the camera will power down when inactive. Use the Up/Down navigation buttons to select from the menu options. 2 options are available:

• 5 MIN (default)
  • 2 MIN

Video Out

The Video Out setting allows you to adjust the video output, depending on the type of your TV. Use the Up/Down navigation buttons to select from the menu options. 2 options are available:

• NTSC (default)
• PAL

USB Mode

The USB Mode setting allows you to select the transfer method between your camera and your PC. 2 options are available:

• PTP (PictBridge Print): When the camera is connected to a printer by a USB cable which supports Pictbridge, it can directly print images stored on the media. For details on PTP function, please See “PictBridge Print (PTP)” on page 47.
• MSDC (default): The camera is set up to act as a mass storage device, allowing only for transfer of files between your camera and PC.

The Setup Menu

Date Stamp

The Date Stamp setting allows you to adjust the format in which the date will appear on each photo or video. You can also deactivate this function if you wish. Setting a date stamp allows for easy sorting and the date will appear on the photo when printed. Press the OK button to confirm. Use the Up/Down navigation buttons to select from the menu options. 4 options are available:

• OFF (default)
  • YYYY MM DD: year-month-date format
• MM DD YYYY: month-date-year format
  • DD MM YYYY: date-month-year format

Date and Time

The Date and Time setting allows you to set or adjust the date and time on your camera. To set or adjust the date and time:

Press the OK button to confirm.

• Press the Left/ Right navigation buttons to select the Year field.
• Press the Up/Down navigation buttons to adjust the Year value.

- In the same way, select the Month, Date, Hour and Minute fields and adjust them accordingly.

Language

The Language setting allows you to choose which language the OSD menu uses. Scroll down the list and select your language. Press the OK button to confirm. Use the Up/Down navigation buttons to select from the menu options.

46 Camera Settings

Image Storage

The Image Storage setting allows you to specify where photos and video clips will be stored. The camera features 16 MB internal memory but you can also insert an SD/MMC card (See "Inserting an SD/MMC Memory Card" on page 16 for more details). 2 options are available:

• Auto (default): When selected, the camera chooses the storage medium automatically. If an SD/MMC card is inserted in the camera, all
  photos and videos are stored on the card. If an external card is not detected, all photos and videos are stored in the internal memory.
• Internal Memory: All photos and videos are stored in the internal memory.

Format

The Format setting allows you to erase all data in the internal memory or on the SD/MMC card. Press the OK button to confirm. Use the Up/Down navigation buttons to select from the menu options. 3 options are available:

• Memory Card (default): All data on the SD/MMC will be formatted.
• Internal Memory: All data in the internal memory will be formatted.
• Exit: Cancel format action.

Reset

The Reset setting allows you to reset the camera to the original factory default settings. This means all modifications you have made to the camera settings will be cleared.

Once selected, the Reset screen displays a confirmation message. Press the OK button to enter selection function, select YES to proceed with the Reset or EXIT (default) to cancel.

Voice Memo

The Voice Memo setting allows you to record a voice memo when a photo is taken. Select ON to enable the Voice Memo function or OFF (default) to disable it.

About

The About screen allows you to check the current firmware version of the camera.

PictBridge Print (PTP)

The PTP function allows you to print images captured by the camera directly without connecting the camera to a PC.

If the camera is not connected to a PTP compliant printer, an error message displays on the LCD screen. To enable PTP function, see "USB Mode" on page 44 for detailed information. If the USB mode is not set at PTP, an error message displays on the LCD screen.

When a PTP compliant printer is connected to the camera, the Printer Connecting screen displays on the LCD screen. The Print menu pops up automatically.

48 Camera Settings

Use the Up/Down navigation buttons to select an option and press the OK button to confirm.

Image Storage

See "Image Storage" on page 46 for detailed information.

This Image

Print the selected image with the current setting.

1. Use the Up/Down navigation buttons to select THIS IMAGE from the options and press the OK button to confirm. Use the Left/Right navigation buttons to select previous/next file.

1. Press the Up/Down navigation buttons to set the number of copies.

1. Press the Up/Down navigation buttons again to select the paper size.

2. DEFAULT SIZE
   • 4 " x 6 "
   • LETTER
   • A4

1. Press the Up/Down navigation buttons to Continue or Cancel the action.

50 Camera Settings

Index Print

Use this function to print all images in index format.

1. Press the Up/Down navigation buttons to select the Paper size.

2. DEFAULT SIZE
   • LETTER
   • A4

1. Press the Up/Down navigation buttons to set the number of copies. After the number of copies is set, press the Up/Down navigation buttons again to continue or cancel the action.

DPOF Image

See "DPOF" on page 37 for detailed information.

All Images

Print all images saved in memory.

1. Use the Up/Down navigation buttons to select ALL IMAGES from the options and press the OK button to confirm.

2. Press the Up/Down navigation buttons to set the number of copies.

3. Press the Up/Down navigation buttons to select the Paper size.

4. DEFAULT SIZE
   • 4 " x 6 "
   • LETTER
   • A4

5. Press the Up/Down navigation buttons to select Continue or Cancel this action.

52 Specifications

Specifications

General Resolution / Image Type 10M Pixels / 1/2.33 CCD
	LCD 2.7"TFT, 230,000 Pixels
	Dimensions 93(W) x 58(H) x 21(D)mm
	Exterior Casing Plastic housing+ Chromed plastic center frame
Optics Aperture Wide: F2.9 - F5.5
	Tele: F5.2 - F10.0
	Optical Zoom Up to 3x
	Digital Zoom Up to 5x
	Focal Length Wide(W): 32mm,Tele(T): 96mm
	Photo Graphic Range Normal: 0.6 m ~ infinityMacro: 10 ~ 70 cm (Wide),35 ~ 70 cm (Tele)Landscape: 0.1 m ~ infinitySupport seamless AF in Auto/ P/Av/ Tv/ Panorama/ Macro/Foliage modes
	Shutter Speed 2 ~ 1/2000 Sec.
	Viewfinder None
	Field of View 99% by LCD
Camera Features Auto Power Off / Time Out Yes
	ISO Equivalent Auto, ISO80/100/200/400/800/1600
	External Memory Support SD/MMC card from 32MB to 16GB
	Flash Modes Auto, Off, Fill, Red-eye
	Shooting Mode Auto, P-Mode, Av, Tv,Panorama, Video, Sport,Landscape, Night Landscape, Portrait, Night Portrait, Museum, Snow, Sunset, Fireworks, Beach, Party, Foliage, Aquarium, Kids & Pets, Copy, Backlight, Audio
	Tripod Mount 1/4" Standard
	Macro Yes
Image Resolution	Image File Formats Still Image: JPEG (Exif2.21)
	Image Quality Mode Still Image:3664x2748, 3664x2442,3264x2448, 2576x1932,2048x1536, 1920x1080,1600x1200, 640x480Movie Mode:640x480@28fps,320x240@28fps
	Quality Levels Best, Better, Good

54 Specifications

Capture Features DPOF Version 1.1
	Erase Protection Yes
	Exposure Compensation Selectable +/-2.0EV with 0.3/0.4 EV steps
	Sharpness High, Normal, Low
	Color Vivid, Color, Black&White, Sepia
	AE Metering Matrix, Spot, Average
	Focus Multi-ZoneCenterSelected area
	Flash Range 3m@wide
	Lens Thread None
	Anti-Shake Yes, High ISO
	Aperture Priority Yes
	Shutter Priority Yes
	Drive Mode Single Mode, Burst Mode, Multi-Burst (VGA@16 shots)
	Quick Delete	Yes
	Quick View	Yes
	Quick Review	No
	Self Timer	2 or 10 seconds
	Playback Magnify	Up to 6X (9 steps)
	White Balance	Auto, Sunny, Tungsten, Fluorescent, Cloudy
Video Video Out	PAL, NTSC
	Stream to SD/MMC	Yes
	Speaker	Yes, Mono
	Movie File Format	AVI
	Movie Length	Close to 80 min. Max. file size is 4G bytes.
	Microphone	Yes, Mono
Power	Battery	NP-40 Lithium-ion
	Battery Life	CIPA 220 images
Capability Camera Interface USB 2.0 high speed
	Host Platform Windows 2000/XP/Vista
Standards Operating Temperature	0°C ~ 40°C
	Language English, German, French, Italian, Spanish, Portuguese, Simplified Chinese, Traditional Chinese, Russian, Turkish, Thai, Korean, Dutch

Troubleshooting

Problem Action
Camera does not turn on	·The battery may be exhausted. Charge or replace the battery.·The battery is installed incorrectly. Re-insert the battery observing the correct polarity.
Camera turns off automatically	Press the Power button again to turn on the camera.
LCD turns off automatically	Press any button to turn on the LCD, when AUTO LCD ON mode (30 SEC or 1 MIN) is achieved.
Empty battery icon is displayed on the LCD then camera turns off	Battery is exhausted. Charge or replace the battery.
LCD screen displays ‘Card Requires Formatting’	Memory card format not recognized. Re-format the memory card.
LCD screen displays ‘Card is Full’	Memory card is full. Replace the memory card with a new one or delete unnecessary images from the existing card.
LCD screen displays ‘Card is locked’	The card is protected by a protect switch mechanism. Move the switch to the unlock position.
Insufficient memory space to complete request	Insufficient space in memory to rotate an image. Delete unnecessary images.
No image displays on the TV screen	Incorrect TV-out type was selected. Set correct TV-out type to match your TV system.
Insufficient space on the card	Delete unnecessary images.
