Product Type	Freestanding Washing Machine
Model	GGSTLW55B
Brand	Sôlt
Capacity	8 kg
Spin Speed	1400 rpm
Energy Class	A+++
Dimensions (H x W x D)	85 cm x 60 cm x 60 cm
Weight	70 kg
Power Supply	220-240 V, 50 Hz
Number of Programs	15
Key Functions	Cotton, Synthetics, Delicates, Quick Wash, Eco, Rinse & Spin
Display	LED Digital Display
Delay Start	Up to 24 hours
Drum Material	Stainless Steel
Noise Level (Wash/Spin)	54 dB / 76 dB
Water Consumption	50 L per cycle (average)
Annual Energy Consumption	150 kWh
Maintenance	Clean filter regularly, descale every 3 months
Safety Features	Child Lock, Overflow Protection, Unbalanced Load Detection
Spare Parts Availability	Drum belt, door gasket, pump filter, heating element
Repairability Index	8.2 / 10

Frequently Asked Questions - GGSTLW55B Sôlt

How do I install the washing machine?

Remove all packaging, level the feet using a spirit level, connect the water inlet hose to a cold water tap with 3/4 inch thread, and insert the drain hose into a standpipe or sink. Ensure the machine is on a stable surface.

What does the error code E01 mean?

Error E01 indicates a water supply issue. Check that the water tap is open, the inlet hose is not kinked, and the filter in the inlet valve is clean. If the problem persists, contact a technician.

How often should I clean the detergent drawer?

Clean the detergent drawer every 2 months. Remove the drawer, rinse under warm water, and wipe with a cloth. Check for any residue in the dispenser compartment.

Can I wash delicate fabrics on this machine?

Yes, the machine has a Delicates program with gentle tumbling and lower spin speed (max 600 rpm). Use a mesh laundry bag for extra protection.

How do I reset the washing machine?

To reset, turn off the machine and unplug it for 10 minutes. Then plug back in and select a program. If the issue remains, refer to the manual.

What is the maximum load for a quick wash?

For Quick Wash (30 minutes), the maximum load is 3 kg. Overloading may result in poor cleaning performance.

How do I clean the pump filter?

Open the lower cover, place a towel underneath, unscrew the filter cap counterclockwise, remove debris, and reinstall tightly. Do this every 3 months.

Why is my machine vibrating excessively?

Excessive vibration often occurs due to uneven floor or loose transport bolts. Ensure all four feet are in firm contact with the ground and remove the transport bolts from the back.

Does this model have a child lock?

Yes, the GGSTLW55B features a Child Lock function. Activate it by pressing and holding the 'Start/Pause' button for 3 seconds. The display will show a lock icon.

Where can I find spare parts?

Spare parts such as door gaskets, belts, and filters are available on the Sôlt official website or authorized service centers. Use the model number GGSTLW55B to find compatible parts.

USER MANUAL GGSTLW55B Sôlt

GGSTLW80B, GGSTLW100B

V6.2 | 1221

User Manual

Top Load

Washing Machine

Welcome Congratulations on purchasing your new Washing Machine! The Sôlt brand is proudly distributed within Australia by Residentia Group Pty Ltd.

Residentia Group

Head Office.

165 Barkly Ave

Burnley

Victoria 3121

Australia

ACN.

600 546 656

Online.

residentia.group

Please refer to the warranty card at the rear of this manual for information regarding your product's parts and labour warranty, or visit us online at www.residentia.group

At Residentia Group, we are customer obsessed and our Support Team are there to ensure you get the most out of your appliance. Should you want to learn more about your appliance features, and importantly taking care of your appliance when cleaning, our Support Team are here to help.

Sôlt

Online.

www.solt.house

Instagram.

/solt.house

Facebook.

/solt.appliances

You can use our online Support Centre at anytime by visiting http://support.residentiagroup.com.au, or you can contact us via calling us on 1300 11 HELP (4357).

It is important that you read through the following use and care manual thoroughly to familiarise yourself with the installation and operation requirements of your appliance to ensure optimum performance.

Again, thank you for choosing an Sôlt appliance and we look forward to being of service to you.

Kind Regards,

The Residentia Team

Contents 2 Welcome

4 Safety Instructions
6 Your Washing Machine
7 Installation
8 Operating Instructions
16 Cleaning & Maintenance
18 Troubleshooting
20 Technical Specifications
21 Purchase Details
21 Attach Your Receipt
22 Warranty Information

Customer Care

Sôlt recommends the use of original spare parts. When contacting our customer service team, please ensure that you have the following information at hand (which can be found on your appliances' rating plate).

-ModelNumber

— Serial Number

Safety Instructions

For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, personal injury or loss of life.

• This appliance is not intended for use by persons(including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• The new hose-sets supplied with the appliance are to be used and that old hose-sets should not be reused.
• The openings must not be obstructed by a carpet.

Model	Washing Capacity	Standard Water Pressure
GGSTLW55B 5.5kg 0.03MPa~0.8MPa
GGSTLW70B 7.0kg 0.03MPa~0.8MPa
GGSTLW80B 8.0kg 0.03MPa~0.8MPa
GGSTLW100B 10.0kg 0.03MPa~0.8MPa

Explanation of the following signal words:

WARNING!

This signal word indicates a potentially dangerous situation which may result in death or serious injuries unless it's avoided.

CAUTION!

This signal word indicates a potentially dangerous situation which may result in slight or minor injuries or damage to property and the environment.

NOTE!

This signal word indicates a potentially dangerous situation which may result in slight or minor injuries.

WARNING!

POTENTIAL ELECTRIC SHOCK

• This appliance is for indoor use only.
- Do not position washing machine in a humid place.
- Do not insert your hands into running spin-dry tub.
- If the spin-dry tub does not stop within 15 seconds after opening the cover, please stop using the machine and have it repaired.
- Before performing any maintenance on the device, unplug the appliance from the mains.
- Always unplug the machine and turn off the water supply after use. The max. inlet water pressure, in pascals. The min. inlet water pressure, in pascals.
- To ensure your safety, power plug must be inserted into an earthed three-pole socket. Check carefully and make sure that your socket is properly and reliably earthed.
- Make sure that the water and electrical devices must be connected by a qualified technician in accordance with the manufacturer's instructions and local safety regulations.

RISK TO CHILDREN

- The appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- Animals and children may climb into the machine. Check the machine before every operation.

- Young children should be supervised that they do not play with the appliance.

- Machine may be very hot during the operation. Keep kids and pets far away from the machine during the operation very wet rooms as well as in the rooms with explosive or caustic gas.

- Remove all packaging before using the appliance. Otherwise, serious damage may result.

- The washing machine with single inlet valve only can be connected to the cold water supply. The product with double inlet valves should be correctly connected to the hot water and cold water supply.

- Plug must be accessible after installation.

RISK OF EXPLOSION

- Do not wash or dry articles that have been cleaned in, washed in, soaked in, or dabbed with combustible or explosive substances (such as wax, oil, paint, gasoline, degreasers, dry-cleaning solvents, kerosene, etc.) This may result in fire or explosion.

- Before hand thoroughly rinse items of washing by hand.

CAUTION!

INSTALLING THE PRODUCT

• This washing machine is for indoor use only.
• It isn't intended to be built-in using.
• The openings must not be obstructed by a carpet.
• Washing machine shall not be installed in bath room or very wet rooms as well as in the rooms with explosive or caustic gases.
• Remove all packaging and transport bolts before using the appliance. Otherwise, serious damage may result.
• The washing machine with single inlet valve only can be connected to the cold water supply. The product with double inlet valves should be correctly connected to the hot water and cold water supply.
• Plug must be accessible after installation.

RISK OF DAMAGING THE APPLIANCE

• Your product is only for home use and is only designed for the textiles suitable for machine washing.
• Do not climb up and sit on top cover of the machine.

• Do not lean against machine door.
  • Cautions during Handling Machine:

• Transport bolts shall be reinstalled to the machine by a specialised

• The accumulated water shall be drained out of the machine.

• Handle the machine carefully. Never hold each protruded part on the machine while lifting. Machine door can not be used as the handle during the conveyance.

• This appliance is heavy. Transport with care.

- Please do not close the door with excessive force.

- Do not wash carpets.

OPERATING THE APPLIANCE

• Before washing the clothes at first time, the product should be operated in one round of the whole procedures without the clothes inside.
• Do not wash flammable and explosive or toxic solvents.
• Do not use gasoline and alcohol etc. as detergents.
• Please only select the detergents suitable for machine washing, especially for drum.
• Make sure that all pockets are emptied. Sharp and rigid items such as coin, brooch, nail, screw or stone etc. may cause serious damages to this machine.
• Please check whether the water inside the drum has been drained before opening its door. Please do not open the door if there is any water visible.
• Be careful of burning when the product drains hot washing water.
• Never refill the water by hand during washing.
• After the program is completed, Please wait for two minutes to open the door.

Your Washing Machine

PRODUCT DESCRIPTION

Top lid Water inlet valve

NOTE!

The product line chart is for reference only, please refer to real product as standard.

ACCESSORIES

NOTE!

If the drain hose is already installed on the machine, then there is no spring clamper and drain hose in the accessories.

Installation

INSTALLATION INSTRUCTIONS

It's recommended to use the washing machine on its own dedicated power outlet for both convenience and safety. The power outlet must be grounded.

IMPORTANT!

If the power cord is damaged, it must be replaced by Residentia Group or one of its authorised service representatives. Please contact 1300 11 HELP (4357) and ensure the appliance is completely disconnected from the power supply.

WARNING!

• Stability is important to prevent the product from moving!
• Make sure that the product should not stand on the power cord.

Before installing the machine, the location must be:

1. Rigid, dry, and a level surface
2. Avoiding direct sunlight
3. Sufficient ventilation
4. Room temperature is above 0 °C
5. Kept far away from the heat resources such as coal or gas.

UNPACKING THE WASHING MACHINE

WARNING!

• Packaging material (e.g. Films, Styrofoam) can be dangerous for children.
  • There is a risk of suffocation! Keep all packaging well away from children.

• Remove the cardboard box and styrofoam packing.

• Lift the washing machine and remove the base packing.
• Remove the tape securing the power supply cord and drain hose.
• Remove the inlet hose from the drum.

INSTALLATION OF THE DRAIN HOSE

Technical line drawing of a mechanical assembly with no visible text or symbols

Drain hose inserted into the drain

Line drawing of a hand holding a coiled cable or wire component, with no visible text or symbols

Clamping spring

Simple line drawing of a rectangular container with a lid, placed on a horizontal surface (no text or symbols)

Simple line drawing of a box with an upward arrow, no text or symbols present

Operating Instructions

WARNING!

To prevent leakage or water damage, follow the instructions in this chapter carefully:

• Do not kink, crush, modify, sever or protract the inlet hose or drain hose.
• Position drain hose properly, otherwise damage might result of water leakage.
• If drain hose is too long, do not force it into washing machine as it will cause abnormal noises.

Use an upper drain system to place the end of drain hose:

Line drawing of a kitchen sink with faucet and chain (no text or symbols)

LEVELLING THE WASHING MACHINE

WARNING!

The lock nuts on all four feet must be screwed tightly against the housing.

1. Check if the legs are closely attached to the cabinet. If not, please turn them to their original positions tighten the nuts.
2. Check alignment of the product with a spirit level and if required, correct.
3. Loosen the lock nut and turn the feet until it closely contacts with to the floor.
4. After being locked properly, press four corners again to make sure that they has been adjusted properly.

SELECTION OF TAP

Please select appropriate tap.

Ordinary faucet

Screw tap Special washing

machine tap

CONNECTION OF INLET HOSE, TAP AND WASHING MACHINE

1. Connection between ordinary tap and inlet hose.

a) Loosen clamp nut to show 5mm thread

Technical line drawing of a mechanical component with mounting flanges and a central hub (no text or symbols)

b) Loosen four bolts

c) Set connecting base on tap and tighten bolts evenly

Diagram of a pipe fitting with a curved arrow indicating rotation (no text or symbols)

d) Tighten clamp nut

e) Press slide bushing, insert inlet hose into connecting base

Diagram of a mechanical valve assembly with a curved pipe and attached tubing (no text or symbols)

f) Connection finished

g) After connection and installation, check if there is water leakage

1. Connection between screw tap and inlet hose.

Diagram showing two hands performing a valve adjustment, one with a handle and the other with a handle and screw base (no text or symbols)

tap with threads and inlet hose

Three-step diagram showing a faucet being adjusted for a valve, with no text or symbols present.

special tap for washing machine

Operating Instructions (Continued)

PREPARATION BEFORE WASHING

CAUTION!

• Before washing, please make sure it's installed properly.
• Before washing it at first time, the washing machine shall be operated in one round of the whole procedures without clothes in as follows.

WASHING

NOTE!

- If default is selected, step 2, 3 can be skipped.

AFTER WASHING

Buzzer will beep after washing finished and the power supply will be cut off automatically. Then unload the laundry.

WASHING MATTERS NEEDING ATTENTION

- The working condition of the washer should be(0-40)°C. If used under 0°C, the inlet valve and draining system may be damaged. If the machine is placed under condition of 0°C or less, then it should be transferred to normal ambient temperature to ensure the water supply hose and drain hose are not frozen before use.

- Please check the labels and the explanation of using detergent before wash. Use non-foaming or less-foaming detergent suitable for machine washing properly.

Simple line drawing of a sweater with a tag and tie (no text or symbols)

Check the label

Take out the items out of the pockets

Two handbags with circular designs, one wrapped in a strap and the other in a closed loop (no text or symbols)

Knot the long strips,zip or button

Line drawing of a bag with a light bulb inside, placed on a grid background (no text or symbols)

Put small clothes into the pillow slip

Line drawing of a knitted sweater with pleated collar (no text or symbols)

Turn easy-pilling and long-pile fabric inside out

Simple line drawing of a basket with an arrow indicating rotation or movement, no text or symbols present.

Separate clothes with different textures

WARNING!

• When washing a single clothes, it may easily cause great eccentricity and give alarm due to great unbalance. Therefore it is suggested to add one or two more clothes to be washed together so that draining can be done smoothly.
• Don't washing the clothes touching with kerosene, gasoline, alcohol and other flammable materials.

THE USAGE OF DETERGENT AND WASHING POWDER

• Add liquid detergent to the left compartment of the detergent drawer.
• Add power detergent to the right side compartment of the detergent drawer.
• As for the agglomerated or ropy detergent or additive, before they are poured into the detergent box, it is suggested to use some water for dilution to prevent the inlet of detergent box from being blocked and overflowing while filling water.
• Please choose suitable type of detergent for the various washing temperature to get the best washing performance with less water and energy consumption.

Operating Instructions (Continued)

WATER LEVEL:

Select water level according to clothing categories, degree of soiling and washing habits of customers.

Press this button to set your Water Level, where 1 is low and 8 is high.

A solid indicator light indicates the water levels to the left (1, 3, 5, 7) and a flashing indicator light indicates the water levels to the right (2, 4, 6, 8).

DISPLAY:

The display shows the settings, estimated time remaining, options, and status messages for your washer. The display will remain on through the cycle.

When LED flashing, it means the time that delay to start the machine. When LED lighting, it means the program time that remaining.

CAUTION!

- If there is any break in the power supply while the machine is operating, a special memory stores the selected program and when the power is restarted.

SÔLT

LIGHT — FLASH

WATER LEVEL

DELAY

FUNCTION

DELAY:

After selecting a Program, press the Delay button to choose a delayed start time. Press Start/Pause to commense the delay operation.

To switch the delayed start off, simply press the button until the delay light is off. If the program has already started, press the Power button to reset the program.

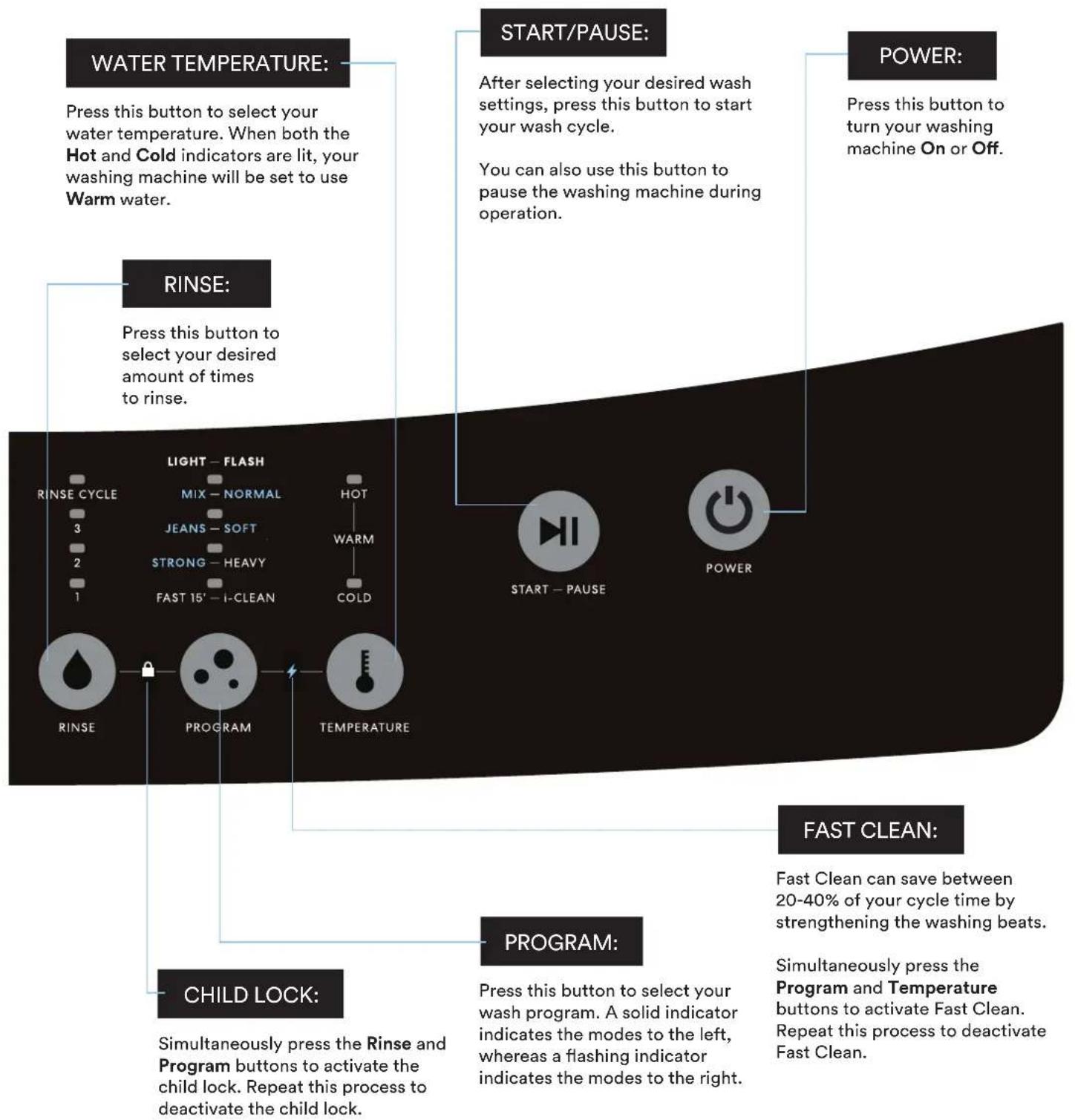

WASH FUNCTION:

Press this button to select your wash function. I.e. Soak, Wash, Rinse or Spin, or a combination of these.

NOTE!

- The Child Lock function will lock all buttons except Power.

Operating Instructions (Continued)

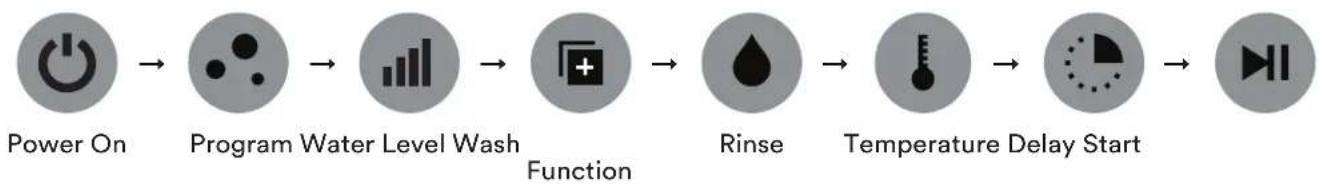

PERSONALISED WASH MODE SETTING

Users can select washing program according to actual demand, set rinsing times, water volume and delay amount.

OPERATIONS OF WASHING PROCESS

Users can set single process or combinations of washing, rinsing and spinning freely according to demand. Detailed operations as follows for different models:

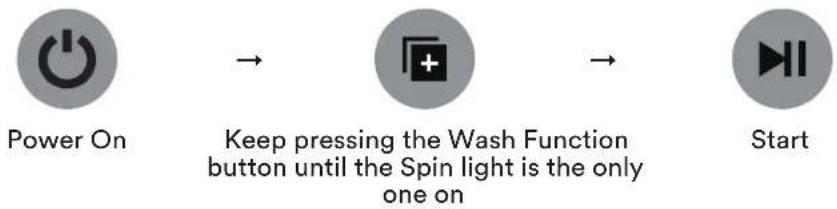

SPIN


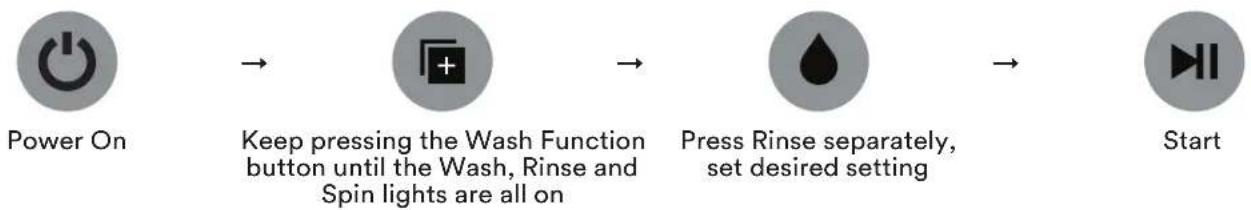

WASH + RINSE + SPIN

NOTE!

- There are other process combinations just like the above.

WASHING MODES

• MIX

Suitable to wash cotton, linen, flax. jute clothes

• NORMAL (STANDARD)

Standard fabric washing program, suitable to wash ramie cotton fabric. Wash for once, rinsing for twice, the spin time is a little long.

• JEANS

Suitable to wash heavy stained/wearable clothes.

- SOFT

The tempo is soft, slow washing and spinning speed, to make the lightest wear and deformation.

• STRONG

The wash time is longer, the stream is stronger, so the washing effect is better.

- HEAVY

Suitable to wash heavy stained/wearable clothes.

- FAST 15'

Suitable to wash light stained clothes and summer clothes.

- QUICK CLEAN

Start up Quick Clean: Power on, select "Normal", "Soft", "Mix", "Strong", "Jeans" program, then press the Quick Clean button combinations.

Cancellation of Quick Clean function:

The function can be cancelled by pressing Quick Clean combination buttons

(Mode and Temperature) or Power off.

- FUZZY WEIGHTING

The washing machine will select the water level automatically according to the load weight.

1. When there's water in the tub, this function is not available;
2. Before press [Start/Pause] button, if consumer selected the water level, there will be no fuzzy weighting function;
3. After press [Start/Pause] button, the washing machine will run the fuzzy weighting function. Consumer can also select the water level to set the water level as needed.

Cleaning & Maintenance

CLEANING AND CARE

WARNING!

- Before you begin maintenance, please unplug the machine and close the tap.

CLEANING THE CABINET

Proper maintenance on the washing machine can extend its working life. The surface can be cleaned with diluted non-abrasive neutral detergents when necessary. If there is any water overflow, use the wet cloth to wipe it off immediately. No sharp items are allowed.

NOTE!

- Formic acid and its diluted solvents or equivalent are forbidden, such as alcohol, solvents or chemical products, etc.

Line drawing of a hand washing a small appliance on a square base (no text or symbols)

CLEANING THE INLET FILTER

NOTE!

- Inlet filter must be cleaned if there is less water.

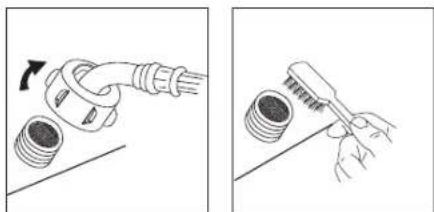

Washing the filter in washing machine:

1. Screw off the inlet pipe from the rear of the machine.
2. Pull out the filter with long pliers and reinstall it back after being washed.
3. Use a brush to clean the filter.
4. Reconnect the inlet pipe.

Two-step illustration showing a hand holding a plug and a tool interacting with a screwdriver (no text or symbols)

Lint filter clean:

1. There is a built-in lint filter in your washer. It can help to collect lint during washing cycle.
2. It is suggested to clean the lint filter every 10 cycles.
3. Take it out and clean the filter with water. Then place it back into the washer.

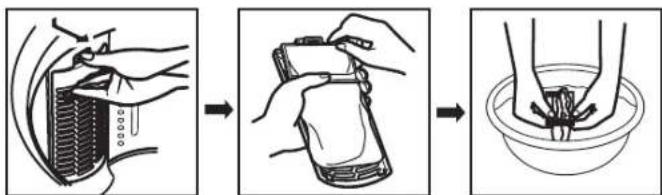

Magic filter


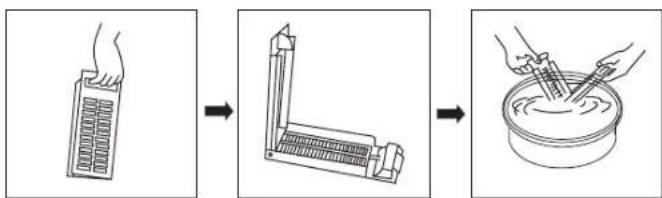

Normal filter

CLEANING THE DRAIN PUMP FILTER (NOT APPLICABLE FOR MODEL GGSTLW55B)

WARNING!

• Be careful of the hot water!
• Allow detergent solution to cool down.
• Drain pump filter can filter the yarns and small foreign matters from the washing.
• Clean the filter periodically to ensure the normal operation of washing machine.
• It is located at the rear of the machine next to the drain hose.
• Unplug the machine to avoid electrical shock before cleaning.

Simple line drawing of a sink with a circular valve and a bowl, no text or symbols present

Drain the water out of the pump, using a container to collect

Hand holding a rotary switch with arrows indicating clockwise rotation (no text or symbols)

Open the filter by turning to the counter clockwise

Remove foreign objects

Line drawing of a bowl with a container being inserted into it, no text or symbols present

Clean the filter

Technical line drawing of a mechanical component with threaded end and mounting plate (no text or symbols)

Restore it and adjust the convex place to align at the pump hole

Simple line drawing of a circular component mounted on a rectangular plate, with no text or symbols present.

Tighten the pump cover clockwise

CAUTION!

• Make sure that valve cap and emergency drain hose are reinstalled properly, cap plates should be inserted aligning to hole plates otherwise water may leak;
• Some machines don't have emergency drain hose, so step 2 and step 3 can be skipped. Rotate lower cover cap directly to make water run into basin.
• When the appliance is in use and depending on the program selected there can be hot water in the pump. Never remove the pump cover during a wash cycle, always wait until the appliance has finished the cycle, and is empty. When replacing the cover, ensure it is securely re-tightened.

Troubleshooting

OPERATION IN CASE OF EMERGENCY

In the event of an emergency you should:

• Switch off all controls.
• Switch the washing machine off at the power point or at the fuse box.
• Call the Residentia Support Team on 1300 11 HELP (4357).

Some minor faults can be fixed by referring to the instructions given in the Troubleshooting section below. There is also a self-help section online at https://support.residentiagroup.com.au/

DESCRIPTION INSPECTION ITEMS
No washing	If the power is off or the fuse is burned out.If the power supply voltage is too low.If the water amount reaches to the required water level.(The washer will not work if the water amount does not reach the required water level)If it is set to "Delay" washing mode. (It will only start to work until the reservation time reached)
No water flows in	If the power is off or the fuse is burned out.If the water supply is cut off or the water pressure too low.If the inlet hose is properly connected and the water tap is opened.If the filtering screen of inlet valve is blocked by dirt.If the coil of inlet valve is damaged. (The slight electromagnetic sound is normal phenomenon when the inlet valve is switched on)If the "Start / Pause" button is pressed after the power switch is pressed.
Abnormal draining	If the water drain hose is placed very high.If the end of water drain hose is sealed in pond.If the internal rubber ring of drain valve is blocked by dirt.
Abnormal spin	If the door lid is closed.If all clothing piled largely at one side of barrel or the clothing is excessively placed.If the washer is not placed in stable condition or it is placed in inclination state. (The ground is not flat).If the motor belt is loosened.

When the washing machine experiences a fault, please contact the Residentia Group support team on:

Telephone: 1300 11 HELP (4357).

WARNING! Never dismantle the washing machine.

ERROR MESSAGES AND SOLUTIONS

INDICATION REASON SOLUTION
"E1" displays Alarm for abnormal water intake.	Check the water tap is opened or not
"E2" displays Alarm for water drain has not finished.	Check the water level sensor and drain pump
"E3" displays Alarm for lid not closed before wash and spin.	Close the lid, Press "Start" button
"E4" displays Alarm for washing stay at one side.	Manually balance clothes in the barrel by hand.
Other If problems still occur, please contact	the support team with the number at the top of this page.

Technical Specifications

Below outlines the technical specifications for your Sôlt Washing Machine.

	GGSTLW55B GGSTLW70B GGSTLW80B GGSTLW100B
Size	515w × 525d × 910h (mm)	550w × 565d × 935h (mm)	580w × 596d × 968h (mm)	601w × 630d × 1000h (mm)
Net Weight	31kg 38kg 39kg 45kg
Rated Input Power	400W 450W 480W 600W
Rated Capacity of Wash and Spin	5.5kg(dry clothes)	7.0kg(dry clothes)	8.0kg(dry clothes)	10.0kg(dry clothes)
Rated Voltage	230-240V~ 230-240V~ 230-240V~
Rated Frequency	50Hz 50Hz	50Hz	50Hz
Maximum water pressure permitted in the water inlet	0.03MPa	0.03MPa	0.03MPa	0.03MPa
Minimum water pressure permitted in the water inlet	0.8MPa	0.8MPa	0.8MPa	0.8MPa

NOTE:

This product is subject to continuous improvement, specification are subject to change without prior notice. This product was tested in accordance with AS/NZS 2040.2 and AS/NZS6400 using program: Standard, which is the program recommended for a normally soiled cotton load at rated capacity.

Purchase Details

For future reference, please record the following information which can be found on the rating plate and the date of purchase which can be found on your sales invoice.

STORE DETAILS

STORE NAME

ADDRESS

TELEPHONE | PURCHASE DATE

PRODUCT DETAILS

MODEL NO.

SERIAL NO.*

Attach your receipt to this page

Warranty Information

WARRANTY TERMS & CONDITIONS LAUNDRY APPLIANCES (WASHING MACHINES)

This document sets out the terms and conditions of the product warranties for Residentia Group Appliances. It is an important document. Please keep it with your proof of purchase documents in a safe place for future reference should you require service for your Appliance.

1. IN THIS WARRANTY

(a) 'acceptable quality' as referred to in clause 10 of this warranty has the same meaning referred to in the ACL;
(b) 'ACL' means Trade Practices Amendment (Australian Consumer Law) Act (No.2) 2010;
(c) 'Appliance' means any Residentia Group product purchased by you accompanied by this document;
(d) 'ASR' means Residentia Group authorised service representative;
(e) 'Residentia Group' means Residentia Group Pty Ltd of 165 Barkly Ave, Burnley VIC 3121, ACN 600 546 656 in respect of Appliances purchased in Australia;
(f) ‘major failure’ as referred to in clause 10 of this warranty has the same meaning referred to in the ACL and includes a situation when an Appliance cannot be repaired or it is uneconomic for Residentia Group, at its discretion, to repair an Appliance during the Warranty Period;

(g) 'Warranty Period' means:

(i) where the Appliance is used for personal, domestic or household use (i.e. normal single family use) as set out in the instruction manual, the Appliance is warranted against manufacturing defects for 24 months, following the date of original purchase of the Appliance;

(h) 'you' means the purchaser of the Appliance not having purchased the Appliance for re-sale, and 'your' has a corresponding meaning.

1. This warranty only applies to Appliances purchased and used in Australia and is in addition to (and does not exclude, restrict, or modify in any way) any non-excludable statutory warranties in Australia.

2. During the Warranty Period Residentia Group or its ASR will, at no extra charge if your Appliance is readily accessible for service, without special equipment and subject to these terms and conditions, repair or replace any parts which it considers to be defective. Residentia Group or its ASR may use remanufactured parts to repair your Appliance. You agree that any replaced Appliances or parts become the property of Residentia Group. This warranty does not apply to light globes, batteries, filters or similar perishable parts.

3. Parts and Appliances not supplied by Residential Group are not covered by this warranty.

4. You will bear the cost of transportation, travel and delivery of the Appliance to and from Residential Group or its ASR. If you reside outside of the service area, you will bear the cost of:

(a) travel of an authorised representative;

(b) transportation and delivery of the Appliance to and from Residentia Group or its ASR, in all instances, unless the Appliance is transported by Residentia Group or its ASR, the Appliance is transported at the owner's cost and risk while in transit to and from Residentia Group or its ASR.

1. Proof of purchase is required before you can make a claim under this warranty.

2. You may not make a claim under this warranty unless the defect claimed is due to faulty or defective parts or workmanship. Residentia Group is not liable in the following situations (which are not exhaustive):

(a) the Appliance is damaged by:

(i) accident

(ii) misuse or abuse, including failure to properly maintain or service

(iii) normal wear and tear

(iv) power surges, electrical storm damage or incorrect power supply

(v) incomplete or improper installation

(vi) incorrect, improper or inappropriate operation

(vii) insect or vermin infestation

(viii) failure to comply with any additional instructions supplied with the Appliance;

(b) the Appliance is modified without authority from Residential Group in writing;

(c) the Appliance's serial number or warranty seal has been removed or defaced;

(d) the Appliance was serviced or repaired by anyone other than Residentia Group, an authorised repairer or ASR.

1. This warranty, the contract to which it relates and the relationship between you and Residentia Group are governed by the law applicable where the Appliance was purchased.

2. To the extent permitted by law, Residentia Group excludes all warranties and liabilities (other than as contained in this document) including liability for any loss or damage whether direct or indirect arising from your purchase, use or non use of the Appliance.

3. For Appliances and services provided by Residentia Group in Australia, the Appliances come with a guarantee by Residentia Group that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the Appliance repaired or replaced if the Appliance fails to be of acceptable quality and the failure does not amount to a major failure. The benefits to you given by this warranty are in addition to your other rights and remedies under a law in relation to the Appliances or services to which the warranty relates.

4. At all times during the Warranty Period, Residentia Group shall, at its discretion, determine whether repair, replacement or refund will apply if an Appliance has a valid warranty claim applicable to it.
5. Missing parts are not covered by warranty. Residential Group reserves the right to assess each request for missing parts in a case by case basis. Any parts that are not reported missing in the first week after purchase will not provide free of charge.
6. To enquire about claiming under this warranty, please follow these steps:
   (a) carefully check the operating instructions, user manual and the terms of this warranty;
   (b) have the model and serial number of the Appliance available;
   (c) have the proof of purchase (e.g. an invoice) available;
   (d) telephone the numbers shown below.
7. You accept that if you make a warranty claim, Residentia Group and its ASR may exchange information in relation to you to enable Residentia Group to meet its obligations under this warranty.

IMPORTANT

Before calling for service, please ensure that the steps in point 13 have been followed.

Telephone contacts

▶ Service: Please call 1300 11 HELP (4357)
▶ Spare parts: Please call 1300 11 SPARE (7727)

T. 1300 11 4357

E. [e-mail]

www.solt.house
