Product Type	Bunk Bed
Model	FURBBDKNGA12W
Color	White
Material	Pine Wood
Top Bunk Dimensions (Mattress Area)	92 x 188 cm
Bottom Bunk Dimensions (Mattress Area)	138 x 188 cm
Top Bunk Weight Capacity	65 kg
Bottom Bunk Weight Capacity	150 kg
Maximum Mattress Height - Top Bunk	10 cm
Maximum Mattress Height - Bottom Bunk	20 cm
Built-in Ladder	Yes
Safety Features	Guardrails, Warning Labels
Assembly Required	Yes
Recommended Mattress Thickness (Top)	At least 10 cm but must be 5 inches (12.7 cm) below guardrail top
Recommended Mattress Thickness (Bottom)	Up to 20 cm
Accessories Included	Assembly hardware (screws, bolts, etc.)
Included Items	Bed frame, ladder, guardrails, hardware
Not Included	Mattress, bedding, pillows
Maintenance	Wipe with damp cloth; avoid harsh chemicals
Warranty	Refer to manufacturer

Frequently Asked Questions - FURBBDKNGA12W Kingston Slumber

How do I assemble the bunk bed?

Follow the step-by-step instructions in the user manual. Use the provided hardware (screws, bolts, etc.) and tools. Ensure all connections are tight and re-check periodically.

What is the weight limit for each bunk?

The top bunk has a maximum weight capacity of 65 kg. The bottom bunk can hold up to 150 kg. Do not exceed these limits to prevent falls or damage.

What size mattress should I use?

For the top bunk, use a single mattress (approx. 90 x 190 cm) with a maximum thickness of 10 cm. For the bottom bunk, use a double mattress (approx. 135 x 190 cm) with a maximum thickness of 20 cm. Ensure the top mattress surface is at least 5 inches (12.7 cm) below the guardrail top.

Is this bunk bed safe for children?

Yes, when used correctly. Always follow safety warnings: no horseplay, jumping, or hanging items on the bed. Children under 6 should not use the top bunk. Adult supervision is required, especially for assembly.

Can adults sleep on the top bunk?

The top bunk is designed for a maximum weight of 65 kg. Most adults exceed this, so it is not recommended for adult use. The bottom bunk can safely accommodate adults up to 150 kg.

How do I clean the bed?

Wipe with a damp cloth and mild soap if needed. Avoid abrasive cleaners, solvents, or excessive moisture. Dry immediately to prevent water damage to the wood.

Can I replace the ladder with a different one?

Only use the original ladder provided. Substitute parts may compromise safety. Contact Kingston Slumber for replacement parts if the ladder is damaged.

Where can I get replacement parts or hardware?

Contact Kingston Slumber or the retailer for replacement parts. Use only authorized parts to maintain safety. Do not substitute with generic hardware.

Does the bed come with a mattress?

No, mattresses and bedding are sold separately. You need to purchase appropriate mattresses for each bunk.

What should I do if parts are missing or damaged?

Do not attempt assembly. Contact Kingston Slumber or the retailer immediately for replacements. Keep the packaging for return if needed.

USER MANUAL FURBBDKNGA12W Kingston Slumber

Mattress and bedding accessories not included

User Manual

[Revision 8.0 August 2022]

Safety

READ THESE INSTRUCTIONS CAREFULLY BEFORE ATTEMPTING TO ASSEMBLE THIS BED.

• Follow the instruction on the WARNING labels on top bunk and the package. DO NOT REMOVE THE LABELS FROM THE BED.
• Always use the recommended size mattress, mattress support, or both, to prevent the likelihood of entrapment or falls.
  • The top surface of the mattress must be at least 5 inches below the upper edge of the guardrails.
  • MAX. WEIGHT CAPACITY: 65KG TOP AND 150KG BOTTOM.
  • MAXIMUM TOP BUNK MATTRESS HEIGHT: 10CM
  • MAXIMUM BOTTOM BUNK MATTRESS HEIGHT: 20CM
• DO NOT allow horseplay on the bunk bed. Always PROHIBIT jumping on the bed v Children SHOULD BE discouraged from playing on the bunk bed.
• Periodically check and ensure that the guardrail, access device and other components are maintained in the correct position and state of repair and that all connectors are tight.
  • DO NOT use any substitute parts. Contact the manufacturer or dealer for replacement parts.
• STRANGULATION HAZARD - Never attach or hang items to any part of the bunk that are not designed for use with the bed, but not limited to hooks, belts, or jump ropes.
• Keep these instructions in a safe place for future reference.

CHILD CHOKING HAZARD:

WARNING: CHOKING HAZARD - CHILDREN UNDER 8 YRS. CAN CHOKE OR SUFFOCATE ON SMALL PARTS. ADULT SUPERVISION REQUIRED.

- Carefully inspect anything a baby or child could gain access to, including this product & packaging.

• Dangers include anything of a size that could become stuck or lodged in a baby or child's airway.

- Dangers include things like raw, hard fruit and vegetable pieces, large pieces of meat, bones or sausage skins, popcorn, nuts, hard lollies, and corn chips, small magnets and batteries, coins, beads, marbles and small uninflated balloons, broken toys and smaller toys, buttons, keys and coins. But there are also many more.

- Pay particular attention to accessories, nuts, bolts, screws, washers, caps, covers, loose parts, parts that could be removed or break off, pieces of packaging, staples, tape etc.

- In the case of any doubt, secure the item of concern in an appropriate manner, or completely remove the possibility of access by a baby or child.

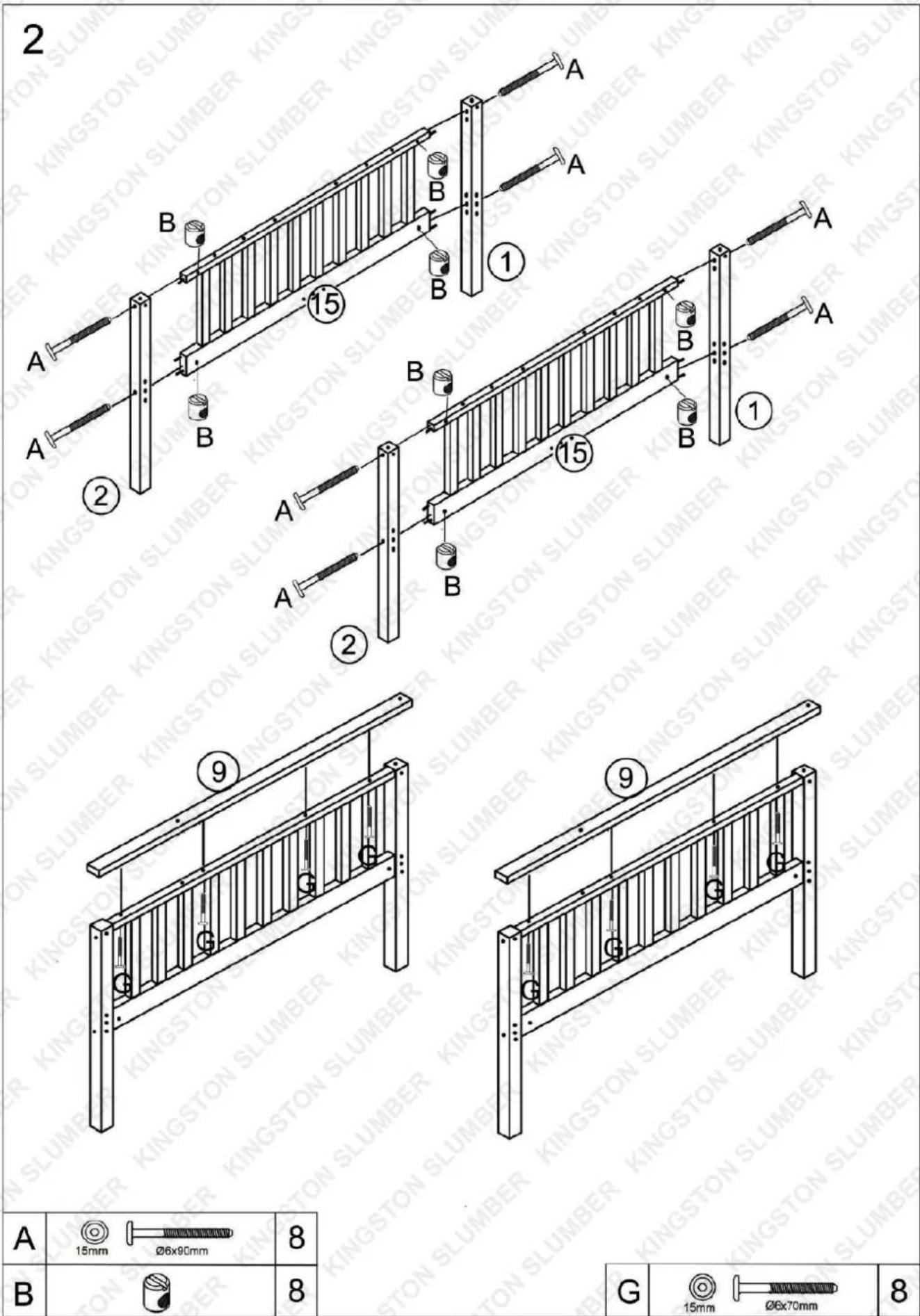

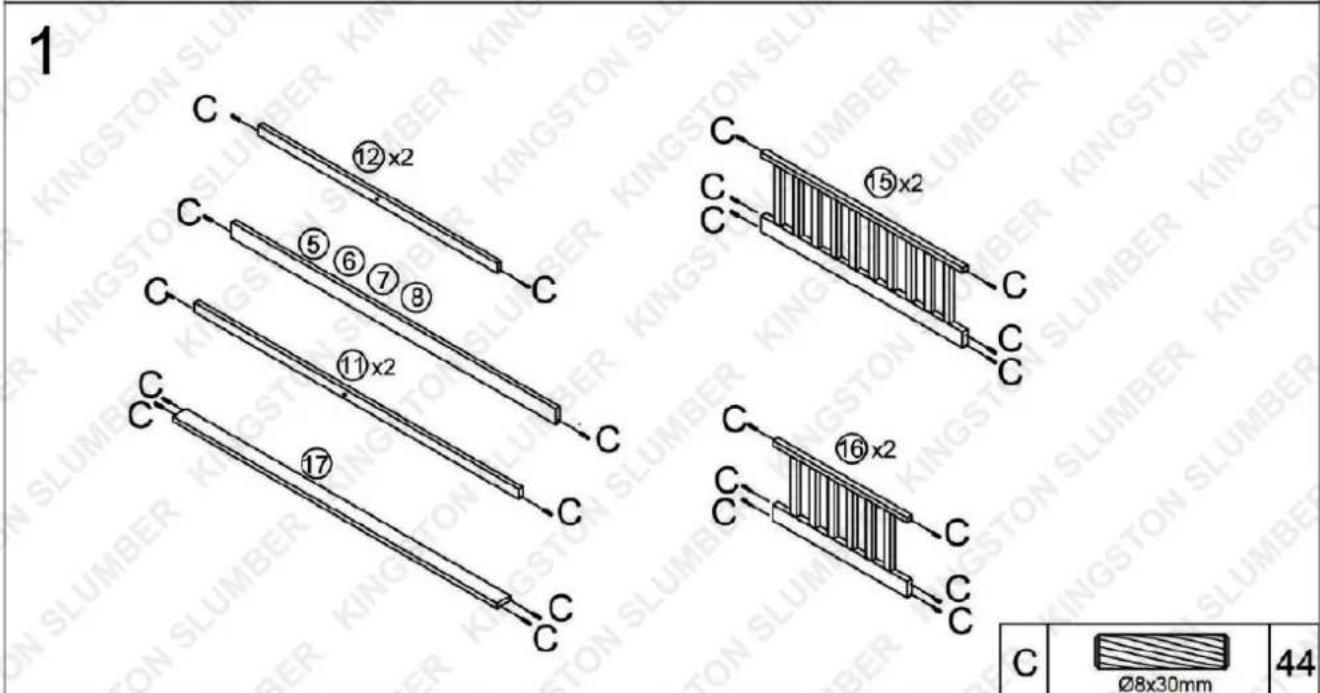

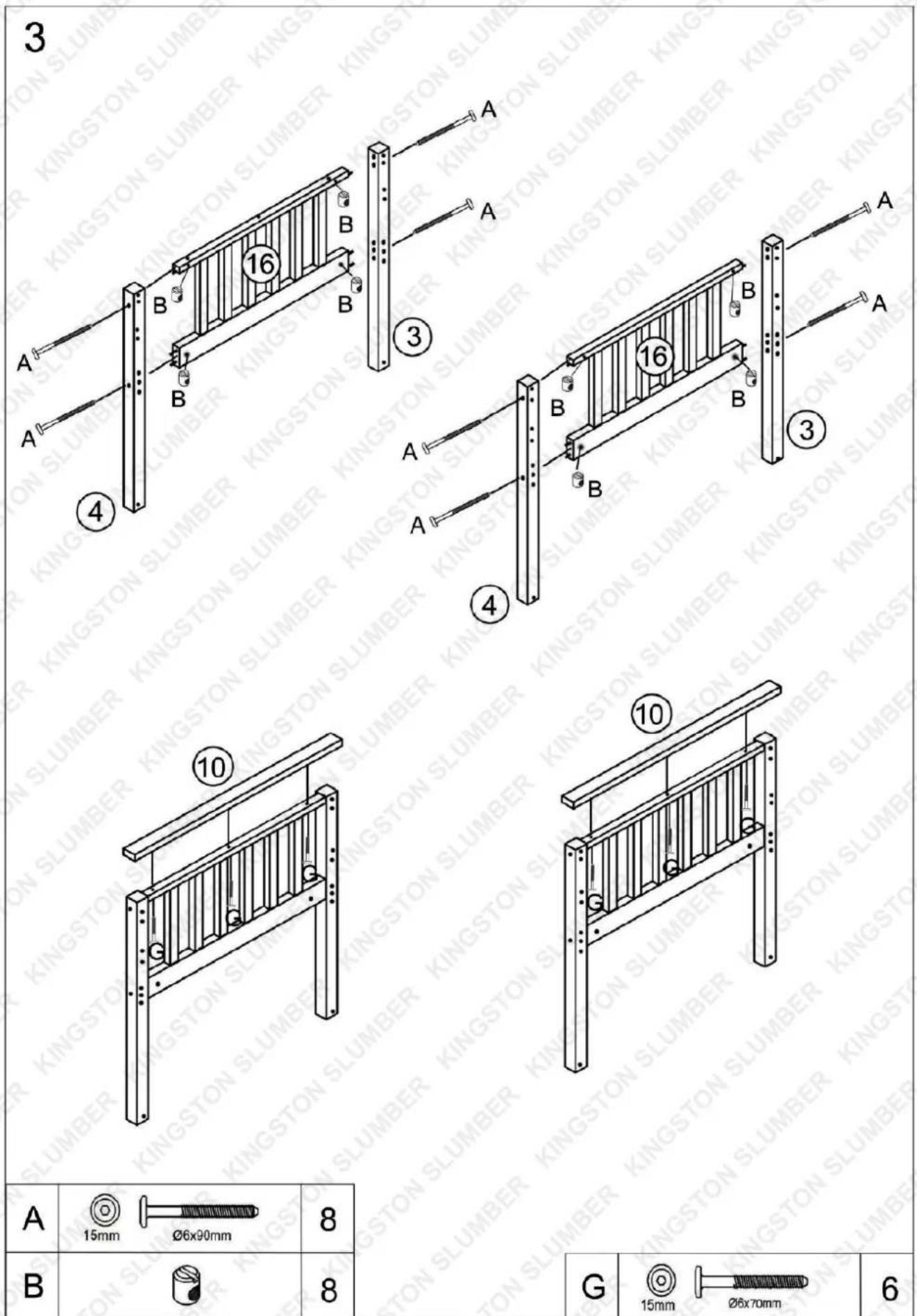

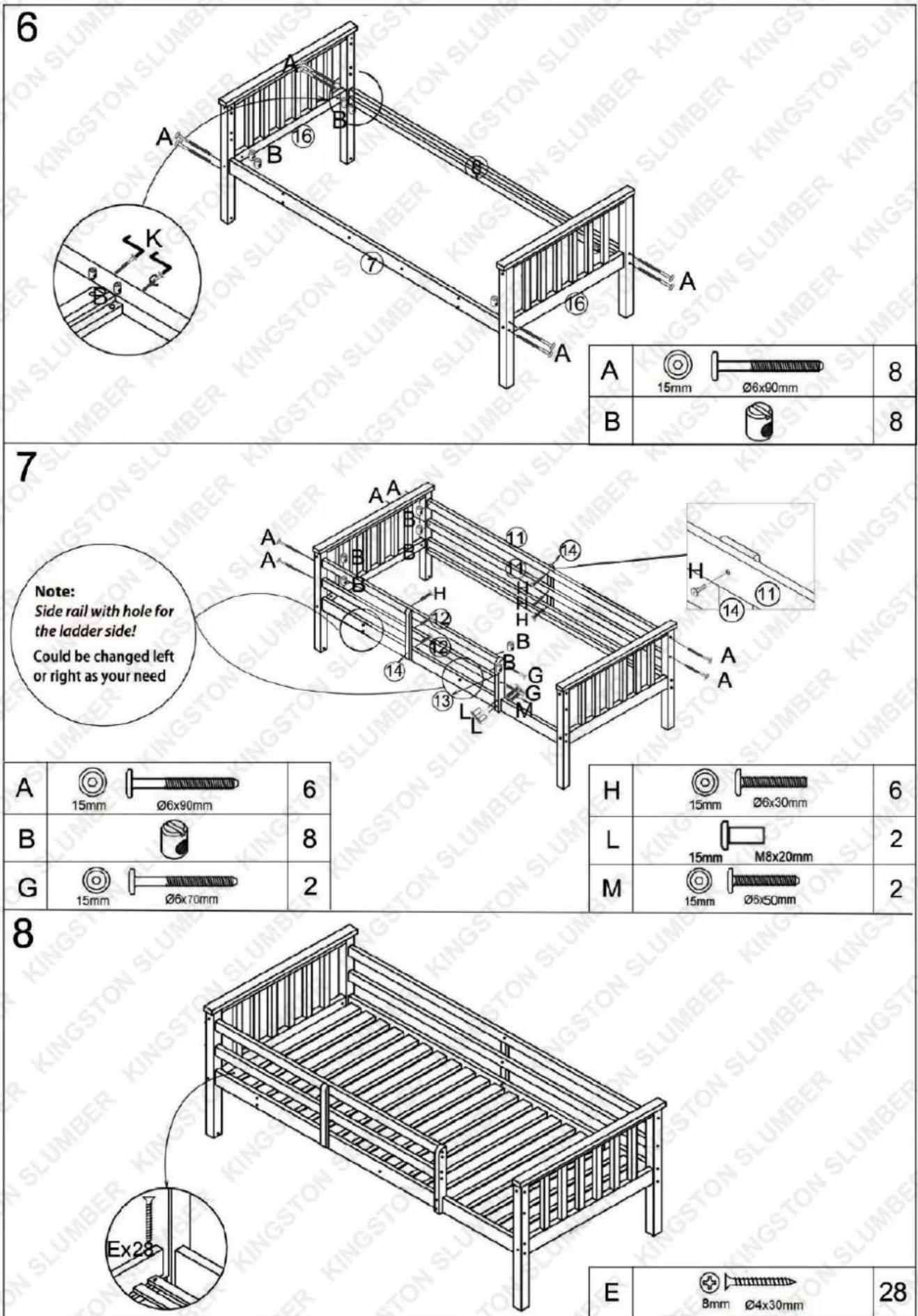

Instruction

Top:920x188cm

Down:138x188cm

A	15mm ∅6x90mm		38
B			40
C	∅6x30mm		44
E			62
F			04
G			16
H			06
V	Φ4 x 30 mm		08
W	70 x 25 x 19 mm		04

I			02
J			04
K	10mm	[ASTY]	16
L
M			02
N			02
O	8mm	[4WBW]	06
Q	[###]	[###]	13
R			02

9

4

10

K	[H204] - 10mm ∅7x60mm	16
N		2
O	[86BW] 8mm ∅4x16mm	4

∅7x60mm
O
8mm
∅4x16mm
16
2
4

Specifications

Bed Size	Double+ Single
Type	Bunk Bed
Colour	White
Material	Pine
Built-in Ladder	Yes
