CPD-9 - Extension block Citronic - Free user manual and instructions

Product Type	Power Extension Block / Distribution Unit
Brand	Citronic
Model	CPD-9
Number of Outlets	9
Output Voltage	230 V AC
Maximum Load	16 A
Surge Protection	Yes, built-in
Rack Mountable	Yes, 1U (19 inch)
Dimensions (W x H x D)	482 x 44 x 150 mm
Weight	2.0 kg
Power Cord Length	1.8 m
Material	Steel chassis, ABS front panel
Operating Temperature	0°C to 40°C
Certifications	CE, RoHS
Warranty	2 years
Features	LED indicator, master on/off switch, overload protection
Cleaning	Wipe with dry cloth; do not use liquids
Safety	Do not overload; keep away from moisture
Spare Parts	Power cord replaceable; no other user-serviceable parts
Disposal	Dispose of in accordance with local electronic waste regulations

Frequently Asked Questions - CPD-9 Citronic

How do I connect the Citronic CPD-9?

Plug the power cord into a mains outlet. Connect your devices to the 9 outlets. Use the master switch to turn the unit on. The LED indicator will light up.

What is the maximum total power load?

The maximum load is 16 A at 230 V, which equals approximately 3680 W. Do not exceed this limit to avoid tripping the overload protection.

Does the CPD-9 have surge protection?

Yes, it features built-in surge protection to safeguard your equipment from voltage spikes. The protection status is indicated by a LED.

Can I mount the CPD-9 in a rack?

Yes, the CPD-9 is designed for 19-inch rack mounting and occupies 1U of vertical space. Use the supplied screws to secure it in the rack.

How do I clean the CPD-9?

Unplug the unit before cleaning. Use a dry, soft cloth to wipe the surface. Do not use water, solvents, or abrasive cleaners.

What should I do if the overload protection trips?

Disconnect some devices to reduce the load. The unit will reset automatically after a short cooldown. If it trips again, check for faulty equipment.

Are replacement power cords available?

Yes, the power cord is detachable and can be replaced with a standard IEC C13 cable. Contact Citronic or an authorized dealer for a genuine replacement.

What is the operating temperature range?

The CPD-9 is designed to operate in temperatures from 0°C to 40°C. Avoid exposure to extreme heat or cold.

Is the CPD-9 compatible with non-Citronic devices?

Yes, it is a standard power distribution unit and works with any device that requires 230 V AC, up to 16 A total.

What certifications does the CPD-9 have?

The unit is CE and RoHS certified, meeting European safety and environmental standards.

USER MANUAL CPD-9 Citronic

Please do not open cover as it contains high voltage. This product is not serviceable or repairable by the end user.

Please refer to qualified personnel for service or repair.

Please read this manual thoroughly before use. Any damage caused by misuse of the product will void the warranty.

Protect your equipment and organise your power distribution with this 19" rack mounting unit. The front panel features a digital voltage meter and two LED lamps with dimmer control for illuminating your rack.

• 19" 1U rack mountable
• 8 rear and 1 front IEC outlets
• 2 front mounted LED lamps with dimmer control

• Digital voltmeter displays incoming line voltage
- Surge protection
• 10A capacity with circuit breaker

Specifications

Power supply 230Vac, 50Hz

Max. output current 10A

Outputs IEC, 8 rear & 1 front mounted

LED type 2 x 3W LEDs

Dimensions 482 x 178 x 44mm

Weight 2.6kg

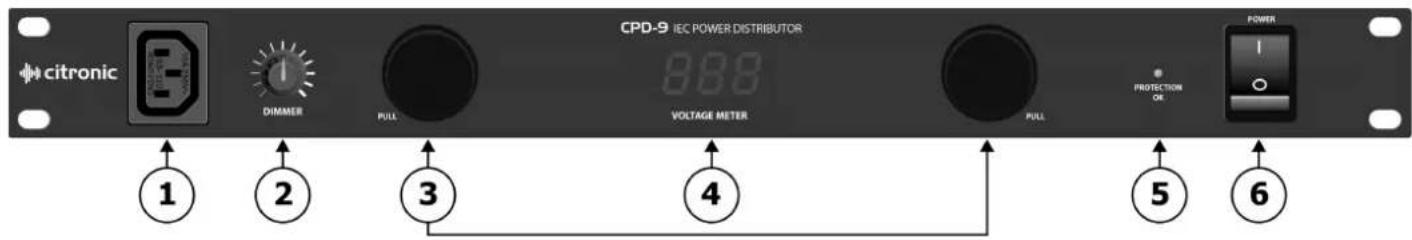

Front Panel

1. Switched IEC output
2. Dimmer switch for LED rack lamps
3. LED rack lamps, pull out to use
4. Voltage meter displays incoming line voltage
5. Protection 'OK' indicator
6. On/Off power switch

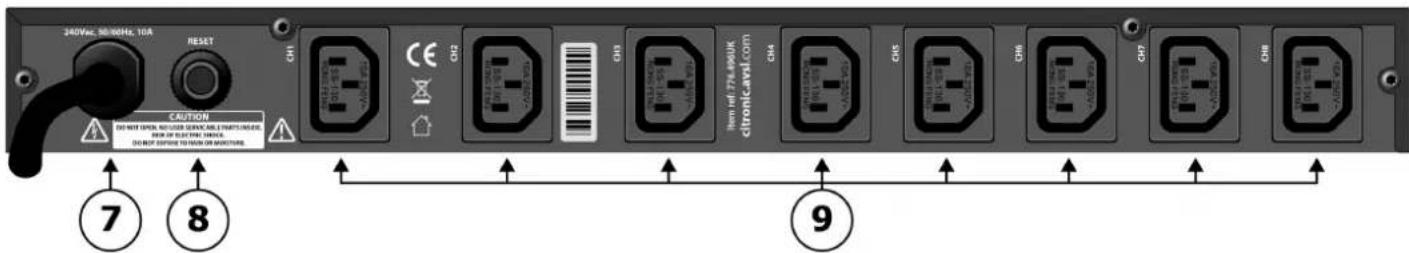

Rear Panel

1. Power in
2. Limited protection switch, 10A, press to reset
3. 8 x IEC power outputs

This product is classed as Electrical or Electronic equipment and should not be disposed with other household or commercial waste at the end of its useful life. The goods must be disposed of according to your local council guidelines.

Errors and omissions excepted. Copyright© 2016. AVSL Group Ltd.
