Product Type	Wireless Dual Band USB Adapter
Brand	TP-Link
Model	TL-WDN4200
Interface	USB 2.0
Wireless Standards	IEEE 802.11a/b/g/n
Frequency Band	Dual Band (2.4GHz and 5GHz)
Maximum Data Rate	Up to 300Mbps per band
Antenna	Internal dual band antenna
Security	WEP 64/128-bit, WPA/WPA2, WPA-PSK/WPA2-PSK
Dimensions (L x W x H)	Approx. 91 x 26 x 12 mm
Weight	Approx. 30 g
Power Supply	USB bus powered (5V DC)
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
Operating Humidity	10% to 90% non-condensing
System Requirements	Windows XP/Vista/7/8/10, Linux, Mac OS
Main Functions	Connect to Wi-Fi networks; dual band for reduced interference; WPS button for easy setup
Care and Cleaning	Keep dry; clean with soft cloth; do not use solvents
Safety Precautions	Use in dry environment; do not disassemble; avoid liquids
Spare Parts and Repairability	No user-serviceable parts; contact TP-Link support for replacement

Frequently Asked Questions - TL-WDN4200 TP-LINK

How do I install the TP-Link TL-WDN4200 adapter?

Insert the CD that came with the adapter, or download the driver from TP-Link's website. Then plug the adapter into a USB port. Follow the on-screen instructions to complete installation. For detailed steps, refer to the user manual.

Does the TL-WDN4200 support Windows 10?

Yes, the TL-WDN4200 supports Windows 10, as well as Windows 7, 8, and earlier versions. Make sure to install the latest driver from the TP-Link support page.

How can I connect to a wireless network using this adapter?

After installing the driver, left-click the wireless icon in the system tray, select your network from the list, enter the password, and click Connect. You can also use the WPS button for a password-free connection.

What is the range of the TL-WDN4200?

Range depends on environment, but typically up to 100 meters indoors and 300 meters outdoors. Obstacles like walls and interference can reduce range. The dual band feature helps minimize interference.

Is the TL-WDN4200 dual band?

Yes, it operates on both 2.4GHz and 5GHz bands, providing faster speeds and less interference. You can select which band to connect to based on your router and needs. Check your router settings for band selection.

What security protocols does the TL-WDN4200 support?

It supports WEP, WPA, and WPA2 (both personal and enterprise). For the best security, use WPA2 with AES encryption.

What does the LED on the adapter indicate?

The LED lights up solid when the adapter is powered and connected to a network. It blinks during data activity. If the LED is off, check the USB connection and driver installation. Refer to the LED description in the manual.

How do I use the WPS button?

Press the WPS button on your router, then within two minutes press the WPS button on the adapter. The connection will be established automatically without entering a password. Ensure both devices support WPS.

What should I do if the adapter is not recognized?

Try plugging into a different USB port, restart your computer, and reinstall the driver. If using Windows, go to Device Manager and check for yellow exclamation marks. Download the latest driver from TP-Link's website.

Is the TL-WDN4200 compatible with Mac OS?

Yes, it is compatible with Mac OS X 10.9 and later. Drivers are available on TP-Link's support page. Note that some Mac models may not have a USB port, but you can use a USB hub.

USER MANUAL TL-WDN4200 TP-LINK

Black TP-LINK device with visible branding and a blue indicator light (no text or symbols on body)

COPYRIGHT & TRADEMARKS

Specifications are subject to change without notice. TP-LINK ^® is a registered trademark of TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or registered trademarks of their respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-LINK TECHNOLOGIES CO., LTD. Copyright © 2013 TP-LINK TECHNOLOGIES CO., LTD. All rights reserved.

http://www.tp-link.com

FCC STATEMENT

FC

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Consult the dealer or an experienced radio/ TV technician for help.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1) This device may not cause harmful interference.
2) This device must accept any interference received, including interference that may cause undesired operation.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user's authority to operate the equipment.

FCC RF Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment has been SAR-evaluated for use in hand. SAR measurements are based on a 5mm spacing from the body and that compliance is achieved at that distance.

CE Mark Warning

CE1588①

This is a class B product. In a domestic environment, this product may cause radio interference,

in which case the user may be required to take adequate measures.

National Restrictions

This device is intended for home and office use in all EU countries (and other countries following the EU directive 1999/5/EC) without any limitation except for the countries mentioned below:

Country	Restriction	Reason/remark
Bulgaria	None	General authorization required for outdoor use and public service
France	Outdoor use limited to 10 mW e.i.r.p. within the band 2454-2483.5 MHz	Military Radiolocation use. Refarming of the 2.4 GHz band has been ongoing in recent years to allow current relaxed regulation. Full implementation planned 2012
Italy	None	If used outside of own premises, general authorization is required
Luxembourg	None	General authorization required for network and service supply(not for spectrum)
Norway	Implemented	This subsection does not apply for the geographical area within a radius of 20 km from the centre of Ny-Ålesund

Russian Federation None Only for indoor applications
Note: Please don't use the product outdoors in France.

Canadian Compliance Statement

This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions:

(1) This device may not cause interference, and
(2) This device must accept any interference, including interference that may cause undesired operation of the device.

Industry Canada Statement

Complies with the Canadian ICES-003 Class B specifications.

This device complies with RSS 210 of Industry Canada. This Class B device meets all the requirements of the Canadian interference-causing equipment regulations.

Korea Warning Statements

• When product has power button, the power button is one of the way to shut off the product; when there is no power button, the only way to completely shut off power is to disconnect the product or the power adapter from the power source.
• Don't disassemble the product, or make repairs yourself. You run the risk of electric shock and voiding the limited warranty. If you need service, please contact us.
• Avoid water and wet locations.
  ● This product can be used in the following countries:

AT	BG	BY	CA	CZ	DE	DK	EE
ES	FI	FR	GB	GR	HU	IE
LT	LV	MT	NL	NO	PL	PT	RO
RU	SE	SK	TR	UA

IT

DECLARATION OF CONFORMITY

For the following equipment:

Product Description: N900 Wireless Dual Band USB Adapter

Model No.: TL-WDN4200

Trademark: TP-LINK

We declare under our own responsibility that the above products satisfy all the technical regulations applicable to the product within the scope of Council Directives:

Directives 1999/5/EC, Directives 2006/95/EC, Directives 1999/519/EC, Directives 2011/65/EU

The above product is in conformity with the following standards or other normative documents:

ETSI EN 300 328 V1.7.1: 2006

ETSI EN 301 489-1 V1.9.2:2011 & ETSI EN 301 489-17 V2.2.1:2012

EN 60950-1:2006+A11: 2009+A1:2010+A12:2011

EN 62311:2008

EN 301 893

EN 302 502

The product carries the CE Mark:

CE1588 Ⓞ

Person responsible for marking this declaration:

Yang Hongliang

Product Manager of International Business

Date of issue: 2013

CONTENTS

Package Contents .... 1

Chapter 1 Product Overview ...... 2

1.1 Introduction ...... 2
1.2 Features.... 2
1.3 Hardware Overview.... 3

Chapter 2 Installation....4

2.1 Hardware Installation 4
2.2 Software Installation....5

Chapter 3 Connect to a Wireless Network .... 10

3.1 To connect using TWCU 10
3.2 To connect using WPS.... 14

3.2.1 PBC (Push Button Configuration) method.... 14

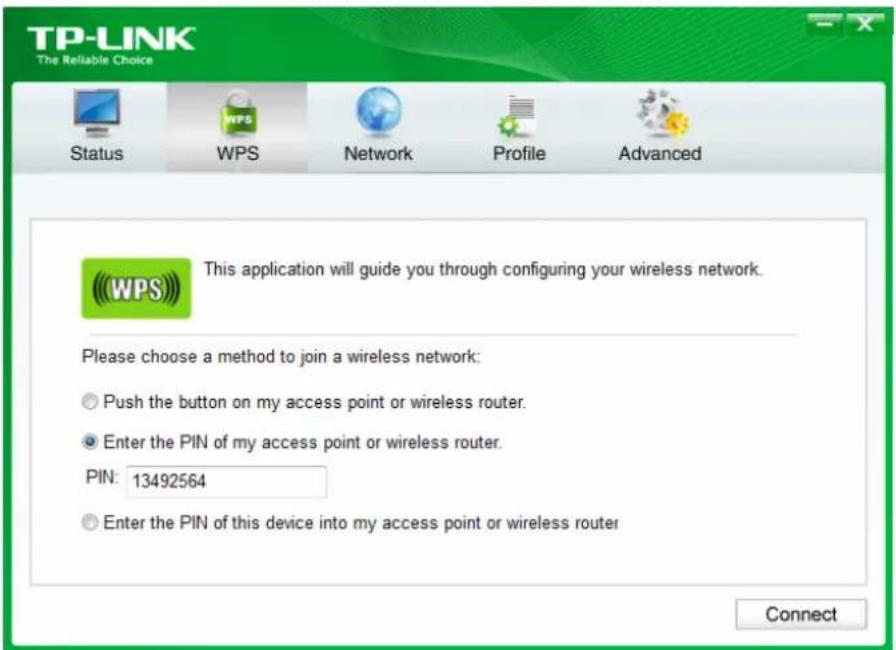

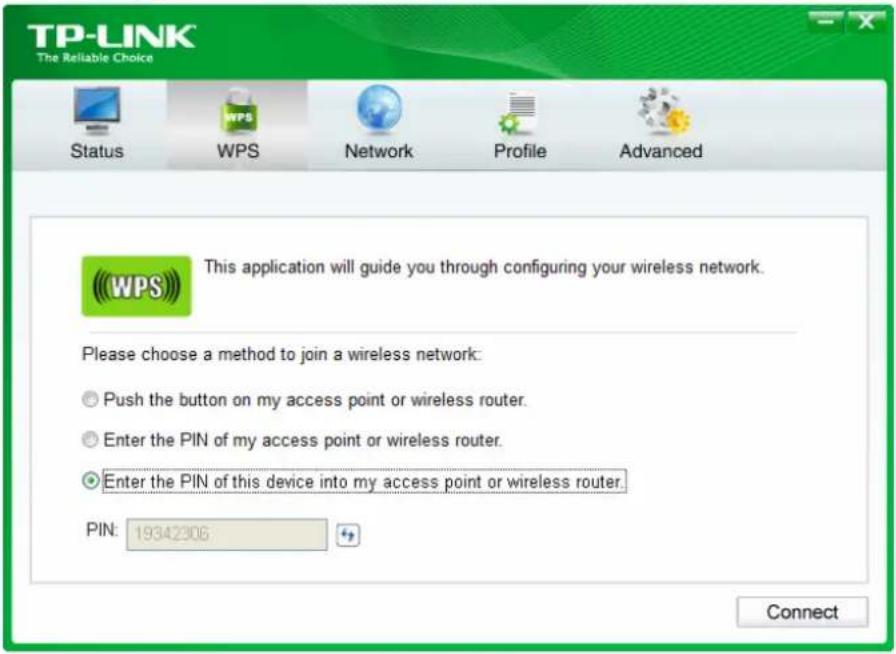

3.2.2 PIN method 16

3.3 To connect using Windows built-in wireless utility.... 18

3.3.1 In Windows XP 18
3.3.2 In Windows Vista 20
3.3.3 In Windows 7 22
3.3.4 In Windows 8 24

Chapter 4 Management....26

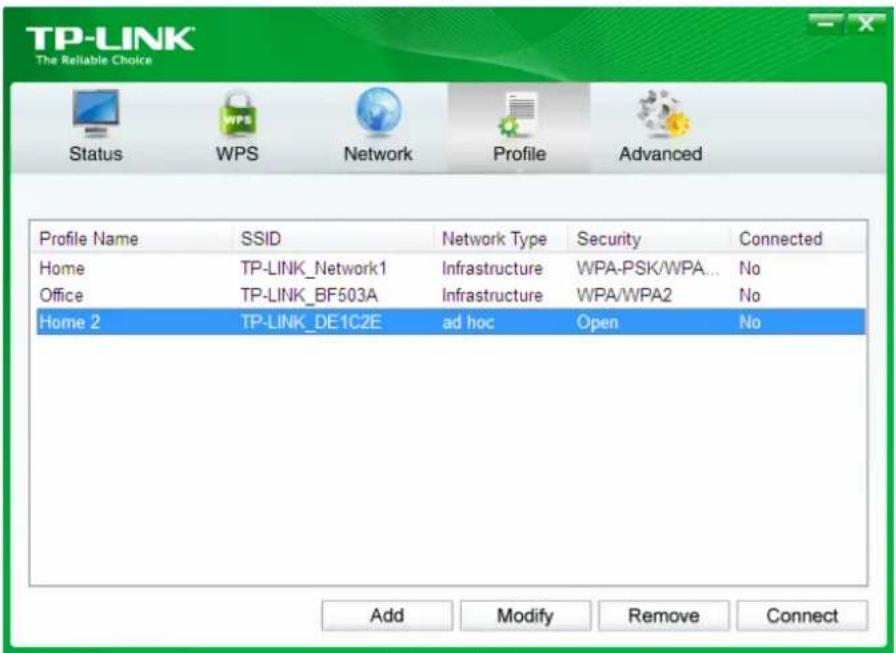

4.1 Profile 26

4.1.1 Add a profile 26
4.1.2 Modify a profile....31
4.1.3 Delete a profile 31

4.2 Advanced 32
4.3 About 32

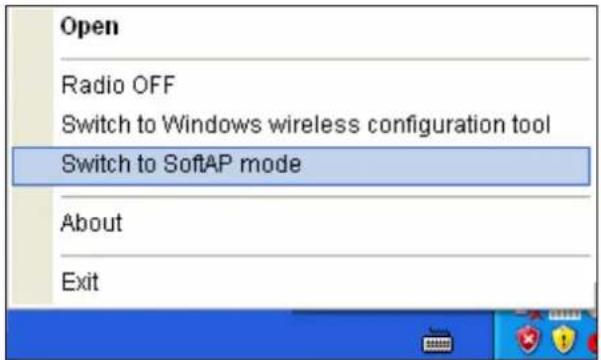

Chapter 5 AP Mode .... 34

Chapter 6 Uninstall Software....37

6.1 In Windows XP/Vi sta/7 37

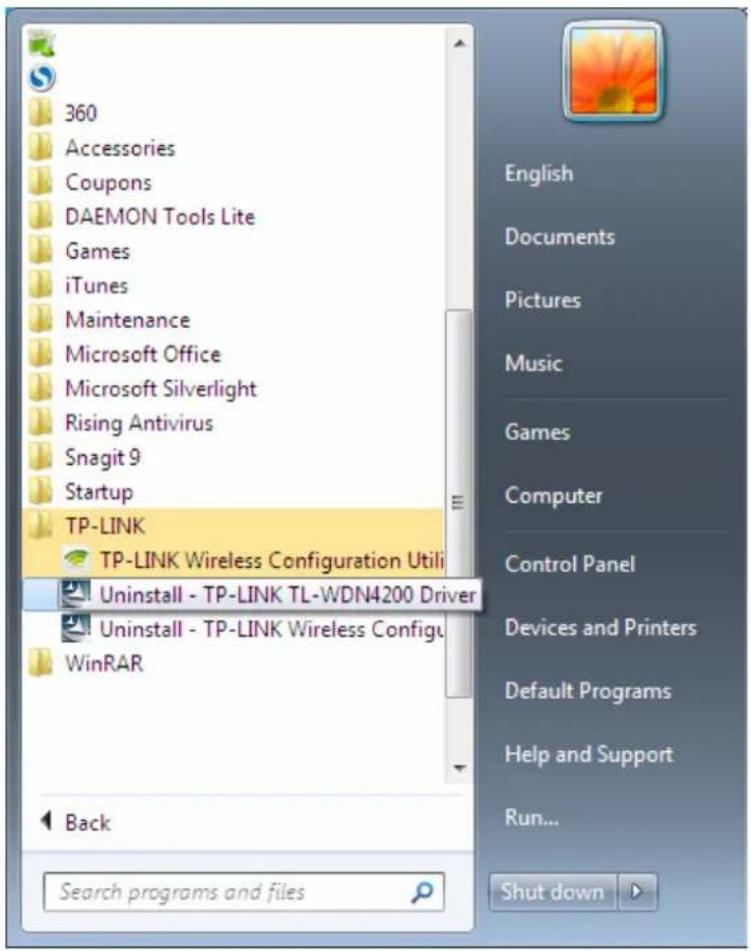

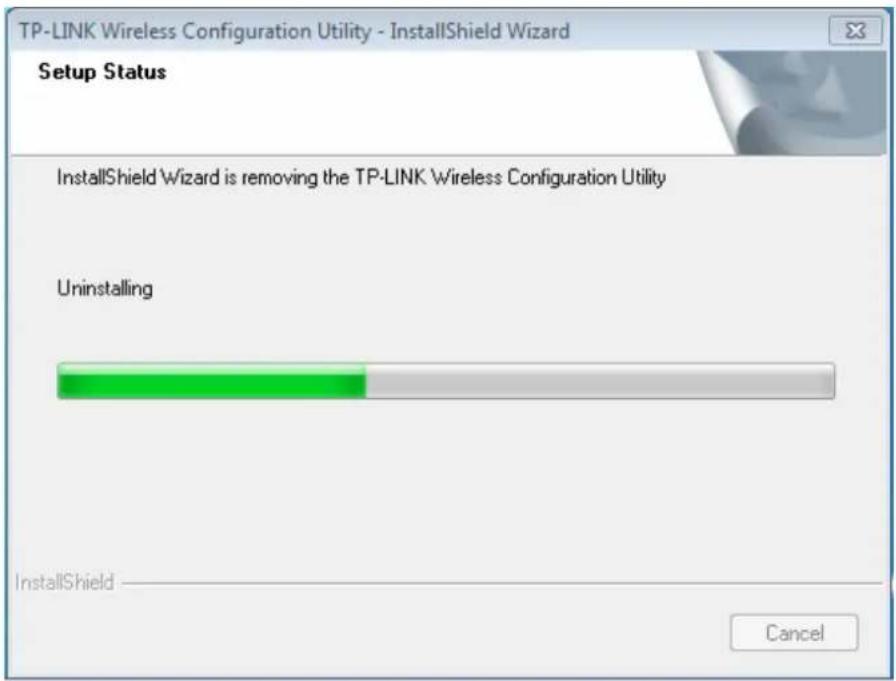

6.1.1 Uninstall the utility software from your PC 37
6.1.2 Uninstall the driver software from your PC 39

6.2 In Windows 8 40

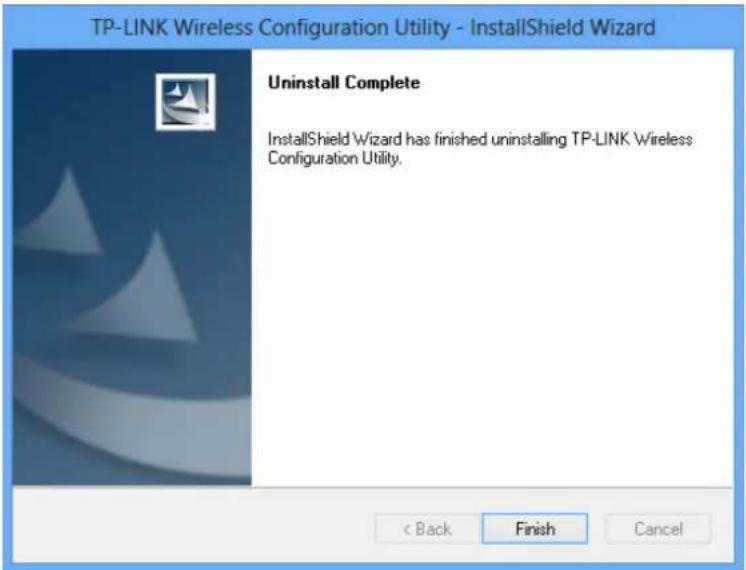

6.2.1 Uninstall the utility software from your PC 40

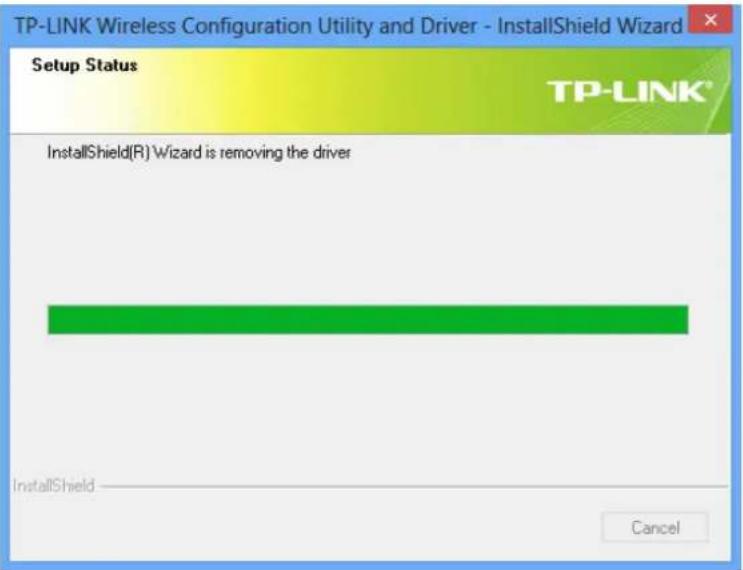

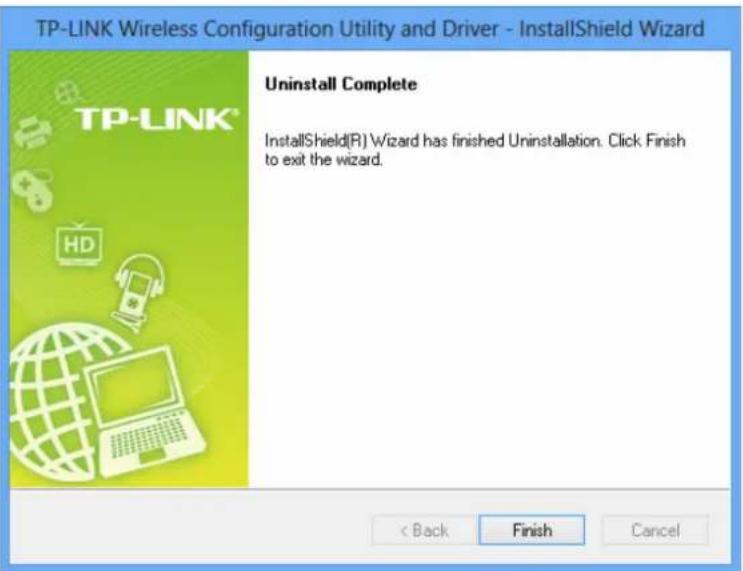

6.2.2 Uninstall the driver software from your PC 42

Appendix A: Specifications 37

Appendix B: Glossary 38

Package Contents

Please verify that all the package contents below are available.

One TL-WDN4200 N900 Wireless Dual Band USB Adapter

Quick Installation Guide
One Resource CD for TL-WDN4200, including:
- TP-LINK Wireless Configuration Utility (TWCU) and Drivers
- User Guide
• Other helpful information

Make sure that the above items are contained in the package. If any of the above items is damaged or missing, please contact your distributor.

Note:

The ‘adapter’ mentioned in this User Guide stands for TL-WDN4200 N900 Wireless Dual Band USB Adapter without any explanation.

Chapter 1 Product Overview

1.1 Introduction

The adapter is a dual band 802.11n client device designed to deliver a high-speed wireless performance for your desktop. With a faster wireless connection, you can get a better Internet experience, such as downloading, gaming, and video streaming.

With the 802.11n technology, higher throughput improvements using 3T3R, the TL-WDN4200's auto-sensing capability allows high packet transfer rate of up to 450Mbps for maximum throughput. It has good capability on anti-jamming, and it can also interoperate with other wireless (802.11a/b/g/n) products. The adapter supports WEP, WPA-PSK/WPA2-PSK and WPA/WPA2 encryption to prevent outside intrusion and protect your personal information from being exposed.

The adapter is easy to install and manage. The Quick Setup Wizard will guide you step-by-step through the installation process and the TP-LINK Wireless Configuration Utility (TWCU) will instruct you to quickly set up a wireless connection.

With unmatched wireless performance, reception, and security protection, the TL-WDN4200 is the best choice for easily adding or upgrading wireless connectivity to your desktop.

1.2 Features

Supports dual-band, 2.4GHz or 5GHz
Seamlessly compatible with 802.11a/b/g/n products
➢ Experience smoother video streaming and online gaming by choosing the clearer 5GHz band for wireless connections
Supports 64/128 WEP, WPA/WPA2, WPA-PSK/WPA2-PSK(TKIP/AES), supports IEEE 802.1X
Supports Windows XP 32/64bit, Windows Vista 32/64bit, Windows 7 32/64bit, Windows 8 32/64bit
Supports ad-hoc and infrastructure mode
▶ Bundled utility provides quick & hassle-free installation

1.3 Hardware Overview

LED status:

Status Working Status
Off	The driver has not been installed;The adapter's radio has been disabled.
Flashing Slowly	The driver has been installed but no data is being transmitted or received.
Flashing Quickly	Data is being transmitted or received.

Chapter 2 Installation

Please install the adapter into your computer before installing the driver and utility software from the Resource CD.

2.1 Hardware Installation

There are two methods:

Method One:

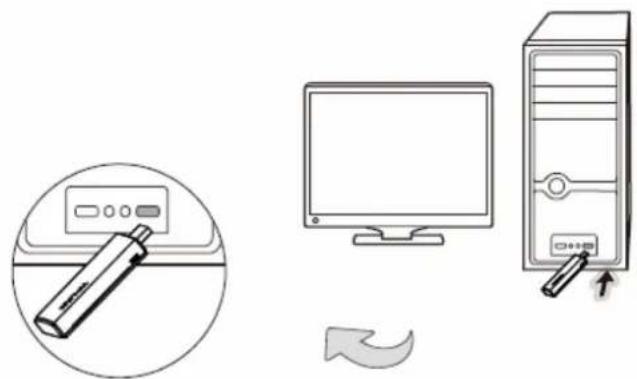

Plug the adapter into an available USB interface on your computer directly.

Diagram showing a desktop computer setup with monitor, tower, and mouse pointer (no text or symbols)

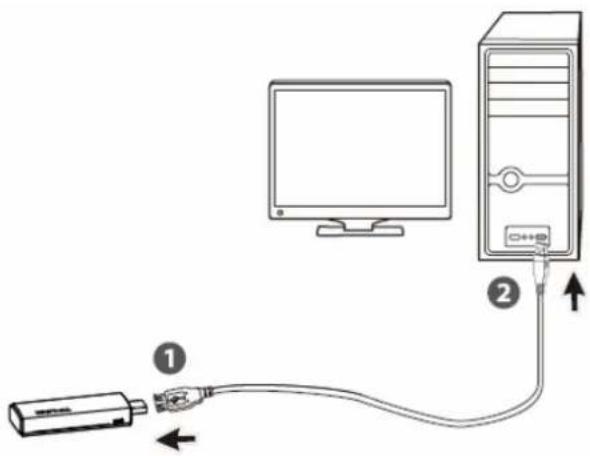

Method Two:

Connect the adapter and your computer with the provided USB cable.

When the Found New Hardware wizard appears, click Cancel.

Note:

When the hardware has been successfully installed on your computer, you may be prompted 'Found New Hardware Wizard' (as shown in Figure 2-1 and Figure 2-2); please click Cancel, and then follow the Software Installation steps to install driver and utility for your adapter.

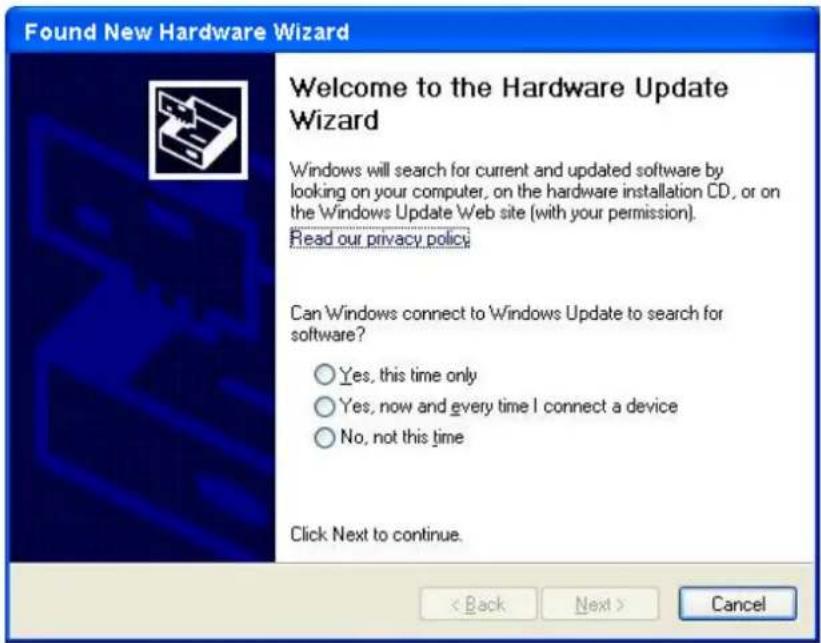

Figure 2-1 Found New Hardware Wizard in Windows XP

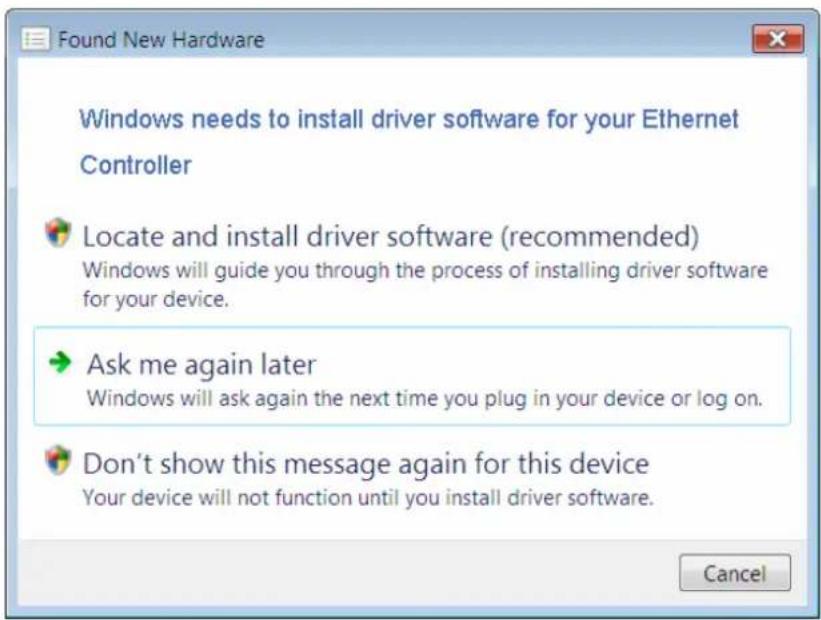

Figure 2-2 Found New Hardware Wizard in Windows Vista

2.2 Software Installation

The adapter's Setup Wizard will guide you through the installation procedures for Windows XP, Windows Vista, Windows 7 and Windows 8. The procedures in different systems are quite similar, therefore here we use the procedures in Windows 7 as an example.

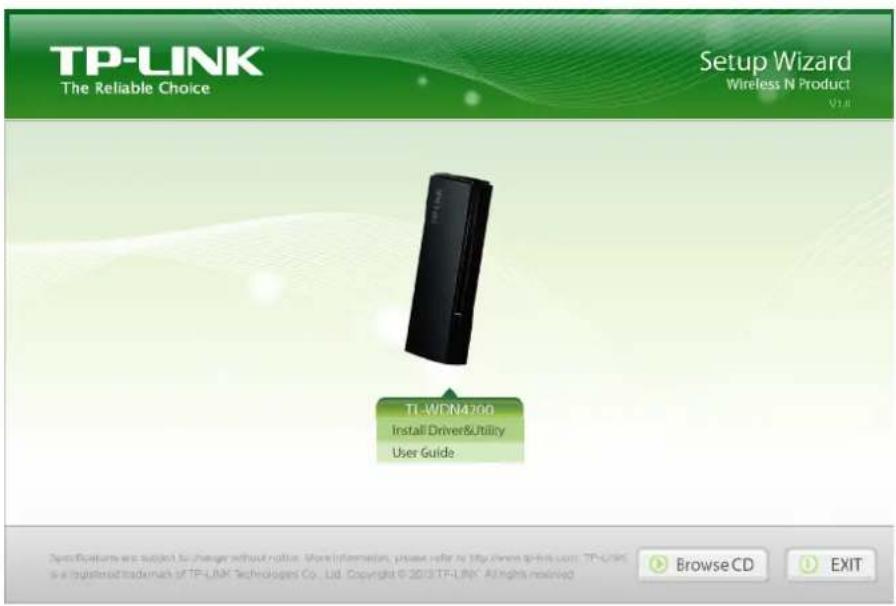

1. Insert the Resource CD into your CD-ROM drive and then select model TL-WDN4200 on the window that pops up (as shown in the below Figure 2-3). There will be a menu including: Install Driver&Utility and User Guide. Click Install Driver&Utility to begin.

Figure 2-3

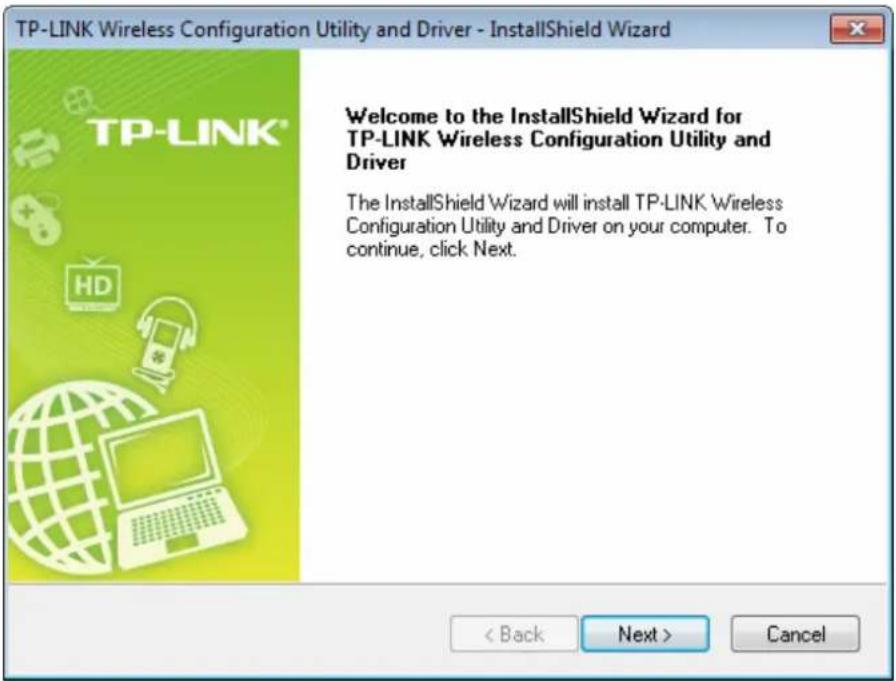

1. The InstallShield Wizard window will appear. Click Next to continue.

Figure 2-4

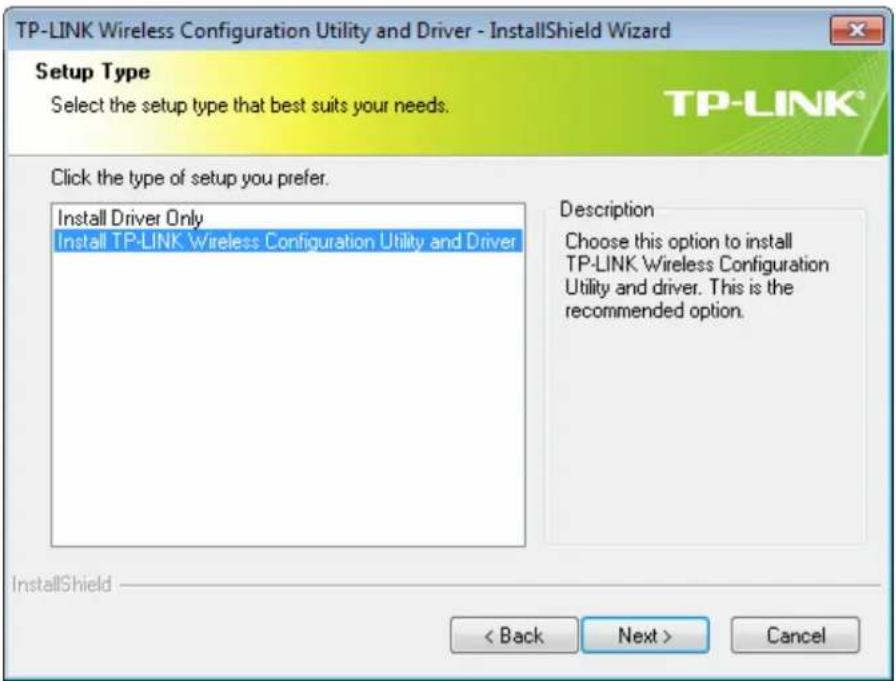

1. Choose a setup type. It is recommended to select Install TP-LINK Wireless Configuration Utility and Driver. Selecting Install Driver Only can only install driver. Click Next to continue.

Figure 2-5

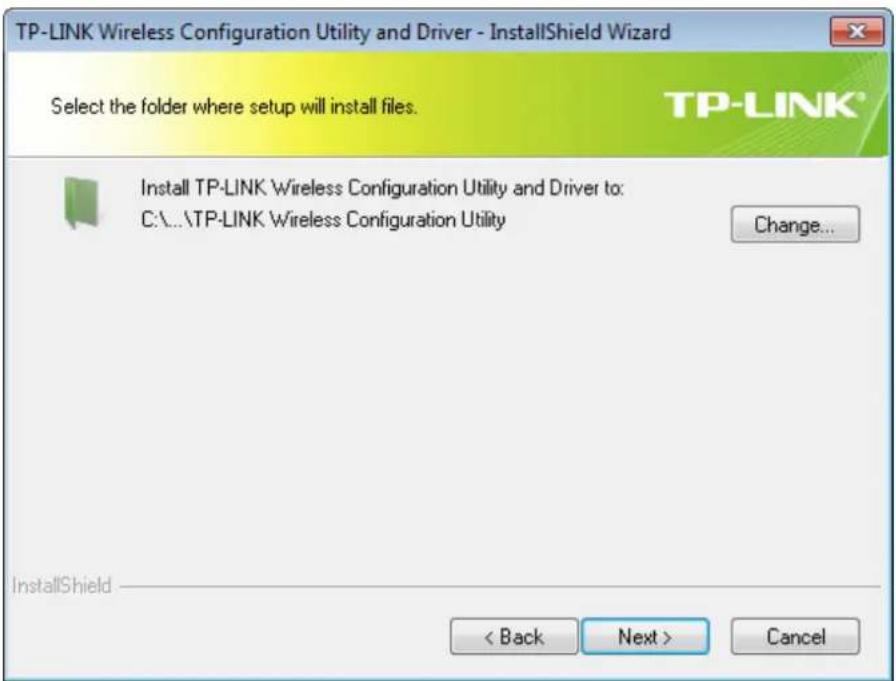

1. Click Change to specify the destination location for the software or you can leave it default. Click Next in the screen below to continue.

Figure 2-6

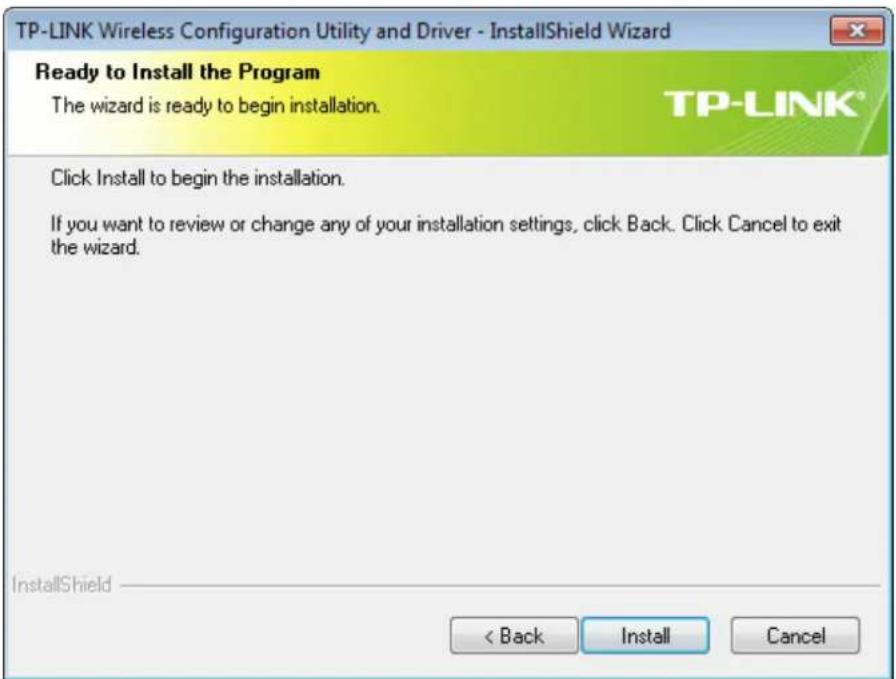

5. Click Install to continue the setup.

Figure 2-7

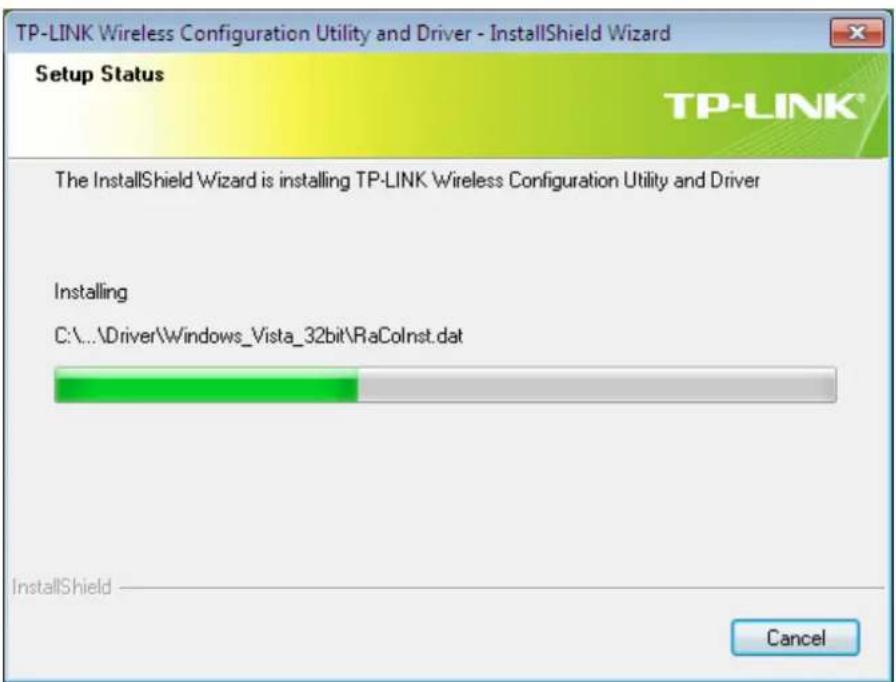

6. The utility and drivers will install. It may take 1\~2 minutes.

Figure 2-8

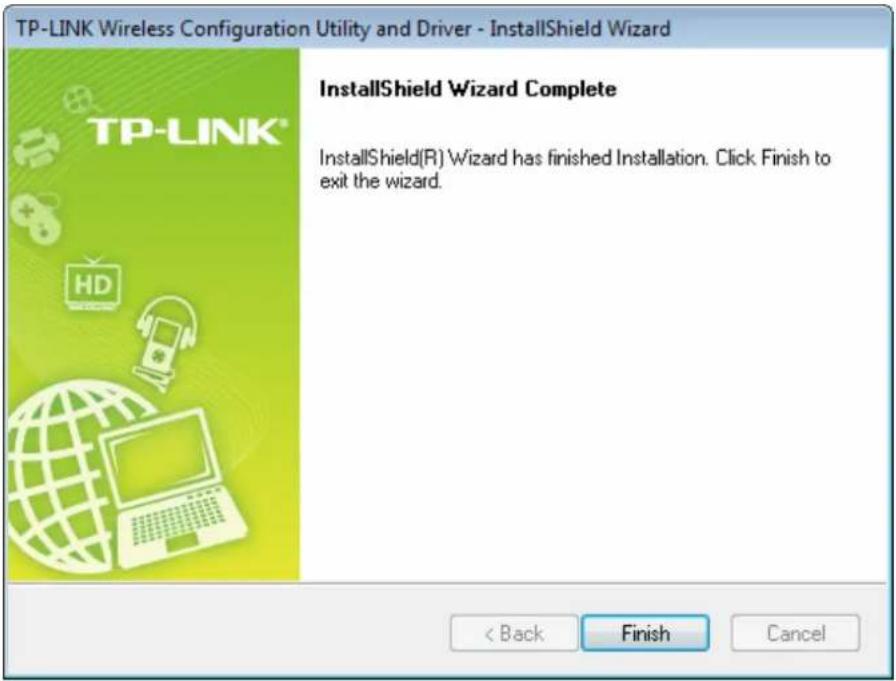

1. After all the steps above, you will see the screen below. Click Finish to complete the setup.

Figure 2-9

1. After installation, the utility configuration page will automatically pop up as shown in the following figure and the icon 📋 will appear in your system tray. To connect to a network, please refer to Chapter 3 Connect to a Wireless Network.

Figure 2-10

Chapter 3 Connect to a Wireless Network

With both the hardware and software successfully installed into your computer, you can quickly connect to a wireless network using one of the following methods.

Method One: To connect using TWCU (TP-LINK Wireless Configuration Utility)

TL-WDN4200 uses the TWCU as the management software. The utility provides you an easy interface to connect to a network and to change any settings related to the wireless adapter.

➢ Method Two: To connect using WPS

By this method, you can connect to your network quickly on the condition that your Router or access point supports WPS or QSS as is called by some other products.

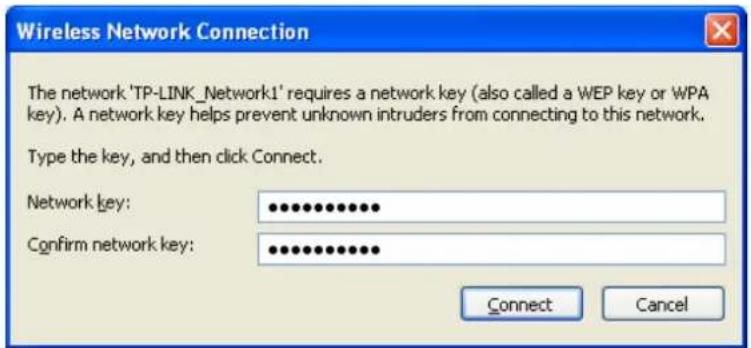

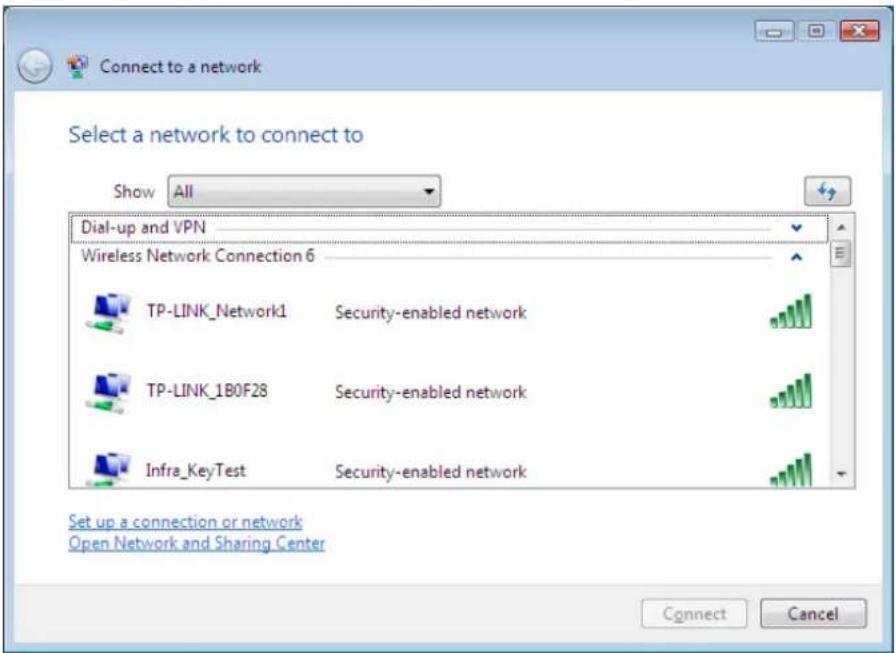

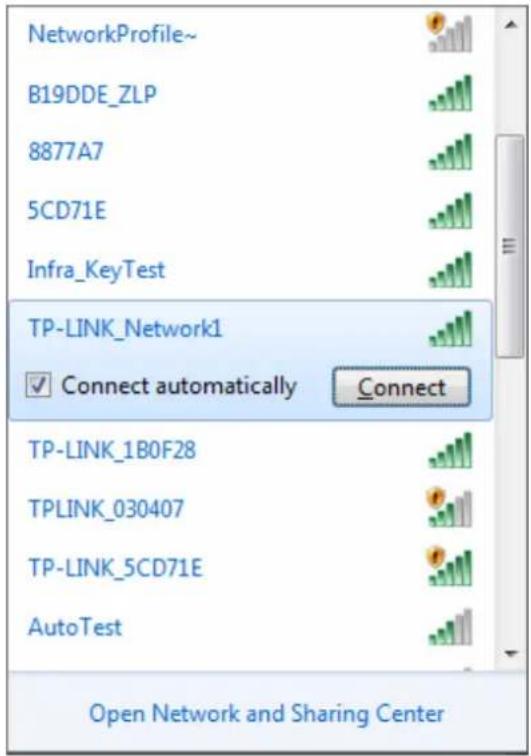

Method Three: To connect using Windows built-in wireless utility

Windows users may use the built-in wireless utility to connect to a wireless network. For specific operations, please go to Section 3.3 To connect using Windows built-in wireless utility.

3.1 To connect using TWCU

1. After installation, the utility configuration page will automatically pop up on the screen. If the utility page does not pop up, you can also launch the utility by double-clicking the icon on your desktop.

Figure 3-1

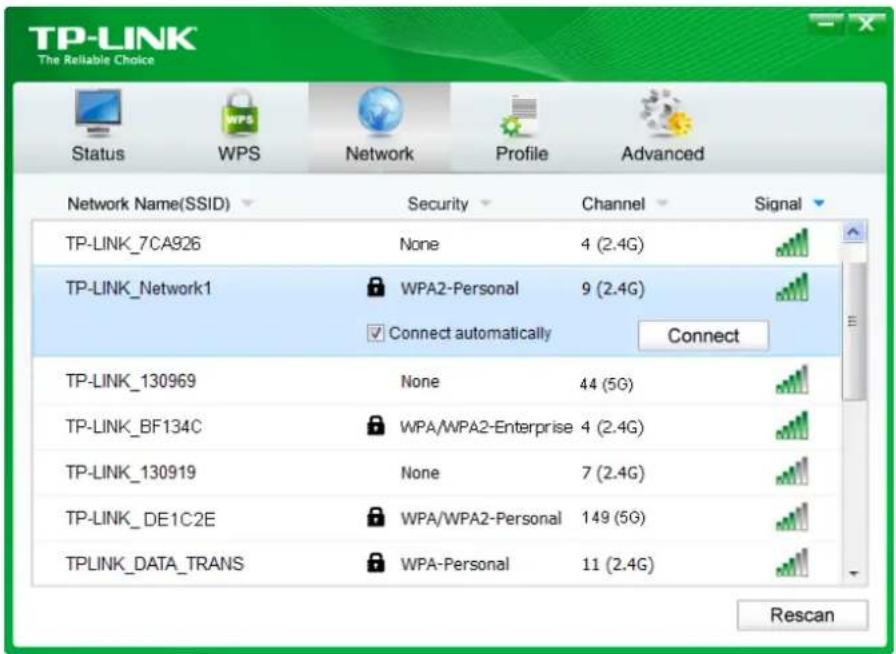

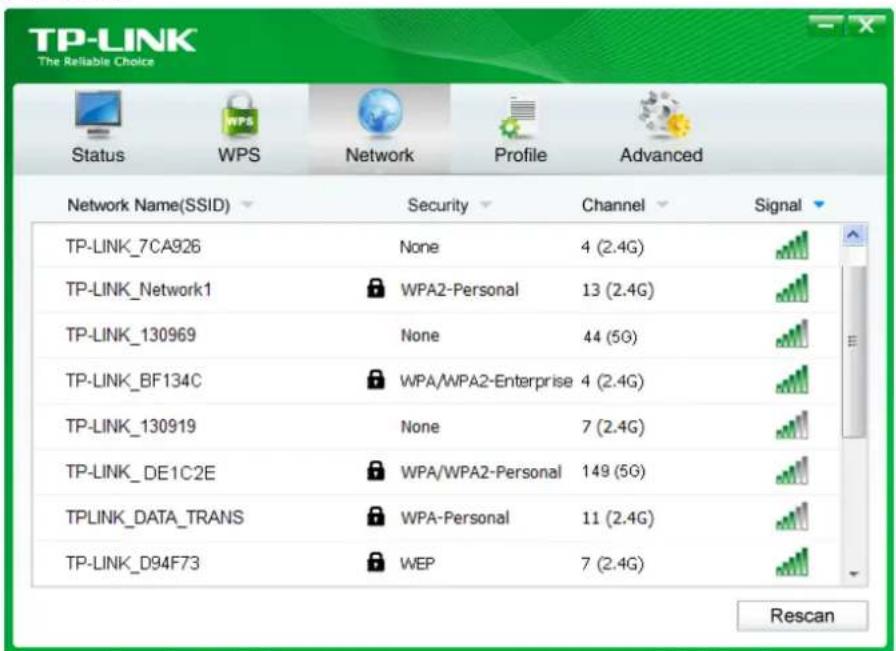

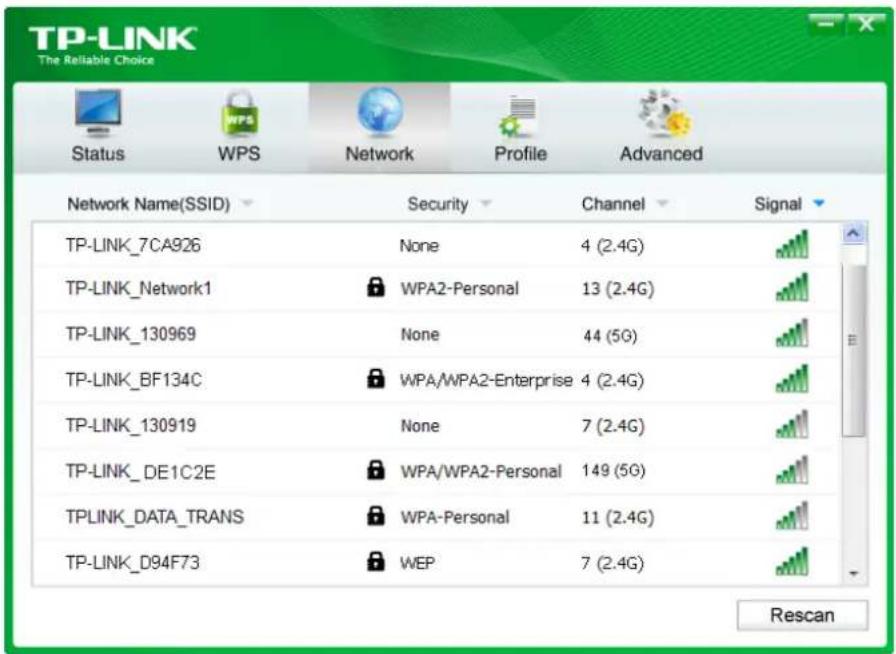

1. The Network page will display all wireless networks that are available in your area. To connect to a network, simply highlight the wireless network name (SSID) and click Connect. If you tick Connect automatically, the adapter will automatically connect to your target network next time.

Figure 3-2

1. You will be prompted different windows when you choose wireless network of different security types.
   1) Wireless network of WPA/WPA2-Personal

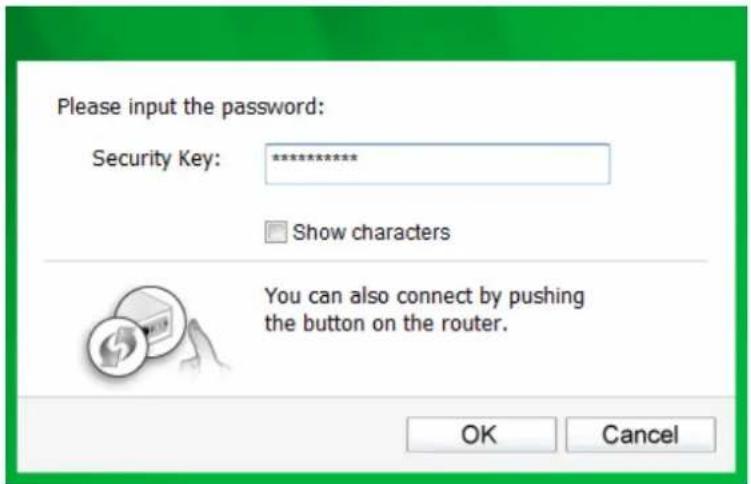

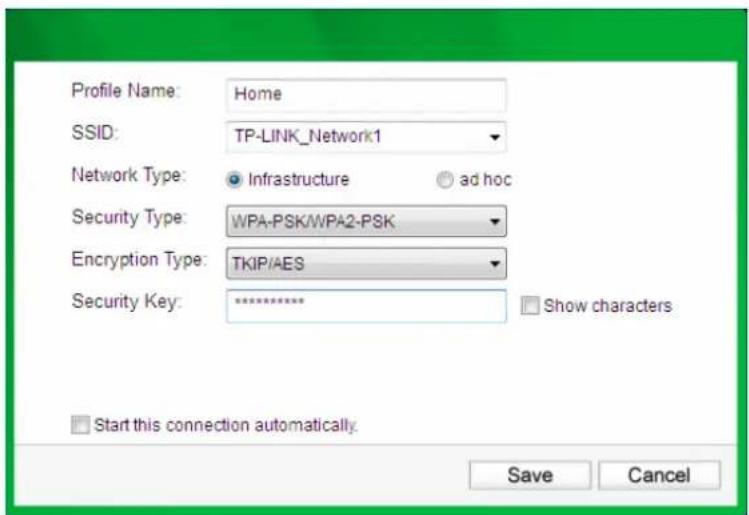

If you selected a wireless network of the security type WPA/WPA2-Personal, you will be prompted to enter the password in the security key field, as shown in Figure 3-3. Or you can push the WPS/QSS button on your Router (if it features the WPS/QSS function) to quickly build a connection without entering the security key (password).

Figure 3-3

Note:

The security key (password) can be found on the configuration page of your Router or Access Point.

2) Wireless network of WPA/WPA2-Enterprise

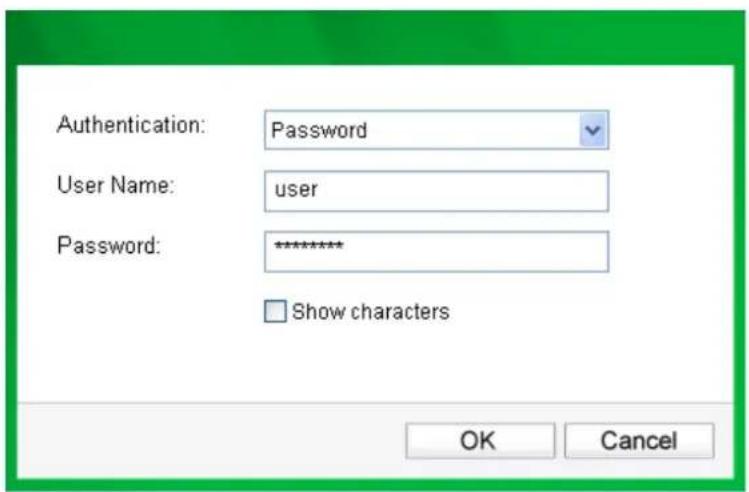

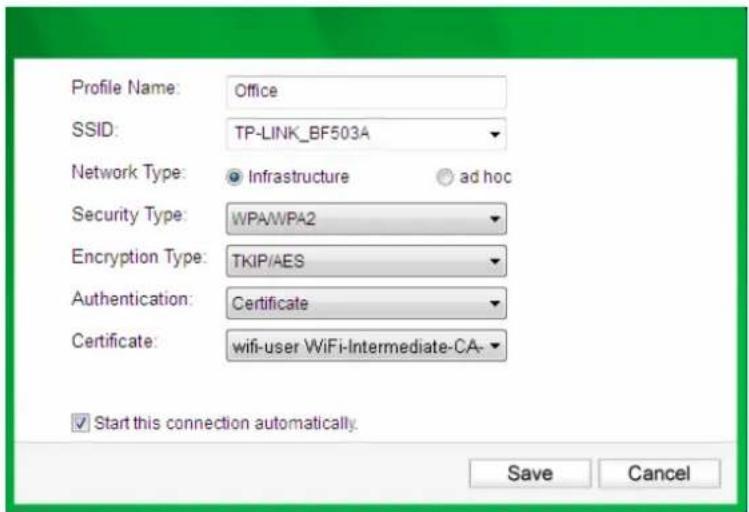

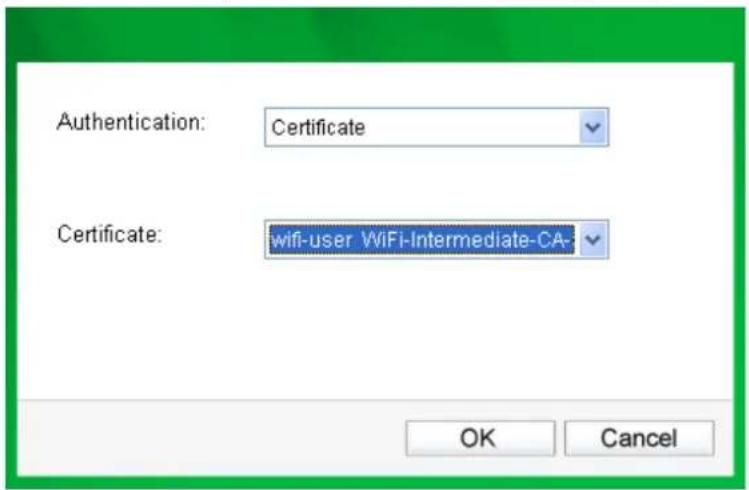

If you selected a wireless network of the security type WPA/WPA2-Enterprise, you will be prompted to choose a type of authentication, either Certificate or Password. With

Certificate as your authentication, you need to select one specific certificate from the drop-down list, as shown in Figure 3-4. With Password as your authentication, you should enter the right user name and password in the corresponding field, as shown in Figure 3-5.

Figure 3-4

Figure 3-5

3) Wireless network of None

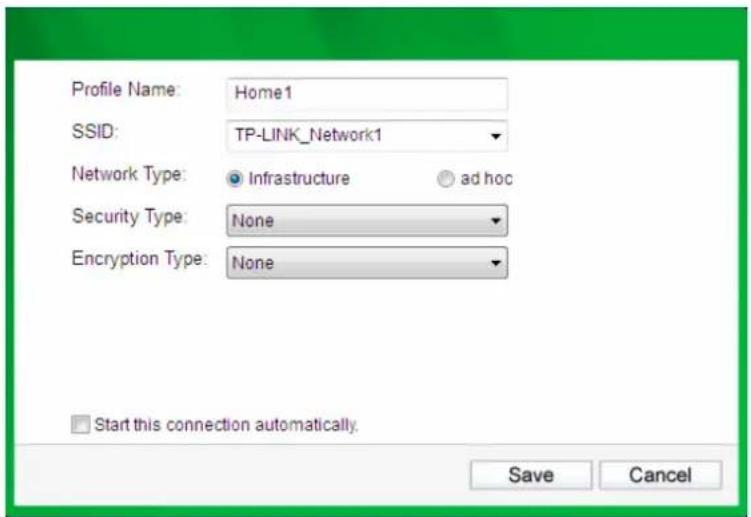

If you selected a wireless network of None (that is, no security is set.), you can get directly connected to this network without any further configuration.

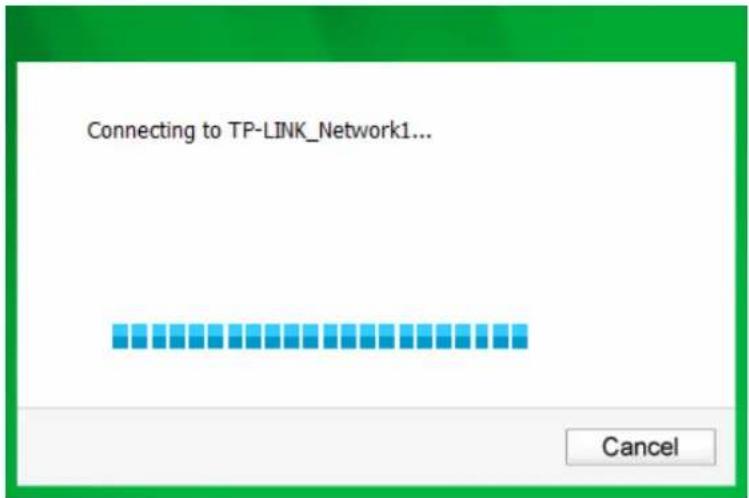

1. Please wait a few minutes for the connection process.

Figure 3-6

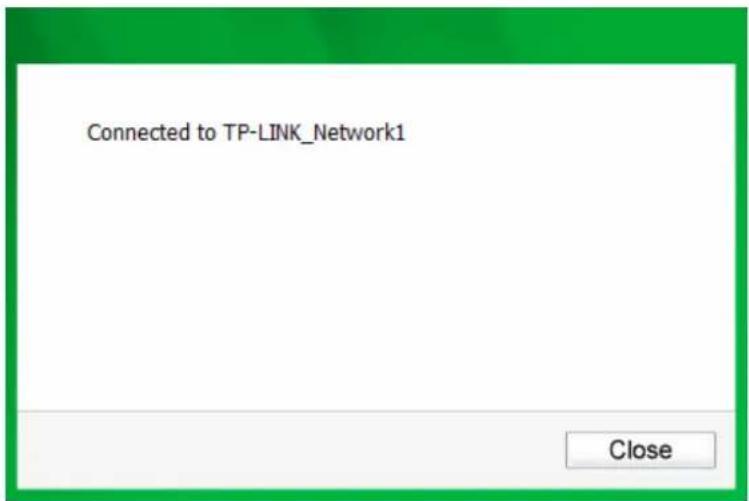

1. You have now successfully connected to your network. Click Close to enjoy the Internet.

Figure 3-7

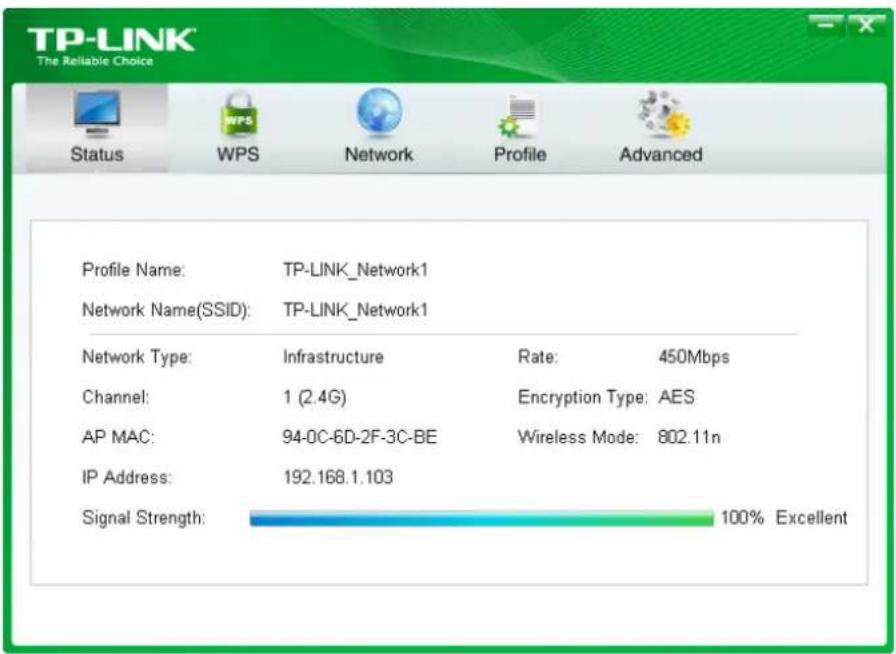

1. To view more information about the network currently connected, click Status in the tools section and the page will display information such as the network type, channel, rate, etc.

Figure 3-8

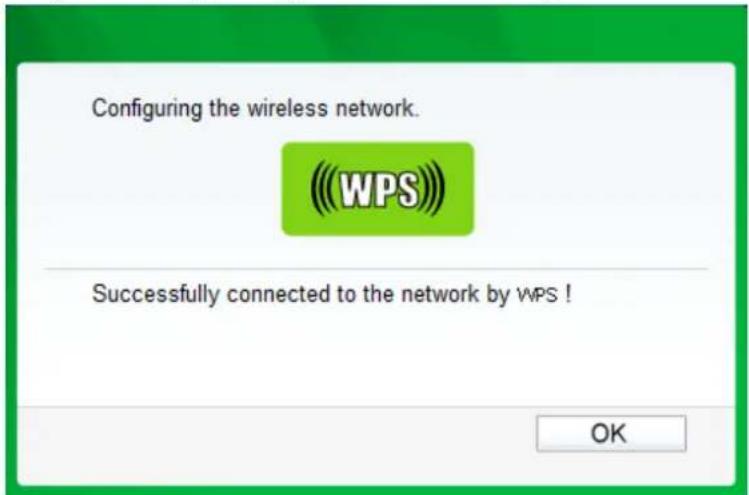

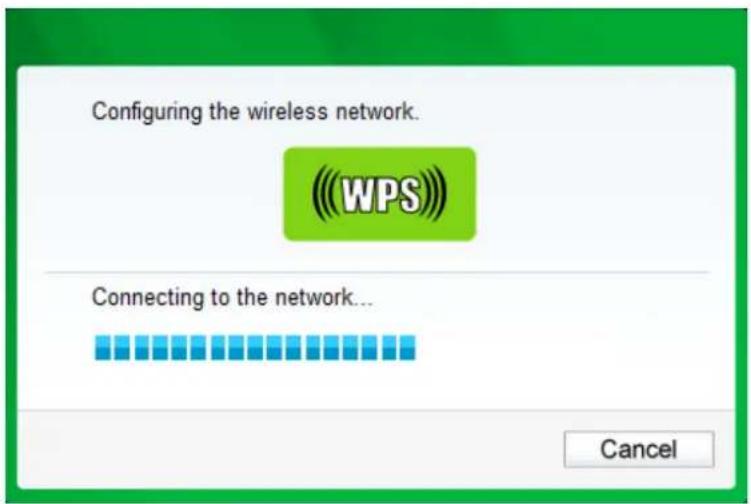

3.2 To connect using WPS

WPS (Wi-Fi Protected Setup) function allows you to add a new wireless device to an existing network quickly.

If your wireless Router supports WPS or QSS (Quick Security Setup), you can establish a wireless connection between wireless card and Router using either Push Button Configuration (PBC) method or PIN method. Three WPS connection methods are listed in the following parts.

3.2.1 PBC (Push Button Configuration) method

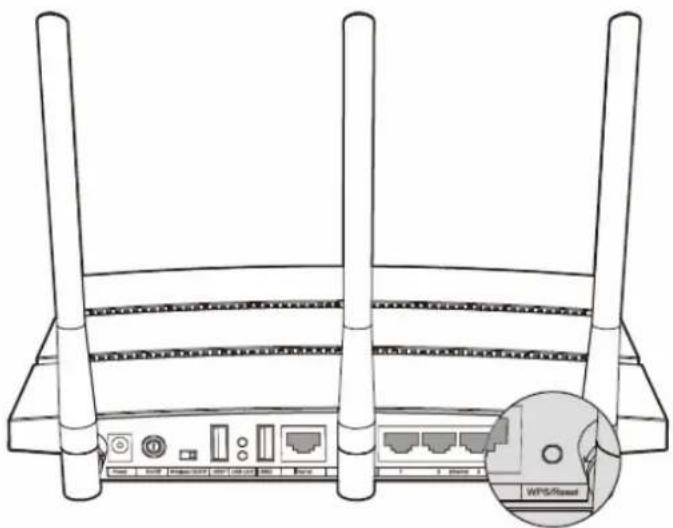

1. Press the WPS or QSS button on the Router. Here we use Router TL-WDR4900 as an example. Press the WPS/Reset button for 2\~3 seconds.

Line drawing of a wireless router with two towers and ports, showing front panel and close-up inset (no text or symbols)

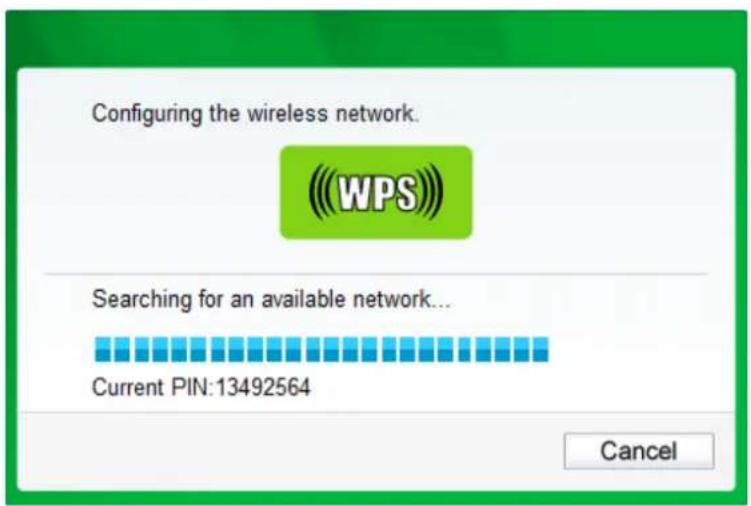

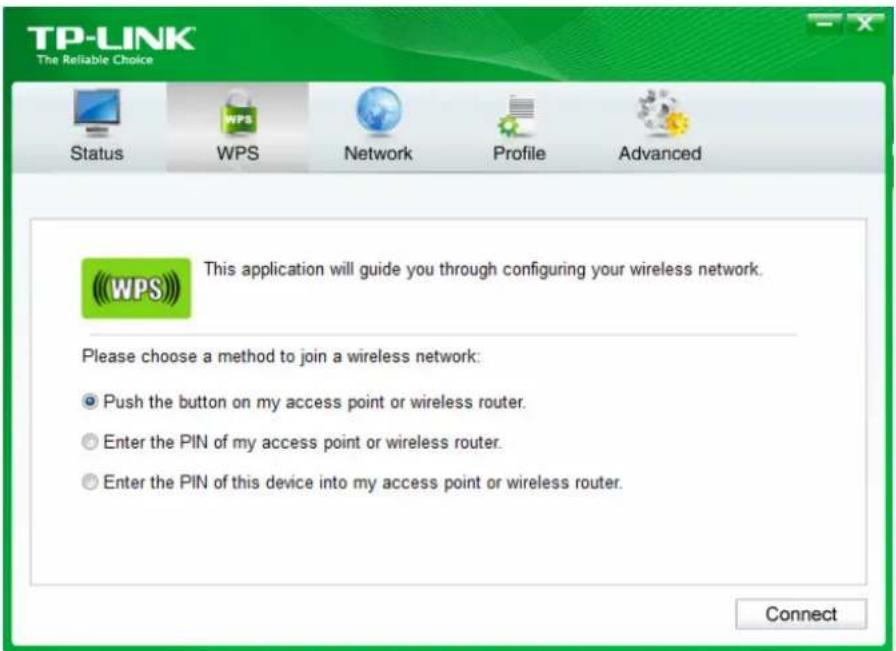

1. Open TWCU and click WPS tab. Select Push the button on my access point or wireless Router and then click Connect.

Figure 3-9

1. The adapter will be connecting to the target network.

Figure 3-10

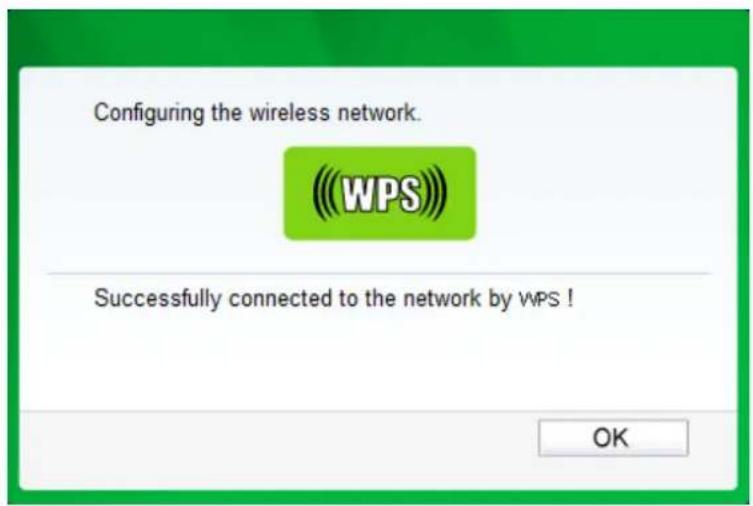

1. When the following window appears, you have successfully connected to the network.

Figure 3-11

3.2.2 PIN method

There are two ways to configure the WPS by PIN method:

1) Enter the PIN from your Router or AP device.
2) Enter a PIN into your Router or AP device.

Following are the detailed configuration procedures of each way.

3.2.2.1. Enter the PIN from your Router or AP device

1. Open TWCU and click WPS tab. Select Enter the PIN of my access point or wireless Router. In the empty field beside PIN, enter the PIN labeled on the bottom of the Router (here takes 13492564 for example). If you have generated a new PIN code for your Router, please enter the new one instead. Click Connect to continue.

Figure 3-12

1. The adapter will be connecting to the target network.

Figure 3-13

1. When Figure 3-11 appears, you have successfully connected to the network.

3.2.2.2. Enter a PIN into your AP device

1. Open TWCU and click WPS tab. Select Enter the PIN of this device into my access point or wireless Router. In the field beside PIN, you will see the PIN value of the adapter which is randomly generated. Click Connect to continue.

Figure 3-14

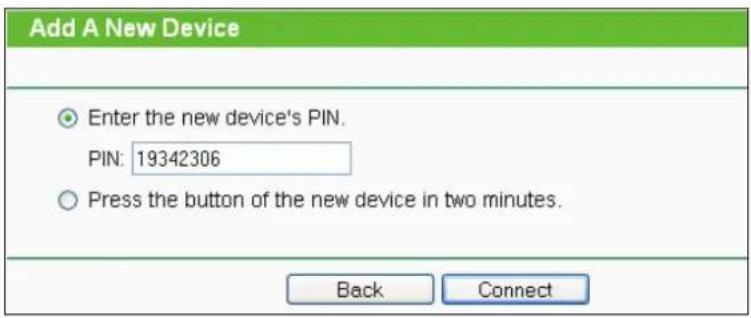

1. Open your Router's Web-based Utility and click WPS link on the left of the main menu. Then click Add device and the following figure will appear. Enter the PIN value of the adapter in the empty field beside PIN and then click Connect.

Figure 3-15

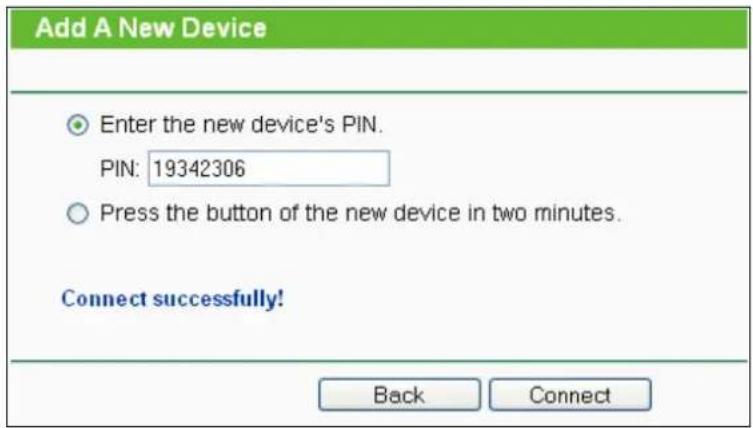

1. When Connect successfully appears on the screen (as shown in Figure 3-16), the WPS configuration is completed. Or you can view the adapter's utility page to see whether the connection has been successful (as shown in Figure 3-17).

Figure 3-16

Figure 3-17

3.3 To connect using Windows built-in wireless utility

3.3.1 In Windows XP

Windows XP users may use the built-in wireless utility. Follow the steps below.

1. Right-click on the utility icon in your system tray (lower-right corner). Select Switch to Windows wireless configuration tool.

Figure 3-18

Or double-click the utility icon to load the utility configuration page. Click Advanced in the tools section and then select Use Windows wireless configuration tool in the figure shown below. Click OK when Figure 3-20 appears to continue.

Figure 3-19

Figure 3-20

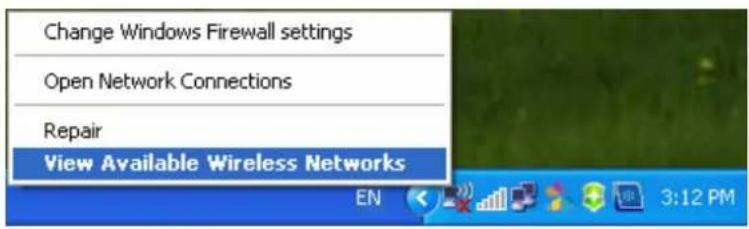

1. Right-click on the wireless computer icon in your system tray (lower-right corner). Select View Available Wireless Networks.

Figure 3-21

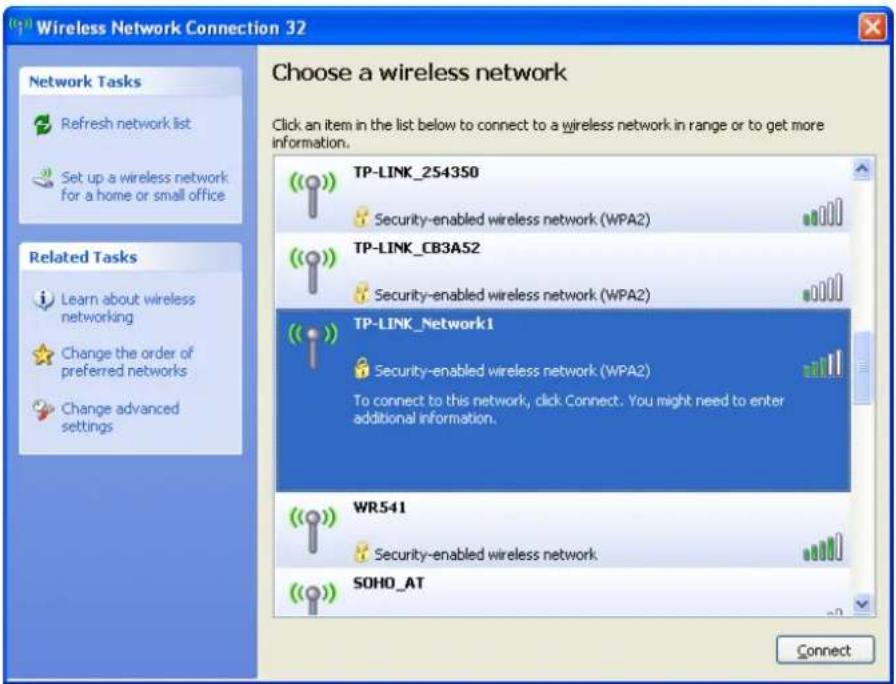

1. The utility will display any available wireless networks in your area. Click on a network (displayed using the SSID) and click the Connect button.

Figure 3-22

1. If the network is security-enabled, you will be prompted to enter the key as shown below. If not, you will connect to the network directly without entering a key.

Figure 3-23

3.3.2 In Windows Vista

Windows Vista users may use the built-in wireless utility. Follow the steps below.

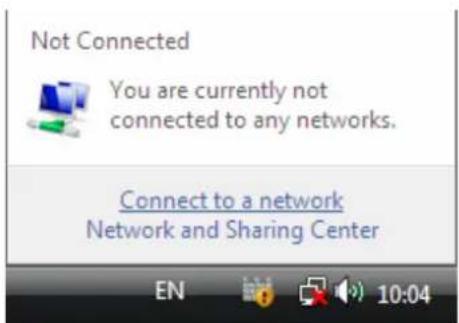

1. Open the wireless utility by right-clicking on the wireless computer icon in your system tray as shown in the figure below. Select Connect to a network.

Figure 3-24

1. The utility will display any available wireless networks in your area. Highlight the wireless

network you would like to connect and then click Connect.

Figure 3-25

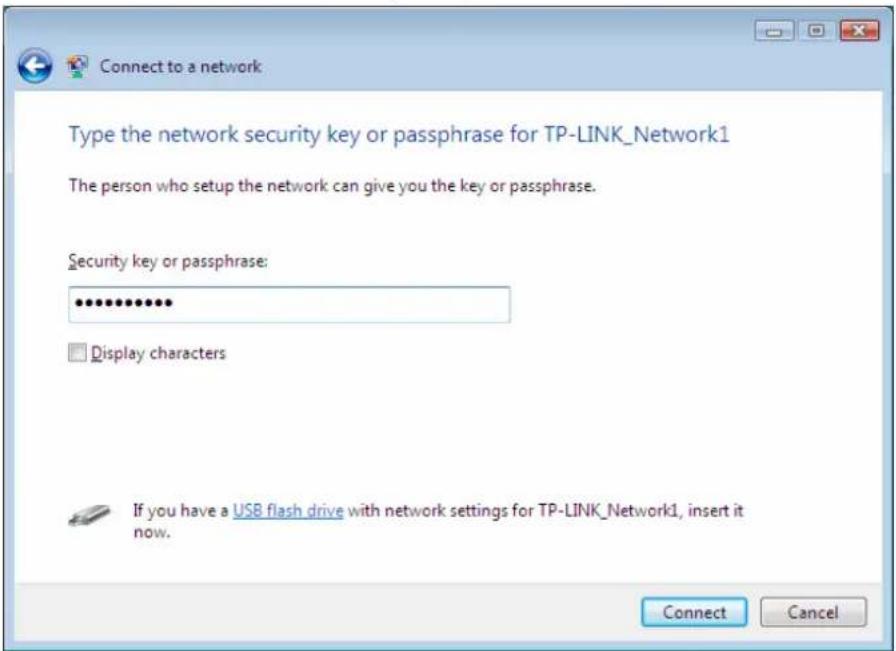

1. If the network you would like to connect is security-enabled, enter the same security key or passphrase that is on your Router. If the network to be connected is not secure, the connection will be built without entering a key.

Figure 3-26

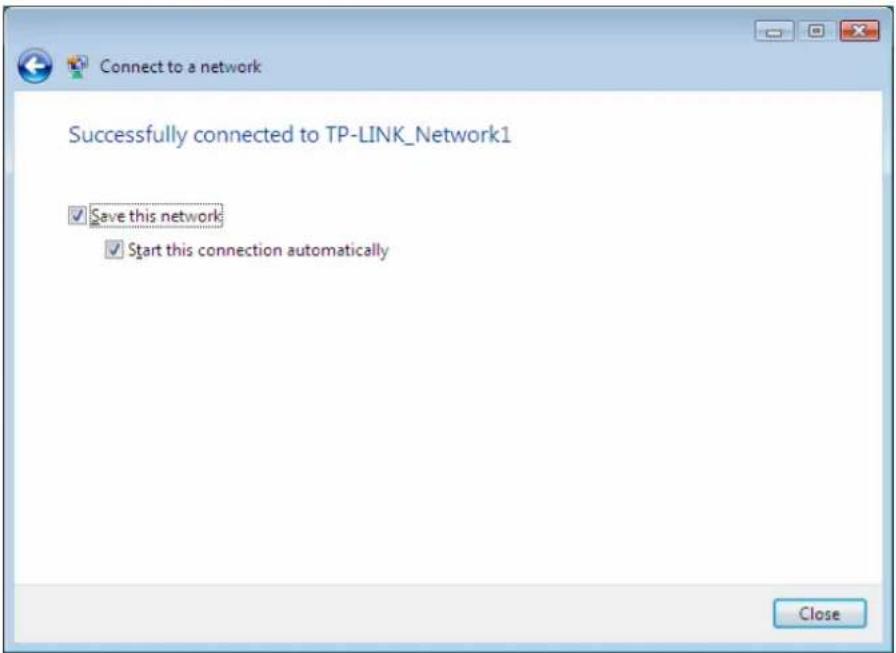

1. You have now successfully connected to the network.

Figure 3-27

3.3.3 In Windows 7

Windows 7 users may use the built-in wireless utility. Follow the steps below.

1. Left-click the wireless icon 📁 in your system tray (lower-right corner). The utility will display any available wireless networks in your area. Highlight the wireless network (displayed using the SSID) to be connected and then click Connect.

Figure 3-28

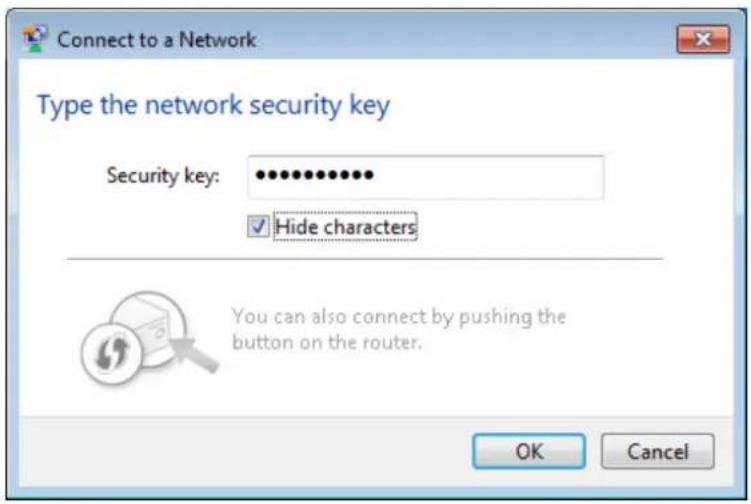

1. If the network you would like to connect is encrypted, enter the same security key or passphrase that is on your Router. Or push the WPS/QSS button on the Router or access point (You will be prompted to push the button on the window if WPS function is supported as shown in the figure below). If the network to be connected is not secure, the connection will be built without entering a key.

Figure 3-29

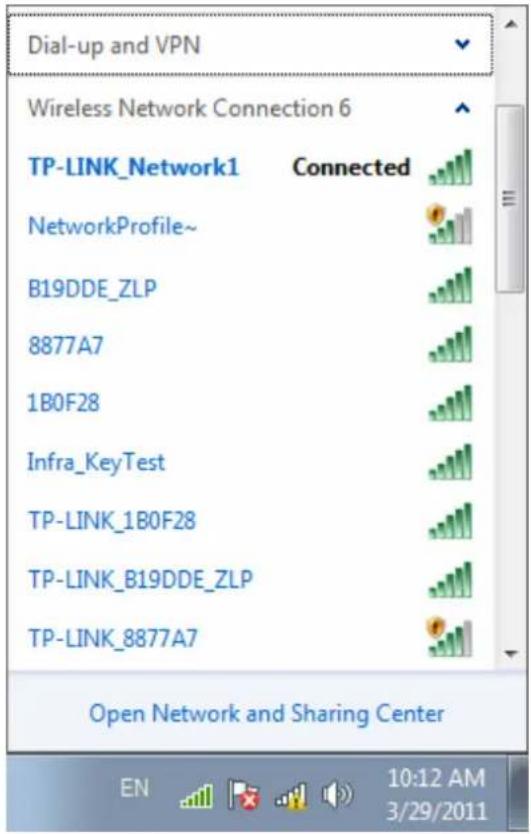

1. You have now successfully connected to the network.

Figure 3-30

3.3.4 In Windows 8

Windows 8 users may use the built-in wireless utility. Follow the steps below.

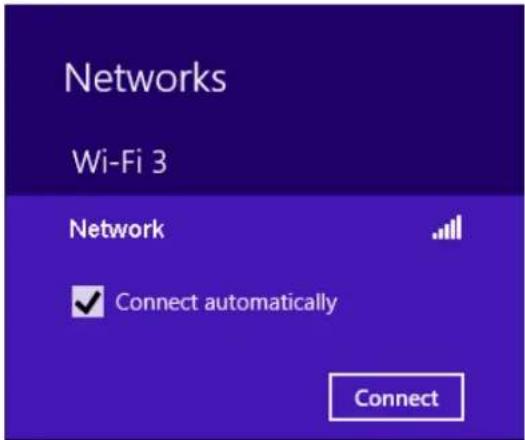

1. Click the icon at the bottom of your screen, and a network list will appear at the right side of your screen. Select your target network, and then click Connect.

Figure 3-31

1. If the network is unencrypted, you will directly connect to it.

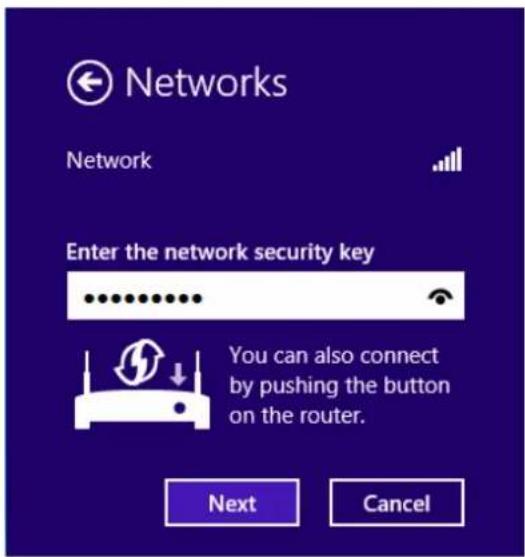

If the network is encrypted, enter the password (network security key) and then click Next to continue.

Figure 3-32

Note:

You can also push the WPS/QSS button on your router as hinted "You can also connect by pushing the button on the router". Then click Next to continue.

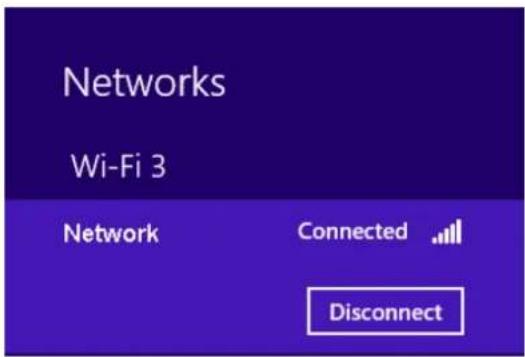

1. When Connected appears behind the SSID (as shown below), you have successfully connected to the target network.

Figure 3-33

Note:

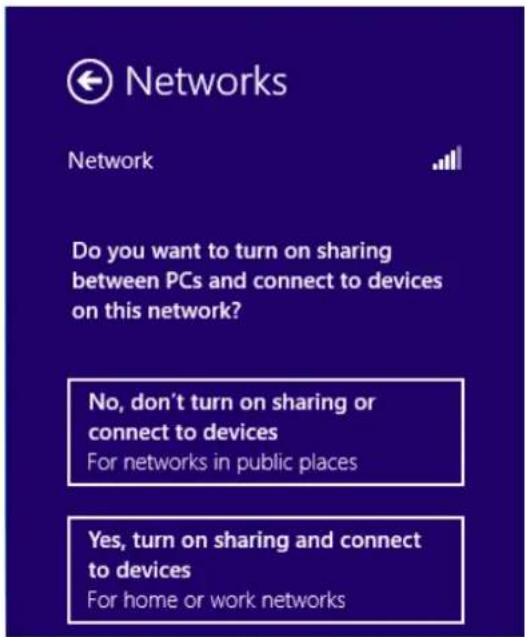

If the adapter is connected to the network for the first time, you will be asked whether to turn on sharing or connect to devices. Please select "Yes, ..."or "No, ..." according to your Internet environment.

Figure 3-34

Chapter 4 Management

This section will show you how to configure your TL-WDN4200 adapter using the TP-LINK Wireless Configuration Utility (TWCU).

The TL-WDN4200 adapter uses the TP-LINK Wireless Configuration Utility as the management software. The utility provides users with an easy interface to change any settings related to the adapter. Double-clicking on the 📄 icon on your desktop will start the utility.

4.1 Profile

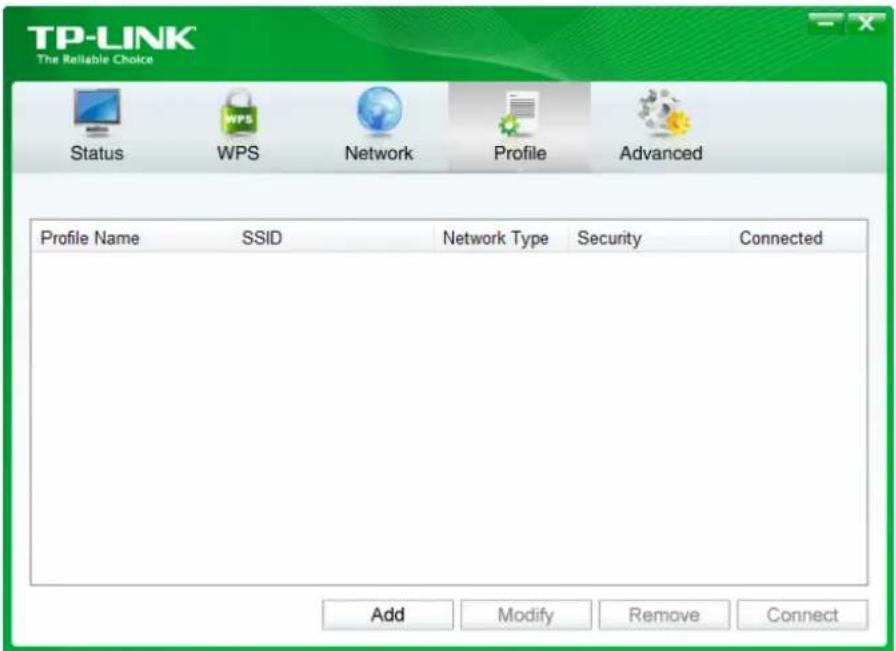

Your wireless networks may vary in different places like home, office or coffee shop. With Profile management, you can easily save and manage various networks to be connected, saving you the trouble of having to repeat the same configurations. Click Profile in the tools section, the following page will appear.

Figure 4-1

4.1.1 Add a profile

To add a profile, click the Add button on the bottom of the screen. Then the configuration window will appear.

4.1.1.1. Add a profile in Infrastructure mode

If you are connecting to a wireless router or access point, select Infrastructure as the Network Type in the screen that appears and follow the instructions below to finish the setting.

Figure 4-2

Figure 4-3

The following items can be found on the screen.

Profile Name: Enter a name for your profile (e.g. Home, Office, Coffee Shop). The same name is not allowed. Please also note that no space is allowed between words.
SSID: Select the target network from the drop-down list.
Network Type: Select the network type. If you are connecting to a wireless Router or access point, select Infrastructure. If you are connecting to another wireless client such as an adapter, select ad-hoc.

Security Type: Select the security type from the list. Four options are available: WPA-PSK/WPA2-PSK, WPA/WPA2, WEP and None. The security type should be the same as on your Router or access point, otherwise, you will not be able to build a successful connection. WPA-PSK/WPA2-PSK uses a passphrase or key to authenticate your wireless connection. The key must be the exact same key entered on your wireless Router or access point. None stands for no security. It's recommended to enable WPA-PSK/WPA2-PSK on your wireless Router or access point before con is configuring your wireless adapter.

Note:

You will see Figure 4-2 if you selected the security type WPA-PSK/WPA2-PSK; while, if you selected the security type WPA/WPA2, Figure 4-3 will be displayed.

Encryption Type: From the drop-down menu, select the encryption type that is the same as on your Router or access point.

Security Key: Enter the passphrase exactly as it is on your wireless Router or access point. Click the Show characters box to see the passphrase, or uncheck this box to hide it.
Authentication: Select a type of authentication, either certificate or password.
Certificate: If you select certificate as your Authentication, then you need to specify your certificate from the drop-down list here.
Start this connection automatically: Check this box to automatically connect to this network next time.
Save: Click Save to save your settings.

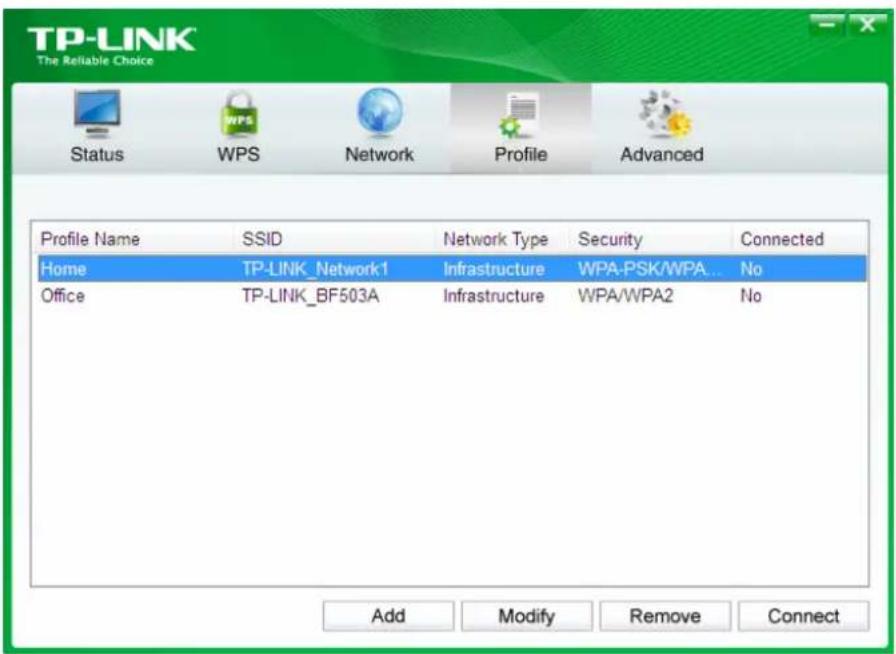

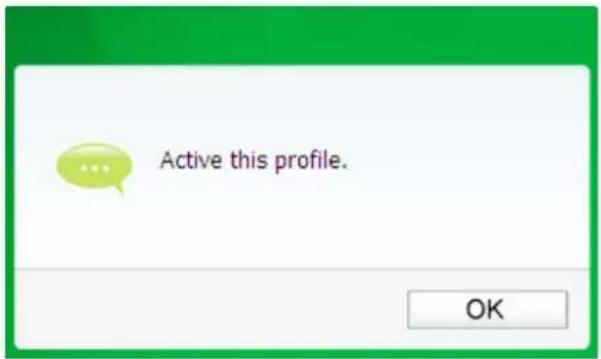

Having completed the above settings, the Profile page should look like the following figure. To connect to a desired network, just highlight the network you would like to connect to and click the Connect button on the bottom of the window. Then click OK in Figure 4-5 to activate the profile.

Figure 4-4

Figure 4-5

4.1.1.2. Add a profile in ad hoc mode

Note:

This function is not available in Windows 8.

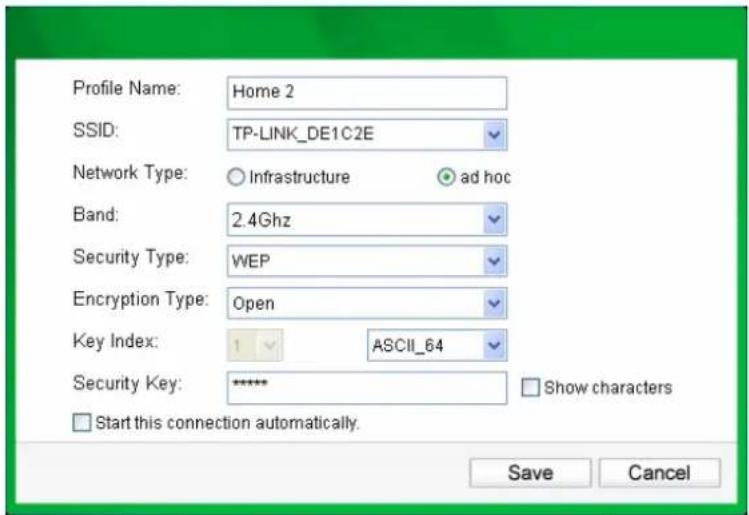

If you are connecting to another wireless client such as an adapter, select ad hoc as the Network Type in the screen that appears and follow the instructions below to finish the setting.

Figure 4-6

The following items can be found on the screen.

Profile Name: Enter a name for your profile e.g. Home, Office, Coffee Shop. The same name is not allowed. Please also note that no space is allowed between words.
➢ SSID: Select the target network from the drop-down list.
Network Type: Select the network type. If you are connecting to a wireless router or access point, select Infrastructure. If you are connecting to another wireless client such as an adapter, select ad hoc.
Band: This item determines which operating frequency will be used. Two options are available: 2.4Ghz and 5Ghz. It is recommended that your computers and devices running video and voice applications use the 5Ghz band, while your guest access and computers that are only browsing the web use the 2.4Ghz band.

• 2.4Ghz - You can use the 2.4GHz band to connect to many classic wireless devices like gaming consoles, laptops, DVRs, ect.
• 5Ghz - This band is less crowded and is used for time-sensitive music, video streaming or gaming. Using this band can avoid interference with 2.4GHz networks or noisy devices like cordless phones and microwave ovens.

Note:

The choice for Band is only available in Windows XP; while in Windows Vista, Windows 7, by default it only supports 2.4 G network in Ad-hoc mode.

Security Type: Select the security type from the list. Two options are available: WEP and None. None stands for no security. It is recommended that you select WEP to secure your wireless network.

Encryption Type: If you select None as the Security Type, the Encryption Type will be None accordingly. If you select WEP as the Security Type, the Encryption Type will be Open.
Key Index: You can select ASCII or Hexadecimal format on the right. ASCII format stands for any combination of keyboard characters in the specified length. Hexadecimal format stands for any combination of hexadecimal digits (0-9, a-f, A-F) in the specified length.

• For 64-bit encryption - You can enter 10 hexadecimal digits (any combination of 0-9, a-f, A-F, zero key is not permitted) or 5 ASCII characters.
• For 128-bit encryption - You can enter 26 hexadecimal digits (any combination of 0-9, a-f, A-F, zero key is not permitted) or 13 ASCII characters.

Security Key: Enter the passphrase. Click the Show characters box to see the passphrase. Unchecking it will hide it.
Start this connection automatically: Check this box to automatically connect to this network next time.
Save: Click Save to save your settings.

Having completed the above settings, the Profile page should looks like the following figure. To connect to a desired network, just highlight the network you would like to connect to and click the Connect button on the bottom of the window. Then click OK in Figure 4-8 to activate the profile.

Figure 4-7

Figure 4-8

4.1.2 Modify a profile

You may edit an existing profile by clicking the Modify button from the Profile page. For instance, you may like to change the profile name from Home to Home1 or you may want to specify another SSID for profile Home. After all the changes, click Save to make the changes take effect.

Figure 4-9

4.1.3 Delete a profile

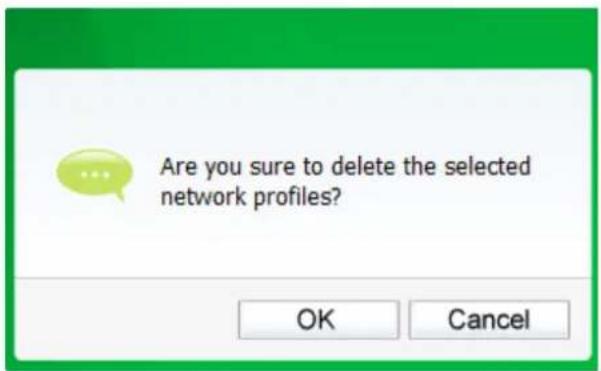

To delete an existing profile, highlight the profile name and click Remove on the bottom of the screen or press the Delete button on your keyboard. When the following figure appears, click OK to continue.

Figure 4-10

4.2 Advanced

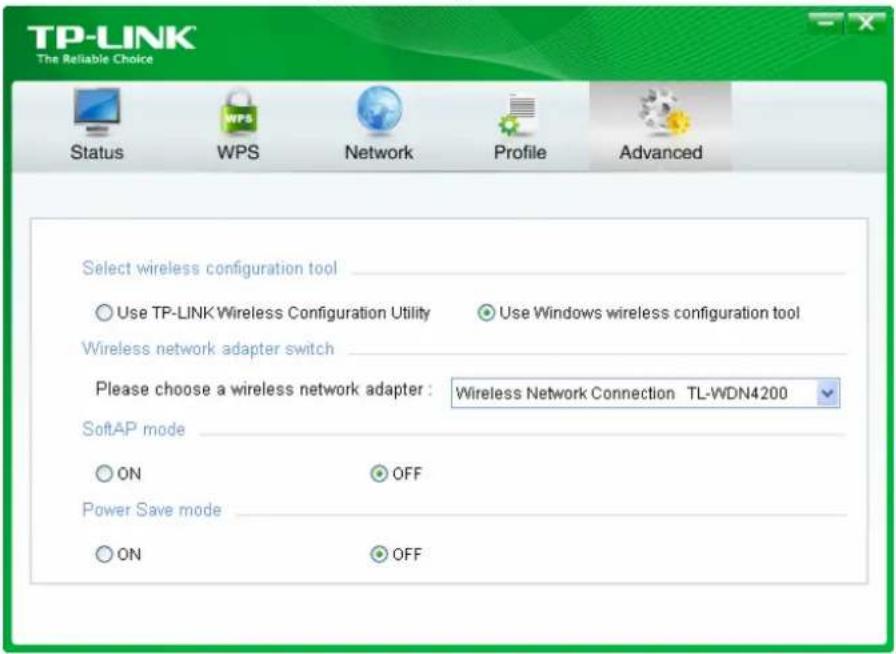

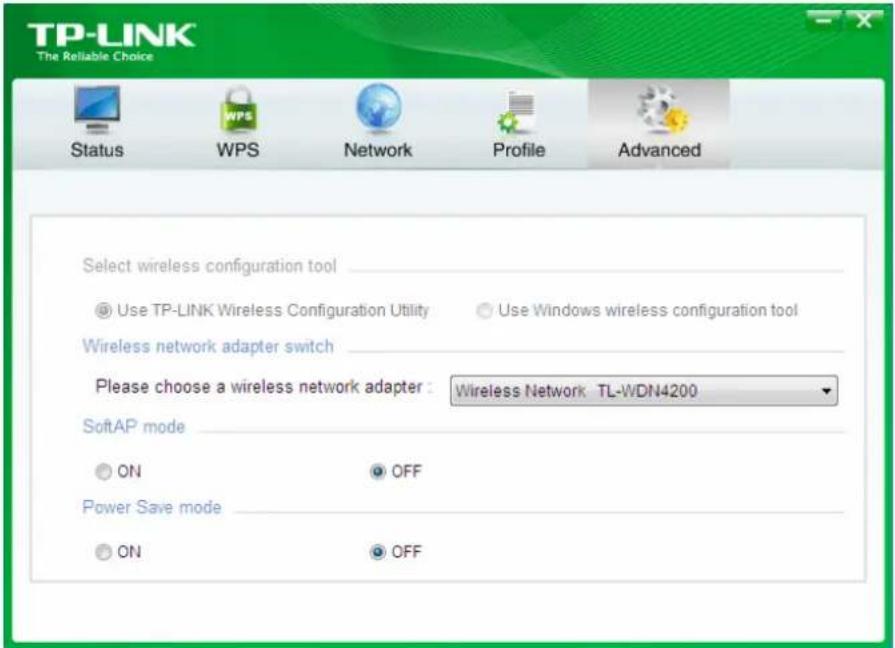

The following configurations can be made on the Advanced page:

1) To select wireless configuration tool.

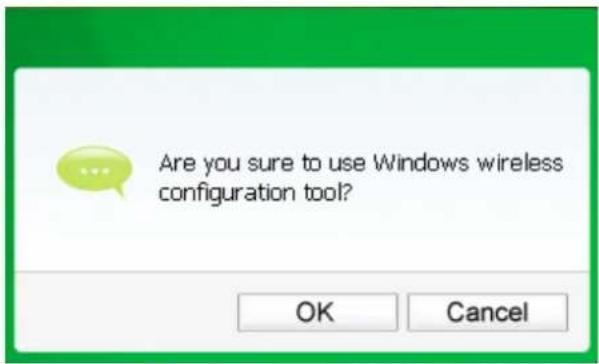

Here you can decide which tool to use, either the TP-LINK Configuration Utility or the Windows wireless configuration tool. (This option is available only in Windows XP.)

2) To switch to another wireless network adapter.

Here you can switch to another adapter installed in your computer. The adapters successfully installed in your computer will be listed in the drop-down list if the adapters are supported by this utility.

3) To switch to SoftAP mode.

Once enabled, the adapter will be able to work as an AP.

4) To change the power save mode. The default option is OFF.

Figure 4-11

4.3 About

The About screen gives you some information about the Driver and Utility versions of the adapter. Right-click the 📁 icon in your system tray and select About from the list.

Figure 4-12

TP-LINK Wireless Configuration Utility

UI version: 1.5.8 en.009

WFF version: 1.3.2.5

Driver version: 3.2.11.0

Copyright (C) 2013 TP-LINK TECHNOLOGIES CO., LTD. All rights reserved.

OK

Figure 4-13

Chapter 5 AP Mode

In Soft AP mode, the adapter will work as an AP.

Suppose that only one computer in your house can access the Internet for various reasons like only one WLAN port is available on your wired broadband Router, however, other wireless-capable devices also want to share the Internet. Then the adapter can be configured as an AP under the Soft AP mode, saving you the trouble of having to get a separate access point or a Router.

With this feature, a computer can use a single physical wireless adapter to connect as a client to a hardware access point while at the same time acting as a software AP allowing other wireless-capable devices to connect to it.

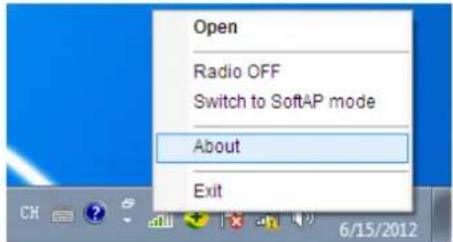

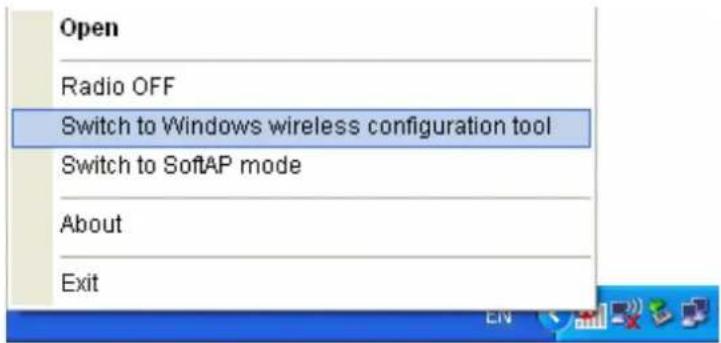

To switch to this mode, right-click on the utility icon in your system tray and select Switch to SoftAP mode.

Figure 5-1

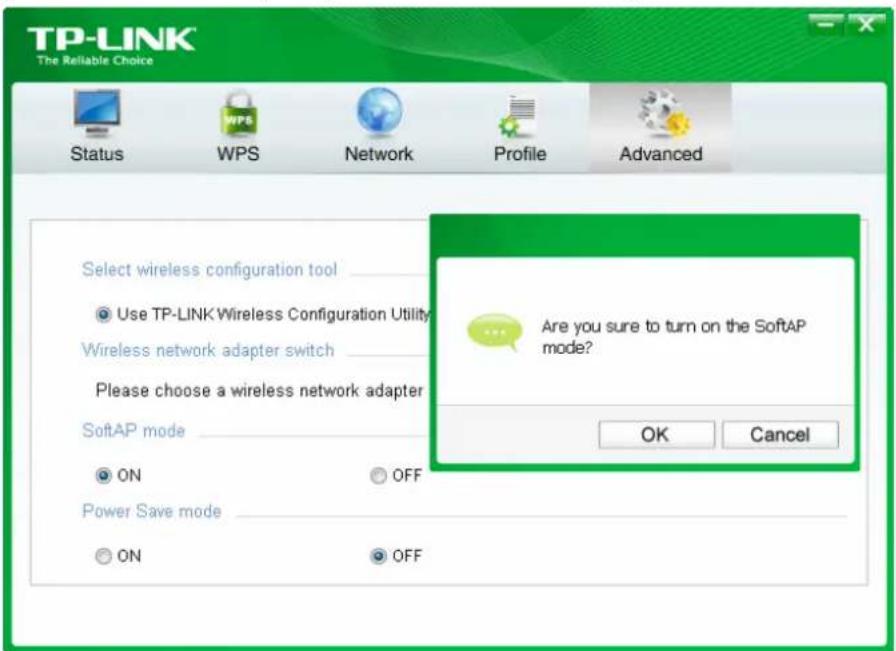

Or from the Advanced page of the utility, tick ON under the SoftAP mode as shown in the following figure. Click OK when prompted to confirm the setting.

Figure 5-2

The Soft AP icon then will appear beside Advanced icon in the utility. Please note that the Band option is available only in Windows XP and Windows Vista.

Figure 5-3

Figure 5-4

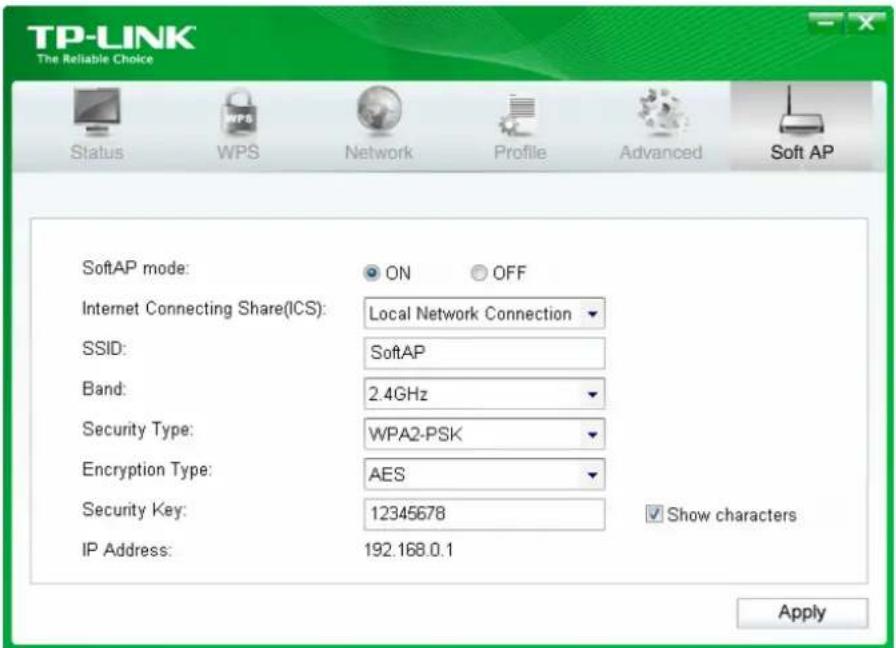

SoftAP mode: Select to enable or disable the function.
Internet Connecting Share (ICS): Specify a connection through which devices connected to your AP can access the Internet.
SSID: Enter the name for your soft AP (for example, Jone) so that others can know which AP is yours when trying to connect to it.
Band: This item determines which operating frequency will be used. Two options are available: 2.4Ghz and 5Ghz. It is recommended that your computers and devices running video and voice applications use the 5Ghz band, while your guest access and computers that are only browsing the web use the 2.4Ghz band.

● 2.4Ghz - You can use the 2.4GHz band to connect to many classic wireless devices like gaming consoles, laptops, DVRs, ect.

- 5Ghz - This band is less crowded and is used for time-sensitive music, video streaming or gaming. Using this band can avoid interference with 2.4GHz networks or noisy devices like cordless phones and microwave ovens.

Security Type: The security type here is set to be WPA2-PSK which is based on 802.11i and uses AES (Advanced Encryption Standard) instead of TKIP. It was designed to improve the security features of WEP. WPA2-PSK uses a passphrase or key to authenticate your wireless connection. You needn't make any configuration here.
Encryption Type: The encryption type here is set to be AES.
Security Key: Enter the Key in the field to make your AP security enabled. It is recommended that you specify another key instead of the default key 12345678. Only by entering the corresponding key can other computers establish a successful connection with your AP.
IP Address: Here displays the IP address of the SoftAP.

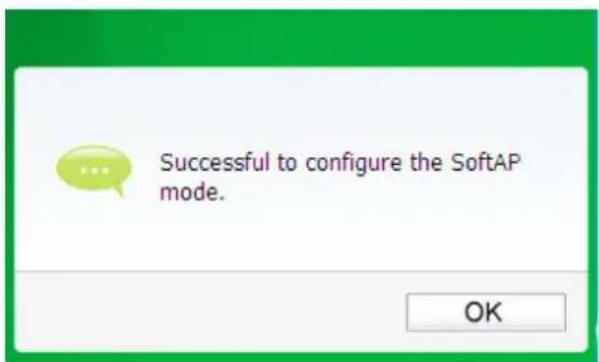

Having completed the above settings, click Apply; then Figure 5-4 will pop up, where you click OK to make Soft AP mode take effect.

Chapter 6 Uninstall Software

6.1 In Windows XP/Vista/7

The software uninstall steps are similar in Windows XP, Windows Vista, and Windows 7, here we just use Windows 7 as an example.

6.1.1 Uninstall the utility software from your PC

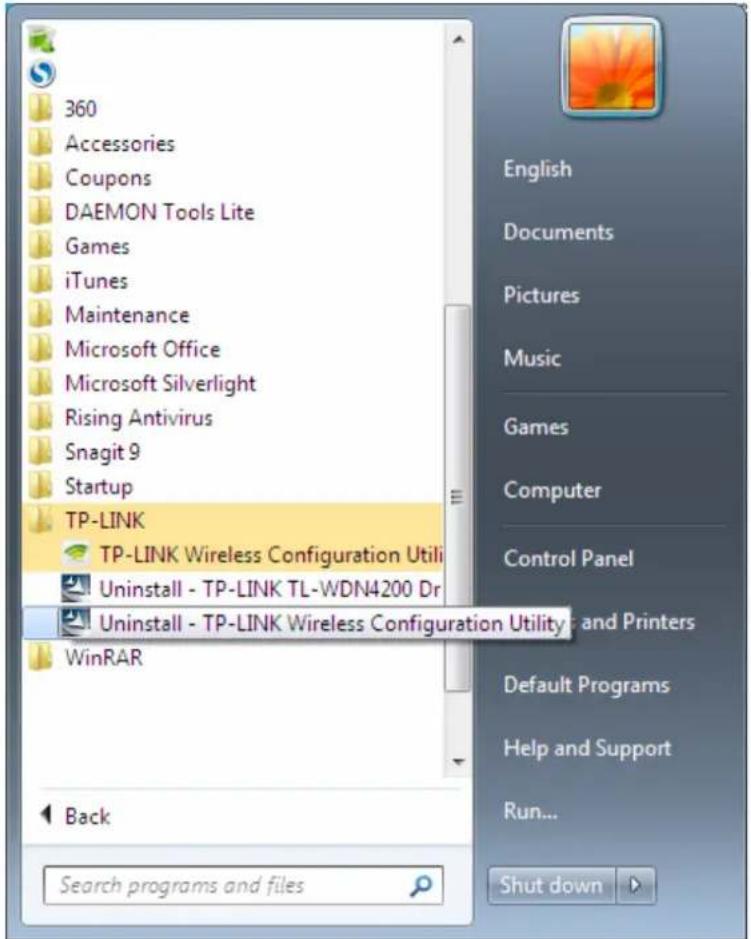

1. On the Windows taskbar, click the Start button, click All programs→TP-LINK, and then click Uninstall-TP-LINK Wireless Configuration Utility.

Figure 6-1 Uninstall Utility

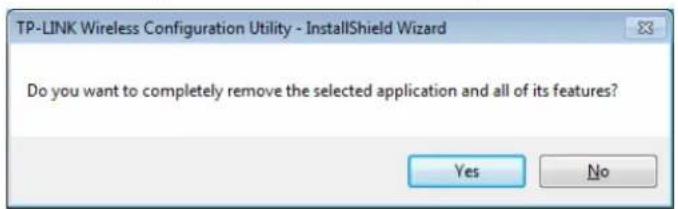

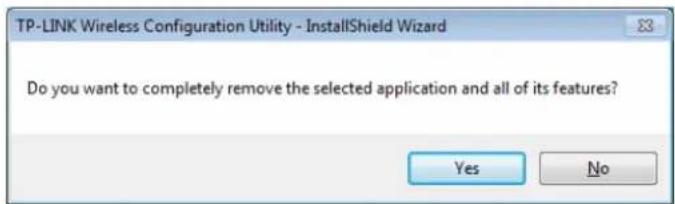

1. Click Yes to start uninstalling the utility software from your PC.

Figure 6-2

1. It may take a few minutes to undergo the whole un-installation process.

Figure 6-3

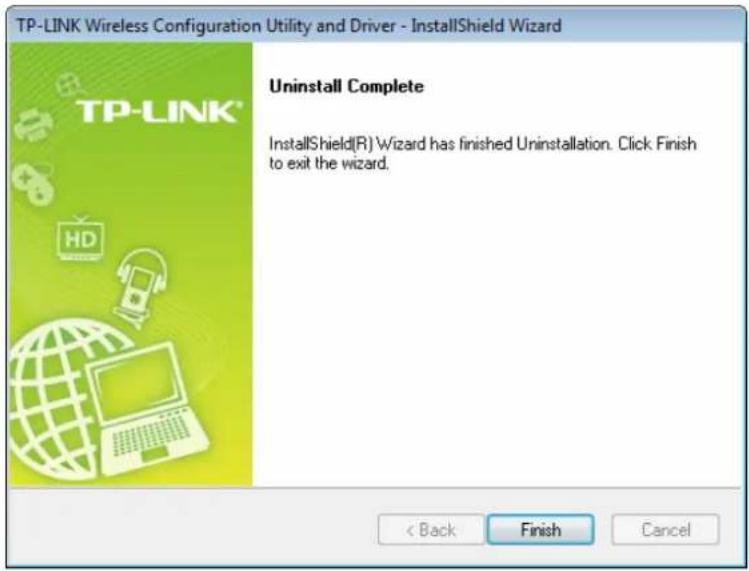

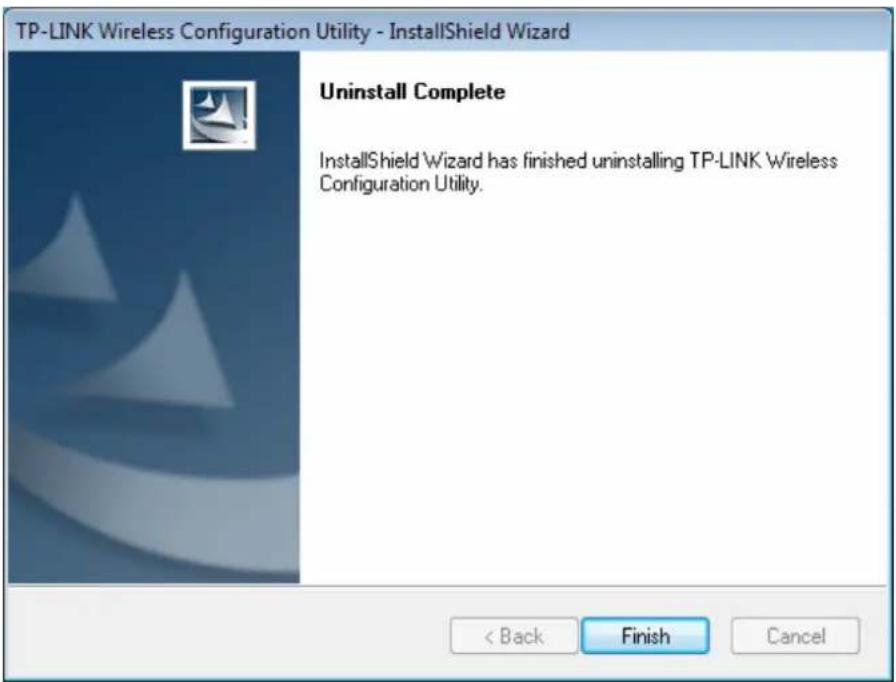

1. Click Finish when the figure below appears.

Figure 6-4

6.1.2 Uninstall the driver software from your PC

1. On the Windows taskbar, click the Start button, click All programs→TP-LINK, and then click Uninstall-TP-LINK TL-WDN4200 Driver.

Figure 6-5 Uninstall Driver

1. Click Yes to start uninstalling the driver software from your PC.

Figure 6-6

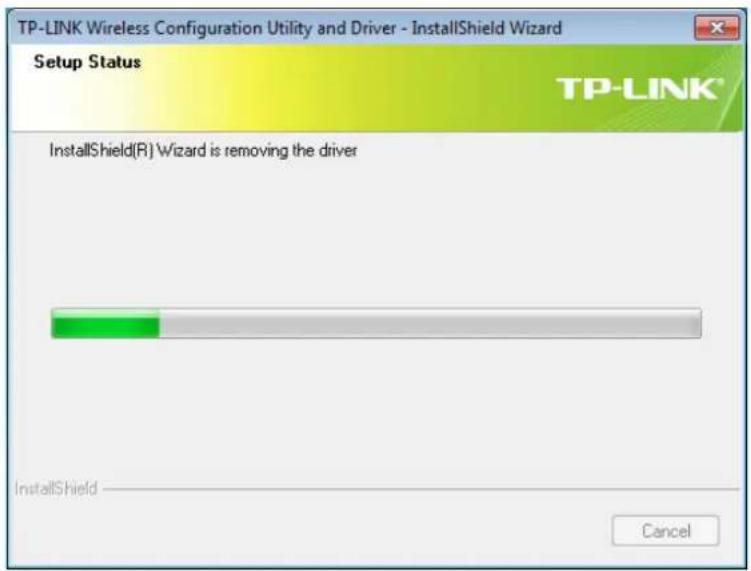

1. It may take a few minutes to undergo the whole un-installation process.

Figure 6-7

1. Click Finish when the figure below appears.

Figure 6-8

6.2 In Windows 8

6.2.1 Uninstall the utility software from your PC

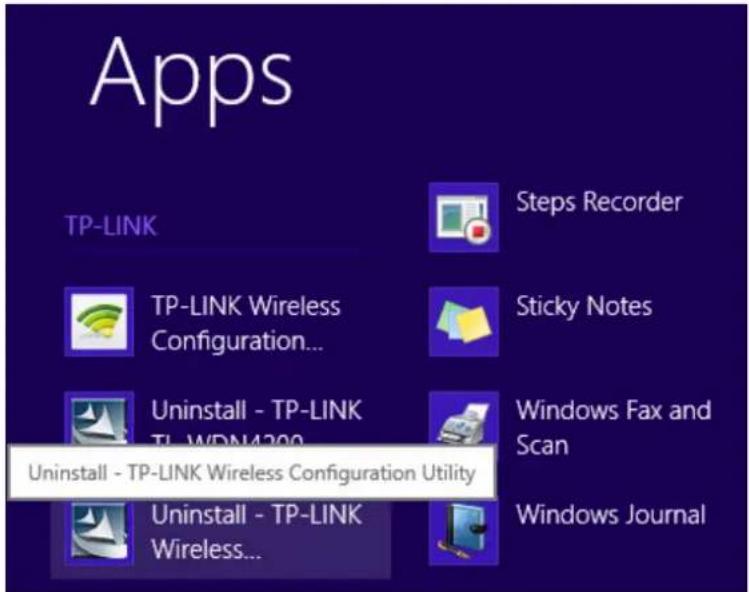

1. Enter the Metro interface, right-click any blank place in the Metro interface, then App Bar will appear below the Metro interface, click All apps. Find the TP-LINK application, and click Uninstall-TP-LINK Wireless Configuration Utility.

Figure 6-9

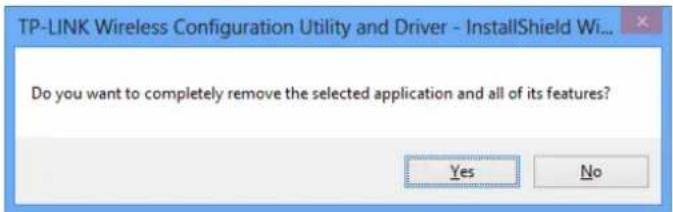

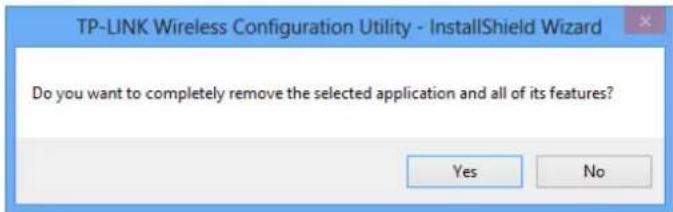

1. Click Yes to start uninstalling the utility software from your PC.

Figure 6-10

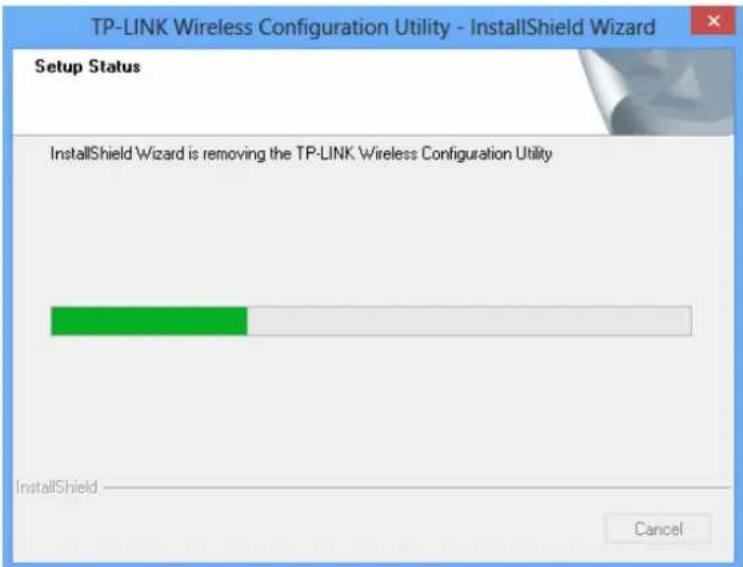

1. It may take a few minutes to undergo the whole un-installation process.

Figure 6-11

1. Click Finish when the figure below appears.

Figure 6-12

6.2.2 Uninstall the driver software from your PC

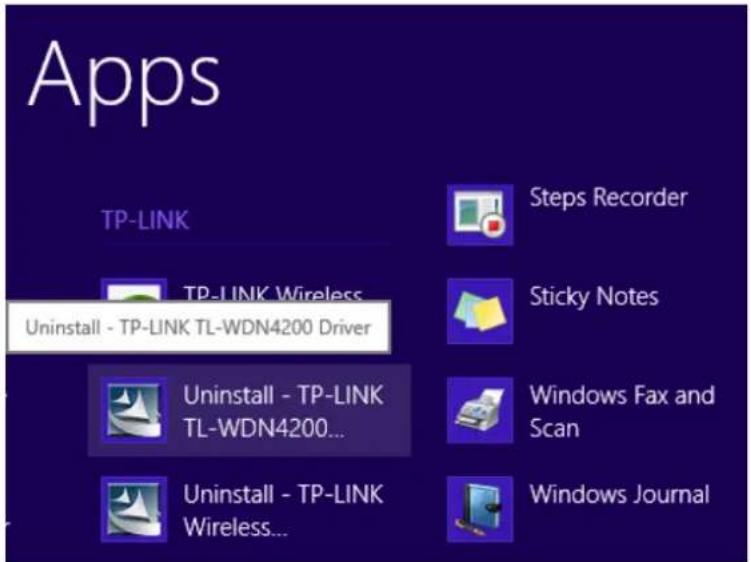

1. Enter the Metro interface, right-click any blank place in the Metro interface, then App Bar will appear below the Metro interface, click All apps. Find the TP-LINK application, and click Uninstall-TP-LINK TL-WDN4200 Driver.

Figure 6-13

1. Click Yes to start uninstalling the driver software from your PC.

Figure 6-14

1. It may take a few minutes to undergo the whole un-installation process.

Figure 6-15

1. Click Finish when the figure below appears.

Figure 6-16

Appendix A: Specifications

Normal
Interface USB 2.0 Interface
Standards	IEEE802.11a; IEEE802.11b; IEEE802.11g; IEEE802.11n; IEEE802.1x
Operating System Windows XP, Windows Vista, Windows 7, Windows 8
Throughput	2.4GHz:450Mbps (Maximal)5GHz: 450Mbps (Maximal)
Radio Data Rate	11a: 6/9/12/18/24/36/48/54Mbps11b: 1/2/5.5/11Mbps11g: 6/9/12/18/24/36/48/54Mbps11n: 450Mbps (2.4GHz), 450Mbps (5GHz)
Modulation	11a: OFDM11b: CCK, QPSK, BPSK;11g: OFDM;11n: QPSK, BPSK, 16-QAM, 64-QAM
Media Access Protocol CSMA/CA with ACK
Data Security WEP, WPA / WPA2, WPA-PSK / WPA2-PSK
Frequency*	2.4 ~ 2.4835 GHz, 5.15~5.25GHz,5.25~5.35GHz, 5.745~5.825GHz
Spread Spectrum Direct	Sequence Spread Spectrum (DSSS)
Safety & Emissions FCC, CE, WIFI, IC, NCC, WHQL

Environmental and Physical
Working Temperature	0°C~40°C (32°F~104°F)
Storage Temperature	-40°C~70°C(-40°F~158°F)
Working Humidity	10% ~ 90% RH, Non-condensing
Storage Humidity	5% ~ 90% RH, Non-condensing

* 1. Only 2.412GHz\~2.462GHz is allowed to be used in USA, which means only channel 1\~11 is available for American users to choose.
* 2. Rules on the use of 5GHz band channels may vary according to different national laws.

Appendix B: Glossary

802.11a - specification for wireless networking at 54 Mbps using OFDM modulation and operating in radio band at 5GHz.
802.11b - The 802.11b standard specifies a wireless product networking at 11 Mbps using direct-sequence spread-spectrum (DSSS) technology and operating in the unlicensed radio spectrum at 2.4GHz, and WEP encryption for security. 802.11b networks are also referred to as Wi-Fi networks.
802.11g - specification for wireless networking at 54 Mbps using direct-sequence spread-spectrum (DSSS) technology, using OFDM modulation and operating in the unlicensed radio spectrum at 2.4GHz, and backward compatibility with IEEE 802.11b devices, and WEP encryption for security.
802.11n - 802.11n builds upon previous 802.11 standards by adding MIMO (multiple-input multiple-output). MIMO uses multiple transmitter and receiver antennas to allow for increased data throughput via spatial multiplexing and increased range by exploiting the spatial diversity, perhaps through coding schemes like Alamouti coding. The Enhanced Wireless Consortium (EWC) was formed to help accelerate the IEEE 802.11n development process and promote a technology specification for interoperability of next-generation wireless local area networking (WLAN) products.
Ad hoc Network - An ad hoc network is a group of computers, each with a Wireless Adapter, connected as an independent 802.11 wireless LAN. Ad hoc wireless computers operate on a peer-to-peer basis, communicating directly with each other without the use of an access point. Ad hoc mode is also referred to as an Independent Basic Service Set (IBSS) or as peer-to-peer mode, and is useful at a departmental scale or SOHO operation.
DSSS - (Direct-Sequence Spread Spectrum) - DSSS generates a redundant bit pattern for all data transmitted. This bit pattern is called a chip (or chipping code). Even if one or more bits in the chip are damaged during transmission, statistical techniques embedded in the receiver can recover the original data without the need of retransmission. To an unintended receiver, DSSS appears as low power wideband noise and is rejected (ignored) by most narrowband receivers. However, to an intended receiver (i.e. another wireless LAN endpoint), the DSSS signal is recognized as the only valid signal, and interference is inherently rejected (ignored).
FHSS - (Frequency Hopping Spread Spectrum) - FHSS continuously changes (hops) the carrier frequency of a conventional carrier several times per second according to a pseudo-random set of channels. Because a fixed frequency is not used, and only the transmitter and receiver know the hop patterns, interception of FHSS is extremely difficult.
Infrastructure Network - An infrastructure network is a group of computers or other devices, each with a Wireless Adapter, connected as an 802.11 wireless LAN. In infrastructure mode, the wireless devices communicate with each other and to a wired network by first going through an access point. An infrastructure wireless network connected to a wired network is referred to as a Basic Service Set (BSS). A set of two or more BSS in a single network is

referred to as an Extended Service Set (ESS). Infrastructure mode is useful at a corporation scale, or when it is necessary to connect the wired and wireless networks.

Spread Spectrum - Spread Spectrum technology is a wideband radio frequency technique developed by the military for use in reliable, secure, mission-critical communications systems. It is designed to trade off bandwidth efficiency for reliability, integrity, and security. In other words, more bandwidth is consumed than in the case of narrowband transmission, but the trade off produces a signal that is, in effect, louder and thus easier to detect, provided that the receiver knows the parameters of the spread-spectrum signal being broadcast. If a receiver is not tuned to the right frequency, a spread-spectrum signal looks like background noise. There are two main alternatives, Direct Sequence Spread Spectrum (DSSS) and Frequency Hopping Spread Spectrum (FHSS).

SSID - A Service Set Identification is a thirty-two character (maximum) alphanumeric key identifying a wireless local area network. For the wireless devices in a network to communicate with each other, all devices must be configured with the same SSID. This is typically the configuration parameter for a wireless PC card. It corresponds to the ESSID in the wireless Access Point and to the wireless network name. See also Wireless Network Name and ESSID.

WEP - (Wired Equivalent Privacy) - A data privacy mechanism based on a 64-bit or 128-bit or 152-bit shared key algorithm, as described in the IEEE 802.11 standard. To gain access to a WEP network, you must know the key. The key is a string of characters that you create. When using WEP, you must determine the level of encryption. The type of encryption determines the key length. 128-bit encryption requires a longer key than 64-bit encryption. Keys are defined by entering in a string in HEX (hexadecimal - using characters 0-9, A-F) or ASCII (American Standard Code for Information Interchange – alphanumeric characters) format. ASCII format is provided so you can enter a string that is easier to remember. The ASCII string is converted to HEX for use over the network. Four keys can be defined so that you can change keys easily.

Wi-Fi - A trade name for the 802.11b wireless networking standard, given by the Wireless Ethernet Compatibility Alliance (WECA, see http://www.wi-fi.net), an industry standards group promoting interoperability among 802.11b devices.

WLAN - (Wireless Local Area Network) - A group of computers and associated devices communicate with each other wirelessly, which network serving users are limited in a local area.

WPA - (Wi-Fi Protected Access) - A wireless security protocol uses TKIP (Temporal Key Integrity Protocol) encryption, which can be used in conjunction with a RADIUS server.
