USER MANUAL SK90 SWAN

Insect Killer

Model: SK90

Help line

01384 573999

v1.0

IMPORTANT INFORMATION - RETAIN FOR FUTURE USE

When using any electrical appliance, basic safety precautions should always be followed including the following:

• Always ensure that the voltage on the rating label corresponds to the mains voltage in your home
- Incorrect operation and improper use can damage the appliance and cause injury to the user.
- This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children aged less than 8 years. Check the power cord and plug regularly for any damage. If the cord or the plug is damaged, it must be replaced by the manufacturer or qualified person in order to avoid an electrical hazard.

- Do not use the appliance if it has been dropped or damaged in any way. In case of damage, take the unit in for examination and/or repair by an authorised service agent.

- Never immerse the unit in water or any other liquid for cleaning purposes.

- Remove the plug from the socket by gripping the plug. Do not pull on the cord to disconnect the appliance from the mains. Always unplug the unit when not in use, before cleaning or when adding or removing parts.

2

Swan

IMPORTANT INFORMATION - RETAIN FOR FUTURE USE

• The use of accessory attachments that are not recommended or supplied by the manufacturer may result in injuries, fire or electric shock.
• Do not let the cord hang over the edge of a table or counter. Ensure that the cord is not in a position where it can be pulled on inadvertently.
• Do not allow the cord to touch hot surfaces and do not place on or near a hot gas or electric burner or in a heated oven.
• Do not use the appliance on a gas or electric cooking top or over or near an open flame.
• Use of an extension cord with this appliance is not recommended. However, if it is necessary to use an extension lead, ensure that the lead is suited to the power consumption of the appliance to avoid overheating of extension cord, appliance or plug point. Do not place the extension cord in a position where it can be pulled on by children or animals or tripped over.
• This appliance is not suitable for outdoor use. Do not use the appliance for anything other than its intended use.
• Do not carry the appliance by the power cord.
• Do not leave the appliance unattended during use. Always unplug the unit when not in use or before cleaning.
• Always operate the appliance on a smooth, even, stable surface. Do not place the unit on a hot surface.
• Ensure that the unit is switched off after use.
• The manufacturer does not accept responsibility for any damage or injury caused by improper or incorrect use, or for repairs carried out by unauthorised personnel.

IMPORTANT INFORMATION - RETAIN FOR FUTURE USE

• In case of technical problems, switch off the product and do not attempt to repair it yourself. Return the appliance to an authorised service facility for examination, adjustment or repair. Always insist on the use of original spare parts. Failure to comply with the above mentions precautions and instructions, could affect the safe operation of this product.
• Your appliance must never be switched on through an external timer or any kind of separate remote control system
• When choosing a location for the insect killer please site the product out of the reach of children and keep away from flammable materials. DO NOT PUT METAL OBJECTS BETWEEN THE BARS

TECHNICAL DATA

Model: SK90

220-240V \~ 50Hz

19 Watts

CAUTION: Surfaces become hot during use

4

Swan

HOW TO USE

It is important to ensure the correct plug adaptor is used when operating in a country not using the UK 13 Amp socket system. If in doubt, consult a qualified electrician.

When choosing a location for the insect killer please site the product out of the reach of children and keep away from flammable materials.

DO NOT PUT METAL OBJECTS BETWEEN THE BARS

This electronic insect killer uses “black light” (ultra violet) light of a wavelength that is proven to be most attractive to flying insects such as houseflies, moths, mosquitos etc. The insects are electrocuted by the electrically charged metal grids. There are no chemicals, no sprays, no pollution and no mess.

The insect killer is ideal for use in food outlets, cold rooms, hospitals and domestic locations but is NOT suitable for use in garbage or food waste stores or similar locations

CLEANING

Always unplug the unit and allow it to cool (if necessary) before cleaning. Clean the collection tray regularly.

Never immerse the unit in water or run under the tap

TECHNICAL INFO

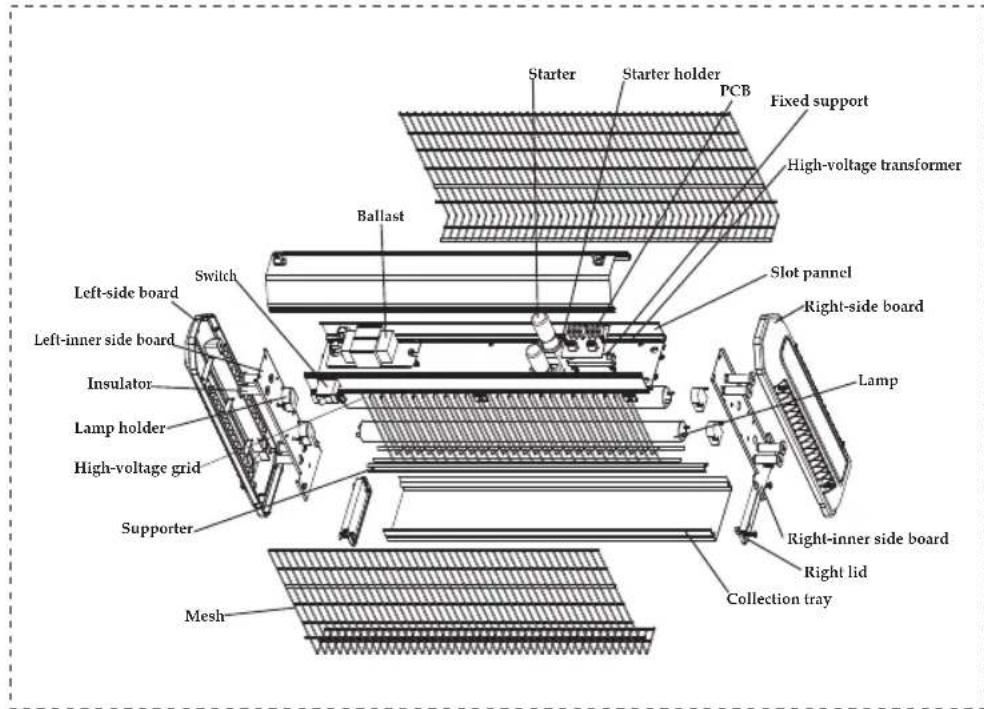

Exploded diagram

Circuit diagram

Swan

WARRANTY

This product is guaranteed for ONE YEAR from the date of original purchase. If any defect arises due to faulty materials of workmanship the faulty products must be returned to the place of purchase. Refunds or replacement is at the discretion of the store.

The following conditions apply:

• The product must be returned to the retailer with proof of purchase.
• The product must be installed and used in accordance with the instructions contained in this instruction guide.
• It does not cover wear and tear, damage, misuse or consumable parts.
• Swan Products Ltd has limited liability for incidental or consequential loss or damage.
• This guarantee is valid in the UK and Eire Only.

BS PLUG

The wires in the mains lead are coloured in accordance with the following code:

BLUE NEUTRAL

BROWN LIVE

GREEN/YELLOW EARTH

As the colours of the wire in the mains lead of this appliance may not correspond with the colour markings identifying the terminals on your plug, proceed as follows:

The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured black. The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured red. The wire which is coloured GREEN/YELLOW must be connected to the terminal which is marked with the letter E or (earth symbol) and is coloured GREEN or GREEN/YELLOW.

WARNING: THIS APPLIANCE MUST BE EARTHED

DISPOSAL OF UNIT

Appliances bearing the symbol shown here may not be disposed of in domestic rubbish. You are required to dispose of old electrical and electronic appliances like this separately. Please visit www.recycle-more.co.uk or www.recyclenow.co.uk for access to information about the recycling of electrical items. Please visit www.weeeireland.ie for access to information about the recycling of electrical items purchased in Ireland. The WEEE directive, introduced in

August 2006, states that all electrical items must be recycled, rather than taken to landfill. Please arrange to take this appliance to your local Civic Amenity site for recycling, once it has reached the end of its life.
