HYM430SPE - Lawn mower HYUNDAI - Free user manual and instructions
Find the device manual for free HYM430SPE HYUNDAI in PDF.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product Type | Lawn Mower |
| Model | HYM430SPE |
| Brand | Hyundai |
| Cutting Width | 430 mm |
| Engine Type | 4-Stroke Petrol Engine |
| Engine Displacement | 140 cm³ |
| Power | 2.4 kW (approx. 3.2 HP) |
| Fuel Type | Unleaded Petrol |
| Fuel Tank Capacity | 1.2 L |
| Cutting Height Adjustment | Central, 6 positions (25-75 mm) |
| Grass Collector Bag Capacity | 65 L |
| Drive Type | Push (Manual) |
| Weight | 28 kg |
| Dimensions (L x W x H) | 1400 x 480 x 1020 mm |
| Deck Material | Steel |
| Starting System | Recoil Start |

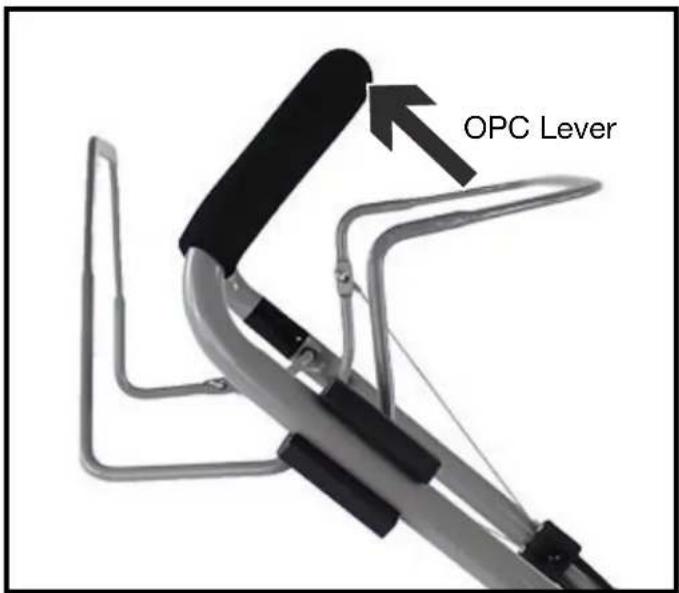

| Safety Features | Blade Brake Clutch, Operator Presence Control |
| Mulching Capability | Yes (with mulching plug) |
| Maintenance | Check oil level before each use; clean air filter regularly; sharpen blade annually |
| Spare Parts Availability | Blades, air filters, spark plugs, oil filters, drive belts available from dealer |
Frequently Asked Questions - HYM430SPE HYUNDAI
What type of oil should I use in the Hyundai HYM430SPE lawn mower?
Use SAE 30 or 10W-30 high-quality 4-stroke engine oil. Check oil level regularly and change after the first 5 hours, then every 25 hours of use.
How do I start the HYM430SPE lawn mower?

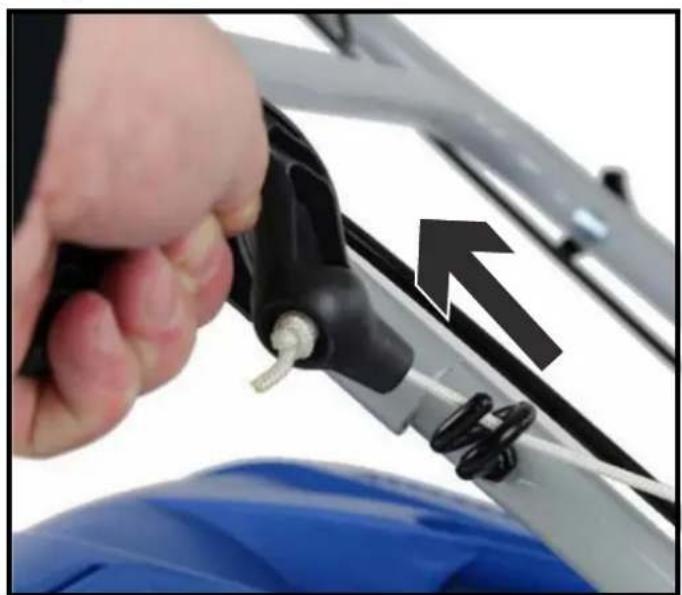

Ensure the fuel tank is filled with fresh unleaded petrol. Turn the fuel valve to 'ON', set the throttle to 'FAST', press the primer bulb 3-5 times, and pull the recoil starter rope firmly.
What is the cutting width of this mower?
The cutting width is 430 mm (17 inches), suitable for medium-sized lawns.
How do I adjust the cutting height?
Use the central height adjustment lever. There are 6 positions ranging from 25 mm to 75 mm. Pull the lever towards the wheel and move it to the desired notch.
What type of fuel does the HYM430SPE require?
It runs on regular unleaded petrol with a minimum octane rating of 87. Do not use ethanol blends above 10% (E10).
How often should I sharpen the blade?
Sharpen the blade at least once a year or after every 25 hours of mowing. A dull blade tears grass, leading to brown edges.
Can I mulch grass with this mower?
Yes, a mulching plug is available (sold separately). Install it to block the discharge chute, allowing the blades to cut and recut grass into fine clippings.
How do I clean the mower after use?
Allow the engine to cool, then remove the spark plug cap. Use a hose or brush to remove grass clippings from the deck. Never spray water directly at the engine or muffler.
What safety precautions should I take?
Always wear sturdy shoes and eye protection. Keep hands and feet away from the blade. Never mow in wet grass. Disconnect the spark plug before any maintenance.
Where can I find replacement parts?
Replacement parts such as blades, air filters, and spark plugs are available at authorized Hyundai dealers or online retailers. Use genuine parts for best performance.
