HYTR2600X - Lawn mower HYUNDAI - Free user manual and instructions

Product Type	Electric Lawn Mower
Model	HYTR2600X
Motor Power	2600 W
Cutting Width	46 cm
Cutting Height Adjustment	6 positions, 25-75 mm
Grass Box Capacity	60 L
Weight	28 kg
Dimensions (L x W x H)	78 x 56 x 42 cm
Power Source	Electric Corded
Sound Level	96 dB(A)
Vibration Level	6.5 m/s²
Mulching Function	Yes
Rear Bagging	Yes
Side Discharge	Yes
Handle Type	Folding, Adjustable
Wheel Size	Front: 180 mm, Rear: 200 mm
Maintenance	Regular blade sharpening, cleaning under deck, check oil if 4-stroke, but electric model requires no oil
Safety Features	Operator presence control, safety switch, blade brake
Spare Parts Available	Blades, grass box, wheels, handle grips, cable guard
Warranty	2 years

Frequently Asked Questions - HYTR2600X HYUNDAI

How do I start the Hyundai HYTR2600X lawn mower?

Make sure the power cord is connected to a suitable outlet. Press and hold the safety lock button on the handle, then pull the start lever towards the handle to engage the motor.

What is the cutting width of the HYTR2600X?

The cutting width is 46 cm, which allows efficient mowing of medium-sized lawns.

How do I adjust the cutting height?

Use the central height adjustment lever located on the top of the mower deck. It offers 6 positions ranging from 25 mm to 75 mm.

Can I use the mulching function?

Yes, the HYTR2600X supports mulching. Install the mulching plug (included) in the rear discharge opening to finely chop grass clippings and return them to the lawn.

How do I clean the mower after use?

Disconnect the power cord. Turn the mower on its side and use a brush or hose to remove grass clippings from the deck and blade area. Do not use high-pressure water near electrical components.

What safety features does this mower have?

It includes an operator presence control (the handle must be held for the mower to run), a safety lock button to prevent accidental starts, and a blade brake that stops the blade quickly when the handle is released.

How often should I sharpen the blade?

Sharpen the blade at least once per season or after every 25 hours of use. A dull blade tears grass, leading to a brown appearance.

What type of power cord is recommended?

Use a heavy-duty outdoor extension cord that is rated for at least 15 amps and has a length appropriate for your lawn. Avoid using multiple extension cords.

How do I replace the grass box?

Lift the rear flap, unhook the grass box, empty it, and reattach by sliding it back onto the hooks until it clicks into place. Ensure the flap closes securely.

What spare parts are available for this model?

Common spare parts include replacement blades, grass box, wheels, handle grips, and cable guard. These can be ordered from authorized Hyundai dealers or online.

USER MANUAL HYTR2600X HYUNDAI

Thank You For Purchasing Your HYUNDAI Product

We work very hard to give all of our customers the best possible service. If you have any problems, before leaving negative feedback, please contact us to give us a chance to resolve the issue. We would be delighted if you left us positive feedback! Thank you for purchasing this product.

Important!

⚠ WARNING : READ THE INSTRUCTION BOOKLET THOROUGHLY BEFORE USING THE MACHINE. Keep for future reference and pass it on if the machine is loaned or sold to another user.

This manual has been produced by Hyundai Power Products and should be kept with the product. Please read and understand these instructions before you use your product. Failure to do this may result in personal injury or damage to the product.

The safety precautions and warnings are to ensure your safety and protect you from harm or damage to the product.

The information contained in this manual was accurate at the time of production, however HYUNDAI Power Products may make modifications to the product without notification.

Contents

Safety Information......4-18

Understand Your Machine......4

Personal Safety....5

Inspect Your Machine....6

Work Area....7

Engine Safety....8

Carbon Monoxide....9

Electrical Safety....10

Batteries....10

Vibrations....11

Noise....11

Fuel Safety....12-13

Personal Protective Equipment....14

Intended Use....15

During Use....16-18

Symbols On The Machine....19

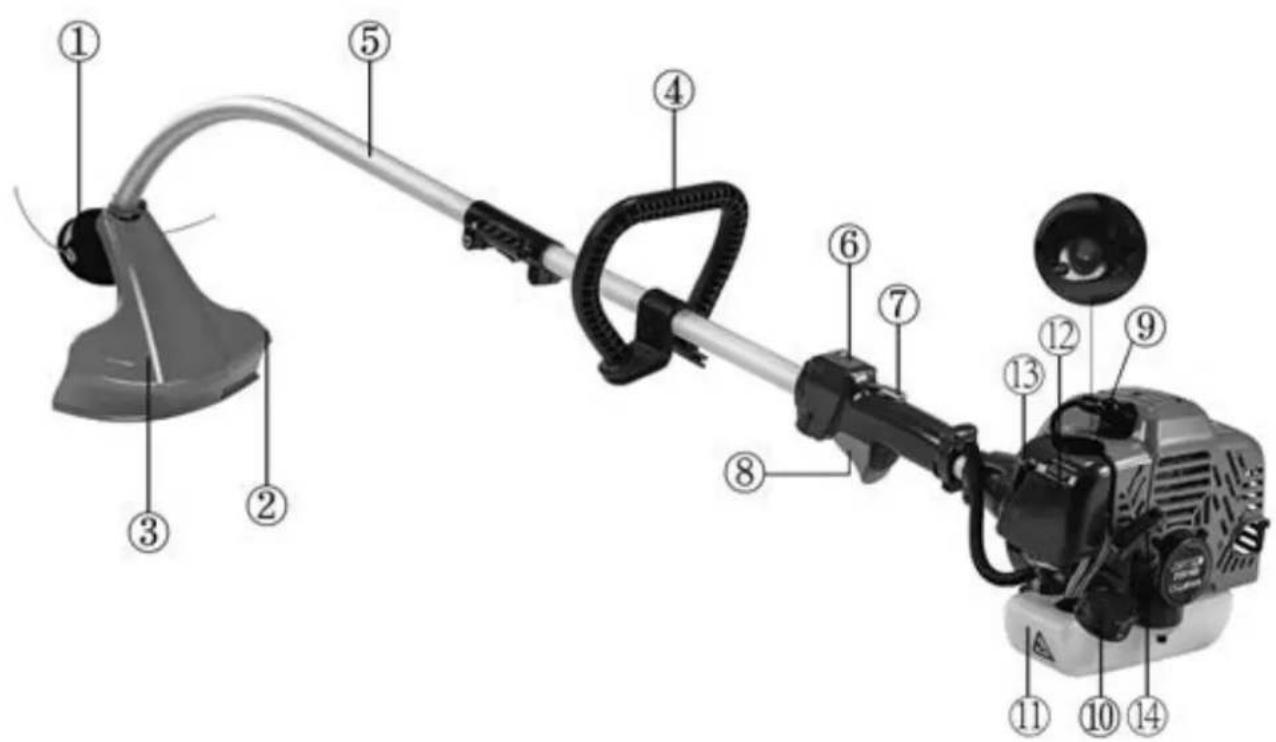

Features......20-21

Unboxing....22

Assembly....23-25

Assembly Safety....23

Handlebar Assembly....24

Debris Shield....24

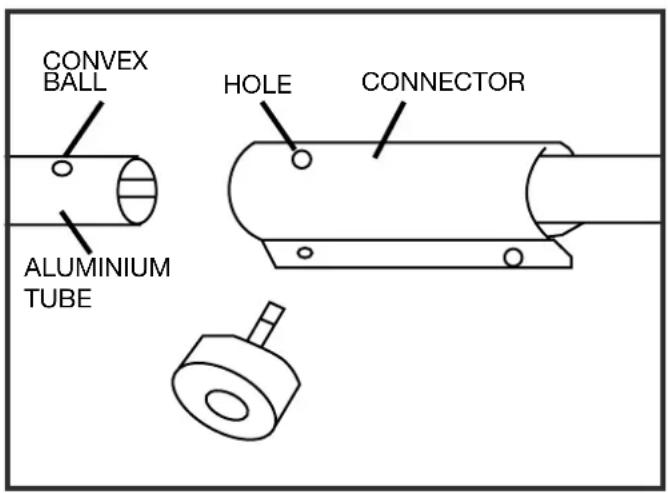

Installing The Lower Shaft....25

Starting / Stopping.....26-27

Using The Trimmer....28-29

Maintenance....30-33

Maintenance Safety....30

Air Filter....31

Adjusting Carburetor....31

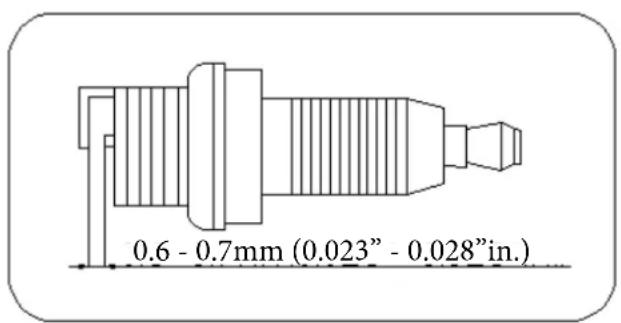

Spark Plug....31

Fuel Filter....31

Transportation And Handling....32

Cleaning....33

Storage....33

Troubleshooting......34-36

Technical Data......37

Recycling And Disposal......38

Our Product Range....39

Declaration Of Conformity......40

Notes....41

Useful Information......42

Our YouTube Channel....42

Warranty....42

Manual Updates....42

Returning Your Product....42

Leaving A Review....42

Ordering Spare Parts....42

Contact Us....43

Safety Information

⚠ Safety

No list of safety guidelines can be complete. Every environment is different. Always consider safety first, as it applies to your individual working conditions. Use this and other machinery with caution and respect. Failure to do so could result in serious injury, damage to equipment, or poor work results.

Some or all of the following - warning signs and symbols may appear throughout this manual. You MUST adhere to their warnings. Failure to do so may result in personal injury to yourself or those around you.

DANGER

Indicates a hazard, which, if not avoided, could result in serious injury or death.

WARNING

Indicates a hazard, which, if not avoided, could result in serious injury.

CAUTION

Indicates a hazard which, if not avoided, might result in minor or moderate injury.

▲Understand Your Machine

- WARNING! You must read these instructions carefully before operating the machine. Make sure that you are familiar with the controls and properly operate the machine. You must learn how to stop the machine quickly. If you do not follow the warnings and instructions, it may result in fire and/or serious injury. Make sure to save all warnings and instructions for future reference.

- Read this manual and labels affixed to the machine to understand its limitations and potential hazards.

- Be thoroughly familiar with the controls and their proper operation. Know how to stop the machine and disengage the controls quickly.

- If the unit is to be used by someone other than original purchaser, or is to be loaned, rented, or sold, always provide this manual and any needed safety training before operation. The user can prevent and is responsible for accidents or injuries that may occur to themselves, to other people, or to property.

- Do not force the machine beyond its limits. Use the correct machine for your application.

- Know how to stop the machine quickly in case of emergency. Understand the use of all controls.

- ALL MAINTENANCE other than that listed in this manual, should be carried out by professionally trained and certified personnel.

- When using this machine for the first time and before actual work, you MUST learn how to handle the machine from an experienced or skilled person.

▲Personal Safety

• WARNING! Never allow children or people unfamiliar with these instructions to use the product. Local regulations can restrict the minimum age of the operator.
• Keep children, pets, and other people not using the unit away from the work area (at least 15m). Be alert and shut off the unit if anyone enters work area. Keep children under the watchful care of a responsible adult.
• Stay alert, watch what you are doing and use common sense when operating the machine. Never operate the machine when unwell or tired, or if you have taken alcohol, medicine, drugs or any substances which may slow your reflexes and compromise judgment. A moment of inattention while operating the machine may result in serious personal injury.
• Appropriate Personal Protective Equipment (PPE), MUST be worn at all times when operating or repairing the machine. Always wear anti-slip and resistant work footwear and long trousers while using the machine. Do not use the machine when barefoot, wearing sandals or similar lightweight footwear. Do not wear chains, bracelets or clothing that is loose fitting or hanging ties or cords. Tie long hair back. Always wear protective earplugs. Loose clothes, jewellery, or long hair can be caught in moving parts. Protect eyes, face, and head from objects that may be thrown from the unit. Always wear safety goggles or safety glasses with side shields when operating.
• Always keep hands and feet away from all moving parts during operation. Moving parts can cut or crush body parts. Always keep hands and feet away from all pinch points.
• Do not touch parts that might be hot from operation. Allow parts to cool before attempting to maintain, adjust, or service.
• Do not overreach. Keep proper footing and balance at all times. This enables better control of the machine in unexpected situations. Extending your body too far can result in a loss of balance and you may fall which will result in injury.
• Never place any part of your body where it would be in danger if movement should occur during assembly, installation, and operation, maintenance, repairing or moving.
• Start the machine carefully according to instructions and with feet away from the moving parts.
• Do not place your hands or feet near or under rotating parts. Keep away from any discharge openings.
• Keep in mind that the operator or user is responsible for accidents, hazards or unexpected events involving the machine that occur to other people or their property. It is the responsibility of the user to assess the potential risk of the area where work is being carried out. The operator or user must take all necessary precautions to ensure their own safety and that of others, especially on slopes or rough, slippery and unstable ground.

⚠️Inspect Your Machine

- Check your machine before starting it. Keep guards in place and in working order. Make sure all nuts, bolts, etc., are securely tightened.

- You must check the general condition of the machine before use.

- Never operate the machine when it is in need of repair or is in poor mechanical condition. Replace damaged, missing, or failed parts before using it. Check for fuel leaks. Keep the machine in safe working condition.

- Do not use the machine if the engine's switch does not turn off the engine when running. Any petrol powered machine that can't be controlled with the engine switch is dangerous and must be replaced.

- Regularly check to see that keys and adjusting wrenches are removed from the machine area before starting it. A wrench or a key that is left attached to a rotating part of the machine may result in personal injury.

- If the machine should start to vibrate abnormally, stop the engine and check immediately for the cause. Vibration is generally a warning sign of trouble.

- Avoid accidental starting. Be sure the engine's switch is off before transporting the machine or performing any maintenance or service on the unit. Transporting or performing maintenance or service on a machine with its switch on invites accidents.

- Do not tamper with or disable safety systems.

- Only use manufacturer-recommended attachments.

- Before using, always visually inspect to see that the tools are not worn out or damaged. Replace worn out or damaged elements and bolts in set to preserve balance.

- Keep all nuts, bolts and screws tight to ensure the equipment is in safe working condition.

- Keep the machine in good operating condition. Operating the machine in poor or questionable condition could result in serious injury.

- Be sure all safety devices are in working order and warning labels are in place. These items are installed for your safety.

Work Area

• Make sure you thoroughly inspect the entire work area and remove all objects and anything that could be thrown by the machine or could damage the engine or machine (branches, stones, wire, toys, etc). Attempting to clear the work area whilst using the machine will reduce your concentration and creates a trip hazard. Any liquid spilled on the floor may result in you slipping.
• You must only work in daylight or with good artificial light in good visibility conditions. Do not work at night, at times of heavy fog, or at any other times when your field of vision might be limited and it would be difficult to gain a clear view of the area.
• Keep people, children and animals away from the working area.
• Operate on flat, level ground.
• DO NOT work on wet ground. If there has been heavy rain on the working site, wait until the ground has dried up.
• You must pay special attention when approaching obstacles that could compromise visibility.
• Exercise extreme caution when changing direction on slopes. When changing direction, you need to be careful that the wheels do not hit any obstacles (such as roots, branches, stones, etc) that can cause the machine to slide sideways or make you lose control of it. Avoid driving on slopes steeper than 15% . Make sure on slopes you have a steady foothold.
• Find and locate all fixed objects in the ground, such as sprinkler systems, poles, water valves, bases for washing lines etc. Make sure that you check for hidden electrical cables or similar on the surface of the lawn. ALWAYS run the machine around these objects. NEVER intentionally run the machine over foreign objects.
• Never park the machine in a place with unstable ground which could give way.
• You must be careful near ravines, ditches or embankments.
• Exercise extreme caution when operating on or crossing gravel drives, walks, or roads. Stay alert for hidden hazards or traffic.
• Pay the utmost attention when working on frozen ground as the machine may tend to skid.
• Do not work in the rain, when there is a thunderstorm or lightning risk, at times of strong or gale force winds, or at any other times when the weather conditions might make it unsafe to use this product. If there is bad weather conditions, do not use the machine.

Engine Safety

- This machine is equipped with an internal combustion engine. Do not use on, or near, forest-covered or brush-covered land unless the exhaust system is equipped with a spark arrester meeting applicable local, state, or federal laws.

- A spark arrester, if used, must be maintained in effective working order by the operator.

- Never start or run the engine inside a closed area. The exhaust fumes are dangerous, containing carbon monoxide, an odorless and deadly gas. Operate this unit only in a well-ventilated outdoor area. (See carbon monoxide safety).

- Do not tamper with the engine in an effort to get it to run at higher speeds. The maximum engine speed is preset by the manufacturer and is within safety limits.

- Keep a fire extinguisher on hand when operating this machine in dry areas as a precautionary measure.

- Never leave the operating position when the engine is running.

- The engine parts get very hot when running, do not touch. Danger of burns.

- Follow the instructions to ignite the engine carefully whilst keeping feet away from moving parts.

- Never incline the machine during ignition. Ignite the machine on a flat surface without obstacles or high grass.

- Do not over-rev the engine or change the engine settings.

- Never pick up or carry the machine while the engine is running.

- Stop the engine whenever you leave the machine, or before refuelling, when cleaning or while maintaining.

- Reduce the throttle setting during engine shut down and, if the engine is provided with a shut-off valve, turn the fuel off at the conclusion of working.

- Do not tilt the lawnmower when starting the engine.

▲Carbon Monoxide

! DANGER!

Engine exhaust fumes contain Carbon Monoxide. This is a poisonous gas and can kill in minutes. NEVER use inside a building or in an area with poor ventilation. NEVER use inside a confined space, such as but not limited to a house, garage, vehicle, boat or tent. ONLY use outside and far away from windows, doors and vents.

CARBON MONOXIDE IS A COLOURLESS, ODOURLESS GAS. INHALING THIS GAS CAN CAUSE DEATH OR SERIOUS LONG-TERM HEALTH PROBLEMS SUCH AS BRAIN DAMAGE.

Never operate the engine in a confined space where dangerous carbon monoxide fumes can develop. All ignition operations have to be effected in an open or well-ventilated area. Always remember that exhaust fumes are toxic.

The symptoms of carbon monoxide poisoning can include but are not limited to the following; Headaches, dizziness, nausea, breathlessness, collapsing or loss of consciousness.

Carbon monoxide poisoning symptoms are similar to flu, food poisoning, viral infections and simply tiredness. It is quite common for people to mistake this very dangerous poisoning for something else.

To avoid carbon monoxide poisoning DO NOT use Petrol/Diesel powered equipment inside any of the following; Home, garage, tent, camper van, mobile home, caravan or boat. DO NOT use in an enclosed area or moving vehicle. This is not exhaustive and if you are in any doubt contact your dealer.

If you think you have or someone around you has been affected by carbon monoxide poisoning; Get them fresh air immediately, by leaving the affected area or by opening doors and windows. If safe and practical to do so make sure that the machine is turned off. DO NOT enter a room you suspect of having carbon monoxide present – instead call the emergency services.

Contact a Doctor immediately or go to Hospital – let them know that you suspect carbon monoxide poisoning.

▲ Electrical Safety (Where Applicable)

DANGER!

ELECTRICITY CAN KILL - NEVER WORK ON LIVE/ENERGISED EQUIPMENT.

• Prior to carrying out any maintenance work you MUST identify electrical isolation methods and isolate all electrical supplies.
• Prior to use and with all electrical supplies isolated, you MUST check all electrical cables, plugs and connectors for the following;
• Are intact and have no signs of damage, to include but not limited to bare wires, chaffing, cuts and loose wiring.
• If there are any signs of damage, the damaged item MUST be taken out of service until the damage has been repaired by an electrically competent person.
• All trailing cables should be routed so as not to cause any kind of trip hazard.
• NEVER work on or near electricity with wet hands, wet clothing and wet gloves.

▲Batteries (Where Present)

Batteries present a risk if they become damaged by the possible leaking of electrolyte. This electrolyte is an acid and can cause serious burn injuries. Care should be taken when working on or near them. NOTE the electrolyte may be in a liquid or gel form.

Should you come in to contact with electrolyte you should;

- Remove all clothing contaminated with electrolyte. If you cannot remove then saturate them in water.

- Get medical assistance as soon as possible.

You must advise the medical staff of the type of acid.

• Lead/acid battery = dilute sulphuric acid.
• Nickel/cadmium = potassium hydroxide alkali electrolyte.
• Use fresh running water to wash off excess electrolyte, continue this until medical assistance arrives. Make sure that you do not wash the electrolyte to another part of your body or face.
• If electrolyte comes in to contact with Eyes the electrolyte needs to be immediately washed away with large amounts of water. Make sure that you do not wash the electrolyte to another part of your face or body.
• Gasses from charging batteries are highly flammable and great care should be taken to charge in well ventilated areas.

- There is an explosion risk if the battery terminals are short circuited, when connecting/disconnecting ALWAYS exercise great care so that the terminals or battery are NOT allowed to touch and cause a spark. ALWAYS use suitable insulated tools.

▲ Vibrations (Where Applicable)

• Prolonged use of hand held (operated) machines will cause the user to feel the effects of/from vibrations. These vibrations can lead to white finger (Raynaud's phenomenon) or carpal tunnel syndrome. This condition reduces the ability of the hand to feel and regulate temperature, causing numbness and heat sensations and may cause nerve damage and circulatory tissue death.
• Not all factors that lead to white finger disease are known, but cold weather, smoking and other diseases that affect blood vessels and blood circulation as well as large and long-lasting impact of shocks are considered factors in the formation of white finger. Note the following to reduce the risk of white finger and carpal tunnel syndrome;
• Wear gloves and keep your hands warm.
  • Take regular breaks.
• All of the above precautions may help reduce the risk of white finger disease but not rule out the carpal tunnel syndrome. Long-term and regular users are therefore recommended to observe the condition of your hands and fingers. Seek medical attention immediately if any of the above symptoms should occur.

⚠ Noise (Where Applicable)

• The operating noise of the machine can damage your hearing. When wearing protection such as earplugs or ear defenders to protect your hearing. Long-term and regular users are advised to have hearing checked regularly. Be especially vigilant and cautious when wearing ear protection because your ability to hear alarm warnings will be reduced.
• Noise emissions for this equipment is unavoidable. Carry out noisy work at approved times and for certain periods. Limit the working time to a minimum. For your personal protection and protection of people working nearby it is also advisable for them to wear hearing protection.

• See Certificate of Conformity section for Outdoor Noise declaration of conformity.

▲Fuel Safety

CAUTION! ALL FUELS ARE HIGHLY FLAMMABLE AND PETROL VAPOUR IS EXPLOSIVE. TAKE EXTREME CARE WHEN HANDLING FUEL. KEEP FUEL OUT OF REACH OF CHILDREN.

General Safety

• Do not smoke each time fuel is handled.
• ALWAYS avoid inhaling fumes.
• ALWAYS carry fuel in the correct and clearly marked container.
• ALWAYS wear correct, suitable and fit for purpose Personal Protective Equipment (PPE), suggested items are but not limited to safety gloves and overalls.
• To avoid sparking or arcing, keep grounded conductive objects – such as tools – away from exposed, live electrical parts and connections. These events could ignite fumes or vapors.
• Do not operate the machine with known leaks in the fuel system.
• Fire hazard - keep fuel away from all sources of ignition for example heaters, lamps, sparks from grinding or welding.
• DO NOT carry out hot work on tanks that have contained fuel.
• ALWAYS keep the work area tidy.
• ALWAYS dispose of waste fuels correctly.
• Serious personal injury can occur when petrol is spilled on yourself or your clothes. Rinse your skin and change your clothes immediately.

Spilled Fuel

- If you have spilled fuel, make sure you do not attempt to ignite the engine but move the machine away from the area of spilled fuel and avoid creating any source of ignition until the fuel has evaporated and fuel vapours have dissipated.

- When fuel is spilled on yourself or your clothes, wash your skin and change clothes immediately.

- ALWAYS clean up spills promptly using absorbent granules and a lidded bin.

Safety Information

Fueling / De-Fueling

• ALWAYS fuel and de-fuel in a well ventilated area outside of buildings. Use a funnel to add fuel, only outdoors. Do not smoke during this and each time fuel is handled.
• Add fuel before igniting the engine, never remove the fuel tank cap or add fuel whilst the engine is running or when it is hot.
• When de-fueling ALWAYS use a proper fuel retriever.
• Never overfill the fuel tank. Engine heat can cause fuel to expand, never fill the tank to more than 1/2" below the bottom of the filler neck. This will provide space for fuel expansion.
• When refilling or draining the fuel tank, use an approved fuel storage container while in a clean, well-ventilated outdoor area. While adding fuel or operating the unit, do not smoke, and stay away from sparks, open flames, or other sources of ignition near the area of operation.
• Always stop the engine and allow it to cool before filling the fuel tank. Never remove the cap of the fuel tank or add fuel while the engine is running or when the engine is hot.
• Loosen the fuel tank cap slowly to relieve any pressure in the tank.
• ALWAYS keep the handles dry, clean and free of oil and fuel.
  • After fueling, ensure to tighten the cap securely.
• Never use the lock-function when filling with fuel.

Storage

• Store fuel in containers specifically designed and approved for fuel storage.
• Store fuel in a cool, well-ventilated area, safely away from sparks, open flames, or other sources of ignition.
• Never store fuel – or a machine with fuel in the tank – inside a building where fumes may reach a spark, open flame, or any other source of ignition (such as a water heater, furnace, or clothes dryer). Allow the engine to cool before storing in any enclosure.
• Replace all fuel tank and container caps securely and wipe up spilled fuel. Never operate the unit without the fuel cap securely in place.

▲ Personal Protective Equipment

Appropriate Personal Protective Equipment (PPE), MUST be worn at all times when operating or repairing the machine. No protective equipment can ensure 100% protection.

When selecting PPE, make sure it's CE marked and it suits the user in terms of size, fit, etc. If more than one item of PPE is worn at the same time, make sure they can be used together, e.g. wearing safety glasses may disturb the seal of a respirator, causing air leaks.

GLOVES

Protective electrically non-conductive gloves are highly recommended when working.

BOOTS

Non-skid heavy duty footwear are highly recommended when working.

HEARING PROTECTION

Suitable safety hearing protection is recommended.

EYE PROTECTION

Always wear safety glasses/goggles and/or face shields. Everyday eyeglasses have only impact resistant lenses; they are not safety glasses/goggles.

CLOTHING

Do not wear loose clothing, gloves, scarfs, neckties or jewellery (rings, wrist watches), which can be caught in moving parts.

Intended Use

The HYTR2600X is a petrol powered grass trimmer from HYUNDAI.

The grass trimmer is manufactured according to the latest safety requirements. Every precaution is only effective when it is followed exactly.

Intended Use

This machine was designed and manufactured for cutting grass in gardens and grassy areas, in areas in proportion to its cutting capacity, controlled by a pedestrian operator.

User Types

This machine is intended for use by consumers, i.e. non professional operators. The machine is intended for “DIY” and domestic use only.

Improper Use

Any other usage not in keeping with the above mentioned ones may be hazardous and harm persons and/or damage things. Examples of improper use may include, but are not limited to:

• using the machine to trim hedges, or cutting anything other than grass
• use of the machine by more than one person
• using the blade on surfaces other than grass

Safety Information

During Use

- You must only work in daylight or with good artificial light in good visibility conditions. Keep people, children and animals away from the working area.

- Make sure on slopes you have a steady foothold.

- You must walk and never run whilst holding the machine.

- You must pay special attention when approaching obstacles that could compromise visibility.

- When using the machine near roads, pay attention to traffic.

- You must be careful near ravines, ditches or embankments.

- Follow the instructions to start the engine carefully.

- Do not place your hands or feet near or under rotating parts.

- Do not tamper with or disable safety systems.

- Do not over-rev the engine or change the engine settings.

- The engine parts get very hot when running, do not touch. Danger of burns.

- Only use manufacturer-recommended attachments.

- You must switch off the engine (making sure that all moving parts are stationary):

- When transporting the machine

- Whenever you leave the machine unattended

- Before clearing blockages

- Before cleaning, checking or working on the machine

- After striking a foreign object, you must inspect the machine for damage and make repairs before using it again.

- WARNING - If something breaks or an accident happens whilst working, you must turn off the engine immediately and move the machine away to prevent further damage. If an accident happens with injuries or third parties are injured, carry out the first aid measures most suitable for the situation immediately and contact the medical authorities for any necessary health care. Carefully remove any debris that might cause damage or harm persons or animals should it not be seen.

- Do not tamper with the safety features.

- Inspect the area to be cut and remove all debris that could become entangled in the nylon cutting head. Also remove any objects that the unit may throw during cutting.

- Never leave the machine unattended.

Safety Information

• Do not overreach. Keep proper footing and balance at all times. Do not run the unit while standing on a ladder or on any other unstable footing location.
• Keep hands and feet clear of the nylon cutting head while unit is in use.
• Never touch the nylon cutting head when ever the engine is running. If it is necessary to adjust the protector or nylon cutting head, be sure to stop the engine and confirm that the nylon cutting head has stopped running.
• The engine should be turned off when the machine is moved between work areas.
• Be careful not to hit the nylon cutting head against stones, or the ground. Unreasonable rough operation will shorten the life of the machine as well as create an unsafe environment for yourself and those around you.
• Pay attention to loosening and overheating of parts. If there is any abnormality of the machine, stop operation immediately and check the machine carefully. If necessary, have the machine serviced by a authorized dealer. Never continue to operate a machine which may be malfunctioning.
• After the engine has stopped, the machine is still hot. Never place the machine in any places where there are flammable materials (dry grass, etc.), combustible gasses or combustible liquids.
• If you slip or fall to the ground or into a hole, release the throttle lever immediately.
• Do not use in poor weather conditions such as rain or thunder and lightning.
• Be careful not to drop the machine or hit it against obstacles.
• Before proceeding to adjust or repair the machine, be sure to stop the engine and detach the spark plug.
• When the machine is placed in storage for a long time, drain fuel from the fuel tank and carburetor, clean the parts, move the machine to a safe place and confirm that the engine is cooled down.
• Total face and head protection must be wear to prevent damage from plummet or branch.
• WARNING: The cutter area is still dangerous while the machine is coasting to a stop.
• If a stone or any other obstacle is hit, stop the engine and check the nylon cutting head. A broken or unbalanced nylon cutting head must never be used.
• Never remove the guard. Serious injury to the operator or bystanders could result as well as damage to the machine.

During Use (Continued)

Even when the tool is used as prescribed it is not possible to eliminate all residual risk factors. The following hazards may arise in connection with the tool's construction and design:

1. Damage to lungs if an effective dust mask is not worn.
2. Damage to hearing if effective hearing protection is not worn.
3. Health defects resulting from vibration emission if the power tool is being used over longer period of time or not adequately managed and properly maintained.

WARNING! This machine produces an electromagnetic field during operation. This field may under some circumstances interfere with active or passive medical implants. To reduce the risk of serious or fatal injury, we recommend persons with medical implants to consult their physician and the medical implant manufacturer before operating this machine.

WARNING! All trimmers and brush cutters can throw small stones, metal or small objects as well as the material being cut. Insist that persons in the RISK ZONE beyond the danger zone wear eye protection from thrown objects. If the unit must be used where there are unprotected people, operate at a low throttle speed to reduce the risk of thrown objects. No person except operator allowed inside the 15 meter radius danger zone. Eye, ear, face, foot, leg and body protection must be worn by the operator.

Symbols On The Machine

We have provided safety messages in this manual and on the machine. This information alerts you to potential hazards that could hurt you or others. Please read these messages carefully. However, we may not have listed all of the possible hazards, you must also use your own judgment.

CAUTION!Handle carefully.			HEARING PROTECTIONSuitable safety hearing protection is recommended.
INSTRUCTION MANUALRead and understand operator's manual before using the machine. Failure to follow instructions could result in death or serious injury.			BOOTSNon-skid heavy duty footwear are highly recommended when working.
DANGER!Keep hands and feet away from cutting parts.			SAFETY DISTANCEDo not put hands or feet near or under rotating parts. Keep a 15 metre safety distance.
GLOVESProtective electrically non-conductive gloves are highly recommended when working.			WARNING! Never modify a trimmer in any way. Improper use of the machine can cause serious or fatal personal injury.
EYE PROTECTIONAlways wear safety glasses/ goggles and/or face shields. Everyday eyeglasses have only impact resistant lenses; they are not safety glasses/goggles.			WARNINGBeware of thrown objects hit by cutting attachments. never use without properly mounted blade guard.
	KEEP AWAYKeep15m away from any other person.		CE SYMBOLThis product complies with the applicable European directives and an evaluation method of conform for these directives was done.

HYTR2600X Features

1 - Nylon Cutter Head

Contains replaceable nylon trimming line that advances when the trimmer head is tapped against the ground while the head is turning at normal operating speed.

2 - Cut-Off Knife

Trims nylon line to the correct length- 180mm/ 7" from the head to end of line. If trimmer is operated without a cut-off knife the line may become too long (more than 180mm/7") this will cause additional strain and may overheat or damage the engine.

3 - Debris Shield

Mounted just above the cutting attachment. Helps protest operator by deflecting debris produced during the trimming operation. Do not operate unit without shield.

4 - D-Handle

This handle can be adjusted and slid up or down the shaft to suit your preference.

5 - Lower Drive Shaft Assembly

Contains a specially designed liner with flexible drive shaft.

6 - Ignition Switch

Slide switch mounted on top of the throttle trigger housing. Move switch forward to run, back to stop.

HYTR2600X Features

7 - Safety Lever

Before using the throttle, push safety lever down.

8 - Throttle Trigger

Spring loaded to return to idle when released. When accelerating, press trigger gradually for best operating technique. Do not hold trigger while starting.

9 - Bulb

Pushing bulb (7 to 10 times before starting), will remove all air and sale fuel from fuel system and bring fresh fuel to the carburetor.

10 - Fuel Tank Lid

Ensure this is correctly and firmly threaded onto the tank when in use.

11 - Fuel Tank

Contains fuel and fuel filter.

12 - Air Cleaner Cover

Contains replaceable foam element.

13 - Choke

The choke (cold start) lever is located on the top of the filter cover.

14 - Starter Handle

Pull handle until engine starts, then return handle slowly. DO NOT let handle snap back or damage to starter will occur.

Specifications, descriptions and illustrative material in this manual are as accurate as known at the time of publication, but are subject to change without notice. Illustrations may include optional equipment and accessories, and may not include all standard equipment.

⚠ Unboxing Safety

⚠ WARNING! Unboxing and assembling the machine should be done on a flat, stable surface with enough room. Disposal of the packaging should be done in accordance with the local regulations in force.

⚠ WARNING! Some of the packaging material may be harmful to children. Keep out of reach of children.

Carefully remove the product from the packaging and examine it for any sign of damage caused during shipping. Lay the contents out and check them. If any part is damaged or missing, you must not use the machine. Contact HYUNDAI Power Products immediately. You must keep the packaging material in case the machine needs to be returned or repaired.

Ensure that you have all the accessories and tools you need for assembly and operation including the suitable personal protective equipment.

Box Contents

• User Manual
• Power Unit
• Lower shaft
• Guard
• Tool Kit
• Mixing Bottle

Assembly Safety

CAUTION - This guide is meant to serve as a quick reference for operating your HYUNDAI machine. We always advise reading the manual in full before operation.
CAUTION - For OUTDOOR use ONLY. Petrol machines produce carbon monoxide – poisonous, colourless and odourless gas that can cause serious injury or death. Petrol is highly flammable, always handle with extreme care and in a well ventilated area.
▲NOTE - Images may vary depending on model.
▲ NOTE - The machine may be supplied with some parts already assembled. Prior to assembly, check all items have been received. The mulching plug may already be installed for transport.
▲NOTE - This machine is shipped without fuel and oil and MUST be filled before use. Failure to do so may cause damage to the engine that will not be covered by warranty.

We recommend that you fill out the information on page 43. If you need to contact an authorised dealer or customer service for information on servicing, you may need to provide this information.

There is also a service record so you can keep track of your machine service dates.

Unboxing & Assembly Video:

Go to youtube.com and type in Hyundai HYTR2600X assembly.

YOU MUST read and understand the instruction manual first.

Step 1 : Handle Assembly

NOTE - The D-shaped Handle is attached to the shaft but has been rotated under for ease of packing.

1 Loosen adjustment knob and rotate handle to top of shaft. Position handle 165mm to 215mm 6-1/2 to 8-1/2" from throttle.
2 Tighten adjustment knob securely.

Step 2 : Debris Shield

Shield Fits snug on shaft. Some force may be required.

1 Seat shield (B) onto shaft bracket (C).
② Insert washers (D) onto bolt.
③ Insert bolt (E) and nut (F). Tighten securely.

Step 3 : Installing The Lower Shaft

1 Insert the lower aluminium tube into the upper connector, align the spring-loaded ball with the corresponding hole. Then turn the adjusting knob clockwise until it is tight.

Starting / Stopping Procedure

Before Each Use

• Always ensure that the trimmer is in a safe working condition. Inspect the machine, check safety devices and guards and check all nuts, bolts and screws are secure.
• Check the oil and fuel level and check for fuel leaks.
• CAUTION - For OUTDOOR use ONLY. Petrol lawnmowers produce carbon monoxide – a poisonous, colourless and odourless gas that can cause serious injury or death. Petrol is highly flammable, always handle with extreme care and in a well ventilated area.
• Check the air cleaner is clean.
• Make sure the guard is securely in place.

Only start the trimmer on even ground. The ground must be free of foreign bodies, h as stones.

Starting Cold Engine

STEP 1

Move the stop switch to 'START' position.

STEP 2

Give a gentle push on the primer bulb repeatedly (7-10 times) until fuel comes into the primer pump.

STEP 3

Pull lever up to close choke to 'START' position.

STEP 4

Pull starter handle until engine attempts to start.

STEP 5

Push the choke lever to ‘RUN’ position. (If fitted with an automatic choke, squeezing the throttle will reset the choke to ‘RUN’). Excessive pulling with choke lever in ‘START’ position may cause flooding, making engine difficult to start.

STEP 6

Pull starter handle until engine starts.

STEP 7

Allow engine to warm up for a few minutes before using.

Starting / Stopping Procedure

Starting Warm Engine

If fuel tank was not run dry, pull starter one to three times and should start. DO NOT USE CHOKE.

If fuel tank was run dry of fuel, after refilling push choke lever to 'START' and repeat steps 3 - 7 in starting cold engine.

After Each Use

• Examine the machine for damage.
• Clean the machine if necessary.

CAUTION - The engine will remain hot for a while after use. Ensure the machine has been added before carrying out any maintenance or storage.

Stopping Procedure

STEP 1

Move switch to 'STOP' position.

Cutting With Nylon Head

For nearly all cutting, it is good to position the line head so that contact is made on the part of the cutting area where the line is moving away from the operator and the debris shield. (See appropriate).

Line head rotates in a clockwise direction when looking from above. The cut off knife will be on the right side of the debris shield.

For nearly all cutting, it is good to tilt the line head so that contact is made on the part of the circle where the line is moving away from you and the debris shield. The results in the debris being thrown away from you.

WARNING!

Tilting the head to the wrong side will shoot the debris TOWARDS you. If the line head is held flat to the ground so that cutting occurs on the whole line circle, debris will be THROWN at you, The additional drag will slow the engine down, and you will use up a lot of line.

WARNING!

Use only quality nylon mono filament line of 2mm diameter, 3m in length. Never use wire or wire-reinforced line in place of nylon trimmer line. Load your nylon line cutting head only with nylon trimmer line.

WARNING!

The proper debris shield must be in place on the unit when nylon cutting line is used, The cutting line can flap around if too much line is exposed. Always use the plastic debris shield with cut-off blade when using nylon cutting head.

WARNING!

Use extreme caution when operating over bare spots and gravel, because the line can throw small rock particles at high speeds. Debris shields on the unit cannot stop objects which bounce or ricochet off hard surfaces.

Trimming

This is feeding the trimmer carefully into the material you wish to cut. Tilt the head slowly to direct debris away from you. If cutting up to a barrier such as fence, wall or tree, approach from an angle where any debris ricocheting off the barrier will fly away from you, Move the line head slowly until the grass is cut right up the barrier, but do not jam (overfeed) the line into the barrier. If trimming up to a wire mesh or chain linked fence be careful to feed only up to wire. If you go too far the line will snap off around the wire. Trimming can be done to cut through weed stems one at a time. Place the trimmer line head near the bottom of the weed-never high up which could cause the weed to chatter and catch the line. Rather than cut the weed right through, just use the very end of the line to wear through the stem slowly.

Scalping And Edging

Both of these are done with the line head tilted at a steep angle Scalping is removing top growth leaving the earth bear. Edging is trimming the grass back where it has spread over a sidewalk or drive way. During both edging and scalping, hold the unit a steep angle and in a position where the debris, and any dislodging dirt and stones, will not come back towards you even if it ricochets off the hard surface. Every operator must find for himself the angles which suits his body size and cutting situation.

WARNING!

Do not use a steel blade for edging or scalping.

WARNING!

Do not trim in any area where there are strands of fencing wire. Wear PPE safety clothing. Do not cut where you cannot see what the cutting device is cutting.

Safety

1. WARNING - Before cleaning or doing maintenance work, you need to disconnect the spark plug cable and read the relevant instructions. You need to wear proper clothing and protective gloves whenever your hands are at risk.

2. WARNING - If there are worn or damaged parts, never use the machine. Faulty or worn-out parts must be replaced and not repaired. You must only use original spare parts. The use of non-original and/or incorrectly fitted parts will jeopardize the safety of the machine. This may also cause accidents or personal injuries for which the manufacturer is under no circumstance liable or responsible.

3. Any maintenance operations or adjustments not explained in this manual must be carried out by your Dealer or a specialised Service Centre with the necessary knowledge and equipment to ensure that the work is done correctly maintaining the trimmer's original safety level. Any operations performed in unauthorised centres or by unqualified persons will invalidate the Warranty and all obligations and responsibilities of the Manufacturer.

4. Disconnect the spark plug cable and check machine for damage after each use.

5. To be sure the machine is in safe working condition, keep all nuts, screws and bolts tight. Routine maintenance is essential for safety and for maintaining a high performance level.

6. On a regular basis, check that the screws are properly tightened.

7. Be very careful during adjustment of the machine to prevent entrapment of the fingers.

8. If any warning message stickers or instruction is damaged, replace them.

9. Store the machine in a safe place, out of the reach of children.

10. Do not store the machine with fuel in the tank in an area where the fuel vapours could reach an open flame, a strong heat source or a spark.

11. Engine must be cooled down before storing.

12. To reduce fire hazards, keep the engine, silencer, battery compartment and petrol storage area free of grass, leaves, or excessive grease. Do not leave containers full of cut grass inside storage areas.

13. To reduce fire hazards, check there is no oil and/or fuel leaks on a regular basis.

14. If you need to empty the fuel tank, this should be done outdoors once the engine has cooled down.

Air Filter

Accumulated dust in the air filter will reduce engine efficiency. Increase fuel consumption and allow abrasive particles to pass into the engine. Remove the air filter as often as necessary to maintain in a clean condition.

Light surface dust can readily be removed by tapping the filter. Heavy deposits should be washed out in suitable detergent.

Remove filter cover by loosening air filter cover knob.

⚠️CAUTION - A dirty air filter will restrict the air flow to the carburetor, which will reduce engine efficiency. When using the machine in very dusty areas you must clean or replace the air filter more often.

Never operate the machine without the air filter being fitted it can cause damage to the engine which is not covered by warranty.

Adjusting Carburetor

Do not adjust carburetor unless necessary. If you have trouble with the Carburetor, see your dealer. Improper adjustment may cause engine damage and void warranty.

Spark Plug

Do not attempt to remove the plug from a hot engine in order to avoid possible damage to the threads.

1. Clean or replace the plug if fouled with heavy oily deposits.
2. Replace the plug if the center electrode is worn rounded at the end.
3. Spark gap 0.6-0.7mm (.023".028")
4. Tightening torque = 145-155kg.cm (125-135in.lb)

Fuel Filter

• The fuel tank is fitted with a filter. The filter is situated at the free end of fuel pipe and can be picked out through fuel port with a piece of hooked wire.
• Check the fuel filter periodically. Do not allow dust to enter into fuel tank. A clogged filter will cause difficulty in starting engine or abnormalities in starting engine or abnormalities in engine performance.
• When filter is dirty, replace the filter.
• When the inside of the fuel tank is dirty, it can be cleaned by rinsing the tank out with petrol.

Transportation & Handling

1. Whenever the machine is to be handled, lifted, transported or tilted you must:

2. Wear sturdy work gloves

3. Hold the machine at the points that offer a safe grip, taking into account the weight and relative distribution of the same
4. Use an appropriate number of people for the weight of the machine and the characteristics of the vehicle or the place where it must be placed or collected

5. You must make sure that machine movements do not cause petrol leaks, damage or injuries.

6. During transport, make sure to fasten the machine securely with rope or straps.

After the engine has stopped, it is still hot. Never touch the hot parts.

Fuel & Oil Mixture

CAUTION - ALL FUELS ARE FLAMMABLE

NOTE - All machines are tested and inspected so there may be some residual oil left in the machine so please fill with caution.

- When preparing fuel mixture, mix only the amount needed for the job you are to do. Do not use fuel that has been stored longer than two months. Fuel mixture stored longer than this will make starting difficult and give poor performance. If fuel mix has been stored longer than this time. It should be removed and filled with fresh mixture.

The engine uses 2-stroke fuel, a mixture of petrol and 2-stroke lubricant 40:1 or use Aspen2 pre-mix. Do not use old, stale petrol.

Mixture ratio is 40:1 (unleaded petrol: 40 parts, oil: 1 part). Fuel mixture at the rate other than 40:1 may cause damage to the engine, Ensure mixture ratio is correct. Use fresh unleaded petrol.

IMPORTANT!

2-stroke fuel may separate. Shake fuel container thoroughly before each use. DO NOT mix petrol and oil directly in the engine fuel tank. Failure to follow proper fuel mix instructions may cause damage to the engine.

Cleaning

CAUTION - DO NOT use a hose pipe or pressure washer to clean the engine. Water can damage the engine or contaminate the fuel system.

NOTE Engine must be switched off and plug lead disconnected.

• Wipe the deck with a dry cloth.
• You must remove grass and mud from the machine to prevent it from drying. This will cause problems the next time the machine is used.
• Dry the machine completely to prevent any rust forming.
• Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use.

Storage

⚠️CAUTION - When storing the machine, make sure it has been cleaned as in the previous section. You can use a light oil or silicone spray to coat the equipment.

NOTE - If storing the machine for a period of 30 days or more, you must follow proper storage and winterisation guidelines to avoid any possible issues with your machine. Incorrect storage can lead to possible fueling or engine issues that will not be covered by the warranty.

The following steps should be taken to prepare your machine for storage.

1. Drain all the fuel from the fuel tank and then run the machine until it has completely run out of fuel to clear the remaining fuel from the fuel lines and carburetor.
2. With the machine drained of all fluids, follow the cleaning instructions as set out in the previous section.
3. Follow the maintenance section and check, service or replace serviceable items if required.

4. Using a silicone spray grease, lightly grease all moving parts on the machine.

5. Remove the spark plug and pour 1 teaspoon of fresh engine oil down the cylinder bore. Cover the spark plug hole with a lint free clean cloth, ensuring no dirt or debris falls into the cylinder chamber and gently pull the recoil starter handle to coat the cylinder bore with the fresh oil.

6. Refit the spark plug.

7. Once all work above is carried out store the machine in a clean, cool and dry place away from sources of ignition and varying changes in temperature. DO NOT store a machine that has not been given time to fully cool down.

Failure To Start
Problem Possible Cause Possible				Solution
Cylinder compression pressure normal	Spark plug spark normal	Fuel system abnormality	1. There is no fuel in tank2. Fuel filter obstruct	1. Add fuel in tank2. Clean fuel filter
		Fuel system normal	1. Fuel is too dirty2. There is water in fuel3. There is too much choke4. Mixture ratio is improper	1. Change fuel2. Change fuel3. Remove spark plug and dry it4. Use 40:1 petrol and oil mixture
	Fuel system normal	High voltage wire spark normal	1. Spark plug fouled with oily deposits2. Spark plug insulation damage3. Spark gap is too large or small	1. Clean the oil deposits2. Replace spark plug3. Adjust spark gap 0.6-0.7mm
		High voltage spark abnormality	1. High voltage wire breach or break off2. Coil looseness	1. Replace or tighten2. Tighten
Fuel system normal	Ignition system normal	Low compression 1.	Piston ring worn2. Piston ring is broken3. Piston ring jammed4. Spark plug loose5. Gasket between the cylinder and crank case leaking	1. Replace2. Replace3. Free piston ring4. Tighten5. Fit new gasket
		Normal compression	1. High voltage wire and spark plug contact faulty2. Stop switch failure or short circuit	1. Tighten the spark plug cap2. Repair or replace

Troubleshooting

Failures such as difficulty in starting engine, irregularity in functions and abnormality in performance can normally be prevented if careful attention is paid to all operating instructions and maintenance procedures.

Failure to start:

• Dispose of fuel in the tank.
• Insure that fuel is fresh and clean.
• Check fuel filter to make sure it is clean. (Replace filter if necessary).

- Make sure air filter elements are clean.

- Install new, properly gapped spark plug.

- When there is serious trouble with the unit, do not try to repair it yourself but have your distributor or dealer do it for you.

Low Output

Problem Possible Cause Possible Solution
Flame from exhaust when at high speed	Fuel filter obstruct	Clean fuel filter, clean fuel tank.
Blue smoke	Too much fuel or oil	Adjust carburetor or oil mixture
Backfire through carburetor	Muffler fouled with oily deposits	Clean the oily deposits
Low compression Worn piston, rings, cylinder Replace piston, piston rings and cylinder
Engine gasket leak	Faulty gaskets	Fit new gaskets
Crankshaft oil leak Faulty or worn seal Replace seal
Engine overheats	Check for air-cooling obstruction	Avoid long periods of over heavy use
Exhaust muffler oiled up	Check fuel/oil mixture	Clean the oily deposits

Troubleshooting

Engine Running Unstable

Problem Possible Cause Possible	Solution
Metal knocking sound Piston, piston	rings, cylinder worn	Replace piston, piston rings, cylinder
	Crank bearings worn.	Replace bearings
Metal knocking sound Engine over	heats Replace fuel with correct mixture of unleaded petrol and semi-synthetic 2-stroke oil at 40:1 ratio.
Engine cuts out There is water in fuel		Replace fuel
	Spark gap is wrong	Adjust spark gap 0.6-0.7mm
	Coil gap is wrong	Adjust coil gap 0.3-0.4mm

Engine Suddenly Stopped

Possible Cause Possible Solution
Fuel tank is empty	Add fuel
Spark plug fouled with oily deposits	Clean the oily deposits
Spark plug cap loose	Reconnect spark plug cap

Main Unit Specifications

Remote type Direct Drive;	flexible curved shaft
Maximum speed of trimmer shaft /engine speed (rpm)	9000/9000
Idle speed (rpm) 3000
Vibration values at each handle (m/s2) 15
Sound pressure values [dB(A)] 102
Sound power values [dB(A)] 95
Guaranteed Sound power values [dB(A)] 106
Line Max. Cutting Path 15”/38 cm
Nylon head rotation direction Clockwise (looking from above)
Type of aluminium pole Split shaft
Net weight (kg) 5

Engine Specifications

Engine Model IC26-2J
Type Air-cooled, 2-stroke petrol engine
Displacement 25.4cc
Maximum output 0.65kW / 7500rpm
Carburetor Diaphragm-type
Ignition Contactless electronic ignition
Start method	Recoil
Fuel	Unleaded petrol and Semi-synthetic 2-sroke oil (ratio 40:1) or Aspen 2 premix.
Fuel tank capacity (ml)	500

Spare Parts

Part Part Number
Recoil Start	HYTR2600XRECOIL
Guard	HYTR2600XGUARD
Spark Plug	HYTR2600XSPARKPLUG

Recycling And Disposal

Recycling And Disposal

We do not offer a takeback scheme for the recovery of Waste Electrical Electronic Equipment (WEEE) & Batteries. Instead the responsibility to dispose of WEEE and/or Batteries is passed onto you by us. So when it becomes necessary to dispose of your machine you must take it to your local Civic Amenity Site. For further information please contact your local Authority for disposal advice.

You MUST make sure that all unused oil and fuel is disposed of correctly either beforehand or at your local Civic Amenity Site.

• Under NO circumstances must any fuel or oil be put down any drains.
• Certain products contain WEEE waste which should not be disposed of in your domestic waste.
• You MUST recycle WEEE in accordance with your local authority or recycling centre.
• Certain products contain batteries which should not be disposed of in your domestic waste.
• You MUST recycle batteries in accordance with your local authority or recycling centre.
• Unwanted packaging and materials should be stored and taken to a recycling centre so it can be disposed of in a manner which is compatible with the environment.

We are a Member of the VALPAK National Compliance Scheme and our registration number is RM08660. For further information about disposal please contact your Local Authority.

You can also get more advice and guidance about recycling at the following website http://www.recycle-more.co.uk

Should you pass this product on to another user either sold or loaned, you MUST pass on this user manual. This will make sure that all other users can use and maintain this machine safely.

Environmental Protection

1. Environmental protection should be a priority of considerable importance when using the machine, for the benefit of both social coexistence and the environment in which we live. Try not to cause any disturbance to the surrounding area.
2. You must comply with local regulations and provisions for the disposal of packaging, oils, petrol, filters, damaged parts or any elements which have a strong impact on the environment. This waste must not be disposed of as normal waste. It needs to be separated and taken to specified waste disposal centres where the material will be recycled.
3. You must comply with local regulations for the disposal of waste materials after mowing.
4. When disposing, do not pollute the environment with the machine, but hand it over to a disposal centre, in accordance with the local laws in force.

Our Product Range

Generators

Leisure Inverter, Petrol, Diesel And Built-In Motorhome Generators

Pressure Washers

Petrol, Diesel And Electric Pressure Washers

Water Pumps

Submersible, Clean And Dirty Water And Professional Chemical Water Pumps

Lawnmowers

Petrol, Cordless, Electric, Roller, Self Propelled And Electric Start Lawnmowers

Grass Trimmers And Brushcutters

Petrol, Cordless And Wheeled Grass Trimmers And Brushcutters

Chainsaws

Petrol, Cordless And Electric Chainsaws

Hedge Trimmers

Petrol And Cordless Hedge Trimmers

Leaf Blowers

Petrol, Electric, Cordless, Backpack And 3 -in-1 Leaf Blowers

Log Splitters

Horizontal, Vertical, Petrol And Electric Log Splitters

Wood Chippers

Petrol And Electric Start Wood Chippers

Tillers

Petrol Garden Tiller And Cultivator

Earth Augers And Trenchers

Petrol Earth Augers And Heavy Duty Trenchers

Compactor Plates

Petrol Compactor Plates

Cement Mixers

Portable Electric Cement Mixers

Mini Dumpers

4-Wheel Drive Mini Dumper / Power Barrow

Yard Sweeper

Self Propelled Yard Sweeper Power Brush

Scarifiers

Petrol Lawn Scarifier And Aerator

Stump Grinders

Petrol 4-Stroke Stump Grinders

Welders And Plasma Cutters

MIG, TIG, MMA, ARC Welders And Plasma Cutters

Power Tools And Tool Chests

Electric And Cordless Power Tools And Caster Mounted Tool Chests

Vacuum Cleaners

Wet And Dry Vacuum Cleaners

Engines

Petrol And Electric Start Engines

Battery Chargers / Starters

6V, 12V, 24V Battery Chargers, Jump Starters And Hydraulic Floor Jack

Air Compressors

Home, Domestic, DIY And Professional Use Air Compressors

Lighting Towers

Mobile Lighting Towers With Diesel Generators

And More

We Are Constantly Expanding Our Range With New Products

If you would like more information on any of these products, please contact our sales team on 01646 687880 or visit our website www.hyundaipowerproducts.co.uk

Declaration Of Conformity

EC Declaration of Conformity

We hereby declare that the machine detailed in this declaration complies to all the relevant provisions of the following EC directives.

• 2006/42/EC The Machinery Directive
• 2014/30/EU Annex II Electromagnetic Compatibility Directive
- 2016/1628/EC The Emission of Gaseous and Particulate Pollutants from internal Combustion engines
- 2000/14/EC Noise Emissions in the Environment by Equipment for use Outdoors.

And is in conformity with the applicable requirements of the following documents:

• EN ISO 11806-1:2011
• EN ISO 10517:2019

Declaration for 2000/14/EC Noise Emissions in the Environment by Equipment for use Outdoors. Notified Body for EC Directive 2000/14/EC TÜV Rheinland (Shanghai) Co., Ltd.

Model Type Engine Size Measured			Sound Power	Guaranteed Sound Power	Engine output
HYTR2600X Grass Trimmer 25.4		cc 95dB(A) 106dB(A) 0.65kW

Product Details

Brand: Hyundai

Model: HYTR2600X

Description: Petrol grass trimmer.

Name and address of technical documentation holder and EU distributor:

Genpower Ltd, Isaac Way, Pembroke Dock, Pembrokeshire, SA72 4RW, UK.

Signed by:

Date: 23/12/2019

Notes

Check Out Our YouTube Channel

Our videos on YouTube include:

• Unboxing
• Assembly of your machine
  • How to service your machine
• Products in use
• 'How To' videos
• Product features

Go to www.hyundaisupport.co.uk or search 'Hyundai Power Products' in YouTube.

Warranty

Proof of purchase will be required before you make a warranty claim.

Full warranty terms and conditions can be found on the HYUNDAI POWER PRODUCTS website: www.hyundaipowerproducts.co.uk

Manual Updates

Our manuals are constantly being reviewed and updated. Should you find an error, omission or something unclear, please contact us for assistance.

We reserve the right to make any modifications without prior notice whenever necessary.

Our latest manuals are also placed online.

All our manuals can be downloaded at: www.hyundaipowerproducts.co.uk

Returning Your Product

If you are returning your product, please contact the dealer for their returns policy.

Leaving A Review

We work very hard to give all of our customers the best possible service. If you have any problems, before leaving negative feedback, please contact us to give us a chance to resolve the issue. We would be delighted if you left us positive feedback!

To leave a review, please go to: uk.trustpilot.com/review/hyundaipowerequipment.co.uk

Ordering Spare Parts

Only use original spare parts: The use of non-original and/or incorrectly fitted parts will jeopardize the safety of the machine, may cause accidents or personal injuries for which the Manufacturer is under no circumstance liable or responsible.

Need Help? Talk To Our Experts

Contact Us

Our friendly aftersales team will be more than happy to help you.

Phone

Call our team on 01646 687880, open Monday-Friday 8.30am-5pm.

Email

[e-mail]

Online Live Chat

Go to www.hyundaipowerproducts.co.uk

Live chat is open Monday-Friday from 8.30am-5pm.

Post

Genpower Limited, Isaac Way, Pembroke Dock, Pembrokeshire, SA72 4RW, UK.

Information

As soon as you have purchased the machine, we recommend that you fill out the following. If you need to contact an authorised dealer or customer service for information on servicing, you may need to provide the following information.

The model number and serial number can be found on the grey specification sticker on your machine.

1st ServiceDate Of Service......Next Service Due......	2nd ServiceDate Of Service......Next Service Due......
3rd ServiceDate Of Service......Next Service Due......	4th ServiceDate Of Service......Next Service Due......

Importer:

GENPOWER LTD

Isaac Way, London Road,

Pembroke Dock, UNITED KINGDOM, SA72 4RW

T: [phone] F: [phone]

E: [e-mail]

www.hyundaipowerproducts.co.uk

Imported/Distributed by Genpower Ltd for The United Kingdom & Ireland
