Product Type	Air Purifier
Brand	Dimplex
Model	DXPUR80
Suitable Room Size	Up to 30 m² (323 sq ft)
Filtration System	Pre-filter, HEPA filter, Activated carbon filter
Airflow Speeds	3 speed settings
Noise Level	25 - 50 dB
Power Consumption	50 W
Voltage	220-240 V / 50 Hz
Dimensions (H x W x D)	400 x 300 x 200 mm
Weight	5 kg
Filter Replacement Indicator	Yes
Timer	2, 4, 8 hours
Night Mode	Yes (lights off, low noise)
CADR (Clean Air Delivery Rate)	200 m³/h
Energy Efficiency Class	A
Safety Features	Auto shut-off, overheat protection
Maintenance	Clean pre-filter monthly; replace HEPA filter every 6-12 months; replace carbon filter every 3-6 months
Spare Parts Available	Replacement HEPA filter, carbon filter
Repairability	User-replaceable filters; modular design

Frequently Asked Questions - DXPUR80 DIMPLEX

How often should I replace the filters in my Dimplex DXPUR80?

The HEPA filter should be replaced every 6 to 12 months, and the activated carbon filter every 3 to 6 months, depending on usage and air quality. The pre-filter is washable and should be cleaned monthly.

What is the CADR rating of the DXPUR80?

The Clean Air Delivery Rate (CADR) for the DXPUR80 is approximately 200 m³/h, suitable for rooms up to 30 m².

How do I clean the pre-filter?

Remove the pre-filter from the back panel. Rinse it under running water, let it dry completely, then reinstall. Do not use detergents or place it in a dishwasher.

Can I run the air purifier 24/7?

Yes, the Dimplex DXPUR80 is designed for continuous operation. It features overheat protection and low power consumption, making it safe to use day and night.

Why is the filter replacement indicator light on?

The indicator lights up after 2000 hours of use as a reminder to check and replace the filters. Reset it by pressing and holding the filter reset button for 3 seconds after replacing filters.

What is the noise level in sleep mode?

In night mode, the noise level drops to as low as 25 dB, which is barely audible and perfect for sleeping.

How do I reset the filter timer?

After replacing the filters, press and hold the Filter Reset button (usually located on the control panel) for approximately 3 seconds until the indicator turns off.

Is the air purifier safe for pets?

Yes, the purifier uses a mechanical filtration system without ozone or ionizers, making it safe for pets. However, keep pets away from the intake and outlet.

What is the coverage area of the DXPUR80?

The DXPUR80 is effective for rooms up to 30 m² (323 sq ft) with standard ceiling height, providing about 4 air changes per hour.

Does the Dimplex DXPUR80 have Wi-Fi or smart features?

No, the DXPUR80 is a manual control air purifier without Wi-Fi or app connectivity. It features simple touch buttons for fan speed, timer, and night mode.

USER MANUAL DXPUR80 DIMPLEX

Line drawing of a rectangular electronic device with a cable and clasp (no text or symbols)

Dimplex DXPUR80 Air Purifier

Please read these instructions carefully before use and keep them for future reference.

The DXPUR80 Dimplex Air Purifier has been designed to improve the quality of air indoors, reducing the presence of polluting agents, such as dust, cigarette smoke, unpleasant odors, and pollen.

Air passes through an active carbon filter which helps to eliminate dust and odors such as cigarette smoke.

The DXPUR80 has two airflow speeds with a max air flow rate of 72m^3/h , as a low power consumption of 25W and is suitable for environments of a size up to 28m^2 .

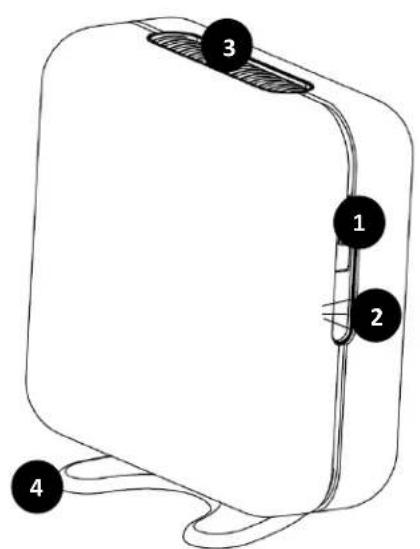

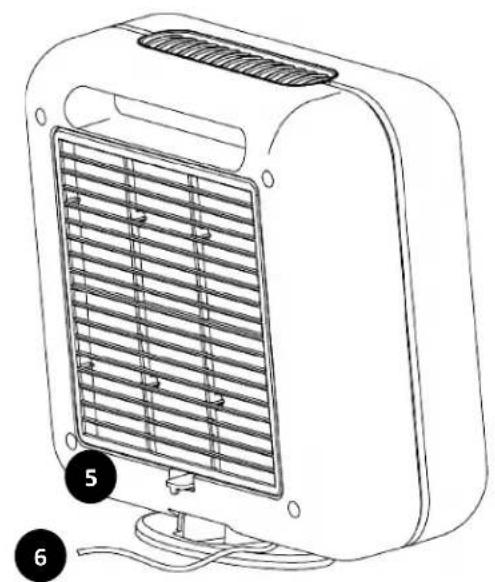

KEY (Diag. 1 and 2)

1. ON/OFF & fan speed selection switch
2. Power indicator
3. Air outlet grill
4. Stabilizing feet
5. Active carbon filter
6. Power cable

WARNINGS

• After removing any packaging materials, ensure that the product has not been damaged during transportation. In the case of doubt, do not use and return to the point of purchase.
- Do not leave any packaging materials (plastic bags, cardboard boxes, etc) within the reach of children.
- Before connecting the equipment, ensure that the rated voltage corresponds to the mains' voltage supply. The voltage rating plate is located underneath the product.
- Always disconnect the equipment from the mains when it is not in use or left unattended.
- This product is not a toy and it should be kept out of the reach of children.
- Keep the product and cable away from heat sources
- Before carrying out any cleaning or maintenance operations, disconnect the product from the mains.
- Do not use accessories, spare parts, or any components not supplied or approved by the manufacturer, as they may make the product unsafe.
- This equipment is only intended for the use it has been specifically designed for (an Air Purifier for domestic use only). Any other use is to be considered inappropriate and therefore dangerous. GDC Group Ltd declines all responsibility for any damage caused by the inappropriate, incorrect or unreasonable use of the equipment.

The use of any electrical equipment requires compliance with some fundamental rules. In particular:

• Never touch the product with wet or damp hands.
• Never submerge the product in water or any other liquid.
• Do not touch the product if it accidentally falls into water; unplug it immediately and do not use afterward. Contact a qualified electrician or the manufacturer.
• Do not pull the power cable or the product to disconnect it from the mains socket.
• Do not leave the product exposed to atmospheric agents (rain, sun, etc).
• The parts and components of this product cannot be repaired by the user. If the equipment is damaged and/or not working correctly, switch it off by disconnecting the power cable plug from the mains socket, do not attempt to open the product, and contact a qualified electrician or the manufacturer.
• When the product is no longer in use, it is recommended to unplug it from mains socket and remove the power cable.
• To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle this product responsibly to promote the sustainable reuse of material resources. DO NOT DISPOSE OF WITH GENERAL HOUSEHOLD WASTE.
• This equipment is approved to EC directives.
• If the power cable is worn and/or damaged, it must only be substituted with another power cable the some type by a qualified electrician.
• The appliance is not intended for use by children or other persons without assistance or supervision if their physical, sensory or mental capabilities prevent them from using it safely. Children should be supervised to ensure that they do not play with the appliance.

HOW TO POSITION THE EQUIPMENT

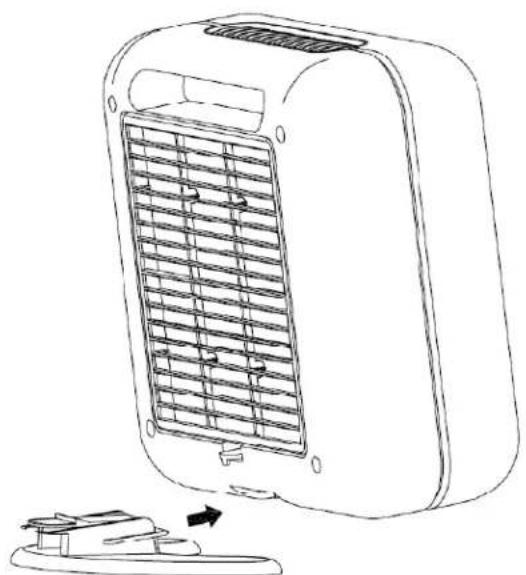

Insert the feet into the appropriate housings located at the rear of the equipment (diag. 3).

Position the product out of reach of children, on a flat, stable surface. Ensure that the air inlet/outlet grilles are not obstructed to allow suitable air circulation around the product.

WARNING: Never place the DXPUR80 air purifier near or on top of electrical, electronic or radio electrical equipment.

Diag. 1

Line drawing of a portable electric heater with heat exchanger and labeled parts (no text or symbols beyond labels)

Diag. 2

Line drawing of a portable air heater with cooling fins and a base component (no text or symbols)

Diag. 3

Technical line drawing of a mechanical device with a folded panel and directional arrows indicating rotation (no text or symbols)

Diag.4

HOW TO SWITCH ON THE EQUIPMENT

- Connect the power cable plug to a mains socket that is easily accessible by an adult.

- Switch on the equipment by placing the ON/OFF switch lever to the:

• (slow airflow) or
  • (fast airflow) position.

HOW TO CLEAN THE EQUIPMENT

Always remember to disconnect the power cable plug from the mains socket before carrying out any cleaning operations. It is recommended that you clean the outer body of the product every 2 weeks, using a soft cloth dampened in water. Do not use sprays, alcohol or other aggressive or abrasive substances. Only clean the air outlet grille (diag.1) with a soft brush to lift any dust. Do not insert any objects into the openings of the product.

Replacing the filter:

The DXPÜR80 is supplied with an active carbon filter.

The filter cannot be washed and its life depends on the time of use and the quality of air in the environment. (It is recommended to replace the filter at least every 2000 hours of use). If the environment is particularly dusty, the filter should be replaced more frequently. It is recommended to regularly check the amount of dirt accumulated in the filter.

How to Replace the Filter:

- Keep the product and cable away from heat sources.

• Switch off the equipment and disconnect the power cable plug from the mains socket.

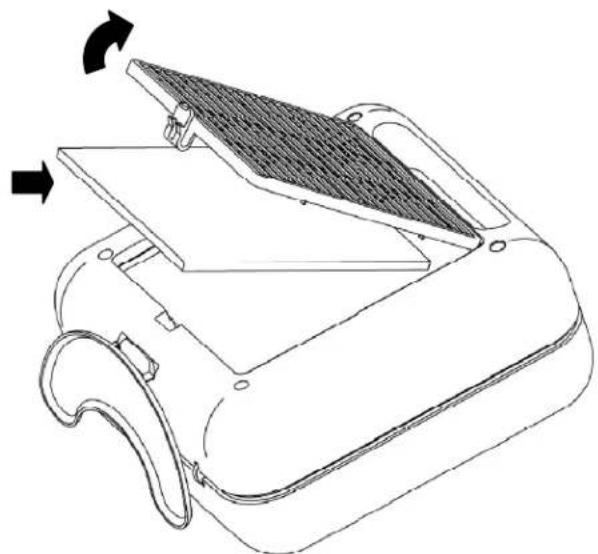

• Raise the filter release catch located at the rear of the product and remove the air inlet grille (diag.4).
• Remove the old filter (diag.4) and replace it with a new filter.
• Reassemble the equipment carrying out the above operations in the reverse order.

WARNING: Ensure the active carbon filter (darker filter) is placed closest to the air inlet grill when put back into the filter housing.

WARNING: Replace the filter with an original filter supplied by retailer/supplier only.

The use of filters not approved by the manufacturer could impair the safety and correct operation of the equipment.

PURCHASING SPARE FILTERS:

In the first instance spare active carbon filters should be purchased from Dimplex by contacting after sales service at the telephone number: 0844 879 3588.

Alternatively spare filters may be available from the retailer/supplier.

GDC Group reserves the right to modify the content of these instructions, at any time and without prior notice.

AFTER SALES SERVICE

Your product is guaranteed for one year from the date of purchase. Within this period, we undertake to repair or exchange this product free of charge (subject to availability), provided it has been operated in accordance with these instructions.

Your rights under this guarantee are additional to your statutory rights, which in turn are not affected by this guarantee.

Should you require after sales information or assistance with this product in the first instance please email us at:

Email: [e-mail]

DIMPLEX

MILLBROOK HOUSE

GRANGE DRIVE

HEDGE END

SOUTHAMPTON

SO30 2DF

Tel: [phone]

Fax: [phone]

A division of GDC Group Ltd,

Website: www.dimplex.co.uk

This product complies with EU Directive 2002/96/EC.

The crossed bin symbol on the appliance indicates that the product, at the end of its life, must be disposed of separately from domestic waste, either by taking it to a

separate waste disposal site for electric and electronic appliances or by returning it to your dealer when you buy another similar appliance. The user is responsible for taking the appliance to a special waste disposal site at the end of its life. If the disused appliance is collected correctly as separate waste, it can be recycled, treated and disposed of ecologically; this avoids a negative impact on both the environment and health, and contributes towards the recycling of the product's materials.

For further information regarding the waste disposal services available, contact your local waste disposal agency or manufacturer.
