Product Type	Dishwasher
Brand	Caple
Model	Di642
Category	Freestanding / Built-in (suitable for integration)
Installation Type	Built-in

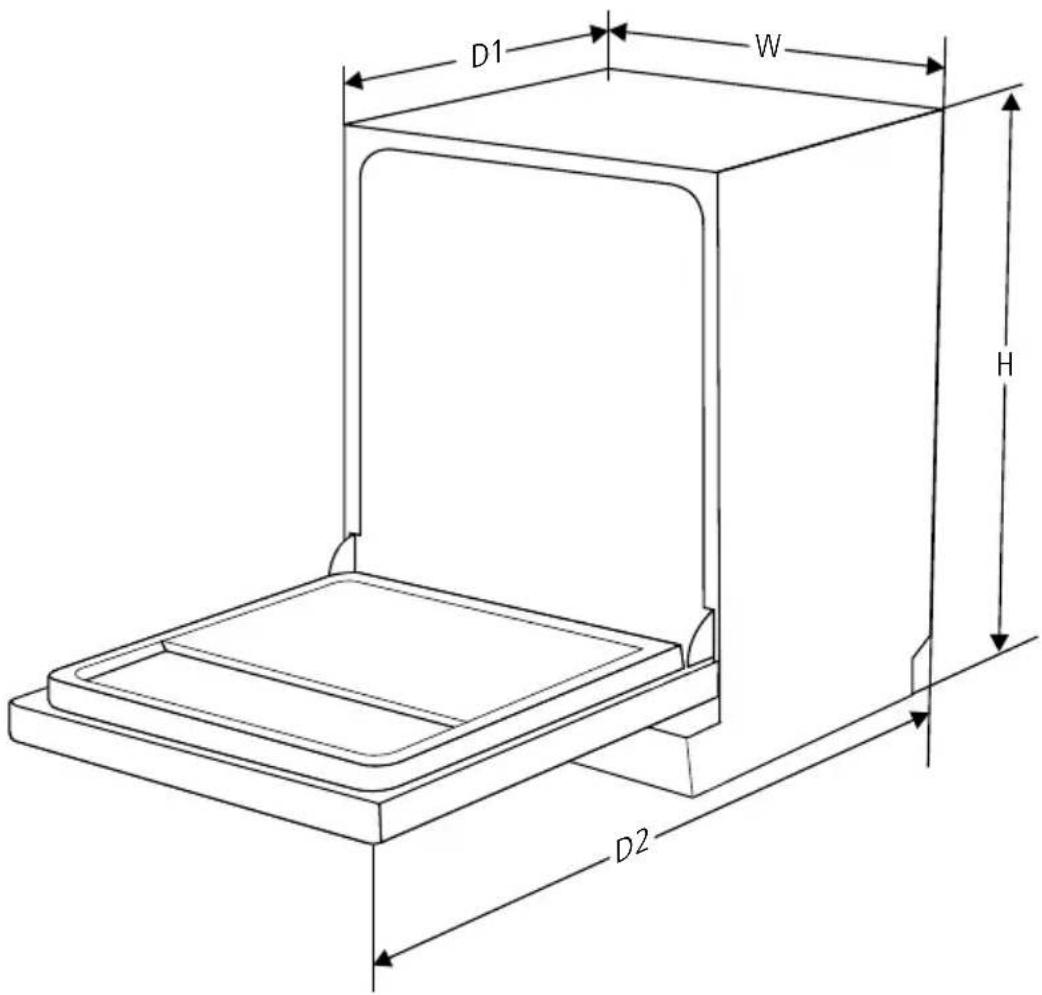

Dimensions (Width x Depth x Height)	60 cm x 55 cm x 82 cm
Weight	Approx. 45 kg
Power Supply	230 V ~ 50 Hz, 10 A
Energy Efficiency Class	A+
Number of Place Settings	12
Number of Programs	6
Programs	Eco 50°C, Intensive 70°C, Normal 65°C, Quick 30 min, Glass 40°C, Rinse
Functions	Delay start (1-24h), Half load, Extra dry, Child lock
Water Consumption per Cycle	9.5 L (Eco program)
Energy Consumption per Cycle	0.92 kWh (Eco program)
Noise Level	47 dB(A)
Child Lock	Yes, button lock
Delay Start	Up to 24 hours

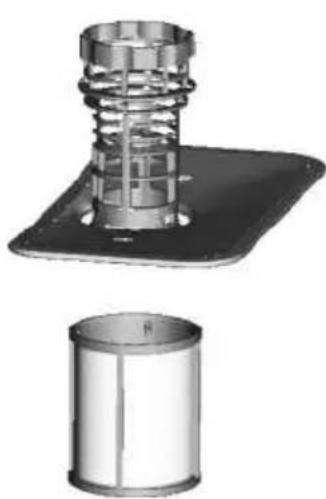

Filter Cleaning	Manual cleaning of mesh filter and microfilter
Self-cleaning Function	No
Spare Parts Availability	Through Caple service centers and authorized dealers
Warranty	2 years (subject to terms)

Frequently Asked Questions - Di642 Caple

How do I install the Caple Di642 dishwasher?

Ensure the dishwasher is placed on a level surface. Connect the water inlet hose to a cold water supply (3/4 inch thread). Plug the drain hose into a suitable drain pipe or sink drain. Connect the power cable to a grounded socket (230V/10A). For built-in installation, use the provided mounting brackets and follow the template in the manual.

What is the capacity of this dishwasher?

The Caple Di642 holds up to 12 place settings. It is designed for standard dining sets including plates, bowls, glasses, and cutlery.

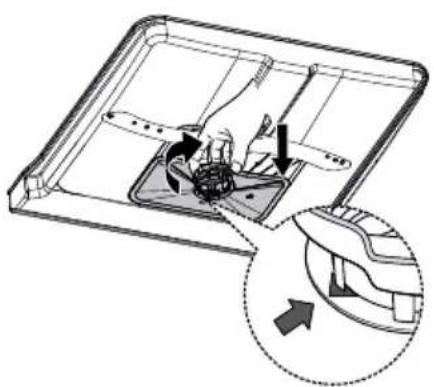

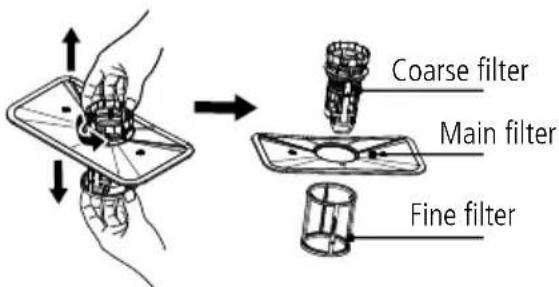

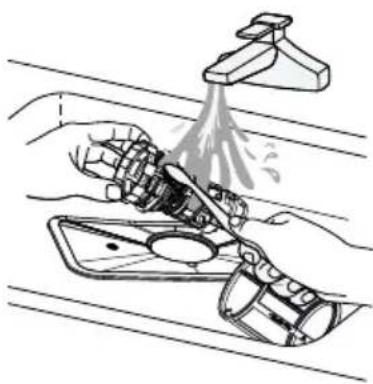

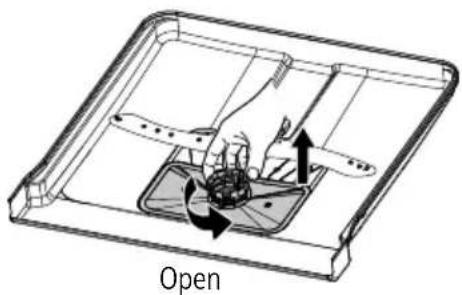

How do I clean the filters?

Turn off the dishwasher and remove the lower basket. Unscrew the cylindrical microfilter by turning it counterclockwise. Lift out the flat mesh filter. Rinse both components under running water to remove debris. Use a soft brush if needed. Reinstall in reverse order. Clean filters regularly for optimal performance.

Why is my dishwasher not draining?

Check if the drain hose is kinked or blocked. Clean the filters as described above; a clogged filter is a common cause. Ensure the sink drain is not blocked. If the problem persists, inspect the drain pump impeller for obstructions (refer to manual). Error codes may indicate drainage issues.

How do I start a delayed wash?

After loading and selecting a program, press the Delay Start button repeatedly to set the desired delay (1-24 hours). The display will show the delay time. Close the door and press Start. The dishwasher will begin at the end of the delay period.

What do the error codes mean?

Common errors: E1 – water intake issue (check tap and hose), E4 – overflow (turn off water and call service), E8 – heating fault (call support). Refer to the error code table in the manual for full details. Reset the machine by unplugging for 30 seconds.

Can I use tablet detergents?

Yes, tablets are suitable. Use the Multi-tab program or standard programs. For best results, place the tablet in the detergent dispenser and close the flap. Ensure the rinse aid is filled. Some tablets include salt and rinse aid; adjust settings accordingly.

How do I adjust the rinse aid setting?

Open the rinse aid dispenser lid (usually near the detergent dispenser). Adjust the dial using a coin: setting 1 (low) for soft water, setting 6 (high) for hard water. Start with setting 3 and adjust if dishes have streaks or spots.

What should I do if the dishes are not dry?

Ensure you are using rinse aid. Select a program with a drying phase (e.g., Eco, Intensive). Do not overload the dishwasher. Open the door slightly after the cycle ends to let steam escape. Check the heating element for defects (call service if needed).

Where can I find spare parts?

Spare parts for the Caple Di642 are available through authorized Caple service centers, online parts retailers, or the Caple website. Common parts include filters, racks, spray arms, and door seals. Use the model number Di642 for correct identification.

USER MANUAL Di642 Caple

Dishwasher Instruction Manual

DI642

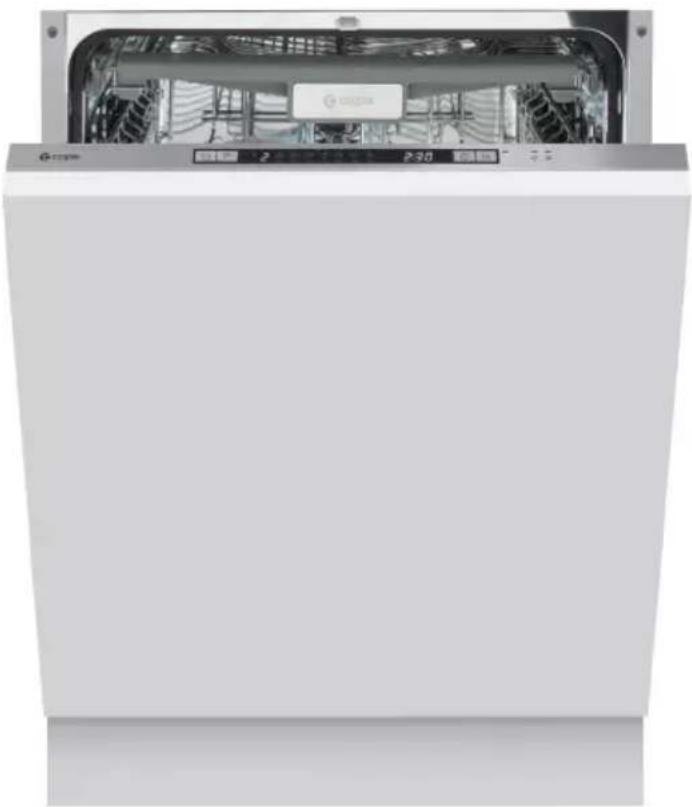

Front view of a white stainless steel multi-level dishwasher with visible control panel and ventilation system (no text or symbols)

CONTENTS

Safety	Instructions				3
Environmental Protection						8
Quick	Operation	Guide
Control	Panel				10
Product	Overview					1
Water	Softener				13
Loading the Salt into the Softner 14
Rinse	Aid	Dispenser			16

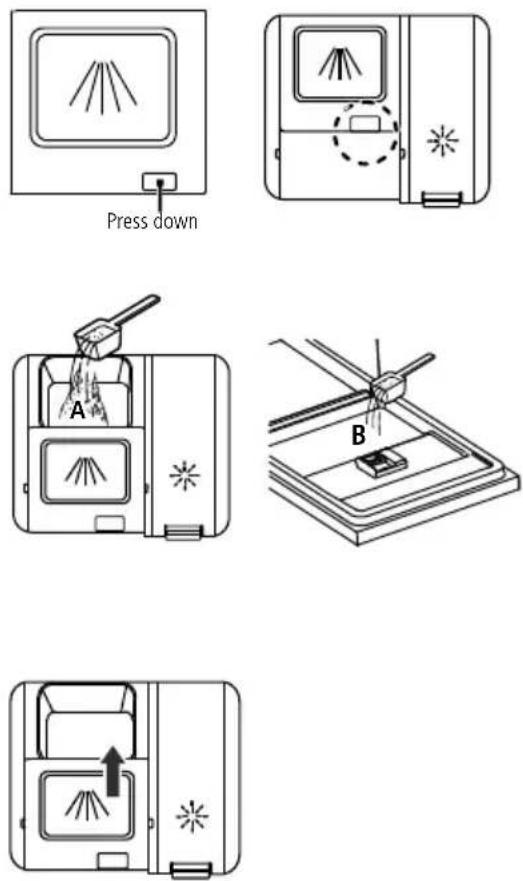

Detergent	Dispenser				18
Loading	the	Dishwasher	Baskets
Wash	Cycle	Table				27
Programming	the	Dishwasher			28
Auto-open				29
Cleaning	and	Maintenance				3
Installation	Instructions				35
Troubleshooting				44
Technical	Information			47
Caple	Contact	Details			48

SAFETY INSTRUCTIONS

- This appliance is intended to be used in household and similar applications such as:

Staff kitchen areas in shops, offices and other working environments.
Farm Houses.
By clients in hotels, motels and other residential type environments.
Bed and breakfast type environments.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

- This appliance is for indoor household use only.

- To protect against the risk of electrical shock, do not immerse the unit, cord or plug in water or other liquid.

- Please unplug before cleaning or performing maintenance on the appliance.

- Use a slightly moistened soft cloth with mild soap, and then use a dry cloth to wipe it again.

- This appliance must be earthed. In the event of a malfunction or breakdown, earthing will reduce the risk of an electric shock by providing a path of less resistance of electric current. This appliance is equipped with a cord having an equipment-earthing conductor and a grounding plug.

- The plug must be plugged into an appropriate outlet that is installed and earthed in accordance with all local codes and regulations.

- Improper connection of the equipment-earthing conductor can result in the risk of an electric shock.

- Check with a qualified electrician or Caple service representative if you are in doubt whether the appliance is properly grounded.

- Do not modify the plug provided with the appliance; If it does not fit the outlet.

- Have a proper outlet installed by a qualified electrician.

- Do not abuse, sit on, or stand on the door or dish rack of the dishwasher.

- Do not operate your dishwasher unless all enclosure panels are properly in place.

- Open the door very carefully when the dishwasher is operating, there is a risk of water squirting out.

• Do not place any heavy objects on or stand on the door when it is open. The appliance could tip forward.
• When loading items to be washed:

Locate sharp items so that they are not likely to damage the door seal.
Warning: Knives and other utensils with sharp points must be loaded in the basket with their points down or placed in a horizontal position.

• Check that the detergent powder is empty after completion of the wash cycle.
• Do not wash plastic items unless they are marked dishwasher safe or the equivalent.
• For plastic items not marked, check the manufacturer's recommendations.
• Use only detergent and rinse additives designed for an automatic dishwasher.
• Never use soap, laundry detergent, or hand washing detergent in your dishwasher.
• Children should be supervised to ensure that they do not play with the appliance.
• The door should not be left open, since this could increase the risk of tripping.
• The appliance may only be used with correctly adjusted door springs.

• If the supply cord is damaged, it must be replaced by Caple, its service agent or a similarly qualified person in order to avoid a hazard.

• During installation, the power supply must not be excessively or dangerously bent or flattened.

• The dishwasher must not be installed under a hob.
• Do not tamper with controls.
• The appliance is to be connected to the water mains using new hose sets and that old hose-sets should not be reused.
• To save energy, in stand by mode, the appliance will switch off automatically while there is no any operation in 30 minutes.

ELECTRICAL CONNECTION

WARNINGS:

• For personal safety:
• Do not use an extension cord or an adapter plug with this appliance.
• Do not, under any circumstances, cut or remove the earthing connection from the power cord.

ELECTRICAL REQUIREMENTS

- Please look at the rating label to know the rating voltage and connect the dishwasher to the appropriate power supply. Use the required 10 amp fuse, time delay fuse or circuit breaker recommended and provide separate circuit serving only this appliance.

ELECTRICAL CONNECTION

- Ensure the voltage and frequency of the power being corresponds to those on the rating label. Only insert the plug into an electrical socket which is earthed properly. If the electrical socket to which the appliance must be connected is not appropriate for the plug, replace the socket, rather than using a adapter as they could cause overheating and burns.

GROUNDING INSTRUCTIONS

- This appliance must be earthed. In the event of a malfunction or breakdown, earthing will reduce the risk of electric shock by providing a path of least resistance for the electric current. This appliance is equipped with a cord having an equipment-earthing conductor and an earthing plug. The plug must be plugged into an appropriate outlet that is installed and earthed in accordance with all local standards and requirements.

WARNING :

- Improper connection of the equipment grounding conductor can result in the risk of an electric shock. Check with a qualified electrician or service representative if you are in doubt whether the appliance is properly grounded. Do not modify the plug provided with the appliance; If it is not fit for the outlet. Have a proper outlet installed by a qualified electrician.

ENVIRONMENTAL PROTECTION

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. This appliance is marked according to the European Directive on Waste Electrical and Electronic Equipment (WEEE).

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The symbol on the product indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal.

For more detailed information about treatment, recovery and recycling of this product, please contact your local council, your household waste disposal service or the retailer where you purchased the product.

CE DECLARATIONS OF CONFORMITY CE

This appliance has been manufactured to the strictest standards and complies with all applicable legislation, Low Voltage Directive (LVD) and Electromagnetic Compatibility (EMC).

UKCA DECLARATIONS OF CONFORMITY UK CA

This appliance has been manufactured to the strictest standards and complies with all applicable legislation.

TECHNICAL FICHE

This appliance conforms to all current and applicable energy regulations. To view the Technical Fiche that supports the energy labelling data, please visit the product page on our website www.caple.co.uk

WARRANTY:

Your new appliance is covered by warranty. The warranty card is enclosed - if it is missing, you must provide the following information to your retailer in order to receive a replacement: date of purchase, model and serial number (placed on the inside of the appliance storage drawer).

Registration can also be completed online by visiting www.caple.co.uk.

Ensure you keep your warranty card safe, you may need to show it to Caple Service together with proof of purchase.

If you fail to show your warranty card you will incur all repair charges.

Spare parts are only available from Caple Service and spare parts authorised centres.

Pure diagram of a kitchen sink and drain system without any text, numbers, or symbols

1. Install the dishwasher.

Simple line drawing of a fish and a bowl with a droplet, no text or symbols present

1. Remove large food residue from plates and cutlery.

Diagram showing a series of vertical bars aligned horizontally within a rectangular frame, with an arrow pointing to the bottom (no text or symbols present)

1. Load the baskets.

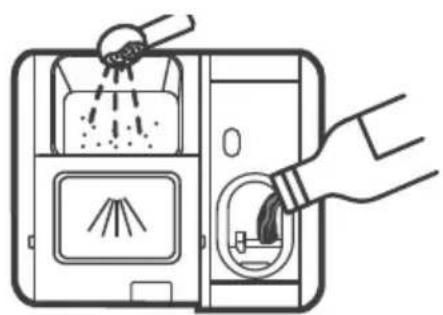

1. Fill the dispenser.

Simple line drawing of a kitchen appliance with sound waves (no text or symbols)

1. Select a programme and run the dishwasher.

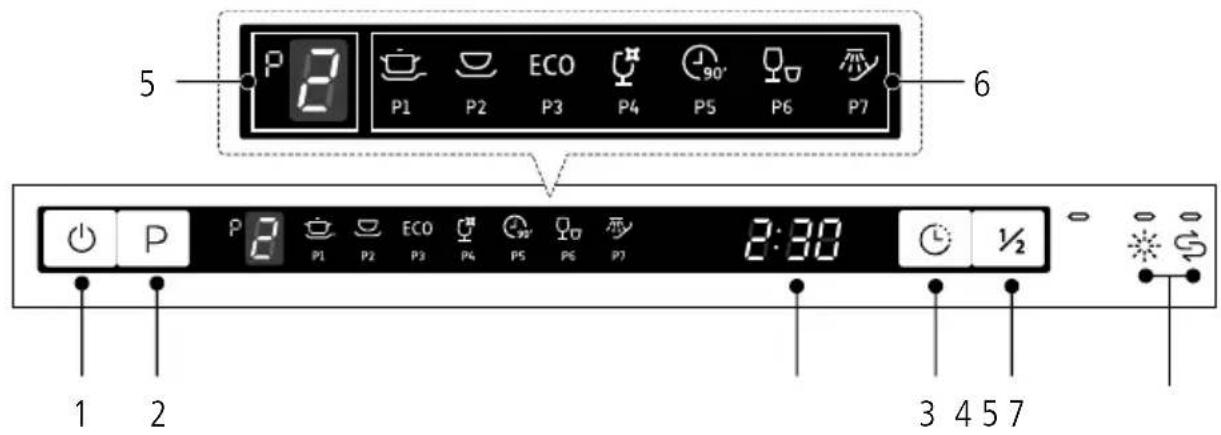

CONTROL PANEL

For detailed operating method read the corresponding content on the instruction manual.

IMPORTANT:

To get the best performance from your dishwasher, read all operating instructions before using it for the first time.

OPERATION (BUTTON)
1 - Power Press this button to turn on your dishwasher, the screen lights up.
2 - Programme	Press this button to toggle through and select the appropriate washing programme. The corresponding indicator will be lit.
3 - Delay	Press this button to set the delayed hours for washing. You can delay the start of washing up to 24 hours. One press on this button delays the start of washing by one hour.
4 - Half-load	For smaller loads, you can choose this function to save energy and water. NOTE: It can only be used with Intensive, Universal, ECO, Glass and 90 min.

DISPLAY
5 - Display Screen		To show the selected programme.
		To show the remaining time, delay time and error codes etc.
6 - Programme Screen		INTENSIVEHeavily soiled items include pots and pans. With dried on food.
		UNIVERSALFor normally soiled loads, such as pots, plates, glasses and lightly soiled pans.
		ECOThis is the standard programme suitable for normally soiled loads, such as pots, plates, glasses and lightly soiled pans.
		GLASSFor lightly soiled crockery and glass.
		90 MINFor normally soiled loads that need a quick wash.
		RAPIDA shorter wash for lightly soiled loads that do not need drying.
	[УЗК2]	PREWASHTo rinse dishes that you plan to wash later that day.
7 - Warning Indicator		RINSE AIDIf the “※” indicator is lit, it means the dishwasher is low on dishwasher rinse aid and requires a refill.
		SALTIf the “≦” indicator is lit, it means the dishwasher is low on dishwasher salt and needs to be refilled.

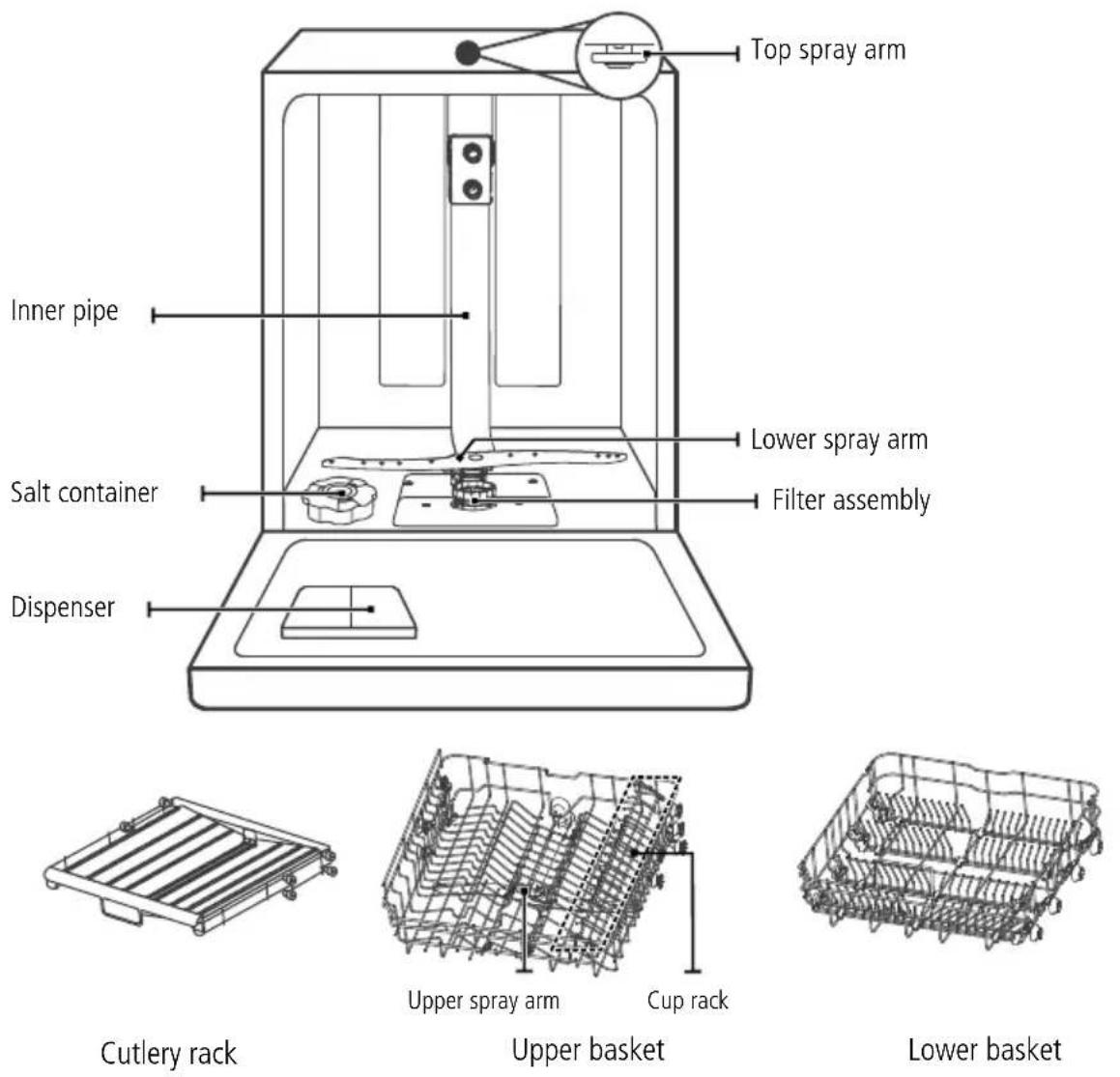

PRODUCT OVERVIEW

NOTE:

Images are for reference only.

PRIOR TO USING FOR THE FIRST TIME

Before using your dishwasher for the first time:

Set the water softener.
Add 1.5Kg dishwasher salt and then fill the salt container with water.
Fill the Rinse Aid dispenser.
Fill in detergent.

The water softener must be set manually, using the water hardness dial.

The water softener is designed to remove minerals and salts from the water, which would have a detrimental or adverse effect on the operation of the appliance.

The higher the content of these minerals and salts, the harder your water is.

The softener should be adjusted according to the hardness of the water in your area. Your local Water Authority can advise you on the hardness of the water in your area.

ADJUSTING SALT CONSUMPTION

The dishwasher is designed to allow for adjustment in the amount of salt consumed based on the hardness of the water used. This is intended to optimise and customise the level of salt consumption.

Please follow the steps below for adjustment in salt consumption:

1. Open the door and Switch on the appliance.
2. Press the Programme button for more than 5 seconds to start the water softener setting within 60 seconds after the appliance was switched on (The Salt and Rinse Aid warning lights will be on periodically when it is in this setting mode).
3. Press the Programme button to select the proper setting according to your local environment, the settings will change in the following sequence: H1→H2→H3→H4→H5→H6
4. Press the Power button to end the set up mode.

WATER HARDNESS WATER				SOFTENER LEVEL	SALT CONSUMPTION (GRAM/CYCLE)
GERMAN °DH	FRENCH °FH	BRITISH °CLARKE	MMOL/L
0~5 0~9 0~6 0~	0.94 H1 0
6-11 10-20 7-14	1.0-2.0	H2 9
12-17	21-30 15-21	2.1-3.0	H3 12
18-22	31-40 22-28	3.1-4.0	H4 20
23-34	41-60 29-42	4.1-6.0	H5 30
35-55	61-98 43-69	6.1-9.8	H6 60

^ dH=1.25 ^ Clarke=1 1.78 ^ fH=0.178mmol/l
The manufactory setting: H3

Contact your local water board for information on the hardness of your water supply.

NOTE:

The hardness of the water varies from place to place. If hard water is used in the dishwasher, deposits will form on the dishes and utensils.

The appliance is equipped with a special softener that uses a salt container specifically designed to eliminate lime and minerals from the water.

LOADING THE SALT INTO THE SOFTENER

Always use salt intended for use with dishwashers.

The salt container is located beneath the lower basket and should be filled as explained in the following:

ATTENTION:

Only use salt specifically designed for the use in dishwasher. Every other type of salt not specifically designed for the use in a dishwasher, especially table salt, will damage the water softener. In case of damages caused by the use of unsuitable salt the manufacturer does not give any warranty nor is liable for any damages caused.
Only fill with salt just before running a cycle. This will prevent any grains of salt or salty water, which may have been spilled, remaining on the bottom of the machine for any period of time, which may cause corrosion.

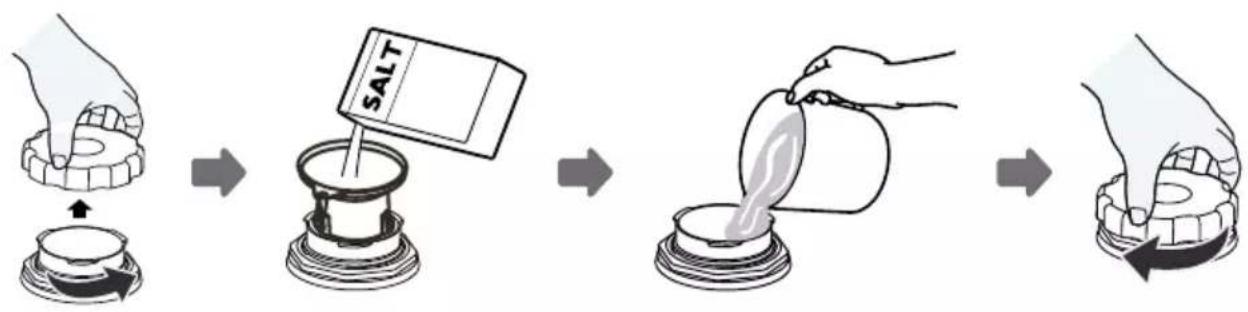


1. Remove the lower basket and unscrew the reservoir cap.
2. Place the end of the funnel (supplied) into the hole and pour in about 1.5kg of dishwasher salt.
3. Fill the salt container to its maximum limit with water, It is normal for a small amount of water to come out of the salt container.
4. After filling the container, screw back the cap tightly.
5. The salt warning light will turn off after the salt container has been filled with salt.
6. Immediately after filling the salt into the salt container, a washing programme should be started (we suggest to use a short programme). Otherwise the filter system, pump or other important parts of the machine may be damaged by salty water.

NOTE:

The salt container must only be refilled when the salt warning light (⇨) in the control panel comes on. Depending on how well the salt dissolves, the salt warning light may still be on even though the salt container is filled.

If salt has spilled, run a soak or quick programme to remove it.

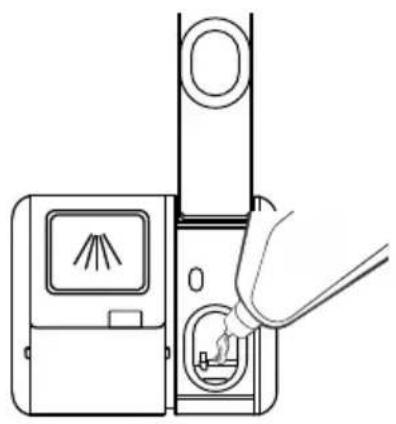

RINSE AID DISPENSER

The Rinse Aid is released during the final rinse to prevent water from forming droplets on your dishes, which can leave spots and streaks. It also improves drying by allowing water to roll off the dishes. Your dishwasher is designed to use liquid Rinse Aids.

FUNCTION OF RINSE AID

Rinse Aid is automatically added during the last rinse, ensuring thorough rinsing, and spot and streak free drying.

ATTENTION:

Only use branded Rinse Aid for dishwasher. Never fill the Rinse Aid dispenser with any other substances (e.g. Dishwasher cleaning agent, liquid detergent). This would damage the appliance.

WHEN TO REFILL THE RINSE AID DISPENSER

The regularity of the dispenser needing to be refilled depends on how often dishes are washed and the rinse aid setting used.

The Low Rinse Aid indicator (※) will be lit when more rinse aid is needed.
Do not overfill the rinse aid dispenser.

FILL THE RINSE AID DISPENSER

Simple line drawing of a door with a window and starburst symbol, no text or labels present

1. Remove the rinse reservoir cap by lifting up the handle.

Line drawing of a device with a screen and handle, showing internal components (no text or symbols)

1. Pour the rinse aid into the dispenser, being careful not to overfill.

Hand pressing a button on a device with a screen and scroll (no text or symbols visible)

1. Close the cap.

ADJUST RINSE AID DISPENSER

To achieve a better drying performance with limited rinse aid, the dishwasher is designed to adjust the consumption by user. Follow the below steps.

1. Open the door, switch on the appliance.
2. Within 60 seconds after step 1, press the Programme button for more than 5 seconds, and then press the Delay button, the rinse aid light will blink.
3. Press the Programme button to select your desired setting. The settings will change in the following sequence: D1->D2->D3->D4->D5->D1. The higher the number, the more rinse aid the dishwasher uses.
4. If there is no operation for 5 seconds, the setting will be successful.

NOTE:

Press the power button to cancel the setting.

DETERGENT DISPENSER

FUNCTION OF DETERGENT

The chemical ingredients that compose the detergent are necessary to remove, crush and dispense all dirt out of the dishwasher. Most of the commercial quality detergents are suitable for this purpose.

ATTENTION:

Proper Use of Detergent: Use only detergent specifically made for the use in dishwashers. Keep your detergent fresh and dry. Don't put powdered detergent into the dispenser until you're ready to wash dishes.

DETERGENTS

There are 3 sorts of detergents:

1. With phosphate and with chlorine
2. With phosphate and without chlorine
3. Without phosphate and without chlorine

Normally new powdered detergent is without phosphate. Thus the water softener function of phosphate is not given. In this case we recommend to fill salt in the salt container even when the hardness of water is only 6 dH. If detergents without phosphate are used in the case of hard water often white spots appear on dishes and glasses. In this case please add more detergent to reach better results. Detergents without chlorine do only bleach a little. Strong and coloured spots will not be removed completely. In this case please choose a programme with a higher temperature.

DETERGENT TABLETS

Detergent tablets of different brands dissolve at different speeds. For this reason some detergent tablets cannot dissolve and develop their full cleaning power during short programmes. Therefore please use long programmes when using detergent tablets, to ensure the complete removal of detergent residuals.

DETERGENT DISPENSER

The dispenser must be refilled before the start of each wash cycle following the instructions provided in the wash cycle table. Your dishwasher uses less detergent and Rinse Aid than conventional dishwashers. Generally, only one tablespoon of detergent is needed for a normal wash load. More heavily soiled items need more detergent. Always add the detergent just before starting the dishwasher, otherwise it could get damp and will not dissolve properly.

NOTE:

Only use branded detergent aid for dishwasher.

WARNING:

Dishwasher detergent is corrosive.

Take care to keep it out of reach of children.

FILL THE DETERGENT DISPENSER

1. Open the cap by pressing down the release catch.

2. Add detergent into the larger cavity (A) for the main wash cycle. For better cleaning result, especially if you have very dirt items, pour a small amount of detergent onto the door.

The additional detergent will activate during the pre-wash phase.

1. Close the flap by sliding it to the front and then pressing it down.

NOTE:

Be aware that depending on the soiling of water, setting may be different.
Please observe the manufacturer's recommendations on the detergent packaging.

LOADING THE DISHWASHER BASKETS

RECOMMENDATION

Consider buying utensils which are identified as dishwasher-proof.
Use a mild detergent that is described as 'kind to dishes'. If necessary, seek further information from the detergent manufacturers.
For particular items, select a programme with as low a temperature as possible.
To prevent damage, do not take glass and cutlery out of the dishwasher immediately after the programme has ended.

THE FOLLOWING CUTLERY / DISHES:

ARE NOT SUITABLE

Cutlery with wood, horn china or mother-of-pearl handles.
Plastic items that are not heat resistant.
Older cutlery with glued parts that are not temperature resistant.
Bonded cutlery items or dishes.
Pewter or copper items.
Crystal glass.
Steel items subject to rusting.
Wooden platters.
Items made from synthetic fibres.

ARE OF LIMITED SUITABILITY

Some types of glasses can become dull after a large number of washes.
Silver and aluminium parts have a tendency to discolour during washing.
Glazed patterns may fade if machine washed frequently.

RECOMMENDATIONS FOR LOADING THE DISHWASHER

Scrape off any large amounts of leftover food. Soften remnants of burnt food in pans. It is not necessary to rinse the dishes under running water. For best performance of the dishwasher, follow these loading guidelines.

Place objects in the dishwasher in the following way:

Items such as cups, glasses, pots/pans, etc. are faced downwards.
Curved items, or ones with recesses, should be loaded aslant so that water can run off.
All utensils are stacked securely and can not tip over.
All utensils are placed in the way that the spray arms can rotate freely during washing.
Load hollow items such as cups, glasses, pans etc. With the opening facing downwards so that water cannot collect in the container or a deep base.
Dishes and items of cutlery must not lie inside one another, or cover each other.
To avoid damage to glasses, they must not touch.
Load large items which are most difficult to clean into the lower basket.
The upper basket is designed to hold more delicate and lighter dishwasher such as glasses, coffee and tea cups.
Long bladed knives stored in an upright position are a potential hazard.
Long and/or sharp items of cutlery such as carving knives must be positioned horizontally in the upper basket.
Please do not overload your dishwasher. This is important for good results and for reasonable consumption of energy.

NOTE:

Very small items should not be washed in the dishwasher as they could easily fall out of the basket.

REMOVING THE DISHES

To prevent water dripping from the upper basket into the lower basket, we recommend that you empty the lower basket first and then the upper basket.

WARNING:

Items will be hot.

To prevent damage, do not take glass and cutlery out of the dishwasher for around 15 minutes after the programme has ended.

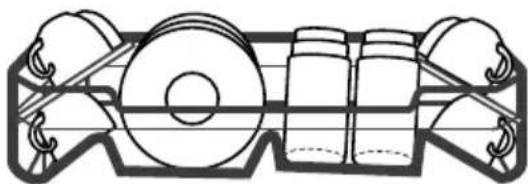

LOADING THE UPPER BASKET

The upper basket is designed to hold more delicate and lighter dishwasher such as glasses, coffee and tea cups and saucers, as well as plates, small bowls and shallow pans (as long as they are not too dirty). Position the dishes and cookware so that they will not get moved by the spray of water.

Technical line drawing of a mechanical assembly with rollers and housing (no text or symbols)

Please be reminded that:

Pots, serving bowls, etc., must always be placed top down.
Deep pots should be slanted to allow water to flow out.
The bottom basket features folding spikes so that larger or more pots and pans can be loaded.

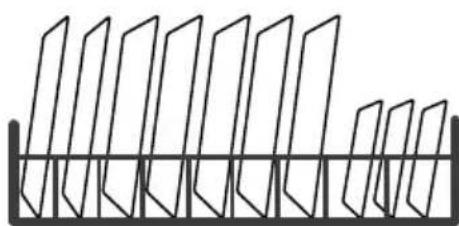

LOADING THE LOWER BASKET

We suggest that you place large items and the most difficult to clean items into the lower basket: such as pots, pans, lids, serving dishes and bowls, as shown in the figure (right). It is preferable to place serving dishes and lids on the side of the racks in order to avoid blocking the rotation of the top spray arm. The maximum diameter advised for plates in front of the detergent dispenser is of 19cm, this is to not hamper the opening of it.

Pure diagram of vertical panels arranged in a grid pattern without any text, numbers, or symbols

LOADING THE CUTLERY TRAY

Cutlery should be placed in the cutlery rack separately from each other in the appropriate positions, and do make sure the utensils do not nest together, this may cause bad washing performances.

LOADING THE BASKETS:

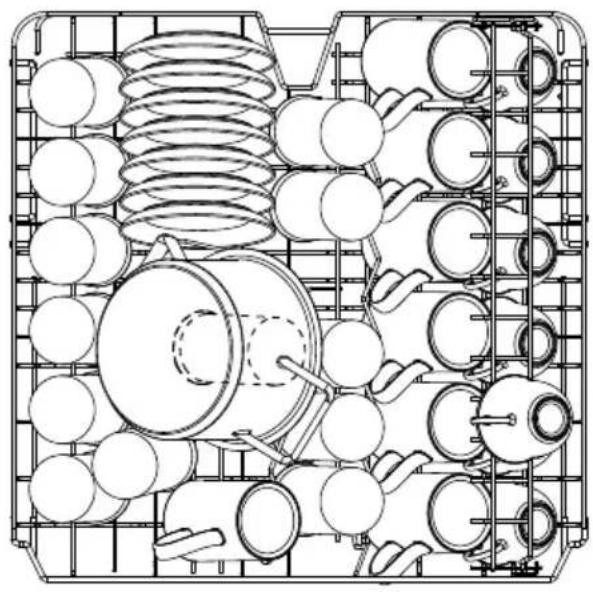

1. Upper Basket

Technical line drawing of a mechanical assembly with multiple components and no visible text or symbols

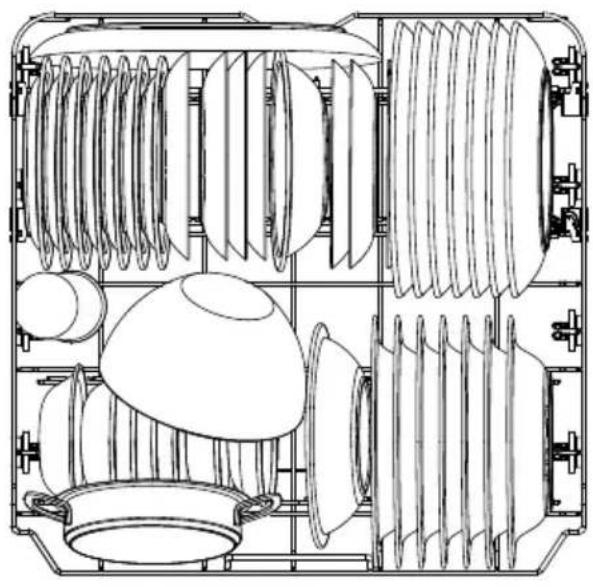

2. Lower Basket

Technical line drawing of a mechanical assembly with multiple spring-like components and housing (no text or symbols)

NUMBER ITEM
1 Cups
2 Saucers
3 Glasses
4 Mugs
5 Small pot

NUMBER ITEM
6 Oven pot
7 Dessert plates
8 Dinner plates
9 Soup plates
10 Oval platter
11	Melamine dessert plates
12	Melamine bowls
13	Glass bowl
14	Dessert bowls

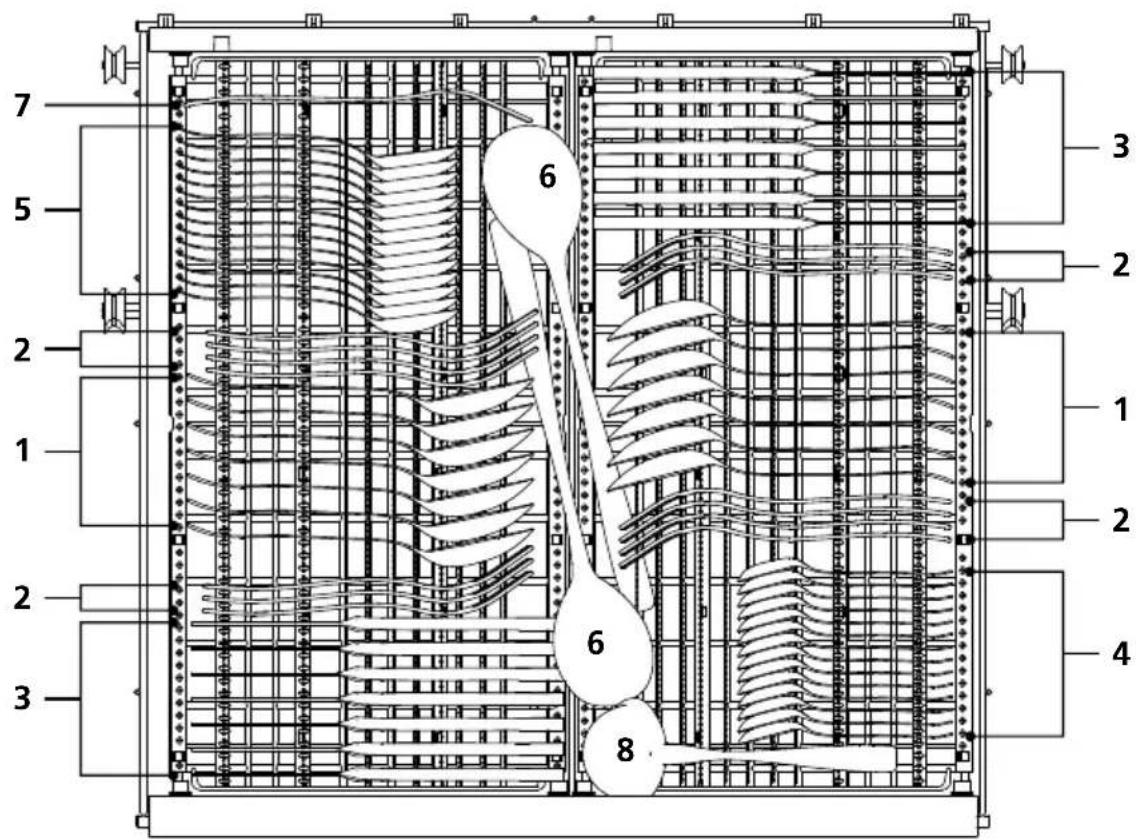

CUTLERY RACK

1. Soup spoons 5. Dessert spoons
2. Forks 6. Serving spoons
3. Knives 7. Serving forks
4. Teaspoons 8. Gravy ladle

Four different types of kitchen utensils arranged vertically (no text or symbols visible)

The information for comparability test in accordance with EN 60436, as follows:

Capacity: 14 settings
Position Upper basket: lower position
Rinse Aid setting: MAX
Softener Setting: H3
Programme: ECO

BASKET TIPS

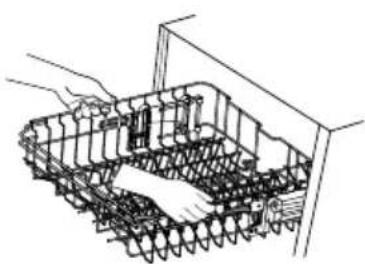

ADJUSTING THE UPPER BASKET

The height of the upper basket can be easily adjusted to accommodate taller dishes in either the upper or lower basket.

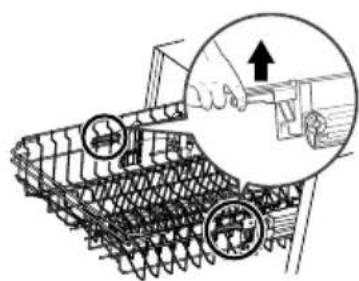

To adjust the height of the upper rack, follow these steps:

Line drawing of a mechanical assembly with spring-loaded components and a handle (no text or symbols)

1. To raise the rack to the upper position, lift rack until both sides are at the same height. The rack will secure into place.

1. To lower the rack, pull on the handles and push the rack down.

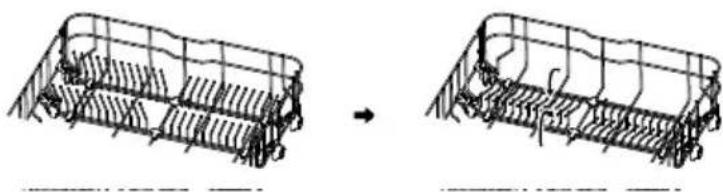

To make room for taller items in the dishwasher basket, raise the cup rack upwards. You can then lean the tall glasses against it. You can also remove it when it is not required for use.

Diagram showing two mechanical assembly stages with rotating components and a directional arrow (no text or symbols)

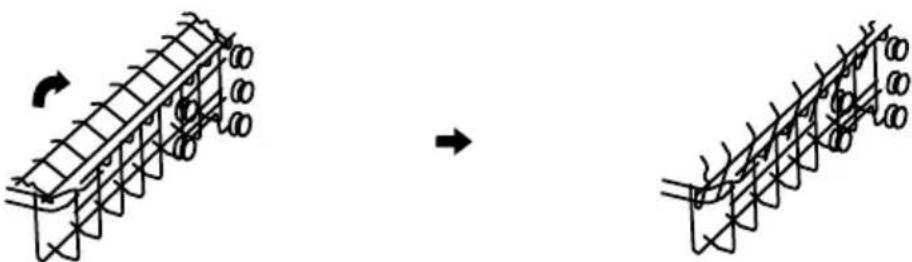

The spikes are used for holding plates and a platter. They can be lowered to make more room for large items.

Raise Upwards Fold Downwards

Diagram showing two stages of a mechanical or structural assembly, with no visible text or symbols.

CUTLERY RACK TIPS

3D rendering of a rectangular tray with internal grid structure (no text or symbols)

Left basket is flat and right basket is sloping.

Two identical diagrams showing a grid structure before and after transformation, with no text or symbols present.

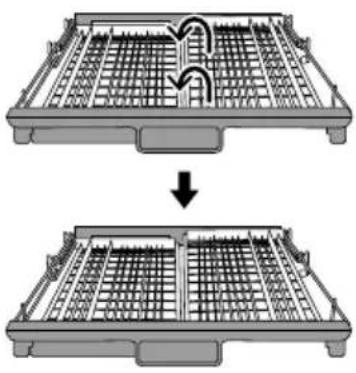

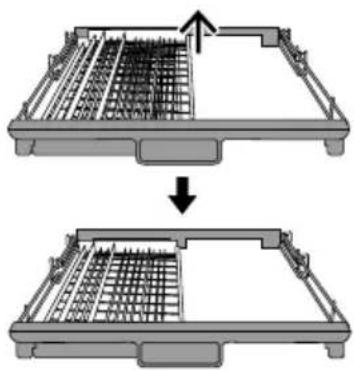

Lift the right basket up, both left and right baskets are flat.

Diagram showing two views of a grid-patterned rack or tray structure with an arrow indicating direction (no text or symbols present)

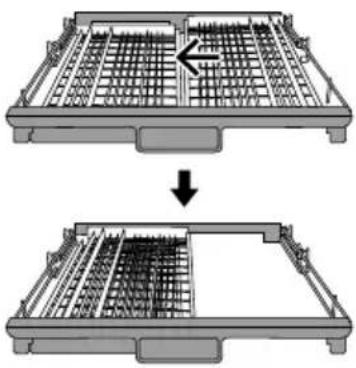

Move the right basket from right to left, two basket are overlapping. This creates more space for the upper basket below, for taller glasses etc.

Diagram showing two views of a mechanical component with grid patterns, one increasing and the other decreasing (no text or symbols)

Remove the right basket from the tray.

PROGRAMME	DESCRIPTION OF CYCLE	DETERGENT PRE/MAIN	RUNNING TIME (MIN)	ENERGY (KWH)	WATER (L)	RINSE AID
[ZSWY]INTENSIVE	Pre-wash(50°C)Wash (65°C)RinseRinseRinse(60°C)Drying	4/18g1 or 2 pieces	205 1.651	18.7		★
[WSXT]UNIVERSAL	Prewash (45°C)Wash (55°C)RinseRinseRinse (60°C)Drying	4/18g1 or 2 pieces	175 1.451	18.7		★
ECO(*EN 60436)	Wash (50°C)RinseRinse (50°C)Drying	4/18g1 or 2 pieces	198 0.824	11		★
[THWV]GLASS	Pre-wash (40°C)Wash (50°C)RinseRinse (50°C)Drying	4/18g1 or 2 pieces	120 0.902	15.2		★
[20PX]90 MIN	Wash (55°C)RinseRinse (50°C)Drying	22g1 piece	90	1.891 11.5		★
[SDYA]RAPID	Wash (40°C)Rinse (40°C)Rinse (55°C)	12g1 piece	30	0.781	11
[S4VWR]PREWASH	Prewash	/	15	0.021	4

★ Fill Rinse Aid into the dispenser
EN 60436: This programme is the test cycle. The information for comparability test in accordance with EN 60436.

PROGRAMMING THE DISHWASHER

STARTING A WASH CYCLE:

Draw out the lower and upper basket, load the dishes and push them back. It is commended to load the lower basket first, then the upper one.
Pour in the detergent.
Insert the plug into the socket. The power supply is 230 VAC /50 HZ, the specification of the socket is 10A 250VAC. Make sure that the water supply is turned on to full pressure.
Open the door, Press the Power button.
Choose a programme, the response light will turn on. Then close the door, the dishwasher will start its cycle.

CHANGE THE PROGRAMME

A wash cycle can only be changed if it has been running for a short time otherwise, the detergent may have already been released and the dishwasher may have already drained the wash water. If this is the case, the dishwasher needs to be reset and the detergent dispenser must be refilled. To reset the dishwasher, follow the instructions below:

Open the door a little to stop the dishwasher, after the spray arm stop working, you can open the door completely.
Press and hold the Programme button for 3-5 seconds. The machine will enter stand by mode.
You can then change the Programme to the desired cycle setting.

FORGOT TO ADD A DISH

A forgotten dish can be added any time before the detergent dispenser opens.

If this is the case, follow the instructions below:
Open the door a little to stop the washing.
After the spray arms stop working, you can open the door completely.
Add the forgotten dishes.
Close the door.
The dishwasher will start running again.

WARNING:

It is dangerous to open the door mid-cycle, as hot steam may scald you.

After washing, the door will open automatically to achieve a better drying effect.

NOTE:

The dishwasher door must not be blocked when set to open automatically. This can disrupt door lock functionality.

Wait for a few minutes before unloading the dishwasher to avoid handling the dishes and utensils while they are still hot and more susceptible to breakage. They will also dry better.

UNLOADING THE DISHWASHER

It is normal that the dishwasher is wet inside.

Empty the lower basket first and then the upper one. This will avoid water dripping from the upper basket onto the dishes in the lower one.

CLEANING AND MAINTENANCE

FILTERING SYSTEM

The filter prevents larger remnants of food or other objects from getting inside the pump. The residues may block the filter, in this case they must be removed.

The filter system consists of a coarse filter, a flat (Main filter) and a microfilter (Fine filter).

Technical illustration of a mechanical component with a spring and cylindrical base (no text or symbols)

1. COARSE FILTER

Larger items, such as pieces of bones or glass, that could block the drain are trapped in the coarse filter. To remove items caught by the coarse filter, gently squeeze the tabs on the top of the filter and lift out.

2. MAIN FILTER

Food and soil particles trapped in this filter are pulverised by a special jet on the lower spray arm and washed down the drain.

3. FINE FILTER

This filter holds soil and food residues in the sump area and prevents it from being deposited on the dishes during wash cycle.

FILTER ASSEMBLY

The filter efficiently removes food particles from the wash water, allowing it to be recycled during the cycle. For best performance and results, the filter must be cleaned regularly. For this reason, it is a good idea to remove the larger food particles trapped in the filter after each wash cycle by rinsing the semicircular filter and cup under running water. To remove the filter device, turn the filter anti-clockwise and pull the filter in the upwards direction.

NOTE:

The entire filter assembly should be cleaned once a week.

CLEANING THE FILTER

Technical diagram of a mechanical component with labeled 'Open' and directional arrows indicating internal flow (no text or symbols beyond label)

1. Hold the coarse filter and rotate it anticlockwise to unlock the filter. Lift the filter upwards and out of the dishwasher.

1. The fine filter can be pulled off the bottom of the filter assembly. The coarse filter can be detached from the main filter by gently squeezing the tabs at the top and pulling it away.

Illustration of a hand using a tool to clean or spray liquid from a surface, with no visible text or symbols.

1. Larger food remnants can be cleaned by rinsing the filter under running water. For a more thorough clean, use a soft cleaning brush.

Technical diagram of a mechanical assembly with internal components and directional arrows (no text or symbols)

1. Reassemble the filters in the reverse order of the disassembly, replace the filter insert, and rotate clockwise to the close arrow.

WARNING:

Improper replacement of the filter may reduce the performance level of the appliance and damage dishes and utensils.
The dishwasher must never be used without the filters.
Do not over tighten the filters. Put the filters back in sequence securely, otherwise coarse debris could get into the system and cause a blockage.

CONTROL PANEL AND EXTERIOR

The control panel can be cleaned by using a lightly dampened cloth only. After cleaning, make sure to dry it thoroughly.

For the exterior, use a good appliance polish wax. Never use sharp objects, scouring pads or harsh cleaners on any part of the dishwasher.

CLEANING THE DOOR AND DOOR SEAL

Clean the door seals regularly with a soft damp cloth to remove food deposits. When the dishwasher is being loaded, food and drink residues may drip onto the sides of the dishwasher door. These surfaces are outside the wash cabinet and are not accessed by water from the spray arms. Any deposits should be wiped off before the door is closed.

WARNING:

Never use a spray cleaner to clean the door panel as it may damage the door lock and electrical components.
Abrasive agents or some paper towels should not be used because of the risk of scratching or leaving spots on the stainless steel surface.

PROTECT AGAINST FREEZING

Please take frost protection measures on the dishwasher in winter. After every wash cycle please operate as follows:

1. Cut off the electrical power to the dishwasher.
2. Turn off the water supply and disconnect the water inlet pipe from the water valve.
3. Drain the water from the inlet pipe and water valve. (Use a pan to gather the water).
4. Reconnect the water inlet pipe to the water valve.
5. Remove the filter at the bottom of the dishwasher and use a sponge to soak up water in the sump.

NOTE:

If your dishwasher cannot work because of the ice build up, please contact a qualified plumber or serviceman.

CLEANING THE SPRAY ARMS

To clean the spray arms, follow the instructions below:

Technical illustration of an early airplane with structural components and a magnified inset showing the engine (no text or symbols present)

1. To remove the upper spray arm, hold the nut in the center still and rotate the spray arm counterclockwise to remove it.

Illustration of a hand using a propeller to lift a small mechanical component (no text or symbols visible)

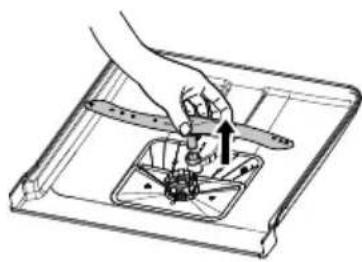

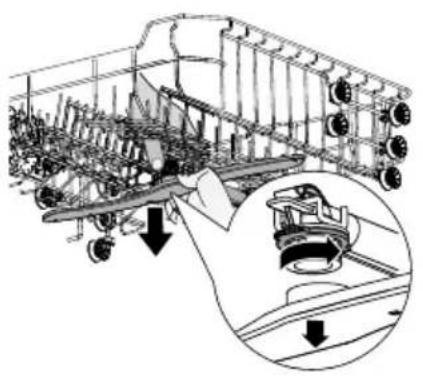

1. To remove the lower spray arm, pull out the spray arm upward.

Illustration of hands using a tool to clean or spray the kitchen sink (no text or symbols)

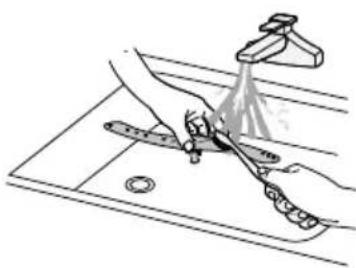

1. Wash the arms in soapy and warm water and use a soft brush to clean the jets. Replace them after rinsing them thoroughly.

HOW TO KEEP YOUR DISHWASHER IN SHAPE AFTER EVERY WASH

After every wash, turn off the water supply to the appliance and leave the door slightly open so that moisture and odours are not trapped inside.

REMOVE THE PLUG

Before cleaning or performing maintenance, always remove the plug from the socket.

NO SOLVENTS OR ABRASIVE CLEANING

To clean the exterior and rubber parts of the dishwasher, do not use solvents or abrasive cleaning products. Only use a cloth with warm soapy water. To remove spots or stains from the surface of the interior, use a cloth dampened with water and a little vinegar, or a cleaning product made specifically for dishwashers.

WHEN NOT IN USE FOR A LONG TIME

It is recommend that you run a wash cycle with the dishwasher empty and then remove the plug from the socket, turn off the water supply and leave the door of the appliance slightly open. This will help the door seals to last longer and prevent odours from forming within the appliance.

MOVING THE APPLIANCE

If the appliance must be moved, try to keep it in the vertical position. If absolutely necessary, it can be positioned on its back.

SEALS

One of the factors that causes odours to form in the dishwasher is food that remains trapped in the seals. Periodic cleaning with a damp sponge will prevent this from occurring.

INSTALLATION INSTRUCTIONS

ATTENTION:

We strongly recommend the installation of the pipes and electrical connections should be made by a qualified engineer or similarly qualified professional.

WARNING:

Electrical Shock Hazard. Disconnect electrical power before installing dishwasher. Failure to do so can result in death or electrical shock.

INSTALLATION PREPARATION

The installation position of dishwasher should be near the existing inlet and drain hoses and power cord. One side of the cabinet sink should be chosen to facilitate the connection of drain hoses of the dishwasher.

NOTE:

Please check the accompanying installation accessories (fixing for aesthetic door panel).

ELECTRICAL CONNECTION

WARNING:

For personal safety:

Do not use an extension cord or an adapter plug with this appliance.
Do not, under any circumstances, cut or remove the earthing connection from the power cord.

ELECTRICAL REQUIREMENTS

Please look at the rating label to know the rating voltage and connect the dishwasher to the appropriate power supply. Use the required 10 amp fuse, time delay fuse or circuit breaker recommended and provide separate circuit serving only this appliance.

ELECTRICAL CONNECTION

Ensure the voltage and frequency of the power corresponds to those on the rating label. Only insert the plug into an electrical socket which is earthed properly. If the electrical socket to which the appliance must be connected is not appropriate for the plug, replace the socket, rather than using an adapter as they could cause overheating and burns.

GROUNDING INSTRUCTIONS

This appliance must be earthed. In the event of a malfunction or breakdown, earthing will reduce the risk of electric shock by providing a path of least resistance for the electric current. This appliance is equipped with a cord having an equipment-earthing conductor and an earthing plug.

The plug must be plugged into an appropriate outlet that is installed and earthed in accordance with all local standards and requirements.

WARNING:

Improper connection of the equipment grounding conductor can result in the risk of an electric shock. Check with a qualified electrician or service representative if you are in doubt whether the appliance is properly grounded. Do not modify the plug provided with the appliance, if it is not fit for the outlet. Have a proper outlet installed by a qualified electrician.

ATTENTION:

After installation, please make sure to keep this manual. The content of this manual is very helpful to the users.

WATER SUPPLY AND DRAIN

COLD WATER CONNECTION

Connect the cold water supply hose to a threaded 3/4 inch connector and make sure that it is fastened tightly in place. If the water pipes are new or have not been used for an extended period of time, let the water run to make sure that the water is clear. This precaution is needed to avoid the risk of the water inlet to be blocked and damaged.

Line drawing of hands holding a pipe fitting with a handle (no text or symbols)

ordinary supply hose

CONNECTION OF DRAIN HOSES

Insert the drain hose into a drain pipe with a minimum diameter of 4cm, or let it run into the sink, making sure to avoid bending or crimping it. The height of drain pipe must be less than 100cm. The free end of the hose must not be immersed in water to avoid the back flow of it.

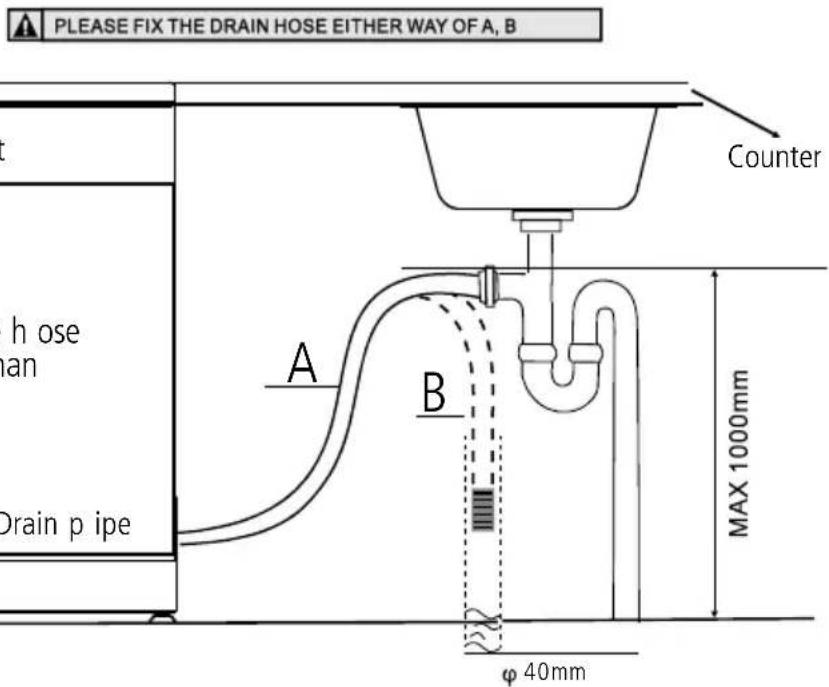

HOW TO DRAIN EXCESS WATER FROM THE HOSE

If the sink is higher than 100cm from the floor, the excess water in hoses cannot be drained directly into the sink. It will be necessary to drain excess water from hoses into a bowl or suitable container that is held outside and lower than the sink.

WATER OUTLET

Connect the water drain hose. The drain hose must be correctly fitted to avoid water leaks. Ensure that the water drain hose is not kinked or squashed.

EXTENSION HOSE

If you need a drain hose extension, make sure to use a similar drain hose. It must be no longer than 4 metres; otherwise the cleaning effect of the dishwasher could be reduced.

SYPHON CONNECTION

The waste connection must be at a height less than 100cm (maximum) from the bottom of the dishwasher. The water drain hose should be fixed.

POSITION THE APPLIANCE

Position the appliance in the desired location. The back should rest against the wall behind it, and the sides, along the adjacent cabinets or walls. The dishwasher is equipped with water supply and drain hoses that can be positioned either to the right or the left sides to facilitate proper installation.

STEP 1:

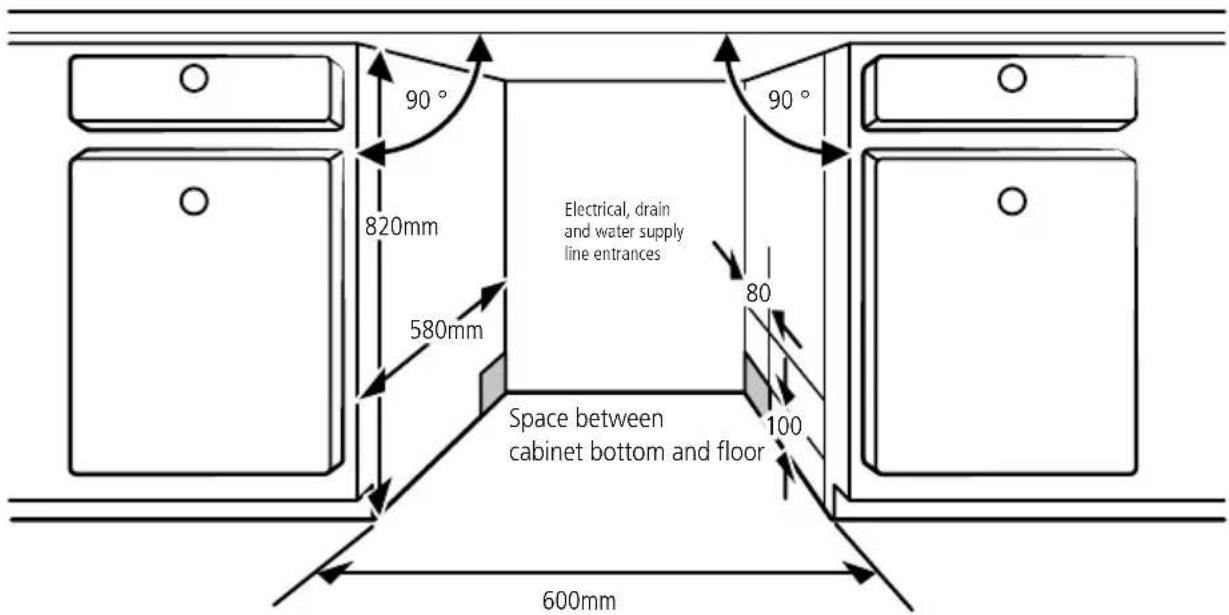

SELECTING THE BEST LOCATION FOR THE DISHWASHER

The installation position of dishwasher should be near the existing inlet and drain hoses and power cord. Illustrations of cabinet dimensions and installation position of the dishwasher:

Less than 5mm between the top of dishwasher and cabinet and the outer door aligned to cabinet.

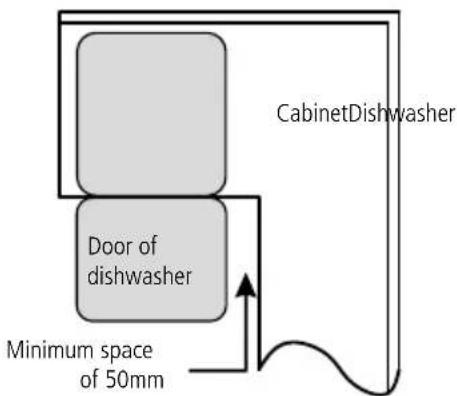

If dishwasher is installed at the corner of the cabinet, there should be a gap of at least 50mm when the door is opened to the adjacent cabinets.

NOTE:

Depending on where your electrical outlet is, you may need to cut a hole in the opposite cabinet side.

STEP 2:

Furniture door panel's dimensions and installation.

NOTE:

The furniture door weight should be 5-7KG.

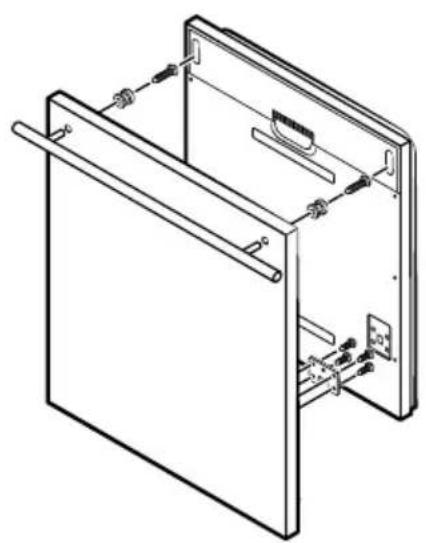

Install the hook on the furniture door panel and put the hook into the slot of the outer door of dishwasher (see figure A). After positioning of the panel, fix the panel onto the outer door by screws and bolts (See figure B).

Technical line drawing of a cabinet or enclosure with internal components and mounting brackets (no text or symbols)

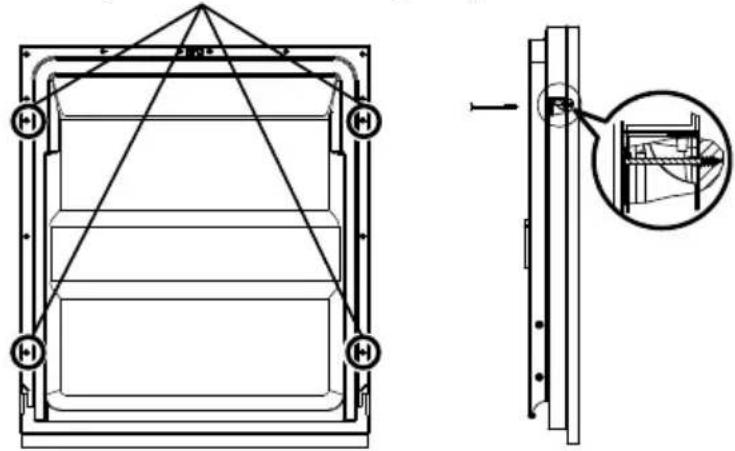

1. Take away the four short screwsFig.A Fig.B


Technical line drawing of a structural frame with triangular supports and an inset showing a magnified detail of a mechanical component (no text or symbols present)

1. Insert the four long screws

STEP 3:

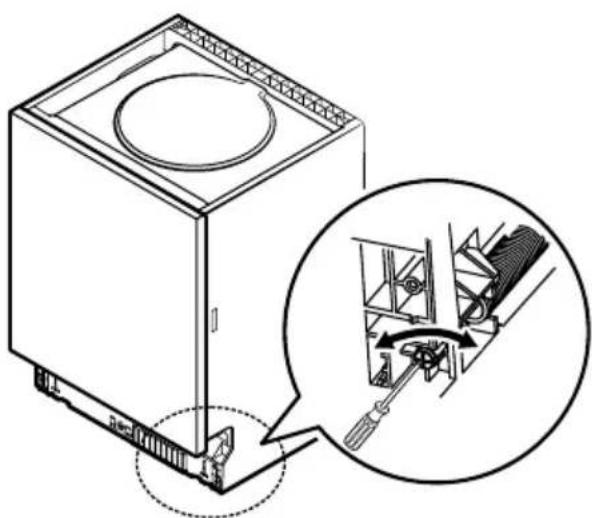

Tension adjustment of the door spring:

The door springs are set at the factory to the tension of the outer door. Once the furniture door panel is installed, you will have to adjust the door spring tension. Rotate the adjusting screw to drive the adjustor to strain or relax the steel cable.
The door spring tension is correct when the door remains horizontal in the fully opened position, yet rises to a close with the slight lift of a finger.

Technical line drawing of a refrigerator with an inset showing internal components (no text or symbols)

NOTE:

It is important to correctly adjust the door tension to ensure the door does not open too far at the end of the cycle.

STEP 4:

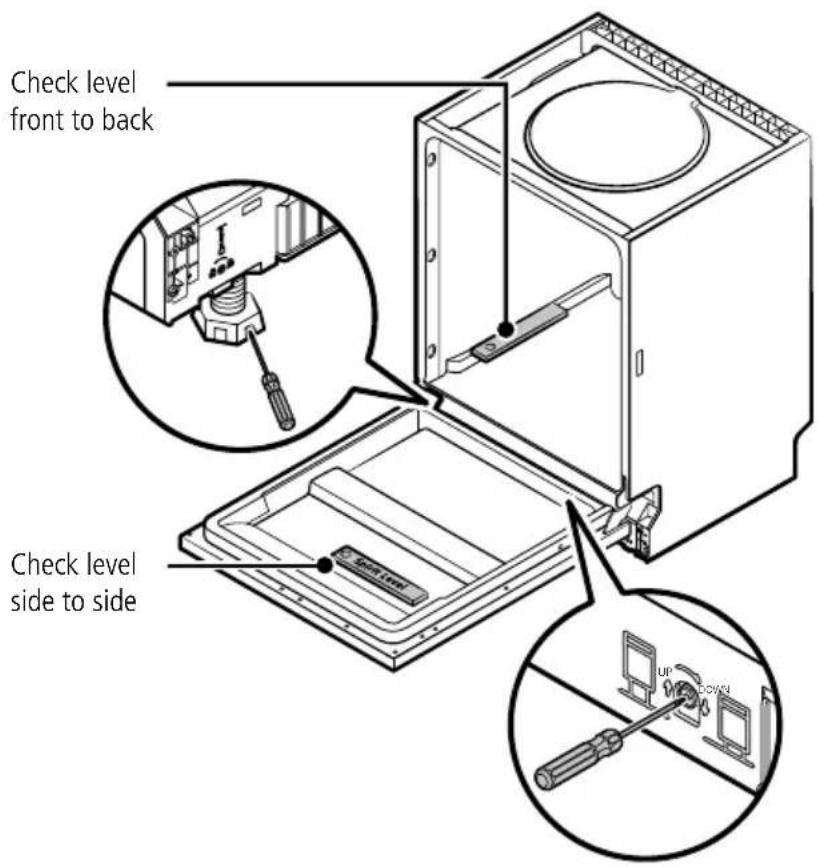

Levelling the dishwasher

The dishwasher must be level for proper operation and wash performance.

Place a spirit level on the door and rack track inside the dishwasher as shown to check that the dishwasher is level.
Level the dishwasher by adjusting the three levelling legs individually.
When levelling the dishwasher, please pay attention not to let the dishwasher tip over.

NOTE:

The maximum adjustment height of the feet is 50mm.

FEET EXTENSIONS:

Feet extensions are supplied. These can be fitted by inserting into the base of the existing feet, and tightening the locking nut at the top of the feet extensions to secure them into position.

Illustration of a hand using a tool to lift a mechanical component (no text or symbols)

DISHWASHER INSTALLATION STEPS

1. Affix the condensation strip under the work surface of cabinet. Please ensure the condensation strip is flush with edge of work surface. (Step 1)
2. Connect the inlet hose to the cold water supply.
3. Connect the drain hose.
4. Connect the power cord.
5. Place the dishwasher into position.
6. Level the dishwasher. The rear foot can be adjusted from the front of the dishwasher by turning the Philips screw in the middle of the base of dishwasher. To adjust the front feet, use a flat screw driver and turn the front feet until the dishwasher is level. (Step 4)
7. Install the furniture door to the outer door of the dishwasher. (Step 2)
8. Adjust the tension of the door springs by using an screwdriver and turning in a clockwise motion to tighten the left and right door springs. Failure to do this could cause damage to your dishwasher. (Step 3)

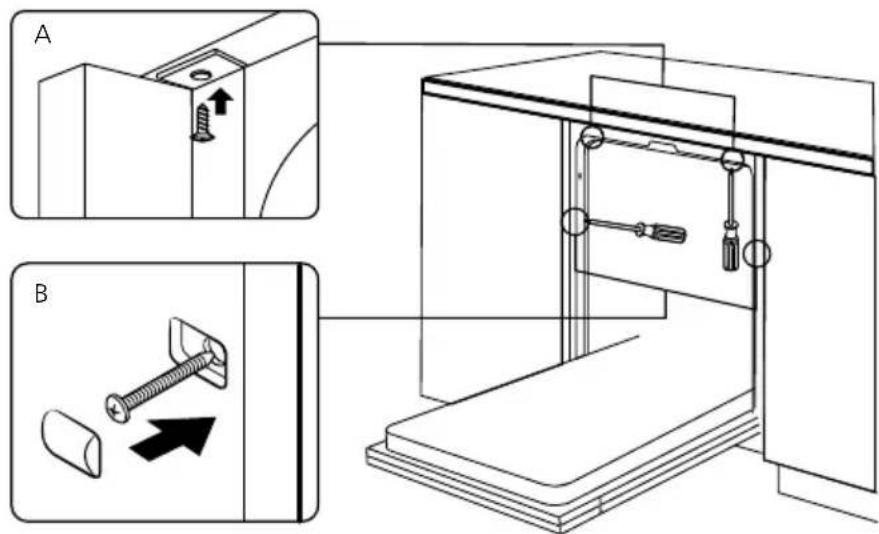

9. The dishwasher must be secured in place. There are two ways to do this:

   Normal work surface: Put the installation hook into the slot of the side plane and secure it to the work surface with the wood screws.
   Marble or granite work top: fix to the side panel with the screws provided.

AESTHETIC DOOR PANEL DIMENSIONS AND INSTALLATION

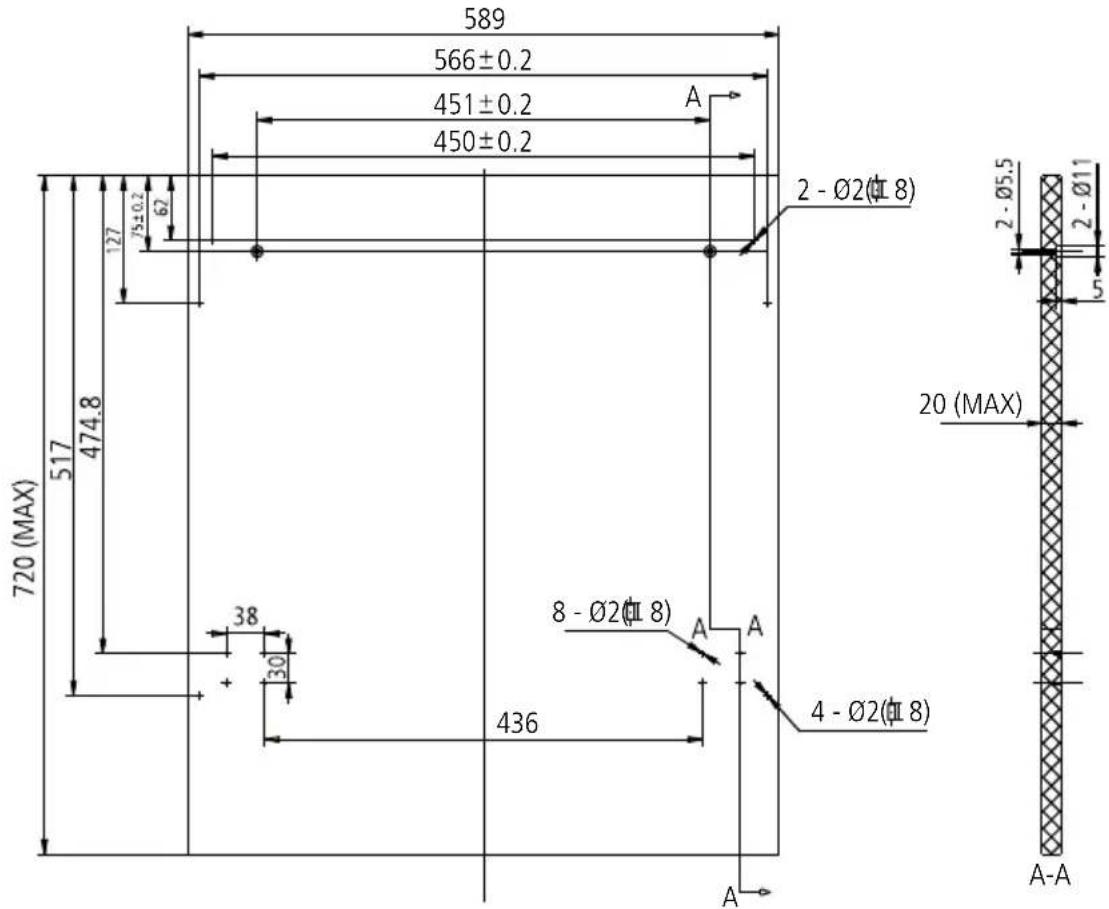

The aesthetic door panel could be processed according to Figure 3.

FIGURE 3

The aesthetic door panel should be processed in accordance with the illustrated dimensions

BEFORE CALLING FOR SERVICE

TYPE PROBLEM POSSIBLE CAUSES WHAT TO DO

TECHNICAL PROBLEMS	Dishwasher doesn't start	Fuse blown, or the circuit breaker tripped	Replace fuse or reset circuit breaker. Remove any other appliances sharing the same circuit with the dishwasher.
		Power supply is not turned on	Make sure the dishwasher is turned on and the door is closed securely. Make sure the power cord is properly plugged into the wall socket.
		Water pressure is low	Check that the water supply is connected properly and the water is turned on.
		Door of dishwasher not properly closed.	Make sure to close the door properly and latch it.
	Water not pumped from dishwasher	Kink in drain hose Check drain hose.
		Filter clogged Check coarse filter.
		Kitchen sink clogged	Check the kitchen sink to make sure it is draining well. If the problem is the kitchen sink not draining, you may need a plumber.
GENERAL PROBLEMS	Suds in the tub	Improper detergent	Use only the special dishwasher detergent to avoid suds. If this occurs, open the dishwasher and let suds evaporate. Add 1 gallon of cold water to the tub. Close and latch the dishwasher, then select any cycle. Dishwasher will drain out the water at the first step. Open the door after draining to stop and check if the suds have disappeared. Repeat if necessary.
		Spilled Rinse Aid Always wipe up Rinse Aid spills immediately
	Stained tub interior	Detergent with colourant was used	Make sure that the detergent is the one without colourant.
	White film on inside surface	Hard water minerals	To clean the interior, use a damp sponge with dishwasher detergent and wear rubber gloves. Never use any other cleaner than dishwasher detergent for the risk of foaming or suds.
	There are rust stains on cutlery	The affected items are not corrosion resistant.	Avoid washing items that are not corrosion resistant in the dishwasher.
		A programme was not run after dishwasher salt was added. Traces of salt have gotten into the wash cycle.	Always run the quick wash programme without any crockery in the dishwasher and without selecting the Turbo function (if present), after adding dishwasher salt.
		The lid of the softer is loose	Check the lip. Ensure the fix is fine.
TYPE	PROBLEM POSSIBLE CAUSES WHAT TO DO
NOISE	Knocking noise in the dishwasher	A spray arm is knocking against an item in a basket	Interrupt the programme, and rearrange the items which are obstructing the spray arm.
	Rattling noise in the dishwasher	Items of crockery are loose in the dishwasher	Interrupt the programme, and rearrange the items of crockery.
	Knocking noise in the water pipes	This may be caused by on-site installation or the cross-section of the piping	This has no influence on the dishwasher function.If in doubt, contact a suitably qualified plumber.
UNSATISFACTORY WASHING RESULTS	The dishes are not clean	The dishes were not loaded correctly	See notes in “Loading the Dishwasher Baskets”.
		The programme was not powerful enough	Select a more intensive programme. See” Wash Cycle Table“.
		Not enough detergent was dispensed	Use more detergent, or change your detergent.
		Items are blocking the path of spray arms	Rearrange the items so that the spray can rotate freely.
		The filter combination in the base of wash cabinet is not clean or is not correctly fitted.This may cause the spray arm jets to get blocked.	Clean and/or fit the filter combination correctly.Clean the spray arm jets. See “Cleaning the Spray Arms”.
	Cloudiness on glassware	Combination of soft water and too much detergent.	Use less detergent if you have soft water and select a shortest cycle to wash the glassware and to get them clean.
	White spots appear on dishes and glasses	Hard water area can cause limescale deposits.	Add more detergent.
	Black or grey marks on dishes	Aluminium utensils have rubbed against dishes.	Use a mild abrasive cleaner to eliminate those marks.
	Detergent left in dispenser cups	Dishes block detergent cups. Re- loading the dishes properly.
TYPE	PROBLEM	POSSIBLE CAUSES WHAT TO DO
UNSATISFACTORY DRYING RESULTS	The dishes are not drying	Improper loading Load the dishwasher as suggested in the directions.
		Too little Rinse Aid Increase the amount of Rinse Aid/refill the Rinse Aid dispenser.
		Dishes are removed too soon
		Wrong programme has been selected
		Use of cutlery with a low-quality coating

ERROR CODES

When some malfunctions occur, the appliance will display error codes to warn you:

CODES MEANINGS POSSIBLE CAUSES
E1 Longer inlet time.		Tap is not opened, or water intake is restricted, or water pressure is too low.
E3	Not reaching required temperature.	Malfunction of heating element.
E4 Overflow. Some element of the dishwasher leaks.
Ed	Failure of communication between main PCB with display PCB	Open circuit or break wiring for the communication.

WARNING:

If overflow occurs, turn off the main water supply before calling a service.

If there is water in the base pan because of an overfill or small leak, the water should be removed before restarting the dishwasher.

SPARE PARTS AVAILABILITY

The original spare parts for some specific components are available for a minimum of 7 or 10 years, based on the type of component, from the placing on the market of the last unit of the model.

For more info and to order spares, please contact Caple service or visit our website www.caple.co.uk

TECHNICAL INFORMATION

HEIGHT: 815mm
WIDTH: 598mm
DEPTH (D1): 550mm (with the door closed)
DEPTH (D2): 1150mm (with the door opened 90°)

caple

Caple Service

Fourth Way

Avonmouth

Bristol

BS11 8DW

T: 0117 938 1900

E: [e-mail]

www.caple.co.uk
