USER MANUAL C2402SS Caple

Sense Single Pyrolytic Oven Instruction Manual

C2402/

C2403

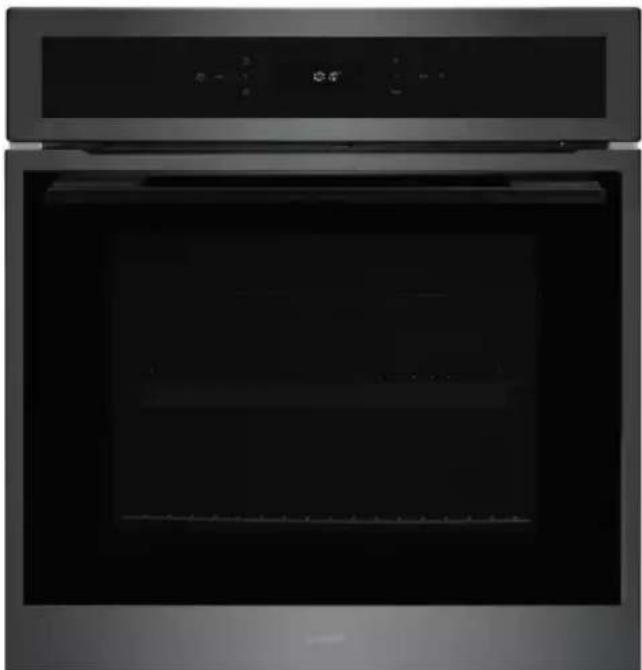

Exterior view of a modern stainless steel oven with digital display (no visible text or symbols)

CONTENTS

Safety Instructions 3

Installation Warnings 7

Environmental Protection 10

Installaiton 11

Oven Dimensions 12

Electrical Connection 13

Control Panel and Display 14

Operation 15

Oven Functions 17

Pyrolytic Cleaning 18

Demo Mode 20

Replacing the Oven Lamps 21

Telescopic Runners 22

Troubleshooting 23

Removing and Reassembling the Oven Doors 24

Removing the Glass Panels 25

Caple Contact Details 27

SAFETY INSTRUCTIONS

Read these instructions carefully and completely before using your appliance, keep it in a convenient place for reference when necessary.

-This appliance can be used by children aged from 8 years and above.

-Persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge must be supervised and given appropriate instruction concerning the use of the appliance in a safe way and understand the hazards involved.

-Children shall not play with the appliance.

-Cleaning and user maintenance should not be carried out by children without supervision.

-The appliance is not intended to be operated by means of an external timer or separate remote control system.

WARNING:

-The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements.

-Children less than 8 years of age should be kept away unless continuously supervised.

- To prevent fire hazards do not store items on the cooking surfaces.

-During use, handles can get hot.

-Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass or any other surface of the appliance as it can scratch the surface which may result in the glass shattering or permanent damage to the surface.

-Do not use steam cleaners for cleaning the appliance.

-Ensure the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.

CAUTION:

-Accessible parts may be hot when the cooking or grilling is in use. Young children should be kept away.

-Your appliance is produced in accordance with all applicable local and international standards and regulations.

-Maintenance and repair work must be made only by authorised Caple service technicians. Installation and repair work that is carried out by unauthorised technicians may endanger you.

-It is dangerous to alter or modify the specifications of the appliance in any way.

-Prior to installation, ensure that the local distribution conditions (electricity voltage and frequency) and the requirements of the appliance are compatible. The requirements for this appliance are stated on the rating label.

-This appliance is designed only for cooking food and is intended for indoor use.

- This appliance is intended to be used in household and similar applications such as:

Staff kitchen areas in shops, offices and other working environments.
Farm Houses.
By clients in hotels, motels and other residential type environments.
Bed and breakfast type environments.

-Do not try to lift or move the appliance by pulling the door handle.

-All possible security measures have been taken to ensure your safety. Since the glass may break, you should be careful while cleaning to avoid scratching.

-Avoid hitting or knocking on the glass with accessories.

-Ensure that the supply cord is not wedged during the installation. If the supply cord is damaged, it must be replaced by a Caple service technician or similarly qualified persons in order to prevent a hazard.

-While the oven door is open, do not let children climb on the door or sit on it.

INSTALLATION WARNINGS

-Do not operate the appliance before it is fully installed.

-The appliance must be installed by an authorised technician.

-Caple is not responsible for any damage that may be caused by defective placement and installation by unauthorised persons.

-When unpacking the appliance, make sure that it is not damaged during transportation. In the case of any defect; do not use the appliance and contact your retailer or Caple Service immediately.

-Materials used for packaging (nylon, staplers, styrofoam etc) may cause harmful effects to children they should be disposed of immediately.

-Protect your appliance against atmospheric effects. Do not expose it to effects such as sun, rain, snow etc.

-The surrounding materials of the appliance (i.e. kitchen cabinet or furniture) must be able to withstand a minimum temperature of 120^ C.

DURING USAGE

-Before using the oven for the first time, heat the empty oven at max. temperature for 1 hour – removing any unpleasant smells and smoke caused by working residues and thermal insulation. Make sure you do this in a well ventilated area.

-During usage, the outer and inner surfaces of the oven get hot. While opening the oven door, step back to avoid the hot steam coming out of the oven as there may be a risk of burns.

-Do not put flammable or combustible materials in or near the appliance when it is operating.

-Always use oven gloves to remove and replace food in the oven.

-Pay close attention to the oven while cooking with solid or liquid oils as they could potentially catch fire when oven is hot.

-Never pour water on flames that are caused by oil. Cover the saucepan or frying pan with its lid in order to choke the flame and turn the oven off.

-If you know you will not be using the appliance for a while switch it off from the main supply and unplug it.

-The oven shelves and trays incline when pulled out. Be careful not to let hot liquid spill over.

-When the door of the oven is open, do not leave anything on it. It may unbalance your appliance or damage the door.

-Do not put anything heavy, flammable or ignitable (nylon, plastic bag, paper or cloth etc) into the oven. This includes cookware with plastic accessories (e.g. handles). Do not hang towels, dishcloths or clothes from the appliance or its handles.

-Do not use the oven for storage purposes.

-Do not touch the appliance with wet hands.

-Do not obstruct the ventilation openings.

-Do not allow supply cords from other small appliances to come into contact with the oven.

-Before operating the Pyrolytic function, ensure all internal shelves, trays and side racks are removed.

-Before use, remove all plastic films protecting some parts of the appliance (fascia - panel, parts in stainless steel, etc)

-Do not use the appliance to heat a room.

-When the appliance is not in use, we recommend you turn it off, and isolate it from the electrical supply.

DURING CLEANING AND MAINTENANCE

-Always switch off the appliance from the mains isolating the electrical supply before any cleaning or maintenance.

-To maintain the efficiency and safety of your appliance, we recommend you always use original spare parts and to call only our authorised Caple Service agents in case of need.

ENVIRONMENTAL PROTECTION

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. This appliance is marked according to the European directive on Waste Electrical and Electronic Equipment (WEEE).

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The symbol on the product indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal.

For more detailed information about treatment, recovery and recycling of this product, please contact your local council, your household waste disposal service or the retailer where you purchased the product.

WARRANTY

Your new appliance is covered by warranty. The warranty card is enclosed - if it is missing, you must provide the following information to your retailer in order to receive a replacement: date of purchase, model and serial number. Registration can also be completed online by visiting www.caple.co.uk.

Ensure you keep your warranty card safe, you may need to show it to Caple Service together with proof of purchase. If you fail to show your warranty card you will incur all repair charges.

Spare parts are only available from Caple Service and spare parts authorised centres.

CE DECLARATIONS OF CONFORMITY CE

This appliance has been manufactured to the strictest standards and complies with all applicable legislation, Low Voltage Directive (LVD) and Electromagnetic Compatibility (EMC).

UKCA DECLARATIONS OF CONFORMITY UK CA

This appliance has been manufactured to the strictest standards and complies with all applicable legislation.

TECHNICAL FICHE

This appliance conforms to all current and applicable energy regulations. To view the Technical Fiche that supports the energy labelling data, please visit the product page on our website www.caple.co.uk.

IMPORTANT:

ISOLATE YOUR OVEN FROM THE ELECTRICAL SUPPLY BEFORE PERFORMING INSTALLATION OR MAINTENANCE.

Installation should be carried out according to the instructions by a professionally qualified person only.

The manufacturer declines all responsibility for any damage to persons, animals or materials due to incorrect installation.

FITTING THE APPLIANCE:

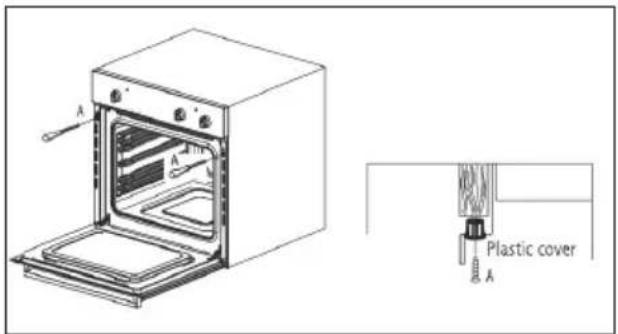

Fit the appliance into its surround (beneath a worktop or above another appliance in a tall housing) by inserting screws and plastic covers into the 2 holes (A - fig.3) that can be seen in the frame of the oven when the door is open.

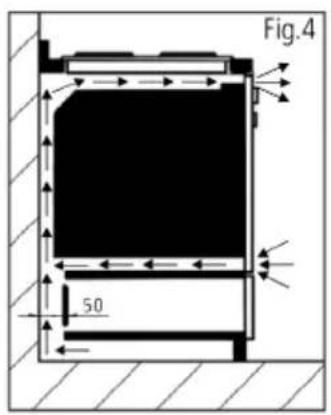

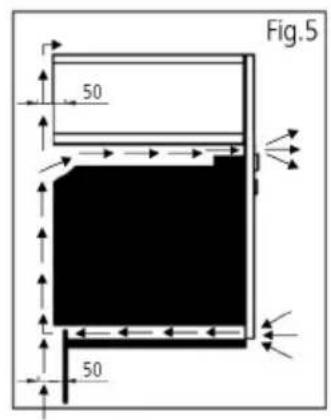

For the most efficient air circulation, the oven should be fitted according to the dimensions shown in fig. 1 & 2.

Fig3

The rear panel of the cabinet must be removed so that air can circulate freely. The panel to which the oven is fitted should have a gap of at least 50mm at the rear for ventilation (fig.4 & fig.5).

Fig 1 Fig 2

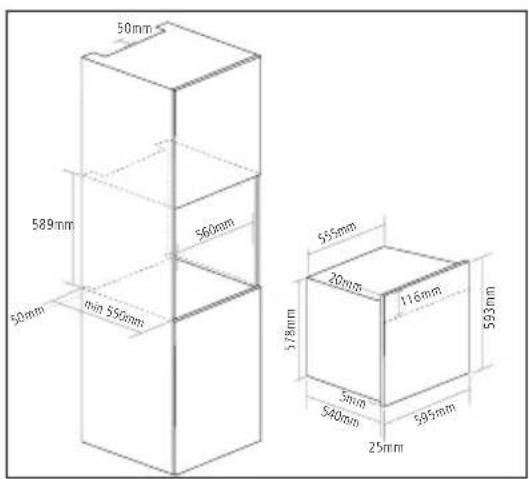

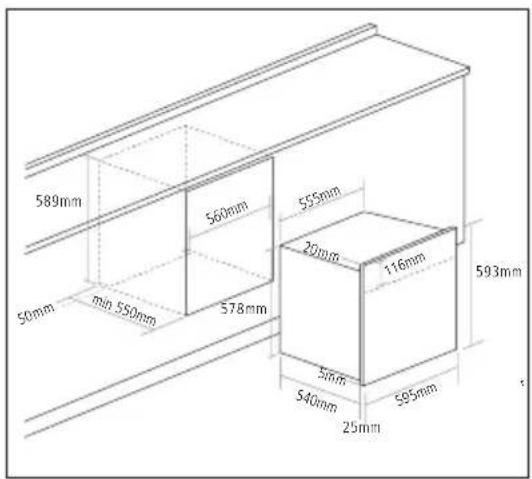

See below for full dimensional drawings of your oven to help with installation.

For a built-in oven to work well the cabinet must be of the right type.

The panels of the adjoining furniture should be heat resistant. Particularly when the adjoining furniture is made of veneered wood, the adhesives should be able to withstand a temperature of 120^ C. Plastic materials or adhesive which cannot withstand this temperature may become deformed or unstuck.

To comply with safety regulations, once the appliance has been fitted it should not be possible to make contact with the electrical parts.

All parts which offer protection should be fixed in such a way that they cannot be removed without the use of a tool.

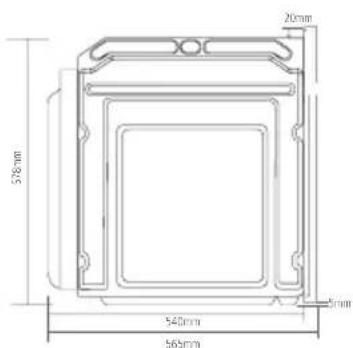

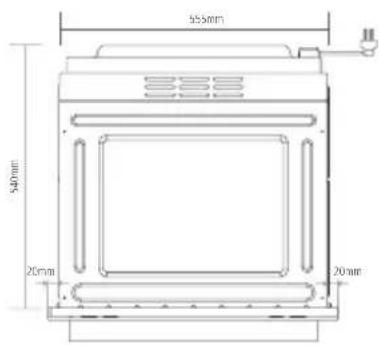

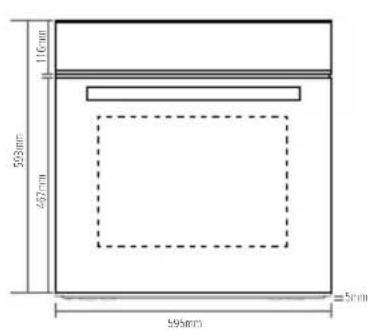

OVEN DIMENSIONS

WARNING: THIS APPLIANCE MUST BE EARTHED

Check that the power rating of the mains supply is suitable for the maximum power of the appliance as indicated on the rating label.

The fuse rating for this appliance is 16amp.

The appliance is supplied with a mains lead it should be "Hard wired" as follows:

The "yellow/green" earth wire, which must be connected to a terminal, and has to be about 10mm longer than the other wire.
The neutral wire has to be connected to the terminal marked with a letter N.
The Live wire should only be connected to the terminal marked L.

Mains connection can also be made by fitting a double pole switch with a minimum gap between the contacts of 3mm, proportionate to the load and complying with the regulations in force.

The yellow/green earth wire should not be controlled by the switch.

When a double pole switch is used for mains supply connection it should be easily accessed, once the appliance is in position.

IMPORTANT:

The mains supply cable should be positioned so that it is never subjected to temperatures which are more than 50^ C above ambient temperature.

The electrical safety of the appliance can only be guaranteed when it has been correctly connected to a properly earthed mains electrical supply, as laid down in the current regulations for electrical safety.

The manufacturer cannot be held responsible for any damage to persons or objects due to lack of an earth connection.

The ovens are designed to operate with a mono-phase alternating current of 220-240V, 50Hz.

Before the installation of the appliance, check the specifications on the rating label.

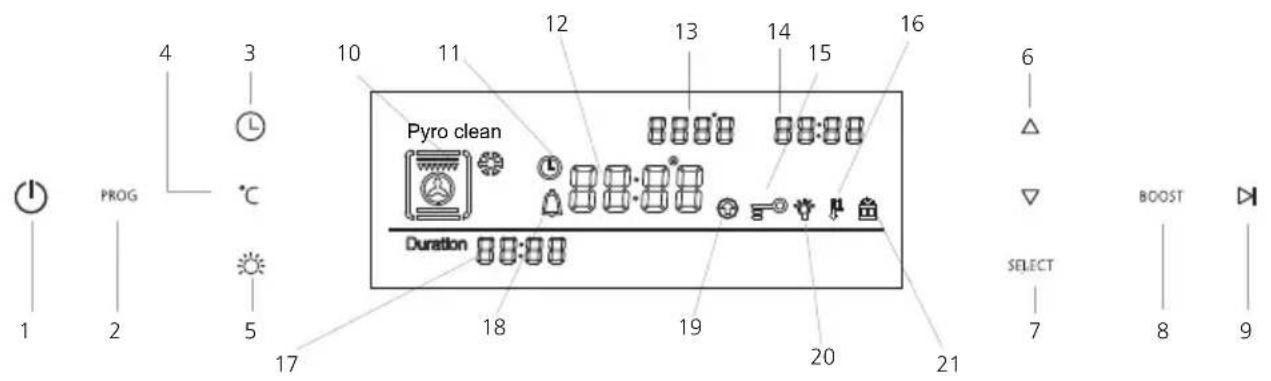

CONTROL PANEL AND DISPLAY

BUTTON DESCRIPTION:

1. Power
2. Programme
3. Timer
4. Temperature
5. Light
6. Up / Down (+/-)
7. Select
8. Boost

DISPLAY DESCRIPTION:

1. Start / Pause
2. Function / programme
3. Timer
4. Actual Temperature/Time
5. Set Temperature
6. Current Time
7. Safety Lock

8. Boost

9. Cooking Duration Time

10. Alarm
11. Heating Indicator
12. Light
13. Pyro Lock

ACCESSORIES

1. 2 × Chrome oven shelves
2. 1 x Grill pan with rack and handle
3. 2 x Telescopic runners (x2 pairs)

To purchase additional or replacement accessories, please visit www.caple.co.uk

POWER BUTTON: ⏻

To turn on/off the display panel. When turned on, the time of day will be shown.

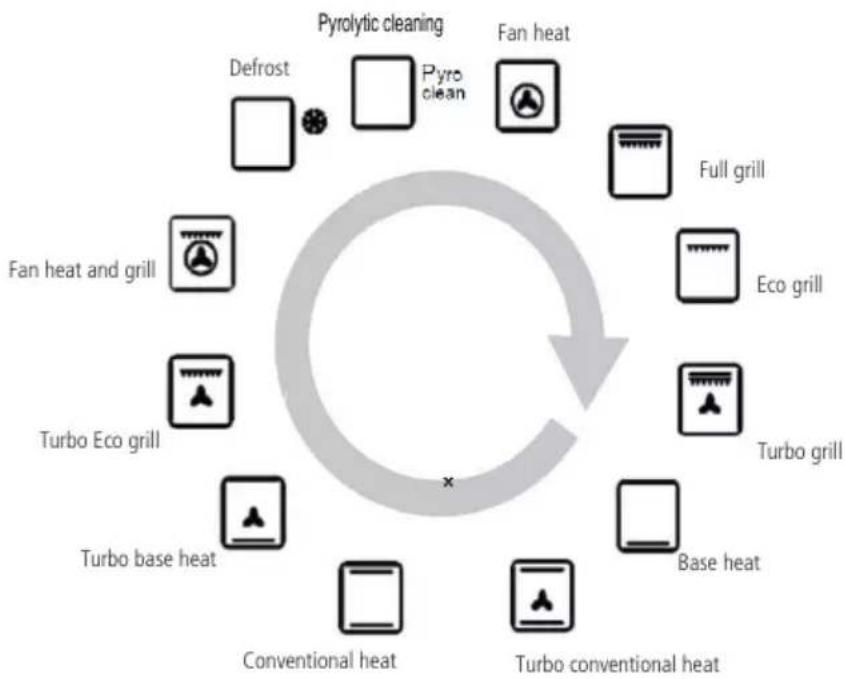

PROGRAMME BUTTON PROG

Press to shift between functions. When you shift to a new function, the current function will stop and the cooking time must be reset. The Function list is as per the below order:

START/PAUSE BUTTON:

Once the required function has been selected, press ▷ to start Once cooking has started the display will show the current oven temperature. For example;

When the oven is paused, the display will show the current time. For example;
