Hoxton Dresser - Furniture Silver Cross - Free user manual and instructions

Product Type	Dresser with integrated changing unit
Brand	Silver Cross
Model	Hoxton Dresser
Maximum Child Weight	11 kg (24.2 lbs)
Age Range	Up to 12 months
Assembly Required	Yes, two people recommended
Material	Wood composite
Wall Strap Included	Yes
Care Instructions	Clean with damp cloth; do not use bleach, abrasives, or strong detergents; dry immediately
Safety Notes	Do not leave child unattended; regularly check fittings; keep away from heat sources; do not allow children to climb
Spare Parts	Use only Silver Cross approved parts

Frequently Asked Questions - Hoxton Dresser Silver Cross

How do I assemble the Hoxton Dresser?

Assembly requires two people. Follow the step-by-step instructions in the manual. Ensure all fittings are tightened and the wall strap is attached for stability.

What is the maximum weight limit for the changing unit?

The maximum weight limit is 11 kg (24.2 lbs), suitable for children up to 12 months.

Does the dresser come with a wall strap?

Yes, a wall strap is provided. It must be attached to the furniture using the supplied screws, but you must consult a professional for appropriate wall fittings (not included).

Can I use my own changing mattress?

Yes, a changing mattress is not included. Place a suitable mattress on the changing surface inside the retaining rails.

How should I clean the dresser?

Use a damp cloth only. Avoid bleach, abrasive cleaners, or strong detergents. Dry thoroughly immediately after cleaning.

What should I do if a part is damaged?

Do not use the product if any parts are broken or missing. Contact your retailer or Silver Cross for replacement parts. Only use spare parts supplied by Silver Cross.

Is the dresser safe for a toddler to climb on?

No, do not allow children to climb on the dresser or changer. It is designed for changing purposes only, and climbing poses a tip-over risk.

Can I move the dresser by dragging it?

No, never drag or pivot the dresser. It must be lifted and moved by at least two people to avoid damage or injury.

Do I need to secure the dresser to the wall?

Yes, it is strongly recommended. Use the provided wall strap and consult a professional for correct wall fittings (not included). This improves stability, especially on carpeted floors.

Where can I find the full manual?

The manual is available for free download in PDF format from notice-facile.com or other manual sites. Search for 'Silver Cross Hoxton Dresser manual'.

USER MANUAL Hoxton Dresser Silver Cross

IMPORTANT RETAIN FOR FUTURE REFERENCE READ CAREFULLY

Hoxton Dresser

IMPORTANT: THE ASSEMBLY OF THIS PRODUCT REQUIRES TWO PEOPLE

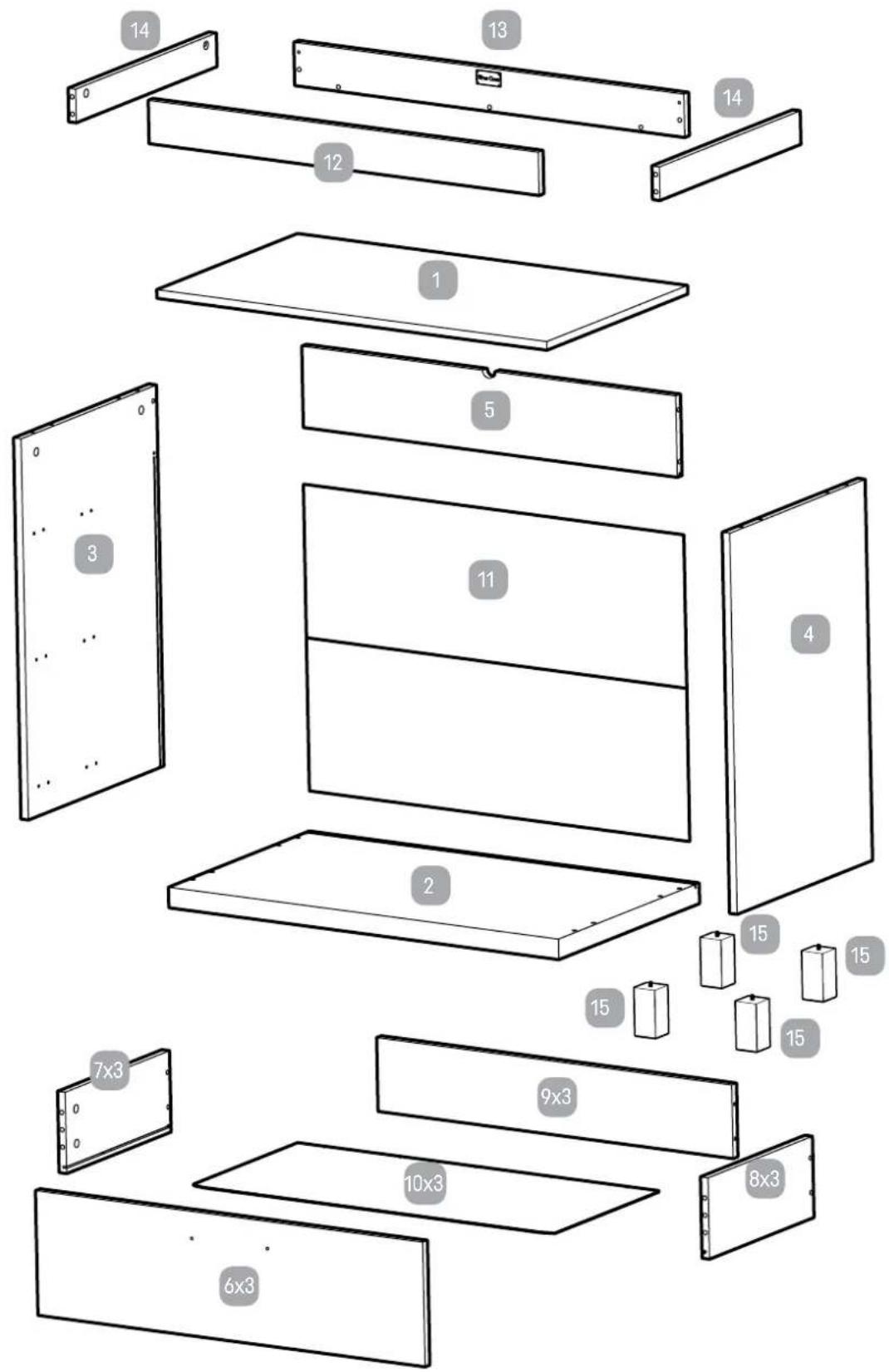

Parts list:

Fittings list:

1 x

24×

(15×16)

24×

Technical line drawing of a mechanical screw or drill bit (no text or symbols)

21×

(3×16)

20×

(8 35)

24×

(6×13)

3 x

(350)

Technical line drawing of two mechanical components with mounting holes (no text or symbols)

4×

(7 × 70)

Illustration of a screw with hexagonal head and threaded shaft (no text or symbols)

12×

(7 × 50)

1x

[Non-Text]

4×

16×

(4 × 16)

6x

2x

(6×14)

Simple line drawing of a mechanical part with two circular holes (no text or symbols)

6x

4×

(1)

3×

(350)

Simple line drawing of a long rectangular beam with a dashed circular outline around its end (no text or symbols)

3 x

(6×30)

3 x

(200)

Step 1:

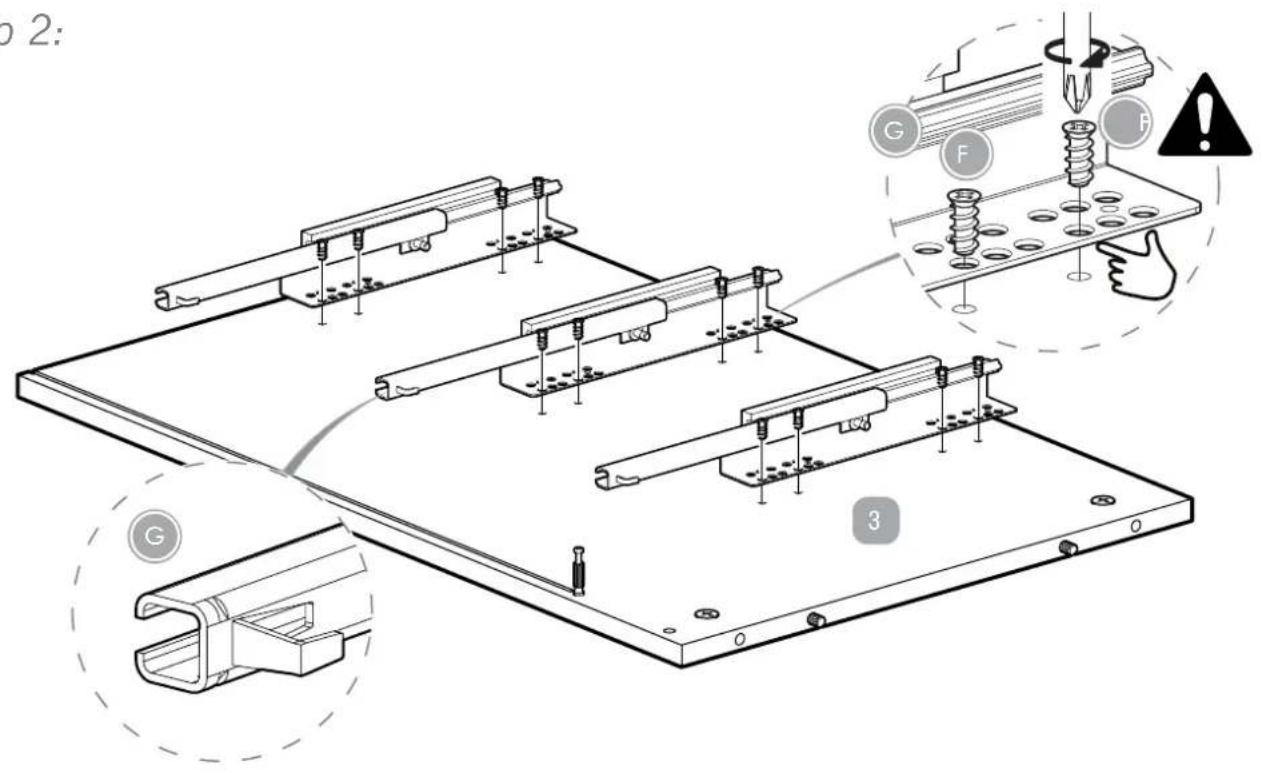

Step 2:

Step 3:

Step 4:

Step 5:

Step 6:

Step 7:

Step 8:

Step 9:

Step 10:

Step 11:

Step 12:

Step 13:

Step 14:

Step 15:

Step 16:

Step 17:

Step 18:

Step 19:

Step 20:

Step 21:

Line drawing of a multi-level cabinet or storage unit with mounting legs and internal compartments (no text or symbols)

It is advised for safety reasons that the dresser is connected to the wall using the wall strap provided. All walls are different composition and it is important the correct fittings are used. Wall fittings are not supplied with this furniture and it is advised to consult a professional before fitting.

Fix the wall strap to the furniture as shown with the fittings provided – do not use these fittings to connect to the wall. Consult a professional before fitting the strap to the wall.

Step 22:

Step 23:

Line drawing of a multi-tiered storage cabinet with mounting legs (no text or symbols)

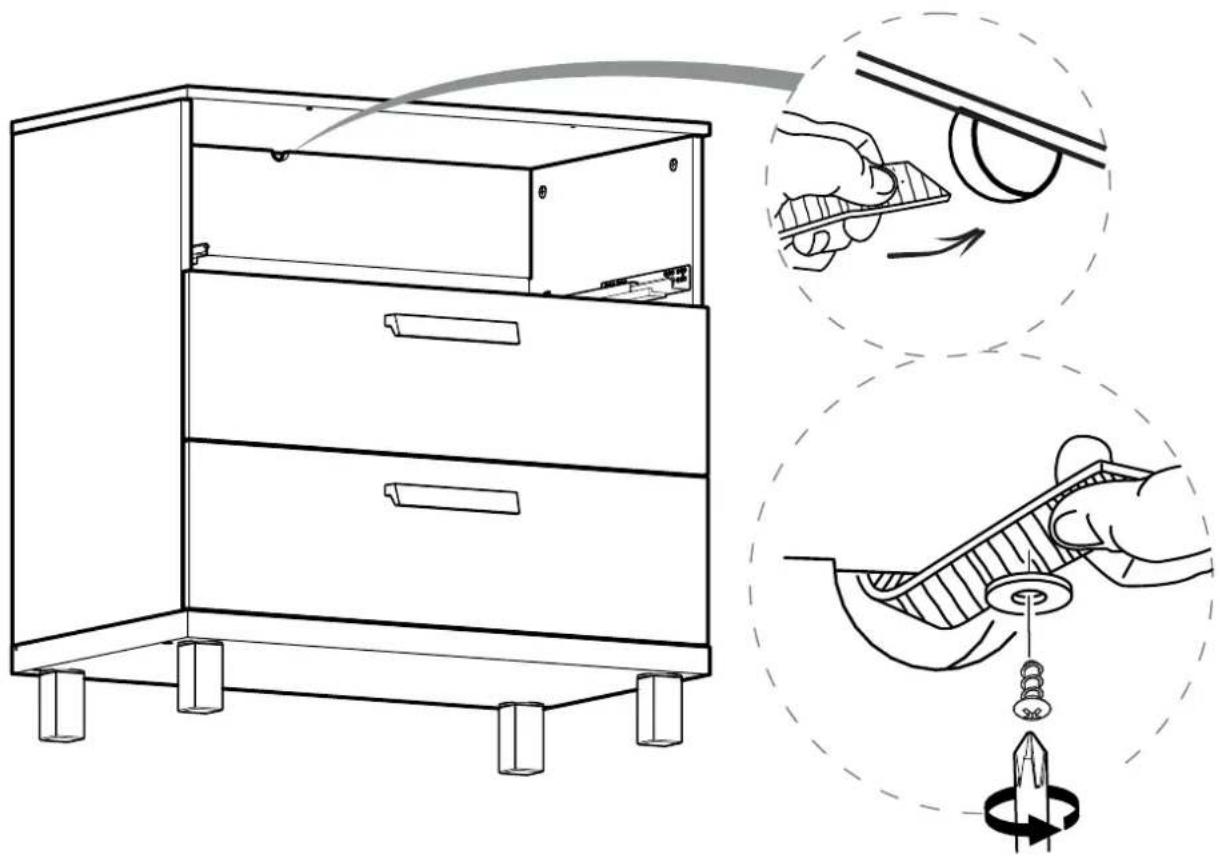

Feed the wall strap through the hole and secure it with the screw provided on the inside of the Dresser.

Step 24:

Step 25:

Step 26:

Step 27:

Step 28:

Step 29:

Step 30:

Step 31:

Step 32:

Line drawing of a three-tiered drawer cabinet with arrows indicating internal movement (no text or symbols)

Step 33:

Line drawing of two different household nightcases with drawers, one showing a change from front to side (no text or symbols)

Step 34:

Line drawing of a two-door office drawer with one open showing a downward arrow (no text or symbols)

Step 35:

Line drawing of a three-tiered cabinet or drawer with four drawers and wheels (no text or symbols)

Illustration of a hand holding a tool next to a ring and ruler, with no visible text or symbols

Step 36:

Technical line drawing of a three-tiered cabinet or rack unit with mounting feet (no text or symbols)

Step 37:

Step 38:

Line drawing of a two-tiered office cabinet with drawers and legs, showing internal compartments and an upward arrow indicating motion (no text or symbols)

Step 39:

Step 40:

Line drawing of a two-door office cabinet with one open showing the interior (no text or symbols)

Warnings & Instructions For Safe Use & Maintenance

Safety notes

This item is a high quality Silver Cross product. With correct use and maintenance it will give you good service. If however you should have any problems with your product, please contact your Silver Cross retailer who will take appropriate action.

WARNING: DO NOT LEAVE THE CHILD UNATTENDED

The safety of your child is your responsibility. WARNING:

Regularly check all fittings and components of the changer are fully tightened and in good working order. If any parts have become worn or damaged then do not use the product and seek advice from your retailer or Silver Cross. Only use spare parts supplied by Silver Cross.

WARNING:

Be aware of the risk of open fire and other sources of strong heat, such as electric bar fires, gas fires etc. in the near vicinity of the changing unit.

WARNING:

A changing mattress is not supplied with this product. Place the changing mattress on the changing surface inside the retaining rails.

WARNING:

Suitable for children up to 12 months old (approximately). Maximum weight 11kgs.

WARNING:

Never use the changer if any parts are broken or missing.

WARNING:

Never drag or pivot the Dresser Changer. It must be lifted and moved by at least two people.

WARNING:

Before use, ensure the changer is on a level, stable surface.

WARNING:

Do not allow children to climb on the changer. The changer can be cleaned with a damp cloth. Never use bleach, abrasive or strong detergents. Thoroughly dry immediately after cleaning.

WALL STRAP INFORMATION

Never modify or change the wall strap in any way. Never use any other fittings other than those supplied to attach the wall strap to the dresser.

The wall strap provided is to be used with this product only.

Never use the screw provided to attach the strap to the wall. All walls are of different composition and it is important that the correct wall fittings are used. Consult a professional before attempting to attach the strap to the wall. No wall fittings are supplied with this product.

The wall strap must not be used to replace any other fittings supplied with this piece of furniture

We recommend the wall strap is used in all cases. To improve the stability of the furniture an even wood or tiled floor is best. A carpeted or warped floor can enable the furniture to rock, increasing the potential of the furniture to fall over.

IMPORTANT: KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE

Silver Cross (UK) Ltd, Micklethorn, Broughton, Skipton, North Yorkshire, BD23 3JA

silvercrossbaby.com

IND.1126149
