Brighton/Westport Shelf - Wall mount Silver Cross - Free user manual and instructions

Product Type	Wall-mounted shelf
Brand	Silver Cross
Model	Brighton/Westport Shelf
Dimensions (W x D x H)	80 cm x 30 cm x 5 cm
Weight	2 kg
Weight Capacity	15 kg
Material	MDF with laminate finish
Color	White (Shabby Chic style)
Installation	Wall mounting with included plugs and screws
Tools Required	Drill, screwdriver, level, pencil
Mounting Type	Fixed brackets (non-adjustable)
Indoor/Outdoor	Indoor use only
Cleaning & Maintenance	Wipe with damp cloth; avoid harsh chemicals
Safety	Do not exceed weight limit; ensure wall anchors are secure
Spare Parts Availability	Contact Silver Cross customer service
Warranty	1 year (check with retailer)

Frequently Asked Questions - Brighton/Westport Shelf Silver Cross

How do I install the Brighton/Westport Shelf?

Use the included template to mark hole positions on the wall, drill holes, insert wall plugs, screw the brackets securely, and then attach the shelf onto the brackets.

What is the maximum weight capacity?

The shelf can hold up to 15 kg when properly installed and weight is evenly distributed.

Can I mount this shelf on plasterboard?

Yes, but you must use appropriate plasterboard anchors (not included) rated for the weight.

Does the shelf come with mounting hardware?

Yes, the package includes screws and wall plugs suitable for solid walls.

What material is the shelf made of?

The shelf is made of MDF with a durable laminate finish.

Can I use this shelf in a bathroom?

It is not recommended due to high humidity; the laminate may peel or warp over time.

How do I clean the shelf?

Wipe with a soft damp cloth and dry immediately. Avoid abrasive cleaners or excessive moisture.

Are the shelf brackets adjustable?

No, the brackets are fixed. The shelf height and angle cannot be adjusted after installation.

What tools do I need for installation?

You will need a drill, screwdriver, a level, and a pencil. A stud finder is also helpful.

Does the shelf come with a warranty?

Silver Cross typically offers a 1-year warranty against manufacturing defects. Check with your retailer for details.

USER MANUAL Brighton/Westport Shelf Silver Cross

IMPORTANT RETAIN FOR FUTURE REFERENCE READ CAREFULLY

Silver Cross®

Brighton Westport Shelf

IMPORTANT: THE ASSEMBLY OF THIS PRODUCT REQUIRES TWO PEOPLE

1 2 3

Parts list:

Fittings list:

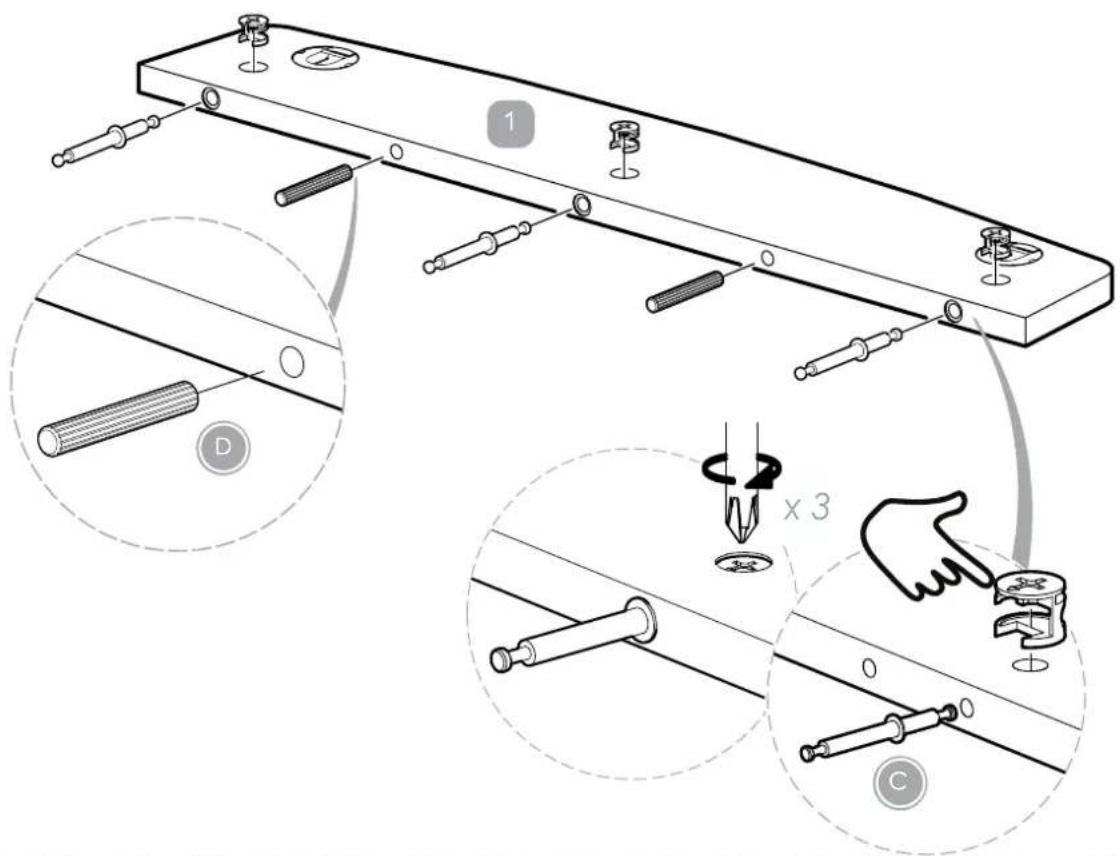

Step 1:

Step 2:

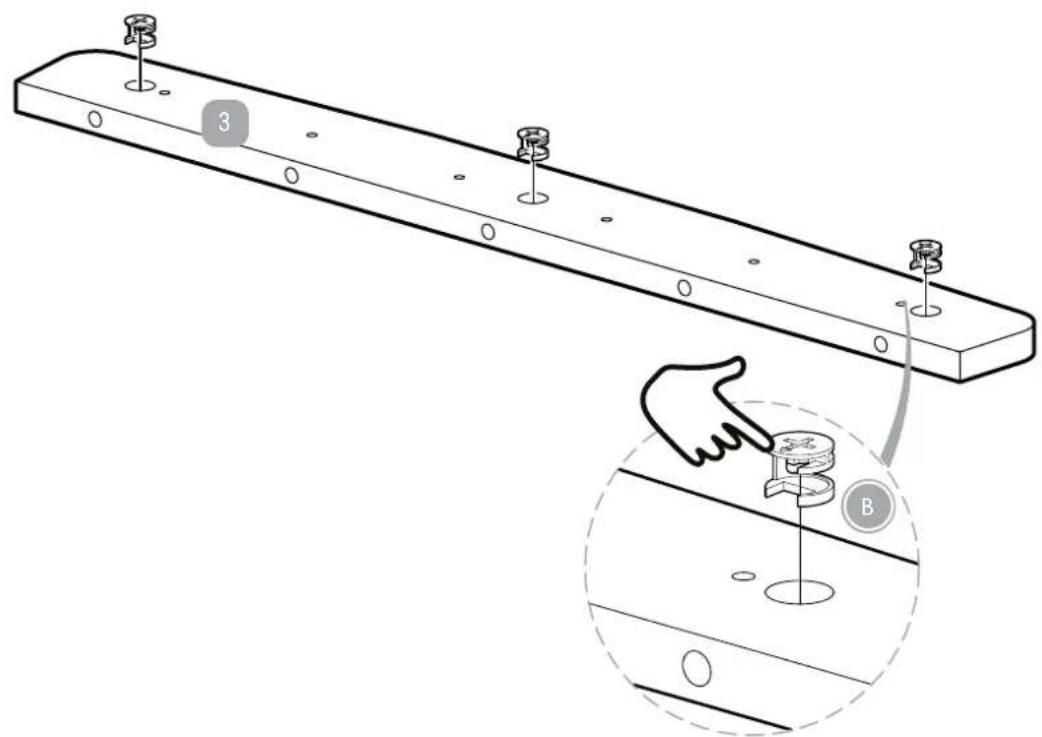

Step 3:

Step 4:

i

i

Warnings & Instructions For Safe Use & Maintenance

WARNING:

- No wall attachment fittings are supplied with the shelf. ensure that the fittings used to hang the shelf are correct for the type of wall to which the shelf is to be fixed. Ensure that the wall you select is suitable for attaching the shelf and that the wall and the wall attachment fittings are capable of withstanding the forces generated

- The shelf may present a hazard if is it not correctly installed

- The installation of the shelf must be carried out by a competent person. If in any doubt about the installation consult a professional

- Regularly check all the wall shelf's screws and fittings to make sure they are tight and that the wall shelf is not damaged

- Do not fix your wall shelf in the close proximity of an open fire or other sources of heat, such as radiators, electric or gas fires

- Wood is a natural product and as such one of its charms is the occasional variation in colour and marking. These marks are not defect and do not detract from the strength or performance of your shelf.

WARNING:

- Check the heads on the fittings are the correct size, so that the head will fit in to the wide end of the hanger plates slot but cannot be pulled through the gap in the hanger plates

- Check you are using the correct size drill bit for the fittings

- Check that the marks on the wall for the fittings' hole are level using a spirit level before drilling into the wall

- Double check all measurements before drilling and holes

- When fitted to the wall, the heads on the fittings must protrude the correct distance so that they can be slotted into the slots on the hanger rails.

- In order to prevent falling down this product must be used with the wall attachment device provided

- Do not use the product if any part is broken, damaged, torn or missing.

- Do not locate or position this shelf unit where it provides a foothold or climbing aid or creates a danger of strangulation

- Your shelf unit can be cleaned by wiping with a damp cloth and drying immediately with a soft clean cloth.

- Do not use abrasives, bleach, alcohol or ammonia based household polishes.

IMPORTANT: KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE

Silver Cross (UK) Ltd, Micklethorn, Broughton, Skipton, North Yorkshire, BD23 3JA

silvercrossbaby.com

IND.1124404
