BUCAM200 - Rear Camera JENSEN - Free user manual and instructions

Product Type	Rear View Backup Camera
Brand	Jensen
Model	BUCAM200
Image Sensor	1/4" CMOS
Resolution	720p (HD)
Viewing Angle	170°
Night Vision	Yes, built-in IR LEDs
Waterproof Rating	IP67
Mounting Type	Flush or surface mount
Power Input	12V DC
Video Output	Composite video (RCA)
Dimensions (Camera)	2.0 x 1.5 x 1.2 inches
Weight	0.1 lbs
Operating Temperature	-20°C to 60°C
Package Includes	Camera, mounting bracket, power cable, video cable, manual
Compatibility	Works with most aftermarket and factory monitors
Installation	Requires wiring to reverse light and monitor
Maintenance	Clean lens with a soft cloth; check connections periodically
Safety Features	Reverse auto-trigger, distance guidelines (if included)
Warranty	1-year limited warranty
Certifications	CE, FCC

Frequently Asked Questions - BUCAM200 JENSEN

How do I install the Jensen BUCAM200 rear camera?

Installation involves mounting the camera on the rear of the vehicle, running the video and power cables to the monitor or display, and connecting the power to the reverse light circuit. Please refer to the included manual for detailed step-by-step instructions.

Does the BUCAM200 support night vision?

Yes, the BUCAM200 is equipped with built-in IR LEDs for clear night vision, allowing you to see obstacles even in low-light conditions.

What is the viewing angle of this camera?

The camera offers a wide 170° viewing angle, providing a broad field of view behind your vehicle.

Is the camera waterproof?

Yes, the BUCAM200 has an IP67 waterproof rating, making it resistant to rain, snow, and car washes.

What type of video output does it use?

It uses composite video output via a standard RCA connector, compatible with most backup camera monitors.

Can I use this camera with my existing monitor?

The BUCAM200 works with most aftermarket and factory monitors that have a composite video input. Check your monitor's specifications to ensure compatibility.

How do I clean the camera lens?

Gently clean the lens with a soft, dry cloth. Avoid using harsh chemicals or abrasive materials to prevent scratching.

What is the power requirement for the camera?

The camera operates on 12V DC, typically connected to the vehicle's reverse light power supply.

Does the camera have distance guidelines?

Some versions of the BUCAM200 may include on-screen distance guidelines to help you judge distance. Check the product description or manual for confirmation.

What is the warranty period for the BUCAM200?

The Jensen BUCAM200 comes with a 1-year limited warranty against defects in materials and workmanship.

USER MANUAL BUCAM200 JENSEN

BUCAM200 Rear View Camera

What's Inside The Box

1. Product Sheet
2. BUCAM200 Camera w/ Adjustable Mount
3. Power Cable w/ Fuse, Video Cable, 2 Mounting Screws and Foam Rubber Mounting Pad

Two electronic components: a white plastic clamp and red-wrapped cables with wires (no visible text or symbols)

Close-up of a black cable with red and orange connectors, attached to a small black camera module (no text or symbols visible)

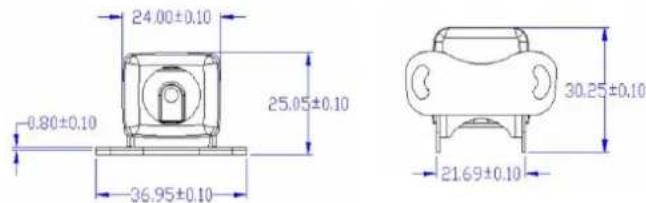

Measurements are in millimeters (mm)

Red: +12VDC Ignition or
Reverse Light
Black: Ground
Fuse: 1 Amp Only

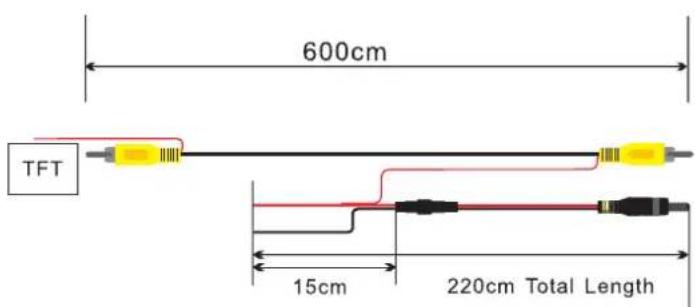

Note: Video cable has a built-in power wire (2 red wires on either end) for ease of installation. Only 1 cable has to be routed during installation.

Camera Specifications

Image Sensor: CMOS, PC7070

Power: 12VDC, Negative Ground

Power Consumption: <1 Watt

Effective Pixels: 640x480

Video Format NTSC

Lux: <0.5

White Balance: Auto

Viewing Angle: 170 Degrees

IP Rating: IP67

Operating Temperature: -15F \~ 160F

Camera Body: Zinc Alloy

Limited One Year Warranty

This warranty gives you specific legal rights. You may also have other rights which vary from state to state.

Dual Electronics Corp. warrants this product to the original purchaser to be free from defects in material and workmanship for a period of 1(one) year from the date of the original purchase.

Dual Electronics Corp. agrees, at our option, during the warranty period, to repair any defect in material or workmanship or to furnish an equal new, renewed or comparable product (whichever is deemed necessary) in exchange without charges, subject to verification of the defect or malfunction and proof of the date of purchase.

Subsequent replacement products are warranted for the balance of the original warranty period.

Who is covered? This warranty is extended to the original retail purchaser for products purchased from an authorized Jensen / Dual or Axxera dealer and used in the U.S.A.

What is covered? This warranty covers all defects in material and workmanship in this product. The following are not covered: software, installation/removal costs, damage resulting from accident, misuse, abuse, neglect, product modification, improper installation, incorrect

line voltage, unauthorized repair or failure to follow instructions supplied with the product, or damage occurring during return shipment of the product. Specific license conditions and copyright notices for the software can be found via www.dualav.com.

What to do?

1. Before you call for service, check the troubleshooting guide in your owner's manual. A slight adjustment of any custom controls may save you a service call.

2. If you require service during the warranty period, you must carefullypack the product (preferably in the original package) and ship it by prepaid transportation with a copy of

the original receipt from the retailer to an authorized service center.

1. Please describe your problem in writing and include your name, a return UPS shipping address (P.O.Box not acceptable), and a daytime phone number with your shipment.

2. For more information and for the location of the nearest authorized service center please contact us by one of the following methods:

• Call us toll-free at 1-866-382-5476

• E-mail us at cs@.dualav.com

Exclusion of Certain Damages: This warranty is exclusive and in lieu of any and all other warranties, expressed or implied, including without limitation the implied warranties of merchantability and fitness for a particular purpose and any obligation, liability, right, claim or remedy in contract or tort, whether or not arising

from the company's negligence, actual or imputed. No person or representative is authorized to assume, for the company, any other liability in connection with the sale of this product. In no event shall the company be liable for indirect, incidental or consequential damages.
