Product Type	Wall Mount
Compatible Screen Size	Up to 32 inches
VESA Pattern	100x100mm / 200x200mm
Weight Capacity	25 kg (55 lbs)
Material	High-strength steel
Color	Black
Mount Type	Fixed (low profile)
Tilt	Yes, up to 5 degrees
Swivel	No (fixed)
Level Adjustment	Yes, +/- 3 degrees
Wall Distance	15 mm from wall
Overall Dimensions	400 x 200 x 20 mm (W x H x D)
Net Weight	1.2 kg
Maximum Screw Hole Size	M4, M6
Included Hardware	M4, M6 screws, spacers, washers, wall anchors
Installation Type	Two-person installation recommended
Power Supply	None (passive)
Cleaning Instructions	Wipe with dry cloth; no solvents
Safety Certification	CE, RoHS
Spare Parts Availability	Screws and spacers available via DEXP support
Repairability	Non-repairable; replace entire mount
Warranty	2 years
Package Contents	Mounting bracket, wall plate, hardware kit, manual

Frequently Asked Questions - EM32-C02 DEXP

What tools do I need to install the DEXP EM32-C02 wall mount?

You will need a drill with masonry bit, screwdriver (Phillips), level, and a stud finder for wooden walls.

Can this mount hold my 32-inch TV securely?

Yes, the mount is designed for TVs up to 32 inches and supports a maximum weight of 25 kg (55 lbs).

What VESA patterns are compatible with the EM32-C02?

It supports both 100x100mm and 200x200mm VESA patterns, which are common for 32-inch TVs.

Is the mount suitable for concrete walls?

Yes, the included wall anchors are designed for concrete or brick walls. Use a hammer drill with a masonry bit.

Does the mount tilt or swivel?

It has a slight tilt of up to 5 degrees for glare reduction, but it does not swivel. It is a fixed low-profile mount.

How far from the wall will my TV be?

The mount keeps your TV just 15 mm (0.6 inches) from the wall, creating a sleek, low-profile look.

Can I use this mount for a monitor instead of a TV?

Yes, as long as the monitor is within the weight limit and has a compatible VESA pattern (100x100 or 200x200).

How do I clean the wall mount?

Use a dry, soft cloth to wipe off dust. Do not use chemical cleaners or water directly on the mount.

What if I lose the screws for my TV?

The mount includes a universal screw kit with M4 and M6 sizes and spacers. For non-standard sizes, contact DEXP support.

Is professional installation required?

While not required, we recommend two-person installation for safety. Ensure the wall can support the weight and use a stud finder.

USER MANUAL EM32-C02 DEXP

EN Read the entire instruction manual before you start installation and assembly. If you have any questions regarding any of the instructions or warnings, please contact your local distributor for assistance

CAUTION: Use with products heavier than the rated weights indicated may result in instability causing possible injury.

• Please closely follow the assembly instructions. Improper installation may result in damage or serious personal injury

- Safety gear and proper tools must be used. This product should only be installed by professionals.

* Make sure that the supporting surface will safely support the combined weight of the equipment and all attached hardware and components.

* Use the mounting screws provided and DO NOT OVER TIGHTEN mounting screws.

• This product contains small items that could be a choking hazard if swallowed. Keep these items away from children.

• This product is intended for indoor use only. Using this product outdoors could lead to product failure and personal injury.

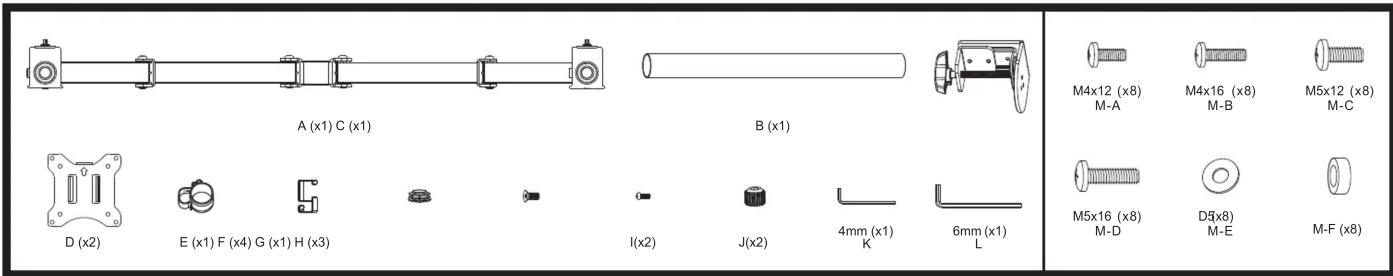

IMPORTANT: Ensure that you have received all parts according to the component checklist prior to installation. If any parts are missing or faulty, contact your place of

purchase for a replacement.

MAINTENANCE: Check that the product is secure and safe to use at regular intervals (at least every three months)

1. A course to do the change in the course of the course

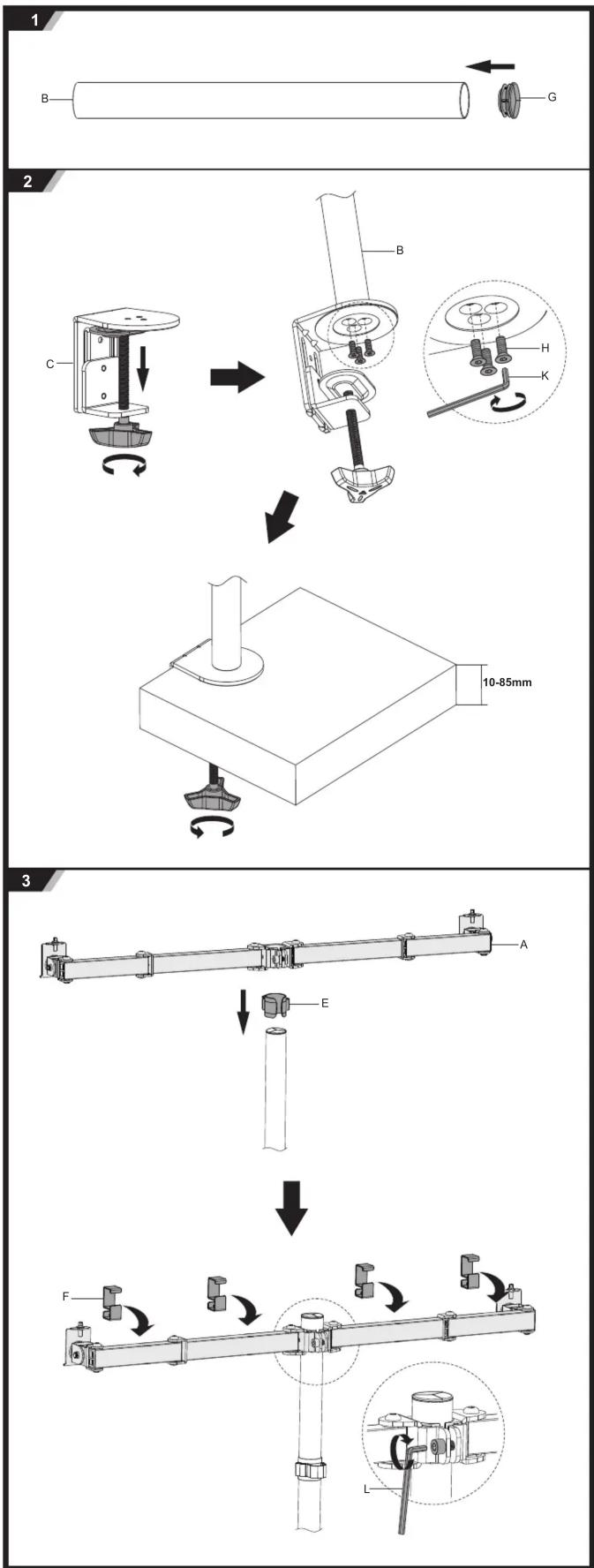

Diagram of a three-panel cable or cable device with mounting brackets and connectors, showing wiring connections (no text or symbols)

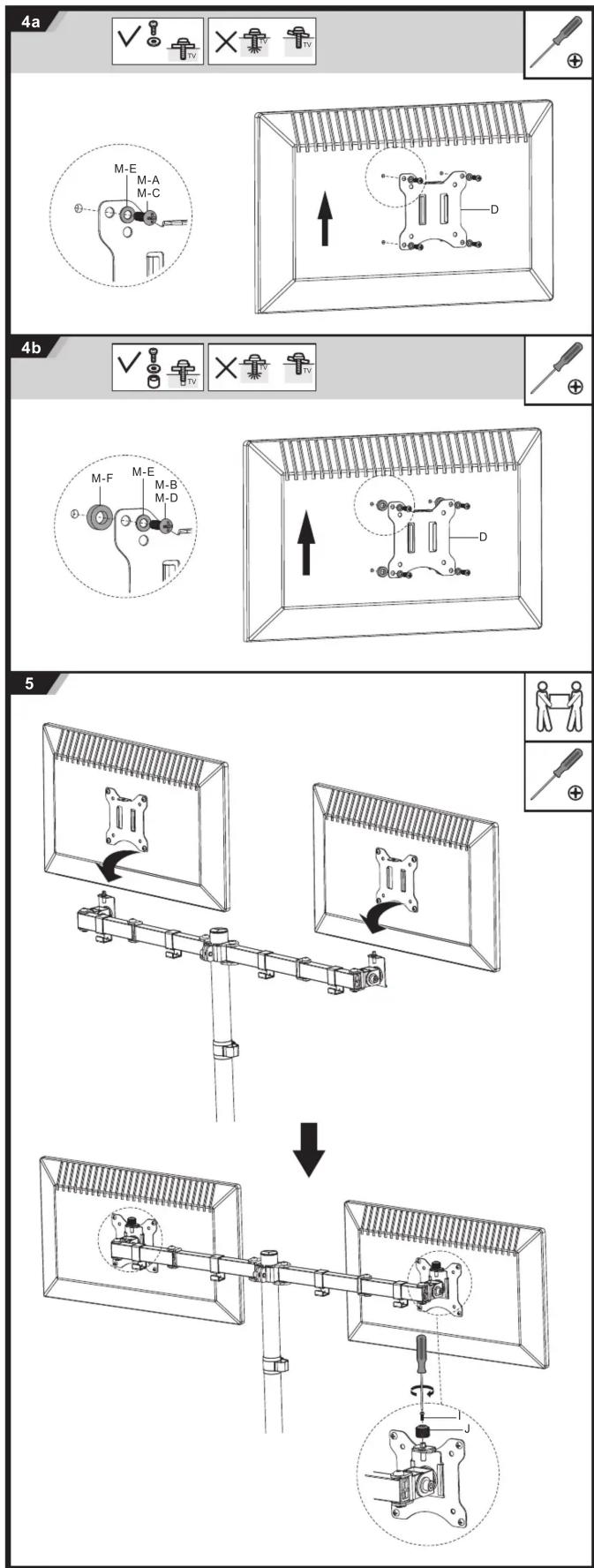

Technical line drawing of a mechanical assembly with no visible text or symbols

EM32-C02

75x75 100x100
