GSK800 - Kettle GEMINI - Free user manual and instructions

Product Type	Cordless Electric Kettle
Model	GSK800
Brand	Gemini
Capacity	1.7 Liters
Power Rating	2200 Watts
Voltage	220-240 V ~ 50/60 Hz
Material	Stainless Steel Body
Dimensions (L x W x H)	22 x 18 x 24 cm
Weight	1.2 kg
Cord Length	75 cm
Base Type	360° Rotational Base
Lid Type	Flip-top Lid with Button Release
Filter	Removable Mesh Filter
Water Level Indicator	Yes, Clear Window with Scale
Auto Shut-off	Yes
Boil-Dry Protection	Yes
Indicator Light	Power On Illuminated Switch
Cordless Pouring	Yes
Cleaning	Wipe with damp cloth; descale regularly
Safety Features	Auto shut-off, boil-dry protection, cool-touch handle
Spare Parts	Replacement filters and bases available
Repairability	Repairable by qualified technician; spare parts stocked

Frequently Asked Questions - GSK800 GEMINI

What is the capacity of the Gemini GSK800 kettle?

The Gemini GSK800 kettle has a capacity of 1.7 liters, perfect for boiling water for multiple cups of tea or coffee.

How do I descale the kettle?

To descale, fill the kettle with a mixture of white vinegar and water (1:3 ratio) or use a commercial descaling solution. Boil, let it sit for 15 minutes, then rinse thoroughly.

Does the kettle have automatic shut-off?

Yes, the Gemini GSK800 features automatic shut-off once the water reaches boiling point, ensuring safety and energy efficiency.

Is the kettle cordless?

Yes, the kettle is cordless and sits on a 360° rotational base, making it easy to lift and pour from any angle.

What material is the kettle body made of?

The body is made of stainless steel, which is durable, easy to clean, and resistant to rust.

Can I see the water level?

Yes, there is a clear water level window with markings for cups and liters, so you can see exactly how much water is inside.

Does the kettle have a filter?

Yes, it includes a removable mesh filter to catch any limescale particles, ensuring cleaner water.

How do I clean the kettle?

Unplug and let cool. Wipe the exterior with a damp cloth. For internal cleaning, use a descaling agent as needed. Do not immerse in water.

What is the power rating?

The kettle operates at 2200 Watts and is suitable for 220-240 V outlets, allowing fast boiling.

Where can I find spare parts?

Spare parts such as filters and bases can be obtained from authorized Gemini service centers or online retailers. Contact Gemini support for details.

USER MANUAL GSK800 GEMINI

1 Please read these instructions carefully and retain them for reference.
2 This appliance is not intended for use by persons (including children under 8 years old) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
3 Have any repairs carried out solely by a qualified electrician. Never try to repair the appliance yourself.
4 Use this appliance solely in accordance with these instructions.
5 Never use the appliance outdoors.
6 Never use the appliance in a humid room.
7 Do not place the electric bottles in the work of the platform near the window, prevent any accidents and short circuit caused by outdoor weather.
8 Place the appliance on a flat, stable surface.
9 Never allow the power cord to hang over the edge of the draining board, worktop or table.
10 Do not place any objects covered the kettle.
11 Make sure that your hands are dry before touching the appliance, power cord or plug.
12 Always remove the plug from the wall socket after use, and before cleaning the appliance.
13 Do not pick up the appliance if it falls into water. Remove the plug from the wall socket immediately and do not use the appliance any more.
14 Use solely the power base supplied with the kettle kettle. Never use the power base for other purposes.
15 Remove the kettle from the power base, and fill with water from the tap. Never fill the kettle above the 'MAX' 0.5litre level.
16 DO NOT press ON/OFF button the appliance before you have filled it with water. Fill only with cold water.
17 The kettle's lid must remain securely closed whilst the appliance is in use or during operation.
18 Never open the lid when the water is still boiling.
19 Never touch the kettle body when the hot water inside kettle body. Only can touch the plastic handle and base control panel.
20 Use the appliance only to boil or heat water. Never use it for other liquids!
21 The kettle is used NTC temperature detection. The difference of plus or minus 5°C between the displayed and actual water temperature is a normal phenomenon.
22 When the boiled water is poured into the cup to measure temperature (due to the influence of the hot water passing through the air and the different temperature of the cup), the water temperature will be greatly deviated.
23 Allow the appliance to cool to room temperature before storage.
24 This appliance may not be used through an external timer or by means of a remote control.
25 The heating element and kettle body surface are subject to residual heat after use.

26 The kettle should be avoid collision during use. It is normal some color blocks to fall off due to human factors such as touching or friction with other objects.
27 If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

This unit is for HOUSEHOLD USE ONLY

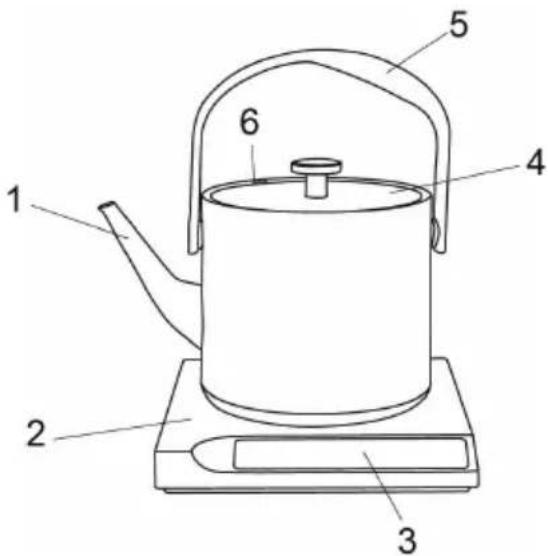

PRODUCT REVIEW

1. Spout
2. Power base
3. Touch control panel
4. Lid w/handle
5. Handle
6. Steam hole

Temperature Setting Button

BEFORE USE FOR THE FIRST TIME

Before first use, remove all packaging materials and possible manufacturing process residues by boiling 3 times of water cleaning this kettle.

Tip: You can use vinegar for the first time cleaning before use.

USE

1 Turn the kettle so that the spout faces away from you.

1. Pull up the lid by holding the handle, fill the kettle with the required quantity of water (a maximum of 0.5 liters). Never fill the water in boiler over the "MAX" line. Otherwise the hot water can spatter out of the power base.

ATTENTION

Make sure that you do not spill any water on the power base.

1. Close the lid and make sure that it snaps in correctly.

2. Put the kettle on the base correctly. The buzzer will buzz, all the LED lights up in white for one second. And the on/off button ⏻ is flashing slowly. Then enter it standby mode.

3. Boiling water to 100^ C: Press on/off button ⏻ to start, the indicator of temperature setting button in white. Press on/off button ⏻ again, the buzzer will buzz and the 100^ C indicator is flashing, on/off button ⏻ indicator will turn to long bright, then start to heating. When the water boiling to 100^ C, the buzzer will buzz 3 times and the power will be cut off and return to standby mode.

4. Keep warm function: Press on/off button ⏻ to start, the indicator of temperature setting button in white. Press temperature setting button

40°C 50°C 60°C 70°C 80°C 90°C 100°C to select descried temperature (40°C to 100°C), indicator of target temperature start to flashing and press on/off button ⏻, the keep warm button ⏱ and on/off button ⏻ indicator will turn to long bright. After that water is start to boiling, once the water temperature reaches the target temperature, the buzzer will buzz 3 times, and the kettle will stop heating, then start to keep warm program. Without any operation, the keep warm function time is 2 hours. During the keep warm program, when the water temperature drops to 3°C, it will self-heating to the keep warm temperature. Press keep warm button ⏱ can cancel the keep warm program. In any case, the keep warm function would be turned on or off

1. Separate and protect the body from the power base, During the heating or keep warm

program, if the body is removed and the kettle is temporarily heated, put the kettle body back to the power base within 3 minutes, and the previous working sate will continue. After
3 minutes, it will return to standby mode.
8. Remove the kettle from the power base by the handle, and pour the water out.
9. Remove the plug from the wall socket when you have finished using the kettle.

ATTENTION

Be careful you do not touch the hot water or the housing by bear hands. It can cause serious burning wounds.

CAUTION

1 Do not put the product into water or sprinkle water on it, otherwise, it may cause short circuit and electric shock.
2 Do not touch the body of the kettle when it is still hot, otherwise it may cause scald.
3 Do not open the lid or pour out boiled water when during the course of boiling, otherwise, boiled water will easily sprinkle and steam will jet out which may cause scald.
4 Use qualified wall socket independently which shall meet the rated power supply of the product, unplug the power plug from the wall socket, when not in use for a period of time, it may cause heat or fire if the product shares one socket with other electrical appliances.

OVERHEAT AND BOIL DRY PROTECTION

Do not turn on the kettle if it is empty. The incorrect use of the kettle may negatively affect its lifetime. If you accidentally turn on the kettle without water or low water level, When the thermostat reaching a certain temperature, interrupt the electric circuit. The ON/OFF

button ⏻ indicator in flashing slowly. Allow the kettle to cool down for at least 10 minutes before using it again.

CLEANING AND MAINTENANCE

1. Remove the plug from the wall socket, and allow the appliance to cool down completely.
2. Clean the kettle with a damp cloth. Never immerse the appliance in water. Never put the appliance in a dishwasher. Make sure that the electrical connections do not become damp.
3. If the interior of the kettle has become severely discolour, then the best way to clean it is with a damp cloth and some washing soda. After cleaning, rinse the kettle very thoroughly.

ATTENTION

1. Never use corrosive or scouring cleaning agents or sharp objects (such as knives or hard brushes) to clean the appliance.
2. Before cleaning, make sure that the appliance is not connected to the power supply and the kettle has cooled down completely.

DESCALING

Lime will be deposited on the heating plate at a rate depending on the hardness of the water. For this reason the heating plate must be cleaned at regular intervals.

1 Remove the plug from the wall socket, and allow the appliance to cool down completely.
2 Fill the kettle with a vinegar and mixed water cleaning solution to the MAX (0.5L) water level and boil it.
3 After boiled, leave the kettle with the vinegar solution to stand for a couple hours.
4 Empty the kettle, fill with clean water to the MAX(0.5L) water level, and bring to the boil. Empty the kettle. Repeat this process twice for cleaning.

Never use ammonia or other corrosive liquids solution products to descale the appliance. These can be injurious to your health.

SPECIFICATIONS

Model No.: GSK800

Mains Voltage & Frequency: 220-240V \~ 50/60Hz

Power : 800-1000W

Capacity: 0.5 liters Max.

Product Dimension: 210(W) x 235(H) x185(D) mm (With power base)

*The final product specification may be varied according to a different lot of material and actual input voltage power of the usage area.

輕觸式控制面板按鍵說明

開關鍵

保溫鍵
