Product Type	Indoor Directional Antenna (Flatbed)
Brand	Uniden
Model	WLE-DA
Category	Telephony (Wireless Network Antenna)
Frequency Range	2.401–2.484 GHz (Channels 1–11)
Antenna Gain	4 dBi (total including cable loss)
Connector Type	MC Connector
Polarization	Horizontal and Vertical (Horizontal during transmission)
VSWR	1.5 or less (with coaxial cable)
Range Improvement	Up to 200% (doubles) under line-of-sight; up to 400% with two flatbed antennas
Compatibility	Buffalo AirStation 802.11b/g Access Points and select wireless adapters with MC connector
Special Features	AOSS Friendly (AirStation One-Touch Secure System), adjustable antenna face angle
Mounting	Wall-mountable
Dimensions (W x H x D)	100 x 100 x 17 mm
Weight	0.3 kg
Power Supply	Passive (no external power required)
Indoor/Outdoor	Indoor use only
Cleaning	Wipe with a dry, soft cloth; do not use liquids or solvents
Safety Precautions	Keep away from water and moisture; do not disassemble; mount securely
Spare Parts & Repairability	Contact Uniden support for replacement parts; not user-serviceable
General Information	Designed to extend wireless network range; suggested retail price $99.00

Frequently Asked Questions - WLE-DA UNIDEN

What devices are compatible with the Uniden WLE-DA antenna?

The WLE-DA is compatible with all Buffalo AirStation 2.4GHz 802.11b/g Access Points (including G54 series) and select wireless adapters that use an MC connector. It may also work with other devices using the same connector but compatibility is not guaranteed.

How much does the WLE-DA improve wireless range?

Under ideal line-of-sight conditions, the WLE-DA can double the range (up to 200%). Using two flatbed antennas can increase range up to 400%. Actual improvement depends on the environment.

How do I install the WLE-DA antenna?

Connect the MC connector to your compatible device's antenna port. The antenna can be placed on a flat surface or mounted on a wall using the provided bracket. Adjust the angle for optimal signal direction.

What is the frequency range of this antenna?

The antenna operates in the 2.4 GHz band, specifically from 2.401 to 2.484 GHz, covering channels 1–11 for IEEE 802.11b/g.

Is the WLE-DA antenna directional?

Yes, it is a directional (flatbed) antenna with forward directionality to focus the signal in one direction, increasing range and reducing interference from the sides and rear.

Does the antenna require external power?

No, the WLE-DA is a passive antenna and does not require any external power source. It simply connects to your wireless device's antenna port.

What is AOSS and does this antenna support it?

AOSS (AirStation One-Touch Secure System) is Buffalo's simplified wireless security setup. The WLE-DA is AOSS Friendly, meaning it works seamlessly with AOSS-enabled devices for easy and secure connections.

Can I use this antenna outdoors?

No, the WLE-DA is designed for indoor use only. It is not weatherproof and should be kept away from moisture and extreme temperatures.

How do I clean and maintain the antenna?

Clean the antenna with a dry, soft cloth. Do not use water, cleaning solvents, or abrasive materials. Avoid touching the connector pins.

What is the warranty on the WLE-DA?

Warranty information is not specified in the manual. Typically, Uniden products carry a limited warranty. Contact Uniden customer support or refer to the product packaging for details.

USER MANUAL WLE-DA UNIDEN

Indoor Flatbed Antenna

PRINT this page

EMAIL a friend

Range Brochure PDF

The external 2.4GHz Indoor Directional Antenna (WLE-DA) is a 4dBi antenna that will double the range of the device it is connected to.

*This antenna connects to any of the AirStation Access Points and select Wireless adapters with the MC connector extending the range of your wireless network environment.

Compatible with all Buffalo 2.4GHz 802.11b Access Points (Access Points) including the new AirStation 802.11g G54 Series Access Points.

*dependant on the environment of the WLAN

Suggested Retail: \$99.00

AOSS

Friendly

Buffalo's AirStation

OneTouch Secure System

(AOSS□)

(click image for more

information on AOSS)

Key Features

AOSS Friendly (AirStation OneTouch Secure System)

It provides better quality communication using diversity antenna

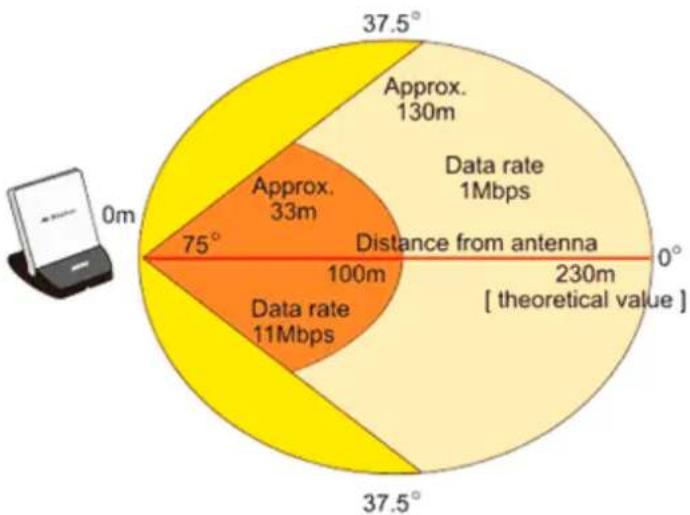

Forward directionality improves the range double

The antenna face angle is adjustable

The antenna can be mounted on the wall

The carrier frequency is 2,401\~2,484 MHz (1-11 ch)

The nominal range will be doubled. (LOS and/or dependent on the environment)

Technical Specifications

Polarization Method: Horizontal and Vertical Polarizations; Horizontal Polarization during transmission

Connector Type: MC

Frequency Range: 2,401-2,484MHz (1-11ch)

VSWR: 1.5 or less with coaxial cable

Antenna Gain: Total gain 4dbi or more, including the cable loss

Range Goal: Unobstructed = 200% (400% or more using flatbed antennas on both sides)

Dimensions: 100 X 100 X 17 (mm)

Weight: 0.3 Kg
