Product Type	Planer
Brand	RYOBI
Model	RPN780
Cutting Width	82 mm (3-1/4")
Cutting Depth	0 - 2 mm (0 - 1/16")
No-Load Speed	16,000 rpm
Motor Power	720 W
Power Supply	120V, 60 Hz, AC
Weight	2.9 kg (6.4 lbs)
Dimensions (L x W x H)	290 x 165 x 175 mm
Dust Port Diameter	35 mm (1-3/8")
Blade Type	Double-sided carbide
Main Functions	Planing, chamfering, rebating
Adjustable Depth Stop	Yes, 0-2 mm
V-Shaped Groove	Yes, for chamfering

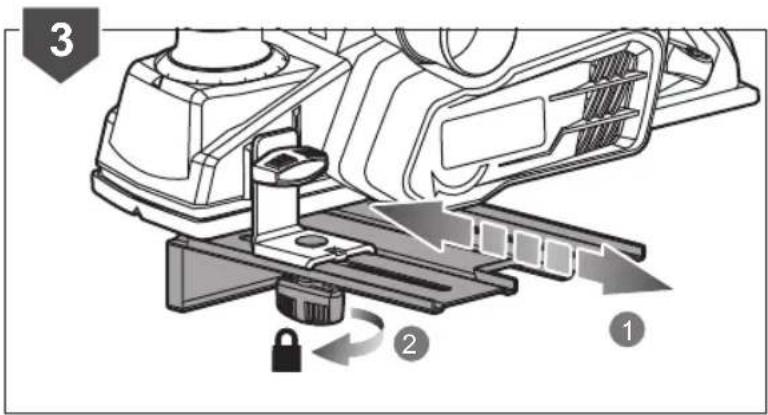

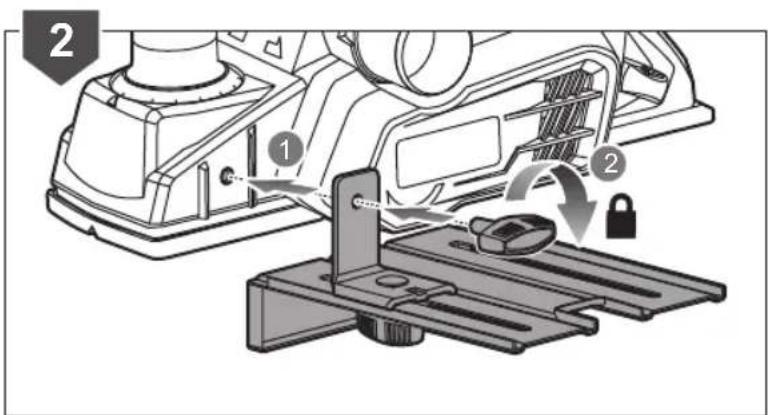

Parallel Guide	Included
Soft Grip Handle	Yes
Maintenance	Blade replacement, cleaning, lubrication
Safety Features	Lock-off switch, blade guard, anti-kickback
Spare Parts Availability	Blades, brushes, power cord available
Repairability	User-replaceable brushes and blades

Frequently Asked Questions - RPN780 RYOBI

What is the maximum cutting depth of the RYOBI RPN780 planer?

The maximum cutting depth is 2 mm (1/16 inch), adjustable in fine increments.

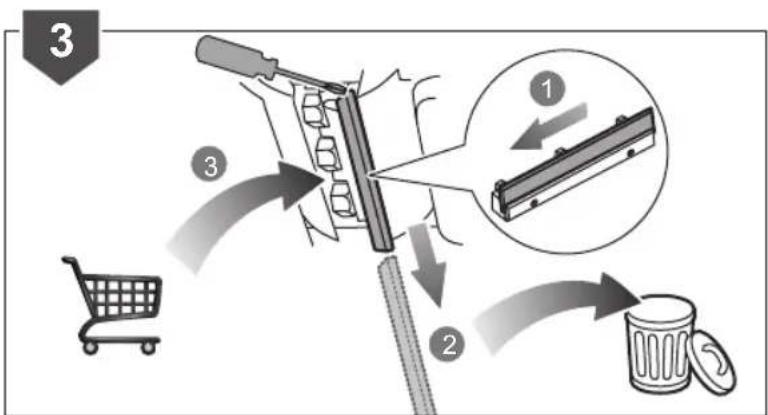

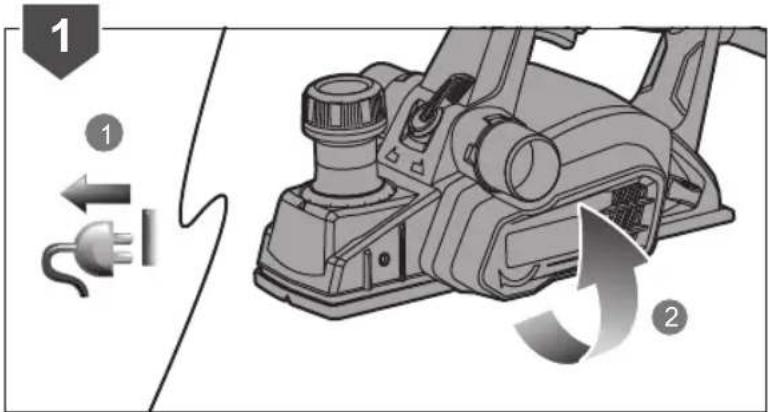

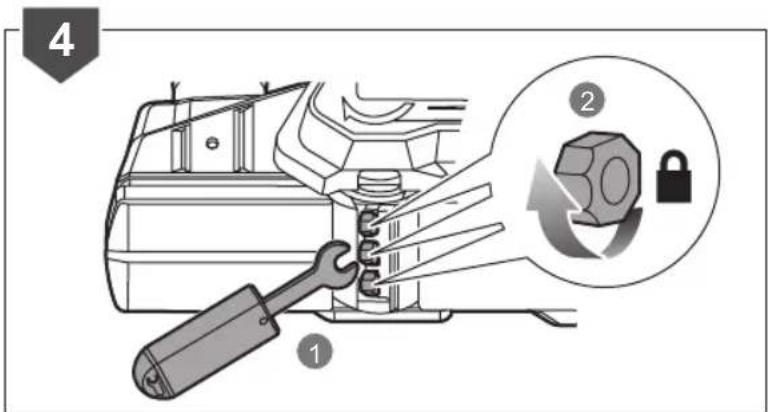

How do I change the blades on the RPN780?

First, unplug the planer. Loosen the blade screws with the included hex key, remove the old blades, and insert new double-sided carbide blades. Ensure they are aligned and tighten securely.

What is the no-load speed of the RPN780?

The no-load speed is 16,000 rpm, providing smooth and efficient planing.

Can I use the RPN780 for chamfering edges?

Yes, the planer features a V-shaped groove in the front shoe for chamfering edges.

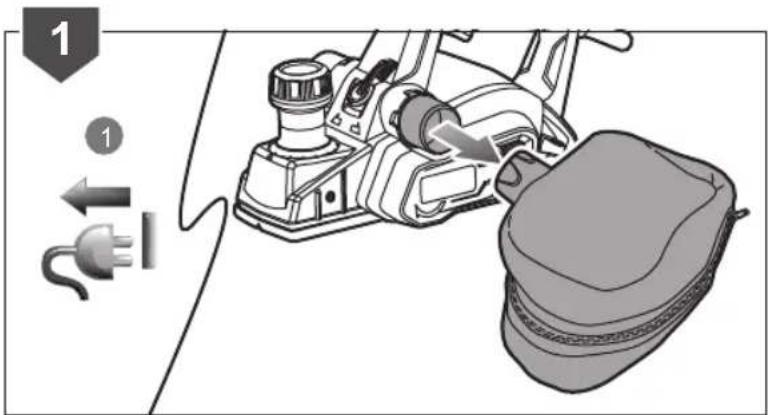

Does the RPN780 come with a dust bag or dust port?

It has a 35 mm dust port that can be connected to a vacuum cleaner or dust extraction system for a cleaner workspace.

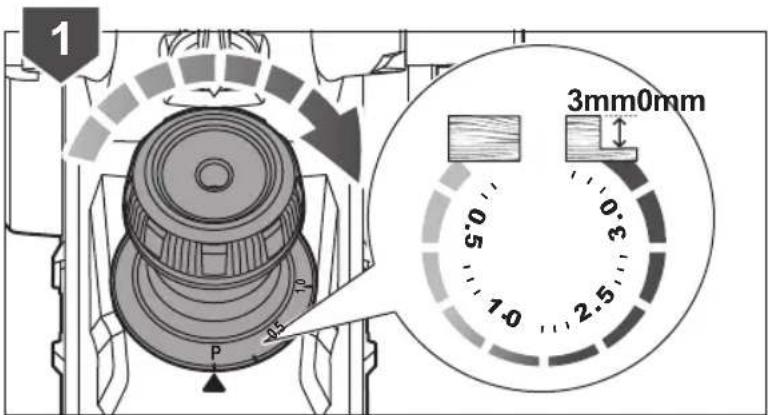

How do I adjust the planing depth?

Turn the depth adjustment knob on the front of the planer. The scale indicates the cutting depth from 0 to 2 mm.

What type of power cord does the RPN780 use?

It uses a standard 120V, 60 Hz power cord. The cord length is approximately 2 meters.

Is the RPN780 suitable for rebating?

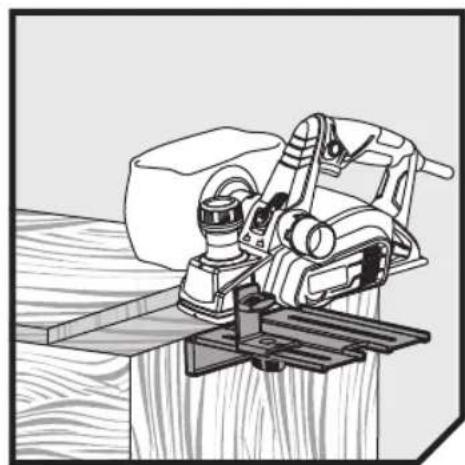

Yes, with the included parallel guide, you can perform rebating up to a certain width.

How often should I replace the carbon brushes?

Carbon brushes should be inspected every 50 hours of use and replaced when worn down to 3 mm or less.

What safety features does the RPN780 have?

It includes a lock-off switch to prevent accidental start, a blade guard, and an anti-kickback mechanism.

USER MANUAL RPN780 RYOBI

Ryobil electric plow with mesh cover and control knob (no visible text or symbols)

Important!

It is essential that you read the instructions in this manual before assembling, operating, and maintaining the product.

Subject to technical modification.

Safety, performance, and dependability have been given top priority in the design of your planer.

INTENDED USE

The planer is intended to be used only by adults who have read and understood the instructions and warnings in this manual, and can be considered responsible for their actions.

The product is intended for planing wood (removing an even layer to provide a smooth, flat finish) and rebating wood.

The product is not intended to be used for stationary planing.

The product should only be used in well ventilated areas.

The product is intended for consumer use only. Do not use the product for any other purpose.

GENERAL POWER TOOL SAFETY WARNINGS

WARNING

Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

WORK AREA SAFETY

• Keep work area clean and well lit. Cluttered or dark areas invite accidents.
• Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
• Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

ELECTRICAL SAFETY

■ Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
■ Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
- Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
- Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase

the risk of electric shock.

■ When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
■ If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

PERSONAL SAFETY

■ Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
■ Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.
■ Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
■ Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
- Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
■ Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
- Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

POWER TOOL USE AND CARE

• Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
• Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
  ■ Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such

preventive safety measures reduce the risk of starting the power tool accidentally.

■ Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
- Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
- Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
■ Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
- Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

SERVICE

■ Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

PLANER SAFETY WARNINGS

■ Wait for the cutter to stop before setting the tool down. An exposed rotating cutter may engage the surface, leading to possible loss of control and serious injury.
- Hold the power tool by insulated gripping surfaces, because the cutter may contact its own cord. Cutting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
■ Use clamps or another practical way to secure and support the workpiece to a stable platform. Holding the workpiece by your hand or against the body leaves it unstable and may lead to loss of control.
■ The dust produced when using this tool may be harmful to health. Do not inhale the dust. Use a dust absorption system and wear a suitable dust protection mask. Remove deposited dust thoroughly, e.g., with a vacuum cleaner.

ADDITIONAL SAFETY RULES

■ Do not remove splinters or saw dust while tool is running.

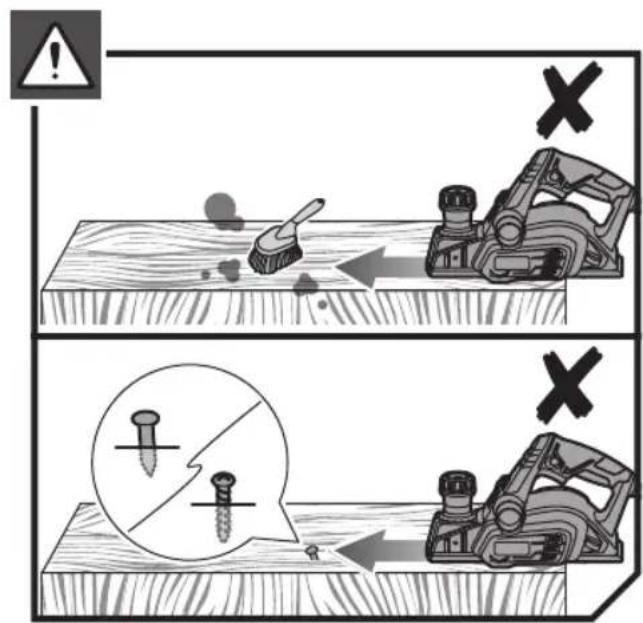

■ Only plane with sharp blades, avoid metals (nails, screws). Check the workpiece before planing.

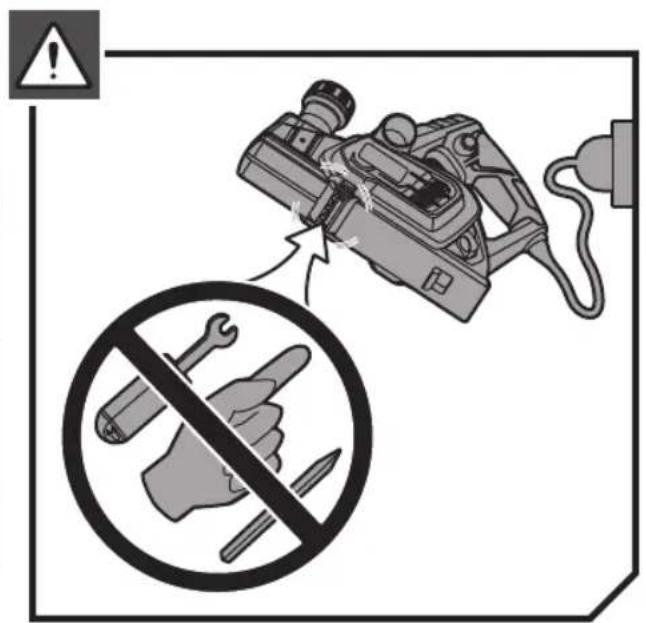

■ Do not reach into the danger area of the tool when plugged in.

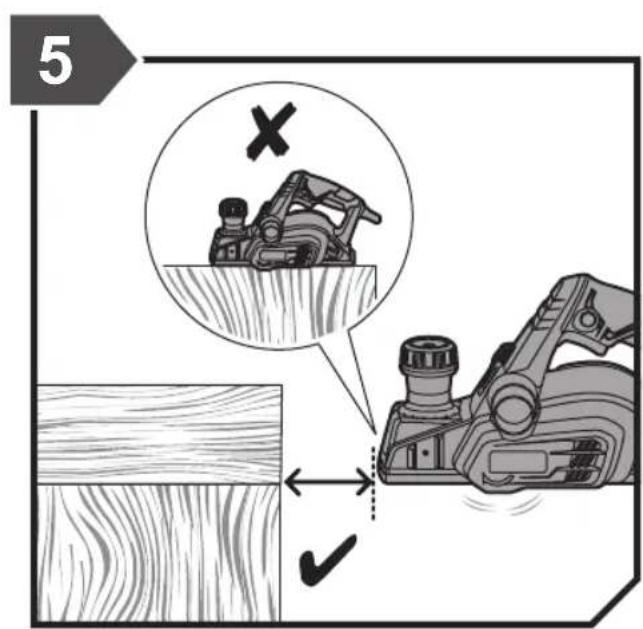

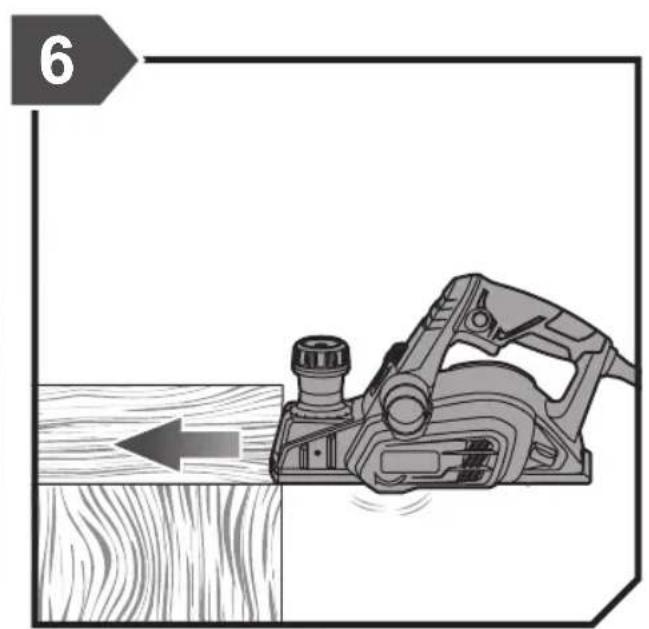

• Place the front plate of the machine on to the workpiece and switch on, before the planer blade touches the workpiece and then guide evenly over the workpiece.

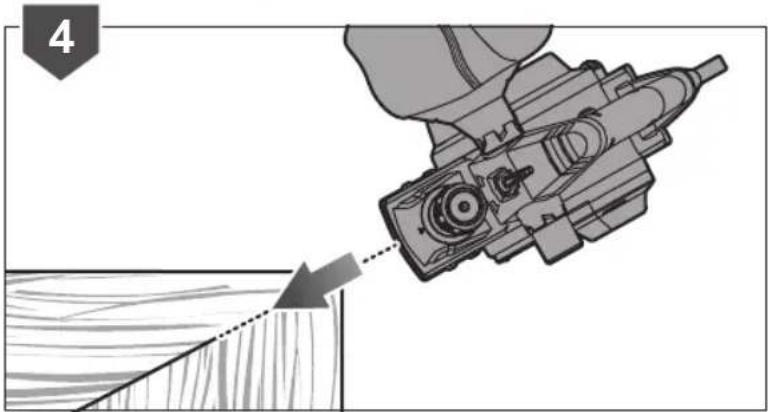

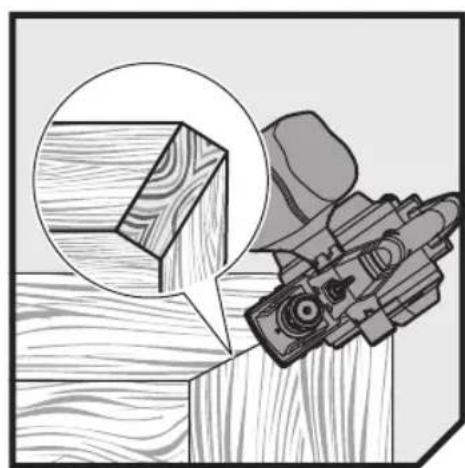

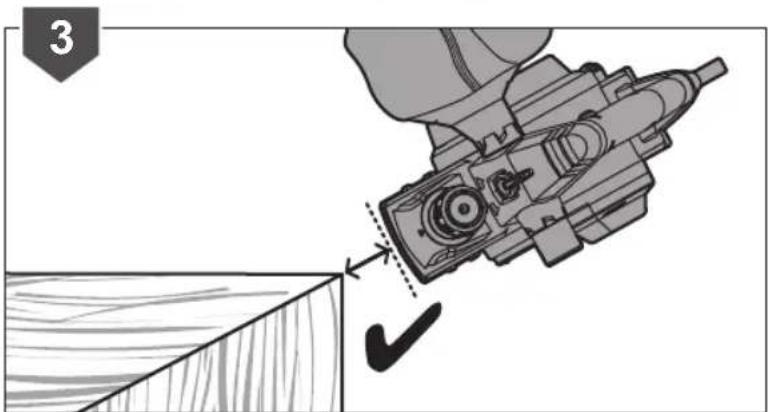

  ■ The v-shape notch in the front of the supporting plate ensures safe chamfering of edges.

RESIDUAL RISKS

Even when the product is used as prescribed, it is still impossible to completely eliminate certain residual risk factors. The following hazards may arise and the operator should pay special attention to avoid the following:

■ Injury caused by dust

- Using the product will produce considerable amount of dust and fine particles. Use the dust collection device or connect a dust extraction vacuum when operating the product. Wear dust masks containing filters appropriate to the materials being worked on. Ensure adequate workplace ventilation. Do not eat, drink, or smoke in the work area. Only operate on materials which are specified in the Intended use section. Do not operate on materials (e.g., asbestos) which present a health hazard.

■ Injury caused by noise and vibration

- Wear ear protection during operation. Do not operate the product for long periods of time. See "Risk reduction".

RISK REDUCTION

It has been reported that vibrations from handheld tools may contribute to a condition called Raynaud's Syndrome in certain individuals. Symptoms may include tingling, numbness and blanching of the fingers, usually apparent upon exposure to cold. Hereditary factors, exposure to cold and dampness, diet, smoking and work practices are all thought to contribute to the development of these symptoms. There are measures that can be taken by the operator to possibly reduce the effects of vibration:

• Keep your body warm in cold weather. When operating the unit wear gloves to keep the hands and wrists warm. It is reported that cold weather is a major factor contributing to Raynaud's Syndrome.
  ■ After each period of operation, exercise to increase blood circulation.
  ■ Take frequent work breaks. Limit the amount of exposure per day.

If you experience any of the symptoms of this condition, immediately discontinue use and see your doctor about these symptoms.

WARNING

Injuries may be caused or aggravated by prolonged use of a tool. When using any tool for prolonged periods, ensure you take regular breaks.

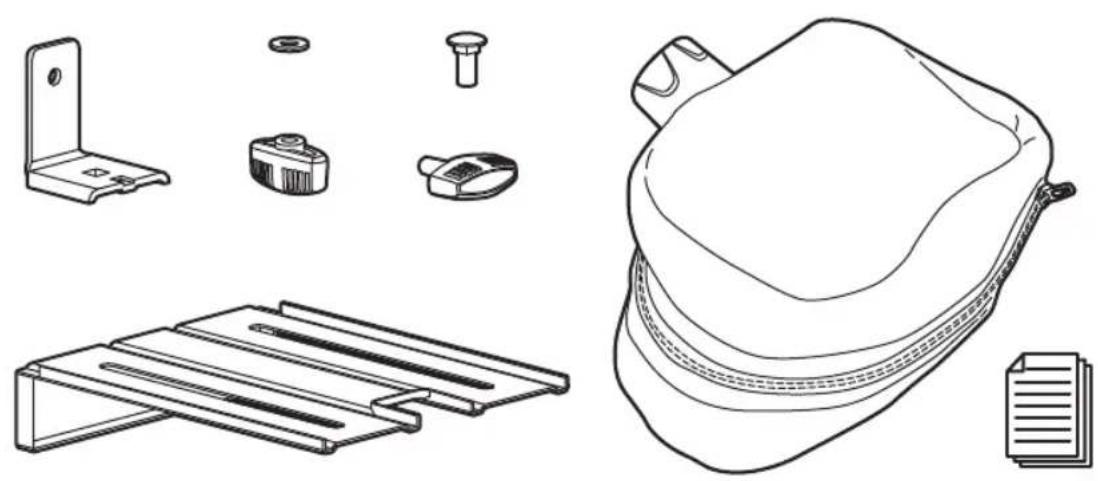

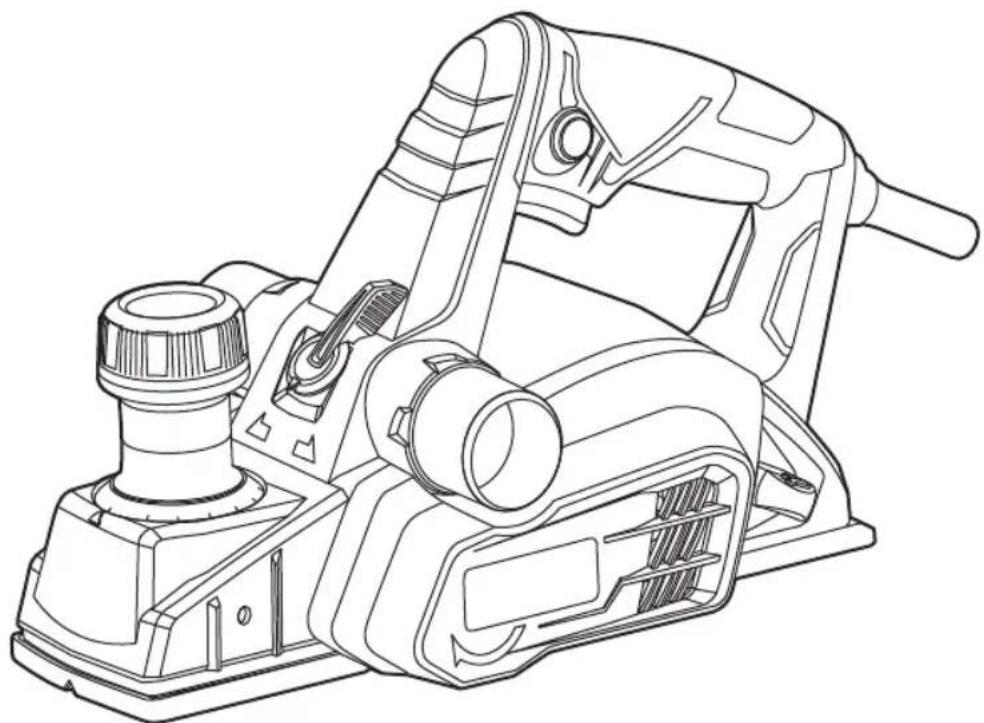

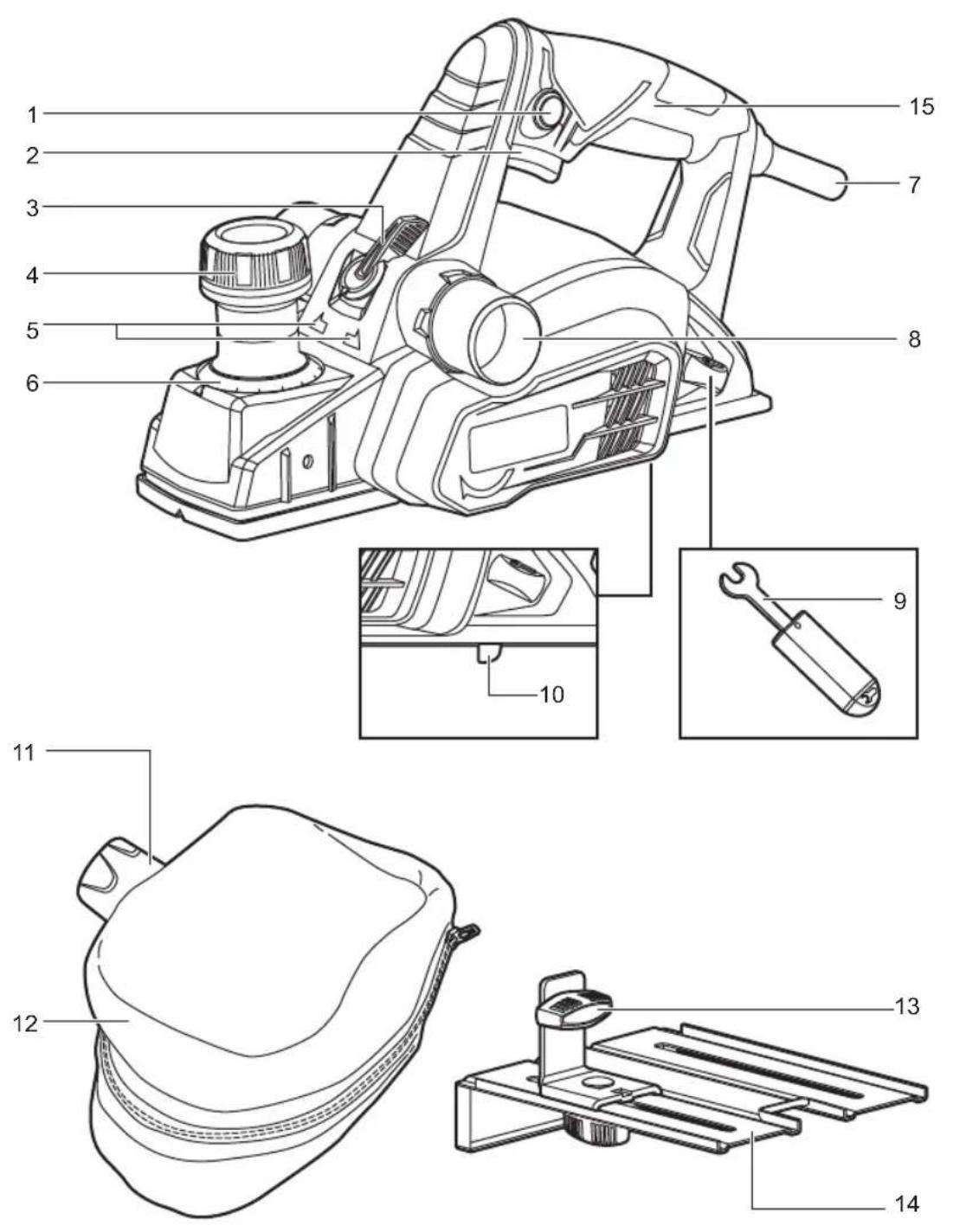

KNOW YOUR PRODUCT

See page 7.

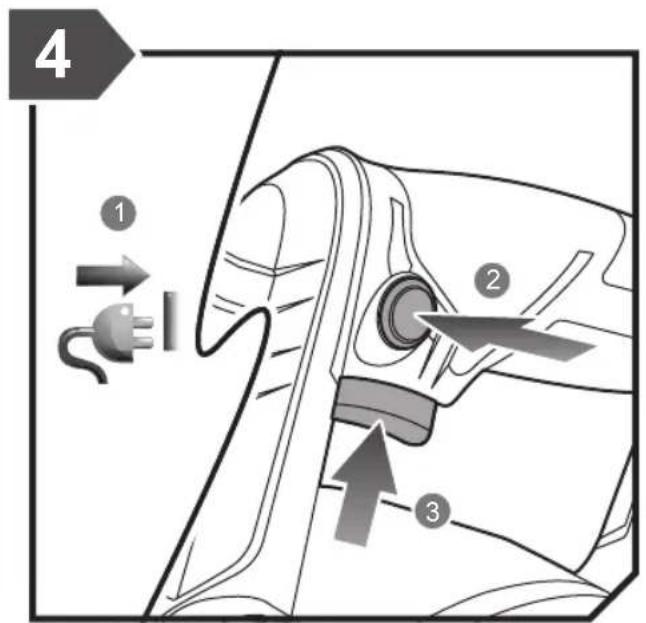

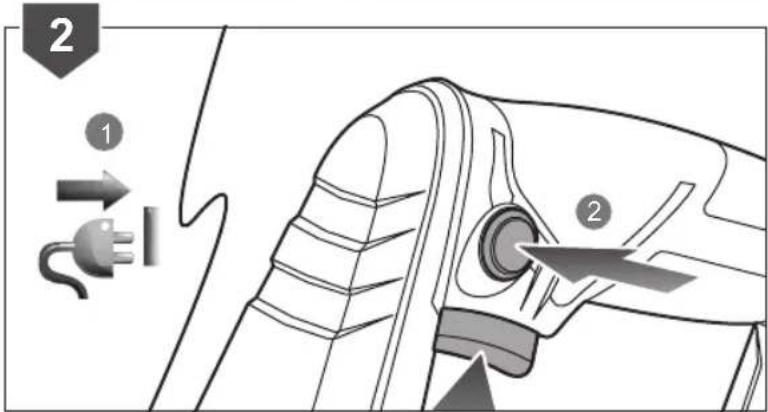

1. Lock-off button
2. Trigger

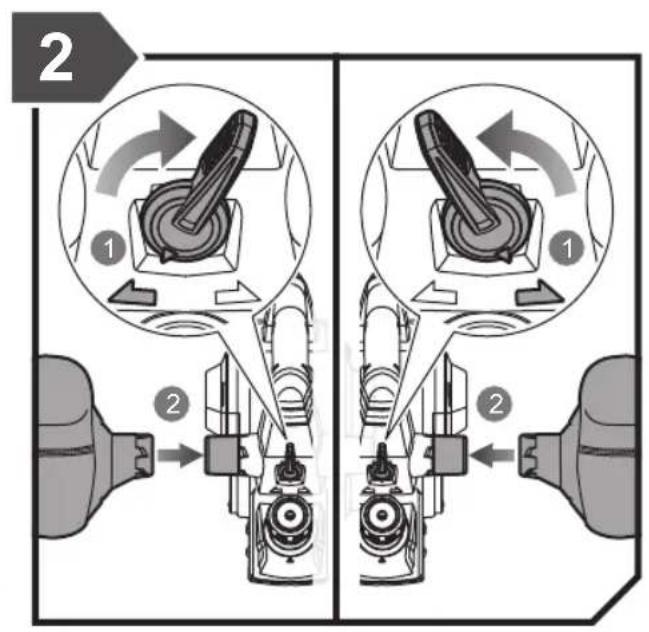

3. Dust flow direction knob

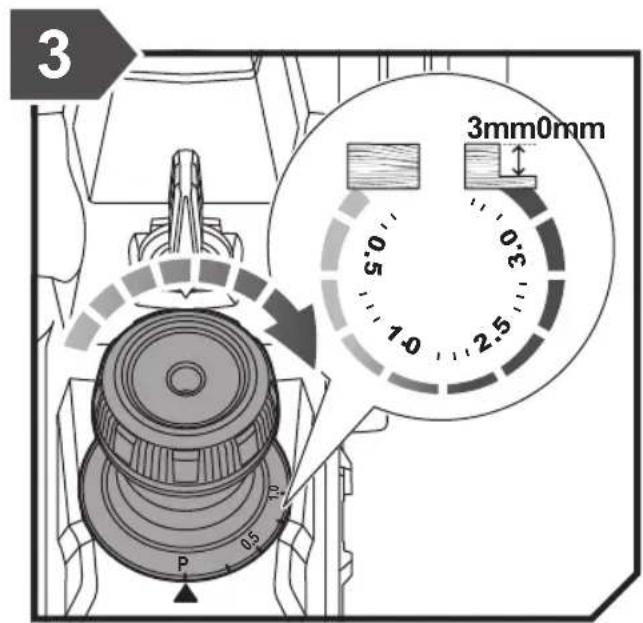

4. Depth adjustment knob
5. Dust flow direction mark
6. Depth scale
7. Power cable
8. Dust outlet
9. Wrench
10. Kickstand
11. Dust bag adaptor

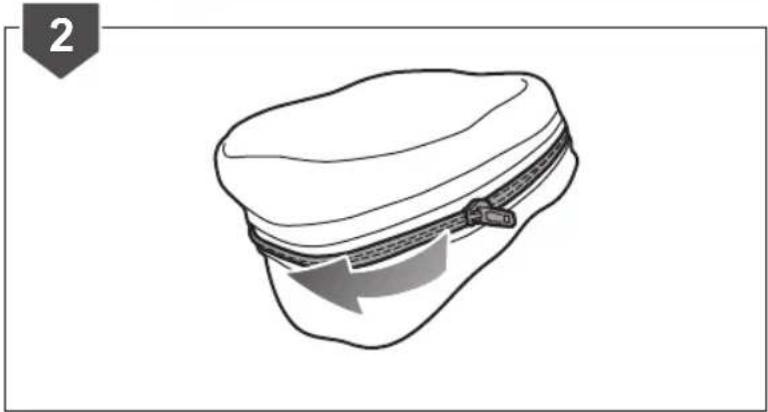

12. Dust bag
13. Side fence knob

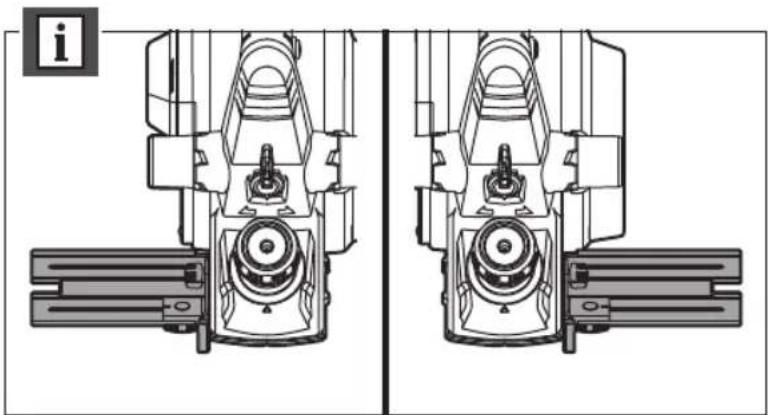

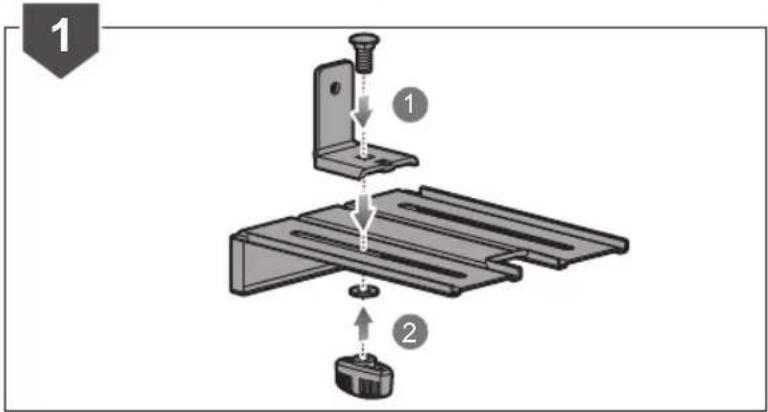

14. Side fence

15. Handle, insulated gripping surface

MAINTENANCE

WARNING

The product should never be connected to a power supply when assembling parts, making adjustments, cleaning, performing maintenance, or when the product is not in use. Disconnecting the product from the power supply will prevent accidental starting that could cause serious injury.

WARNING

When servicing, use only original manufacturer's replacement parts, accessories and attachments. Use of any other parts may create a hazard or cause product damage.

WARNING

Do not at any time let brake fluids, gasoline, petroleum-based products, penetrating oils, etc., come in contact with plastic parts. Chemicals can damage, weaken or destroy plastic which may result in serious personal injury.

■ Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to various types of commercial solvents and may be damaged by their use. Use clean cloths to remove dirt, carbon dust, etc.
■ If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent.
■ For greater safety and reliability, all repairs should be performed by an authorised service centre.

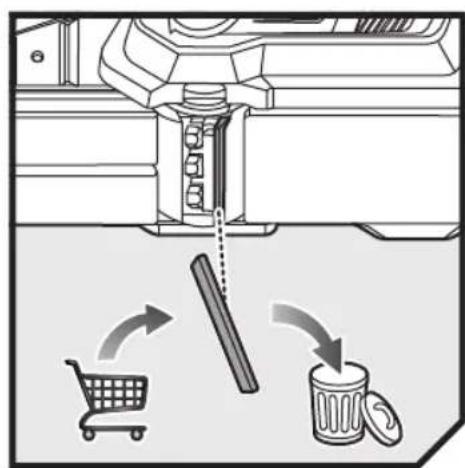

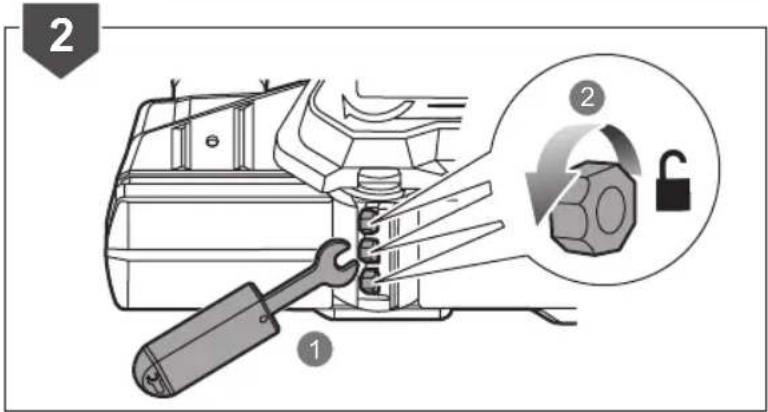

■ Replace worn blades with new ones.
■ Electric tools used on fiberglass material, wallboard, spackling compounds, or plaster are subject to accelerated wear and possible premature failure because the fiberglass chips and grindings are highly abrasive to bearings, brushes, commutators, etc.
Consequently, we do not recommend using this tool for

extended work on these types of materials. However, if you do work with any of these materials, it is extremely important to clean the tool using compressed air.

ENVIRONMENTAL PROTECTION

Recycle raw materials instead of disposing of as waste. The machine, accessories and packaging should be sorted for environment-friendly recycling.

SYMBOLS ON THE PRODUCT

Safety alert

V Volts

Hz Hertz

\~ Alternating current

Watts

n。No-load speed

min ^-1 Revolutions or reciprocations per minute

Please read the instructions carefully before starting the machine.

Class II tool, double insulation

Maximum planing capacity

CE conformity

EurAsian Conformity Mark.

Ukrainian mark of conformity

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice.

Maximum planing capacity

Wear eye protection

SYMBOLS IN THIS MANUAL

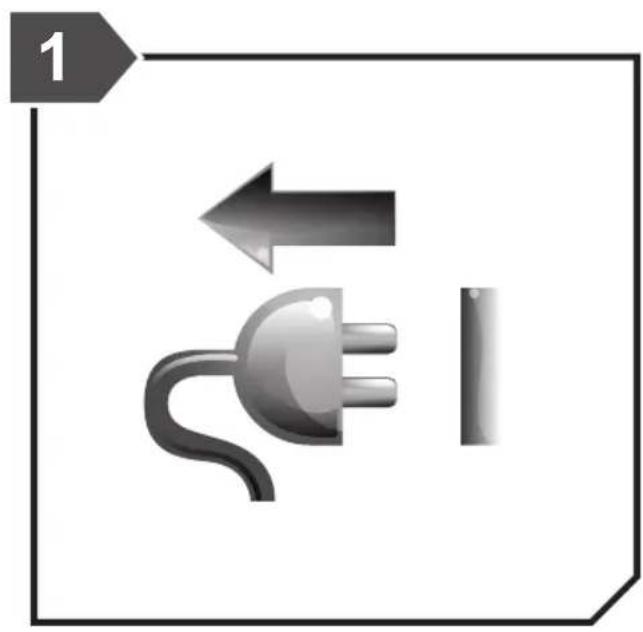

Connect to the power supply.

Disconnect from the power supply.

Parts or accessories sold separately

Note

Lock

Unlock

The following signal words and meanings are intended to explain the levels of risk associated with this product:

DANGER

Indicates an imminently hazardous situation, which, if not avoided, will result in death or serious injury.

WARNING

Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury.

CAUTION

Indicates a potentially hazardous situation, which, if not avoided, may result in minor or moderate injury.

CAUTION

(Without Safety Alert Symbol) Indicates a situation that may result in property damage.

Line drawing of a mechanical power tool with handle and base (no text or symbols)

Technical line drawings of mechanical components including metal bracket, bolts, and a cap (no text or symbols)

Pure electrical circuit symbol illustration without any text or labels

Illustration of a hand tool pressing down on a wooden block, with no text or symbols present.

Illustration of a wooden post with a magnified inset showing a 3D block and a camera, no text or symbols present.

Mechanical assembly diagram showing a cutting tool interacting with a wooden surface (no text or symbols)

Mechanical assembly diagram showing a hand operating a tool with a dashed line indicating tool path (no text or symbols present)

Line drawing of a mechanical clamp or measuring device mounted on a wooden post (no text or symbols)

Technical line drawing of two symmetrical mechanical components with no visible text or symbols


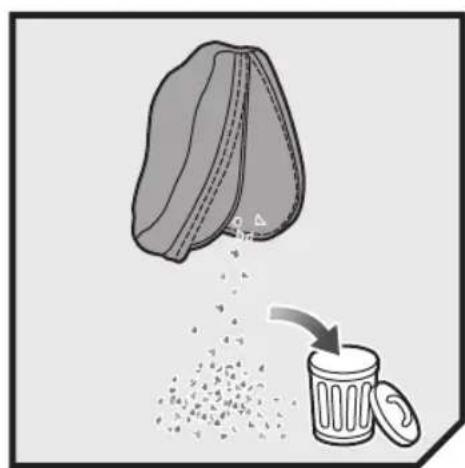

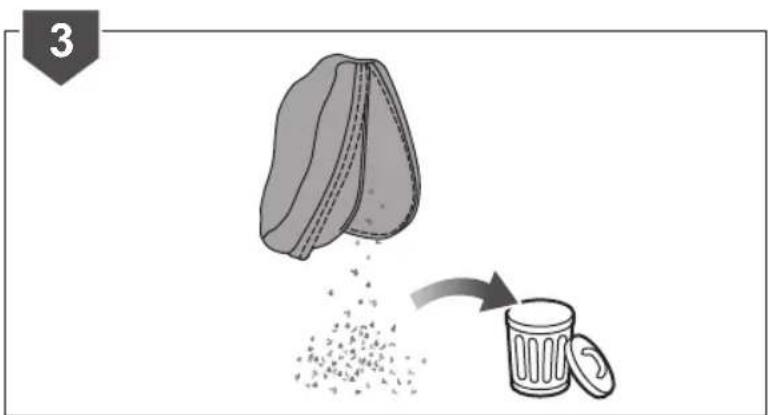

Illustration of a bag pouring liquid into a trash bin with an arrow indicating the process (no text or symbols)

Simple line drawing of a closed box with a zipper and arrow indicating compression (no text or symbols)

PRODUCT SPECIFICATIONS

Planer
Model RPN780
Input 220 V - 240 V	~ 50/60 Hz
Wattage 780 W
No-load speed 17000 min	-1
Max. planing depth 3 mm
Max. planing width 82 mm
Max. rebbate depth 12 mm
Weight(According to EPTA procedure 01/2014)	3.1 kg
Measured sound values determined according to EN 62841:
A-weighted sound pressure level	L_pA = 85.5 dB(A)
Uncertainty K	3.0 dB(A)
A-weighted sound power level	L_WA = 96.5 dB(A)
Uncertainty K	3.0 dB(A)
Wear ear protectors
The vibration total values (triaxial vector sum) determined according to EN 62841:
Vibration emission value Main handle a	≤ 2.5 m/s^2 , Auxiliary handle a_h = 6.4 m/s^2
Uncertainty K K=1.5 m/s	2
Replacement parts
Blade	039165001058

VIBRATION LEVEL

The vibration emission level given in this information sheet has been measured in accordance with a standardised test given in EN 62841 and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure. The declared vibration emission level represents the main applications of the tool. However if the tool is used for different applications, with different accessories or poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total working period.

An estimation of the level of exposure to vibration should also take into account the times when the tool is switched off or when it is running but not actually doing the job. This may significantly reduce the exposure level over the total working period. Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.

RYOBI® WARRANTY APPLICATION CONDITIONS

In addition to any statutory rights resulting from the purchase, this product is covered by a warranty as stated below.

1. The warranty period is 24 months for consumers and commences on the date the product was purchased. This date has to be documented by an invoice or other proof of purchase. The product is designed and dedicated to consumer and private use only. So there is no warranty provided in case of professional or commercial use. This warranty applies only on new products.
2. There is a possibility to extend for a part of the range of power tools (AC/DC) the warranty period over the period described above using the registration on the www.ryobitools.eu website. The eligibility of products for extended warranty is clearly displayed in stores and / or on packaging and is contained within the product documentation. The end user is required to register his/her newly-acquired products online within 30 days from the date of purchase. The end user may register for the extended warranty in his/her country of residence if listed on the online registration form where this option is valid. Furthermore, end users must give their consent to the storage of their personal data that is required to be entered online. They must also accept the terms and conditions. The registration confirmation receipt, which is sent out by e-mail, and the original invoice showing the date of purchase will serve as proof of the extended warranty.
3. The warranty covers all defects of the product during the warranty period due to faults in workmanship or material at the purchase date. The warranty is limited to repair and/or replacement and does not include any other obligations including but not limited to incidental or consequential damages. The warranty is not valid if the product has been misused, used contrary to the instruction manual, or has been incorrectly connected to a power supply. This warranty does not apply to:
4. The warranty period is 24 months for consumers and commences on the date the product was purchased. This date has to be documented by an invoice or other proof of purchase. The product is designed and dedicated to consumer and private use only. So there is no warranty provided in case of professional or commercial use. This warranty applies only on new products.
5. There is a possibility to extend for a part of the range of power tools (AC/DC) the warranty period over the period described above using the registration on the www.ryobitools.eu website. The eligibility of products for extended warranty is clearly displayed in stores and / or on packaging and is contained within the product documentation. The end user is required to register his/her newly-acquired products online within 30 days from the date of purchase. The end user may register for the extended warranty in his/her country of residence if listed on the online registration form where this option is valid. Furthermore, end users must give their consent to the storage of their personal data that is required to be entered online. They must also accept the terms and conditions. The registration confirmation receipt, which is sent out by e-mail, and the original invoice showing the date of purchase will serve as proof of the extended warranty.
6. The warranty covers all defects of the product during the warranty period due to faults in workmanship or material at the purchase date. The warranty is limited to repair and/or replacement and does not include any other obligations including but not limited to incidental or consequential damages. The warranty is not valid if the product has been misused, used contrary to the instruction manual, or has been incorrectly connected to a power supply. This warranty does not apply to:

– any damage to the product that is the result of improper or lack of maintenance
– any product that has been altered or modified
– any product where original identification (trade mark, serial number) markings have been defaced, altered or removed
– any damage caused by non-observance of the instruction manual
– any product not displaying the CE approval mark on the rating plate
– any product that has been attempted to be repaired by a non-authorised warranty service centre or without prior authorisation by Techtronic Industries
– any product connected to an improper power supply (amps, voltage, frequency)
– any damage caused by external influences (water, chemical, physical, shocks) or foreign substances
– any damage to the product that is the result of improper or lack of maintenance
– any product that has been altered or modified
– any product where original identification (trade mark, serial number) markings have been defaced, altered or removed
– any damage caused by non-observance of the instruction manual
– any product not displaying the CE approval mark on the rating plate
– any product that has been attempted to be repaired by a non-authorised warranty service centre or without prior authorisation by Techtronic Industries
– any product connected to an improper power supply (amps, voltage, frequency)
– any damage caused by external influences (water, chemical, physical, shocks) or foreign substances

– normal wear and tear spare parts
– inappropriate use, overloading of the tool
– use of non-approved accessories or parts
– normal wear and tear spare parts
– inappropriate use, overloading of the tool
– use of non-approved accessories or parts

• Power tool accessories provided with the tool or purchased separately. including but not limited to screw driver bits, drill bits, abrasive discs, sand paper and blades, lateral guide etc.
• Components (parts and accessories) subject to natural wear and tear, including but not limited to Service & Maintenance Kits, carbon brushes, bearings, chuck, SDS drill bit attachment or reception, power cord, auxiliary handle, transport carry case, sanding plate, dust bag, dust exhaust tube, felt washers, impact wrench pins & springs, etc.
• Power tool accessories provided with the tool or purchased separately. including but not limited to screw driver bits, drill bits, abrasive discs, sand paper and blades, lateral guide etc.

• Components (parts and accessories) subject to natural wear and tear, including but not limited to Service & Maintenance Kits, carbon brushes, bearings, chuck, SDS drill bit attachment or reception, power cord, auxiliary handle, transport carry case, sanding plate, dust bag, dust exhaust tube, felt washers, impact wrench pins & springs, etc.

• For servicing, the product must be sent or presented to a RYOBI authorised service station listed for each country in the following list of service station addresses. In some countries your local RYOBI dealer undertakes to send the product to the RYOBI service organisation. When sending a product to a RYOBI service station, the product should be safely packed without any dangerous contents such as petrol, marked with sender's address and accompanied by a short description of the fault.

• A repair / replacement under this warranty is free of charge. It does not constitute an extension or a new start of the warranty period. Exchanged parts or products become our property. In some countries delivery charges or postage will have to be paid by the sender. Your statutory rights arising from the purchase of the product remain unaffected.
• This warranty is valid in the European Community, Switzerland, Iceland, Norway, Liechtenstein, Turkey and Russia. Outside these areas, please contact your authorised RYOBI dealer to determine if another warranty applies.
• A repair / replacement under this warranty is free of charge. It does not constitute an extension or a new start of the warranty period. Exchanged parts or products become our property. In some countries delivery charges or postage will have to be paid by the sender. Your statutory rights arising from the purchase of the product remain unaffected.
• This warranty is valid in the European Community, Switzerland, Iceland, Norway, Liechtenstein, Turkey and Russia. Outside these areas, please contact your authorised RYOBI dealer to determine if another warranty applies.

In addition to any statutory rights resulting from the purchase, this product is covered by a warranty as stated below.

AUTHORISED SERVICE CENTRES

ACD PLANT LTD

145 Southbank Road

Coundon

Coventry, West Midlands

CV6 1FG

Phone: [phone]

Email: [e-mail]

Web: www.acdplant.co.uk

CBS Power Tools Limited

Unit 4, V P Square

Storeys Bar Rd, Fengate

Peterborough, Cambridgeshire

PE1 5YS

Phone: [phone]

Email: [e-mail]

Web: www.cbspowertools.com

C D Powertools

76 Old Road

Churwell Morley, Leeds

LS27 7TH

Phone: [phone]

Email: [e-mail]

Web : www.cdpowertools.co.uk

C J Sinclair Limited

44 Victoria Road

St Peters

Broadstairs, Kent

CT10 2UG

Phone: [phone]

Email: [e-mail]

Web: www.cjsinclairltd.co.uk

Powertech Ind Ltd

Unit 2C, Ellison Road

Norwood Ind, Killamarsh

Sheffield, South Yorkshire

S21 2JG

Phone: [phone]

Email: [e-mail]

Web: www.powertech-industrial.co.uk

RYCKO Technical Services LTD

104 Green Lane

St Albans, Herts

AL3 6EX

Phone: [phone]

Email: [e-mail]

Web: www.ryckotechnical.com

ToolTech Industrial Equipment

227 E Dunhill Road, Macosquin

Coleraine, Co Londonderry

BT514LQ

Phone: [phone]

Email: [e-mail]

For an updated list of authorised service centres, visit http://uk.ryobitools.eu/header/service-and-support/service-agents.

DECLARATION OF CONFORMITY

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Herewith we declare that the product

Planer

Brand: RYOBI

Model number: RPN780

Serial number range: 46214402000001-46214402999999

is in conformity with the following European Directives and harmonised standards

2006/42/EC, 2014/30/EU, 2011/65/EU

EN 55014-1:2017, EN 55014-2:2015, EN 61000-3-2:2014, EN 61000-3-3:2013,

EN 62841-1:2015, EN 62841-2-14:2015

RoHS documentation is compiled according to EN 50581:2012

Todd Chipner

Sr. Director, Regulatory & Safety

Winnenden, Oct. 30, 2018

Authorised to compile the technical file:

Alexander Krug, Managing Director

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

CE

RYOBI®

RYOBI is a trademark of Ryobi Limited, and is used under license.

Techtronic Industries GmbH

Max-Eyth-Straße 10,

71364 Winnenden, Germany

20190123v4
