THOR TPS-10 - Soundbar Hifonics - Free user manual and instructions

Product Type	Soundbar
Brand	Hifonics
Model	THOR TPS-10
Dimensions (W x H x D)	1000 x 70 x 100 mm (estimate)
Weight	2.5 kg (estimate)
Power Output (RMS)	80 W (estimate)
Power Supply	AC 100-240V, 50/60Hz
Connectivity	Bluetooth 5.0, USB, AUX, HDMI ARC
Audio Formats Supported	MP3, WMA (via USB)
Control	Remote control included
Wall Mountable	Yes, with included brackets
Subwoofer	Built-in (estimate)
System	2.1 channels
Frequency Response	20 Hz - 20 kHz (estimate)
Signal-to-Noise Ratio	≥70 dB (estimate)
Input Sensitivity	500 mV
Impedance	4-8 ohms
Material	Plastic and metal
Color	Black
Included Accessories	Remote control, mounting kit, power cable, AUX cable, user manual

Frequently Asked Questions - THOR TPS-10 Hifonics

How do I pair my soundbar via Bluetooth?

Press the Bluetooth button on the remote or soundbar until the indicator flashes. Enable Bluetooth on your device and select 'THOR TPS-10'. Confirm pairing if prompted. The indicator will turn solid when connected.

Can I wall-mount the soundbar?

Yes, the soundbar comes with a wall-mounting kit (brackets and screws). Follow the instructions in the manual to securely attach it to the wall.

Does the THOR TPS-10 have a built-in subwoofer?

Yes, it includes a built-in subwoofer for enhanced bass. No external subwoofer is required.

How do I connect it to my TV?

Use the included HDMI ARC or Auxiliary cable. For HDMI, connect to the ARC port on your TV and soundbar. Alternatively, use the optical input or AUX.

How can I reset the soundbar to factory settings?

Press and hold the Power button for 5 seconds until the display resets. Or unplug the soundbar for 10 seconds.

What should I do if the remote control stops working?

First, replace the batteries (CR2032). If it still doesn't work, ensure there are no obstructions between the remote and the soundbar. Try re-pairing by pointing the remote at the soundbar and pressing any button.

What is the power consumption?

The soundbar consumes approximately 50-80 W during normal use and less than 1 W in standby mode.

Does it support Dolby Atmos?

No, the THOR TPS-10 does not support Dolby Atmos. It provides stereo and 2.1-channel sound enhancement.

How do I clean the soundbar?

Unplug the soundbar and use a soft, dry cloth to wipe the surface. Avoid using any liquids or abrasive cleaners.

Where can I find a replacement remote control?

Contact Hifonics customer support or check online retailers. The remote model is typically compatible with other Hifonics soundbars.

USER MANUAL THOR TPS-10 Hifonics

Congratulations on your choice of Hifonics THOR Sound Bars. This “Quick Start” Installation guide is meant to help you complete a basic installation. For more detailed information about the product, please visit our website at Hifonics.com

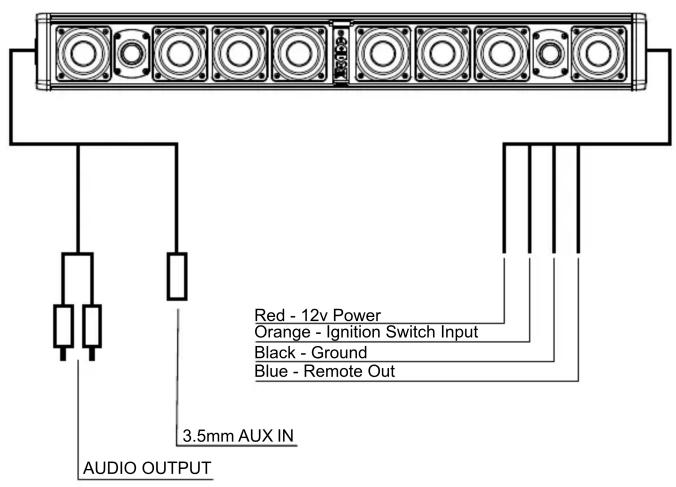

Wiring

The wiring and connections should be secure and away from any moving parts or extremely hot surfaces.

Controls

1 Power - Will turn the unit on or off / Five second hold/ quick push will switch inputs.
2 Track BACKWARDS - Press to restart the current track or to back up to previous tracks.
③ Volume UP - Each press will increase the volume.
4 Volume DOWN - Each press will decrease the volume.
5 Track FORWARD - Press to advance to the next track.
6 Map Light / Illumination - Turn on Map Light, cycle through illumination settings.
7 PLAY / PAUSE - Press once to pause. Press again to play.

Bluetooth Device Pairing

The pairing process can vary based on your particular device. Refer to the operating instructions of your device. Below is the general process to connect.

During unit power up, the blue LED on the bottom of the control panel will blink indicating that it is in Bluetooth search mode.

During this process “THOR” should show up in your list of Bluetooth devices when the search has connected with your device. When the connection is made the blue LED will change to a solid color.

Once a device has been paired, the unit will reconnect at power up to that device when in range.

To connect to a different device, the first device will need to be disconnected.

When a phone call is received, the audio signal will mute but not disconnect.

To switch to 3.5mm press the power button quickly.

To switch back to BT press the power button again quickly.

HIFONICS

Operators Guide

Pure electrical circuit lines without any symbols

Front view of a multi-tiered electronic device with four circular speakers and a central connector (no text or symbols visible)

THOR TPS6/TPS10 Soundbars

Visit Hifonics.com

Hifonics products are designed and engineered in the USA by

MAXXSONICS®

www.maxxsonics.com

HF THOR SBAR QSG 01 - rev1
