Zeus ZS35CX - Loudspeaker Hifonics - Free user manual and instructions

Product Type	Car Audio Coaxial Speaker
Brand	Hifonics
Model	Zeus ZS35CX
Speaker Size	3.5 inches (89 mm)
Impedance	4 ohms
RMS Power Handling	40 Watts
Peak Power Handling	80 Watts
Frequency Response	80 Hz - 20 kHz
Sensitivity	90 dB
Mounting Depth	47 mm (1.85 in)
Cutout Diameter	76 mm (3.0 in)
Overall Diameter	117 mm (4.6 in)
Tweeter Type	Soft Dome Coaxial
Magnet Material	Ferrite
Voice Coil Size	1 inch
Grille Included	Yes
Warranty	1 Year
Manual Availability	Free PDF Download

Frequently Asked Questions - Zeus ZS35CX Hifonics

What is the size of the Hifonics Zeus ZS35CX speaker?

The Hifonics Zeus ZS35CX is a 3.5-inch coaxial speaker, suitable for replacing factory speakers in many vehicles.

How much power can the ZS35CX handle?

It handles 40 Watts RMS and 80 Watts peak power, making it compatible with most factory head units and aftermarket amplifiers.

What is the impedance of the Zeus ZS35CX?

The impedance is 4 ohms, standard for car audio speakers.

How do I install the ZS35CX speakers?

Installation involves removing the door panel or factory speaker cover, connecting the positive and negative wires to the correct terminals, and screwing the speaker securely into place. Refer to the manual for vehicle-specific steps.

Can I use these speakers with a factory radio?

Yes, the 4-ohm impedance and 40W RMS rating make them compatible with most factory head units without requiring an external amplifier.

What tools are needed for installation?

Basic tools like a screwdriver, panel removal tools (to avoid damaging clips), wire strippers, and possibly a drill for custom mounting locations.

Are mounting brackets or adapters included?

The package includes the speakers and grilles; mounting hardware may not be included. It is recommended to use vehicle-specific speaker adapters if needed.

What is the warranty period for Hifonics Zeus speakers?

Hifonics offers a 1-year warranty from the date of purchase covering defects in materials and workmanship. Keep your original receipt.

Can I use the ZS35CX as a component speaker?

The ZS35CX is a coaxial speaker with a built-in tweeter, not a component system. For separate woofer and tweeter, consider the ZS65C or other component models.

Where can I find the full specifications and manual?

The full specifications and installation guide are available online at Hifonics.com. A quick start guide is included in the package.

USER MANUAL Zeus ZS35CX Hifonics

Congratulations on your choice of a Hifonics speaker. This "Quick Start Installation" guide is meant to help you "hook up" and play music. For more detailed information on system setting, speaker and subwoofer configuration, and full specifications by model, visit the website at Hifonics.com

CAUTION

Always consider consulting a professional audio installer before installing new speakers. Many car manufacturers locate speakers behind interior panels that require special tools to remove those panels to access the speakers. Some panels will be screwed in, some will use plastic fasteners, many will have both. Be careful and take your time. If you are using the speaker wire supplied with your new speakers make sure that you run the speaker wires through the factory boot. Do not let speaker wire make contact with metal edges of doors or other access holes.

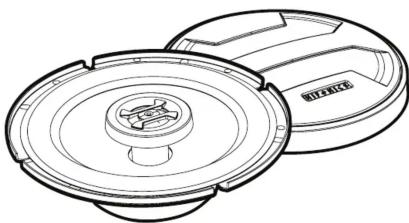

Speaker Dimensions

	A B C	D E F
ZS35CX	N/A1.63*	(4)1.23*(54)2	76*(70)3.1*(79)4	6.62*(117)
ZS4CX	N/A1.78*	(45)2.08*(53)2	76*(70)3.72*(55)4	0.02*(102)
ZS46CX N/A	.77*(45)2.12*(54)2	76*(70)			3.53*(5.68*(90/144)	3.86*(6.02*(98/153)
ZS525CX	6.2*(158)2	5*(55)2.48*(63)3	3.15*(80)4.56*(116)5	1.14*(131)
ZS5768CX N	A2.15*(55)2.5	2*(64)3.15*(80)			4.92*(7.09*(125/180)	5.48*(8.68*(139/220)
ZS65CXS	6.91*(176)1	7*(44)1.92*(49)3	3.15*(80)5.64*(143)6	4.91*(155)
ZS653	6.91*(176)2	9*(53)2.54*(65)3	3.15*(80)5.59*(142)6	5.58*(157)
ZS65C	6.91*(176)2	9*(53)2.54*(65)3	3.15*(80)5.59*(142)6	5.58*(157)
ZS693	7.07*(10.24*(180/260)	2.93*(75)3	9*(91)3.94*(100)		5.98*(8.74*(152/222)	6.5*(9.25*(165/235)

Before you start

It's a good idea to confirm that you have purchased the correct size speakers to fit your vehicle. If you have any reservations about being able to complete the installation yourself, we recommend contacting a professional. The removal of interior panels can be tricky and may require special tools. Be careful as you go.

Factory Speaker Removal

Access and remove factory door speakers

Most modern vehicles have speakers that are mounted directly to the structure of the door. Access is achieved by the removal of the door panel. Some vehicles may only require the removal of a small panel around the speaker itself.

Access and removal of rear factory speakers

Most rear speakers are accessed from within the trunk. Some may require the removal of the rear package tray. Hatchbacks and SUV's will usually require the removal of a side panel.

Fit and Wiring

Once the factory speakers are removed, check the fit and determine if there is enough depth clearance for the new speaker. A good way to do this is to roll the window down and back up while holding the speaker in place. If you decide to run wires, make sure to use factory harness boots and grommets where ever possible.

Coax installation

Factory location behind door panel

Once you are sure the speaker fits and has adequate clearance, connect the positive and negative wires to the proper terminals. Securely screw the speaker into place. Replace door panel.

Factory location behind small panel

Once you are sure the speaker fits and has adequate clearance, connect the positive and negative wires to the proper terminals. Securely screw the speaker into place. Replace speaker cover panel.

Custom location

Some vehicles may not have a door speaker location. While it is possible to install the speakers in this situation, it is more difficult. Consider using a professional for custom installations.

Rear factory locations

Mount the speakers in same way that the factory speaker was mounted. Attach the positive and negative wires to the proper terminals. Make sure any wires are secured properly.

Component installation

Factory location

behind door panel

Vehicles that have premium sound systems will often have separate tweeters in a dash or door location. Try to use this location for mounting the component tweeter if possible.

Custom location

If there is not a suitable factory location for woofer or tweeter to be mounted, custom mounting may be necessary. Before making any permanent changes to your vehicle make sure there is adequate mounting depth.

Tweeter mounting

There are two primary ways the tweeter can be mounted. Surface and Flush mounting. The flush mount configuration is shown here.

Crossover wiring

The crossover is necessary for the proper operation of the component speaker system. Secure the crossover to a surface that is free of interference from window mechanisms and excessive moisture.

Hifonics.com

POWERFROMTHEGODS

WARRANTY

Maxxonsics USA Inc. warrants this product, to the original consumer purchaser, to be free from defects in material and workmanship for a period of one (1) year from the date of purchase. Maxxonsics USA Inc. will, at it's discretion, repair or replace defective products during the warranty period. Components that prove to be defective in materials and workmanship under proper installation and use must be returned to the original authorized Maxxonsics USA Inc. retailer from where it was purchased. A photocopy of the original receipt must accompany the product being returned. The product is not yet reproduced by the manufacturer. Maxxonsics USA Inc. is a product with a purchase price of \$250 per share. The company is a subsidiary of Maxxonsics USA Inc. This warranty is limited to defective parts and specifically excludes any incidental or consequential damages connected therewith. To view the full warranty, please visit the website.

Hifonics products are designed and engineered in the USA by

MAXXSONICS

www.maxxsonics.com

HF ZS QSG 01 - rev1

HIFONICS

Quick Start

Installation Guide

ZS35CX - ZS4CX

ZS46CX - ZS525CX

ZS5768CX - ZS65CXS

ZS65C - ZS653

ZS693
