Product Type	Freezer
Brand	Zanussi-Electrolux
Model	ZUT1256
Total Capacity	Approx. 220 liters
Energy Efficiency Class	E (EU 2019 standard)
Annual Energy Consumption	Approx. 220 kWh
Dimensions (H x W x D)	Approx. 85 x 60 x 65 cm
Weight	Approx. 35 kg
Climate Class	SN-ST (subnormal to subtropical)
Noise Level	Approx. 40 dB
Defrost Type	Manual defrost
Temperature Control	Mechanical thermostat
Freezing Capacity	Approx. 10 kg per 24 hours
Storage Time During Power Failure	Up to 12 hours
Refrigerant	R600a (isobutane)
Power Supply	220-240 V ~ 50 Hz
Frost Free System	No (manual defrost)
Interior Light	No
Door Reversibility	Not reversible
Number of Drawers/Shelves	3 drawers
Fast Freeze Function	Not available
Cleaning and Maintenance	Defrost regularly; clean interior with mild detergent and water
Safety Features	Lockable door (optional), high temperature alarm
Spare Parts Availability	Available from authorized service centers
Warranty	2 years standard (varies by region)

Frequently Asked Questions - ZUT1256 Zanussi-Electrolux

How do I set the temperature on my Zanussi-Electrolux ZUT1256 freezer?

The temperature is controlled by a mechanical thermostat inside the freezer. Turn the dial to a higher number for colder temperatures. Typically, setting to medium (e.g., 3) is sufficient for normal use.

How often should I defrost the freezer?

Defrost when the ice layer reaches about 5-10 mm thickness. This usually happens every 6-12 months, depending on usage. Unplug the freezer, remove food, and let ice melt. Do not use sharp tools to remove ice.

What should I do if the freezer is not cooling properly?

Check if the power cord is plugged in and the thermostat is set correctly. Ensure the ventilation grilles are not blocked. If the problem persists, the compressor or refrigerant may be faulty; contact a qualified technician.

Can I reverse the door opening direction?

For this model, the door is not reversible. It is designed to open in a fixed direction. Consider the installation location carefully before positioning.

How do I clean the interior of my freezer?

Clean with a soft cloth and a solution of mild detergent and warm water. Rinse with clean water and dry thoroughly. Avoid abrasive cleaners or chemicals that may damage the interior.

What is the correct way to store food for optimal energy efficiency?

Allow hot food to cool before placing it in the freezer. Keep the door closed as much as possible. Avoid overfilling to allow proper air circulation. Defrost when ice build-up exceeds 5 mm.

Is there a fast freeze function?

No, the ZUT1256 does not have a fast freeze function. For freezing fresh food, place it in the coldest part (usually bottom drawer) and limit the amount to about 10 kg per 24 hours.

What does the alarm sound mean?

A high temperature alarm may sound if the door is left open or if the temperature rises significantly. Check the door seal and close it properly. If the alarm persists, a power failure or fault may have occurred.

How do I replace the interior light?

This model does not have an interior light. No replacement is needed.

Where can I find spare parts for my Zanussi-Electrolux freezer?

Spare parts can be obtained from authorized service centers or online parts retailers. Use the model number ZUT1256 to ensure compatibility. Common parts include door seals, shelves, and thermostat.

USER MANUAL ZUT1256 Zanussi-Electrolux

This instruction book contains safety precautions, information on use and helpful hints and tips.

To ensure you use this appliance effectively and safely, please read this instruction book carefully before installing or using this appliance and retain for future reference.

The symbols below help you to find things more easily:

Safety precautions

Warnings and Safety information

Hints, useful information

Environmental information

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

IMPORTANT SAFETY INSTRUCTIONS

These warnings are provided in the interests of your safety. Ensure that you understand them all before installing or using this appliance. Your safety is of paramount importance. If you are unsure about any of the meanings or these warnings contact the Customer Care Department.

Prior to installation

- Check the appliance for transport damage. Under no circumstances should a damaged appliance be installed. In the event of damage please contact your retailer.

Installation

- This appliance is heavy. Care should be taken when moving it.

- It is dangerous to alter the specifications or attempt to modify this product in any way.

- Ensure that the appliance does not stand on the electrical supply cable. If the supply cable is damaged, it must be replaced by a cable available from your local Service Force Centre.

- Make sure that the power plug has not been squashed or damaged during transit.

- A damaged power plug may overheat and cause a fire.

- As you unpack the appliance, check carefully for any signs of transit damage.

- Do not place heavy articles or the fridge/freezer itself on the power cord.

There is a risk of a short circuit and fire.

- Do not remove the power cord by pulling on its lead, particularly when the fridge/freezer is being pulled out of its niche.

- Damage to the cord may cause a short-circuit, fire and/or electric shock.

- If the power cord is damaged, it must be replaced by a certified service agent or qualified service personnel.

- If the power plug socket is loose, do not insert the power plug.

There is a risk of electric shock or fire.

- Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person.

- Parts which heat up should not be exposed. Whenever possible, the back of the appliance should be close to a wall, but leaving the required distance for ventilation, as stated in the installation instructions.

- The appliance should be left for 2 hours after installation before it is turned on, in order to allow the refrigerant to settle.

Child Safety

- Do not allow children to tamper with the controls or play with the product.

- Keep packaging materials away from children, to prevent the risk of suffocation!

During Use

- This appliance is designed for domestic use only, specifically for the storage of edible foodstuffs. It is not intended for commercial or industrial use.

- Containers with flammable gases or liquids can leak at low temperatures. Do not store any containers with flammable materials, such as spray cans, fire extinguisher refill cartridges etc. in the freezer.

- Frozen food should not be refrozen once it has thawed out.

- Do not place carbonated or fizzy drinks in the freezer.

- Ice lollies can cause 'frost/freezer burns' if consumed straight from the freezer.

• Do not remove items from the freezer if your hands are damp/wet, as this could cause skin abrasions or frost/freezer burns.
• Bottles and cans must not be placed int the freezer they can burst when the contents freeze.
• Manufacturers' recommended storage times should be adhered to. Refer to relevant instructions.
• Warning: if you place frozen foods on top of the product, the interaction of cold and vapor may produce water condensate in the space below the top. If such water condensate drips on the electric components placed in that space, a short-circuit may occur and damage the product. Therefore it is forbidden to place frozen foods on top of the product.

Maintenance and Cleaning

• Before cleaning, always switch off the appliance and disconnect from the electrical supply.
• When unplugging always pull the plug from the mains socket, do not pull on the cable.

Servicing

• This product should be serviced by an authorised engineer and only genuine spare parts should be used.
• Under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Contact your local Service Force Centre.

At the end of the Appliance Life

• When disposing of your appliance use an authorised disposal site.
• Remove the plug and ensure that any locks or catches are removed, to prevent young children being trapped inside.

Safety precautions for isobutane

Warning

• The refrigerant isobutane (R 600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable.
• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• Do not damage the refrigerant circuit.
• Do not use electrical appliances inside the food storage compartments of the appliance.

The Appliance and the Environment

This appliance does not contain gases which could damage the ozone layer.

Avoid damaging the cooling unit.

The packaging used on this appliance marked with the symbol is recyclable.

Keep this instruction book for future reference and ensure it is passed on to any new owner.

CONTENTS

Instructions for the User

Guide to use the instruction book 2

Important Safety Information 3

Instructions for the User 5

General Information 5

Description and main parts 5

Indicator Lights 6

Fast Freeze Facility 6

Basket Storage 6

Freezer Tray 6

Using the Appliance 7

Before Use 7

To Start the Appliance 7

Thermostat Control 7

Freezing Fresh Food 7

Frozen Food Storage 8

Thawing 8

Making Ice Cubes 8

Hints and Tips 8

Food Storage 8

Energy Saving Advice 9

In the Event of a Power Failure 9

Maintenance and Cleaning 9

Internal cleaning 9

External cleaning 9

When the appliance is not in use 9

Defrosting 9

Something Not Working 10

Service and Spare Parts 11

Customer Care Department 11

Guarantee Conditions 12

Instructions for the Installer

Technical Specifications 13

Installing the Appliance 13

Transportation, Unpacking 13

Location 13

Ventilation Requirements 14

Levelling 14

Door Reversal 14

Electrical Connection 15

INSTRUCTIONS FOR THE USER

General information

This appliance is designed for the freezing and storage of frozen food in a domestic home.

To ensure correct operation, the appliance should be located where the ambient temperature is between 16-32 °C.

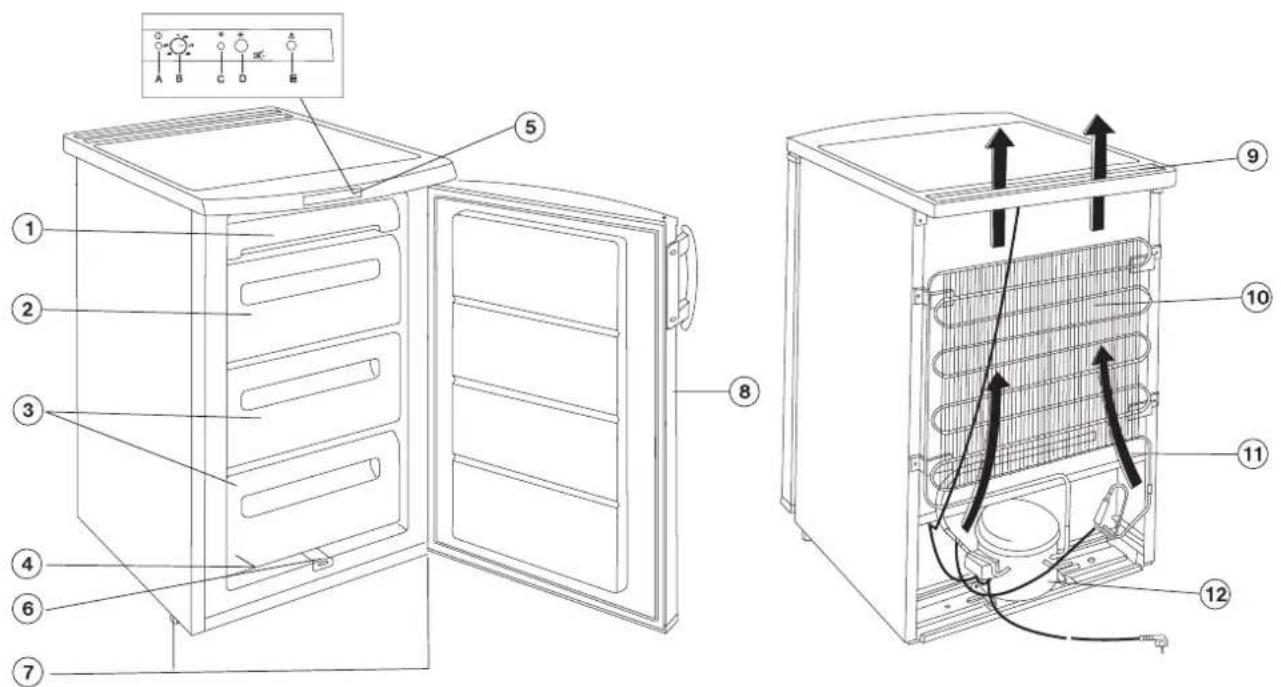

Description and main parts

1. Freezer tray
2. Freezer (basket)
3. Storage boxes (baskets)
4. Data plate
5. Switches and indicators

6. Defrost water drain

7. Adjustable feet

8. Door sealing gasket

9. Ventilation grid

10. Condenser

11. Airflow direction
12. Compressor

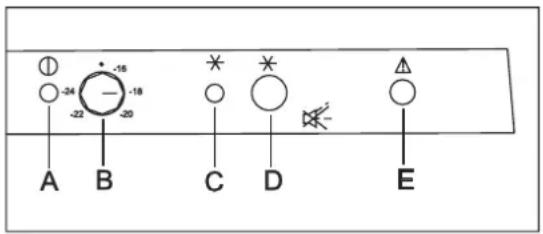

Switches and indicators

A) On/off indicator green
B) Thermostat and on/off switch
C) Quick freeze indicator yellow
D) Acoustic signal stop and quick freeze switch
E) Alarm indicator red

Basket Storage

Frozen food should be stored in the two lower baskets and the top compartment used for storage or fast freezing of fresh food.

Freezer Tray

The Freezer Tray is particularly suitable for open freezing, for example strawberries, raspberries etc.

Operation and use

Installation

Insert the plug into the socket. In order to switch on the product, turn the thermostat (B) to a temperature lower than << -16 C >>. The green, yellow and red indicators will light up. The lighting up of the on/off indicator (A) means that the product is switched on. The yellow indicator lights continuously indicating an uninterrupted refrigeration for 5 hours (it can be switched off manually after 2 hours). The red indicator lights continuously indicating an improper temperature in the freezing compartment. You can switch off the freezer by turning the thermostat (B) in position << ● >>.

When the product is switched on for the first time, the quick freeze function will start automatically and will stop only 5 hours later. You can manually switch off this function any time by pressing the quick freeze (D) switch.

Adjusting the temperature

The internal temperature of the freezer is regulated electronically through five temperature positions and a switch-off << ➤> setting.

Position << -16^ >> indicates the highest (least cold) temperature, while position << -24^ >> is for the lowest (coldest) temperature. Rotate the thermostat in the desired position.

In general, it is best to set the thermostat to << -18^ >> but, for the purpose of temperature setting, you should also consider

• the temperature of the room where the product is installed.
  • the frequency of door openings,
• the volume of food to be stored in the product,
  • the location of the product.

Therefore, you should consider all these factors and you may have to do some testing for finding the best temperature. If you want a lower temperature, turn the thermostat into a position of higher number or, vice versa, if you need a higher temperature, you should set a position of lower number. Please allow 24 hours for the freezer temperature to stabilize between two adjustments.

Alarm (red) indicator

The temperature alarm indicator (E) will light up when the internal temperature of the freezer increases to a level (above -12^ ) where the long-term conservation of the foods in not ensured. Please note that, when switching on the freezer for the first time, the alarm indicator will remain lit until the internal temperature has reached a level required for the safe conservation of frozen food.

Temperature problem:

Under normal operating conditions, the internal temperature of the freezer will ensure the long-term conservation of the stored food. When such temperature rises above a certain level (-12°C), it will trigger an acoustic and light alarm. The light alarm is a continuous red light (E), while the acoustic alarm is an intermittent sound. You can stop the acoustic alarm by pressing switch (D) once.

Freezing

Prepare the various foods properly and then freeze them always in the freezing compartment. For maximum freezing performance remove the freezer tray and baskets and then place the foods to be frozen directly on the evaporator. In case of freezing smaller food volumes you do not need to remove the freezer tray and baskets.

For using the quick freeze function, press the quick freeze on/off switch (D) for 2-3 seconds; in the case of small and great food volumes you should do it approx. 4 and 24 hours, respectively, before you want to freeze the fresh food. The yellow indicator (C) will light up. The compressor will operate continuously until the product reaches the freezing temperature.

Once the food is completely frozen (it may take up to 24 hours) you can manually switch off the quick freeze function by pressing the switch (D) for 2-3 seconds. If not switched off manually, the quick freeze function will be automatically switched off 48 hours later. The yellow indicator (C) will also go out.

The freezing tray can be used for freezing small fruits (raspberries, strawberries, currants, etc.). Place a thin layer of the unpacked fruits in the tray. Once they are frozen, the fruits can be packed, sorted and placed in the storage boxes.

Frozen Food Storage

When first starting the freezer or if the freezer has been out of use for some time, we advise you to run your appliance for at least 2 hours with the 'fast freeze' switch on before storing frozen food.

Do not exceed the storage period indicated by the manufacturer.

Do not open the door frequently or leave it open longer than is necessary.

Important

Do not put carbonated liquids in the freezer.

Ice lollies, if consumed immediately after removal from the freezer can cause a low temperature skin burn.

Do not remove items from the freezer if your hands are damp/wet, as this could cause skin abrasions or frost/freezer burns.

In the event of a power cut the food in the freezer will not be affected if the power cut is short and the freezer is full. Do not open the lid. Should the food begin to thaw it must be consumed quickly and must not be re-frozen. (See Hints and Tips)

Thawing

Deep frozen or frozen food, prior to being used, can be thawed in a fridge or at room temperature, depending on the time available. Small food items may even be cooked from frozen, in this case cooking will take longer.

Any frozen food which is allowed to thaw accidentally should either be eaten as soon as possible, or thrown away. Alternatively, if the food is uncooked and has not been completely defrosted it can be cooked and then refrozen.

Defrosted cooked food must never be refrozen.

To Make Ice Cubes

1. Fill the ice cube tray 3/4 full with cold water, place in the freezing compartment and leave to freeze.

2. To remove the cubes twist the tray or hold it under running water for a few seconds.

Never try to free an ice tray that is frozen to the freezer compartment by using pointed or sharp edged objects.

i Hints & Tips

Food Storage

To obtain the best performance from your freezer:

- Do not store warm food or evaporating liquid.

- Avoid buying frozen food if you cannot store it straight away. The use of an insulated container is advisable. When you arrive home, place the frozen food in the freezer immediately.

- Do not push food together too much, try to allow air to circulate around each item.

- Do not store food uncovered.

- Ensure that food placed in the freezer is dated and labelled and used in date order to ensure that food is consumed at its best.

- Lean food keeps better and longer than fatty food, salt reduces the storage time.

- Wrap the food in polythene or aluminium freezing bags or foil so that they adhere to the food and provide an airtight seal.

- Packaging which is swollen or has traces of refrozen water droplets on the pack could indicate that the product has not been kept at a suitable temperature and that it may have lost its original quality. Partially thawed food must not be refrozen, it must be consumed within 24 hours. Never exceed the storage times indicated by the manufacturer.

- After a power failure the product will restart and the quick freeze function will be switched on. If not switched off manually, the quick freeze function will be automatically switched off 5 hours later. When the quick freeze function is switched off, the yellow indicator (C) will go out.

Energy Saving Advice

- Do not install the appliance close to sources of heat, such as a boiler or radiator.

- Locate the appliance in a cool well ventilated room and make sure that the air openings of the appliance are not obstructed.

- Avoid unnecessary frosting in the cabinet by packing all foodstuffs into airtight packages before placing them in the freezer.

- Food which is to be frozen (when cool) should be placed in the fridge before being transferred to the freezer.

- Try to avoid keeping the door open for long periods or opening the door too frequently as warm air will enter the cabinet and cause the compressor to switch on unnecessarily often.

- Ensure there are no obstructions preventing the door from closing properly.

In the Event of a Power Failure

If there is a power failure during the storage of frozen foods, keep the door closed. If the temperature within your freezer should rise, do not refreeze the food without checking its condition. The following guidelines should assist you:

Ice Cream: Once thawed should be discarded.

Fruits & Vegetables: If soft should be cooked and used up.

Breads & Cakes: Can be refrozen without danger.

Shellfish: Should be refrigerated and used up quickly.

Cooked Dishes: i.e. casseroles should be refrigerated and used up.

Large Pieces of Meat: Can be refrozen providing there are still ice crystals remaining within them.

Small Joints: Should be cooked and can then be refrozen as cooked dishes.

Chicken: Should also be cooked and refrozen as a fresh dish.

Maintenance & Cleaning

Before any maintenance or cleaning is carried out you must DISCONNECT the appliance from the electricity supply.

Internal Cleaning

Clean the inside and accessories with warm water and bicarbonate of soda (5 ml to 0.5 litre of water).

Rinse and dry thoroughly.

NEVER use detergents, abrasive powders, highly perfumed cleaning products or wax polishes to clean the interior as these will damage the surface and leave a strong odour.

External Cleaning

Wash the outer cabinet with warm soapy water.

Once or twice a year dust the condenser (black grille) and the compressor at the back of the appliance with a brush or vacuum cleaner, as an accumulation of dust will affect the performance of the appliance and cause excessive electricity consumption.

When the Appliance is not in Use

When the appliance is not in use for long periods, disconnect from the electricity supply, empty all foods and clean the appliance, leaving the door open to prevent unpleasant smells.

Defrosting

The freezer compartment will become progressively covered with frost. This should be removed with the special plastic scraper provided whenever the thickness of frost exceeds 6mm ( 14 ).

During this operation it is not necessary to switch off the power supply or to remove the foodstuffs.

However, when the ice becomes very thick on the inner liner, complete defrosting should be carried out and it is advisable to perform this operation when the appliance is empty.

To carry out complete defrosting:

1. Disconnect the appliance from the electrical supply. If the plug is inaccessible turn the thermostat control knob to << ◆>.
2. Remove any stored food, wrap in several layers of newspaper and store in a cool place.
3. Leave the door open.

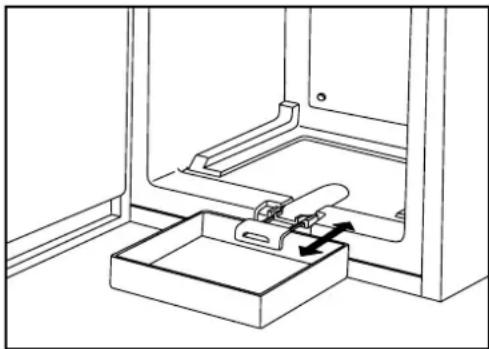

4. Carefully draw the plastic drain spout out of the lower part of the appliance according to the direction of the arrow and place a tray of a suitable size in the position shown.

Technical line drawing of a mechanical assembly with a clamping device and base (no text or symbols)

1. During defrosting, push the defrost water towards the edge of the cooling plates using a dry cloth or a sponge. It will be collected at the bottom of the appliance, from where it can be diverted into the tray and then disposed of.
2. To accelerate the defrosting process place a bowl of hot (not boiling) water inside the freezer and close the door.
3. When defrosting is completed, dry the interior thoroughly, replace the drain spout and close the door.
4. Turn the thermostat control knob back to a medium setting and leave to run for at least 4 hours with the 'fast freeze' switch on.
5. Replace the previously removed food.

Important

A temperature rise of the frozen food packs during defrosting may shorten their safe storage life.

Never use sharp metal tools to scrape off frost from the evaporator as this could damage the appliance beyond repair.

Something Not Working

If the appliance is not working correctly, please carry out the following checks before contacting your local Zanussi Service Force Centre.

Problem	Possible Cause	Solution
No power to the appliance	No power at the socket.There is a power cut.The fuse has blown.Thermostat control knob is set at „0“.	Check there is power at the socket.Check there is not a power cut by checking the household lights.Check the fuse has not blown.Check the thermostat control knob setting.
The temperature in the appliance is too high	The appliance is located in an unsuitable position.The thermostat control knob is set too low.	Check the ambient temperature is within the appliances operating limits of 16 °C to 32 °C.Check that the thermostat control knob is turned to the correct setting relative to ambient conditions.
The temperature in the appliance is too low	The thermostat control knob is set too high.	Set the thermostat control knob to a lower position.
Excessive frost and ice has built up	The door has been left open.Something is obstructing the door.The door gasket is dirty.	Check the door has not been left open.Check nothing is preventing the door from closing.Check the door gasket is intact and clean.
The appliance is noisy.	The appliance is not level.	Check if the appliance stands stable (all four feet should be on the floor).

If after the above checks your appliance still does not operate correctly, contact your local Service Force Centre.

Please note that it will be necessary to provide proof of purchase for any in-guarantee service calls.

In-guarantee customers should ensure that the above checks have been made, as the engineer will make a charge if the fault is not a mechanical or electrical breakdown.

Operation failure

When the electronic system fails to detect the ACTUAL temperature, the alarm indicator will start to flash. The product will continue to operate with the use of a reserve system until the problem is eliminated by the local service personnel.

Service and Spare Parts

In the event of your appliance requiring service, or if you wish to purchase spare parts, please contact your local Service Force Centre by telephoning:-

08705 929929

Your telephone call will be automatically routed to the Service Force Centre covering your post code area.

For the address of your local Service Force Centre and further information about Service Force, please visit the website at www.serviceforce.co.uk

Before calling out an engineer, please ensure you have read the details under the heading "Something Not Working."

When you contact the Service Force Centre you will need to give the following details:

1. Your name, address and post code
2. Your telephone number
3. Clear and concise details of the fault
4. The model and serial number of the appliance (found on the rating plate)
5. The purchase date

Please note that a valid purchase receipt or guarantee documentation is required for in-guarantee service calls.

For Customer Service in Ireland please contact us at the address below:

Zanussi - Electrolux

Electrolux Group (Irl) Ltd

Long Mile Road

Dublin 12

Republic of Ireland

Tel.: [phone]

Email: [e-mail]

Customer Care Department

For general enquiries concerning your Zanussi - Electrolux appliance or for further information on Zanussi - Electrolux products, please contact our Customer Care Department by letter or telephone at the addresses below or visit our website at www.zanussi-electrolux.co.uk

Major Appliances - Customer Care Department

Zanussi - Electrolux

101 Oakley Road

Luton

Bedfordshire

LU4 9QQ

08705 727727 (*)

* calls to this number may be recorded for training purposes.

Guarantee Conditions

We Zanussi - Electrolux undertake that if within 12 months of the date of the purchase this ZANUSSI - ELECTROLUX appliance or any part thereof is proved to be defective by reason only of faulty workmanship or materials, the company will, at our option repair or replace the same FREE OF CHARGE for labour, materials or carriage on condition that:

• The appliance has been correctly installed and used only on the electrical supply stated on the rating plate.
• The appliance has been used for normal domestic purposes only, and in accordance with the manufacturer's instructions.
• The appliance has not been serviced, maintained, repaired, taken apart or tampered with by any person not authorised by us.
• All service work under this guarantee must be undertaken by a Service Force Centre.
• Any appliance or defective part replaced shall become the Company's property.

Home visits are made between 8.30am and 5.30pm Monday to Friday. Visits may be available outside these hours in which case a premium will be charged.

EXCLUSIONS

This Guarantee does not cover:

Damage or calls resulting from transportation, improper use or neglect, the replacement of any light bulbs or removable parts of glass or plastic.

• Costs incurred for calls to put right an appliance improperly installed or calls to appliances outside the United Kingdom.
• Appliances found to be in use within a commercial environment, plus those which are the subject of rental agreements.
• Products of Zanussi - Electrolux manufacture which are not marketed by Zanussi - Electrolux.

The guarantee is in addition to your statutory and legal rights.

EUROPEAN GUARANTEE

If you should move to another country within Europe then your guarantee moves with you to your new home subject to the following qualifications:

• The guarantee starts from the date you first purchased your product.
• The guarantee is for the same period and to the same extent for labour and parts as exists in the new country of use for this brand or range of products.
• This guarantee relates to you and cannot be transferred to another user.
• Your new home is within the European Community (EC) or European Free Trade Area.
• The product is installed and used in accordance with our instructions and is only used domestically, i.e. a normal household.
• The product is installed taking into account regulations in your new country.

Before you move please contact your nearest Customer Care Centre, listed below, to give them details of your new home. They will then ensure that the local Service Organisation is aware of your move and able to look after you and your appliances.

France Senlis [phone] Germany Nurenberg [phone] Italy Pordenone [phone] Sweden Stockholm [phone] UK Luton [phone] Ireland Dublin [phone]

Instructions for the Installer

Technical Specifications

Model	ZUT 1256
Gross capacity (l)	115
Net capacity (l)	98
Width (mm)	595
Height (mm)	850
Depth (mm)	635
Energy consumption (kWh/day)(kWh/year)	0.578211
Energy class, according to EU Standards	A
Freezing capacity (kg/24h)	15
Rising time (h)	20
Rated current (A)	0,5
Weight (kg)	39

Installing the appliance

Transportation, unpacking

The appliance and the interior fitting are protected for transport.

• Remove all packaging and any adhesive tape.
• Any remnants of adhesive can be removed using white spirit.
• After transportation the appliance must not be switched on for 2 hours. This is to allow the refrigerant to settle.

Cleaning

Clean the accessories and the inside of the appliance with warm water and bicarbonate of soda (5 ml to 0.5 litres of water). Rinse and dry thoroughly.

Do not use detergents, abrasive powders, highly perfumed cleaning products, wax polishes or cleaning products containing bleach or alcohol.

Location

The appliance should be positioned in a well ventilated, dry room.

Energy use is affected by the ambient temperature.

The appliance should therefore:

• not be installed next to radiators, cookers or other sources of heat
• only be installed at a location where the ambient temperature corresponds to the climate classification, for which the appliance is designed.

The climate classification can be found on the rating plate.

The following table shows which ambient temperature is correct for each climate classification:

Climate Classification	Ambient Temperature
SN +10 to +32 °C
N +16 to +32 °C
ST +18 to +38 °C

Ventilation Requirements

The appliance must have adequate ventilation to ensure correct operation.

Diagram shows the ventilation requirements when installed:

A* Under a worktop, or cupboard.

* The clearance space of 10 cm above the appliance may be reduced to 5 cm providing a clearance space 2.5 cm is left on either side of the appliance.

B When freestanding

Levelling

The appliance must be level. Level the appliance by adjusting the two adjustable feet (1) at the front of the appliance.

If required the washer (2) can be removed.

Door Reversal

If required the door can be reversed, hinged from the left, opening from the right.

To reverse the bottom hinge assembly proceed as follows:

- Disconnect the appliance from the electricity supply. - Tilt the appliance backwards, resting the top edge of the appliance on a stool or something similar.

- Unscrew the 2 adjustable feet. Unscrew the 3 screws holding the lower door bracket. transfer the lower door hinge pin to the alternative position as shown in the top drawing. Unscrew the single screw at the bottom left hand side and retain. Replace the lower door bracket on the bottom left hand side but do not fully tighten the 3 screws.

• Remove the fridge door by gently pulling downwards and store to avoid damage.
• Unscrew the top door hinge pin of the refrigerator then screw it back on the other side. As shown in the second drawing.
• Replace the fridge door on the upper door hinge pin.
• Insert the lower door hinge pin into the door and tighten all screws.
• Re-fix the retained screw to the bottom right hand side and replace the 2 adjustable feet.

• Lift the fridge back onto its feet and check it is set level and the door seal meets the fridge all around the door.

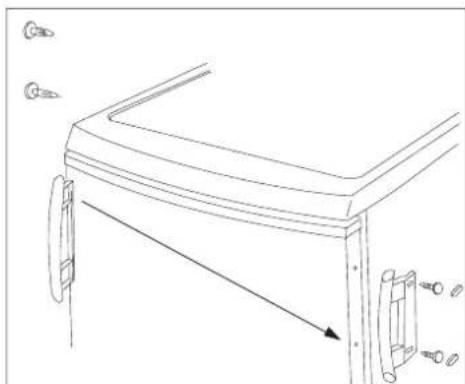

• Transfer the handle to the opposite side and place the plastic covering inserts, (supplied in the plastic bag of this instruction book) into the holes set free.

• Reconnect the fridge to the electricity supply.

Diagram showing a mechanical assembly with a bolt and directional arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical component with mounting holes and a diagonal arrow indicating direction (no text or symbols)

Electrical Connection

Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person.

This appliance must be earthed.

The manufacturer declines any liability should these safety measures not be observed.

Electrical Requirements

Before switching on, make sure the electricity supply voltage is the same as that indicated on the appliance rating plate.

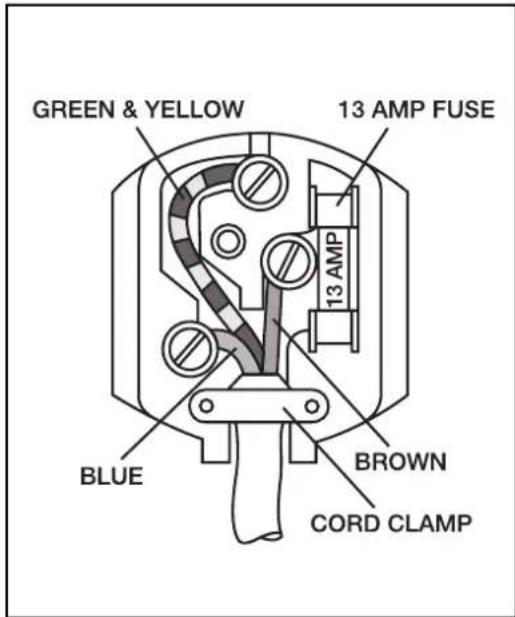

The appliance is supplied with a 13 amp plug fitted. In the event of having to change the fuse in the plug supplied, a 13 amp ASTA approved (BS 1362) fuse must be used. Should the plug need to be replaced

for any reason. The wires in the mains lead are coloured in accordance with the following code:

Green and Yellow: Earth

Blue: Neutral

Brown: Live

The wire coloured green and yellow must be connected to the terminal marked with the letter "E" or by the earth symbol of coloured green and yellow.

The wire coloured blue must be connected to the terminal "N" or coloured black.

The wire coloured brown must be connected to the terminal marked "L" or coloured red.

Upon completion there must be no cut, or stray strands of wire present and the cord clamp must be secure over the outer sheath.

Important!

The plug must still be accessible after the appliance has been installed.

The appliance should not be connected to the electrical supply by means of an extension cable. In case that the electrical cable has to be replaced, please contact your local Service Force Centre.

Warning!

A cut off plug inserted into a 13 amp socket is a serious safety (shock) hazard. Ensure that it is disposed of safely.

CE This appliance complies with the following E.E.C. Directives:

- 73/23 EEC of 19.02.73 (Low Voltage Directive) and subsequent modifications,

- 89/336 EEC of 03.05.89 (Electromagnetic Compatibility Directive) and subsequent modifications.

© Electrolux plc 2006

ELECTROLUX HOME PRODUCTS OPERATIONS EUROPE

From the Electrolux Group. The world's No.1 choice.

The Electrolux Group is the world's largest producer of powered appliances for kitchen, cleaning and outdoor use. More than 55 million Electrolux Group products (such as refrigerators, cookers, washing machines, vacuum cleaners, chain saws and lawn mowers) are sold each year to a value of approx. USD 14 billion in more than 150 countries around the world.
