ZDF601S - Dishwasher Zanussi-Electrolux - Free user manual and instructions
Find the device manual for free ZDF601S Zanussi-Electrolux in PDF.
Pick your language and provide your email: we'll send you a specifically translated version.
| Brand | Zanussi-Electrolux |
| Model | ZDF601S |
| Product Type | Freestanding Dishwasher |
| Energy Efficiency Class | A+ |
| Number of Place Settings | 12 |
| Noise Level | 49 dB (A) |
| Annual Energy Consumption | 290 kWh |
| Water Consumption per Cycle | 12 L |
| Programs | Eco, Intensive, Normal, Quick, Rinse |
| Delay Start | Yes (up to 24 hours) |
| Self-Cleaning Filter | Yes |
| Salt and Rinse Aid Indicators | Yes |
| Adjustable Upper Basket | Yes |
| Interior Material | Stainless Steel |
| Dimensions (H x W x D) | 85 x 60 x 60 cm |
| Weight | 45 kg |
| Electrical Connection | 220-240 V, 50 Hz, 10 A |
| Child Lock | Yes |
| Anti-Flood Device | Yes |
| Spare Parts Availability | Online and authorized service centers |
Frequently Asked Questions - ZDF601S Zanussi-Electrolux
How do I reset the Zanussi-Electrolux ZDF601S dishwasher?
To reset, press and hold the Start/Reset button for 3 seconds until the display shows '0' or the lights go out. Close the door and wait 30 seconds, then reopen and select a new program.
What does error code E1 mean on my ZDF601S?
Error code E1 indicates a water inlet issue. Check that the water tap is open, the inlet hose is not kinked, and the water pressure is adequate. Clean the filter in the inlet hose if needed.
Why is my dishwasher not cleaning dishes properly?
Ensure you are not overloading the racks, use the correct detergent, and check that the spray arms can rotate freely. Clean the filters and verify that the rinse aid and salt are filled. Also select an appropriate program for the soil level.

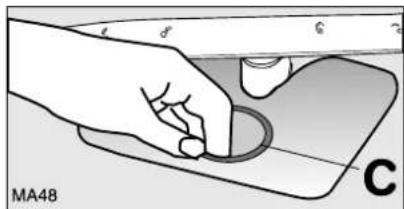

How do I clean the filter of the ZDF601S?
Turn off the dishwasher and remove the lower rack. Twist the coarse filter (if present) anti-clockwise and lift it out. Also remove the fine filter. Rinse both under running water with a soft brush. Reassemble and twist clockwise to lock.
The dishwasher is not starting. What should I do?
Check that the door is fully closed and latched. Ensure the power cord is plugged in and the circuit breaker is on. Press the Start button after selecting a program. If still not starting, try a reset.

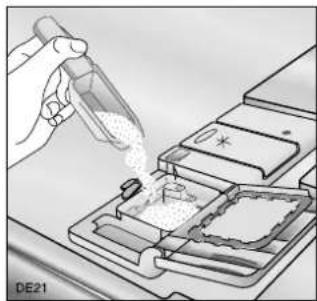

How much detergent should I use in the ZDF601S?
Use about 20-25 grams (or one tablespoon) of detergent for a standard load. For heavily soiled dishes, increase slightly. Always follow the detergent manufacturer's instructions and use the appropriate amount for the water hardness.
What is the correct water hardness setting?
Refer to the manual for adjustment. Typically, you can set the water hardness level by pressing and holding a combination of buttons (e.g., Eco and Intensive for 5 seconds). The default setting is usually for medium hardness (level 3). Adjust according to local water hardness.
Can I put plastic items in the dishwasher?
Yes, but only items marked as dishwasher safe. Place them securely in the top rack away from the heating element. Use a lower temperature program to avoid deformation.
How often should I run a cleaning cycle?
Run a dishwasher cleaner or use a descaling product every 2-3 months to remove limescale and grease. Alternatively, run an empty cycle with a cup of white vinegar in the top rack.
Where can I find spare parts for my ZDF601S?
Spare parts are available from authorized Zanussi-Electrolux service centers and online retailers. Use the exact model number ZDF601S to order parts like racks, spray arms, filters, and heating elements.
