Brand	JVC
Model	LC-2J
Product Type	Two-Channel Simultaneous Battery Charger
Compatible Batteries	SSL-JVC50 and SSL-JVC75 (7.4V)
Input Voltage (AC)	100-240V, 60/50 Hz (automatic)
Input Voltage (DC)	14-19V
Power Consumption	36W maximum
Charge Current	1.6A
Operating Temperature	0°C to 40°C (32°F to 104°F)
Dimensions (W x H x D)	140 x 46 x 128 mm (5.51 x 1.81 x 5.07 inches)
Weight (without AC adaptor)	263g (0.58 lbs)
Charging Features	Simultaneous two-channel charging, automatic stop when fully charged
Safety Features	Low voltage charging, thermal monitoring, overcharge protection
LED Indicator	Status LED for charge process and fault detection
Configuration Options	Standalone or joint connection to a second LC-2J
Maintenance	Wipe with dry cloth; do not use liquids or solvents
Repairability	No user-serviceable parts; consult authorized service center
Included Accessories	AC adaptor (detachable)
Intended Use	Professional camcorder batteries

Frequently Asked Questions - LC-2J JVC

Which batteries are compatible with the JVC LC-2J charger?

The LC-2J is designed to charge JVC SSL-JVC series 7.4V batteries, specifically models SSL-JVC50 and SSL-JVC75.

Can I charge two batteries at the same time?

Yes, the LC-2J is a two-channel simultaneous charger, allowing you to charge two compatible batteries at once.

What is the input voltage range for the LC-2J?

The charger accepts a universal AC input of 100-240V (50/60Hz) automatically, or a DC input of 14-19V.

How do I know when the battery is fully charged?

The charger features a status LED that indicates the charging process. Charging stops automatically when the battery is full, and the LED will change to indicate completion.

Can I connect two LC-2J chargers together?

Yes, the LC-2J supports joint connection to a second unit, allowing you to charge up to four batteries simultaneously.

What safety features does the LC-2J have?

The charger includes low voltage charging, thermal monitoring, and overcharge protection to ensure safe operation and extend battery life.

What is the charge current of the LC-2J?

The charge current is 1.6A per channel.

How should I clean and maintain the charger?

Unplug the charger and wipe the exterior with a dry, soft cloth. Do not use any liquids, solvents, or abrasive cleaners.

What is the operating temperature range?

The charger operates safely between 0°C and 40°C (32°F to 104°F). Avoid using it in extreme temperatures.

Is the AC adaptor included with the charger?

Yes, the LC-2J comes with a detachable AC adaptor. The weight of the charger itself is 263g (0.58 lbs) without the adaptor.

USER MANUAL LC-2J JVC

The LC-2J two channel simultaneous charger is designed to charge SSL-JVC 7.4V batteries for professional camcorders.

LC-2J Product Features:

• Compatible with SSL-JVC 7.4V batteries—SSL-JVC50 and SSL-JVC75
  • Universal AC input for worldwide use.
• Capable of multiple configurations for use as stand alone charger or joint connection to a second LC-2J.
  • Automatic safety and protection features include low voltage charging, thermal monitoring and overcharge protection.
• Status LED indicator provides detailed display of charging process and fault detection.
• Charging will automatically stop when the battery is fully charged.

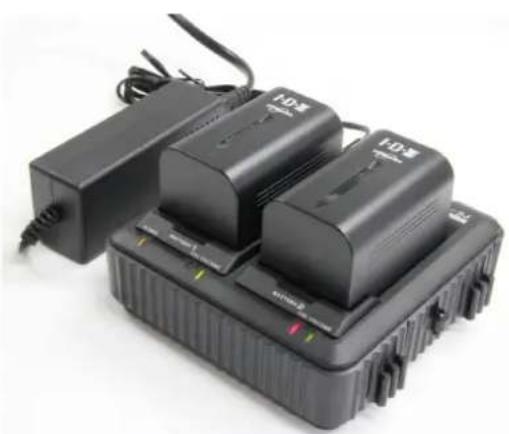

Exterior view of a black electronic device with two cylindrical batteries and a charger, no visible text or symbols.

Black rectangular electronic device casing with two internal compartments, no visible text or symbols

Technical Specification

Input Voltage:

AC Adaptor - 100-240V 60/50Hz automatic

DC Input - DC 14-19V

Power Consumption:

36W maximum

Charge Current:

1.6A

Operating Temperature:

0^ C 40^ C

32^ F 104^ F

Dimensions:

140(W) x 46(H) x 128(D) mm

5.51(W) × 1.81(H) × 5.07(D) inches

Weight:

263g / 0.58 lbs. without AC adaptor
