Product Type	Surface-mount loudspeaker
Driver Configuration	Two-way: 5.25" woofer, 1" tweeter
Frequency Response (-10 dB)	70 Hz – 20 kHz
Sensitivity (1W/1m)	87 dB SPL
Impedance (bypass transformer)	8 ohms
Power Handling (continuous)	120 W
Power Handling (peak)	240 W
Transformer Taps (70V/100V)	60W, 30W, 15W, 7.5W (70V); 60W, 30W, 15W (100V)
Dimensions (H × W × D)	8.3 × 5.3 × 5.5 in (211 × 135 × 140 mm)
Weight	5.5 lb (2.5 kg)
Enclosure Material	UV-resistant ABS
Grille	Perforated steel, white painted
Mounting	Included adjustable bracket for wall or ceiling
Connectors	Euroblock 4-pin (input + loop-through)
Environmental Rating	Indoor/outdoor (IP54 with optional cover)
Recommended Amplifier	QSC CX or GXD series, 120 W RMS per channel
Warranty	6 years (loudspeaker), 3 years (electronics)
Supplied Accessories	Mounting bracket, Euroblock connector, manual

Frequently Asked Questions - AD-S5T QSC

What is the difference between AD-S5 and AD-S5T?

The AD-S5T includes a built-in 60W transformer for 70V/100V distributed audio systems, while the AD-S5 is an 8-ohm model for low-impedance direct connection.

Can the AD-S5T be used outdoors?

Yes, it is suitable for outdoor use when installed with the optional IP54 weather cover. Ensure all connections are sealed to prevent moisture ingress.

How do I set the transformer tap on the AD-S5T?

Remove the rear cover to access the rotary switch. Select the desired tap: 60W, 30W, 15W, or 7.5W for 70V systems; for 100V, use 60W, 30W, or 15W. Set the switch before wiring.

What is the maximum SPL of the AD-S5T?

Maximum peak SPL is approximately 110 dB at 1 meter (with 240W peak input). Continuous SPL is around 107 dB.

What type of cable should I use for installation?

Use 2-conductor stranded cable for low-impedance (8 ohm) wiring, or 2-conductor for 70V/100V. Minimum 18 AWG, up to 14 AWG for longer runs. Shielded cable is not required.

Can I paint the loudspeaker grille to match the decor?

Yes, the grille can be painted. Remove it from the enclosure, clean with mild solvent, then apply spray paint in thin coats. Do not paint the driver or internal components.

How do I clean the AD-S5T?

Use a soft, dry cloth to wipe the enclosure. For the grille, a vacuum with a brush attachment can remove dust. Avoid liquid cleaners near the drivers or connectors.

What is the recommended mounting height?

For optimal coverage, mount at least 8-10 feet (2.5-3 meters) above the listening area. The included bracket allows up to 90° vertical and 180° horizontal adjustment.

Does the AD-S5T come with a warranty?

Yes, QSC provides a 6-year warranty on the loudspeaker drivers and enclosure, and 3 years on the transformer and internal components. Register online for full coverage.

Can I use the AD-S5T with a home theater amplifier?

Yes, when set to 8-ohm bypass mode, it can be used with standard home theater receivers. Ensure the amplifier power does not exceed the speaker's 120W continuous rating.

USER MANUAL AD-S5T QSC

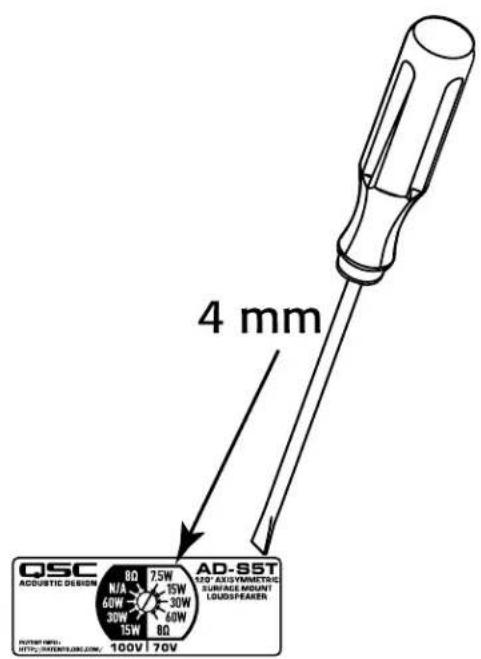

Set the Transformer Tap Switch

See Table 1 and Figures 1 and 2.

AD-S5T

100 Volt 70 Volt
8 Ω8 Ω
N/A 60W
60W 30W
30W 15W
15W 7.5W

— Table 1 —

— Figure 1 —

— Figure 2 —

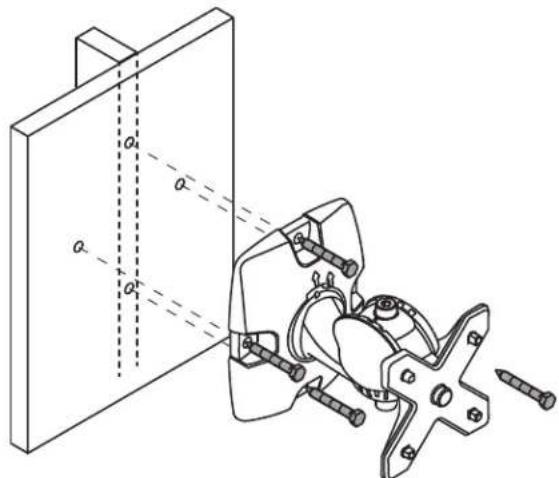

Install the X-Mount™ Bracket

WARNING!: Install the system in accordance with local building codes and regulations. Use a licensed contractor or professional engineer. QSC is not responsible for damages resulting from the negligent installation of any bracket or loudspeaker.

See Figure 3.

Mount to a surface capable of supporting the weight of the loudspeaker.

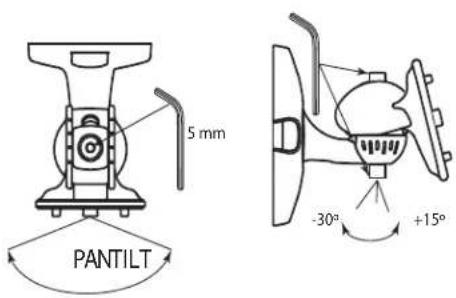

Adjust the Angle of the Bracket

See Figure 4.

NOTE: This step may be done now or after mounting the loudspeaker.

— Figure 4 —

— Figure 3 —

Pan Tilt Yaw
+/- 75° +15°, -30° N/A

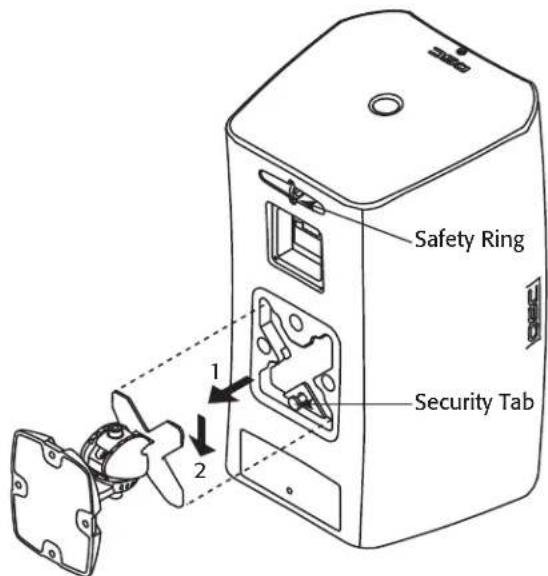

Mount the Loudspeaker on the X-Mount™ Bracket

See Figure 5.

WARNING: The X-Mount supplied with the AD-S5T is specifically designed for the working load of the loudspeaker. These mounts are not interchangeable among models. Only use the X-Mount supplied with your loudspeaker.

— Figure 5 —

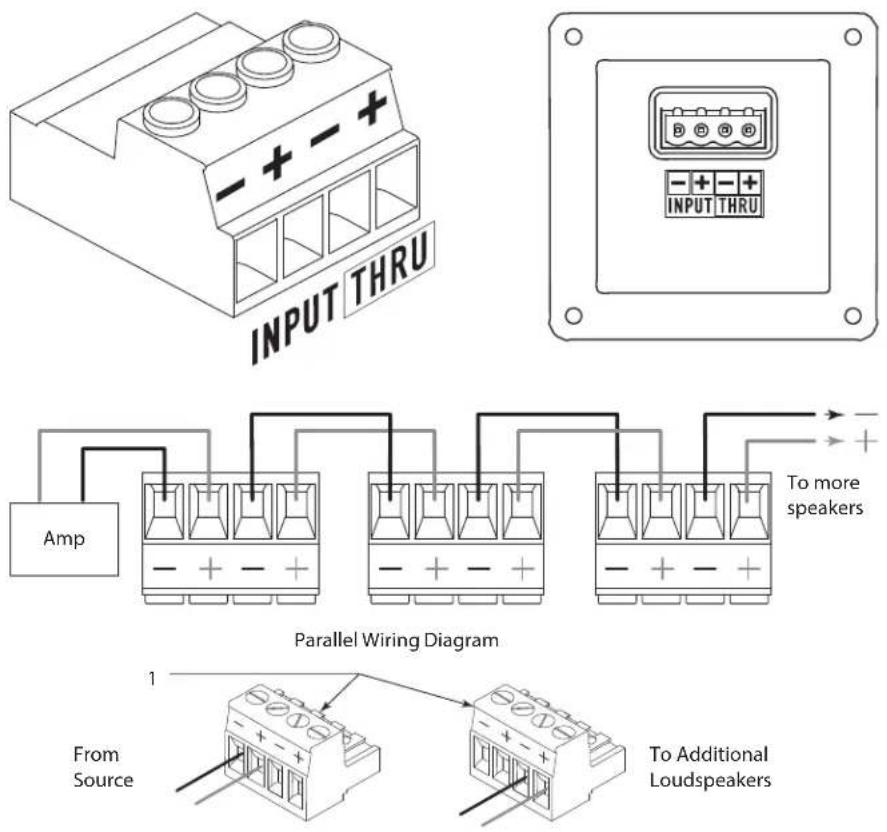

Wire the Loudspeaker

See Figure 6.

— Figure 6 —

Warranty

For a copy of the QSC Limited Warranty, visit the QSC, LLC website at www.qsc.com

QSC™

Mailing Address:

QSC, LLC

1675 MacArthur Boulevard

Costa Mesa, CA 92626-1468 USA

Facsimile Numbers:

Sales & Marketing FAX: [phone]

Customer Service FAX: [phone]

Telephone Numbers:

Main Number: [phone]

Sales & Marketing: [phone] or toll free (USA only) [phone]

Customer Service: [phone] or toll free (USA only) [phone]

World Wide Web:

www.qsc.com

E-mail:

[e-mail]

[e-mail]

If you would like a full copy of the user manual, visit the QSC website at www.qsc.com, or contact Customer Service [phone] or toll free (USA only) [phone] to receive a copy by mail.
