Type	Kitchen Faucet
Brand	Rangemaster
Model	Aquaclassic TAC3BF
Finish	Chrome
Material	Brass
Valve Type	Ceramic Disc
Number of Handles	2
Installation	Deck mount, 3 holes
Spout Height	8.5 in (21.6 cm)
Spout Reach	6.5 in (16.5 cm)
Swivel	360 degrees
Flow Rate	1.5 GPM (5.7 L/min)
Maximum Pressure	80 PSI (5.5 bar)
Minimum Pressure	20 PSI (1.4 bar)
Weight	3.5 lb (1.6 kg)
Warranty	Limited lifetime
Included Components	Supply lines, mounting hardware
Care Instructions	Wipe with damp cloth, avoid abrasives
Compliance	Low lead, NSF 61-9 certified

Frequently Asked Questions - Aquaclassic TAC3BF RANGEMASTER

How do I install the Aquaclassic TAC3BF faucet?

Installation requires a 3-hole sink with 8-inch centers. The faucet comes with mounting hardware and supply lines. Follow the included manual: secure the faucet through the deck, connect hot and cold supply lines, and tighten mounting nuts. Ensure Teflon tape on threads for leak-free connections.

Does this faucet fit a 1-hole sink?

No, the Aquaclassic TAC3BF is designed for a 3-hole installation with 8-inch centers. It requires separate holes for the spout and two handles. A deck plate (escutcheon) is not included; if you have a 1-hole sink, you would need a different model.

How should I clean and maintain the faucet?

Clean regularly with a soft damp cloth. Avoid abrasive cleaners, scouring pads, or acidic cleaners. For hard water spots, use a mild soap solution. Periodically check for leaks and tighten connections if needed. Replace the ceramic cartridge if dripping occurs.

What is the warranty on this faucet?

Rangemaster offers a limited lifetime warranty against manufacturing defects. It covers the faucet body and finish, but not wear parts like washers or cartridges. Proof of purchase is required for claims.

Can I use a water filter with this faucet?

Yes, you can attach a countertop or under-sink water filter to the faucet. However, the faucet does not have a dedicated filtered water spout. You would need to connect the filter to the supply lines or use a diverter valve. Ensure compatibility with standard 3/8-inch connections.

How do I fix a leaky faucet?

Leaks are often caused by worn ceramic discs or o-rings. Turn off water supply, disassemble the handle, and replace the cartridge. Use a screwdriver to remove the handle screw, then lift off the handle. Remove the retaining nut and pull out the old cartridge. Install a new one and reassemble. If the leak is at the base, tighten the mounting nut or replace the o-ring.

Is the Aquaclassic TAC3BF lead-free?

Yes, it meets lead-free standards and is NSF 61-9 certified. The wetted surfaces contain less than 0.25% lead by weight, making it safe for drinking water.

What is the flow rate of this faucet?

The faucet has a maximum flow rate of 1.5 gallons per minute (5.7 liters per minute) at 60 PSI. This complies with federal water efficiency standards and helps conserve water.

Does the faucet come with supply lines?

Yes, the faucet includes two flexible braided supply lines (hot and cold) with standard 3/8-inch compression fittings. They are typically 16 inches long. No additional purchase is necessary for basic installation.

How do I remove the aerator for cleaning?

The aerator is located at the tip of the spout. Unscrew it counterclockwise by hand or using pliers wrapped in tape to avoid scratches. Clean the screen with a soft brush under running water, then reinstall. If clogged, soak in vinegar to remove mineral deposits.

USER MANUAL Aquaclassic TAC3BF RANGEMASTER

TAC3 – Aquaclassic 3 Monobloc

RANGEmaster

sinks & taps

PLEASE LEAVE THESE INSTRUCTIONS FOR YOUR CUSTOMER.

FOR REPLACEMENT PARTS & TECHNICAL ADVISE CALL 0870 789 5108

5 Year warranty Terms and Conditions:

In the unlikely event that you should experience any defect in the materials or workmanship of your new Rangemaster mixer within FIVE years of purchase, the purchaser's sole remedy shall be the replacement (at the manufacturer's discretion) of all or any part of the product that is defective. All working parts and valves are guaranteed for a period of FIVE years from purchase. Decorative surface finishes and O-rings are guaranteed for FIVE year from the date of purchase provided that our advice concerning care has been observed and no scouring agents have been used.

This is provided that the mixer has been used for normal domestic purposes in the UK or Eire and that the care, installation and maintenance instructions have been observed. The warranty extends to the original purchaser only. You should retain a copy of your dated invoice as proof of purchase to validate any claims under this guarantee.

Marks, scuffs and scratches caused by improper installation or accidental damage are not covered by this guarantee. Neither are shade variations or any damage or defect caused by incorrect installation or abuse of the fitting.

As we are continuously improving and developing our range of products, finishes & colours, in the event of a valid claim, we may not be able to provide an identical replacement for the defective product throughout the guarantee period. Where an identical product is no longer available, we will supply the nearest equivalent from our then current product range. In assessing your claim, we must be given the opportunity to inspect the product as installed prior to removal. Any product returns must be packaged as received and complete.

No other warranties, express or implied, are made, including merchantability or fitness for a particular purpose. Under no circumstances shall the manufacturer be liable for any loss or damage arising from the purchase, use or inability to use this product, or for any special, indirect, incidental or consequential damages. No liability is accepted for consequential damage to other household fixtures, fittings or furnishings arising from this claim, even if attached to the product. No installer, dealer, agent or employee of Aga Rangemaster Limited has the authority to modify the obligations or limitations of this warranty.

Care Instructions for your Kitchen Sink Mixer:

To maintain the appearance of this tap, ensure that it is regularly cleaned only using a clean, soft damp cloth. A solution of warm water and a mild liquid detergent may be used where necessary, and then the fitting rinsed thoroughly and wiped dry. Any other cleaning action will invalidate your warranty.

Abrasive cleaners, scouring cleaners and acidic cleaners must not be used under any circumstances. Avoid contact with all solvents (including chlorinated solvents, ketones or acetones as these may result in surface deterioration or etching). Also avoid contact with any harsh household chemicals such as oven cleaners, drain cleaners, rust removers, paint strippers, bar keepers friend or Brasso.

Where the tap has a removable aerator on the spout exit it can be removed and cleaned periodically to maintain optimum flow performance.

Important Technical Data:

Min / Max operating pressure: 0.4 / 5.5 bar*	Recommended / Maximum hot water temperature: 46 / 70°C*
Tap hole size and centres: ∅35mm	*If these temperatures or pressures are exceeded, even for short periods, damage can result. In these instances a thermostatic mixing or pressure reducing valve should be installed.
Flow characteristics: Single flow

This product is either WRAS approved or manufactured in accordance with recognised European standards. Please ensure that your Kitchen mixer is fitted in accordance with Local Water Byelaws. Where hot and cold water mix within the mixertap (single flow), then suitable non-return (check) valves should be installed to the hot and cold supplies to prevent backflow (can be factory fitted – see parts list).

Hot and cold supply pressures should be as closely balanced as possible for best results. Supply pipes should maintain the maximum diameter until immediately before the fitting. Always use the tail pipes provided. The differential between the hot and cold water supply temperatures should be sufficient to allow correct mixing function.

These installation guidelines have been prepared for your direction and you must exercise due care at all times. We do not accept responsibility for problems that may occur through improper installation. Whilst assembling the tap take care not to accidentally loosen any factory fixed assemblies.

This tap has been 100% assembly tested; therefore you may expect a small residual amount of water to remain in the tap when delivered. Any water marks can be removed using the above care advice.

Installation Preparation:

All parts should be removed from their packaging and inspected for completeness and transport damage prior to installation. Before installing the new mixer it is essential that you thoroughly flush through the supply pipes in order to remove any remaining solder, swarf or impurities from your system. Failure to carry out this simple procedure could cause damage to the workings of the mixertap, reduce flow rates and invalidate the warranty.

We recommend installing isolation valves to both the hot and cold feed pipes in an accessible position. This will help to ease any future required maintenance to the product.

Shut off the water heating system and ensure that the mains stopcock is closed. Ensure both the hot and cold water supplies are isolated before commencing installation. If replacing an existing tap, remove the tap & clean the end of the feed pipes using wire wool, the tap hole areas should be free from dirt and sealant. You should ensure that the product will both fit into the depth of the mounting surface available and reach the required outlet positions before installation. Loosely position the tap to check if any alteration to the existing pipework is required, if this is the case do this now.

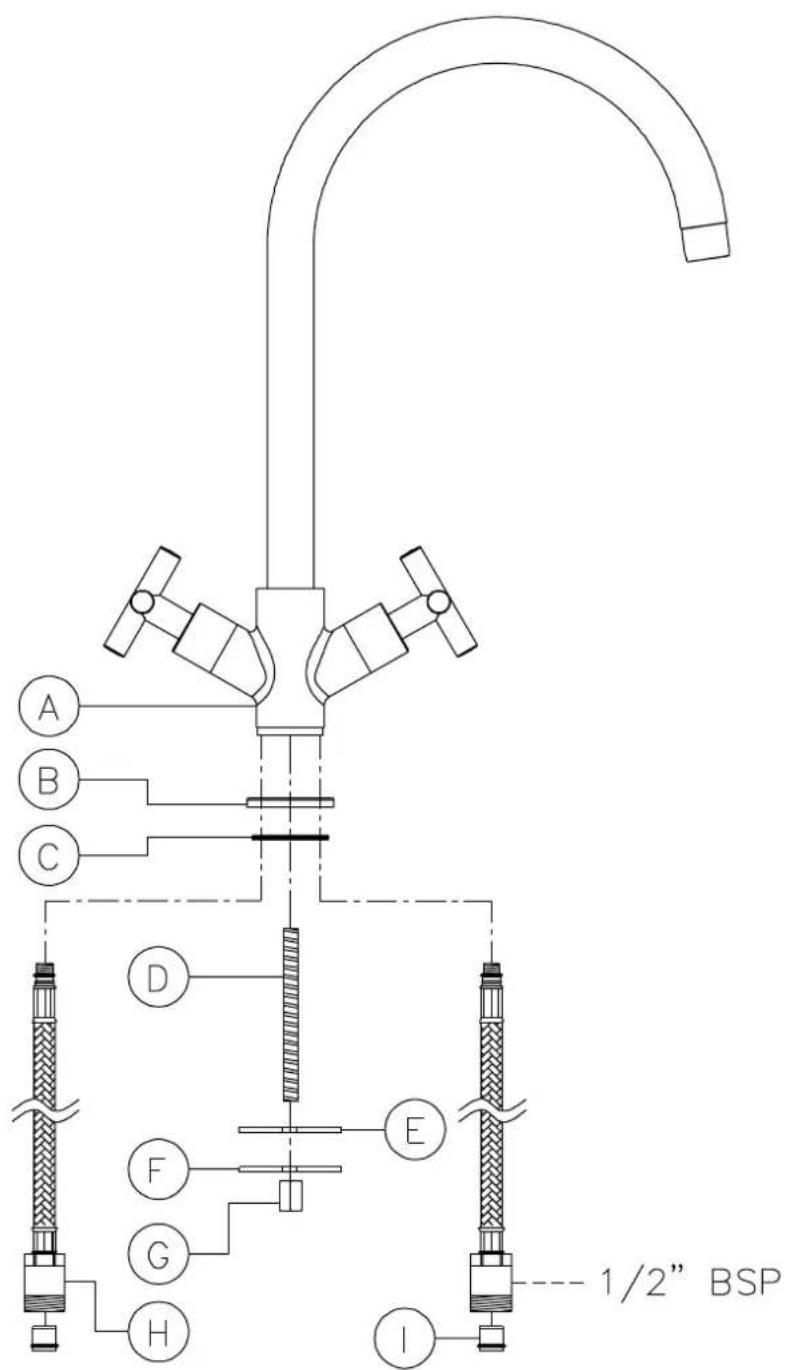

Installation:

1. Screw in the studded rod (D) into the base of the tap (A).
2. Place the base plinth (B) then upper seal (C) onto the base of the tap (A).
3. Screw the hot & cold water tail pipes (H) into the base of the tap.
4. Place the mixertap (A) onto the sink or worktop, pass the tail pipes (I) and studded rod (D) through the taphole.
5. Pass the rubber and then metal horseshoe (E & F) over the studded rod (D) and around the tail pipes (H).
6. Fasten the fixing nut (G) securely onto the fixing stud (D) to fix the tap (A) into its correct location.
7. Connect the hot and cold tail pipes (H) to the water mains using a 12 " BSP x 15mm compression fittings.

Key:	Description: Qty.
A Mixertap body 1
B Base plinth 1
C Upper seal 1
D Fixing stud 1
E Rubber horseshoe 1
F Metal horseshoe 1
G Fixing nut 1
H Hot & cold flexible tail pipes
I	Integral non return valves	2

After installation:

Once you have visually checked the installation of the new tap and all connections, ensure that all other fittings are closed except the new tap which should be left open.

Turn on your water heating system and ensure that your mains stopcock is open. Reconnect both the hot and cold water supplies to this fitting.

Check the function of flow and function of hot, cold and mixed water.

Turn off the tap and check carefully for any leaks around all connections on the fitting and adjoining plumbing. If possible return to the installation after a longer period to double check for slower leaks. If pressure testing equipment is available check the installation to the maximum recommended pressure.

Clean the tap to remove any marks created during installation as instructed then place a bag over the product to protect the tap until it is ready for use.

The installation should be periodically checked for damage, if the property is left unattended for a prolonged period we recommend isolating water supplies.
