S3510BMU33 - HDD/SSD Enclosure StarTech.com - Free user manual and instructions

Product Type	External Hard Drive Enclosure
Brand	StarTech.com
Model	S3510BMU33
Supported Drive	2.5" SATA HDD/SSD (up to 9.5mm height)
Interface	USB 3.0 (USB 3.1 Gen 1) with UASP support
Transfer Speed	Up to 5 Gbps
Material	Aluminum and plastic
Color	Black
Dimensions	132mm x 80mm x 15mm
Weight	0.4 lbs (180 g)
Power Source	USB bus-powered
LED Indicator	Power and activity
Compatibility	Windows, macOS, Linux
Features	Tool-free installation, UASP support, slim design
Included Accessories	USB 3.0 cable, screwdriver, screws, manual
Certifications	CE, FCC, RoHS
Warranty	2 years
Cleaning Instructions	Wipe with a dry, soft cloth. Do not use liquids.
Safety Precautions	Protect from water, extreme temperatures, and drops.
Repairability	Drive replacement is user-friendly; internal electronics are not serviceable.
Spare Parts Available	USB cable (sold separately)

Frequently Asked Questions - S3510BMU33 StarTech.com

What drives are compatible with the S3510BMU33?

The enclosure supports 2.5-inch SATA hard drives and solid state drives with a height up to 9.5 mm.

Does this enclosure require an external power adapter?

No, it is USB bus-powered and draws power directly from the USB port.

What operating systems are supported?

It works with Windows, macOS, and Linux without additional drivers.

What is the maximum transfer speed?

With USB 3.0 and UASP support, it can achieve up to 5 Gbps.

Is the installation tool-free?

Yes, the enclosure features a tool-free design – just slide the drive in and snap the cover closed.

Does it support UASP?

Yes, UASP (USB Attached SCSI Protocol) is supported for improved performance, especially with SSDs.

Can I use an SSD with this enclosure?

Absolutely, it is fully compatible with 2.5-inch SATA SSDs.

What is the cable length included?

The package includes a USB 3.0 cable approximately 50 cm (20 inches) long.

Is the enclosure compatible with USB 2.0?

Yes, it is backward compatible with USB 2.0 and 1.x ports, but speeds will be limited to the lower standard.

What is the warranty period?

StarTech.com offers a 2-year warranty for this product.

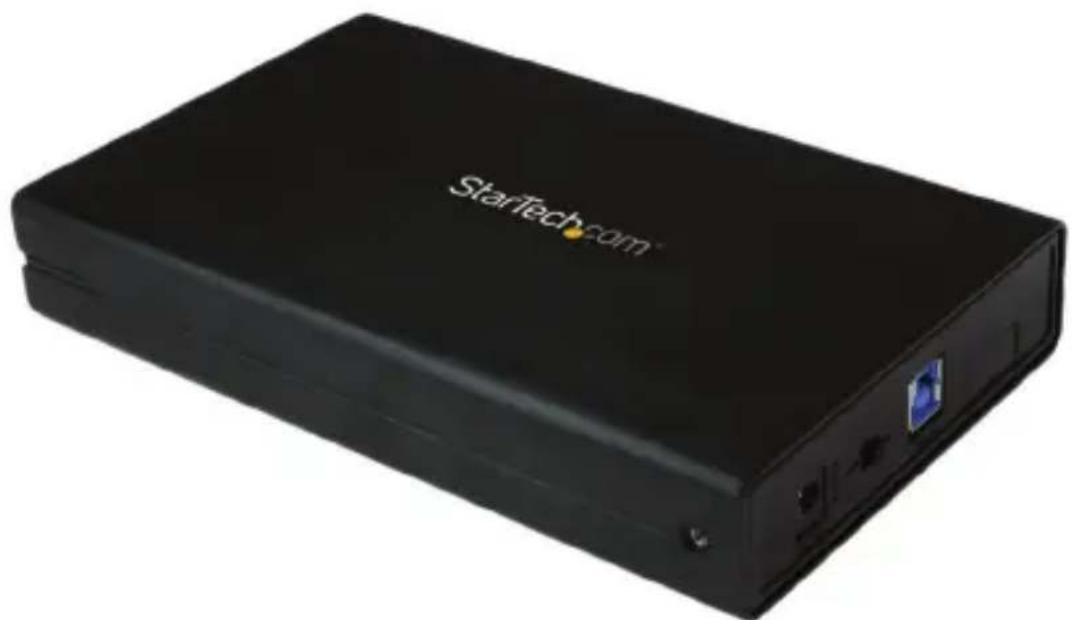

USER MANUAL S3510BMU33 StarTech.com

3.5" USB 3.0 to SATA III HDD Enclosure with UASP Support

S3510BMU33

S3510SMU33

Black StarTech.com electronic device with USB port and network ports (no visible text or symbols beyond branding)

*actual product may vary from photos

For the most up-to-date information, please visit: www.startech.com

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.

Table of Contents

Product Diagram ....1

Back View .... 1

Introduction ......2

Packaging Contents 2

System Requirements....2

Installation ....3

How to Use ....5

Connecting the Hard Drive....5

LED Indicator 5

Disconnecting the Hard Drive....5

Initializing the Hard Drive 6

Specifications 7

Technical Support 8

Warranty Information 8

Product Diagram

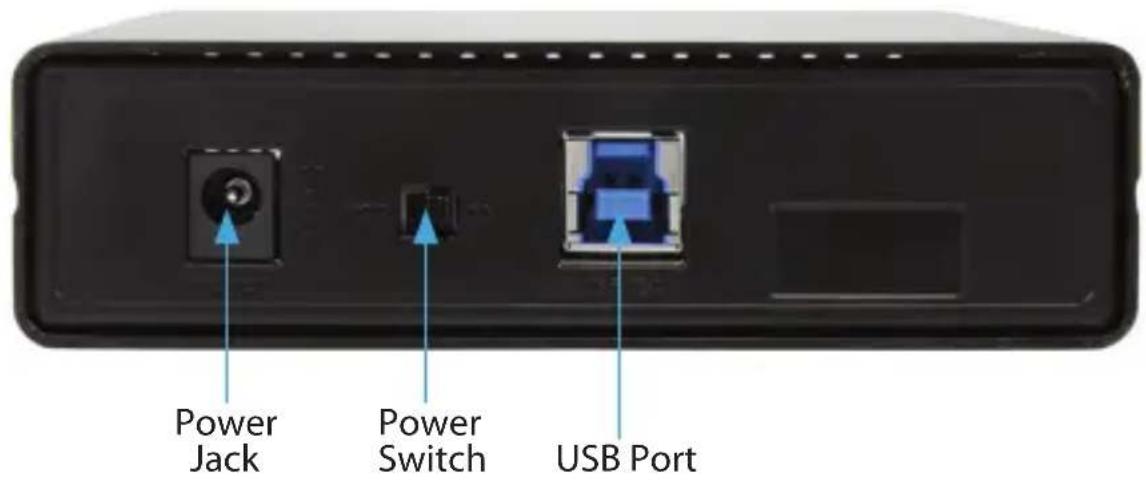

Back View

Introduction Packaging Contents

• 3.5" USB 3.0 SATA III HDD Enclosure
- 1x Screw Kit
• 1x Universal Power Adapter (NA / UK / EU)
- 1x USB 3.0 Cable
- 1x HDD Stand
• 1x Product Manual

System Requirements

• Computer system with available USB 3.0 (5 Gbit/s) port or USB 2.0 port (480Mbps)
  • 3.5" SATA hard drive
• Microsoft® Windows® 2000/XP/Server 2003/Vista/Server 2008 R2/7/8 (32/64-bit), or Apple® Mac® OS 9.x/10, or Linux®

Installation

WARNING! Hard drives and storage enclosures require careful handling, especially when being transported. If you are not careful with your hard disk, lost data may result. Always handle your hard drive and storage device with caution. Be sure that you are properly grounded by wearing an anti-static strap when handling computer components or discharge yourself of any static electricity build-up by touching a large grounded metal surface (such as the computer case) for several seconds.

1. Open the enclosure by sliding the Hard Drive Tray out of the Metal Enclosure.

Black plastic tray with a red arrow pointing to the side panel, no visible text or symbols

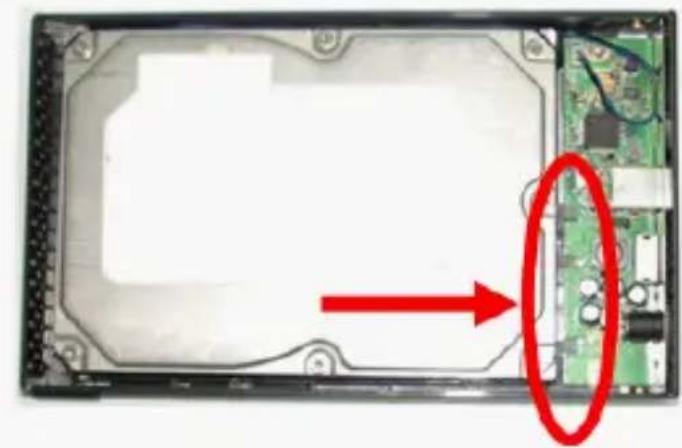

1. Connect the the 3.5" SATA Hard Drive to the SATA connector on the Hard Drive Tray.

Interior view of an electronic device showing a circuit board with a red oval highlighting a component (no text or symbols visible)

1. Mount the Hard Drive to the Hard Drive Tray by inserting 4 of the larger included screws into the bottom of the Hard Drive Tray. Fix them into place using a Screw Driver.

Black electronic device casing with three red-circled mounting holes and a metallic rod inserted (no visible text or symbols)

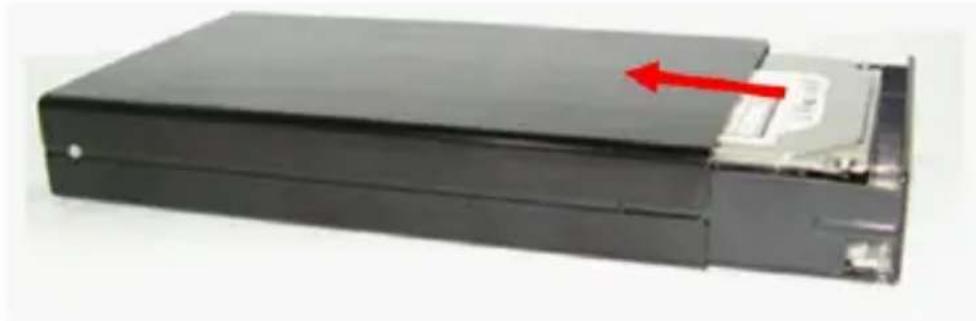

1. Slide the Hard Drive Tray back into the Metal Enclosure.

Black hard drive with a red arrow pointing to the internal portion of the drive (no text or symbols visible)

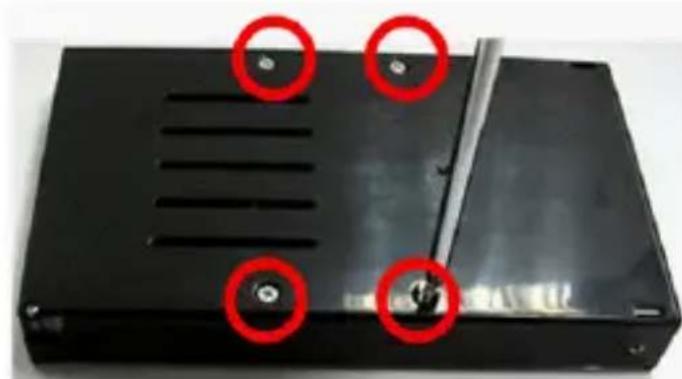

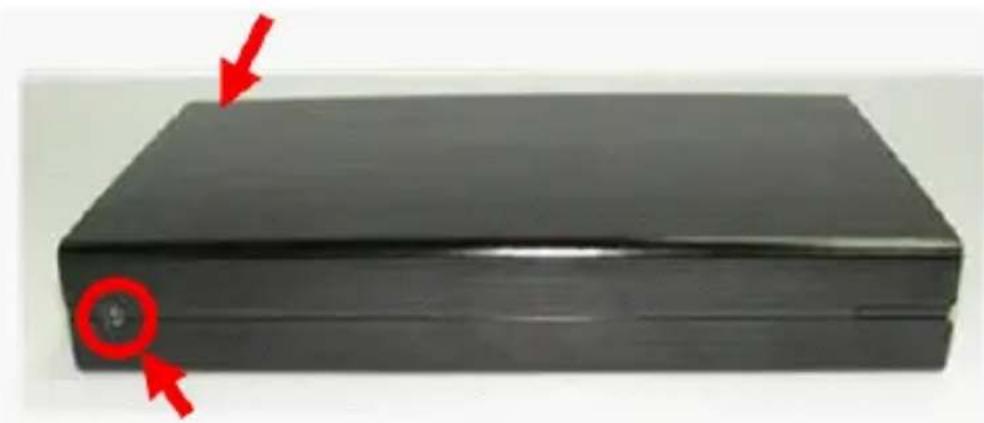

1. Mount the Hard Drive Tray to the Metal Enclosure by inserting 2 of the smaller included screws into either side of the enclosure. Fix them into place using a Screw Driver.

Black rectangular electronic device with a circular button and two red arrows pointing to its sides (no text or symbols visible)

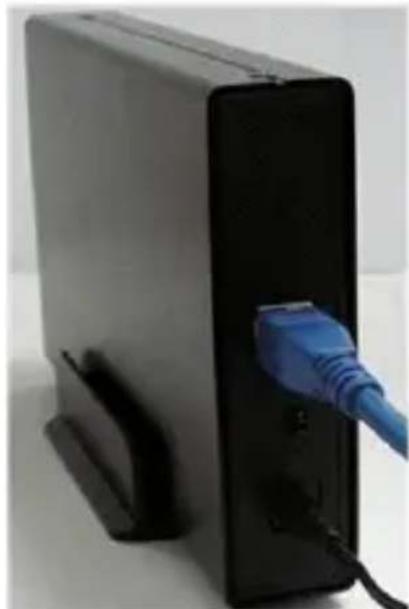

1. With the enclosure fully assembled, connect the power adapter from an available AC outlet to then enclosure. Connect the USB 3.0 cable from the enclosure to a USB port on the host computer system.

Black rectangular device with blue USB cable inserted into its rear panel, no visible text or symbols

1. Slide the Power switch to the "on" position.

How to Use

Connecting the Hard Drive

Once the enclosure has been attached to a computer, and the enclosure has been recognized by the operating system, the drive will be accessible as though it were installed within the system.

Prior to using the drive, it will need to be formatted according to your operating system requirements. To format your newly attached hard drive, or create partitions, please consult the documentation that accompanied your operating system at the time of purchase.

LED Indicator

The hard drive enclosure offers an LED indicator, to enable you to monitor drive activity. When the enclosure is powered, the LED will illuminate. While the hard drive is being accessed, the LED will blink. Do not remove the enclosure from the host computer while the LED is flashing, as it could damage the drive or the enclosure, resulting in data loss.

Disconnecting the Hard Drive

Windows

1. Select the "Safely remove Hardware and Eject Media" icon, located in the task bar.
2. Select the Mass Storage Device from the list that appears.
3. Wait for the message indicating that it is now safe to remove the device.

NOTE: Removing the connected drive prior to receiving notification that it is safe to do so, could result in losing or corrupting data stored on the drive. Once the Safe to Remove Hardware message appears, please disconnect the enclosure from the computer by removing the USB connection.

Mac OS X

To safely disconnect the attached drive from the host computer, close any windows listing the contents of the removable drive. Once all windows are closed, click on the USB storage icon on the desktop, and drag it to the Trash Can icon on the desktop. Allow 5 seconds before physically removing the enclosure/drive from the computer.

Initializing the Hard Drive

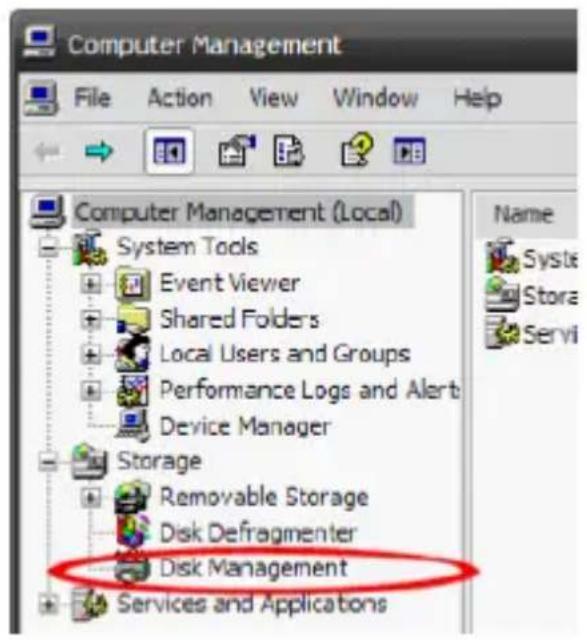

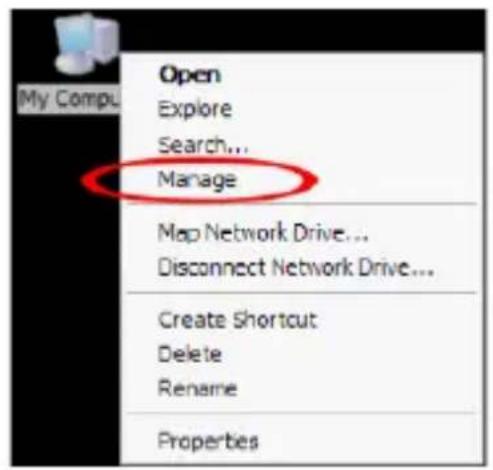

1. If the SATA Hard Drive is blank it may need to be initialized and formatted before use. From the main Windows desktop, right-click on "My Computer" ("Computer" in Vista/7/8), then select Manage. In the new Computer Management window, select Disk Management from the left window panel.

1. A dialog window should automatically appear, asking you to initialize the drive. Depending on the version of Windows, it will give you the option of either creating an "MBR" or "GPT" disk. GPT (GUID partition) is required for hard drives larger than 2TB but may not be compatible with some older operating systems. MBR is supported by newer and older operating systems.

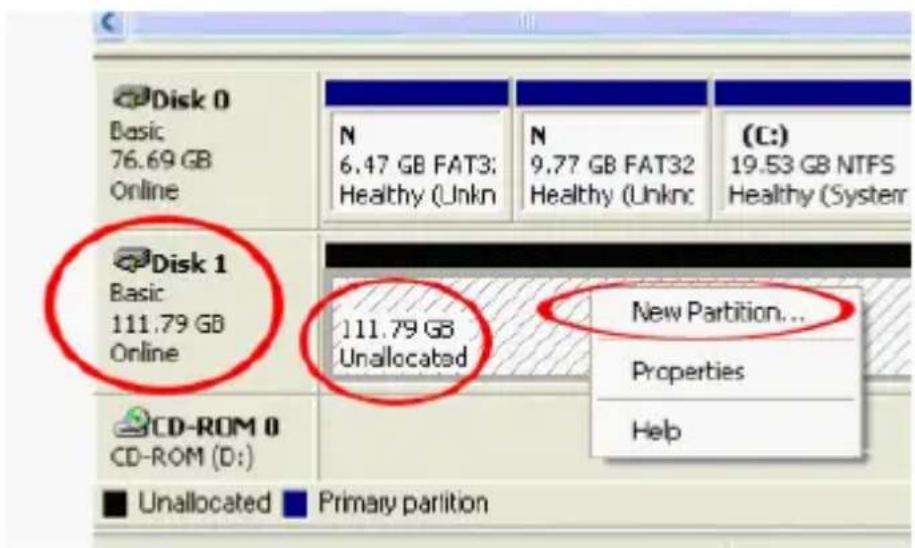

2. Once initialized, locate the Disk that says it is "Unallocated" (check the listed hard drive capacity to confirm it's the correct hard drive) and then right-click in the section that says "Unallocated" and select "New Partition".

Specifications

Host Interface USB 3.0
External Connectors 1x USB 3.0 type B male
Internal Connectors	1x 15 pin SATA Power female1x 7 pin SATA Data male
Maximum Data Transfer Rate USB 3.0: 5 Gbit/s
Compatible Operating Systems	Windows 2000/XP/Server 2003/Vista/Server 2008 R2/7/8 (32/64-bit), Mac OS9/10, Linux

Technical Support

StarTech.com's lifetime technical support is an integral part of our commitment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and access our comprehensive selection of online tools, documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty Information

This product is backed by a two year warranty.

In addition, StarTech.com warrants its products against defects in materials and workmanship for the periods noted, following the initial date of purchase. During this period, the products may be returned for repair, or replacement with equivalent products at our discretion. The warranty covers parts and labor costs only. StarTech.com does not warrant its products from defects or damages arising from misuse, abuse, alteration, or normal wear and tear.
