Product Type	Television
Brand	ElectriQ
Model	E43UHDHDRSQ
Screen Size	43 inches
Display Resolution	3840 x 2160 (4K UHD)
Refresh Rate	60 Hz
HDR Support	HDR10, HLG
Smart TV Platform	Android TV (or proprietary)
Wi-Fi	802.11ac
Ethernet	RJ45 (1)
HDMI Ports	3 (including HDMI ARC)
USB Ports	2 (USB 2.0)
Audio Output	Digital Optical, 3.5mm headphone
Speakers	2 x 8W
Power Consumption (typical)	75 W
Standby Power	<0.5 W
Energy Efficiency Class	F (EU)
Dimensions (without stand)	968 x 563 x 85 mm
Dimensions (with stand)	968 x 610 x 210 mm
Weight (without stand)	8.2 kg
Weight (with stand)	8.5 kg
VESA Wall Mount	200 x 200 mm
Warranty	2 years (EU)
Included Accessories	Remote control, stand, power cable

Frequently Asked Questions - E43UHDHDRSQ ElectriQ

How do I set up the television for the first time?

Connect the TV to power and turn it on using the mains button. Follow the on-screen setup wizard to select language, connect to Wi-Fi, and scan for channels.

Can I mount this TV on the wall?

Yes, it supports a 200x200 mm VESA mount. Use appropriate screws and ensure the wall can support the weight.

What smart features does this TV have?

The TV includes a smart platform (likely Android TV), providing access to streaming apps like Netflix, YouTube, and more.

How do I connect external devices?

Use the HDMI ports for game consoles, Blu-ray players, etc. USB ports allow playback from flash drives.

What is the refresh rate?

The standard refresh rate is 60 Hz, suitable for most content. It supports HDR10 for improved picture quality.

Is there a headphone jack?

Yes, a 3.5mm headphone output is available on the back.

How do I perform a factory reset?

Go to Settings > Device Preferences > Reset and follow the prompts. This will erase all personal data.

What audio formats are supported?

The TV supports Dolby Digital and PCM audio via HDMI ARC or optical output.

Why is the remote not responding?

Check batteries, ensure there is no obstruction, and point the remote directly at the sensor. Try pairing via Bluetooth if applicable.

Can I use voice commands?

If the TV includes a microphone on the remote, press the voice button to use Google Assistant or similar.

USER MANUAL E43UHDHDRSQ ElectriQ

- Do not place any heat sources such as electric heaters, radiators, etc. near the TV set. - Do not place the TV on the floor and inclined surfaces.

• To avoid danger of suffocation, keep plastic bags out of the reach of the babies, children and domestic

animals. - Carefully attach the stand to the TV. If the stand is

provided with screws, tighten the screws firmly to prevent the TV from tilting. Do not over-tighten the

- screws and mount the stand rubbers properly. - Do not dispose of the batteries in fire or with

hazardous or flammable materials.
WARNING - Batteries must not be exposed to

excessive heat such as sunshine, fire or the like. WARNING - Excessive sound pressure from earphones or headphones can cause hearing loss.

ABOVE ALL - NEVER let anyone, especially children, push or hit the screen, push anything into holes, slots or any other openings in the case.

Caution Serious injury or death risk

Risk of electric shock	Dangerous voltage risk
Maintenance	Important maintenance component

uct

050

The following symbols are used on the product as a marker for restrictions and precautions and safety

instructions. Each explanation shall be considered where the product bears related marking only. Note

such information for security reasons.

Class II Equipment: This appliance is

designed in such a way that it does not require a safety connection to electrical earth.

Hazardous Live Terminal: The marked terminal(s) is/are hazardous live under normal

operating conditions.

Caution, See Operating Instructions: The

1 marked area(s) contain(s) user replaceable coin or button cell batteries.

Class 1 Laser Product: This

CLASS 1 product contains Class 1 laser source that is safe under

LASER PRODUCT laser source that is safe under reasonably foreseeable conditions of operation

Safety Information

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE, REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

In extreme weather (storms, lightning) and long inactivity periods (going on holiday) disconnect the TV set from the mains.

The mains plug is used to disconnect TV set from the mains and therefore it must remain readily operable. If the TV set is not disconnected electrically from the mains, the device will still draw power for all situations even if the TV is in standby

mode or switched off. Note: Follow the on screen instructions for operating the related features.

IMPORTANT - Please read these instructions fully before installing or operating

WARNING: This device is intended to be used by persons (including children) who are

capable / experienced of operating such a device unsupervised, unless they have been given

supervision or instruction concerning the use of the device by a person responsible for their safety.

• Use this TV set at an altitude of less than 2000 meters above the sea level, in dry locations and in regions

with moderate or tropical climates.

- The TV set is intended for household and similar general use but may also be used in public places.

• For ventilation purposes, leave at least 5cm of free

space around the TV.

• The ventilation should not be impeded by covering

or blocking the ventilation openings with items, such as newspapers, table-cloths, curtains, etc.

• The power cord plug should be easily accessible. Do

not place the TV, furniture, etc. on the power cord.

A damaged power cord/plug can cause fire or give you an electric shock. Handle the power cord by the

plug, do not unplug the TV by pulling the power cord. Never touch the power cord/plug with wet hands as

this could cause a short circuit or electric shock. Never make a knot in the power cord or tie it with

other cords. When damaged it must be replaced, this should only be done by qualified personnel.

- Do not expose the TV to dripping or splashing of liquids and do not place objects filled with liquids,

such as vases, cups, etc. on or over the TV (e.g., on shelves above the unit).

- Do not expose the TV to direct sunlight or do not place open flames such as lit candles on the top of or near the TV.

Wake ON 25

Connectivity Troubleshooting 25

Using Audio Video Sharing Network Service ..... 26

Apps 26

Freeview Play Platform.... 27

Internet Browser 27

HBBTV System.... 27

Smart Center 28

DVB functionality information 29

Important Instructions 30

Contents

Safety Information

Markings on the Pr

Environmental Info

Features

Ultra HD (UHD)

Accessories Includ

Standby Notification

TV Control Switch

TV Control Switch Using Main TV/Mo

Using Main TV Me Inserting the Better

Inserting the Batter

Power Connection

Antenna Connectio

License Notification

Disposal Information

Specification ......

Remote Control ....

Connections......

Switching On/Off ..

First Time Installati

Media Playback via

Media Browser

FollowMe TV

CSC

E. Manuel

E-Manual..... Settings Menu Cor

Settings Menu Out General TV/2

General TV Operat

Using the Channel

Configuring Parent

Electronic Program

Teletext Services (

MHEG Teletext ....

BBC Red Button+

Software Upgrade.

Troubleshooting &

Troubleshooting & DC Input Typical D

PC Input Typical D AV and HDMI Sign

Av and HDMI Sign Supported File For

Supported File For Video Files Formats

Video File Formats

Picture File Format

Audio File Formats

Subtitle File Forma

Supported DVI Res

Connectivity ......

Wired Connectivity

Wireless Connectiv

WARNINGDo not ingest the battery, Chemical Burn HazardThis product or the accessories supplied with the product may contain a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death.Keep new and used batteries away from children.If the battery compartment does not close securely, stop using the product and keep it away from children.If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention--------Never place a television set in unstable or inclined locations. A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as:Using cabinets or stands recommended by the manufacturer of the television set.Only using furniture that can safely support the television set.Ensuring the television set is not overhanging the edge of the supporting furniture.Not placing the television set on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the television set to a suitable support.Not standing the television set on cloth or other materials placed between the television and supporting furniture.Educating children about the dangers of climbing on furniture to reach the television set or its controls. If your existing television set is being retained and relocated, the same considerations as above should be applied--------Apparatus connected to the protective earthing of the building installation through the MAINS connection or through other apparatus with a connection to protective earthing – and to a television distribution system using coaxial cable, may in some circumstances create a fire hazard. Connection to a television distribution system has therefore to be provided through a device providing electrical isolation below a certain frequency range (galvanic isolator)

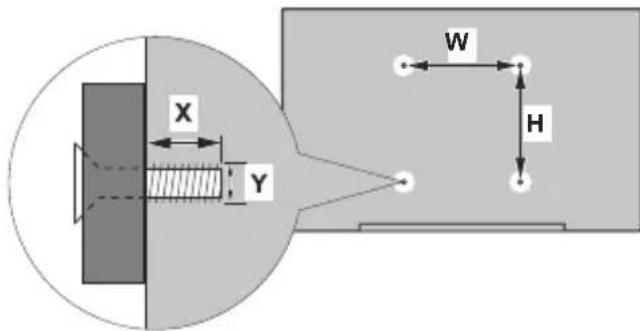

WALL MOUNTING WARNINGSRead the instructions before mounting your TV on the wall.The wall mount kit is optional. You can obtain from your local dealer, if not supplied with your TV.Do not install the TV on a ceiling or on an inclined wall.Use the specified wall mounting screws and other accessories.Tighten the wall mounting screws firmly to prevent the TV from fall. Do not over-tighten the screws.Environmental InformationThis television is designed to be environment friendly. To reduce energy consumption, you can follow these steps:If you set theEnergy Savingto Minimum, Medium, MaximumorAutothe TV will reduce the energy consumption accordingly. If you like to set theBacklightto a fixed value set asCustomand adjust theBacklight(located under theEnergy Saving setting) manually using Left or Right buttons on the remote. Set asOffto turn this setting off.Note:AvailableEnergy Savingoptions may differ depending on the selectedModein theSettings>Picturemenu.TheEnergy Savingsettings can be found in theSettings>Picturemenu. Note that some picture settings will be unavailable to be changed.If pressed Right button or Left button consecutively, “Screen will be off in 15 seconds.” message will be displayed on the screen. SelectProceedand pressOKto turn the screen off immediately. If you don’t press any button, the screen will be off in 15 seconds. Press any button on the remote or on the TV to turn the screen on again.Note:Screen Offoptionis not available if the Mode is set to Game.When the TV is not in use, please switch off or disconnect the TV from the mains plug. This will also reduce energy consumption.FeaturesRemote controlled colour TVFully integrated digital terrestrial/cable TV (DVB-T-T2/C)HDMI inputs to connect other devices with HDMI socketsUSB inputOSD menu systemStereo sound systemTeletext

Headphone connectionAutomatic programming systemManual tuningAutomatic power down after up to eight hours.Sleep timerChild lockAutomatic sound mute when no transmission.NTSC playbackAVL (Automatic Volume Limiting)PLL (Frequency Search)PC inputGame Mode (Optional)Picture off functionEthernet (LAN) for Internet connectivity and service802.11 a/b/g/n built in WLAN SupportAudio Video SharingHbbTVUltra HD (UHD)TV supports Ultra HD (Ultra High Definition - also known as 4K) which provides resolution of 3840 x 2160 (4K:2K). It equals 4 times the resolution of Full HD TV by doubling the pixel count of the Full HD TV both horizontally and vertically. Ultra HD contents are supported from HDMI, USB inputs and over DVB-T2 and DVB-S2 broadcasts.High Dynamic Range (HDR) / Hybrid Log-Gamma (HLG)Using this feature the TV can reproduce greater dynamic range of luminosity by capturing and then combining several different exposures. HDR/HLG promises better picture quality thanks to brighter, more realistic highlights, more realistic colour and other improvements. It delivers the look that filmmakers intended to achieve, showing the hidden areas of dark shadows and sunlight with full clarity, colour and detail. HDR/HLG contents are supported via native and market applications, HDMI, USB inputs and over DVB-S broadcasts. Set the related HDMI source input asEnhancedfrom theSourcesoption in theSettings>Systemmenu in order to watch HDR/HLG content, if the HDR/HLG content is received through an HDMI input. The source device should also be at least HDMI 2.0a compatible in this case.Accessories IncludedRemote ControlBatteries: 2 x AAAInstruction BookQuick Start Guide

Standby NotificationsIf the TV does not receive any input signal (e.g. from an aerial or HDMI source) for 3 minutes, it will go into standby. When you next switch-on, the following message will be displayed: “TV switched to stand-by mode automatically because there was no signal for a long time.”TheAuto TV OFFoption(in theSettings>System>Moremenu) could have been set to a value between 1 and 8 hours by default. If this setting is not set asOffand the TV has been left on and not been operated during the set time, it will switch into standby mode after the set time has expired. When you next switch-on the TV, the following message will be displayed.“TV switched to stand-by mode automatically because no operation was made for a long time.”Before the TV switches into standby mode a dialogue window will be displayed. If you do not press any button the TV will switch into the standby mode after a waiting period of about 5 minutes. You can highlightYesand pressOKto switch the TV into standby mode immediately. If you highlightNoand pressOK, the TV will remain on. You can also choose to cancel theAuto TV OFFfunction from this dialogue. HighlightDisableand pressOK, the TV will remain on and the function will be cancelled. You can enable this function again by changing the setting of theAuto TV OFFoption from theSettings>System>Moremenu.TV Control Switch & Operation1. Up direction2. Down direction3. Volume / Info / Sources List selection and Standby-On switchThe Control button allows you to control the Volume / Programme / Source and Standby-On functions of the TV.To change volume: Increase the volume by pushing the button up. Decrease the volume by pushing the button down.To change channel:Press the middle of the button in, the information banner will appear on the screen. Scroll through the stored channels by pushing the button up or down.

andEnhancedoptions are affecting the colour settings of the selected HDMI source. To be able to watch 4K or HDR/HLG images from an HDMI source related source setting should be set asEnhancedif the connected device is compatible with HDMI 2.0 and subsequent versions. Set asRegularif the connected device is HDMI 1.4 compatible. Set accordingly or disable the related HDMI source by setting asDisabled.Inserting the Batteries into the RemoteRemove the screw that secure the battery compartment cover on the back side of the remote control first. Insert two size AAA batteries. Make sure the (+) and (-) signs match (observe correct polarity). Do not mix old and new batteries. Replace only with same or equivalent type. Place the cover back on. Then screw the cover back on again.A message will be displayed on the screen when the batteries are low and must be replaced. Note that when the batteries are low, the performance of the remote control may be impaired.Batteries should not be exposed to excessive heat such as sunshine, fire or the like.Power ConnectionIMPORTANT:The TV set is designed to operate on a 220-240V AC,50 Hz supply. After unpacking, allow the TV set to reach the ambient room temperature before you connect the set to the mains. Plug the power cable to the mains socket outlet.Antenna ConnectionConnect the aerial or cable TV plug to the AERIAL INPUT (ANT-TV) socket located on the rear side of the TV.Rear side of the TV[IMAGE]If you want to connect a device to the TV, make sure that both the TV and the device are turned off before making any connection. After the connection is done, you can turn on the units and use them.License NotificationThe terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.HDMIManufactured under license from Dolby Laboratories. Dolby, Dolby Audio and the double-D symbol are trademarks of Dolby Laboratories.

YouTube and the YouTube logo are trademarks of Google Inc.This product contains technology subject to certain intellectual property rights of Microsoft. Use or distribution of this technology outside of this product is prohibited without the appropriate license(s) from Microsoft.Content owners use Microsoft PlayReadyTMcontent access technology to protect their intellectual property, including copyrighted content. This device uses PlayReady technology to access PlayReady-protected content and/or WMDRM-protected content. If the device fails to properly enforce restrictions on content usage, content owners may require Microsoft to revoke the device's ability to consume PlayReady-protected content. Revocation should not affect unprotected content or content protected by other content access technologies. Content owners may require you to upgrade PlayReady to access their content. If you decline an upgrade, you will not be able to access content that requires the upgrade.The "CI Plus" Logo is a trademark of CI Plus LLP.This product is protected by certain intellectual property rights of Microsoft Corporation. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft or an authorized Microsoft subsidiary.Disposal Information[European Union]These symbols indicate that the electrical and electronic equipment and the battery with this symbol should not be disposed of as general household waste at its end-of-life. Instead, the products should be handed over to the applicable collection points for the recycling of electrical and electronic equipment as well as batteries for proper treatment, recovery and recycling in accordance with your national legislation and the Directive 2012/19/EU and 2013/56/EU.By disposing of these products correctly, you will help to conserve natural resources and will help to prevent potential negative effects on the environment and human health which could otherwise be caused by inappropriate waste handling of these products.For more information about collection points and recycling of these products, please contact your local municipal office, your household waste disposal service or the shop where you purchased the product.Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.[Business users]If you wish to dispose of this product, please contact your supplier and check the terms and conditions of the purchase contract.

To change source:Press the middle of the button in twice(for the second time in total), the source list will appear on the screen. Scroll through the available sources by pushing the button up or down.To turn the TV off:Press the middle of the button in and hold it down for a few seconds, the TV will turn into standby mode.To turn on the TV:Press the middle of the button in, the TV will turn on.Notes:If you turn the TV off, this cycle starts again beginning with the volume setting.Main menu OSD cannot be displayed via control button.Operation with the Remote ControlPress theHomebutton on your remote control to display main menu. Use the directional buttons and OK button to navigate and set. Press Return/Back or Home button to quit a menu screen.Input SelectionOnce you have connected external systems to your TV, you can switch to different input sources. Press the Source button on your remote control consecutively to select the different sources.Changing Channels and VolumeYou can change the channel and adjust the volume by using theProgramme +/- and Volume +/- buttons on the remote.Using Main TV MenuWhen theHomebutton is pressed, the main TV menu will appear at the bottom of the screen. You can navigate through the menu items using the directional buttons on the remote. To select an item or see the sub-menu options of the highlighted menu press OK button. When you highlight a menu option some of the sub-menu items of this menu may appear on the upper side of the menu bar for quick access. To use a quick access item highlight it, press OK and set as desired using the Left/Right directional buttons. When finished press OK or Back/Return button to exit.Press Exit button to close the main menu.1.HomeWhen main menu is openedHomenu bar will be highlighted. The content of theHomemenu can be customised by adding options from other menus. Just highlight an option and press the Down direction button on the remote. If you seeAdd to Homeoption you can add it to theHomemenu. Same way you can delete or change the position of any item in theHomemenu. Press the Down direction button and selectDeleteorMoveoption and press OK. In order to move a menu item use the Right and Left direction buttons to select the position that you want the item to move to and press OK.

2.TV2.1.GuideYou can access the electronic programme guide menu using this option. Refer toElectronic Programme Guidesection for more information.2.2.ChannelsYou can access theChannelsmenu using this option. Refer toUsing the Channel Listsection for more information.2.3.TimersYou can set timers for future events using the options of this menu. You can also review the previously created timers under this menu.To add a new timer select theAdd Timer tab using the Left/Right buttons and pressOK. Set the sub-menu options as desired and when finished pressOK. A new timer will be created.To edit a previously created timer, highlight that timer, select theEdit Selected Timertab and pressOK. Change the sub-menu options as desired and press OKto save your settings.To cancel an already set timer, highlight that timer, selectDelete Selected Timertab and pressOK. A confirmation message will be displayed. Highlight Yes and pressOKto proceed. The timer will be cancelled.It is not possible to set timers for two or more events that will broadcasted in different channels at the same time interval. In this case you will be asked to choose one of these timers and cancel others. Highlight the timer you want to cancel and pressOK,Optionsmenu will be displayed. Then highlightSet/Canceland press OK to cancel that timer. You will have to save changes after that. In order to do that pressOK, highlightSave Changes and pressOKagain.3.SettingsYou can manage the settings of your TV using the options of this menu. Refer toSettings Menu Contents section for more information.4.AppsWhen your TV is connected to the Internet related contents will also be available, includingAppsrelated contents. Using theAppsmenu you can access and manage your applications. You can add new apps from the market or delete the existing ones. Refer toAppsection for more information.5.SourcesYou can manage your input source references using the options of this menu. To change the current source highlight one of the options and pressOK.5.1.Source SettingsEdit the names, enable or disable selected source options. There are alsoRegular,EnhancedandDisabledoptions available for HDMI sources. Regular

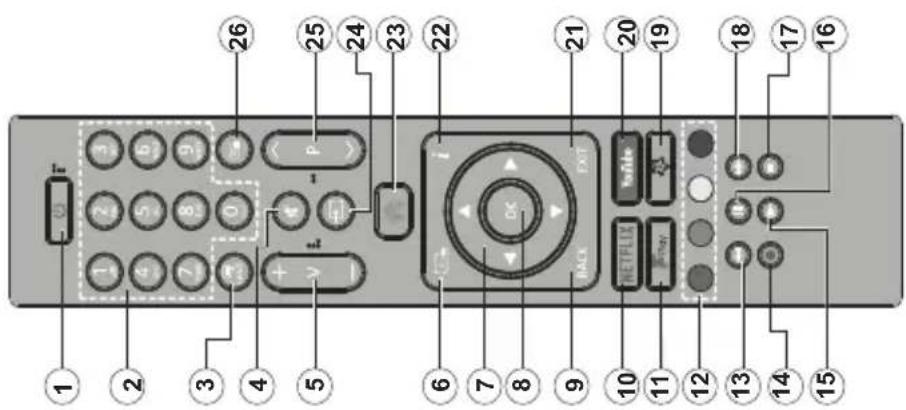

1. Standby: Switches On / Off the TV

2. Numeric buttons: Switches the channel, enters a number or a letter in the text box on the screen.

3. Language: Switches among sound modes (an-alogue TV), displays and changes audio/subtitle language and turns subtitles on or off (digital TV, where available)

4. Mute: Completely turns off the volume of the TV

5. Volume +/-

6. Guide: Displays the electronic programme guide

7. Directional buttons: Helps navigate menus, content etc. and displays the subpages in TXT mode when pressed Right or Left

8. OK: Confirms user selections, holds the page (in TXT mode), views Channels menu (DTV mode)

9. Back/Return: Returns to previous screen, previous menu, opens index page (in TXT mode)

10. Netflix: Launches the Netflix application

11. Freeview Play: Connects to the Freeview Play platform where you can access available catch-up TV services

12. Coloured Buttons: Follow the on-screen instructions for coloured button functions

13. Rewind: Moves frames backwards in media such as movies

14. No function

15. Play: Starts to play selected media

16. Pause: Pauses the media being played

17. Stop: Stops the media being played

18. Fast Forward: Moves frames forward in media such as movies

19. My Button 1 (*)

20. YouTube: Launches the YouTube application

21. Exit: Closes and exits from displayed menus or returns to previous screen

22. Info: Displays information about on-screen content, shows hidden information (reveal - in TXT mode)

23. Home: Displays TV menu

24. Source: Shows available broadcast and content sources

25. Programme +/-

26. Text: Displays teletext (where available), press again to superimpose the teletext over a normal broadcast picture (mix)

Remote Control

(*) MY BUTTON 1:
This button may have default function depending on
the model. However you can set a special function to | 25. Programme +/-
this button by pressing on it for five seconds when on
a desired source of channel. A confirmation message will be displayed on the screen. Now the My Button 1 is
Will be displayed on the screen. Now the My Button is associated with the selected function.
Note that if you perform First Time Installation, My
Note that if you perform First Time Ins Button 1 will return to its default function.

Wireless LAN Transmitter Specifications

Frequency Ranges Max Output Power
2400 - 2483,5 MHz (CH1-CH13) <	100 mW
5150 - 5250 MHz (CH36 - CH48) <	200 mW
5250 - 5350 MHz (CH52 - CH64) <	200 mW
5470 - 5725 MHz (CH100 - CH140)	< 200 mW

Country Restrictions

This device is intended for home and office use in all EU countries (and other countries following the relevant EU directive) without any limitation except for the countries mentioned below.

Country Restriction
Bulgaria	General authorization required for outdoor use and public service
France In-door	use only for 2454-2483.5 MHz
Italy	If used outside of own premises, general authorization is required
Greece	In-door use only for 5470 MHz to 5725 MHz band
Luxembourg	General authorization required for network and service supply(not for spectrum)
Norway	Radio transmission is prohibited for the geographical area within a radius of 20 km from the centre of Ny-Alesund
Russian Federation	In-door use only

The requirements for any country may change at any time. It's recommended that user checks with local authorities for the current status of their national regulations for both 2.4 GHz and 5 GHz wireless LAN's.

[Other Countries outside the European Union]

These symbols are only valid in the European Union. Contact your local authority to learn about disposal and recycling. The product and packaging should be taken to your local collection point for recycling. Some collection points accept products free of charge. Note: The sign Pb below the symbol for batteries indicates that this battery contains lead.

1. Products
2. Battery

Specification

TV Broadcasting	PAL BG/I/DKSECAM BG/DK
Receiving Channels	VHF (BAND I/III) - UHF(BAND U) - HYPERBAND
Digital Reception	Fully integrated digital terrestrial-cable TV(DVB-T-C)(DVB-T2 compliant)
Number of Preset Channels	1 000
Channel Indicator On Screen Display
RF Aerial Input 75 Ohm (unbalanced)
Operating Voltage 220-240V AC, 50Hz.
Audio German+Nicam Stereo
Audio Output Power (WRMS.) (10% THD)	2 x 10
Power Consumption (W)	20
Networked Standby (W) <3
TV Dimensions DxLxH(with stand) (mm)	275 x 965 x 623
TV Dimensions DxLxH(without stand) (mm)	57/89 x 965 x 575
Display 43"
Operation temperature and operation humidity	0°C up to 40°C, 85%humidity max

complaints or comments regarding this privacy policy or its enforcement, please contact by email at [e-mail].

Highlight Next and press OK button on the remote control to continue and the Network/Internet Settings menu will be displayed. Please refer to Connectivity section to configure a wired or a wireless connection. If you want your TV to consume less power in standby mode, you can disable the Wake On option by setting it as Off. After the settings are completed highlight Next and press OK button to continue.

On the next screen you need to agree to the terms and conditions of Freeview Play to make use of the related services. Scroll the page to read the entire text using the up/down directional buttons or Programme +/- buttons. Highlight Yes and press OK on the remote to confirm and proceed. Highlight No and press OK to proceed without confirmation. For further requirements for Freeview Play services refer to the Freeview Play Platform section.

On next screen you can set broadcast types to be searched, set your encrypted channel searching and time zone (depending on the country selection) preferences. Additionally you can set a broadcast type as your favourite one. Priority will be given to the selected broadcast type during the search process and the channels of it will be listed on the top of the channel list. When finished, highlight Next and press OK to continue. About Selecting Broadcast Type

To turn a search option for a broadcast type highlight it and press OK. The checkbox next to the selected option will be checked. To turn the search option off clear the checkbox by pressing OK after moving the focus on the desired broadcast type option. Digital Aerial: If D. Aerial broadcast search option is turned on, the TV will search for digital terrestrial broadcasts after other initial settings are completed. After the initial settings are completed TV will start to search for available broadcasts of the selected broadcast types.

While the search continues current scan results will be displayed at the bottom of the screen. After all the available stations are stored, Channels menu will be displayed. You can edit the channel list according to your preferences using the Edit tab options or press the Home button to quit and watch TV. While the search continues a message may appear, asking whether you want to sort channels according to the LCN(*). Select Yes and press OK to confirm. (*) LCN is the Logical Channel Number system that organizes available broadcasts in accordance with a recognizable channel number sequence (if available). Note: Do not turn off the TV while initializing first time installation. Note that, some options may not be available depending on the country selection.

Switching On/Off
To Switch the TV On

Connect the power cord to a power source such as a wall socket (220-240V AC, 50 Hz).

To switch on the TV from standby mode either:

• Press the Standby button, Programme +/- or a numeric button on the remote control.

• Press the middle of the side function switch on the TV in.

To Switch the TV Off

Press the Standby button on the remote control or press the middle of the side function switch on the TV in and hold it down for a few seconds, the TV will switch into standby mode.

To power down the TV completely, unplug the power cord from the mains socket.

Note: When the TV is switched into standby mode, the standby LED can blink to indicate that features such as Standby Search, Over Air Download or Timer is active. The LED can also blink when you switch on the TV from standby mode.

First Time Installation

When turned on for the first time, the language selection screen is displayed. Select the desired language and press OK. In the following steps of the installation guide, set your preferences using the directional buttons and OK button.

On the second screen set your country preference. Depending on the Country selection you may be asked to set and confirm a PIN at this point. The selected PIN cannot be 0000. You have to enter it if you are asked to enter a PIN for any menu operation later.

You can activate Store Mode option in the next step. This option will configure your TV's settings for store environment and depending on the TV model being used, the supported features of it may be displayed on the side of the screen as an info banner. This option is intended only for store use. It is recommended to select Home Mode for home use. This option will be available in Settings>System>More menu and can be turned off/ on later. Make your selection and press OK to continue.

Depending on the model of your TV and the country selection Privacy Settings menu may appear at this point. Using this menu you can set your privacy privileges. Highlight a feature and use Left and

Right directional buttons to enable or disable. Read the related explanations displayed on the screen for each highlighted feature before making any changes. You can use Programme +/- buttons to scroll up and down to read the entire text. You will be able to change your preferences at any time later from the Settings>System>Privacy Settings menu. If the Internet Connection option is disabled Network/Internet Settings screen will be skipped and not displayed. If you have any questions,

Connections

Connector Type	Cables Device
	VGA Connection (back)
AUDIO IN	PC/YPbPr Audio Connection (back)
	HDMI Connection (slide&back)
SPDIF	SPDIF (Optical Out) Connection (back)
BACK AV	Back AV (Audio/Video) Connection (back)
HEADPHONE	Headphone Connection (side)

If you want to connect a device to the TV, make sure that both the TV and the device are turned off before making any connection. After the connection is done, you can turn on the units and use them.

When ARC is active, the TV does not mute its other audio outputs automatically. You will need to decrease
TV volume to zero manually if you wish to hear the
ARC audio only (same as optical or co-axial digital
audio outputs). If you want to change connected
device's volume level, you should select that device
from the source list. In that case volume control keys
are directed to connected audio device.
Note: ARC is supported only via the HDMI2 input.
Allows an Audio Amplifier/Receiver to be used with
the TV. The volume can be controlled using the
the TV. The volume can be controlled using the remote control of the TV. To activate this feature set
the Speakers option in the Settings>System>More
the Speakers option in the Settings>System>more menu as Amplifier. The TV speakers will be muted
and the sound of the watched source will be provided
and the sound of the watched source will be provided from the connected sound system.
Note: The audio device should support System Audio Control.
NOTE: The audio device should support System Audio Control feature and CEC option should be set as Enabled.
You can find instructions for your TV's features in the E-Manual.
To access the E-Manual, enter Settings menu, select
Manuals and press OK. For quick access press Home
button and then Info button.
By using the directional buttons select a desired
category. Every category includes different topics.
Select a topic and press OK to read instructions.
To close the E-Manual screen press the Exit or Home
button.
Note: Depending on model, your TV may not support this
function. The contents of the E-Manual may vary according

System Audio Control

E-Manual

to the model.

Loop/Shuffle Mode Operation
Start playback and activate	All files in the list will be continuously played in original order
Start playback and activate	The same file will be played continuously (repeat)
Start playback and activate	All files in the list will be played once in random order
Start playback and activate	All files in the list will be continuously played in the same random order
Sound Menu Contents
Volume	Adjusts the volume level.
Equalizer	Selects the equalizer mode. Custom settings can be made only when in User mode.
Balance	Adjusts whether the sound comes from the left or right speaker.
Headphone	Sets headphone volume.Please ensure before using headphones that the headphone volume is set to a low level, to prevent damage to your hearing.
Sound Mode	You can select a sound mode (If the viewed channel supports).
AVL (Automatic Volume Limiting)	Sets the sound to obtain fixed output level between programmes.
Headphone/Lineout	When you connect an external amplifier to your TV using the headphone jack, you can select this option as Lineout. If you have connected headphones to the TV, set this option as Headphone.Please ensure before using headphones that this menu item is set to Headphone. If it is set to Lineout, the output from the headphone socket will be set to maximum which could damage your hearing.
Dynamic Bass	Enables or disables the Dynamic Bass.
Surround sound	Surround sound mode can be changed as On or Off.
Digital Out	Sets digital out audio type.
Network Menu Contents
Network Type	Disable the network connection or change the connection type.
Scan Wireless Networks	Start a search for wireless networks. This option will be available if the Network Type is set as Wireless Device.
Press WPS on your wifi router	If your modem/router device has WPS, you can directly connect to it using this option. Highlight this option and press OK. Go to your modem/router device and press the WPS button on it to make the connection. This option will be available if the Network Type is set as Wireless Device.
Internet Speed Test	Start a speed test to check your connection bandwidth. The result will be displayed on the screen when finished.
Advanced Settings	Change the IP and DNS configurations of your TV.
Wake On	Enable or disable this feature by setting it as On or Off.
Note: For detailed information on the options of this menu refer to the Connectivity section.
Installation Menu Contents
Automatic channel scan (Retune)	Displays automatic tuning options. D. Aerial: Searches and stores aerial DVB stations. D. Cable: Searches and stores cable DVB stations. Analogue: Searches and stores analogue stations.
Manual channel scan	This feature can be used for direct broadcast entry.
Network channel scan	Searches for the linked channels in the broadcast system. D. Aerial: Searches for aerial network channels. D. Cable: Searches for cable network channels.
Analogue fine tune	You can use this setting for fine tuning analogue channels. This feature is not available if no analogue channels are stored and if currently watched channel is not an analogue channel.

Settings Menu Contents

Picture Menu Contents
Mode		You can change the picture mode to suit your preference or requirements. Picture mode can be set to one of these options: Cinema, Game(optional), Sports, Dynamic and Natural.
	Contrast	Adjusts the light and dark values on the screen.
	Brightness	Adjusts the brightness values on the screen.
	Sharpness	Sets the sharpness value for the objects displayed on the screen.
	Colour	Sets the colour value, adjusting the colours.
Energy Saving		For setting the Energy Saving to Custom, Minimum, Medium, Maximum, Auto, Screen Off or Off.Note: Available options may differ depending on the selected Mode.
	Backlight	This setting controls the backlight level. The backlight function will be inactive if the Energy Saving is set to an option other than Custom.
Advanced Settings
	Dynamic Contrast	You can change the dynamic contrast ratio to desired value.
	Noise Reduction	If the signal is weak and the picture is noisy, use the Noise Reduction setting to reduce the amount of noise.
	Colour Temp	Sets the desired colour temperature value. Cool, Normal, Warm and Custom options are available.
	White Point	If the Colour Temp option is set as Custom, this setting will be available. Increase the 'warmth' or 'coolness' of the picture by pressing Left or Right buttons.
	Picture Zoom	Sets the desired image size format.
	Picture Shift	This option may be available depending on the Picture Zoom setting. Highlight and press OK, then use directional buttons to shift the picture upwards or downwards.
	Film Mode	Films are recorded at a different number of frames per second to normal television programmes. Turn this feature on when you are watching films to see the fast motion scenes clearly.
	Skin Tone	Skin tone can be changed between -5 and 5.
	Colour Shift	Adjust the desired colour tone.
	HDMI Full Range	While watching from a HDMI source, this feature will be visible. You can use this feature to enhance blackness in the picture.
PC Position		Appears only when the input source is set to VGA/PC.
	Autoposition	Automatically optimizes the display. Press OK to optimize.
	H Position	This item shifts the image horizontally to the right hand side or left hand side of the screen.
	V Position	This item shifts the image vertically towards the top or bottom of the screen.
	Dot Clock	Dot Clock adjustments correct the interference that appear as vertical banding in dot intensive presentations like spreadsheets or paragraphs or text in smaller fonts.
	Phase	Depending on the input source(computer etc.) you may see a hazy or noisy picture on the screen. You can use phase to get a clearer picture by trial and error.
Reset		Resets the picture settings to factory default settings (except Game mode).
While in VGA (PC) mode, some items in Picture menu will be unavailable. Instead, VGA mode settings will be added to the Picture menu while in PC mode.

Software Upgrade	Ensures that your TV has the latest firmware. Press OK to see the menu options.
Application Version	Displays current software version.
Subtitle Mode	This option is used to select which subtitle mode will be on the screen (DVB subtitle / Teletext subtitle) if both is available. Default value is DVB subtitle. This feature is available only for the country option of Norway.
Auto TV OFF	Sets the desired time for the TV to automatically go into standby mode when not being operated. This option can be set from 1 to 8 hours in steps of 1 hour. You can also disable this option by setting as Off.
Store Mode	Select this mode for store display purposes. Whilst Store Mode is enabled, some items in the TV menu may not be available.
AVS (Audio Video Sharing)	AVS feature allows you to share files stored on your smartphone or tablet pc. If you have a compatible smartphone or tablet pc and the appropriate software is installed, you can share/play photos on your TV. See instructions of your sharing software for more information.
Power Up Mode	This setting configures the power up mode preference. Last State and Standby options are available.
Virtual Remote	Enable or disable the virtual remote feature.
CEC	With this setting you can enable and disable CEC functionality completely. Press Left or Right button to enable or disable the feature.
CEC Auto Power On	This function allows the connected HDMI-CEC compatible device to turn on the TV and switch to its input source automatically. Press Left or Right button to enable or disable the feature.
Speakers	To hear the TV audio from the connected compatible audio device set as Amplifier. You can use the remote control of the TV to control the volume of the audio device.
Show All Cookies (*)	Displays all saved cookies.
Delete All Coo-kies (*)	Deletes all saved cookies.
OSS	Displays Open Source Software license information.
These features may not be available depending on the model of your TV and the selected country in the First Time Installation.

Installation Settings (optional)		Displays installation settings menu. Standby Search (*): Your TV will search for new or missing channels while in standby. Any new found broadcasts will be shown. Dynamic Channel Update(*): If this option is set as Enabled, the changes on the broadcasts such as frequency, channel name, subtitle language etc., will be applied automatically while watching. (*) Availability depends on model.
Clear Service List		Use this setting to clear channels stored. This setting is visible only when the Country option is set to Denmark, Sweden, Norway or Finland.
Select Active Network		This setting allows you to select only the broadcasts within the selected network to be listed in the channel list. This feature is available only for the country option of Norway.
Signal Information		You can use this menu item to monitor signal related information such as signal level/ quality, network name etc for available frequencies.
First time installation		Deletes all stored channels and settings, resets TV to factory settings.
System Menu Contents
Conditional Access		Controls conditional access modules when available.
Language		You may set a different language depending on the broadcaster and the country.
Privacy Settings (*)		Manage your privacy privileges for smart TV related applications. Press OK to enter the menu and set according to your preferences.
Parental		Enter correct password to change parental settings. You can easily adjust Menu Lock, Maturity Lock, Child Lock or Guidance in this menu. You can also set a new PIN or change the Default CICAM PIN using the related options. Note: Some menu options may not be available depending on the country selection in the First Time Installation. Default PIN could have been set to 0000 or 1234. If you have defined the PIN(is requested depending on the country selection) during the First Time Installation use the PIN that you have defined.
Date/Time		Sets date and time.
Sources		Edit the names, enable or disable selected source options. There are also Regular, Enhanced and Disabled options available for HDMI sources. Regular and Enhanced options are affecting the colour settings of the selected HDMI source. To be able to watch 4K or HDR/HLG images from an HDMI source related source setting should be set as Enhanced if the connected device is compatible with HDMI 2.0 and subsequent versions. Set as Regular if the connected device is HDMI 1.4 compatible. Set accordingly or disable the related HDMI source by setting as Disabled.
Accessibility		Displays accessibility options of the TV.
	Hard of Hearing	Enables any special feature sent from the broadcaster.
	Audio Description	A narration track will be played for the blind or visually impaired audience. Press OK to see all available Audio Description menu options. This feature is available only if the broadcaster supports it.
Netflix		If this feature is supported by your TV, you can view your ESN(*) number and deactivate Netflix. (*) ESN number is an unique ID number for Netflix, created especially to identify your TV. Note: For 4K video streaming, a minimum 25Mb/s internet connection speed is required - For an example of the requirements for streaming 4K content you may find more information on the Netflix website (https://help.netflix.com/en/node/13444). When you start to stream video content via the Internet the quality of your connection will be analysed and the full HD or 4K quality may take a short time to be realised, or in the event of a slow connection not be possible. You should check your internet capabilities with your internet provider if you are at all unsure.
More		Displays other setting options of the TV.
	Menu Timeout	Changes timeout duration for menu screens.
	Standby LED	If set as Off the standby LED will not light up when the TV is in standby mode.
	HBBTV (*)	You can enable or disable this feature by setting it as On or Off.

General TV OperationUsing the Channel ListThe TV sorts all stored stations in the channel list. You can edit this channel list, set favourites or set active stations to be listed by using theChannels menu options. Press theOKbutton to open the channel list. You can filter the listed channels or make advanced changes in the current list using theFilterandEdittab options. Highlight the tab you want and press OK to see available options.Managing the Favourite ListsYou can create four different lists of your favourite channels. Enter theTV>Channelsmenu or press theOKbutton in order to open theChannelsmenu. Highlight theEdittab and pressOKto see the editing options and select theTag/Untagchanneloption. Select the desired channel on the list by pressing theOKbutton while the channel is highlighted. You can make multiple choices. You can also use theTag/Untagalloption to select all channels on the list. Then pressBack/Returnbutton to return to the Edit menu options. SelectAdd/RemoveFavouritesoption and press theOKbutton again. Favourite channel list options will be displayed. Set the desired list option toOn. The selected channel/s will be added to the list. In order to remove a channel or channels from a favourite list follow the same steps and set the desired list option toOff.You can use the filtering function in theChannelsmenu to filter the channels in the channel list permanently according to your preferences. For instance, using theoptions of theFiltertab, you can set one of your four favourite lists to be displayed every time the channel list is opened.Configuring Parental SettingsTheParentalmenu options can be used to prohibit users from viewing of certain programmes, channels and using of menus. These settings are located in theSettings>System>Parentalmenu.To display parental lock menu options, a PIN should be entered. After coding the correct PIN,Parentalmenu will be displayed.Menu Lock:This setting enables or disables access to all menus or installation menus of the TV.Guidance:This setting enables or disables access some of the MHEG applications. Disabled applications can be released by entering the right PIN.Internet Lock (*):If this option is set toON, the internet using applications will be disabled. Set toOFFto release these applications again.(*) This feature may not be available depending on the model of your TV and the selected country in the First Time Installation.Set PIN:Defines a new PIN number.

Default CICAM PIN:This option will appear as greyed out if no CI module is inserted into the CI slot of the TV. You can change the default PIN of the CI CAM using this option.Note:Default PIN could have been set to0000or1234.If you have defined the PIN(is requested depending on the country selection) during theFirst Time Installationuse the first Time Installation.Some options may not be available depending on the model and/or on the country selection in theFirst Time Installation.Electronic Programme GuideBy means of electronic programme guide function of your TV you can browse the event schedule of the currently installed channels on your channel list. It depends on the related broadcast whether this feature is supported or not.To access the programme guide, press theGuide button on your remote. You can also use theGuideoption under TVmenu.There are 2 different types of schedule layouts available,Timeline ScheduleandNow/Next.To switch between these layouts highlight the tab with the name of the alternative layout on the upper side of the screen and pressOK.Use the directional buttons to navigate through the programme guide. Use theBack/Returnbutton to use the tab options on the upper side of the screen.Timeline ScheduleIn this layout option, all events of the listed channels will be displayed by timeline. You can use the directional buttons to scroll through the list of the events. Highlight an event and pressOKto display event options menu.PressBack/Returnbutton to use available tab options. Highlight Filtertab and pressOKto see the filtering options. To change the layout highlight Now/Next and pressOK. You can use thePrevious DayandNextDayoptions to display the events of the previous and next day.HighlightExtrastab and pressOKto access below options.Highlight Genre:Displays Highlight Genremenu. Select a genre and pressOK. The events in the programme guide matching the selected genre will be highlighted.Guide Search:Displays searching options. Using these options, you can search the programme guide database in accordance with the selected criteria. Matching results will be listed.Now:Displays current event of the highlighted channel.Zoom:Highlight and pressOKto see events in a wider time interval.Now/Next ScheduleIn this layout option, only the current and next events of the listed channels will be displayed. You can use

the directional buttons to scroll through the list of the events.Press Back/Returnbutton to use available tab options. HighlightFiltertab and pressOKto see the filtering options. To change the layout highlightTimelineScheduleand pressOK.Event OptionsUse the directional buttons to highlight an event and pressOKbutton to displayOptionsmenu. The following options are available.Select Channel:Using this option, you can switch to the selected channel in order to watch it. The programme guide will be closed.More Info:Display detailed information on the selected event. Use up and down directional buttons to scroll through the text.Set Timer on Event / Delete Timer on Event:Select Set Timer on Eventoption and pressOK. You can set timers for future events. To cancel an already set timer, highlight that event and press theOKbutton. Then selectDelete Timer on Eventoption. The timer will be cancelled.Notes:You cannot switch to any other channel while there is an active timer on the current channel.It is not possible to set timer for two or more individual events at the same time interval.Integrated Catch-Up ServicesYou can enjoy Freeview Play catch-up TV services that work directly through the electronic programme guide. Whilst you are on a channel use the directional buttons to scroll back in time through the timeline-based guide. You will see contents from last few days. Available catch-up contents may change according to broadcasters and will be marked with a play icon. Highlight the content you want to play back and press theOKbutton.Make sure that your TV is connected to your home network in order to use the catch-up services. For further information regarding this matter and other requirements for Freeview Play services refer to theConnectivity and Freeview Play Platformsections.Teletext Services (where available)Press theTextbutton to enter. Press again to activate mix mode, which allows you to see the teletext page and the TV broadcast at the same time. Press once more to exit. If available, sections in the teletext pages will become colour-coded and can be selected by pressing the coloured buttons. Follow the instructions displayed on the screen.Digital TeletextPress theTextbutton to view digital teletext information. Operate it with the coloured buttons, cursor buttons and theOKbutton. The operation method may differ depending on the contents of the digital teletext. Follow the instructions displayed on the digital teletext screen.

When theTextbutton is pressed again, the TV returns to television broadcast.MHEG TeletextWith digital terrestrial broadcasting (DVB-T), in addition to pictures and sound, you can also view digital teletext. Digital teletext is sometimes broadcast at the same time with the normal broadcasting.• Press theTextorRedbutton• The digital teletext information appears• Operate it with the coloured buttons, directional buttons andOKbuttonThe operation method may differ depending on the contents of the digital teletext. Follow the instructions displayed on digital teletext screen. Press theTextbutton to returns to television broadcast.BBC Red Button+ (RB+)While watching BBC channels, press theRedbutton or Textbutton to accessRedButton+services provided by the BBC. On the opening page you can access to BBC’s main services such as BBC iPlayer, BBC News, BBC Sport and many others. There are also links to the home pages of the related applications available. Use the navigation buttons on the TV’s remote control to move through the application. PressExitbutton to close and exit.Software UpgradeYour TV is capable of finding and updating the firmware automatically via the broadcast signal or via Internet.Software upgrade search via user interfaceOn the main menu selectSettings>Systemand thenMore. Navigate toSoftware upgradeand press the OKbutton. Then selectScan for upgradeand press OKbutton to check for a new software upgrade.If a new upgrade is found, it starts to download the upgrade. After the download is completed, a warning will be displayed, pressOKbutton to complete software upgrade process and restart TV.3 AM search and upgrade modeYour TV will search for new upgrades at 3:00 o’clock ifAutomatic scanningoption is set toEnabledand if the TV is connected to an aerial signal or to Internet. If a new software is found and downloaded successfully, it will be installed at the next power on.Note:Do not unplug the power cord while led is blinking during the reboot process. If the TV fails to come on after the upgrade, unplug, wait for two minutes then plug it back in.All updates are automatically controlled. If a manual search is carried out and no software is found then this is the current version.

Troubleshooting & Tips

Source Supported Signals Available
Back AV	PAL O
	SECAM O
	NTSC4.43		O
	NTSC3.58		O
YPbPr	480i, 480p	60Hz	O
	576i, 576p	50Hz	O
	720p	50Hz,60Hz	O
	1080i 50Hz,60Hz O
HDMI	480i	60Hz	O
	480p	60Hz	O
	576i, 576p	50Hz	O
	720p	50Hz,60Hz	O
	1080i 50Hz,60Hz O
	1080p	24Hz,25Hz,30Hz,50Hz,60Hz	O
	3840x2160p	24Hz,25Hz,30Hz,50Hz,60Hz	O
	4096x2160p	24Hz,25Hz,30Hz,50Hz,60Hz	O

(X: Not Available, O: Available)
In some cases a signal on the TV may not be displayed properly. The problem may be an inconsistency with standards from the source equipment (DVD, Set-top box, etc.). If you do experience such a problem please contact your dealer and also the manufacturer of the source equipment.
The following table is an illustration of some of the typical video display modes. Your TV may not support all resolutions.

PC Input Typical Display Modes

Index	Resolution Frequency
1	640x350 85Hz
2	0x480 60Hz
3	0x480 72Hz
4	0x480 75Hz
5	0x600 56Hz
6	0x600 60Hz
7	0x600 72Hz
8	0x600 75Hz
9	24x768 60Hz
10	24x768 70Hz
11	24x768 75Hz
12	24x768 85Hz
13	52x864 75Hz
14	80x768 60Hz
15	80x768 75Hz
16	80x960 60Hz
17	80x960 75Hz
18	80x1024 60Hz
19	80x1024 75Hz
20	60x768 60Hz
21	66x768 60Hz
22	00x1050 59Hz
23	00x1050 60Hz
24	00x1050 75Hz
25	40x900 60Hz
26	40x900 75Hz
27	00x1200 60Hz
28	80x1050 59Hz
29	80x1050 60Hz
30	20x1080 60Hz

AV and HDMI Signal Compatibility

TV will not turn on Make sure the power cord is plugged in securely to a wall outlet. Press the Power button on the TV.

Poor picture

- Check if you have correctly tuned the TV. - Low signal level can cause picture distortion. Please check antenna connections.

- Check if you have entered the correct channel frequency if you have performed manual tuning.

No picture

• TV is not receiving any signal. Make sure the correct source has been selected.

- Is the antenna connected

• Is the antenna cable damaged?

- Are suitable plugs used to connect the antenna?

If you are

No sound

- Check if the TV sound is muted. Press the Mute button or increase the volume to check.

• Sound may be coming from only one speaker. Check

the balance settings from Sound menu.

Remote control - no operation

- The batteries may be exhausted. Replace the batteries.

- The batteries maybe inserted incorrectly. Refer to the section "Inserting the Batteries into the Remote".

the section inserting the Batto No signal on an input source

• It is possible that no device is connected.

- Check the AV cables and connections from you device.

- Check the device is switched on.

Supported File Formats for USB Mode
Video File Formats

Video Codec Resolution Bit Rate Container
MPEG1/2	1080Px2@30fps, 1080P@60fps	40Mbps	MPEG program stream (.DAT, .VOB, .MPG, .MPEG), MPEG transport stream (.ts, .trp, .tp), MP4 (.mp4, .mov), 3GPP (.3gpp, .3gp), AVI (.avi), MKV (.mkv), ASF (.asf)
MPEG4			MPEG program stream (.MPG, .MPEG), MP4 (.mp4, .mov), 3GPP (.3gpp, .3gp), AVI (.avi), MKV (.mkv), ASF (.asf)
XviD MP4 (.mp4, .mov), AVI (.avi), MKV (.mkv), ASF (.asf)
Sorenson H.263 FLV (.flv), AVI (.avi), SWF(.swf)
H.263 MP4 (.mp4, .mov), 3GPP (.3gpp, .3gp), AVI (.avi), MKV (.mkv)
H.264	3840x2160@30fps, 1080P@60fps	135Mbps	FLV (.flv), MP4 (.mp4, .mov), 3GPP (.3gpp, .3gp), MPEG transport stream (.ls, .trp, .tp), ASF (.asf), AVI (.avi), MKV (.mkv)
Motion JPEG 720P @30fps 10Mbps			AVI (.avi), 3GPP (.3gpp, .3gp), MP4 (.mp4, .mov), MKV (.mkv), ASF (.asf)
VP8 1080P@30fps	20Mbps MKV (.mkv), WebM (.webm)
HEVC/H.265	4K2K@60fps 100Mbps		MP4 (.mp4, .mov), MKV (.mkv), MPEG transport stream (.ts, .trp, .tp)
	1080P@60fps 50Mbps		MP4 (.mp4, .mov), MKV (.mkv), MPEG transport stream (.ts, .trp, .tp), 3GPP (.3gpp, .3gp)
VP9 4K2K@30fps 100Mbps MKV (.mkv), WebM (.webm)

Picture File Formats

Subtitle File Formats

Internal Subtitles
Extension	Container Subtitle Code
dat, mpg, mpeg, vob	MPG, MPEG DVD	Subtitle
ts, trp, tp	TS	DVB Subtitle
mp4	MP4	DVD SubtitleUTF-8 Plain Text
mkv	MKV	ASSSSAUTF-8 Plain TextVobSubDVD Subtitle
avi	AVI (1.0, 2.0),DMF0,1, 2	XSUBXSUB+

Audio File Formats

Audio Codec	Sample rate Bit Rate	Container
MPEG1/2 Layer1	16KHz ~ 48KHz	32Kbps ~ 448Kbps	MP3 (.mp3), AVI (.avi), ASF (.asf), Matroska (.mkv, .mka), MPEG transport stream (.ts, .trp, .tp), MPEG program stream (.DAT, .VOB, .MPG, .MPEG), WAV (.wav)
MPEG1/2 Layer2	16KHz ~ 48KHz	8Kbps ~ 384Kbps	MP3 (.mp3), AVI (.avi), ASF (.asf), Matroska (.mkv, .mka), MPEG transport stream (.ts, .trp, .tp), MPEG program stream (.DAT, .VOB, .MPG, .MPEG), WAV (.wav)
MPEG1/2 Layer3	16KHz ~ 48KHz	8Kbps ~ 320Kbps	MP3 (.mp3), AVI (.avi), ASF (.asf), Matroska (.mkv, .mka), 3GPP (.3gpp, .3gp), MP4 (.mp4, .mov, m4a), MPEG transport stream (.ts, .trp, .tp), MPEG program stream (.DAT, .VOB, .MPG, .MPEG), FLV (.flv), WAV (.wav), SWF (.swf)
AC3	32KHz, 44.1KHz, 48KHz	32Kbps ~ 640Kbps	AC3 (.ac3), AVI (.avi), Matroska (.mkv, .mka), 3GPP (.3gpp, .3gp), MP4 (.mp4, .mov, m4a), MPEG transport stream (.ts, .trp, .tp), MPEG program stream (.DAT, .VOB, .MPG, .MPEG)
EAC3	32KHz, 44.1KHz, 48KHz	32Kbps ~ 6 Mbps	EAC3 (.ec3), 3GPP (.3gpp, .3gp), MP4 (.mp4, .mov, m4a), MPEG transport stream (.ts, .trp, .tp), MPEG program stream (.DAT, .VOB, .MPG, .MPEG)

External Subtitles

Extension	Subtitle Parser	Remark
.srt	Subrip
.ssa/.ass	SubStation Alpha
.smi	SAMI
.sub	SubViewerMicroDVDDVDSusbtitleSystemSubIdx (VobSub)	SubViewer 1.0 & 2.0 Only
.txt	TMPlayer

Supported DVI Resolutions

When connecting devices to your TV's connectors by using DVI converter cable(DVI to HDMI cable - not supplied), you can refer to the following resolution information.

	56Hz 60Hz 66Hz 70Hz 72Hz 75Hz
640x480		X				X
800x600	X	X				X
1024x768		X		X		X
1280x768		X				X
1280x960		X
1360x768		X
1366x768		X
1280x1024		X		X		X
1400x1050		X
1600x900		X
1920x1080		X

- You must have a modem/router connected to an active broadband connection. - Connect your TV to your modem/router via an Ethernet cable. There is a LAN port at the rear (back) of your TV.

1. Broadband ISP connection

2. LAN (Ethernet) cable

3. LAN input on the rear side of the TV

To configure wired settings refer to the Network section in the Settings menu.

- You might be able to connect your TV to your LAN depending on your network's configuration. In such a case, use an Ethernet cable to connect your TV directly to the network wall outlet.

1. Network wall socket

2. LAN input on the rear side of the TV Configuring Wired Device Settings Network Type

The Network Type can be selected as Wired Device, Wireless Device or Disabled, in accordance with the active connection to the TV set. Select this as Wired Device if you are connecting via an Ethernet cable.

Connectivity

Wired Connectivity

display the result when complete.

Highlight Advanced Settings and press the OK button. On the next screen you can change the IP and DNS settings of the TV. Highlight the desired one and press Left or Right button to change the setting from Automatic to Manual. Now you can enter the Manual IP and / or Manual DNS values. Select the related item in the drop down menu and enter the new values using the numeric buttons of the remote. Highlight Save and press the OK button to save settings when complete.

Wireless Connectivity

To Connect to a Wireless Network

The TV cannot connect to the networks with a hidden SSID. To make your modem's SSID visible, you should change your SSID settings via the modem's software.

1. Broadband ISP connection

A Wireless-N router (IEEE 802.11a/b/g/n) with simultaneous 2.4 and 5 GHz bands is designed to increase bandwidth. These are optimized for smoother and faster HD video streaming, file transfers and wireless gaming.

• The frequency and channel differ depending on the

The transmission speed differs depending on the distance and number of obstructions between the transmission products, the configuration of these products, the radio wave conditions, the line traffic and the products that you use. The transmission may also be cut off or may get disconnected depending on the radio wave conditions, DECT phones or any other WLAN 11b appliances. The standard values of the transmission speed are the theoretical maximum values for the wireless standards. They are not the actual speeds of data transmission.

If the TV does not function using the wired connection, check the modem (router). If the router does not have a problem, check the internet connection of your modem.Connection is SlowSee the instruction book of your wireless modem to get information on the internal service area, connection speed, signal quality and other settings. You need to have a high speed connection for your modem.Disruption during playback or slow reactionsYou could try the following in such a case:Keep at least three meters distance from microwave ovens, mobile telephones, bluetooth devices or any other WLAN compatible devices. Try changing the active channel on the WLAN router.Internet Connection Not Available / Audio Video Sharing Not WorkingIf the MAC address (a unique identifier number) of your PC or modem has been permanently registered, it is possible that your TV might not connect to the internet. In such a case, the MAC address is authenticated each time when you connect to the internet. This is a precaution against unauthorized access. Since your TV has its own MAC address, your internet service provider cannot validate the MAC address of your TV. For this reason, your TV cannot connect to the internet. Contact your internet service provider and request information on how to connect a different device, such as your TV, to the internet.It is also possible that the connection may not be available due to a firewall problem. If you think this causes your problem, contact your internet service provider. A firewall might be the reason of a connectivity and discovery problem while using the TV in Audio Video Sharing mode or while browsing via Audio Video Sharing feature.Invalid DomainEnsure that you have already logged on to your PC with an authorized username/password and also ensure that your domain is active, prior to sharing any files in your media server program on your PC. If the domain is invalid, this might cause problems while browsing files in Audio Video Sharing mode.Using Audio Video Sharing Network ServiceAudio Video Sharing feature uses a standard that eases the viewing process of digital electronics and makes them more convenient to use on a home network. This standard allows you to view and play photos, music and videos stored in the media server connected to your home network.1. Server Software InstallationThe Audio Video Sharing feature cannot be used if the server programme is not installed onto your PC or if the required media server software is not installed onto

the companion device. Prepare your PC with a proper server programme.2. Connect to a Wired or Wireless NetworkSee the Wired/Wireless Connectivity chapters for detailed configuration information.3. Enable Audio Video SharingEnter the Settings>System>More menu and enable the AVS option.4. Play Shared Files via Media BrowserHighlight the AVS option in the Sources menu by using the directional buttons and press OK. Available media server devices in the network will be listed. Select one and press OK to continue. The media browser will then be displayed.Refer to the Media Browser menu section for further information on file playback.If a problem occurs with the network, switch your television off at the wall socket and back on again. Trick mode and jump are not supported with the Audio Video Sharing feature.PC/HDD/Media Player or any other devices that are compatible should be used with a wired connection for higher playback quality.Use a LAN connection for quicker file sharing between other devices like computers.Note: There may be some PC's which may not be able to utilize the Audio Video Sharing feature due to administrator and security settings (such as business PC's).AppsYou can access the applications installed on your TV from Apps menu. Highlight an app and press OK to launch.In order to manage the apps installed on your TV, add new apps from the market or to see all available apps in full screen mode highlight the Add More option and press OK. Using this menu option you can add an installed app to Home menu, launch or remove it.Removed apps will no longer be accessible from Apps menu. You can also add new apps from the market. In order to enter the market highlight the shopping basket logo located on the upper left side of the screen and press OK. Available apps in the market will be displayed. Use directional buttons to highlight an app and press OK. Highlight Add to Apps option and press OK again to add the selected app to Apps menu.For quick access to Add More menu you can press the Internet button on the remote, if this button is available.Notes:Possible application dependent problems may be caused by the content service provider.Third party internet services may change, be discontinued or restricted at any time.

The location where the transmission is most effective differs depending on the usage environment.The Wireless feature of the TV supports 802.11 a,b,g & n type modems. It is highly recommended that you should use the IEEE 802.11n communication protocol in order to avoid any possible problems while watching videos.You must change your modem's SSID when there are any other modems around with the same SSID. You can encounter connection problems otherwise. Use a wired connection if you experience problems with a wireless connection.Configuring Wireless Device SettingsOpen the Network menu and select Network Type as Wireless Device to start connection process.Highlight Scan Wireless Networks option and press OK to start a search for available wireless networks. All found networks will be listed. Highlight your desired network from the list and press OK to connect.Note: If the modem supports N mode, you should set N mode settings.If the selected network is password-protected, enter the correct key by using the virtual keyboard. You can use this keyboard via the directional buttons and the OK button on the remote control.Wait until the IP address is shown on the screen.This means that the connection is now established. To disconnect from a wireless network, highlight Network Type and press Left or Right buttons to set as Disabled. If your router has WPS, you can directly connect to the modem/router without entering a password or adding the network first. Highlight Press WPS on your wifi router option and press OK. Go to your modem/router device and press the WPS button on it to make the connection. You will see a connection confirmation on your TV once the devices have paired. Select OK to proceed. No further configuration is required.Highlight Internet Speed Test and press the OK button to check your internet connection speed. Highlight Advanced Settings and press the OK button to open the advanced setting menu. Use directional and numeric buttons to set. Highlight Save and press the OK button to save settings when complete.Other InformationThe status of the connection will be displayed as Connected or Not Connected and the current IP address, if a connection is established.Connecting to your mobile device via WLANIf your mobile device has WLAN feature, you can connect it to your TV via a router, in order to access the content in your device. For this, your mobile device must have an appropriate sharing software.	Connect your TV to your router following the steps mentioned in the sections above.Afterwards, connect your mobile device to the router and then activate the sharing software on your mobile device. Then, select files that you want to share with your TV.If the connection is established correctly, you will be able to access the shared files installed on your mobile device via the AVS(audio video sharing) feature of your TV.Highlight the AVS option in the Sources menu and press OK, available media server devices in the network will be displayed. Select your mobile device and press the OK button to continue.If available, you can download a virtual remote controller application from the server of your mobile device application provider.Note: This feature may not be supported on all mobile devices.Wake ONWake-on-LAN (WoL) and Wake-on-Wireless LAN (WoWLAN) are standards that allow a device to be turned on or woken up by a network message. The message is sent to the device by a program executed on a remote device connected to the same local area network, such as a smartphone.Your TV is WoL and WoWLAN compatible. This feature might be disabled during the First Time Installation process. To enable this feature set the Wake On option in the Network menu as On. It is necessary that both the device, from which the network message will be sent to the TV, and the TV are connected to the same network. Wake On feature is only supported for Android OS devices and can only be used via YouTube and Netflix applications.In order to use this feature the TV and the remote device should be connected at least once while the TV is on. If the TV is powered off, the connection should be re-established, the next time it is switched on. Otherwise this feature will be unavailable. This does not apply, when the TV is switched into the standby mode.If you want your TV to consume less power in standby mode, you can disable this feature by setting the Wake On option as Off.Connectivity TroubleshootingWireless Network Not AvailableEnsure that any firewalls of your network allow the TV wireless connection.Try searching for wireless networks again, using the Network menu screen.If the wireless network does not function properly, try using the wired network in your home. Refer to the Wired Connectivity section for more information on the process.
displayed you can go back to the initial red button icon state by pressing the red button again. You can toggle between the red button icon mode and full UI mode of the application via pressing red button. It should be noted that the red button switching capability is provided by the application and some application may behave differently.If you switch to another channel while an HbbTV application is active (either in red button icon mode or full UI mode), the following scenarios can occur.The application can continue running.The application can be terminated.The application can be terminated and another autostart red button application can be launched.HbbTV allows the applications to be retrieved both from broadband or broadcast. The broadcaster may enable both ways or one of them. If the platform does not have an operational broadband connection, the platform can still launch applications transmitted on broadcast.The autostart red button applications generally provide links to other applications. The user then can switch to other applications by using the links provided. The applications should provide a way to terminate themselves, usuallyExitbutton is used for this.HbbTV applications use keys on the remote control to interact with the user. When an HbbTV application is launched, the control of some keys are owned by the application. For example, numeric channel selection may not work on a teletext application where the numbers indicate teletext pages.HbbTV requires AV streaming capability for the platform. There are numerous applications providing VOD (video on demand) and catch-up TV services. The user can use play, pause, stop, forward, and rewind keys on the remote control to interact with the AV content.Note:You can enable or disable this feature from theMoremenu in Settings>Systemmenu. Depending on the model of your TV and the selected country option in the First Time Installation this feature might be available in theSettings>System>Privacy Settings menu instead of the Settings>System>More menu.	For media sharing featureAudio Video Sharingoption should be enabled(if available). Press theHomebutton on the remote, selectSettings>System>Moremenu and pressOK. Highlight AVSand change asEnabled. Your TV is ready to connect to your mobile device now. Install theSmart Centerapplication onto your mobile device.Start the smart center application. If all connections are configured properly, you will see your TV's name on your mobile device. If your TV's name doesn't appear on the list, wait a while and tap on theRefreshwidget. Select your TV from the list.Mobile Device screenOn the main screen you can find tabs to access various features.The application retrieves actual channel list from TV first when it starts.MY CHANNELS:The programmes of first four channels from the channel list retrieved from the TV are shown. You can change the listed channels. Press on the channel thumbnail and hold. A list of channels will be displayed and you can choose your desired channel to be replaced.TV:You can watch content through the TV tab. In this mode you can navigate through the channel list retrieved from your TV and click on thumbnails to view the detail pages.RECORDINGS:You can view your active recordings(if available) and reminders through this tab. To delete any item, simply press on the delete icon found on each row.EPG(Electronic programme guide):You can view the broadcast schedules of selected channel lists through this tab. You can also navigate through channels by pressing on the selected channel on the EPG grid. Please note that updating / refreshing the EPG information may take a while depending on your network and web service quality.Note:Internet connection is required for WEB based EPG informations.
Smart CenterSmart Center is a mobile application running on iOS and Android platforms. With your tablet or phone, you can easily stream your favourite live shows and programmes from your smart TV. Also; you can launch your applications, use your tablet as a remote control for your TV and share media files.Note:Being able to use all functions of this application depends on the features of your TV.	SETTINGS:Configure the application to your liking. You can change;Auto-lock (Only in IOS):The screen of the device automatically turns off after a certain amount of time. Default is off, which means the screen will always stay on.Auto-enable FollowMeTV:FollowMeTV function (if available) will start automatically when this setting is enabled. Default is disabled.Auto-connection to TV:When enabled, your mobile device will automatically connect to last connected TV and skips the TV search screen.Change TV (Only in IOS):Shows the currently connected TV. You can press on this setting to go to the "TV search" screen and change to a different TV.
Getting StartedTo be able to use internet based features, your modem/router must be connected to the internet.
IMPORTANT:Make sure the TV and mobile device are connected to the same network.

English - 28 -

Freeview Play PlatformFreeview Play platform provides catch-up TV and On Demand services. Simply press the Freeview Play button on your remote control to connect to the Freeview Play platform.The Freeview Play platform can also be accessed from the Home and Apps menus. Press Home button and select Home or Apps. Then highlight Freeview Play and press the OK button.You will have to agree to the terms and conditions for Freeview Play services first if you did not agree them during the First Time Installation. Highlight Yes and press OK on the remote to confirm and proceed.Integrated TV Player applications will be displayed. Select one and press the OK button. Then select a content that you want to play back and press the OK button to watch.Catch-up contents can also be accessed and played back directly from the TV Guide. Refer to the section Electronic Programme Guide for more information.RequirementsThe Freeview Play services may only be used if the following requirements are fulfilled:Connecting the TV to the internet. A minimum broadband speed of 2Mbps is required for proper operation of catch up and on demand services.Agreeing to the terms and conditions of Freeview PlayNote: Freeview Play platform usage will count towards any monthly broadband data allowance. Only selected channels provide 7-day catch up.Internet BrowserTo use the internet browser, enter the Apps menu first. Then launch the internet browser application which has an orange coloured logo with earth symbol on it.In the initial screen of the browser, the thumbnails of the predefined (if any) links to web sites available will be displayed as Speed Dial options along with the Edit Speed Dial and the Add to Speed Dial options.To navigate the web browser, use the directional buttons on the remote or a connected mouse. To see the browser options bar, move the cursor to the top of the page or press the Back/Return button. History, Tabs and Bookmarks options and the browser bar which contains previous/next buttons, the refresh button, the address/search bar, the Speed Dial and the Vewd buttons are available.To add a desired website to the Speed Dial list for quick access, move the cursor to the top of the page or press the Back/Return button. The browser bar will appear. Highlight the Speed Dial - button and press the OK button. Then select Add to Speed Dial option and press the OK button. Fill in the blanks for Name and Address, highlight OK and press the OK button to

add. Whilst you are on the site you wish to add to the Speed Dial list, highlight the Vewd button and press the OK button. Then highlight Add to Speed Dial option in the submenu and press the OK button again. Name and Address will be filled automatically according to the site you are visiting. Highlight OK and press the OK button to add.You can also use the Vewd menu options to manage the browser. Highlight the Vewd button and press the OK button to see available page specific and general options.There are various ways to search or visit websites using the web browser.Enter the address of a website(URL) into the search/address bar and highlight the Submit button on the virtual keyboard and press the OK button to visit the site.Enter keyword/s into the search/address bar and highlight the Submit button on the virtual keyboard and press the OK button to start a search for the related websites.Highlight a Speed Dial thumbnail and press the OK button to visit the related website.Your TV is compatible with USB mice. Plug your mouse or wireless mouse adaptor into the USB input of your TV for easier and quicker navigation.Some web pages include flash content. These are not supported by the browser.Your TV does not support any download processes from the internet via the browser.All sites on the internet might not be supported. According to the site; content problems may occur. In some circumstances video contents might not be able to be played.HBBTV SystemHbbTV (Hybrid Broadcast Broadband TV) is a new industry standard that seamlessly combines TV services delivered via broadcast with services delivered via broadband and also enables access to Internet only services for consumers using connected TVs and set-top boxes. Services delivered through HbbTV include traditional broadcast TV channels, catch-up services, video-on-demand, electronic programme guide, interactive advertising, personalisation, voting, games, social networking and other multimedia applications.HbbTV applications are available on channels where they are signalled by the broadcaster (currently various channels on Astra broadcast HbbTV applications). The broadcaster marks one application as “autostart” and this one is started by the platform automatically. The autostart applications are generally launched with a small red button icon to notify the user that there is an HbbTV application on that channel. Press the red button to open the application page. After the page is

Important Instructions
For your own safety read the following instructions carefully before attempting to connect this unit to the mains supply.

IMPORTANT

As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: The wire which is coloured green and yellow must be connected to the terminal which is marked with the letter E, or by the earth symbol, or coloured green or green and yellow. The wire which is coloured blue or black must be connected to the terminal which is marked with the letter N or coloured Black. The wire which is coloured brown or red must be connected to the terminal which is marked with the letter L or coloured Red. For continued protection against risk of fire, replace only with same type and rating of fuse (ASTA approved 5A 250VAC fuse).

CAUTION

TO PREVENT ELECTRIC SHOCK DISCONNECT FROM THE MAINS BEFORE REMOVING COVER. NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. SAFETY PRECAUTION THIS EQUIPMENT MUST BE DISCONNECTED FROM THE MAINS WHEN NOT IN USE. DO NOT ALLOW THIS UNIT TO BE EXPOSED TO RAIN OR MOISTURE.

Edit custom channel list: You can edit your custom channel list using this setting.Choose channel list source: You can choose the channel list source to be used in the application. The options are "TV List" and "Custom List". Additionally you can activate "Remember my choice" option to set the selected channel list source as a constant choice. In this case if the selected source is available it will be used in the application.Version No: Displays the current version of the application.Detail PageTo open detail page tap on a programme. On the detail page screen you can get detailed information of the programmes you select. There are "Details", "Cast&Crew" and "Videos" tabs to find on this page.DETAILS: This tab provides summary and information about the selected programme. Also there are links to facebook and twitter pages of the programme selected.CAST&CREW: Shows all the people contributed to the current programme.VIDEOS: Provides videos on Youtube related to the selected programme.Note: For some functions an internet connection may be required.FollowMe TV Feature (if available)Tap on the FOLLOW ME TV widget located at the bottom left of the screen of your mobile device to change the layout for FollowMe TV feature.Tap the play icon to start streaming of the content from the TV to your mobile device. Available if your device is in your routers operation range.Mirror ModeThis mode of FollowMe TV feature is enabled by default and allows streaming the content from any other selected TV sources and Media Browser.Notes:Note that only digital(DVB-T/C/S) SD and HD channels are supported.Multilanguage audio support and subtitle on/off features are not functional.The streaming performance may change depending on the quality of your connection.Media Share PageTo access the Media Share widget tap on the Up-arrow on the bottom left side of the screen.If the Media Share widget is pressed, a screen is displayed where you can select the media file type to share with your TV.Note: Not all image file formats are supported. This function will not work if Audio Video Sharing feature is not supported.

Smart Remote FeatureYou can use your mobile device as a remote control for your TV once it has connected to the TV. To use smart remote's full features tap on the Up-arrow on the bottom left side of the screen.Voice RecognitionYou can tap on the Microphone(○) widget and manage your application, giving voice commands such as "Volume Up/Down!", "Programme Up/Down!".Note: This feature is only for android based devices available.Keyboard PageThe keyboard page can be opened in two ways; by pressing the Keyboard(○) widget on the application screen or automatically by receiving a command from the TV.Requirements1. Smart TV2. Network connection3. Mobile Device based on Android or iOS platform (Android OS 4.0 or higher; IOS 6 or higher version)4. Smart Center app.(to be found on online application stores based on Android and iOS platforms)5. Router modem6. USB storage device in FAT32 format (required for USB Recording feature, if available)Notes:For Android devices, Normal(mdpi), Large(hdpi) and Extra Large(xhdpi) screen sizes are supported. Devices with 3" or smaller screen sizes are not supported.For iOS devices, all screen sizes are supported.User interface of the Smart Center application is subject to change according to version installed on your device.DVB functionality informationThis DVB receiver is only suitable for use in the country which it was designed to be used in.Although this DVB receiver conforms to the latest DVB specifications at the time of manufacture, we cannot guarantee compatibility with future DVB transmissions due to changes that may be implemented in broadcast signals and technologies.Some digital television functions may not be available in all countries.We continually strive to improve our products; therefore, specifications may change without prior notice.For advice on where to purchase accessories, please contact the store where you purchased your equipment.

VESA WALL MOUNT MEASUREMENTS
Hole Pattern Sizes (mm)	W	H
	200 200
Screw Sizes
Length (X)	min. (mm) 10
	max. (mm) 13
Thread (Y) M6

Product Fiche
Commercial Brand:ELECTRIQ
Product No. 10119266
Model No. E43UHDHDRSO
Energy efficiency class A+
Visible screen size (diagonal,approx.) (inch/cm)	43 inches 109 cm
On mode average power consumption (Watt)	54,0
Annual energy consumption (kWh/annum) (*)	78
Standby power consumption (Watt)	0,50
Off mode power consumption (Watt)	N/A
Display resolution (px)	3840x2160

(*): Energy consumption kWh per year, based on the power consumption of the television operating 4 hours per day for 365 days. The actual energy consumption will depend on how the television is used.

Hereby, VESTEL Elektronik Sanayi ve Ticaret A.Ş., declares that the radio equipment type TFT IDTV is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: doc.vosshub.com

Buy It Direct

Trident Business Park, Neptune Way,

Huddersfield HD2 1UA
