Product Type	Hi-Fi Shelf System
Brand	Sony
Model	MHC-GTR33
Dimensions (Main Unit)	Approx. 280 x 120 x 310 mm (W x H x D)
Weight (Main Unit)	Approx. 3.5 kg
Power Consumption	Approx. 60 W
Power Output	30 W per channel (RMS)
Supported Discs	CD, CD-R/RW, MP3 CD
Radio Tuning	FM/AM with 20 presets
Bluetooth	Yes, version 2.1+EDR
USB Playback	Yes, MP3/WMA from USB flash drive
Audio Input	3.5 mm stereo jack
Headphone Output	3.5 mm stereo jack
Speaker Configuration	2 speakers, 2-way bass reflex
Equalizer	Preset EQ (Rock, Pop, Jazz, etc.)
Display	FL (Fluorescent) display
Remote Control	Included
Maintenance	Clean with a soft dry cloth; avoid solvents
Safety	Do not expose to moisture; use on stable surface
Spare Parts & Repairability	Contact Sony service center for genuine parts

Frequently Asked Questions - MHC-GTR33 SONY

How do I pair my smartphone via Bluetooth?

Press the BLUETOOTH button on the remote or unit to enter pairing mode. On your phone, search for Bluetooth devices and select MHC-GTR33. Confirm pairing if prompted.

Can I play music from a USB drive?

Yes, insert a USB flash drive with MP3 or WMA files into the USB port on the front panel. Select USB as the source using the function button.

How do I set the clock?

Press and hold the CLOCK/TIMER button. Use the arrow keys to set hour and minute. Press ENTER to confirm.

What types of CDs are supported?

The system supports CD, CD-R, and CD-RW discs. It also plays discs with MP3 files burned as audio or data.

Why is there no sound?

Check that speakers are connected properly. Ensure the volume is not at minimum and the mute function is off. Verify the correct input source is selected.

How do I program preset radio stations?

Tune to the desired station, then press MEMORY. Use the number buttons to choose a preset number and press ENTER to store.

Can I use this system with my TV?

Yes, if your TV has a headphone or audio output, connect it to the AUDIO IN jack on the unit with a 3.5mm cable.

What should I do if the disc does not play?

Ensure the disc is inserted with the label side up and is not scratched. Try a different disc. If using CD-R/RW, ensure it was finalized.

How do I clean the unit?

Use a soft, dry cloth to wipe the exterior. Do not use alcohol, thinner, or abrasive cleaners. For the lens, use a CD lens cleaner if needed.

Where can I find the serial number?

The serial number is printed on the rear panel of the unit. It is needed for warranty and service inquiries.

USER MANUAL MHC-GTR33 SONY

Mini HI-FI Component System

Operating Instructions

MHC-GTR88

MHC-GTR77

MHC-GTR55

MHC-GTR33

WARNING

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

To reduce the risk of fire, do not cover the ventilation opening of the apparatus with newspapers, tablecloths, curtains, etc.

Do not place the naked flame sources such as lighted candles on the apparatus.

To reduce the risk of fire or electric shock, do not expose this apparatus to dripping or splashing, and do not place objects filled with liquids, such as vases, on the apparatus. As the main plug is used to disconnect the unit from the mains, connect the unit to an easily accessible AC outlet. Should you notice an abnormality in the unit, disconnect the main plug from the AC outlet immediately.

Do not install the appliance in a confined space, such as a bookcase or built-in cabinet.

Do not expose batteries or apparatus with battery-installed to excessive heat such as sunshine, fire or the like.

Excessive sound pressure from earphones and headphones can cause hearing loss.

The unit is not disconnected from the mains as long as it is connected to the AC outlet, even if the unit itself has been turned off.

CAUTION

The use of optical instruments with this product will increase eye hazard.

This appliance is classified as a CLASS 1 LASER product. This marking is located on the rear exterior.

For customers in Australia

Simple line drawing of a trash bin with two crossed lines indicating no waste or restriction (no text or symbols)

Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems)

Note on DualDiscs

A DualDisc is a two sided disc product which mates DVD recorded material on one side with digital audio material on the other side. However, since the audio material side does not conform to the Compact Disc (CD) standard, playback on this product is not guaranteed.

Music discs encoded with copyright protection technologies

This product is designed to playback discs that conform to the Compact Disc (CD) standard. Recently, various music discs encoded with copyright protection technologies are marketed by some record companies. Please be aware that among those discs, there are some that do not conform to the CD standard and may not be playable by this product.

The recorded music is limited to private use only. Use of the music beyond this limit requires permission of the copyright holders.

“WALKMAN” and “WALKMAN” logo are registered trademarks of Sony Corporation.

MICROVAULT is a trademark of Sony Corporation.

MPEG Layer-3 audio coding technology and patents licensed from Fraunhofer IIS and Thomson.

Windows Media is a registered trademark of Microsoft Corporation in the United States and/or other countries.

“Memory Stick” is a trademark of Sony Corporation.

About this manual

The instructions in this manual are for models MHC-GTR88, MHC-GTR77, MHC-GTR55 and MHC-GTR33. In this manual, the MHC-GTR88 is used for illustration purposes unless stated otherwise.

The MHC-GTR88 consists of:

-Unit HCD-GTR88

- Speaker System

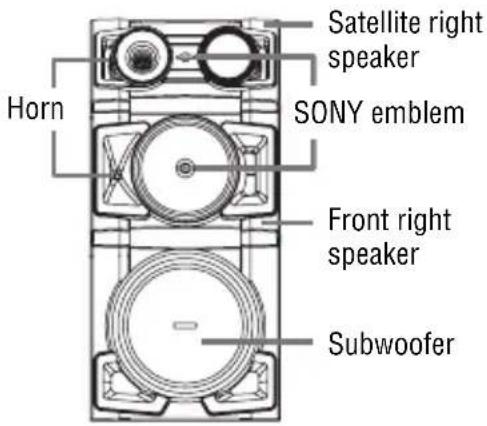

• Front speakers SS-GTR88
• Satellite speakers SS-RSR88
• Subwoofers SS-WGR88

The MHC-GTR77 consists of:

-Unit HCD-GTR77

- Speaker System

• Front speakers SS-GTR77
• Satellite speakers SS-RSR77
• Subwoofers SS-WGR77

The MHC-GTR55 consists of:

-Unit HCD-GTR55

- Speaker System

• Front speakers SS-GTR55

- Subwoofer SS-WGR55

The MHC-GTR33 consists of:

-Unit HCD-GTR33

- Speaker System

- Front speakers SS-GTR33

- Subwoofer SS-WGR33

Table of Contents

About this manual .... 3

Guide to parts and controls...... 5

Getting Started

Hooking up the system securely .... 10

Positioning the speakers ..... 14

Setting the clock 17

Basic Operations

Playing an AUDIO CD/MP3 disc.... 18

Listening to the radio...... 20

Transferring onto an USB device.... 21

Listening to music of an USB device.... 26

Playing a tape 29

Using optional audio components 30

Adjusting the sound...... 30

Changing the display 31

Other Operations

Creating your own program...... 33 — Program Play

Presetting radio stations...... 34

Recording onto a tape 35

Creating your own sound effect 36

Singing along.... 37

Using the Timers 37

Additional Information

Troubleshooting...... 40

Messages...... 46

Precautions.... 48

Specifications...... 49

Compatible USB devices with this system.... 54

Guide to parts and controls

This manual mainly explains operations using the unit, but the same operations can also be performed using the buttons on the remote having the same or similar names.

Unit

Front view

Top view (For African and Pan Asian models only)

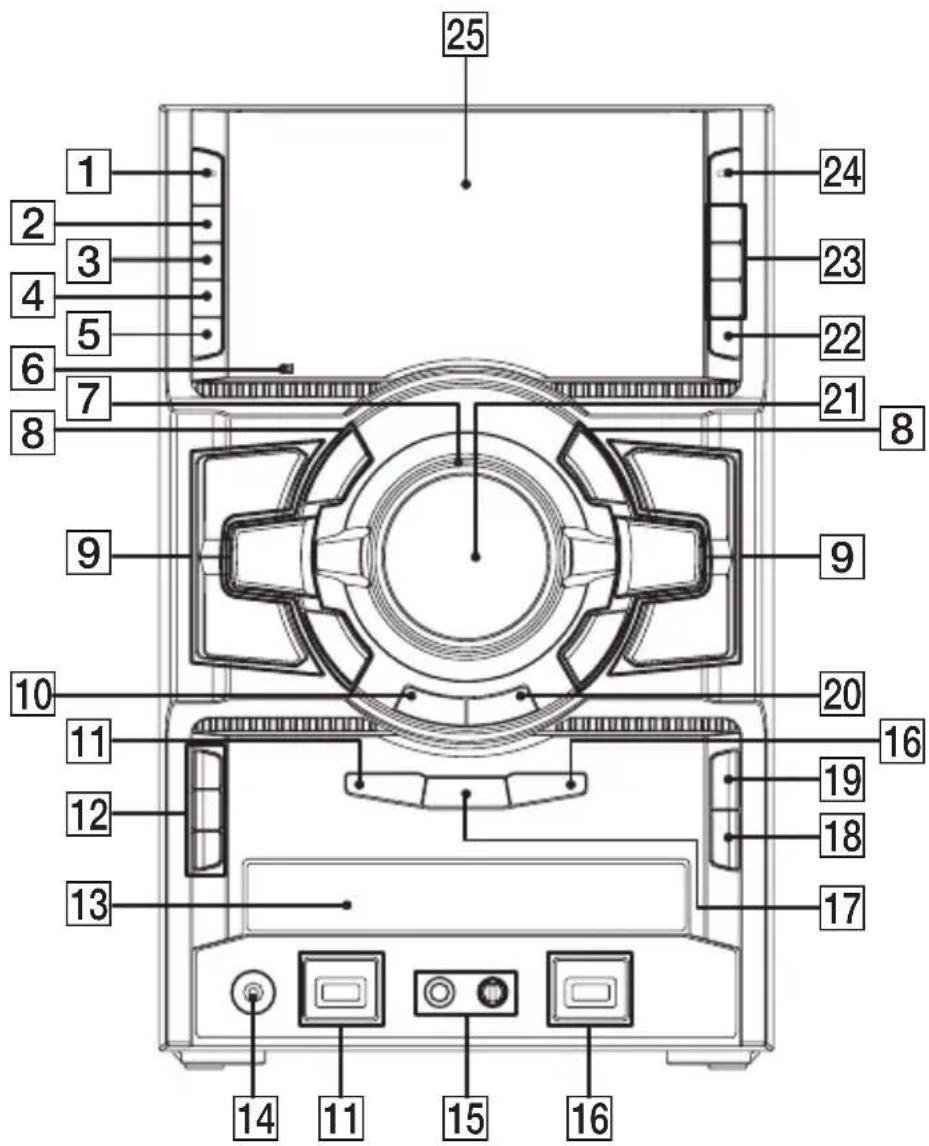

1 I/⏻ (on/standby) (page 13, 21, 38, 46) Press to turn on the system. The STANDBY indicator lights up when the system is turned off.
②DISPLAY (page 32, 40) Press to change the information on the display.
3METER MODE (page 32, 45) Press to select the preset meter display.
4 OPTIONS (page 24, 31) Press to change the display, subwoofer level, USB and MP3 BOOSTER+ settings.
5 REC TIMER (page 38) Press to set the Recording Timer.
6 Remote sensor (page 41)

⑦ OPERATION DIAL (page 18, 24, 27, 30, 31, 34, 36, 38) Turn to select a setting in the OPTIONS menu. Turn to select a track, file or folder.

8 + (select folder) (page 18, 27, 33) Press to select a folder.

▶II (play/pause) (page 18, 26, 27, 33, 34, 35, 42, 44) Press to start or pause playback.

◀◀/▶▶ (rewind/fast forward) (page 18, 27) Hold down to find a point in a track or file.

|◀◀/▶▶▶ (go back/go forward) (page 18, 27, 33) Press to select a track or file.

TUNING +/- (page 20) Press to tune in the station you want.

■ (stop) (page 18, 23, 27, 41, 46)

Press to stop playback.

9 Function buttons:

CD (page 13, 18, 22, 33, 35)

Press to select the CD function.

USB (page 23, 24, 26, 27, 33)

Press to select the USB function.

TUNER/BAND (page 20, 21)

Press to select the TUNER function.

Press to select the FM or AM band.

PC (Except for African and Pan Asian models) (page 23, 30)

Press to select the PC function.

TAPE/PC (For African and Pan Asian models only) (page 23, 29, 30)

Press to select the TAPE function or PC function.

10 RETURN (page 19, 27, 31)

Press to return to the parent folder.

Press to exit search mode.

Press to return to the previous display in the OPTIONS menu.

11USB A (page 26, 28, 33)

Press to select the USB device connected to the A port.

A indicator

A (PLAY) port (page 23, 24, 26, 27 28, 43)

Connect an optional USB device.

12DISC 1 - 3 (page 18, 33, 35)

Press to select a disc. Press to switch to the CD function from other function.

13Disc tray (page 13, 18, 21, 22, 41, 46)

14 PHONES jack (page 40, 45)

Connect the headphones.

15MIC jack (page 37, 40)

Connect an optional microphone.

MIC LEVEL (page 37, 40)

Turn to adjust the microphone volume.

16USB B (page 21, 24, 26, 28, 33)

Press to select the USB device connected to the B port.

B indicator

Lights up in red when transferring to the connected optional USB device.

B (REC/PLAY) port (page 21, 22, 23, 24 26, 27, 38, 42, 43)

Connect and transfer to an optional USB device.

17REC TO USB B (page 22, 23, 24)

Press to transfer onto the connected optional USB device which is connected to the B port.

18▲ OPEN/CLOSE (page 13, 18, 41)

Press to insert or eject a disc.

19 DISC SKIP/EX-CHANGE (page 13, 19)

Press to select a disc during CD tray open.

Press to exchange other discs during playback.

20 ENTER (page 18, 21, 22, 31, 33, 34, 36)

Press to enter the settings.

21 MASTER VOLUME (page 18, 26, 29, 30, 40)

Turn to adjust the volume.

Continued

22ERASE (page 27)

Press to erase audio files and folders from the connected optional USB device.

23 PRESET EQ (page 30, 36), GROOVE (page 30), EQ BAND/SURROUND (page 30, 36)

Press to select the frequency band and surround sound effect.

24SUBWOOFER (page 30)

Press to turn on and off the subwoofer.

The SUBWOOFER indicator lights up when the subwoofer is turned on.

25 Display (page 31)

26(For African and Pan Asian models only) Tape deck

27(For African and Pan Asian models only)

● (record) (page 35)

Press to record onto a tape.

▶ (play) (page 29, 35)

Press to start tape playback.

* The ▶ button has a tactile dot. Use the tactile dot as a reference when operating the system.

◀◀/▶▶ (rewind/fast forward) (page 29)

Press to rewind/fast forward a tape.

■ ≜ (stop/eject) (page 29, 35)

Press to stop tape playback. Press to insert or eject a tape.

II (pause) (page 29, 35)

Press to pause tape playback.

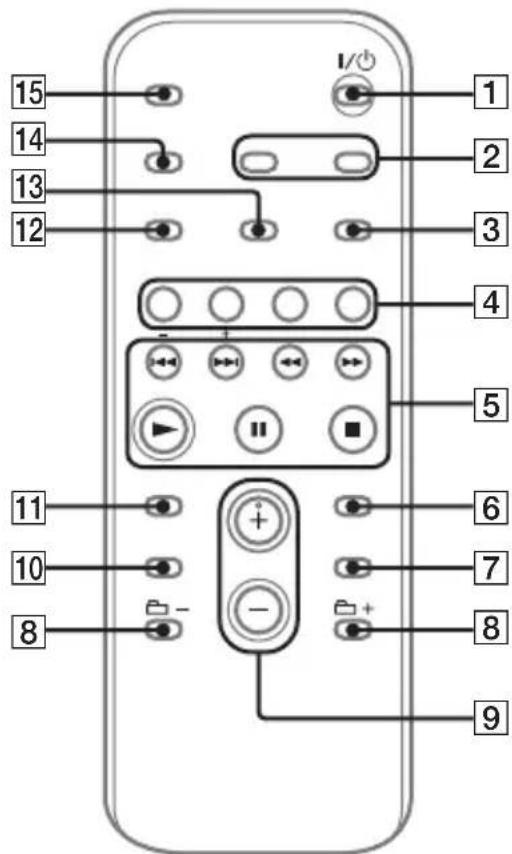

Remote RM-AMU053

1 I/⏻ (on/standby) (page 17, 38) Press to turn on the system.

2 CLOCK/TIMER SELECT (page 38, 46)
CLOCK/TIMER SET (page 17, 38)
Press to set the clock and the timers.

3REPEAT/FM MODE (page 18, 21, 27, 45) Press to listen to a disc, an USB device, a single track or file repeatedly. Press to select the FM reception mode (monaural or stereo).

4USB (page 23, 24, 26, 27, 33)

Press to select the USB function.

CD (page 18, 22, 33, 35)

Press to select the CD function.

TUNER/BAND (page 20)

Press to select the TUNER function.

Press to select the FM or AM band.

FUNCTION (page 23, 29, 30)

Press to select a function.

5 ◀◀◀ /▶▶▶ (go back/go forward)

(page 17, 18, 27, 33, 38)

Press to select a track or file.

◀◀/▶▶ (rewind/fast forward)

(page 18, 27)

Press to find a point in a track or file.

+/- (tuning) (page 20, 34)

Press to tune in the station you want.

▶ (play) (page 18, 26, 33, 34, 42, 44)

Press to start playback.

■ (pause) (page 18, 27)

Press to pause playback.

■ (stop) (page 18, 20, 23, 27)

Press to stop playback.

6 ENTER (page 17, 33, 38)

Press to enter the settings.

7 DISC SKIP/USB SELECT

(page 18, 23, 28, 33)

Press to select a disc.

Press to select the USB device

connected to the USB A or B port.

8 +☐(select folder) (page 18, 27, 33)

Press to select a folder.

9 VOLUME +/-* (page 18, 20, 26, 29, 30, 38)

Press to adjust the volume.

* The VOLUME + button has a tactile dot. Use the tactile dot as a reference when operating the system.

10EQ (page 30, 36)

Press to select a preset EQ effect.

11 CLEAR (page 34)

Press to delete the last step from the program list.

12 TUNER MEMORY (page 34)

Press to preset the radio station.

13 PLAY MODE/TUNING MODE

(page 19, 20, 22, 28, 33, 34, 35, 42)

Press to select the play mode of an AUDIO CD, MP3 disc or an optional USB device.

Press to select the tuning mode.

14DISPLAY (page 17, 32, 40)

Press to change the information on the display.

15SLEEP (page 37)

Press to set the Sleep Timer.

Getting Started

Hooking up the system securely

(For MHC-GTR88 only)

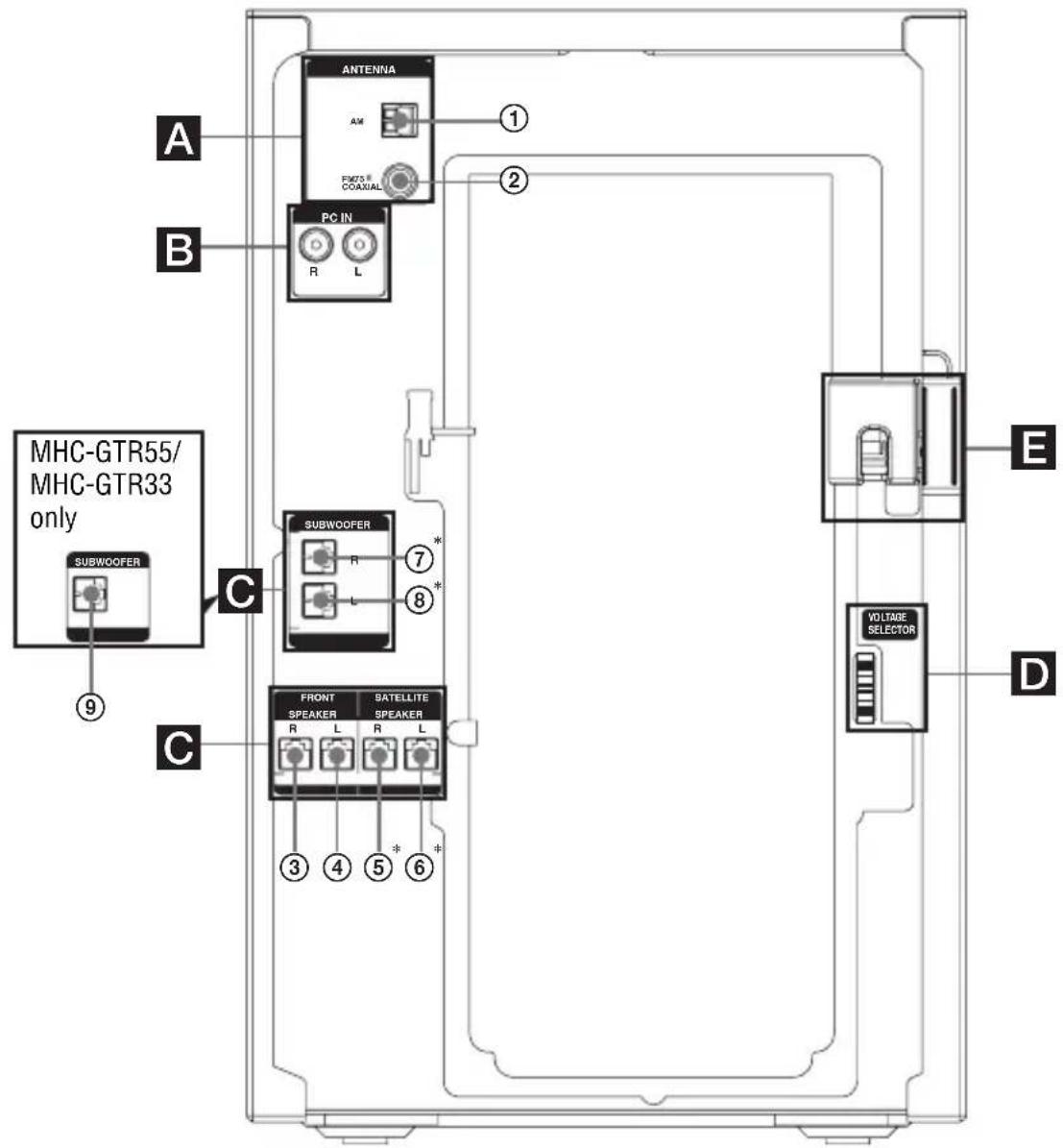

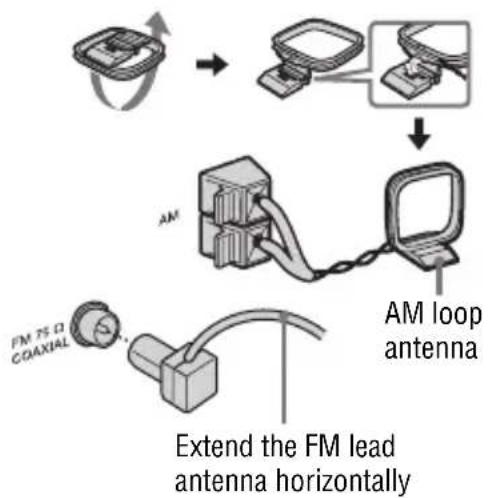

①To AM loop antenna

②To FM lead antenna

③To front speaker (right)

④To front speaker (left)

⑤To satellite speaker (right)

⑥To satellite speaker (left)

⑦To subwoofer (right)

⑧To subwoofer (left)

(For MHC-GTR77, MHC-GTR55, MHC-GTR33 only)

* MHC-GTR77 only

①To AM loop antenna

②To FM lead antenna

③To front speaker (right)

④To front speaker (left)

⑤To satellite speaker (right)

⑥To satellite speaker (left)

⑦To subwoofer (right)

⑧To subwoofer (left)

⑨To subwoofer

A Antennas

Find a location and an orientation that provide good reception, and then set up the antennas.
    note right of F Extend the FM lead antenna horizontally

• The FM 75 Ω COAXIAL jack varies according to models.
• Keep the antennas away from the speaker cords, the power cord and the USB cable to avoid picking up noise.

BPC IN L/R jack

Use an audio cord (not supplied) to connect the audio output of the optional audio component to these jacks. You can then output audio through this system.

©Speakers

The speaker connectors are color-coded with their respective speaker terminals on the unit as follow:

Speaker terminals Speaker connector

Front Speaker White

Satellite Speaker* Grey

Subwoofer Purple

* For MHC-GTR88, MHC-GTR77 only

Example

Notes

• Be sure to use only the supplied speakers.
• Be sure to connect the speakers securely and correctly. When connecting speaker cords, insert the connector straight into the terminals.

DVOLTAGE SELECTOR

For models equipped with a voltage selector, set VOLTAGE SELECTOR to the local power line voltage. Depending on the model, the VOLTAGE SELECTOR may differ.

EPower

Connect the power cord to a wall socket. The demonstration appears in the display. If the supplied adaptor on the plug does not fit your wall outlet, detach it from the plug (only for models equipped with an adaptor).

Using the remote

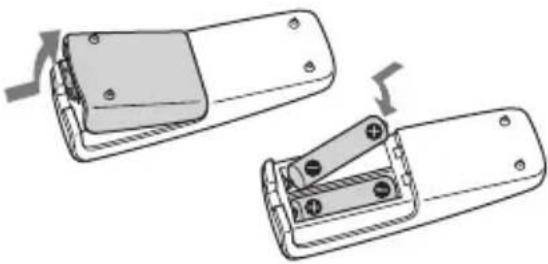

Slide and remove the battery compartment lid, then, insert the two supplied R6 (size AA) batteries, ● side first, matching the polarities shown below.

Technical line drawing of a remote control switch mechanism (no text or symbols)

Notes

• Do not mix an old battery with a new one or mix different types of batteries.
• If you do not use the remote for a long period of time, remove the batteries to avoid damage from battery leakage and corrosion.

Attaching the speaker pads

(For MHC-GTR33 only)

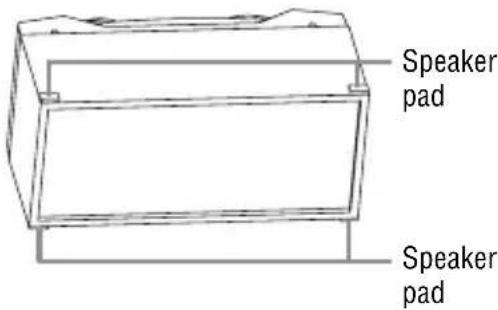

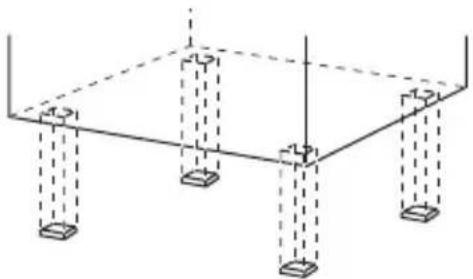

Attach the supplied speaker pads at each corner on the bottom of the speakers to stabilize the speakers and to prevent them from slipping.

Pure structural diagram of a rectangular frame with vertical supports and dashed lines indicating hidden edges (no text or symbols)

When carrying the unit

Do the following procedure to protect the disc mechanism. Use the buttons on the unit for the operation.

1 Press I/⏻ to turn on the system.
2 Press CD.
3 Press ▲ OPEN/CLOSE to open the disc tray and remove the disc.
4 Press ▲ OPEN/CLOSE again to close the disc tray. Wait until "CD NO DISC" appears in the display.
5 Hold down DISC SKIP/ EX-CHANGE and then press I/⏻ until "STANDBY" appears in the display. Then, "MECHA LOCK" appears in the display.
6 Unplug the AC power cord.

Positioning the speakers

You can place your speakers as shown below or by using Line Array Speaker System (page 15).

ⒶUnit
⑧Front speaker (left)
©Front speaker (right)
©Satellite speaker (left)*
⑤Satellite speaker (right)*
⑤Subwoofer (left)*
©Subwoofer (right)*
⑧Subwoofer**

* For MHC-GTR88/MHC-GTR77 only

** For MHC-GTR55/MHC-GTR33 only

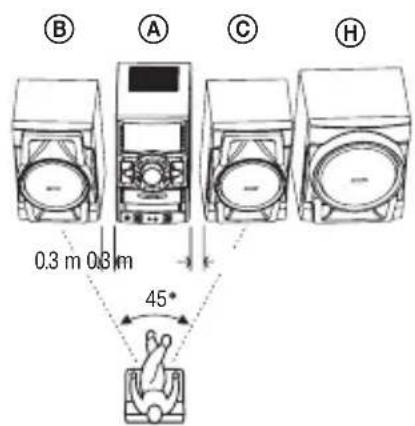

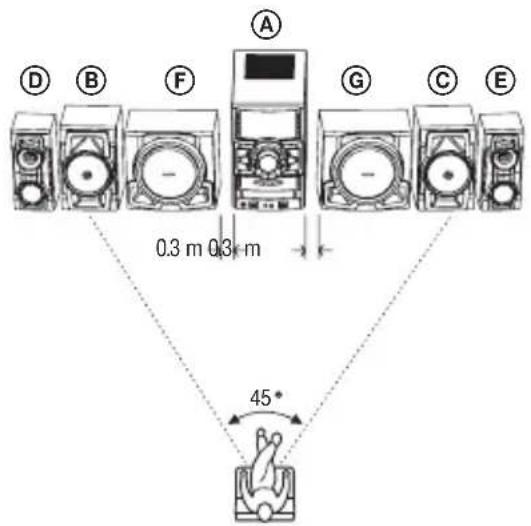

Place the front speakers at an angle of 45 degrees from your listening position.

MHC-GTR88 only

MHC-GTR77 only

MHC-GTR55 only

MHC-GTR33 only

Note

Place the speakers at least 0.3 meter away from the unit.

Installing the Line Array Speaker System

(For MHC-GTR88 only)

To create a party environment, we recommend that you install your speakers using Line Array Speaker System. Line Array Speaker System provides a wide sound space that suitable for large room like a hall.

1 Attach the supplied speaker pads for subwoofer and satellite speaker as shown below to stabilize the speakers and to prevent them from slipping.

Subwoofer

Satellite Speaker

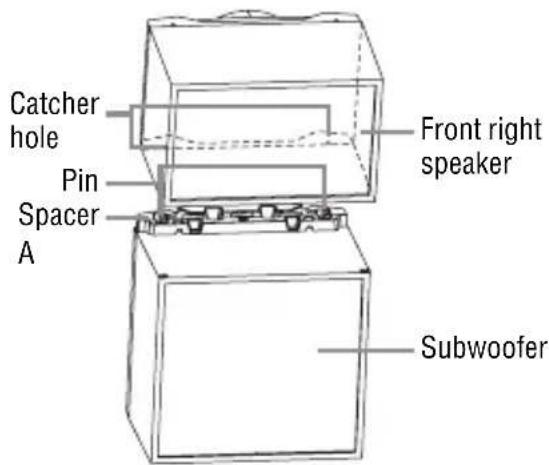

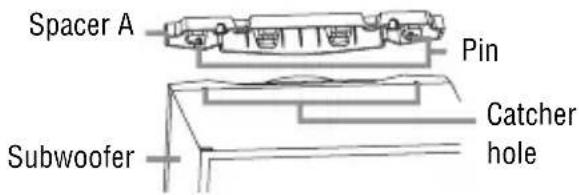

2 Insert the pins of the Spacer A (supplied) to the catcher holes on top of the subwoofer.

3 Stack the front right speaker horizontally on top of the subwoofer. Make sure the catcher holes of the front right speaker is inserted to the pins of the Spacer A.

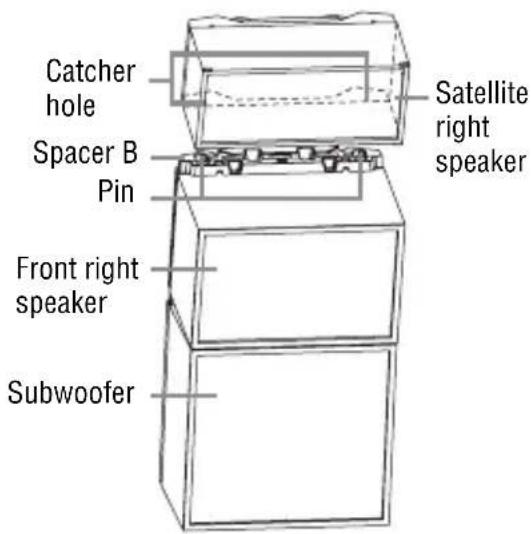

4 Insert the pins of the Spacer B (supplied) to the catcher holes on the front right speaker.

Continued

5 Stack the satellite right speaker horizontally on the front right speaker. Make sure the catcher holes of the satellite right speaker is inserted to the pins of the Spacer B.

6 Check that both the front right and satellite right speaker horn are at the same side. Make sure the horns are near to the unit.

Turn the SONY emblem on the front right and satellite right speaker to horizontal position.

7 Repeat steps 1 to 6 to install another subwoofer, front left speaker and satellite left speaker.

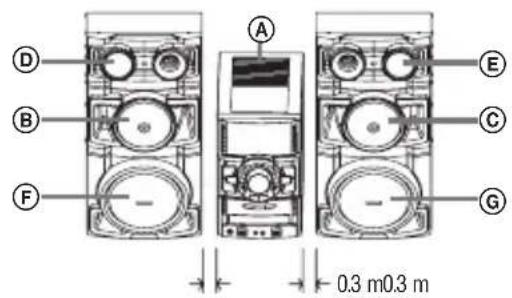

Positioning the Line Array Speaker System

ⒶUnit
⑧Front speaker (left)
©Front speaker (right)
©Satellite speaker (left)
⑤Satellite speaker (right)
⑤Subwoofer (left)
©Subwoofer (right)

Notes

• For maximum listening effect, we recommend you to place the speakers with the horn near to the unit.
• Place the speakers at least 0.3 meter away from the unit.

Setting the clock

You cannot set the clock in Power Saving Mode.

Use the buttons on the remote for this operation.

1 Press I/⏻ to turn on the system.
2 Press CLOCK/TIMER SET.

If “PLAY SET” appears on the display, press ◀◀◀/▶▶▶ repeatedly to select “CLOCK SET” and then press ENTER.

3 Press I◄◄/►►I repeatedly to set the hour, and then press ENTER.
4 Press I◄◄/►►I repeatedly to set the minutes, and then press ENTER.

Note

The clock settings are cancelled when you disconnect the power cord or if a power failure occurs.

To display the clock when the system is turned off

Press DISPLAY repeatedly until the clock is displayed. The clock is displayed for a few seconds.

Basic Operations

Playing an AUDIO CD/MP3 disc

1 Press CD.
2 Press ▲ OPEN/CLOSE.

Illustration of a hand using a CD to press a disc into a CD scanner (no text or symbols visible)

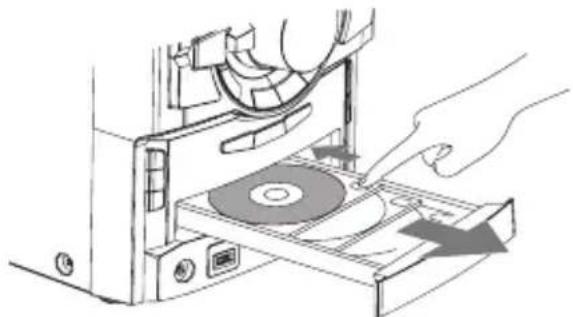

To place additional discs, slide the disc tray with your finger as shown above.

To close the disc tray, press ▲ OPEN/CLOSE on the unit again.

Do not forcibly push the disc tray to close it as this may damage the unit.

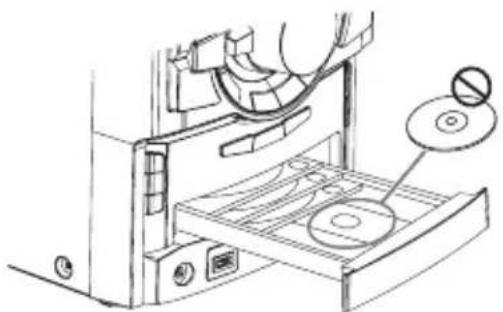

CAUTION

DO NOT place a disc here, as it may cause the system to malfunction.

The disc tray cannot be opened during USB transferring and erasing.

Technical line drawing of a mechanical device with a circular component inserted, no visible text or symbols

3 Press ▶II (or press ▶ on the remote) to start playback.
4 Turn MASTER VOLUME (or press VOLUME +/- on the remote) to adjust the volume.

Other operations

To Do this
Pause playback	Press ▶■ (or ■ on the remote). To resume play, press the button again.
Stop playback Press ■.
Select a folder on an MP3 disc	Press +/− repeatedly.
Select a track or file	Press ◀◀◀◀◀ or ▶▶▶▶▶ (or ◀◀◀/▶▶▶ on the remote) repeatedly during playback. For AUDIO CD, you can also turn OPERATION DIAL, then press ENTER. (TRACK SEARCH)
Find a point in a track or file1)	Hold down ◀◀◀◀◀ or ▶▶▶▶▶ (or ◀◀◀/▶▶▶ on the remote) during playback, and release the button at the point you want.
Playback all the tracks or files on the disc(s) or in the folder2) repeatedly3) (Repeat Play)	Press REPEAT on the remote repeatedly during playback until “REP” lights up in the display.
Playback a single track or file repeatedly4) (Repeat Play)	Press REPEAT on the remote repeatedly during playback until “REP 1” lights up in the display.
Select a disc Press one of the DISC 1 – 3 buttons (or DISC SKIP on the remote repeatedly).

To Do this
Search for an MP3 file by its folder name and file name and start playback the MP3 file (TRACK SEARCH)	1 Turn OPERATION DIAL to select the folder you want, then press ENTER or ▶II.2 Turn OPERATION DIAL to select the file you want, then press ENTER or ▶II.To return to the parent folder, press RETURN.
Switch to CD function from another source and start playback automatically	Press one of the DISC 1 – 3 buttons (Automatically Source Selection).
Exchange other discs while playing	Press DISC SKIP/ EX-CHANGE.

^1) The elapsed playing time may not be displayed correctly depending on the MP3 files.
2) When “” or “SHUF” is selected for MP3 files.
^3) Playback repeatedly until you stop it. You cannot select “REP” and “ALL DISC SHUF” at the same time.
^4) A track or file is played back repeatedly until you stop playback.

To change the play mode

Press PLAY MODE on the remote repeatedly when playback is stopped. You can select the following play mode.

Select To play back
ALL DISC(Normal Play)	The tracks or files on all discs in original order.
1 DISC(Normal Play)	The tracks or files on the disc you have selected in original order.

Select To play back
(Normal Play)	The MP3 files in the folder on the disc you have selected in original order.For AUDIO CDs, this play mode performs the same operation as “1 DISC” play mode.
ALL DISC SHUF*(Shuffle Play)	The tracks or files on all discs in random order.
1 DISC SHUF*(Shuffle Play)	The tracks or files on the disc you have selected in random order.
SHUF*(Shuffle Play)	The MP3 files in the folder on the disc you have selected in random order.For AUDIO CDs, this play mode performs the same operation as “1 DISC SHUF” play mode.
PGM(Program Play)	The tracks or files on all disc in the order you want them to be played back (see “Creating your own program” on page 33).

* Each time you perform Shuffle Play, the playing order may differ. If you turn off the system in shuffle play mode, the system changes the play mode back to normal play mode.

Notes on playing discs

• The following discs/situations can increase the time it takes to start playback:
• a disc recorded with a complicated tree structure.
• a disc recorded in Multi Session.
• when the files in another folder have just been played back.
• Do not save other types of files or unnecessary folders on an MP3 disc.

- The system can only play MP3 files that have a file extension of “.mp3”.

- The system can recognize up to - 999 folders (including root folder). - 999 MP3 files. - 150 MP3 files on a single folder. - 8 folder levels (tree structure of file

• Compatibility with all MP3 encoding/writing software, recording device, and recording media cannot be guaranteed. Incompatible MP3 discs may produce noise or interrupted audio or may not play at all.
• The disc will not play if it has not been correctly finalized.
• CD-TEXT information is not supported.

Notes on playing multisession discs

• This system can play back Multi Session discs when an MP3 file is contained in the first session. Any subsequent MP3 files recorded in later sessions can also be played back.
• If the first session is recorded in AUDIO CD format, only the first session will be played back.

Listening to the radio

Use buttons on the remote for the operation.

1 Press TUNER/BAND repeatedly to select FM or AM band.
2 Press TUNING MODE repeatedly until "AUTO" lights up in the display.
3 Press +/-

You can also use TUNING +/- on the unit.

Scanning stops automatically when a station is tuned in, and then “TUNED” and “ST” (for FM stereo programs only) light up in the display.

Note

If “TUNED” does not light up and scanning does not stop, see “To tune in a station with a weak signal” below.

4 Press VOLUME +/- to adjust the volume.

To stop automatic scanning

Press ■.

To tune in a station with a weak signal

Use buttons on the remote for the operation.

1 Press TUNING MODE repeatedly until "AUTO" and "PRESET" disappear from the display.
2 Press +/- repeatedly to tune in the station you want. You can also use TUNING +/- on the unit.

To change the AM tuning Interval

The factory setting for AM tuning interval is 9 kHz (or 10 kHz for some areas). You cannot change the AM tuning interval in Power Saving Mode.

Use the buttons on the unit for the operation.

1 Press TUNER/BAND repeatedly to select AM band.
2 Press I/⏻ to turn off the system.
3 While holding down ENTER, press I/⏻.

The system turn on automatically.

“AM 9K STEP” or “AM 10K STEP”

appears in the display.

When you change the interval, all the AM preset stations are erased.

Tip

To improve broadcast reception, adjust the supplied antennas, or connect an external antenna.

To reduce static noise on a weak FM stereo station

Press FM MODE on the remote repeatedly until “MONO” lights up in the display. There will be no stereo effect, but the reception will improve.

Transferring onto an USB device

You can transfer music from a sound source to an optional USB device by connecting it to the B port on the unit.

The audio format of files transferred by this system is MP3.

For transferring from USB A to USB B you can also transfer WMA and AAC file.

When transferring from audio files, the file size is the same as the original file.

See “Compatible USB devices with this system” (page 54) for a list of USB devices that can be connected to this system.

USB transferring and erasing is disabled while the disc tray is open.

CD-USB Synchronized Transfer

You can easily transfer an entire disc onto an USB device.

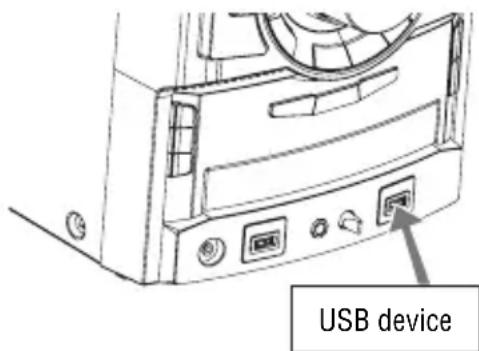

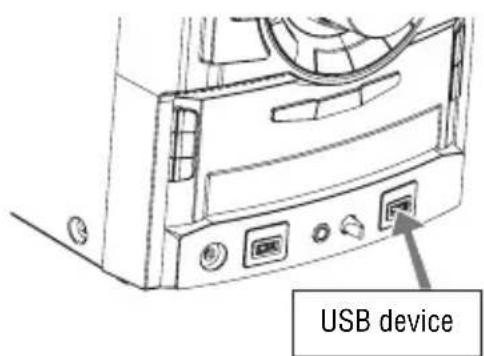

1 Connect a transferable USB device to the B port as shown below.

When the USB cable connection is necessary, connect the USB cable supplied with the USB device to be connected.

Continued

Refer to the operating instructions supplied with the USB device to be connected for details on the operation method.

2 Press CD, then load the disc you want to transfer on the disc tray.

3 Press PLAY MODE on the remote repeatedly in stop mode to select the play mode.

The play mode automatically changes to normal play mode, if you start transferring in shuffle play mode, repeat play mode or in program play mode (when no tracks or MP3 files are programmed).

For details about the play mode, see “To change the play mode” (page 19).

4 Press REC TO USB B.

“USB”* and “SYNC” light up and “REC” flashes in the display.

“PUSH ENTER” appears in the display.

* "USB" lights up for African and Pan Asian models only.

5 Press ENTER.

Transferring starts when “DON’T REMOVE” appears in the display. When the transferring is completed, the disc and the USB device stop automatically.

Transferring a single track or MP3 file during playback (REC1 Transferring)

You can easily transfer the track or MP3 file that is currently being played back onto an USB device.

1 Connect a transferable USB device to the B port on the unit (page 21).

2 Press CD, then load the disc you want to transfer on the disc tray.

3 Select the track or MP3 file you want to transfer, then start playback.

4 Press REC TO USB B while the selected track or MP3 file is being played back.

“USB”* lights up and “REC” flashes in the display.

“PUSH ENTER” appears in the display.

* "USB" lights up for African and Pan Asian models only.

5 Press ENTER.

Transferring starts from the beginning of the track or file when “DON’T REMOVE” appears in the display. When the transferring is completed, the disc continues to play.

Transferring from a sound source other than disc and USB device (Analog Transferring)

You can transfer just the portion you want from a sound source, including connected audio components.

1 Connect a transferable USB device to the B port on the unit (page 21).

2 Press the function button to select the source you want to transfer.

3 Press REC TO USB B.

“USB”* lights up and “REC” flashes in the display.

“PUSH ENTER” appears in the display.

* "USB" lights up for African and Pan Asian models only.

4 Press ENTER.

Transferring starts when “DON’T REMOVE” appears in the display.

5 Start playback the source.

To stop transferring

Press ■.

To create a new MP3 file

Press REC TO USB B.

“NEW TRACK” appears in the display. If you press REC TO USB B again after a few seconds, a new MP3 file cannot be created.

To transfer sound from a microphone

1 Press PC or TAPE/PC (For African and Pan Asian models only) (or FUNCTION on the remote repeatedly until PC function is selected).
2 Press REC TO USB B.
3 Press ENTER.
4 Start singing or speaking into the microphone.

Note

When a new MP3 file is created, transferring is disabled for the time being.

Tips

• If distortion happen during transferring, reduce the microphone level.
• A new MP3 file is created automatically after approximately 1 hour of transferring.
• Transferring stops automatically when you change the function or tuner band.

USB-USB Synchronized Transfer

You can easily transfer the audio files from an USB device to another USB device.

1 Connect a transferable USB device to the B port as shown below, then connect the USB device you want to transfer to A port.

2 Press USB to select the USB function.

Press USB SELECT on the remote repeatedly to select "USB A".

3 Press PLAY MODE on the remote repeatedly in stop mode to select the play mode.

The play mode automatically changes to 1 USB if you start transferring in ALL USB, ALL USB SHUF, 1 USB SHUF or PGM mode (when no file is programmed).

The play mode automatically changes to if you start transferring in SHUF mode.

For details about the play mode, see “To change the play mode” (page 28).

Continued

4 Press REC TO USB B.

“USB”* and “SYNC” light up and “REC” flashes in the display. “PUSH ENTER” appears in the display.

* "USB" lights up for African and Pan Asian models only.

5 Press ENTER.

Transferring starts when “DON’T REMOVE” appears in the display. When the transferring is completed, both USB device stop automatically.

Transferring a single audio file during playback from an USB device to another USB device (USB-USB REC1 Transferring)

You can easily transfer the audio file on an USB device that is currently being played back onto another USB device.

1 Connect a transferable USB device to the -B port on the unit.
2 Press USB, then connect the USB device you want to transfer to the -A port.
3 Select the audio file you want to transfer, then start playback.
4 Press REC TO USB B while the selected audio file is being played back.

“USB”* lights up and “REC” flashes in the display. “PUSH ENTER” appears in the display.

* “USB” lights up for African and Pan Asian models only.

5 Press ENTER.

Transferring starts from the beginning of the file when “DON’T REMOVE” appears in the display. When the transferring is completed, the audio file continues to play.

To select the playback source or transferring destination on the Sony Ericsson mobile phone (W302, W595, W760i, W890i, W902, W910i only)

When listening to music from a Sony Ericsson mobile phone or when transferring music from this system to the mobile phone, you can select the playback source or transferring destination as follows:

- internal memory of the mobile phone. - Memory Stick

1 Connect the mobile phone to the B port on the unit and press USB B.

2 Press OPTIONS on the unit in stop mode.

3 Turn OPERATION DIAL to select "USB MEM SEL".

4 Press ENTER.

The memory number of the mobile phone appears in the display but varies depending on the specification of the mobile phone.

You can select a Memory Stick when the selected memory number is as follows:

Model Name Memory Number

W302 1

W595 2

W760i 2

W890i 2

W902 2

W910i 2

5 Turn OPERATION DIAL to select the memory you want.

6 Press ENTER.

7 Start playback of the audio files in the selected memory of the mobile phone or start transferring.

Folder and file generation rules

When transferring to an USB device, a “MUSIC” folder is created directly below the “ROOT”. Folders and files are generated within this “MUSIC” folder as follows according to the transferring method and source.

CD-USB Synchronized Transferring ^1)

Transferring source	Folder name File name
MP3 Same as the transferring source 2)
AUDIO CD	“CDDA0001” 3)	“TRACK001”4)

CD-USB REC1 Transferring

Transferring source	Folder name	File name
MP3	“REC1-MP3”5)	Same as the transferring source2)
AUDIO CD	“REC1-CD”5)	“TRACK001”4)

Analog Transferring

Transferring source	Folder name File name
FM “TUFM0001”3)	“TRACK001”4)
AM	“TUAM0001”3)
PC	“EXPC0001”3)
TAPE*	“TAPE0001”3)

* For African and Pan Asian models only.

USB A - USB B Synchronized Transferring ^1)

Transferring source	Folder name F	file name
Audio files (MP3, WMA, AAC)	Same as the transferring source ^2)

USB A - USB B REC1 Transferring

Transferring source	Folder name F	file name
Audio files (MP3, WMA, AAC)	“REC1-MP3”	Same as the transferring source2)

^1) In Program Play mode, the folder name is “PGM_xxxx”, and the file name depends on the transferring source (AUDIO CD, MP3 disc or audio files).
2) Up to 32 characters of the name are assigned.
^3) Folder numbers are assigned serially thereafter.
^4) File numbers are assigned serially thereafter.
5) A new file is transferred in the “REC1-CD” or “REC1-MP3” folder each time REC1-CD or REC1-MP3 Transferring is performed.

Notes

• Do not connect the system and the USB device through an USB hub.
• When transferring from an AUDIO CD, the tracks are transferred as 128 kbps MP3 files. When transferring from an MP3 disc, MP3 files are transferred with the same bit rate as the original MP3 files.
  When transferring from a USB device, the audio files are transferred with the same bit rate as the original audio files.
• When transferring from TUNER, PC and TAPE* function, the music are transferred as 128 kbps MP3 files.

Continued

• The approximate size of transferred MP3 files on an USB device will be about 50 MB when music is transferred from a standard AUDIO CD. It will take about 3 minutes to transfer these MP3 files from the USB device connected to A port to another USB device connected to B port.
• While transferring from an MP3 disc, AUDIO CD or USB device, no sound is output.
• CD-TEXT information is not transferred in the created MP3 files.
• Transferring stops automatically if:

– the USB device runs out of space during transferring.
– the number of audio files and folders on the USB device reaches the limit for the number that the system can recognize.
– the function or tuner band is changed.

• The maximum number of audio files and folders may vary depending on the audio file and folder structure.
• If a folder or file that you are trying to transfer already exists on the USB device with the same name, a sequential number is added after the name without overwriting the original folder or file.
• Do not remove the USB device during transferring or erase operations. Doing so may corrupt the data on the USB device or damage the USB device itself.
• You cannot eject the disc, select another disc, track or file, pause playback or find a point in the track or file during CD-USB Synchronized Transfer or REC1 Transferring.
• When playing files on the USB device right after USB transfer, the first-recorded file on the device is played back.
• Depending on the transferring method, the transferring progress shown on the display may vary (1 track/file/folder).
  * For African and Pan Asian models only.

Listening to music of an USB device

You can listen to music stored in the USB device.

The audio formats that can be played back by this system are MP3, AAC and WMA only.*

See “Compatible USB devices with this system” (page 54) for a list of USB devices that can be connected to this system.

* Files with copyright protection (Digital Rights Management) cannot be played back by this system. Files downloaded from an online music store may not be played back on this system. An AAC file which has video stream cannot be played back.

1 Press USB.

2 Connect an optional USB device to the A or B port on the unit, and press either USB A or USB B.

When the USB device is connected, the display changes as follows:

$$ " \text { READING }" \rightarrow " x x x x F O L D E R" * $$

* Number of folders is displayed in "xxxx".

Note

It may take some time before “READING” appears depending on the type of USB device connected.

3 Press ▶II (or ▶ on the remote).

The audio files are played in alphabetical order.

4 Turn MASTER VOLUME (or press VOLUME +/- on the remote) to adjust the volume.

To erase audio files or folders from the USB device

You can erase audio files or folders from the USB device.

1 Connect a transferable USB device to the A or B port on the unit.
2 Press USB and select USB A or USB B (or USB on the remote) in stop mode.
3 Press ◀◀◀◀◀ or ▶▶▶▶◀ (or ◀◀◀/▶▶◀ on the remote) or 📄/- repeatedly to select the audio file or folder you want to erase.
4 Press ERASE.

“TRACK ERASE” or “FOLDER ERASE”, and “PUSH ENTER” appear alternately in the display. To cancel the erase operation, press ■.

5 Press ENTER.

The selected audio file or folder is erased. “COMPLETE” appears in the display.

Other operations

To Do this
Pause playback	Press ▶■ (or ■ on the remote). To resume playback, press the button again.
Stop playback Press ■. To resume playback, press ▶■ (or ▶ on the remote).1)To cancel resume play, press ■ twice and check that “RESUME” disappears from the display.
Select a folder Press +/- [icon] repeatedly.

To Do this
Select a file Pressor▶▶▶▶ (or ▶◀/▶▶ on the remote) repeatedly.
Search for an audio file by its folder name and file name and start playback the audio file (TRACK SEARCH)	1 Turn OPERATION DIAL to select the folder you want, then press ENTER or ▶▶▶▶.2 Turn OPERATION DIAL to select the file you want, then press ENTER or ▶▶▶▶.To return to the previous operation, press RETURN.
Find a point in a file	Hold down ◀◀◀◀◀ or ▶▶▶▶▶ (or ◀◀/▶▶ on the remote) during playback, and release the button at the point you want.
Playback all the files on the USB device or in the folder ^2) repeatedly ^3) (Repeat Play)	Press REPEAT on the remote repeatedly during playback until “REP” lights up in the display.
Playback a single file repeatedly ^3) (Repeat Play)	Press REPEAT on the remote repeatedly during playback until “REP 1” lights up in the display.
Select USB device	Press USB A to select the USB device which is connected to the port. Press USB B to select the USB device which is connected to the port. Press USB SELECT on the remote repeatedly to select the USB A or USB B which is connected to the port.
Switch to USB function from another source and start playback automatically	Press USB A or USB B (Automatic Source Selection).

^1) When playing an VBR (variable bit rate) audio file, the system may resume playback from a different point.
2) When “” or “SHUF” is selected.
^3) Playback repeatedly until you stop it.

To change the play mode

Press PLAY MODE on the remote repeatedly when playback is stopped. You can select the following play mode.

Select To play back
ALL USB(Normal Play)	The audio files on all USB devices in original order.
1 USB(Normal Play)	The audio files on the USB device you have selected in original order.
(Normal Play)	The audio files in the folder on the USB device you have selected in original order.
ALL USB SHUF*(Shuffle Play)	The audio files on all USB devices in random order.

Select To play back
1 USB SHUF*(Shuffle Play)	The audio files on the USB device you have selected in random order.
SHUF*(Shuffle Play)	The audio files in the folder on the USB device you have selected in random order.
PGM(Program Play)	The tracks or files on all device in the order you want them to be played back (see “Creating your own program” on page 33).

* Each time you perform Shuffle Play, the playing order may differ. If you turn off the system in shuffle play mode, the system changes the play mode back to normal play mode.

Notes on the USB device

• You cannot change the play mode during playback.
• Some time may be needed to start playback when:
  – the folder structure is complex.
  – the memory capacity is excessive.
• When the USB device is connected, the system reads all the files on the USB device. If there are many folders or files on the USB device, it may take a long time to finish reading the USB device.
• Do not connect the system and the USB device through an USB hub.
• With some connected USB devices, after an operation is performed, there may be a delay before it is performed by this system.
• This system does not necessarily support all the functions provided in a connected USB device.
• The playback order for the system may differ from the playback order of the connected digital music player.
• Be sure to turn off the system before removing the USB device.
  Removing the USB device while the system is turned on may corrupt the data on the USB device.

- Do not save other types of files or unnecessary folders on an USB device.

- Folders that have no audio files are skipped.

- The system can recognize up to – 1000 folders (including “ROOT” and “MUSIC” folder).

• 3000 audio files.
• 150 audio files on a single folder.
• 8 folder levels (tree structure of files).

The maximum number of audio files and folders may vary depending on the file and folder structure.

- The system can play the following format of audio files:

• MP3 with file extension “.mp3”.
  – AAC with file extension “.m4a”, “.3gp”, “.mp4”.
• Windows Media Audio (WMA) with file extension “.wma”.

If the audio files have the above file extension but are not the respective formats, the system may produce noise or may malfunction.

• Compatibility with all MP3, AAC or WMA encoding/writing softwares, recording devices, and recording media cannot be guaranteed. Incompatible USB device may produce noise or interrupted audio or may not play at all.
• You cannot erase audio files and folders in shuffle play mode or program play mode.
• If the folder to be erased does not contain MP3/AAC/WMA files or contains sub folders, these are not erased.

Playing a tape

(For African and Pan Asian models only)

Use the controls on the tape deck for this operation.

1 Press TAPE/PC on the unit (or FUNCTION on the remote repeatedly to select "TAPE").

2 Insert a tape.

Press ■ ▲ to open the tape holder.

Tape deck lid

Technical line drawing of a mechanical device with internal components and mounting holes (no text or symbols)

Insert a TYPE I (normal) tape into the tape holder with the side you want to play back facing upward.

Push the tape deck lid to close the tape holder.

3 Press ▶.

The tape starts playing.

4 Turn MASTER VOLUME on the unit (or VOLUME +/- on the remote) to adjust the volume.

Other operations

To Press
Pause playback ▪. To resume play, press the button again.
Stop playback ■ ▲.
Rewind or fast forward	◀◀/▶▶.

Using optional audio components

1 Connect an optional audio component to the PC IN L/R jacks using an audio cord (not supplied).
2 Turn MASTER VOLUME (or press VOLUME – on the remote) to turn down the volume.
3 Press PC or TAPE/PC (For African and Pan Asian models only) (or FUNCTION on the remote repeatedly to select PC).
4 Start playing the connected component.
5 Turn MASTER VOLUME (or press VOLUME +/- on the remote) to adjust the volume.

Adjusting the sound

To add a sound effect

To Do this
Reinforce the bass and create a more powerful sound	Press GROOVE repeatedly until “GROOVE” ^1) or “Z-GROOVE” ^1) lights up in the display.
Select the surround effect	Press EQ BAND/ SURROUND repeatedly to select a surround effect, then turn OPERATION DIAL to adjust the surround effect.
Select a preset sound effect	Press PRESET EQ (or EQ on the remote) repeatedly. To cancel, press PRESET EQ (or EQ on the remote) repeatedly until “FLAT” appears.
Enhance the sound quality of the audio file ^2)	Press OPTIONS and turn OPERATION DIAL to select “MP3 BOOSTER+”, then press ENTER. Turn OPERATION DIAL to select “AUTO”, then press ENTER. ^3)

^1) The volume switches to power mode and the equalizer curve changes.

^2) This feature is only available during USB and CD function.

3) “BOOSTER” lights up in the display when the MP3 BOOSTER+ effect is activated.

To turn on the subwoofer

Press SUBWOOFER repeatedly until the SUBWOOFER indicator on the unit lights up. If you later disconnect the subwoofer, repeat the procedure until the SUBWOOFER indicator on the unit lights off. The volume of the subwoofer is linked to the front speakers.

To adjust the subwoofer level

You can adjust the subwoofer level to output the low frequency sound.

1 Press OPTIONS.
2 Turn OPERATION DIAL to select "SW LEVEL", then press ENTER.

3 Turn OPERATION DIAL to select the subwoofer level you want, then press ENTER.

You can adjust the subwoofer level in 4 levels (0 dB, 4 dB, 7 dB, 10 dB). To exit the OPTIONS menu, press OPTIONS.

Changing the display

1 Press OPTIONS.
2 Turn OPERATION DIAL to select the item you want.

ILLUM

Change the power illuminator pattern around MASTER VOLUME.

M-BACKLIGHT (Meter backlight)

Change the Meter Backlight pattern.

MTR POINTER (Meter pointer)

Change the Meter Pointer pattern.

DISPLAY (Front panel display)

Change the front panel display pattern.

3 Press ENTER.
4 Turn OPERATION DIAL to select the setting you want, then press ENTER.
5 Repeat steps 2 through 4 to make other settings.

To exit the OPTIONS menu

Press OPTIONS again.

To return to the previous display

Press RETURN.

Changing the display mode

Press DISPLAY repeatedly while the system is turned off.

Demonstration

The display changes and the indicator flashes even when the system is turned off.

No display (Power Saving mode)

The display is turned off to conserve power. The timer and clock continue to operate. You cannot turn on the system by pressing the function buttons.

Clock

The clock is display.

The clock display automatically turns to Power Save Mode after a few seconds.

Changing information in the display

Press DISPLAY repeatedly when the system is turned on.

You can view the elapsed playing time and remaining playing time during playback and total playing time during stop mode for AUDIO CD.

For audio files, you can view the elapsed playing time, the file and folder names. You can also view the title, artist and album information that is stored in the files.

Notes on the display information

• Characters that cannot be displayed appear as “”.
• The following are not display correctly:
• elapsed playing time of an audio file encoded using a VBR (variable bit rate).
• folder and file names that do not follow either the ISO9660 Level 1, Level 2 or Joliet in the expansion format.
• The ID3 tag information for MP3 files is displayed when ID3 Version 1(1.0/1.1) and Version 2(2.2/2.3) tags are used (ID3 version 2 tag information display has priority when both ID3 version 1 and version 2 tags are used for a single MP3 file).

Using the Meter Display

You can easily view the information through the meter display such as the music source level.

Press METER MODE repeatedly to select a preset display pattern.

The power illuminator, meter backlight display, meter pointer display and front panel display will change according to the preset display pattern you have selected.

Other Operations

Creating your own program

—Program Play

You can make a program of up to 25 steps in the order you want them to be played back.

You can synchro transfer the programmed tracks or files onto an USB device (page 21) or CD synchro record the programmed tracks or files onto a tape (page 35).

1 Select the function you want.

CD function

Press CD to select CD function.

USB function

Press USB to select USB function.

2 Press PLAY MODE on the remote repeatedly in stop mode until "PGM" lights up in the display.

3 Select the source you want.

CD function

Press one of the DISC 1 - 3 buttons (or DISC SKIP on the remote repeatedly) to select a disc.

USB function

Press USB A/B (or USB SELECT on the remote repeatedly) to select the optional USB device connected on

A or B port.

4 (For audio files)

Press 📄/– repeatedly until the folder you want appears in the display.

To program all the audio files in the selected folder, process to step 6.

5 Select a track or file to program.

Press ◀◀◀◀ or ▶▶▶▶▶

(or ◀◀◀/▶▶ on the remote)

repeatedly until the track or file number you want appears in the display.

Disc tray Selected track or file number number

Total playing time of program (including selected track)

6 Press ENTER.

The track(s), file(s) or folder(s) is(are) programmed.

The programmed step number appears in the display.

7 To program additional folders, tracks or files.

To program Repeat steps

Other tracks or files on the same disc/USB device

4 to 6

Other tracks or files on other discs/USB device

3 to 6

Other files on same folder

5 and 6

Other files on other folder

4 to 6

8 Press ▶II (or ▶ on the remote).

Program Play starts.

Continued

To program a track or file by using OPERATION DIAL

1 Perform step 1 to 3 of "Creating your own program".
2 (For audio files only) Turn OPERATION DIAL to select the folder you want, then press ENTER or ▶II.
3 Turn OPERATION DIAL to select the track or file you want.
4 Press ENTER or ▶II.

The program step number appear in the display.

Other operations

To Do this
Cancel Program Play	When playback is stopped, press PLAY MODE on the remote repeatedly until “PGM” disappear from the display.
Delete the last step from the program list	Press CLEAR on the remote when playback is stopped.

Notes

(For CD function only)

- The program list is cleared when you eject the disc.

(For USB function only)

• The program list is cleared when you:

- perform the erase operation. - remove the USB device from the

A port or B port. - switch the USB memory select.

Tips

• The program you made remains in the system's memory even after it has been played back. Press ▶II (or ▶ on the remote) to play back the same program again.
• If “--.--” appears instead of the total playing time during programming, this means:

– the total playing time has exceeded 100 minutes.
– you have programmed an audio file.
– the current disc is DATA-CD or USB.

Presetting radio stations

You can preset your favorite radio stations and tune them in instantly by selecting the corresponding preset number.

Use the buttons on the remote for this operation.

1 Tune in the station you want (see "Listening to the radio" (page 20)).
2 Press TUNER MEMORY.

A preset number flashes in the display. The stations are stored from preset number 1.

Preset number

3 Press +/- repeatedly to select the preset number you want.

If another station is already assigned to the selected preset number, the station is replaced by the new station.

4 Press ENTER.

“COMPLETE” appears in the display. The station is stored.

5 Repeat steps 1 through 4 to store other stations.

You can preset up to 20 FM and 10 AM stations.

6 To call up a preset radio station, press TUNING MODE repeatedly until "PRESET" lights up in the display, and then press +/- repeatedly to select the preset number you want.

Recording onto a tape

(For African and Pan Asian models only)

You can record on a TYPE I (normal) tape in three ways:

CD-TAPE Synchro Recording:

You can record an entire disc onto a tape.

Manual Recording:

You can record just the portions you want from a sound source, including connected audio components.

Sound Mixing:

You can “mix” sounds by playing one of the sound sources and singing or speaking into a microphone (not supplied). The mixed sound can be recorded onto a tape.

1 Load a recordable tape into the tape deck with the side you want to record facing up.
2 Prepare the recording source.

Select the source you want to record.

For CD-TAPE Synchro Recording

Press CD to select the CD function. Load the disc you want to record, and press DISC SKIP (or DISC 1 - 3 on the unit) repeatedly to select the disc.

• To select the play mode, press PLAY MODE repeatedly when playback is stopped (see “To change the play mode” (page 19)).
• To record your favorite CD tracks or MP3 files in the order you want, perform steps 2 to 6 of “Creating your own program” (page 33). When programming, make sure the playing times do not exceed the length of one side of the tape.

For Manual Recording and Sound Mixing

Press the function button to select the source (except tape) you want to record.

When recording from a disc or USB device, press ▶▶▶ (or ▶▶ on the remote) to start playback.

If you want to record your voice through the microphone only, you can do so by selecting the PC function and not playing the source.

3 Start recording.

Press ● and ▶ on the tape deck at the same time.

For CD-TAPE Synchro Recording

The disc starts playing automatically after 10 seconds.

“TAPE”, “SYNC” and “REC” light up in the display.

For Manual Recording and Sound Mixing

Start playing the recording source. "TAPE" and "REC" light up in the display.

If there is noise while recording from the tuner, reposition the antenna to reduce the noise.

To stop recording

Press ■ △ on the tape deck.

Notes

• We recommend that you press ■ on the tape deck first, then press ■ ▲ on the tape deck to avoid noise being recorded when you stop recording.
• You cannot eject the disc, select another disc, track or file, pause playback or find a point in the track or file during CD-TAPE Synchro Recording.

Creating your own sound effect

You can raise or lower the levels of specific frequency ranges and then store up to three user equalizer settings in the memory.

1 Press EQ BAND/SURROUND repeatedly to select a frequency band or surround effect.
2 Turn OPERATION DIAL to adjust the level or select the surround effect you want.

Frequency band

Equalizer level

3 Repeat steps 1 and 2 to adjust the level of other frequency bands and surround effect.
4 Press ENTER.

A user equalizer number flashes in the display.

5 Turn OPERATION DIAL to select a user equalizer number (1\~3) you want to store the equalizer.

Select "EXIT" to cancel storing.

6 Press ENTER.

This setting is automatically stored as the user equalizer setting you selected in step 5.

The previous setting stored at this memory location is erased and replaced by the new setting.

To call up the user equalizer setting

Press PRESET EQ (or EQ on the remote) repeatedly to select “USER EQ 1”, “USER EQ 2”, or “USER EQ 3”.

To cancel the sound effect

Press PRESET EQ (or EQ on the remote) repeatedly until “FLAT” appears in the display.

Singing along

You can sing along with any audio source that play back on this system.

1 Turn MIC LEVEL to MIN to turn down the microphone volume level.
2 Connect an optional microphone to the MIC jack on the unit.
3 Start playing the music.
4 Turn MIC LEVEL to adjust the microphone volume.

If acoustic feedback (howling) occurs, reduce the volume, move the microphone away from the speakers, or change the direction of the microphone.

After you have finished, disconnect the microphone from the MIC jack on the unit.

Using the Timers

The system offers three timer functions. You cannot activate both the Play Timer and the Recording Timer at the same time. If you use either with the Sleep Timer, the Sleep Timer has priority.

Sleep Timer

You can set the system to turn off after a certain time, so that you can fall asleep to music. This function works even if the clock is not set.

Press SLEEP on the remote repeatedly.

Each time you press the button, the turn-off time changes cyclically as follows:

$$ \begin{array}{l} 9 0 \mathrm{MIN} \longrightarrow 8 0 \mathrm{MIN} \longrightarrow 7 0 \mathrm{MIN} \longrightarrow \dots \ \longrightarrow 1 0 \mathrm{MIN} \longrightarrow \mathrm{OFF} \end{array} $$

Other operations

To Do this
Check the remaining time	Press SLEEP once.
Change the time to turn off	Press SLEEP repeatedly to select the time you want.
Cancel the Sleep Timer	Press SLEEP repeatedly until “SLEEP OFF” appears in the display.

Play Timer/Recording Timer

Make sure you have set the clock. Use the button on the remote for the operation.

Play Timer:

You can wake up to disc, tuner or optional USB device at a preset time.

Recording Timer:

You can transfer music from a preset radio station into an USB device at a specified time.

1 Prepare the sound source.

Play Timer

Prepare the sound source, and then press VOLUME +/- to adjust the volume.

To start from a specific track or file, create your own program (page 33).

Recording Timer

Tune in the preset radio station (page 34).

2 Press CLOCK/TIMER SET.

3 Press I◄◄/►►I repeatedly to select "PLAY SET" or "REC SET", and then press ENTER.

“ON” appears, and the hour indication flashes.

4 Set the time to start playing or transferring.

Press ◀◀◀ /▶▶▶ repeatedly to set the hour, and then press ENTER. The minute indication flashes. Use the procedure above to set the minutes.

5 Use the same procedure as in step 4 to set the time to stop playing or transferring.

6 Select the sound source or prepare the USB device.

Play Timer

Press ◀◀◀/▶▶▶ repeatedly until the sound source you want appears, and then press ENTER. The display shows the timer settings.

Recording Timer

Connect a transferable USB device to the B-port on the unit. The display shows the timer settings.

7 Press I/⏻ to turn off the system.

To set the Recording Timer using the controls on the unit (REC TIMER)

1 Tune in the preset station (page 34).
2 Press REC TIMER.
“ON” appears, and the hour indication flashes.
3 Turn OPERATION DIAL to set the hour, then press ENTER.
The minute indication flashes. Use the procedure above to set the minutes.
4 Use the same procedure as in step 3 to set the time to stop recording. The display shows the timer settings.
5 Connect a transferable USB device to the B port on the unit.
6 Press I/⏻ to turn off the system.

To activate or check the timer again

Unit:

Press REC TIMER, turn OPERATION DIAL until “REC SELECT” appears, and then press ENTER.

Remote:

Press CLOCK/TIMER SELECT, press ◀◀◀/▶▶▶I repeatedly until “PLAY SELECT” or “REC SELECT” appears, and then press ENTER.

To cancel the timer

Repeat the same procedure as above until “TIMER OFF” appears, and then press ENTER.

To change the setting

Start over from step 1.

Tips

• The system turns on before the preset time. If the system is turned on at the preset time or if “STANDBY” flashes in the display, the Play Timer and the Recording Timer will not play or transfer.
• The Play Timer setting remains as long as the setting is not canceled manually.
• The volume is reduced to minimum during the Recording Timer.
• The Recording Timer is canceled automatically after the Recording Timer has been activated.

Additional Information

Troubleshooting

Should you encounter a problem with your system, do the following:

1 Make sure the power cord and speaker cords are correctly and firmly connected.

2 Find your problem in the checklist below, and take the indicated corrective action.

If the problem persists after doing all of the above, contact your nearest Sony dealer.

Note that if service personnel changes some parts during repair, these parts may be retained.

When the I/○ indicator flashes

Immediately unplug the power cord, and check the following items.

• If your system has a voltage selector, is the voltage selector set to the correct voltage?
• Are you using only the supplied speakers?
• Are the + and – speaker cords short-circuited?
• Is anything blocking the ventilation holes of the unit?

After checking the above items and fixing any problems, plug in the power cord again and turn on the system. If the I/○ indicator still flashes, or if the cause of the problem cannot be found even after checking all the above items, consult your nearest Sony dealer.

General

The display starts flashing as soon as you plug in the power cord even though you have not turned on the system.

- Press DISPLAY once while the system is turned off. The demonstration disappears.

The clock or timer setting is canceled.

- The power cord is disconnected or a power failure occurred. Redo “Setting the clock” (page 17). If you have set the timer, redo “Using the timer” (page 37).

“--:---” appears in the display.

• The clock is not set. Set the clock (page 17).
• A power failure has occurred. Set the clock (page 17) and timer settings (page 37) again.

There is no sound.

• Turn MASTER VOLUME clockwise (or press VOLUME + repeatedly on the remote).
• The headphones are connected to the PHONES jack.
• Check the speaker connections (page 12).
• There is no audio output during Recording Timer.

There is no microphone sound.

• Turn MASTER VOLUME clockwise (or press VOLUME + repeatedly on the remote) or turn MIC LEVEL clockwise to adjust the microphone volume.
• Make sure the microphone is connected to the MIC jack correctly.

There is severe hum or noise.

• A TV or VCR is placed too close to the unit. Move the unit away from the TV or VCR.
• Move the unit away from the source of noise.
• Connect the unit to a different wall outlet.
  • Install a noise filter (commercially available) to the power cord.
• Turn off surrounding electrical equipment.

The timer does not function.

• Check the timer setting and set the correct time (page 37).
• Cancel the Sleep Timer function (page 37).
• You cannot select the Play Timer and the Recording Timer at the same time.

The remote does not function.

• Remove the obstacles between the remote and the unit.
• Move the remote closer to the unit.
• Point the remote at the unit's sensor.
• Replace the batteries (R6/size AA).
• Move the unit away from the fluorescent light.

There is acoustic feedback.

• Reduce the volume.
• Move the microphone away from the speakers or change the direction of the microphone.

Speakers

Sound comes from one channel or unbalanced left and right volume.

• Place the speakers as symmetrically as possible.
• Check that the speakers are connected securely and correctly.
• The source being played back is monaural.

There is no sound from the subwoofer(s).

• Adjust the subwoofer level on the unit to the appropriate level.
• Check that the subwoofer(s) is(are) connected securely and correctly to the unit.

(MHC-GTR88/MHC-GTR77 only)

There is no sound from the satellite speaker.

- Check that the satellite speakers are connected securely and correctly.

Disc player

The disc tray does not open and "LOCKED" appears in the display.

- Consult your nearest Sony dealer or local authorized Sony service facility.

The disc tray does not close.

• Load the disc correctly.
• Always close the disc tray by pressing ▲ OPEN/CLOSE. Do not forcibly push the disc tray to close it as this may cause a malfunction.

The disc does not eject.

• You cannot eject the disc during CD-USB Synchronized Transfer (page 21), CD-TAPE Synchro Recording (page 35), or REC1 Transferring (page 22). Press ■ to cancel the transferring, then press ▲ OPEN/CLOSE to eject the disc.

- Consult your nearest Sony dealer.

Playback does not start.

• Open the disc tray and check whether a disc is loaded.
• Wipe the disc clean (page 48).
• Reload the disc.
• Load the disc that this system can play back (page 48).

• Load the disc on the disc tray with the label side facing up.

• Remove the disc and wipe away the moisture on the disc, then leave the system turned on for a few hours until the moisture evaporates.

• Press ▶II (or ▶ on the remote) to start playback.

The sound skips.

• Wipe the disc clean (page 48).
• Reload the disc.
• Move the unit to place without vibration (e.g., on top of a stable stand).
• Move the speakers away from the unit, or place them on separate stands. When you listen to a track with bass sounds at high volume, the speaker vibration may cause the sound to skip.

Playback does not start from the first track.

- The system is in Program Play or Shuffle Play mode. Press PLAY MODE on the remote repeatedly until “ALL DISC”, “1 DISC” or “lights up in the display.

The MP3 file cannot be played back.

• The MP3 file is not recorded in a format that conforms to ISO9660 Level 1/Level 2, or Joliet (expansion format).
• The MP3 file does not have the extension “.mp3”.
• The MP3 file in format other than MPEG 1 Audio Layer 3 cannot be played back.
• The system can play back to a depth of 8 folders only.
• The disc contains more than 999 folders.
• The disc contains more than 999 MP3 files.
• MP3 files in MP3 PRO format cannot be played back.

The MP3 files take a longer time to play back than others.

• After the system reads all the files on the disc, playback may take more time than usual if:

– the number of folders or files on the disc is very large.

– the folder and file organization structure is very complex.

The folder name, track name, file name and ID3 tag characters do not appear properly.

• Use a disc that conforms to ISO9660 Level 1/Level 2, or Joliet (expansion format).
• The ID3 tag is not Version 1(1.0/1.1) and Version 2(2.2/2.3).

• The character code that can be displayed by this system are as follows:

• Upper cases (A to Z)

• Numbers (0 to 9)
• Symbols (< > * +, [ ] _)

Other characters may not be displayed correctly.

USB device

You cannot start transferring to an USB device.

- The following problems may have occurred.

• The USB device is full.
• The number of audio files and folders on the USB device has reached the upper limit.
  – The USB device is write-protected.
• The USB device is not connected to the B port.

Transferring is stopped before it is finished.

• You are using an unsupported USB device. See “Compatible USB devices with this system” (page 54) for the supported device types.
• The USB device is not formatted correctly. Refer to the USB device operating instruction on how to format.
• Turn off the system and remove the USB device. If the USB device has a power switch, turn the USB device off and then on again after removing it from the system. Then perform transferring again.

- If the transferring and erase operations are repeated multiple times, the file structure within the USB device becomes complex. Refer to the USB device operating instruction on how to deal with this problem.

Transferring to an USB device results in an error.

• You are using an unsupported USB device. See “Compatible USB devices with this system” (page 54) for the supported device types.
• The USB device was disconnected or the power was turned off during transferring. Delete the partially-transferred file, and transfer again. If this does not fix the problem, the USB device may be broken. Refer to operating instruction of the USB device on how to deal with this problem.
• Turn off the system and remove the USB device. If the USB device has a power switch, turn the USB device off and then on again after removing it from the system. Then perform transferring again.

Audio files or folders on the USB device cannot be erased.

• Check if the USB device is write-protected.
• The USB device was disconnected or the power was turned off during the erase operation. Delete the partially-erased file. If this does not fix the problem, the USB device may be broken. Refer to operating instruction of the USB device on how to deal with this problem.

Are you using a supported USB device?

- If you connect an unsupported USB device, the following problems may occur. See “Compatible USB devices with this system” (page 54) for the supported device types.

– The USB device is not recognized.
- File or folder names are not displayed on this system.
- Playback is not possible.
- The sound skips.
- There is noise.
– A distorted sound is output.
- Transferring stops before it is finished.

"OVER CURRENT" appears.

- A problem has been detected with the level of electrical current from the A port or B port. Turn off the system and remove the USB device from the A port or B port. Make sure there is no problem with the USB device. If this display pattern persists, contact your nearest Sony dealer.

There is no sound.

- The USB device is not connected correctly. Turn off the system and reconnect the USB device, then turn on the system and check if “USB A” or “USB B” lights up in the display.

There is noise, skipping, or distorted sound.

• Turn off the system and reconnect the USB device, then turn on the system.
• The music data itself contains noise, or the sound is distorted. Noise may have entered during the transferring process. Delete the file, and try transferring again.

The USB device cannot be connected into the A port or B port.

- The USB device is being connected backwards. Connect the USB device in the correct orientation.

"READING" is displayed for an extended time, or it takes a long time before playback starts.

• The reading process can take a long time in the following cases.
  – There are many folders or files on the USB device.
• The file structure is extremely complex.
• The memory capacity is excessive.
  – The internal memory is fragmented.
  Thus, we recommend following these guidelines.
• Total folders on USB device: 1000 or less
  – Total files per folder: 150 or less
• Total files on USB device: 3000 or less

Erroneous display.

• The data stored in the USB device may have been corrupted, perform the transferring again.
• The character code that can be displayed by this system are as follows:
• Upper cases (A to Z)
• Numbers (0 to 9)
• Symbols ( <> * +, [ ] _)
  Other characters may not be displayed correctly.

The USB device is not recognized.

• Turn off the system and reconnect the USB device, then turn on the system.
• Connect the supported USB device (page 54).
• The USB device does not work properly. Refer to the USB device operating instruction on how to deal with this problem.

Play does not start.

• Turn off the system and reconnect the USB device, then turn on the system.
• Connect the supported USB device (page 54).
• Press ▶II (or ▶ on the remote) to start play.

Play does not start from the first file.

- Set the play mode to normal play mode (page 19, 28).

Audio file cannot be played back.

- MP3 files in MP3 PRO format cannot be played back.

- Some AAC files may not be played back correctly.

- WMA files in Windows Media Audio Lossless and Professional format cannot be played back.

- USB device formatted with file systems other than FAT16 or FAT32 are unsupported.*

- In case multiple partitions exist in USB device that is being used, files may not be played.

- Playback is possible up to 8 levels.

- The number of folders has exceeded 1000.

- The number of files in a folder has exceeded 150.

- The number of files in a USB device has exceeded 3000.

- Files that are encrypted or protected by passwords, etc. cannot be played back.

* This system supports FAT16 and FAT32, but some USB device may not support all of these FAT. For details, refer to the operating instruction of each USB device or contact the manufacturer.

Tape deck (For African and Pan Asian models only)

The tape does not record or playback, or there is a decrease in sound level.

• The tape heads are dirty (see “Cleaning the tape heads*” on page 49).
• The record/playback heads are magnetized.

The tape does not erase completely.

- The record/playback heads are magnetized.

There is excessive wow or flutter, or the sound drops out.

- The capstans or pinch rollers are dirty (see “Cleaning the tape heads*” and “Demagnetizing the tape heads*” on page 49).

Noise increases or the high frequencies are erased.

- The record/playback heads are magnetized.

The tape does not record.

• No tape is loaded. Load a tape.
• The tab has been removed from the tape. Cover the broken tab with adhesive tape (page 49).
  • The tape has reeled to the end.

Tuner

Severe hum or noise, or stations cannot be received. ("TUNED" or "ST" flashes on the display.)

• Connect the antenna properly.
• Find a location and an orientation that provide good reception, and then set up the antenna again.
• Keep the antennas away from the speaker cords, the power cord and the USB cable to avoid picking up noise.
• Connect a commercially available external antenna.
• Consult your nearest Sony dealer if the supplied AM antenna has come off the plastic stand.
• Turn off nearby electrical equipment.

A stereo FM program cannot be received in stereo.

- Press FM MODE on the remote repeatedly until “MONO” disappears from the display.

Meter

Meter pointer does not move. (MHC-GTR88/MHC-GTR77/

MHC-GTR55 only)

• “MTR POINTER” is set to “OFF” in the OPTIONS menu. Select other settings.
• Meter mode is set to “METER OFF”. Press METER MODE on the unit repeatedly to select other modes.
• The headphones are connected to the PHONES jack. Disconnect the headphones.

Meter display is turned off.

• “MTR POINTER” and “M-BACKLIGHT” are set to “OFF” in the OPTIONS menu. Select other settings.
• Meter mode is set to “METER OFF”. Press METER MODE on the unit repeatedly to select other modes.

Meter display is flashing.

• “MTR POINTER” and “M-BACKLIGHT” are set to “FLASH” in the OPTIONS menu. Select other settings.
• Meter mode is set to “EXCITE 1” or “EXCITE 2”. Press METER MODE on the unit repeatedly to select other modes.

There is no sound.

• Refer to General item “There is no sound.” (page 43) and check the condition of the system.
• Connect the component properly (page 10) while checking:
• if the cords are connected properly.
• if the cord plugs are firmly inserted all the way.
• Turn on the connected component.
• Refer to the operating instructions supplied with the connected component and start playing.

To reset the system to factory settings

If the system still does not operate properly after performing the above measures or other troubles not described above occur, reset the system to factory settings. You cannot reset the system to factory settings in Power Saving Mode.

1 Disconnect and reconnect the power cord, and then turn on the system.
2 Press ■, ENTER, and I/⏻ at the same time.

"COLD RESET" appears in the display.

All user-configured settings, such as preset radio stations, timer, and the clock, are reset to factory setting.

Messages

One of the following messages may appear or flash in the display during operation.

Disc/Tape\*/Timer

LOCKED

The disc tray does not open. Contact your nearest Sony dealer.

NO DISC

There is no disc on the disc tray or you have loaded a disc that cannot be played back on this system.

NO STEP

All of the programmed steps have been erased.

NOT IN USE

You have pressed a button those operation is not allowed or invalid at this time.

OFF TIME NG

The Play Timer or Recording Timer start and stop times are set to the same time.

PUSH SELECT

You tried to set the clock or timer during timer operation.

PUSH STOP

You tried to perform an operation that can be performed only when the system is stopped.

READING

The system is reading information of the disc. Some buttons are not available.

SET CLOCK

You pressed CLOCK/TIMER SELECT before the clock is set.

SET TIMER

You pressed CLOCK/TIMER SELECT before the Play Timer or Recording Timer is set.

STEP FULL

You tried to program more than 25 steps.

UNLOCK

The disc theft-preventive function is released.

* For African and Pan Asian models only

USB device

DATA ERROR

You tried to play a file that is not playable.

DEVICE ERROR

The USB device could not be recognized or an unknown device is connected (page 43).

DEVICE FULL

The memory of the USB device is full.

FATAL ERROR

The USB device was removed during transferring or erase operation, and may have been damaged.

FOLDER FULL

You cannot transfer onto the USB device because the number of folders have reached its maximum.

NO DEVICE

The USB device is not connected.

NO MEMORY

External device is not inserted in mobile phone.

NO STEP

All of the programmed steps have been erased.

NO TRACK

No playable file is loaded in the system.

NOT IN USE

You tried to perform a specific operation under conditions where that operation is prohibited.

NOT SUPPORTED

An unsupported USB device is connected, or the USB device is connected through an USB hub.

OVER CURRENT

An over current was detected.

PROTECTED

The USB device is write-protected.

PUSH STOP

You tried to perform an operation that can be performed only when the system is stopped.

READING

The system is reading information of the USB device. Some buttons are not available.

REC ERROR

Transferring did not start, stopped partway, or otherwise could not be performed (page 42).

STEP FULL

You tried to program more than 25 steps.

TRACK FULL

You cannot transfer onto the USB device because the number of files have reached its maximum.

Precautions

Discs that this system CAN play

- AUDIO CD

• CD-R/CD-RW (audio data/MP3 files)

Discs that this system CANNOT play

• CD-ROM
• CD-R/CD-RW other than those recorded in AUDIO CD format or MP3 format conforming to ISO9660 Level 1/Level 2, Joliet in the expansion format
• CD-R/CD-RW recorded in multisession that have not ended by “closing the session”
• CD-R/CD-RW of poor recording quality, CD-R/CD-RW that have scratches or are dirty, or CD-R/CD-RW recorded with an incompatible recording device
  • CD-R/CD-RW which is finalized incorrectly
  • Discs containing files other than MPEG 1 Audio Layer-3 (MP3) files
  • Discs of non-standard shape (for example, heart, square, star)
  • Discs that have adhesive tape, paper, or sticker attached to them
• Rental or used discs with attached seals where the glue extends beyond the seal
  • Discs that have labels printed using ink that feels tacky when touched

Notes on discs

• Before playing, wipe the disc with a cleaning cloth from the center out to the edge.
• Do not clean discs with solvents, such as benzine thinner, or commercially available cleaners or anti-static spray intended for vinyl LPs.
• Do not expose discs to direct sunlight or heat sources such as hot air ducts, nor leave it in a car parked in direct sunlight.

On safety

• The unit is not disconnected from the mains as long as it is connected to the AC outlet, even if the unit itself has been turned off.

• Completely disconnect the power cord (mains lead) from the wall socket (mains) if it is not going to be used for an extended period of time. When unplugging the unit, always grip the plug. Never pull the cord itself.

• Should any solid object or liquid get into the system, unplug the system, and have it checked by qualified personnel before operating it again.

• AC power cord must be changed only at the qualified service shop.

On placement

• Do not place the system in an inclined position or in locations that are extremely hot, cold, dusty, dirty, or humid or lacking adequate ventilation, or subject to vibration, direct sunlight or a bright light.
• Be careful when placing the unit or speakers on surfaces that have been specially treated (for example, with wax, oil, polish) as staining or discoloration of the surface may result.
• If the system is brought directly from a cold to a warm location or is placed in a very damp room, moisture may condense on the lens inside the unit, and cause the system to malfunction. In this situation, remove the disc, and leave the system turned on for about an hour until the moisture evaporates.

On heat buildup

• Heat buildup on the unit during operation is normal and is not a cause for alarm.
• Do not touch the cabinet if it has been used continuously at a high volume because the cabinet may have become hot.
• Do not obstruct the ventilation holes.

On the speaker system

This speaker system is not magnetically shielded, and the picture on nearby TV sets may become magnetically distorted. In this situation, turn off the TV, wait 15 to 30 minutes, and turn it back on. If there is no improvement, move the speakers far away from the TV.

Cleaning the cabinet

Clean this system with a soft cloth slightly moistened with a mild detergent solution. Do not use any type of abrasive pad, scouring powder, or solvent, such as thinner, benzine, or alcohol.

To prevent a tape from being accidentally recorded over\*

Break off the tape's overwrite protection tab from side A or B as illustrated.

To later reuse the tape for recording, cover the broken tab with adhesive tape.

About a tape longer than 90 minutes\*

The use of the tape with more than 90 minutes of play time is not recommended except for long, continuous recording or playback.

Cleaning the tape heads\*

Use a dry- or wet-type cleaning tape (available separately) after every 10 hours of use, before you start an important recording, or after playing an old tape. Failure to clean the tape heads can cause degraded sound quality or an inability of the unit to record or play tapes. For details, refer to the instructions of the cleaning tape.

Demagnetizing the tape heads\*

Use a demagnetizing tape (available separately) after every 20 to 30 hours of use. Failure to demagnetize the tape heads can cause an increase in noise, a loss of high frequency sound, and an inability to completely erase tapes. For details, refer to the instructions of the demagnetizing tape.

* For African and Pan Asian models only

Specifications

Amplifier section

MHC-GTR88

Brazilian model only

The following are measured at AC 127 V or 220 V 60 Hz

Front/Satellite Speaker

Power Output (rated):

200 W + 200 W (at 6 Ω, 1 kHz,

1% THD)

Front Speaker

RMS output power (reference):

275 W + 275 W (per channel at 8 Ω,

1 kHz, 10% THD)

Satellite Speaker

RMS output power (reference):

110 W + 110 W (per channel at 24 Ω,

1 kHz, 10% THD)

Subwoofer

RMS output power (reference):

165 W + 165 W (per channel at 6 Ω,

100 Hz, 10% THD)

Other model

The following are measured at

Mexican model:

AC 127 V, 60 Hz

Other models:

AC 120 V, 220 V, 240 V, 50/60 Hz

Front/Satellite Speaker

Power Output (rated):

200 W + 200 W (at 6 Ω, 1 kHz,

1% THD)

Front Speaker

RMS output power (reference):

345 W + 345 W (per channel at 8 Ω,

1 kHz)

Satellite Speaker

RMS output power (reference):

140 W + 140 W (per channel at 24 Ω, 1 kHz)

Subwoofer

RMS output power (reference):

200 W + 200 W (per channel at 6 Ω, 100 Hz)

MHC-GTR77

The following are measured at

Mexican model:

AC 127 V, 60 Hz

Other models:

AC 120 V, 220 V, 240 V, 50/60 Hz

Front/Satellite Speaker

Power Output (rated):

120 W + 120 W (at 6 Ω, 1 kHz, 1% THD)

Front Speaker

RMS output power (reference):

225 W + 225 W (per channel at 8 Ω, 1 kHz)

Satellite Speaker

RMS output power (reference):

100W + 100W (per channel at 24 1kHz )

Subwoofer

RMS output power (reference):

130W + 130W (12 , 100Hz )

MHC-GTR55

The following are measured at

Mexican model:

AC 127 V, 60 Hz

Other models:

AC 120 V, 220 V, 240 V, 50/60 Hz

Front Speaker

Power Output (rated):

110 W + 110 W (at 6 Ω, 1 kHz, 1% THD)

RMS output power (reference):

240 W + 240 W (per channel at 6 Ω, 1 kHz)

Subwoofer

RMS output power (reference):

240 W (6 Ω, 100 Hz)

MHC-GTR33

Brazilian model only

The following are measured at AC 127 V or 220 V 60 Hz

Front Speaker

Power Output (rated):

75 W + 75 W (at 6 Ω, 1 kHz, 1% THD)

RMS output power (reference):

135 W + 135 W (per channel at 6 Ω, 1 kHz, 10% THD)

Subwoofer

RMS output power (reference): 130 W (6 Ω, 100 Hz, 10% THD)

Other models

The following are measured at

Mexican model:

AC 127 V, 60 Hz

Other models:

AC 120 V, 220 V, 240 V, 50/60 Hz

Front Speaker

Power Output (rated): 75 W + 75 W (at 6 Ω, 1 kHz, 1% THD) RMS output power (reference): 165 W + 165 W (per channel at 6 Ω, 1 kHz)

Subwoofer

RMS output power (reference): 160 W (6 Ω, 100 Hz)

Inputs

PC (AUDIO IN) L/R

Voltage 700 mV, impedance

47 kilohms

MIC

Sensitivity 1 mV, impedance

10 kilohms

(USB) port: Type A

Outputs

PHONES

Accepts headphones of 8 Ω or more

USB section

Supported bit rate

MP3 (MPEG 1 Audio Layer-3):

32 kbps - 320 kbps, VBR

WMA: 48 kbps - 192 kbps

AAC: 48 kbps - 320 kbps

Sampling frequencies

MP3 (MPEG 1 Audio Layer-3):

32 kHz/44.1 kHz/48 kHz

WMA: 44.1 kHz

AAC: 44.1 kHz

Transfer speed

Full-Speed

Supported USB device

Mass Storage Class

Maximum current

500 mA

Disc player section

System

Compact disc and digital audio system

Laser Diode Properties

Emission Duration: Continuous

Laser Output*: Less than 44.6 μW

* This output is the value measurement at a distance of 200 mm from the objective lens surface on the Optical

Pick-up Block with 7 mm aperture.

Frequency response

20 Hz - 20 kHz

Signal-to-noise ratio

More than 90 dB

Dynamic range

More than 88 dB

Tape deck section

(For African and Pan Asian models only)

Recording system

4-track 2 channel, stereo

Tuner section

FM stereo, FM/AM superheterodyne tuner

FM tuner section

Tuning range

North American and Brazilian models:

87.5 MHz - 108.0 MHz (100 kHz step)

Other models:

87.5 MHz - 108.0 MHz (50 kHz step)

Antenna

FM lead antenna

Antenna terminals

75 ohms unbalanced

Intermediate frequency

10.7 MHz

AM tuner section

Tuning range

Pan American and Oceanian models:

530 kHz - 1,710 kHz (with 10 kHz tuning interval)

531 kHz - 1,710 kHz (with 9 kHz tuning interval)

Other models:

530 kHz - 1,610 kHz (with 10 kHz

tuning interval)

531 kHz - 1,602 kHz (with 9 kHz

tuning interval)

Antenna

AM loop antenna, external antenna terminal

Intermediate frequency

450 kHz

Continued

Speakers

For MHC-GTR88

Front speaker (SS-GTR88)

Speaker system

2-way, 2-driver, Bass reflex

Speaker unit

Woofer: 200 mm, cone type

Tweeter: 25 mm, horn type

Rated impedance

8 ohms

Dimensions (w/h/d)

Approx. 250 mm × 395 mm × 330 mm

Mass

Approx. 6.0 kg net per speaker

Satellite speaker (SS-RSR88)

Speaker system

2-way, 2-driver, Bass reflex

Speaker unit

Woofer: 100 mm, cone type

Tweeter: 40 mm, cone type

Rated impedance

24 ohms

Dimensions (w/h/d)

Approx. 175 mm × 395 mm × 230 mm

Mass

Approx. 2.7 kg net per speaker

Subwoofer (SS-WGR88)

Subwoofer system

1-way, 1-driver, Bass reflex

Speaker unit

Subwoofer: 250 mm, cone type

Rated impedance

6 ohms

Dimensions (w/h/d)

Approx. 390 mm × 365 mm × 325 mm

Mass

Approx. 7.6 kg

For MHC-GTR77

Front speaker (SS-GTR77)

Speaker system

2-way, 2-driver, Bass reflex

Speaker unit

Woofer: 200 mm, cone type

Tweeter: 40 mm, cone type

Rated impedance

8 ohms

Dimensions (w/h/d)

Approx. 250 mm × 395 mm × 330 mm

Mass

Approx. 6.3 kg net per speaker

Satellite speaker (SS-RSR77)

Speaker system

2-way, 2-driver, Bass reflex

Speaker unit

Woofer: 100 mm, cone type

Tweeter: 40 mm, cone type

Rated impedance

24 ohms

Dimensions (w/h/d)

Approx. 175 mm × 395 mm × 230 mm

Mass

Approx. 2.7 kg net per speaker

Subwoofer (SS-WGR77)

Subwoofer system

1-way, 1-driver, Bass reflex

Speaker unit

Subwoofer: 200 mm, cone type

Rated impedance

12 ohms

Dimensions (w/h/d)

Approx. 265 mm × 365 mm × 335 mm

Mass

Approx. 6.2 kg

For MHC-GTR55

Front speaker (SS-GTR55)

Speaker system

2-way, 2-driver, Bass reflex

Speaker unit

Woofer: 200 mm, cone type

Tweeter: 40 mm, cone type

Rated impedance

6 ohms

Dimensions (w/h/d)

Approx. 250 mm × 395 mm × 290 mm

Mass

Approx. 5.1 kg net per speaker

Subwoofer (SS-WGR55)

Subwoofer system

1-way, 1-driver, Bass reflex

Speaker unit

Subwoofer: 250 mm, cone type

Rated impedance

6 ohms

Dimensions (w/h/d)

Approx. 318 mm × 395 mm × 335 mm

Mass

Approx. 7.6 kg

For MHC-GTR33

Front speaker (SS-GTR33)

Speaker system

2-way, 2-driver, Bass reflex

Speaker unit

Woofer: 160 mm, cone type

Tweeter: 40 mm, cone type

Rated impedance

6 ohms

Dimensions (w/h/d)

Approx. 237 mm × 361 mm × 210 mm

Mass

Approx. 3.0 kg net per speaker

Subwoofer (SS-WGR33)

Subwoofer system

1-way, 1-driver, Bass reflex

Speaker unit

Subwoofer: 200 mm, cone type

Rated impedance

6 ohms

Dimensions (w/h/d)

Approx. 265 mm × 361 mm × 305 mm

Mass

Approx. 5.5 kg

General

Power requirements

Oceanian model: AC 230 V – 240 V, 50/60 Hz

Mexican model: AC 127 V, 60 Hz

Brazilian model: AC 127 V or 220 V,

60 Hz, adjustable with voltage selector

Argentina model: AC 220 V, 50/60 Hz

Other models: AC 120 V, 220 V or

230 V – 240 V, 50/60 Hz, Adjustable

with voltage selector

Power consumption

MHC-GTR88: 460 W

MHC-GTR77: 260 W

MHC-GTR55: 250 W

MHC-GTR33: 280 W

Dimensions (w/h/d) (excl. speakers)

(Approx.)

HCD-GTR88:

231 mm × 361 mm × 518 mm

HCD-GTR77/HCD-GTR55/

HCD-GTR33:

231 mm × 361 mm × 429.5 mm

Mass (excl. speakers) (Approx.)

African and Pan Asian models:

HCD-GTR88: 16.2 kg

HCD-GTR77/HCD-GTR55: 10.7 kg

HCD-GTR33: 10.5 kg

Other models:

HCD-GTR88: 15.7 kg

HCD-GTR77/HCD-GTR55: 10.2 kg

HCD-GTR33: 10.0 kg

Supplied accessories:

Remote Commander (1)

R6 (Size AA) batteries (2)

AM loop antenna (1)

FM lead antenna (1)

Speaker pads

(MHC-GTR88 only) (12)

(MHC-GTR33 only) (12)

Spacer A (MHC-GTR88 only) (2)

Spacer B (MHC-GTR88 only) (2)

Design and specifications are subject to change without notice.

Compatible USB devices with this system

You can use the following Sony USB devices and Sony Ericsson mobile phone on this system.

Verified Sony USB device

Product name	Model name
Walkman®	NWZ-B133 / B135 / B133F / B135F
	NWD-E023F / E025F
	NWZ-E435F / E436F / E438F
	NWZ-S636F / S638F / S639F / S736F / S738F / S739F
	NWZ-A726 / A726B / A728 / A728B / A729
	NWZ-A826 / A828 / A829
IC Recorder ICD-UX71 / UX81 / UX91
MICROVAULT USM1GL / 2GL / 4GL / 8GL / 16GL

Verified Sony Ericsson mobile phone

Product name	Model name
Walkman® phone	W302 / W350i / W380i / W595
	W760i / W890i
	W902 / W910i / W960i / W980

Notes

• During playback or transferring of files, there is a small possibility that these operations may be stopped due to excess static buildup in the system or the USB device. In this case, remove the USB device and reconnect it, then retry the operation from the beginning.
• Do not use USB devices other than these USB devices. Operation of models not listed here is not guaranteed.
• Operation may not always be ensured even when using these USB devices.
• Some of these USB devices may not be available for purchase in certain areas.
• When formatting a USB device, be sure to do so using the device itself, or dedicated formatting software for the device. Otherwise, you may be unable to properly transfer from the USB device to this system.

Notes on using the Sony Ericsson mobile phone

• Connect to this system with the mobile phone turned on.
• While the mobile phone is connected to this system, do not insert or detach the memory card.
• When connecting to this system, set the data transfer mode of your mobile phone to File Transfer (Mass Storage). For details, refer to the operating instruction supplied with the mobile phone.
• Use the USB cable supplied with the mobile phone when connecting to the system.
• Some audio files supported by the mobile phone are not supported by this system.
• In the case that the song which is registered as the playlist in the mobile phone is erased by this system, the playlist registration is not deleted.
• The Play Timer and Rec Timer in this system are not supported.

Notes on Walkman®

• Some files supported by the Walkman ^® are not supported by this system.
• When connecting a Walkman ^® to the system, be sure to connect after the display “Creating Library” or “Creating Database” on the Walkman ^® has disappeared.
• Some files supported by the Walkman ^® are not supported by this system.
• When connecting a Walkman ^® to the system, be sure to connect after the display “Creating Library” or “Creating Database” on the Walkman ^® has disappeared.
