Brand	Philips
Model	GearUnits ECM 330
Product Type	Electronic Control Gear for LED Lighting
Input Voltage	220-240 V AC, 50/60 Hz
Output Current	350 mA constant
Output Power	Up to 33 W
Dimensions (L x W x H)	120 x 30 x 20 mm
Weight	0.2 kg
Protection Class	Class II (double insulated)
IP Rating	IP20 (indoor use only)
Operating Temperature	-20°C to +45°C
Dimmable	Yes, via phase-cut dimmer
Compatible LED Modules	Philips Fortimo and similar
Mounting	Surface or recessed
Wiring	Push-in terminals
Safety Certifications	CE, ENEC, RoHS
Overload Protection	Yes (automatic shut-off)
Short Circuit Protection	Yes
Maintenance	Wipe with dry cloth; do not use water
Spare Parts Availability	Through Philips service centers
Repairability Index	5.5 / 10 (replaceable components)

Frequently Asked Questions - GearUnits ECM 330 PHILIPS

What is the Philips GearUnits ECM 330 used for?

It is an electronic control gear designed to power and drive LED light modules in professional lighting applications.

What is the input voltage requirement?

The unit operates on 220-240 V AC at 50/60 Hz.

Can the ECM 330 be dimmed?

Yes, it supports dimming via phase-cut dimmers (both leading and trailing edge).

What LED modules are compatible?

It is primarily compatible with Philips Fortimo LED modules and other constant current LED modules requiring 350 mA.

What are the dimensions of the device?

The dimensions are approximately 120 mm x 30 mm x 20 mm (length x width x height).

Is the GearUnits ECM 330 suitable for outdoor use?

No, it has an IP20 rating, meaning it is only suitable for indoor dry locations.

How do I install the ECM 330?

Installation should be done by a qualified electrician. Connect the mains supply to the input terminals and the LED module to the output terminals following the wiring diagram.

Does the device have protection features?

Yes, it includes overload, short circuit, and over-temperature protection.

What is the expected lifespan?

The device is designed for 50,000 hours of operation under normal conditions.

Where can I find spare parts or service?

Contact Philips authorized service centers for replacements or repairs. Check the Philips website for local support.

USER MANUAL GearUnits ECM 330 PHILIPS

Mounting instructions

I. Lamp currents are approximate data. For exact data refer to the lamp data sheet.
2. Ignitor on the luminaire, not on the gear unit.
Maximum distance in between e-ballast gear unit and floodlight is 80 m for 1000 W and 120 m for 2000 W versions.
See below table for recommended cable cross sections.
3. Current ripple: <10 %.
4. Earth leakage current: 480 V, 50-60 Hz <3.5 mA.
5. Output power tolerance: ±5 %.
6. Mains supply voltage fluctuation not more than -8 % and +6 % from the rated voltage of the ballast.

Technical line drawing of a power supply unit with cooling fins and terminal blocks (no text or symbols)

Use Philips lamps for optimum performance

• Fonctionnement optimal avec lampes Philips
• Optimale Bestriebsleistung mit Philips-Lampen
  Toimii parhaiten Philips-lamppujen kanssa
  Fungerar bäst med lampor från Philips

·Werkt het best met Philips-lampen
- Resultados óptimos con lámparas Philips
· Fungerer mest optimalt med Philips-lamper

• Funzionamento ottimale garantito con lampade Philips
• Funciona melhor com lâmpadas Philips no interior
• Fungerer bedst med Philips-lamper

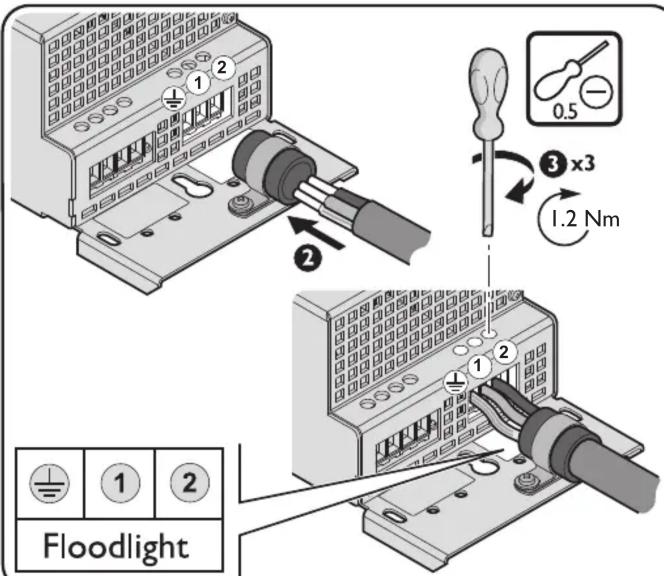

FLOODLIGHT

CONNECTION	1000 W	2000 W
1.5 mm2	Less then 20 m	Less then 35 m
2.5 mm2	20 to 40 m	35 to 60 m
4 mm2	40 to 60 m	60 to 85 m
6 mm2	60 to 80 m	85 to 120 m

Warning high leakage current earth connection essential before connecting supply

(5.1.7.1 of IEC60950-1)

Main supply must be fused according to local safety regulations. Philips recommends 2-phase fuse protection (fuses are not provided by Philips).

The appropriate fuse value can be calculated as:

Plamp × 1,5/Vin ≥ Ifuse ≥ Plamp × 1,2/Vin

LED Status indicators

LED Status	LED D1 (yellow)	LED D2 (green)	LED D3 (red)
Continuously lighting	Fan speed out of specified range, check Fan	Normal operating mode	No successful ignition happens during complete ignition sequence, ballast in standby mode, check lamp and ignitor
Flashing	Mains voltage out of specified range,check mains voltage	Ignition sequence active/waiting for auto restrike	Lamp-end-of life shutdown, replace lamp.
Reset by	Mains off *)	Not applicable	Mains off

*) After under voltage protection activation, driver start again when U_mains return to nominal value

After over voltage protection activation, driver start again when Umains will off during 30 sec. and then return to nominal value.

Behavior after over temperature shutdown: Automatic restarting after cool down.

It is essential to isolate the electronic ballast/ignitor or the connected luminaire electrically from mains voltage before maintenance!

Do not attempt to handle or operate an electronic power supply (EPS) and ignitor before completely reading and understanding this notice.

Contact Philips if you are uncertain of hazards associated with these devices.

The Ballast and the ignitor produces starting voltages of up to 11 kV and electromagnetic radiation interference which are hazardous to personnel and sensitive instrumentation.

Exercise appropriate care in the handling of high voltages. Do not touch any conductive parts during operation.

Ensure the units are disconnected from the mains before exchanging the lamp connected to the PSU / ignitor resp. in to the end application. The residual charge left on the capacitors is a danger to life if the units are still connected to mains!

Caution: The residual charge on the capacitors can be a danger to life even if the units are disconnected from the mains. Please handle with care!

Both electronic lamp ballast and ignitor must never be installed or operated in an explosive or volatile atmosphere. Never use the ballast or ignitor near flammable

gases or liquids. See that there will be no moisture, dust or similar which could lead to short circuits or fire.

Before using the ballast or ignitor in any kind of outdoor application you have to take additional measures and observe special requirements. If you are uncertain, contact Philips.

No potential isolation is provided between line input and output. Accidentally grounding of an output terminal by direct contact or arcing to GND can damage the unit (no warranty replacement).

The unit is designed for case mounting. Due observation of electrical safety and RFI suppression code requirements is mandatory in all applications.

See that sufficient cooling of EPS and ignitor is provided.

All installation and repair work on this unit is only permitted by qualified personnel. Always comply with local safety requirements when operating the unit uncased.

Extreme care must be taken when testing the unit live. The use of an isolating transformer is mandatory. On no account may grounded test instruments / meters be used for this purpose!

Philips does not assume liability for disregarding of this notice, incorrect use of the EPS and ignitor or dis-regarding of any legal requirements.

This product is subject to technical changes without prior notice.
