| Product Type | Digital Wireless Receiver |
| Brand | Lectrosonics |
| Model | DSQD |
| Dimensions (H x W x D) | 1.75 x 8.25 x 6.5 inches (44.45 x 209.55 x 165.1 mm) |
| Weight | 2.6 lbs (1.18 kg) |
| Power Requirements | 12-18V DC, 0.8A |
| Frequency Range | 470-614 MHz (region dependent) |
| Audio Output | Balanced XLR, 1/4" headphone jack |
| Diversity | True diversity, two antennas |
| RF Sensitivity | -100 dBm (typical) |
| Audio Frequency Response | 20 Hz - 20 kHz |
| Dynamic Range | 110 dB (A-weighted) |
| Digital Processing | DSP-based audio processing |
| Enclosure Material | Aluminum chassis |
| Mounting | Half-rack width, single or dual mount |
| Temperature Range | -20°C to 50°C |
| Maintenance | Clean with dry soft cloth; avoid solvents |
| Safety | Do not expose to moisture or extreme temperatures |
| Spare Parts & Repairability | Contact authorized service center |
| Warranty | Refer to product manual |
Frequently Asked Questions - DSQD Lectrosonics
How do I pair the DSQD with a Lectrosonics transmitter?

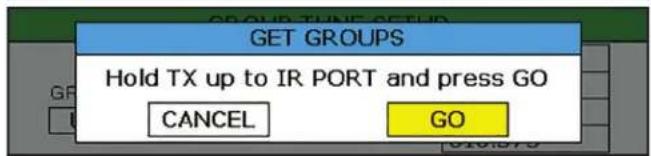

Ensure both devices are on the same frequency band. Use the SYNC function or manually set the transmitter frequency to match the receiver’s frequency using the IR sync or menu settings.
What is the frequency range of the DSQD receiver?
The frequency range is 470-614 MHz, but it varies by region. Check the model label for the specific block (e.g., A1, B1, C1).
Can I use the DSQD with other brands of transmitters?
It is designed for Lectrosonics transmitters. Using non-Lectrosonics transmitters may cause poor performance or incompatibility due to proprietary digital protocols.
How do I update the firmware on the DSQD?

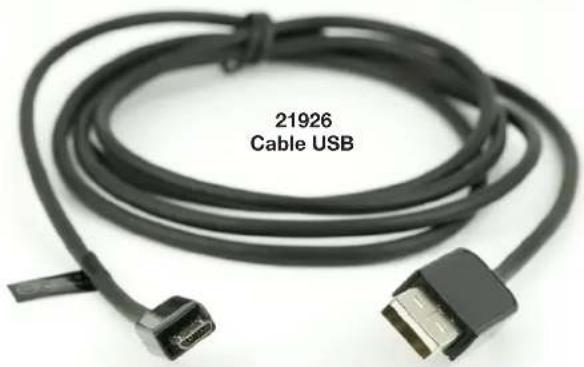

Connect the receiver to a PC via the USB port and use the Lectrosonics Device Manager software. Download the latest firmware from the Lectrosonics website.
What type of audio output does the DSQD have?
It provides a balanced XLR output for professional audio equipment and a 1/4-inch headphone jack for monitoring.
How do I clean and maintain the DSQD?
Use a dry, soft cloth to wipe the exterior. Do not use harsh chemicals or abrasive materials. Keep the vents and antenna connectors free of dust.
What power supply is recommended for the DSQD?
Use a regulated 12-18V DC power supply with at least 0.8A current capacity. The supplied power adapter must be used to avoid damage.
How do I troubleshoot no audio from the receiver?
Check that the transmitter is powered on and the frequency matches. Verify the RF signal indicator on the DSQD. Inspect audio cables and ensure the output volume is turned up.

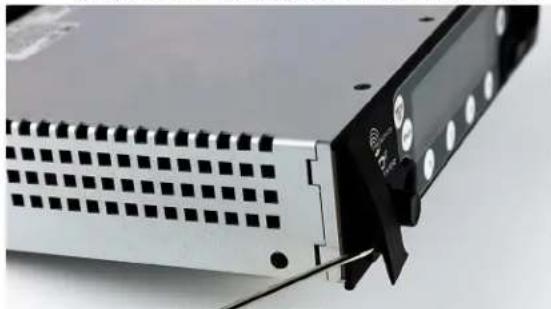

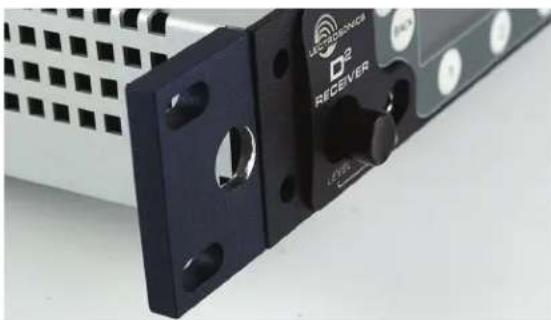

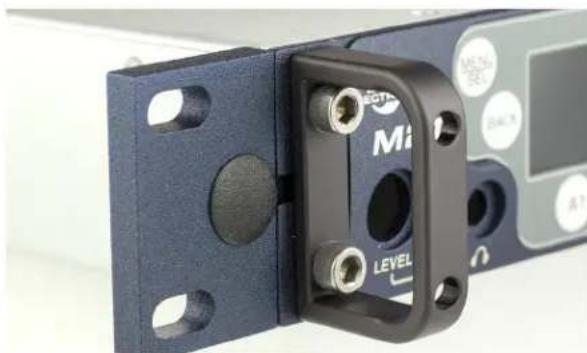

Can the DSQD be rack-mounted?

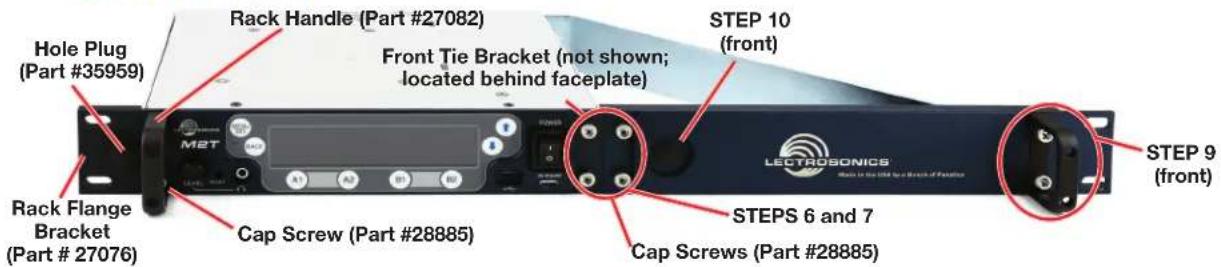

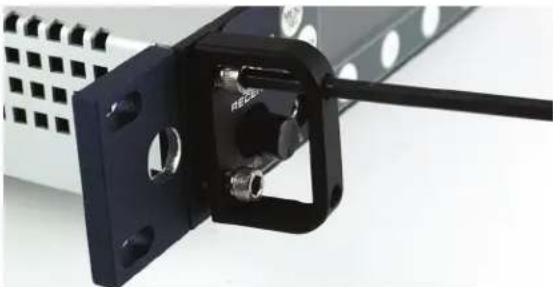

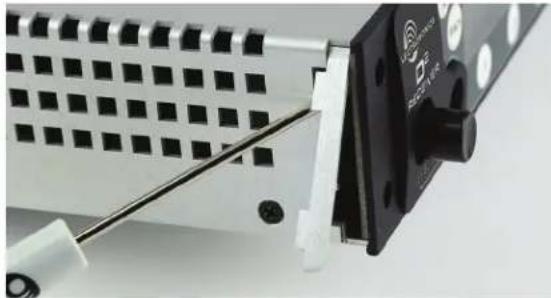

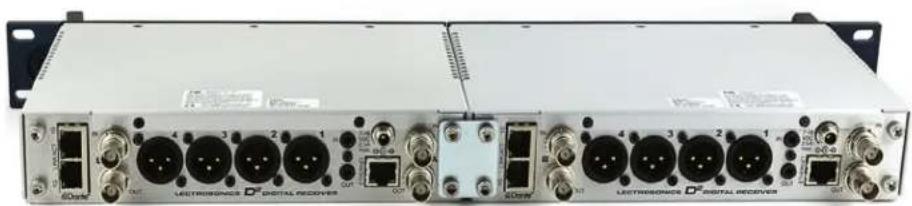

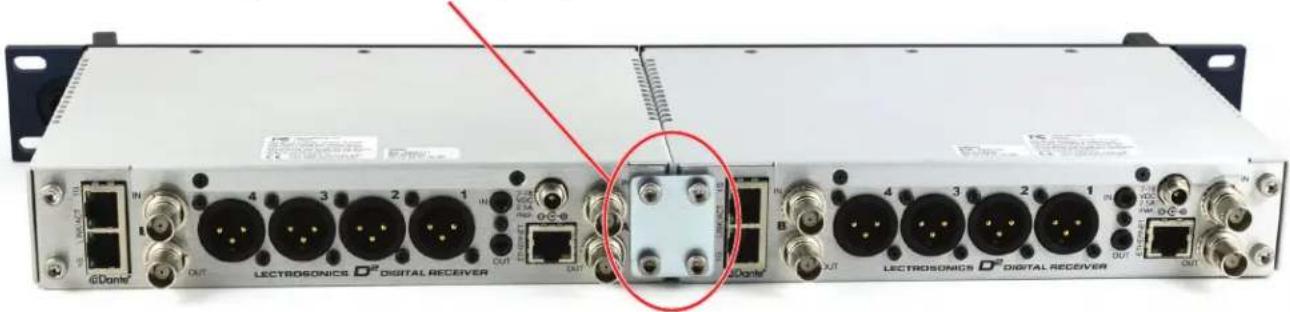

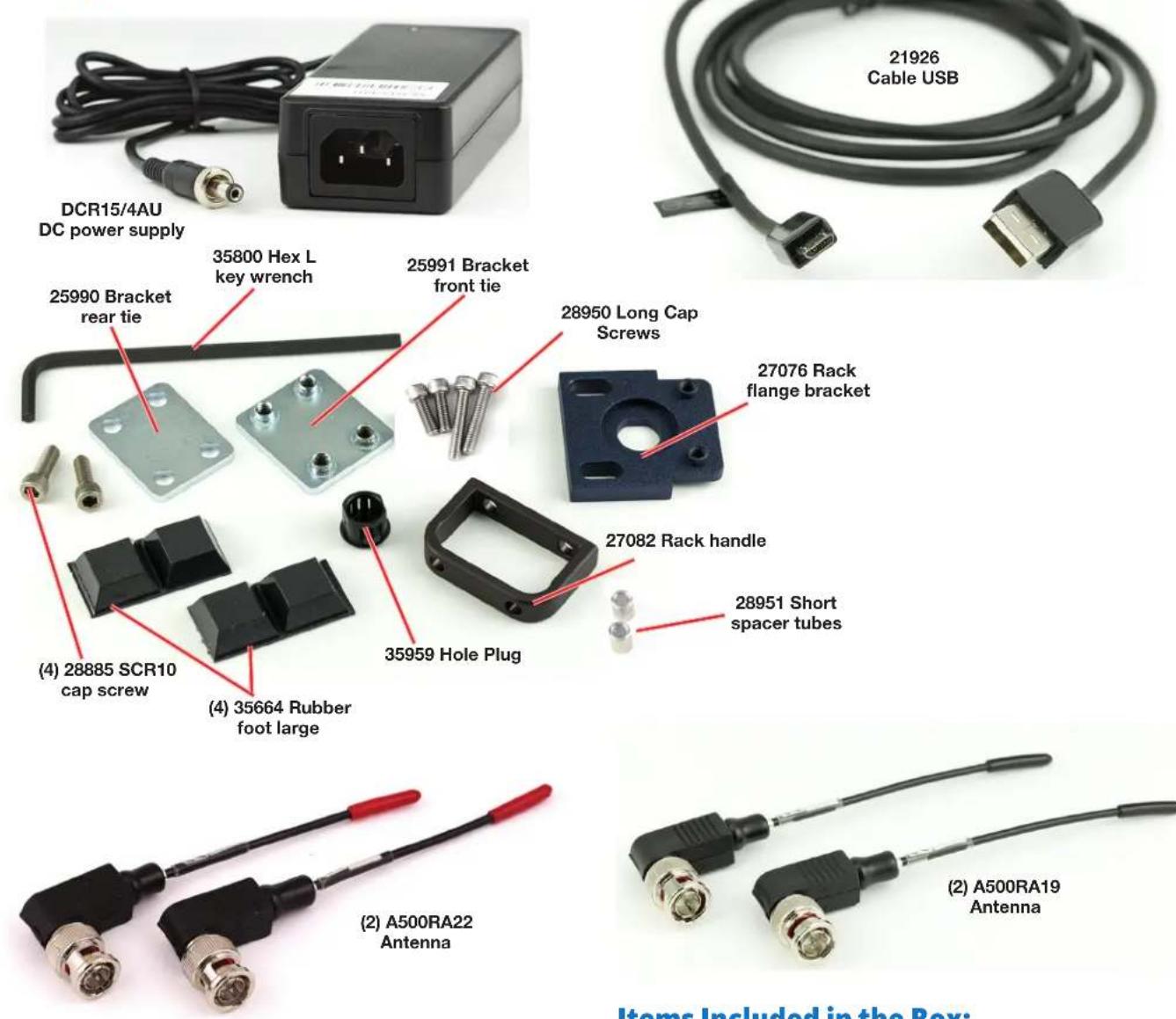

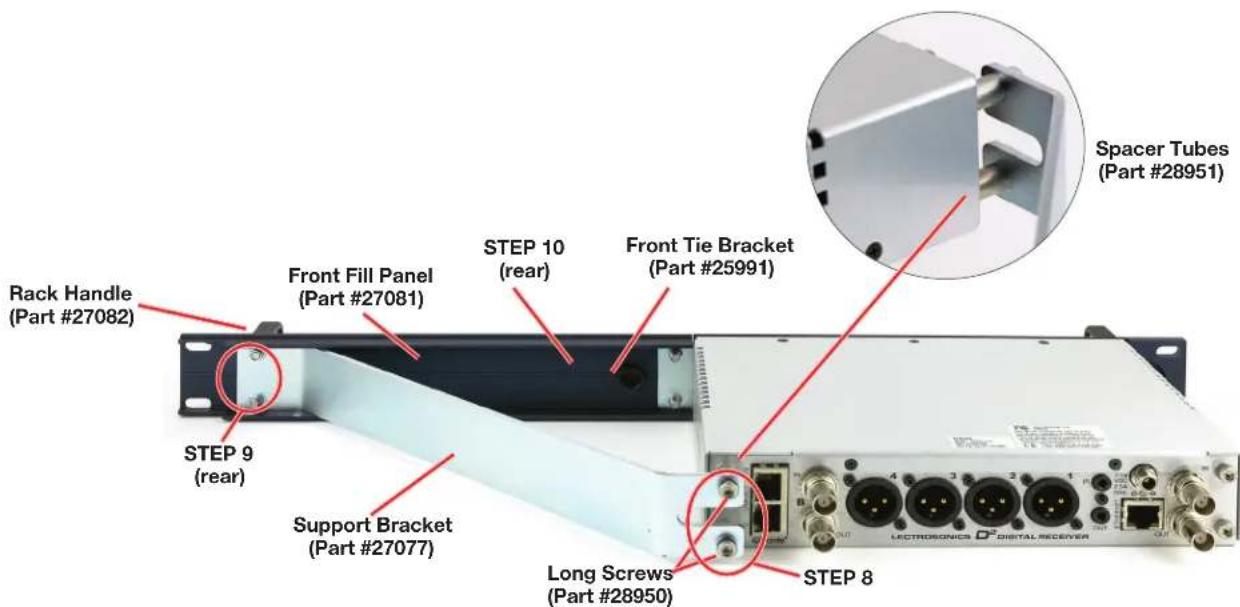

Yes, it is half-rack width and can be mounted singly or with a second DSQD using a rackmount kit (available separately).

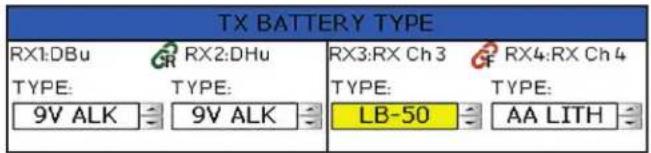

What is the typical battery life for a transmitter paired with the DSQD?
Battery life depends on the transmitter model and battery type. For Lectrosonics transmitters, alkaline batteries last about 8-10 hours; rechargeable options vary.
