USER MANUAL B442 BOSCH

B442 Conettix Plug-in GPRS Cellular Communicator

www.boschsecurity.com

BOSCH

Invented for life

Electronic circuit board with wireless signal port and antenna (no readable text or symbols)

The B442 provides IP communication over a GSM (GPRS) cellular network by plugging into a B Series control panel or B450 Conettix Plug-in Communicator Interface. Typical applications are:

• Alarm reporting to a central station
• Remote control panel programming through Remote Programming Software
• Remote monitoring and control through a mobile application
• Personal notification using SMS

The B442 is built for a wide variety of secure commercial and industrial applications. Flexible end-to-end path supervision, 128-bit to 256-bit AES encryption, and anti-substitution features make B442 desirable for high security and fire monitoring applications.

Notice

Cellular capability requires an appropriate SIM card and data plan.

• Secure Conettix IP alarm communication for Latin America
  ▶ Remote programming and monitoring of compatible Bosch control panels
  ▶ Personal SMS message and e-mail notification options
• Configured directly from Bosch Remote Programming Software eliminating the need for separate configuration

System overview


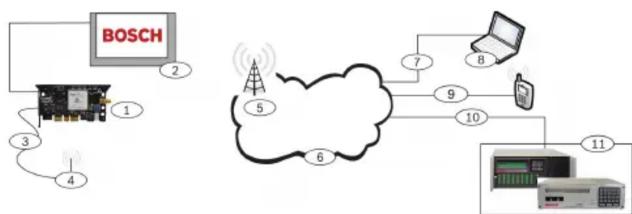

Callout — Description	Callout — Description
1 — B442 Conettix Plug-in GPRS Cellular Communicator	7 — Remote PC’s network connection
2 — Compatible control panel 8 — Remote PC running RPS
3 — Antenna cable 9 — Personal SMS notification
4 — Magnetic base antenna 10 — Ethernet connection
5 — Base station on wireless carrier’s network	11 — Central monitoring station
6 — IP network cloud

Functions

Conettix IP communication via Cellular

In addition to the security provided by the network operator, the B442 uses our Conettix IP protocol that supports:

• Flexible polling intervals
- Resistance to Denial of Service attacks
• Anti-replay/anti-substitution keys

Easy Installation, troubleshooting, and maintenance

• No networking expertise required at field site (no firewall or router settings)
• No computer or special tools required for installation and troubleshooting
• Manage service plans and settings through RPS (Bosch Cellular service only)
• Diagnostic LEDs for on-site troubleshooting

LED Function

Blue (STATUS) System status Indicator

Red Unacceptable signal strength

Yellow Marginal signal strength

1 Green Good signal strength

2 Green Very good signal strength

Remote programming of Bosch control panels

The B442 supports secure, remote programming of compatible Bosch control panels.

Personal notification and control

The B442 supports the Bosch Remote Security Control mobile application and can be configured for SMS personal notification reports to mobile phones.

Certifications and approvals

Region Agency Certification
US FCC FCC, Part 15 Class B Radiated/Conducted Emissions
UL UL 365 - Police Station Connected Burglar Alarm Units and Systems

	ULC C1076 - Proprietary Burglar Alarm Units and Systems
	ULC S303 – Local Burglar Alarm Units and Systems
	ULC S304 – Central and Monitoring Station Burglar Alarm Units
	ULC S545 – Residential Fire Warning System Control Units
IC ICES-003
Europe CE Certified

Region Certification
Europe CE 2014/30/EU EMC Directive (EMC);2014/35/EU Low-Voltage Directive (LVD); 1999/5/EC Radio equipment and Telecommunications Terminal Equipment (R&TTE); 2011/65/EU Restriction of the use of certain hazardous substances in electrical and electronic equipment(RoHS)
Brazil	ANATEL	1338-14-1855

Installation/configuration notes

Mounting considerations

The cellular communicator plugs directly into any B Series control panel via the on-board plug-in connection, or other compatible control panels via a B450 Conettix Plug-in Communicator Interface.

Wiring considerations

The cellular communicator connects to the B Series control panel without tools or physical wiring for power. When used with the B450 Conettix Plug-in Communicator Interface, the B450 is wired to the SDI2, SDI, or option bus control panel. The antenna is attached to the module via the threaded SMA connector.

Cellular Service Considerations

The B442 requires an active cellular service on a GSM supported cellular network.

Parts included
Quantity	Component
1	B442 Conettix Plug-in GPRS Cellular Communicator
1	Antenna
1	Literature pack

Technical specifications

Electrical

Current (operating)	Standby: 35 mAAlarm: 150 mA
Voltage (operating)	12 VDC nominal
Environmental
Environment Environmental Class III - Indoor
Relative humidity 5 – 93% at +32°C (+90°F) non-condensing
Operating temperature	-10°C to +55°C (+14°F to +131°F)
Mechanical
Board Dimensions 50 mm x 93.5 mm x 15.25 mm (2 in x 3.68 in x 0.60 in)
Antenna (included) • Magnetic base omni-directional• 2.5 m (8.2 ft) cable with SMA connector
SIM card • 3V/1.8V SIM (compliant with GSM 11.12 recommendation)
Compatibilities
Control panels B5512/B5512E/B4512/B4512E/B3512/B3512E control panel with firmware v2.03 or higher (direct insertion)The B442 is compatible with most Bosch control panels when used with a B450 Conettix Plug-in Communicator Interface. Refer to the B450 datasheet for complete control panel compatibility listings.
SIM card 3V/1.8V SIM (compliant with GSM 11.12 recommendation)
Cellular 4 Bands GPRS: 850/900/1800/1900 MHz

Ordering information

B442 Conettix Plug-in GPRS Cellular Communicator

Multi-function cellular communicator. For use in Latin

America.

Order number B442
