Product Type	Car Audio Coaxial Speaker
Brand	KICKER
Model	44KSC504
Speaker Size	4 x 6 inches
Speaker Type	2-Way Coaxial
Peak Power Handling	150 Watts
RMS Power Handling	50 Watts
Impedance	4 Ohms
Sensitivity	91 dB
Frequency Response	40 Hz - 20 kHz
Mounting Depth	2.125 inches
Cutout Dimensions	3.875 x 5.625 inches
Tweeter Size	0.5 inch PEI Dome
Recommended Amplifier Power	15 - 75 Watts RMS
Maintenance	Wipe with dry cloth; avoid moisture
Safety	Keep away from water and heat sources
Spare Parts & Repairability	No user-serviceable parts; contact KICKER support
General Information	Designed for marine/off-road use; UV-resistant cone

Frequently Asked Questions - 44KSC504 KICKER

What is the size of the Kicker 44KSC504 speaker?

The Kicker 44KSC504 is a 4x6 inch coaxial speaker.

What is the power handling of the 44KSC504?

It handles 50 Watts RMS and 150 Watts peak.

Is this speaker compatible with my car?

It fits standard 4x6 inch openings. Check mounting depth (2.125 inches) and cutout dimensions (3.875 x 5.625 inches).

What impedance does the 44KSC504 have?

The speaker has an impedance of 4 ohms.

Can I use this speaker without an external amplifier?

Yes, it works with factory head units, but an external amplifier (15-75 Watts RMS) is recommended for best performance.

Is the 44KSC504 waterproof?

It is not fully waterproof but is built for marine and off-road use with UV-resistant materials. Avoid direct water exposure.

What type of tweeter does it have?

It features a 0.5-inch PEI dome tweeter for clear highs.

How do I install the 44KSC504?

Use the included mounting hardware. Connect positive and negative wires correctly. Seal around the speaker if used in wet environments.

Does this speaker come with a grille?

Yes, it typically includes a protective grille.

What is the frequency response of the 44KSC504?

It covers 40 Hz to 20 kHz.

USER MANUAL 44KSC504 KICKER

KS COAX & 3-WAY SPEAKERS

KSC350 | KSC40 | KSC460 | KSC4100 | KSC50

KSC650|KSC670|KSC680|KSC690|KSC6930

Owner's Manual | English

IMPORTANT SAFETY WARNING

Prolonged continuous operation of an amplifier, speaker, or subwoofer in a distorted, clipped or over-powered manner can cause your audio system to overheat, possibly catching fire and resulting in serious damage to your components and/or vehicle. Amplifiers require up to 4 inches (10cm) open ventilation. Subwoofers should be mounted with at least 1 inch (2.5cm) clearance between the front of the speaker and any surface.

KS COAXIAL SPEAKERS

The KICKER KS speakers offer an excellent upgrade to your vehicle's factory sound system, delivering great full-range sound at an amazing value! Whether dropping the KS speakers in a factory location or customizing your install, their high-efficiency design means less power is needed to play your music, while our use of advanced materials and construction techniques ensures optimal performance for years to come.

Simple line drawing of a mechanical component with no text or symbols

WIRING

We recommend using 16 gauge (or larger) wire. The KS Speakers are rated at 4 ohms and work with any source unit or amplifier designed to operate at a 4 ohm load. Make sure your source unit or amplifier is rated for 4 ohm operation.

source unit / amplifier

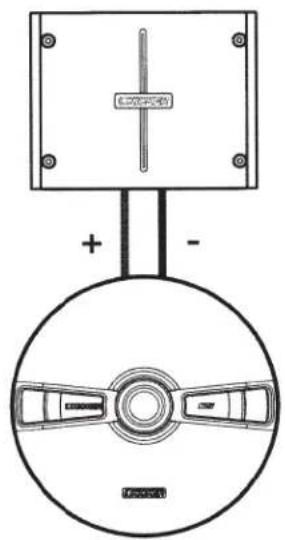

Connect wiring to terminals

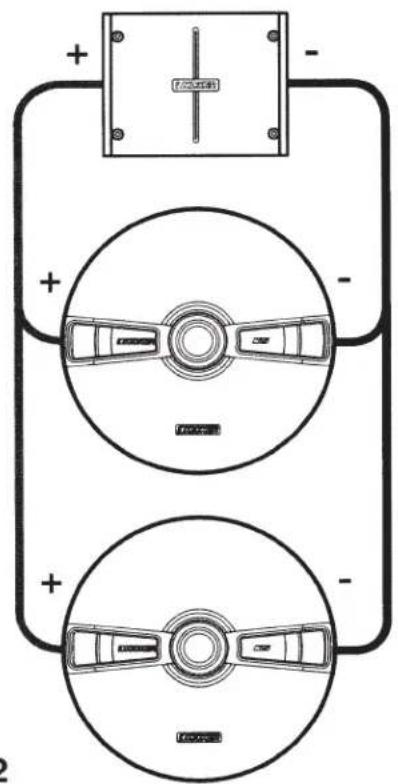

Two KS Speakers wired in parallel to a single channel Total Impedance: 2 ohms

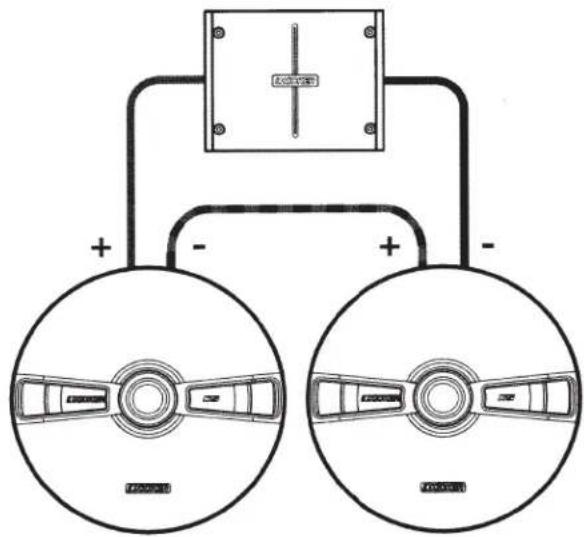

Two KS Speakers wired in series to a single channel Total Impedance: 8 ohms

PERFORMANCE

Model:	KSC350	KSC40	KSC460	KSC4100	KSC50	KSC650	KSC670	KSC680	KSC690	KSC6930
Speaker Design	2 - Way	2 - Way	2 - Way	2 - Way	2 - Way	2 - Way	2 - Way	2 - Way	2 - Way	3 - Way
Woofer [in, mm]	3-1/2, 89	4, 100	4x6, 100x160	4x10, 100x250	5-1/4, 130	6-1/2, 160	6-3/4, 165	6x8, 160x200	6x9, 160x230	6x9, 160x230
Mid [in, mm]	-	-	-	-	-	-	-	-	-	1, 25
Tweeter [in, mm]	1/2, 13	1/2, 13	1/2, 13	1/2, 13	3/4, 20	3/4, 20	3/4, 20	3/4, 20	1, 25	3/4, 20
Rated Impedance [Ω]	4	4	4	4	4	4	4	4	4	4
Peak Power Handling [Watts]	100	150	150	150	150	200	200	150	300	300
Continuous Power Handling [Watts RMS]	50	75	75	75	75	100	100	75	150	150
Sensitivity [1W, 1m]	88	88	88	88	90	90	90	90	92	92
Frequency Response [Hz]	80-20k	60-20k	50-20k	45-20k	45-21k	43-21k	40-21k	45-21k	30-21k	30-21k
Mounting Hole Diameter [in, mm]	3-1/16, 78	3-11/16, 94	4x5-5/16, 101x151	3-7/8x9-3/8, 99x238	4-1/2, 115	4-13/16, 123	5-9/16, 141	5x7-3/16, 127x182	5-11/16x8-7/16, 144x215	5-11/16x8-7/16, 144x215
Top Mount Depth [in, mm]	1-5/8, 42	1-13/16, 46	1-11/16, 44	2-3/8, 61	1-3/4, 45	1-13/16, 46	1-13/16, 46	2-1/4, 58	3-3/16, 81	3-1/8, 80
Bottom Mount Depth [in, mm]	1-7/8, 49	2-1/16, 51	2, 51	2-13/16, 71	2, 52	2-3/16, 54	2, 50	2-5/8, 67	3-11/16, 93	3-5/8, 92
Tweeter Protrusion [in, mm]	3/16, 4	0	1/16, 2	0	1/4, 6	5/16, 8	3/8, 10	1/16, 2	0	0
Grilles	No	Yes	No	No	Yes	Yes	Yes	No	Yes	Yes
Tweeter Magnet Material	Neodymium	Neodymium	Neodymium	Neodymium	Neodymium	Neodymium	Neodymium	Neodymium	Neodymium	Neodymium
Tweeter Dome Material	Silk	Silk	Silk	Silk	Silk	Silk	Silk	Silk	Silk	Silk
Tweeter Design	Balanced dome	Balanced dome	Balanced dome	Balanced dome	Dome	Dome	Dome	Dome	Dome	Dome
Woofer Cone Material	Polypropylene	Polypropylene	Polypropylene	Polypropylene	Polypropylene	Polypropylene	Polypropylene	Polypropylene	Polypropylene	Polypropylene
Woofer Surround Material	Rubber	Rubber	Rubber	Rubber	Rubber	Rubber	Rubber	Rubber	Rubber	Rubber

MOUNTING

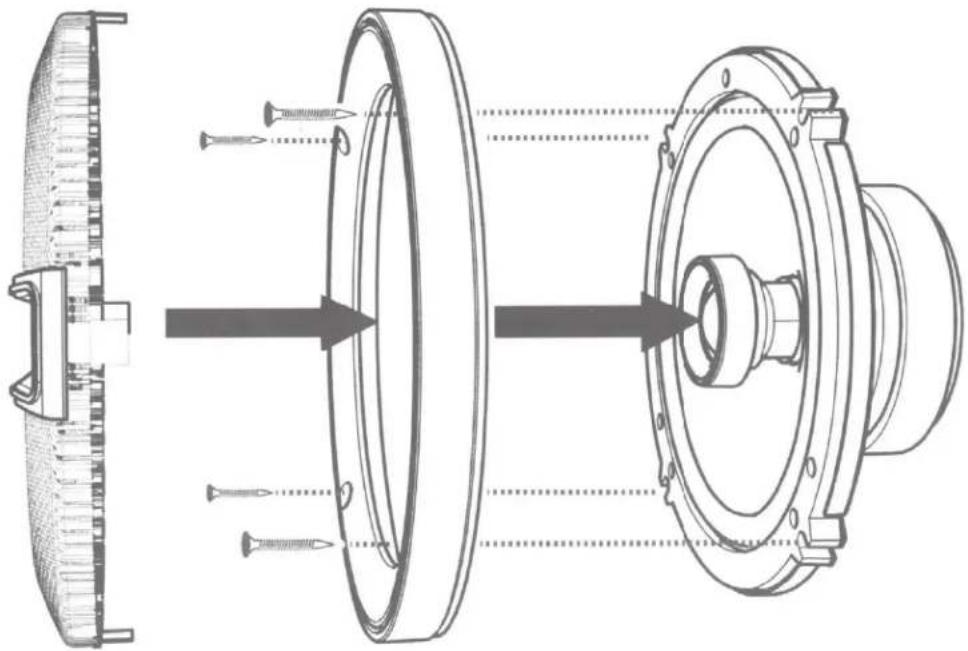

Technical line drawing of a mechanical assembly showing exploded view and assembled view of a bearing housing (no text or symbols)

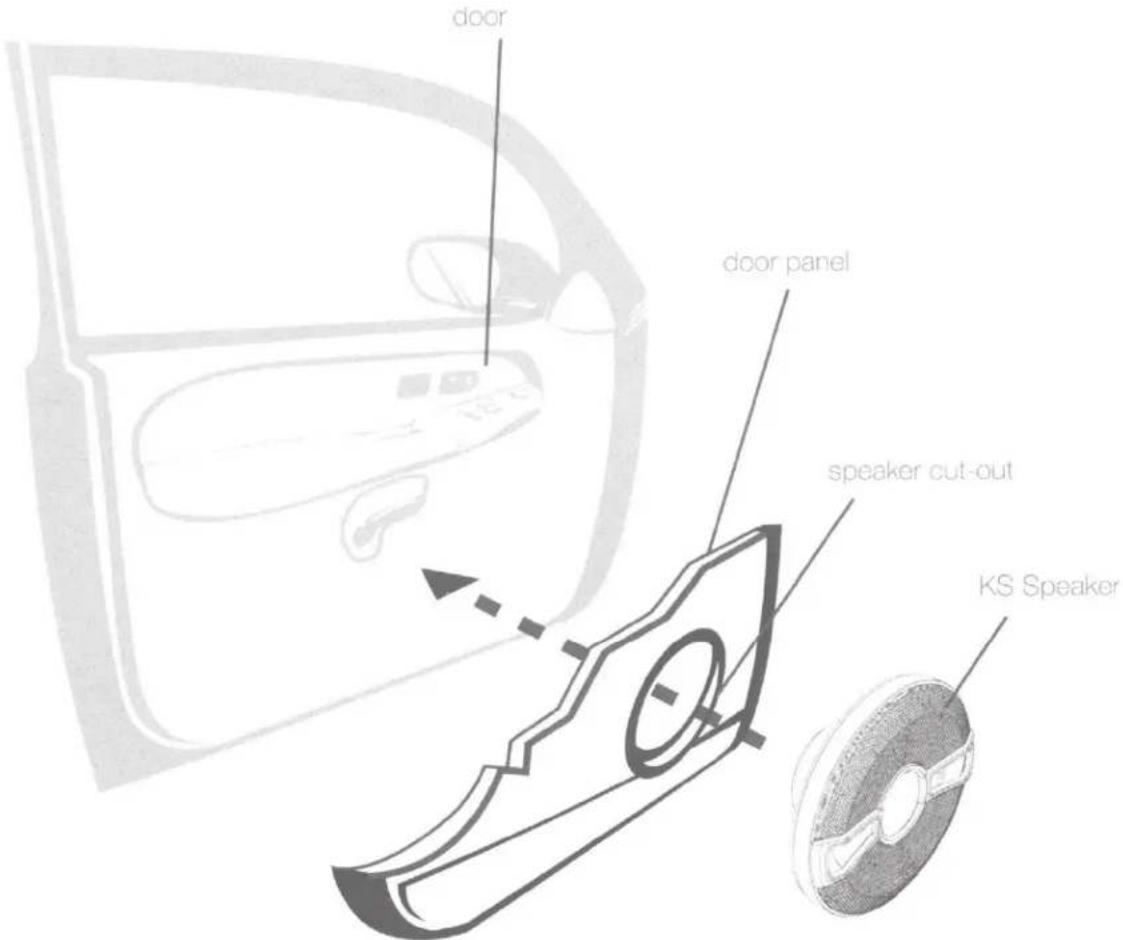

Secure speaker to desired location

Pro Tip: You're a KICKER amplifier and a few cables away from a full system upgrade that will dominate any factory system! KICKER line of amplifiers make it easy to upgrade to solid bass with your existing or stock source unit. Also, ask your dealer about KICKER Subwoofer upgrades.

ACOUSTICS LIMITED WARRANTY

When purchased from an Authorized KICKER Dealer, KICKER warrants this product to be free from defects in material and workmanship under normal use for a period of ONE (1) YEAR from date of original purchase. If this product is identified as "Refurbished" or "B Goods", the warranty is limited to a period of THREE (3) MONTHS from date of original purchase. In all cases you must have the original receipt. Should service be necessary under this warranty for any reason due to manufacturing defect or malfunction during the warranty period, KICKER will repair or replace (at its discretion) the defective merchandise with equivalent merchandise. Warranty replacements may have cosmetic scratches and blemishes. Discontinued products may be replaced with more current equivalent products. This warranty is valid only for the original purchaser and is not extended to owners of the product subsequent to the original purchaser. Any applicable implied warranties are limited in duration to a period of the express warranty as provided herein beginning with the date of the original purchase at retail, and no warranties, whether express or implied, shall apply to this product thereafter. Some states do not allow limitations on implied warranties; therefore, these exclusions may not apply to you. This warranty gives you specific legal rights; however you may have other rights that vary from state to state.

WHAT TO DO IF YOU NEED WARRANTY OR SERVICE:

Defective merchandise should be returned to your local Authorized Stillwater Designs (KICKER) Dealer for warranty service. Assistance in locating an Authorized Dealer can be found at www.kicker.com or by contacting Stillwater Designs directly. You can confirm that a dealer is authorized by asking to see a current authorized dealer window decal.

If it becomes necessary for you to return defective merchandise directly to Stillwater Designs (KICKER), call the KICKER Customer Service Department at [phone] for a Return Merchandise Authorization (RMA) number. Package only the defective items in a package that will prevent shipping damage, and return to:

Stillwater Designs, 3100 North Husband St, Stillwater, OK 74075

The RMA number must be clearly marked on the outside of the package. Please return only defective component systems. The return of functioning items increases your return freight charges. Non-defective items will be returned freightcollect to you. For example, if a subwoofer is defective, only return the defective subwoofer, not the entire enclosure. Include a copy of the original receipt with the purchase date clearly visible, and a "proof-of-purchase" statement listing the Customer's name, Dealer's name and invoice number, and product purchased. Warranty expiration on items without proof-of-purchase will be determined from the type of sale and manufacturing date code. Freight must be prepaid; items sent freight-collect, or COD, will be refused.

WHAT IS NOT COVERED?

This warranty is valid only if the product is used for the purpose for which it was designed. It does not cover:

o Damage due to improper installation
o Subsequent damage to other components
o Damage caused by exposure to moisture, excessive heat, chemical cleaners, and/or UV radiation
o Damage through negligence, misuse, accident or abuse. Repeated returns for the same damage may be considered abuse
o Any cost or expense related to the removal or reinstallation of product
o Speakers damaged due to amplifier clipping or distortion
o Items previously repaired or modified by any unauthorized repair facility
o Return shipping on non-defective items
o Products with tampered or missing barcode labels
o Products with tampered or missing serial numbers
o Products returned without a Return Merchandise Authorization (RMA) number
o Products purchased from an UNAUTHORIZED dealer
o Freight Damage
o The cost of shipping product to KICKER
o Service performed by anyone other than KICKER

SD stillwaterdesigns

HOW LONG WILL IT TAKE?

KICKER strives to maintain a goal of one-week service for all acoustics (subwoofers, midrange drivers, tweeters, crossovers, etc) returns. Delays may be incurred if lack of replacement inventory or parts is encountered. Failure to follow these steps may void your warranty. Any questions can be directed to the KICKER Customer Service Department at [phone]. Contact your International KICKER dealer or distributor concerning specific procedures for your country's warranty policies.

Note: All specifications and performance figures are subject to change. Please visit www.kicker.com for the most current information. To get the best performance from your new KICKER speakers, we recommend using genuine KICKER accessories and wiring. Please allow two weeks of break-in time for the speakers to reach optimum performance.

INTERNATIONAL WARRANTY

Contact your International KICKER dealer or distributor concerning specific procedures for your country's warranty policies.

WARNING: KICKER products are capable of producing sound levels that can permanently damage your hearing! Turning up a system to a level that has audible distortion is more damaging to your ears than listening to an undistorted system at the same volume level. The threshold of pain is always an indicator that the sound level is too loud and may permanently damage your hearing. Please use common sense when controlling volume.
