Product Type	Washing Machine
Model	AWP 046
Brand	Integra
Capacity	6 kg
Spin Speed	1200 rpm
Dimensions (H x W x D)	85 cm x 60 cm x 55 cm
Weight	65 kg
Power Supply	220-240 V, 50 Hz
Energy Class	A++
Water Consumption per Cycle	45 L
Noise Level (Wash/Spin)	56 dB / 75 dB
Number of Programs	15
Delay Start	Up to 24 hours
Child Lock	Yes
Drum Material	Stainless Steel
Display Type	LED
Door Opening	Left hinge
Spare Parts Availability	Up to 10 years
Repair Index	8.2 / 10

Frequently Asked Questions - AWP 046 Integra

How do I clean the detergent drawer?

Remove the drawer by pressing the release lever. Wash it under warm water with a soft brush, then dry and reinsert.

What does the error code E01 mean?

E01 indicates a door lock issue. Check if the door is fully closed and the locking mechanism is functional.

Can I wash delicate fabrics like silk?

Yes, use the Delicate program with cold water and a gentle spin cycle. Place items in a laundry bag.

How often should I clean the pump filter?

Clean the pump filter every 2-3 months to prevent drainage issues. Refer to the manual for location.

Why is my washing machine vibrating excessively?

Ensure the machine is level and transport bolts are removed. Distribute laundry evenly and check rubber feet.

What is the maximum load for a quick wash?

For a quick wash (30 min), do not exceed 3.5 kg of lightly soiled laundry for best results.

How do I activate child lock?

Press and hold the Child Lock button for 3 seconds until the indicator lights up. Repeat to deactivate.

Can I use bleach in the machine?

Yes, add bleach to the designated compartment (marked with a bleach symbol) before starting the cycle.

What is the recommended detergent type?

Use high-efficiency (HE) detergent to avoid oversudsing. For front-loaders, powder or liquid is fine.

How do I remove the transit bolts?

Unscrew the bolts at the back with a spanner, remove them, and insert the plastic caps provided.

USER MANUAL AWP 046 Integra

3gb05008A.fm5 Page 1 Thursday, May 31, 2001 12:22 PM

INTEGRA

GB AWP 046

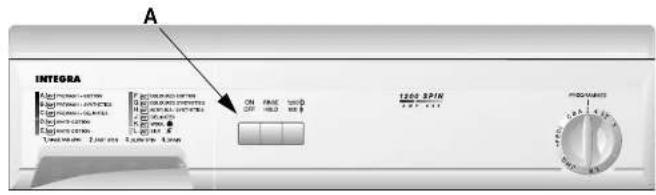

A. "On/Off" Button

During the selected washing programme the programme selector knob moves by steps clockwise through the phases prewash, main wash, rinse and spin. Each step takes from some seconds to several minutes.

* : optional / Yes : dosing required

^1) For improved garment care spin speed is restricted to 900 rpm in this programme.

2) For improved garment care spin speed is null in this programme.

Programme	Care Labels	Type of wash/Notes	Max LoadKg	Detergent and additives Special options					Programme Selector
				Softener Main	Wash	Pre-wash	Rinse Hold	Spin Speed Reduction1200600
Prewash + Cotton 95°C	65	Heavily soiled, long wearing and temperature stable textiles in cotton and linen (bed linen, table linen, underwear, shirts etc.).	5.0	*	Yes Yes		*	*	A
Prewash + Synthetics 60°C	60	Heavily soiled blouses, shirts, overalls etc. made of polyester (Diolen, Trevira), polyamide (Perlon, Nylon) or blends with cotton.	2.5	*	Yes Yes		*	+^1)	B
Prowash + Delicates 40°C Heavily soiled curtains and delicate clothing, dresses skirts, shirts and blouses.			1.5	*	Yes Yes		*	+^1)	C
White Cotton 95°C	65	Slightly to normally soiled bed linen, table linen and underwear, towels, shirts etc. made of cotton and linen.	5.0	*	Yes —		*	*	D
White Cotton 60°C Slightly soiled linen, table linen and underwear, towels, shirts etc. made of cotton and linen.			5.0	*	Yes —		*	*	E
Coloured Cotton 40°C Slightly soiled linen, table linen and underwear, towels, shirts etc. made of cotton and linen.			5.0	*	Yes —		*	*	F
Coloured Synthetics 60°C	60	Slightly to normally soiled blouses, shirts, overalls etc. made of polyester (Diolen, Trevira), polyamide (Perlon, Nylon) or blends with cotton.	2.5	*	Yes —		*	+^1)	G
Acrylics/Synthetics 40°C	60	Slightly soiled overalls and sports wear made of cotton, polyester, polyamide and blends with cotton.	2.5	*	Yes —		*	+^1)	H
Delicates 40°C Curtains and Evicate clothing, dresses skirts, shirts and blouses.			1.5	*	Yes —		*	+^1)	J
Wool 40°C		Only woollers with a felt-free finish, labelled with the woolmark and identified as machine washable.If you select "Rinse Hold" do not leave items to soak for too long.	1.0	*	Yes —		*	+^1)	K
Silk 30°C		Textiles made of linen, silk, wool and viscose marked as "handwashable".If you select "Rinse Hold" do not leave items to soak for too long. No spinning.	1.0	*	Yes —		*	—2)	L 2)
Rinse and spin	—	With this programme you can add starch and/or fabric softener.The programme ends with an intensive spin cycle.	5.0	*	—	—	*	*	1
Fast Spin	—	In this programme spinning is intensive. Same as the spin cycle in the "Cotton" programme.	5.0	—	—		—	— *	2
Slow spin	—	In this programme spinning is gentle. Same as the spin cycle in the "Wool" programme.	1.5	—	—		—	— * 1)	3
Drain	—	Drain only - no spinning. Alternative method of terminating programme the synthetic, delicate and wool programme and for premature removal of the laundry.	—	—	—		—	— —	4

Whirlpool is a registered trademark of Whirlpool USA.

5019 601 05008/A

Black Process Plate

CONSUMPTION DATA

Programme	Load(kg)	Water(l)	Energy(kWh)	Approx.ProgrammeDuration(hours:minutes)
Cotton 95° 5.0 49 1.70 1:50
Cotton 60° 5.0 44 0.95 2:00
Cotton 40° 5.0 44 0.55 1:50
Synthetics 60° 2.5 55 0.80 1:25
Synthetics 40° 2.5 50 0.60 0:50
Delicates 40° 1.5 50 0.50 0:45
Wool 40° 1.0 50 0.50 0:40
Silk 30° 1.0 37 0.40 0:40

Prewash cycle increases programme duration approximately 15 min. Consumption values were measured in normalized conditions in compliance with Standard IEC 60 456. Consumption data in the home may vary with respect to the values in the table in relation to the water supply pressure and temperature, the load and the type of wash.

ADD DETERGENTS, CLOSE THE DOOR AND SELECT THE PROGRAMME

Add the detergent as described in the programme table or in the chapter "Detergents and Additives" in the booklet.

1. Open the tap.
2. Set the programme selector to the desired programme.
3. Special options can be selected.

4. Check that the door is well closed and turn on the washing machine by pressing the "ON/OFF" button.

5. The laundry remains in the last rinse water without progressing to the final spin cycle to avoid creasing and prevent colours from changing.

6. This option is particularly recommended for the programme "Synthetics" or "Delicates".
7. This function is particularly useful if you want to postpone spinning to a later time, or if you want to drain only.

Terminate the "Rinse Hold" option:

- Press the "Rinse Hold" button again; the programme will terminate automatically with the final spin cycle for the present wash programme. If you do not wish to spin the clothes, turn the programme selector knob to the "Drain" programme.

"Spin Speed Reduction" button

• Reduces the predetermined automatic maximum spin speed. In some programmes the maximum final spin speed is limited to go easy on your laundry items. Selection of a higher spin speed is not possible.

PROGRAMME CHANGE

To reselect a programme when a cycle has already begun:

1. Switch off the appliance by pressing the "ON/OFF" button.

2. Select the new programme.

3. Start the programme by pressing the "ON/OFF" button.

PROGRAMME END

1. At the end of the programme the programme selector moves to the stop position.
2. To unload the machine wait for the door to unlock (about 1 minute).
3. Switch off the appliance, open the door and take out the laundry.
4. Close the tap and leave the door ajar to allow the drum to dry out.

INTEGRA

NOTES AND INDICATIONS FOR USE

WATER LEVEL

It may not be visible as the cycle is optimised for a minimum water consumption without compromising washing results.

• SPIN SPEED CONTROL

Spin speed may be reduced automatically or may even be excluded in the case of small loads with highly absorbent garments (e.g. bathrobes, bathmat).

This control avoids cloth and machine damage and excessive vibrations and consequent noise produced by the machine due to load unbalance: by selecting high spin speeds the noise level increases.

- MOTOR NOISE

The running noises of the new, electronically-controlled motor are not the same as the ones you are used to from your old appliance. Don't be surprised - modern technology has a modern sound.

• CLEANING THE FILTER

To ensure an impeccable function of the pump, check the filter regular and clean it if necessary.
