Alptrek 35+5 - Backpack Salewa - Free user manual and instructions

Brand	Salewa
Model	Alptrek 35+5
Category	Backpack
Volume	35 L + 5 L extendable
Weight	Approx. 1.2 kg (estimated based on similar models)
Carrying System	Custom FIT PRO (adjustable torso length)
Back Panel	Adjustable with two separate pads for left and right
Shoulder Straps	Anatomically shaped with load lifter straps
Hip Belt	Anatomically shaped with pre-shaped hip fin and pockets
Sternum Strap	Elastic with slide adjustment
Main Compartment Access	Top lid and front zipper access
Extendable Volume	Yes, via expansion collar (5 L)
Side Pockets	Slanted mesh pockets for quick access
Front Pocket	Large with bulge side pockets
Hip Belt Pockets	Yes, for valuables
Rope Fastener	Compression strap near opening
Pole Fastening	Bungee cord and buckle system
Hydration System	Yes, with internal pouch and hose exit
Detachable Hood	Yes, can be removed to save weight
Emergency Print	SOS instructions on the pack
Material	Strong & lightweight fabrics (specific material not specified in manual)
Care Instructions	Clean with water, lubricate zippers with silicone or oil (avoid in dusty areas)
Contact	www.salewa.it/en/contacts

Frequently Asked Questions - Alptrek 35+5 Salewa

How do I adjust the back length on the Alptrek 35+5?

Lift the padding up, slide it along the guide, and close it back according to your size. Adjust left and right panels separately. Refer to the torso measurement chart in the manual for proper sizing.

What is the volume of the Alptrek 35+5?

The base volume is 35 liters, expandable by an additional 5 liters via the extension collar, giving a maximum volume of 40 liters.

How do I use the rope fastener?

The rope compression strap is located next to the pack opening. Wrap the straps around the rope, hook them into the sewn-in loops, and tighten.

How do I attach trekking poles?

Insert the pole tips through the strap/bungee cord loop until the plastic stopper. Fix the upper part by hooking the dedicated buckle to the bungee loop.

Can I remove the hood?

Yes, the hood is detachable. Open the two front buckles and the two back buckles to remove it for weight savings or more headroom when climbing.

How do I set up the hydration system?

Place the hydration bladder in the internal pouch. Use the sewn-in hangers or Velcro to secure it. Thread the hose through the hydration exit and route it under the loops on the shoulder straps.

What is the recommended packing method?

Store lighter items (sleeping bag, spare clothes) at the bottom, heavy items (cooking gear, tent) in the upper back area, and frequently used items at the top or in external pockets. Use compression straps for external gear.

How do I clean and maintain the backpack?

Clean stains with water. Occasionally lubricate zippers with silicone or oil, but avoid in dusty areas as it attracts dust. Use an old toothbrush to clean stuck zippers.

What carrying system does the Alptrek 35+5 use?

It uses the Custom FIT PRO system with an adjustable torso length for a personalized fit. The back panel has separate left and right pads for adjustment.

Where can I find the serial number or contact support?

Contact Salewa via their website: www.salewa.it/en/contacts. The manual does not specify a serial number location.

USER MANUAL Alptrek 35+5 Salewa

ALPTREK 40+5

Congratulations on your purchase of a SALEWA Pack. We want to besure that

you understand and utilize your new SALEWA pack in the best way.

Following you will find a description of all functions the Pack is offering.

ALPTREX35+5

3

OVERVIEW

ALPTREK 35+5

Congratulations on your purchase of a SALEWA Pack. We want to besure that

you understand and utilize your new SALEWA pack in the best way.

Following you will find a description of all functions the Pack is offering.

ALPTREX20+5

ALP|RD435-5

4

OVERVIEW

SALEMA

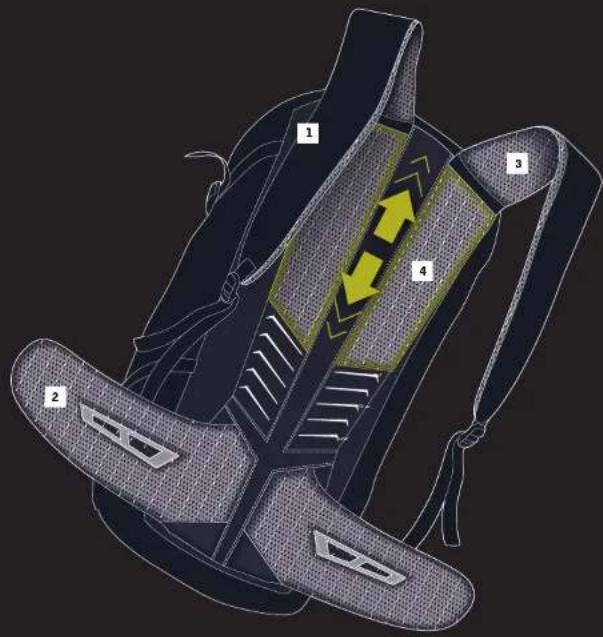

1 ANATOMICALLY SHAPED SHOULDER STRAPS & HIPBELT

Ensures a women/men specific fit and makes it well suited for long alpine trekking trips.

"comparing to Air Fit carrying system)"

2 PRESHAPED HIPFIN

The recess in the tin guarantees a snug fit and a great load transfer.

3 LOAD LIFTER STRAPS

Ensure optimal back fit.

4 CARRYING ADJUSTMENT

Easy adjust carrying system for an individualized fit.

To adjust the back panel, lift the padding up, slide it along the guide, and close it back according to your size. It is possible to adjust the left and the right back panel pads separately.

ALPTREX20+5

ALP REX 35-5

5

FEATURES

1 EMERGENCY PRINT

SOS instructions to help you keep your head in emergency situations.

2 GEAR ATTACHMENT STRAP

Bungee elastic cord to secure a extra gear to the front of the pack.

3 ON THE GO MESH SIDE POCKETS

Slanted mesh side pockets for quick and easy access to important items without having to remove your pack.

4 EXTENDABLE VOLUME

Option to carry extra volume if required.

5 STERNUM STRAP

Slide the strop in the middle of your sternum to stabilize the pack to your body. The elastic strop promotes effective breathing and a snug fit.

6 FRONT POCKET / BULGE SIDE POCKETS

Large storage pockets for spore clothes, tent poles.

ALPTREX20+5

ALP REX 35-5

6

FEATURES

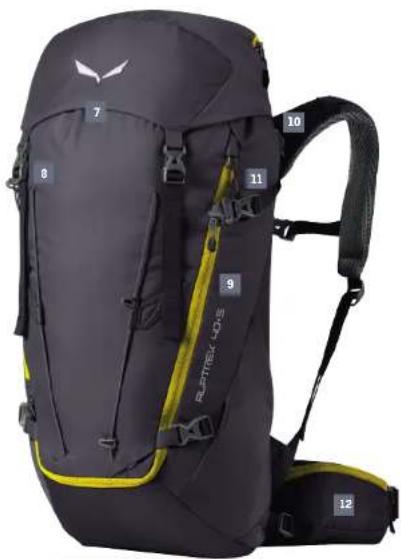

7 ROPE FASTENER

The rope compression strap is located next to the pack opening. To secure your rope, wrap the straps around it, hook it into the sown-in loops next to the opening and lash it down tight.

8 POLE FASTENING

Insert the pole tips through the strap/bungee cord loop until the plastic stopper. Fix the upper part hooking the dedicated buckle to the bungee loop.

9 FRONT ACCESS TO MAIN COMPARTMENT

For fast and easy access to your gear.

10 LOAD CONTROL STRAP

Pull the load control straps tight to stabilize your pack.

These straps allow you to cinch in your pack for a more stable carry. They also serve as attachment options for external gear.

12 HIP BELT POCKET

Valuables such as money, camera and mobile are well taken care of here.

ALPTREX20+5

ALP REX 35-5

7

FEATURES

1 DETACHABLE HOOD

If you want to save weight or to have more headspace when climbing, you can remove the hood. Open the two buckles at the front and the two at the back of the hood.

2 INNER POCKET FOR VALUES

3 HYDRATION SYSTEM EXIT

Place the hydration system in the pouch on the back of your pack. Fasten the hydration system either with the sewn in hangers or velcro. Thread the hose through the hydration exit and secure it underneath the routers on the shoulder strips.

ALPTREX40+5

ALPT REX 35·5

8

GENERAL INFORMATION

1. MAIN BENEFITS

We seek to design the best-possible solutions for mountain enthusiasts based on our philosophy of creating strong & light products. We understand our users' needs and provides the right features and benefits for them to enjoy their adventures:

STRENGTH & DURABILITY

Our design team carefully analyses the exact functions of each part of a backpack to define performance requirements, select an optimum combination of materials and engineer the strongest gear for the longest use.

OPTIMAL LOAD DISTRIBUTION

SALEWA trekking backpacks are fitted with Custom FIT and Custom FIT PRO carrying systems. Their easy-adjust torso lengths, mean that even heavy loads can be carried comfortably for long periods. For optimal load distribution, ensure that the carrying system is properly adjusted, including the load control straps. In addition, make sure your pock is set up correctly, both horizontally and vertically.

2. CARRYING SYSTEMS

SALEWA has two different carrying systems. Depending on size and area of use, its backpacks are equipped with an AIR FIT or a CONTACT FIT system. Our AIR FIT system maximizes ventilation and minimizes the backpack surface in contact with the body; the CONTACT FIT system keeps the load borycentre of the backpack close to the body for maximum control on ascents and provides good ventilation through its air channels.

LIGHTWEIGHT DESIGN

Our sophisticated design solutions use the best materials to minimize weight. Lightweight fabrics, buckles, straps and accessories also help keep weight down.

VENTILATION

Sweating cools down the body via evaporation. Conventional backpacks stop this happening as their back panels prevent the ventilation sweat requires to evaporate. The wet back panels mean you get chilled. All SALEWA backpack back panels are designed to ensure good ventilation.

ALPTREX40+5

ALPTREX 35·5

9

GENERAL INFORMATION

1. Loosen all straps [shoulder straps, load control straps, waist belt, compression straps] before you load the pack.
2. If your backpack has a back regulation system, follow the instructions in the table to identify your torso length and set the correct back length.
3. Pull in the waist belt so that it sits just above the pelvis. Make sure that your iliac crest is centred between the waist belt padding. Close the buckles. Secure the loose ends of the straps.
4. Tighten (but don't overtighten) the shoulder straps until the carrying system meets the back.

TORSO MEASUREMENT	FIXED BACK LENGTH SIZE	CUSTOM FIT PRO BACK LENGTH MALE	CUSTOM FIT PRO BACK LENGTH FEMALE
38/40cm	SHORT	SHORT
40/45cm SHORT MEDIUM
45/50cm	REGULAR	MEDIUM LARGE
50/53cm LARGE

The attachment point of the shoulder straps should be about one inch below the seventh vertebra [C7]. If necessary, readjust the back length.
5. If your pack has them, tighten the load control straps at the top of the shoulder straps.
6. Close and adjust the length of the chest (sternum) strap, and make sure it sits at the right height (at your sternum). A snug fit will help stabilise the pack. Take care not to create pressure points.
7. Check the load control straps again and ensure that your shoulder straps fit snugly around your shoulders.

We recommend that you never pack more than 70% of your pack's volume. The extra room will come in useful if you have to unpack the contents and quickly pack them again.

• Space is limited, so it makes sense to pack systematically. This also makes your pack easier to carry. We recommend packing as follows: store lighter items, such as your sleeping bag and reserve clothes at the bottom; keep heavy items such as your cooking equipment or tent in the area of your upper back.
• Store valuable item such as documents, money, keys etc. in the dedicated pocket.

• Pack items you want close to hand at the top or in outside pockets: extra clothing, water bottle, maps, compass, snacks, etc.

• Fasten longer items, such as tent poles or trekking poles, to the side of the pack using the compression straps - and store the loose ends away in the side pockets. If required, large and bulky items (sleeping mat, tent, etc.) can be attached on the outside using compression straps.

• Store your cooking equipment, food, spare clothing and other items in the main compartment. Keep your most frequently used gear close to the top. Less frequently used kit (e.g. bivouac sack) can stay at the bottom.
• The separate bottom compartment is meant for your lighter items, such as your sleeping bag or spare base layers.

5. CARE AND MAINTENANCE 6. CONTACT

Backpacks do not need much care and maintenance. Stains can be cleaned off with water. Lubricate the zippers occasionally with silicone or oil. Although, if you use your pack in dusty areas, don't use silicone or oil as they attract dust. If your zippers stick, clean them with an old toothbrush.

Got a question? Need a suggestion? Please contact us at: www.solewa.it/it/contacts/
