Product Type	Professional Display
Brand	Allsee
Model	M55P4-B2
Screen Size	55 inches (diagonal)
Resolution	3840 x 2160 (4K UHD)
Brightness	500 cd/m²
Contrast Ratio	4000:1 (typical)
Viewing Angle	178° / 178°
Response Time	8 ms
Refresh Rate	60 Hz
Aspect Ratio	16:9
Power Consumption	120 W (typical), <0.5 W standby
Weight	Approximately 18 kg (without stand)
Dimensions (W x H x D)	1242 x 718 x 67 mm (without stand)
VESA Mount	400 x 400 mm
Input Ports	HDMI (2), DisplayPort, VGA, USB 2.0
Output Ports	Audio Out (3.5 mm), RS232
Built-in Speakers	2 x 10 W
Operating Temperature	0°C to 40°C
Storage Temperature	-20°C to 60°C
Maintenance	Clean with soft dry cloth; avoid liquids
Safety Certifications	CE, FCC, RoHS
Spare Parts & Repairability	Contact authorized service center for parts

Frequently Asked Questions - M55P4-B2 Allsee

How do I clean the screen safely?

Use a soft, dry microfiber cloth. For stubborn marks, slightly dampen the cloth with water or a mild screen cleaner. Never spray directly onto the screen.

Can I mount this display on a wall?

Yes, the M55P4-B2 supports VESA 400x400 mm mounting. Use a compatible wall mount and follow the instructions.

Does it support 4K resolution?

Yes, the display has a native resolution of 3840 x 2160 (4K UHD), providing sharp and detailed images.

What input ports are available?

The display includes HDMI (2), DisplayPort, VGA, and USB 2.0 inputs for connecting various devices.

Does it have built-in speakers?

Yes, it features 2 x 10W built-in speakers for basic audio output.

What is the power consumption?

Typical power consumption is 120 W, and standby is less than 0.5 W.

How do I adjust the display settings?

Use the on-screen display (OSD) accessed via the buttons on the monitor or the included remote control.

Is there a risk of screen burn-in?

While modern LCD displays are less prone to burn-in, avoid displaying static images for extended periods. Use screen savers or power management features.

What is the warranty period?

Allsee typically offers a 3-year warranty for professional displays. Check your local terms or contact support.

Can I use this display outdoors?

This display is designed for indoor use only. Outdoor use requires a weatherproof enclosure to protect from moisture and extreme temperatures.

USER MANUAL M55P4-B2 Allsee

Professional LED Video Monitor

User's Manual

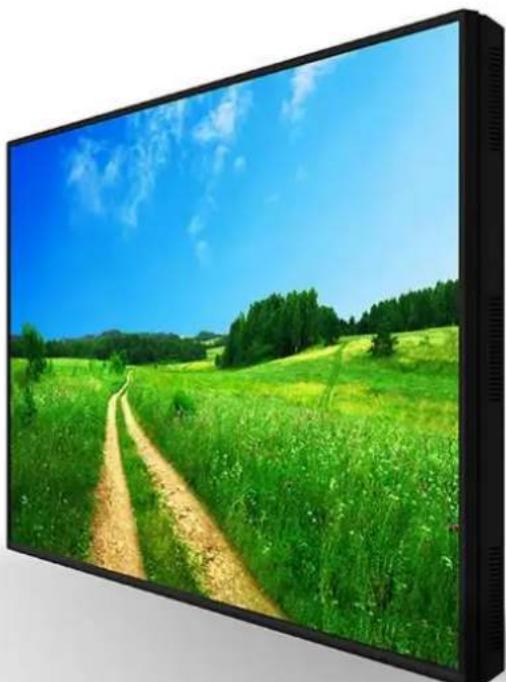

Large screen displaying a scenic rural landscape with a winding dirt path through green fields under a clear blue sky (no text or symbols visible)

Manual Version MP4-B.0

Safety Instructions

• Please keep the display away from any heat sources such as electric radiators or direct sunlight. Place the display in a stable and well-ventilated place.
• Please handle with care so as to not damage the LCD panel.
• The holes or openings on the display are designed for ventilation. Do not cover or block the ventilation holes or openings with any objects.
• Remove protective covering from the screen before you use the display.
• As the display surface is vulnerable to scratches, avoid touching the surface with sharp pen point.
• Shut off the power supply before cleaning. Use a soft lint-free cloth instead of a tissue to wipe the screen.
• You may use a glass cleaner to clean the product as required. However, never spray the cleaner directly onto the display surface.
• Do not attempt to repair this product yourself! Improperly disassembly of the product may invalidate the warranty and lead to possible danger!

If you have a problem that cannot be solved using the "Troubleshooting" guidelines, please contact your supplier.

Quick Start Guide (Internal Media Player)

This section of the guide is to allow rapid set up and use of the unit. Please refer to the main part of the User Guide for full information on use of the unit. The monitor has a simple built in media player that runs directly from a USB stick. This allows you to display a series of images and videos in a continuous loop. To use the screens internal media player please take the following steps:

1. Begin by loading your image and video files directly onto the root drive (without any folders) of your USB stick in the order that you want them to be displayed. NOTE: To find out what media formats are supported see section 3.3.2 Supported Media Files.
2. Insert thye power cable into the screen and power on from the mains.

NOTE: Please allow around 5-20 seconds for your screen to complete its boot up procedure.

1. Next, plug the USB stick into the USB port of the screen (see figure 1).

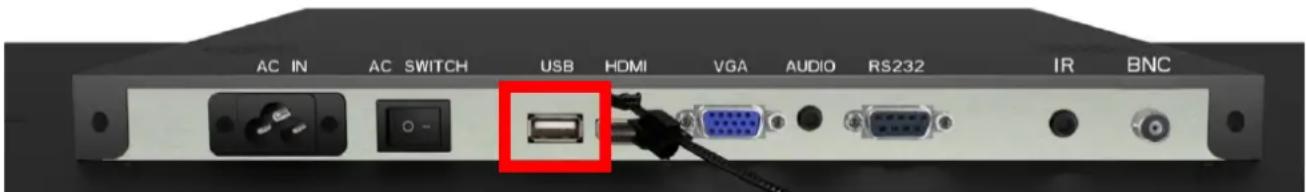

Figure 1 USB Port Location

1. Your media files will now display in a continuous loop.
2. If they do not automatically start to play please press "MENU" then go to the Time submenu then select DMP Setup. Here you can turn auto play on and edit the duration for which your images display. Also ensure that you have selected the correct input by pressing the "SOURCE" button on the remote control then navigate to "DMP" and press "PLAY".

PC-RGB

HDMI

AV

DMP

Quick Start Guide (connecting to PC)

This section of the guide is to allow rapid set up and use of the unit. Please refer to the main part of the User Guide for full information on use of the unit.

Please follow the steps detailed below:

1. Unpack unit and place in desired location along with PC.

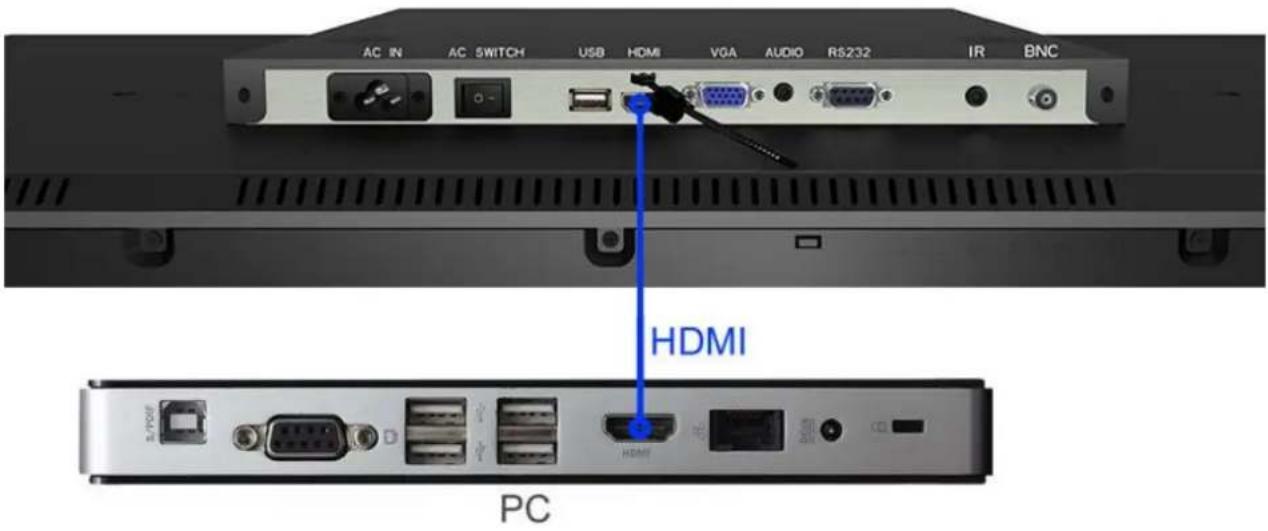

2. Connect the screen to the PC via a HDMI cable (as shown below).

Figure 2 Screen to PC Connections

1. Power ON the PC.
2. Take the power lead from the accessories bag, insert the lead into the screen and connect to mains outlet. Then turn ON by the "AC Switch" located next to the power input.
   NOTE: Please allow around 5-20 seconds for your screen to complete its boot up procedure.
3. If the screen does not display the signal from the PC then connect press the "SOURCE" button on the remote control and navigate to "HDMI" and press "PLAY".

PC-RGB

HDMI

AV

DMP

Contents:

Quick Start Guide (Internal Media Player)....2

1. Introduction......6

1.1 Box Contents 6
1.2 Product Overview....6

2. Remote Control....7

2.1 Handset....7
2.2 Replacing the batteries in the handset 8
2.3 Location of the static Remote Control sensor....9
2.4 Using the IR Extension....10
2.5 Menu Operation....11
2.6 Inputs 14

3. Set Up....15

3.1 Ventilation....15
3.2 Video Wall setup....16
3.3 Internal Media Player....18

3.3.1 Usage....18
3.3.2 Supported Media Formats 19

4. F.A.Qs and Troubleshooting Guide ....20

4.1 My Video Monitor is not displaying what is on my PC 20

4.1.1 Input Source 20
4.1.2 Display/monitor button on PC keyboard 20

4.2 My display goes into standby mode 21
4.2.1 Power saving function....21
4.3 What are my monitor's refresh rates? 22
4.4 How do I use my monitor as part of a video wall? 23
4.5 My monitor's image is unstable, unfocused or swimming 24

Table of Figures

Figure 1 USB Port Location....2

Figure 2 Screen to PC Connections ....3

Figure 3 Product Overview....6

Figure 4 Screen Inputs....14

Figure 5 Ventilation Area ....15

Figure 6 USB Port Location....18

1. Introduction

Congratulations on your purchase of our product. Please read carefully and follow all instructions in the manual before first use.

The product should not be exposed to liquids dripping or splashing and no objects filled with liquids, such as vases, should be placed on the product.

For user convenience, a number of operations can be performed through the remote control.

Attention:

1. Do not change any default setting when it is unnecessary.
2. Keep the product far away from water during installation and use.

1.1 Box Contents

1xProfessional Monitor

1xPower Cable

1xRemote Control (with AAA batteries)

1xCD (User Manual)

IMPORTANT: Please retain your screen's packaging for the duration of your warranty.

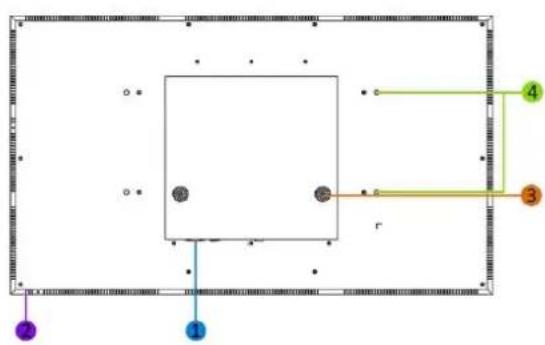

1.2 Product Overview

Empty rectangular frame with green border and two small dots at bottom (no text or symbols)

1 Power In
2 Remote Control Sensor
3 Air Vents
4 VESA Holes
5 Display Area

Figure 3 Product Overview

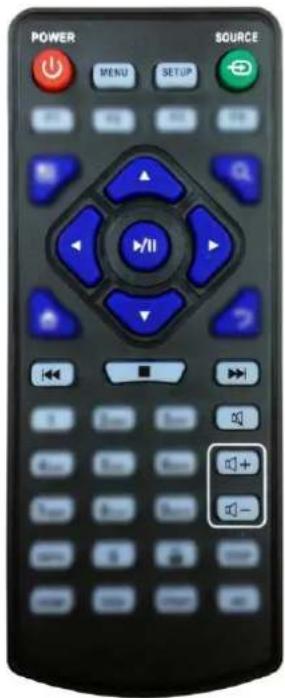

2. Remote Control

2.1 Handset

Button	Function
POWER/∅	Power on or off
MENU	Display settings
SETUP	Menu settings
SOURCE/→	Input source
▲	Up (navigation)
◀	Left (navigation)
▶	Right (navigation)
▼	Down (navigation)
▶/||	Play media
■	Stop media
|◀◀	Previous
▶▶|	Next
	Display settings
○+	Raise volume
○-	Lower volume

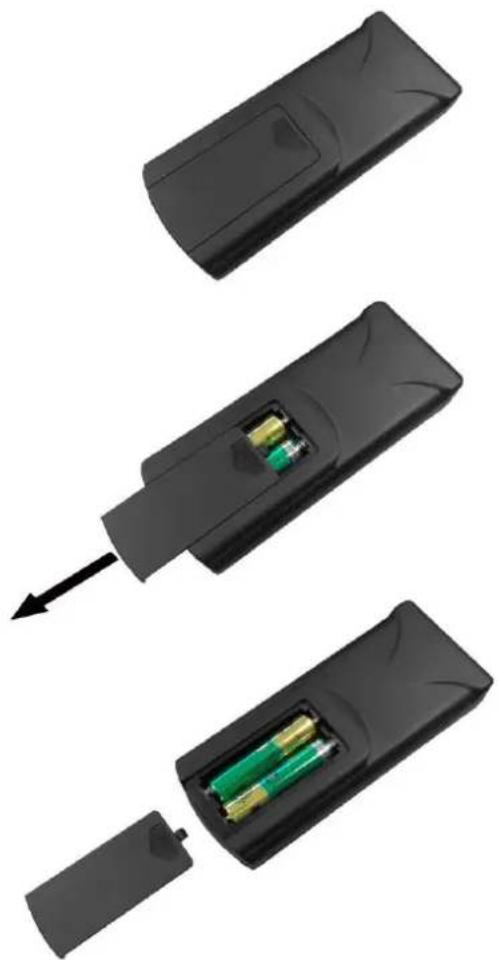

2.2 Replacing the batteries in the handset

1. Slide the battery cover off, as shown below.
2. Remove the used batteries.
3. Insert the two new AAA batteries with their terminals corresponding to the indicators.
4. Put the cover back on.

Three black remote control devices with internal battery modules, shown from different angles (no text or symbols visible)

2.3 Location of the static Remote Control sensor

Front

Rear

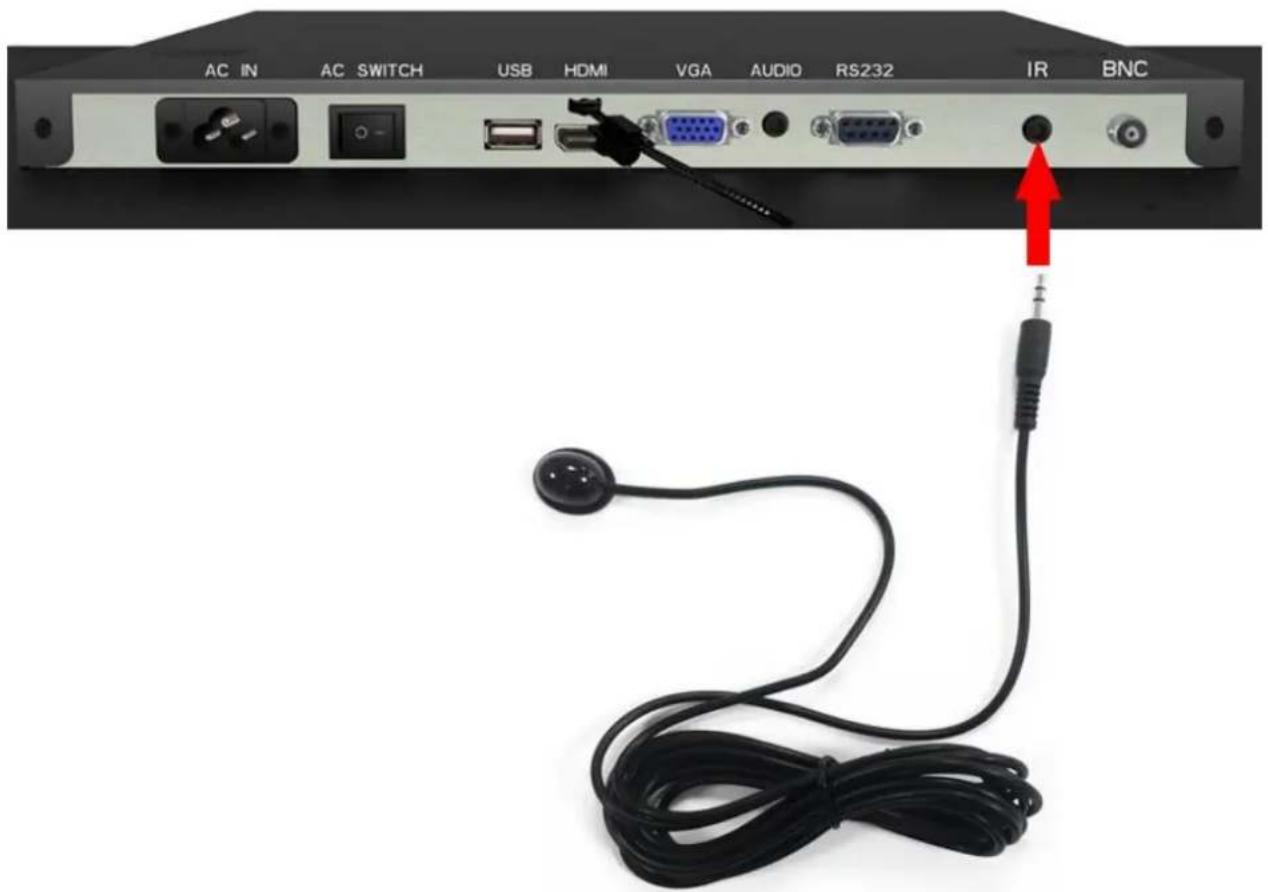

2.4 Using the IR Extension

The port marked "IR IN" is for the IR remote control sensor extension included. This is for applications where you may find it difficult to access the main IR remote control sensor. Once inserted please reboot the screen from the mains, this will enable the IR extension and disable the main IR remote control sensor.

2.5 Menu Operation

The Menu includes the following menus: Picture, Sound, Time and Option.

Press “MENU” to bring up the menus, press to select the desired menu and to select the desired item, press “PLAY” to confirm selection. Press “menu” at any time to go back or exit.


Here is where you can edit settings such as brightness, contrast, colour temperature and backlight brightness. Any settings that you change can be reset back to default at any time.

Picture Mode		or Mild/User/Auto/Dynamic
	User	Contrast	50
		Brightness	50
		Colour	50
		Sharpness	50
		Tint	50
Color Temperature		or Warm/User/Cool
Aspect Ratio
Noise Reduction
PC Setup
Backlight	<100>	or 1-100

Sound

In this menu you can adjust all of the sound settings for your monitor such as the sound mode EQ settings or the left/right balance. Any settings that you change can be reset back to default at any time.

Sound Mode		or Music/Movie/Sports/User
Balance	<0>	-50(left) to +50(right)
Auto Volume		or On
Surround Sound		or Surround
EQ	120 Hz	50
	500 Hz	50
	1.5K Hz	50
	5K Hz	50
	10K Hz	50

Time

Here you can set a time and date for your screen as well as scheduling daily on/off times for the built in power timer. You can also tell the screen which input source you want it to start on. Your media player settings are also in this section – please ensure auto play is turned on and set your image duration time in seconds.

Clock		Date
		Month
		Year
		Hour
		Minute
On/Off Time Setup	On/Off Setup	<Same Set> or Every Day
	On/Off Mode	<Always On> or Scheduled
Temperature	XX	(Current screen temperature)
DMP Setup	Auto Play	<ON> or OFF
	Slide Time	<OFF> or 3-60

Option

Under this menu are settings like on screen display language, on screen display duration time, and the video wall tiling settings. You can also restore all of the menus default settings and lock your screen so as you have to enter a password to access any of the menus.

OSD Language		or Franais/Espanol/ Poruguês/Arabic/中文
Restore Default Setting	(Resets menu settings to default)
Blending		or Middle/High/Off
OSD Duration		or 5sec/10sec/15sec
Multi Setup	Board ID	1
	Current X	1
	Current Y	1
	Total X	1
	Total Y	1
Multi Crop	Left Edge	0
	Up Edge	0
	Right Edge	0
	Down Edge	0
Lock System		or On (Password – 1842)

Switching between inputs

One crucial feature that does not appear on the Main Menu is selecting the input source. This is done by first pressing “SOURCE” and then scrolling down to the desired input source and select by pressing “PLAY”.

PC-RGB

HDMI

AV

DMP

2.6 Inputs

BNC (AV) - Audio Visual BNC Input

USB (DMP) – Universal Serial Bus (for internal media player)

HDMI – High Definition Multimedia Interface Signal Input

VGA (PC-RGB) – Video Graphics Array Signal Input

AUDIO - 3.5mm Stereo Jack (for audio input)

RS232 – Serial communication transmission

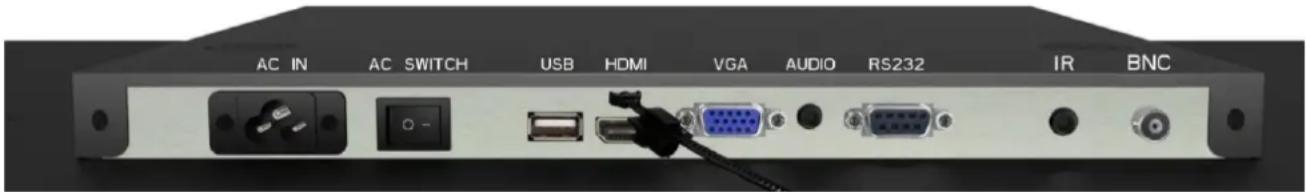

Figure 4 Screen Inputs

3. Set Up

3.1 Ventilation

If you are mounting your monitor in an enclosed space or recessed area please leave adequate room between the monitor and the enclosure to allow heat to disperse. We recommend the following the following space for ventilation.

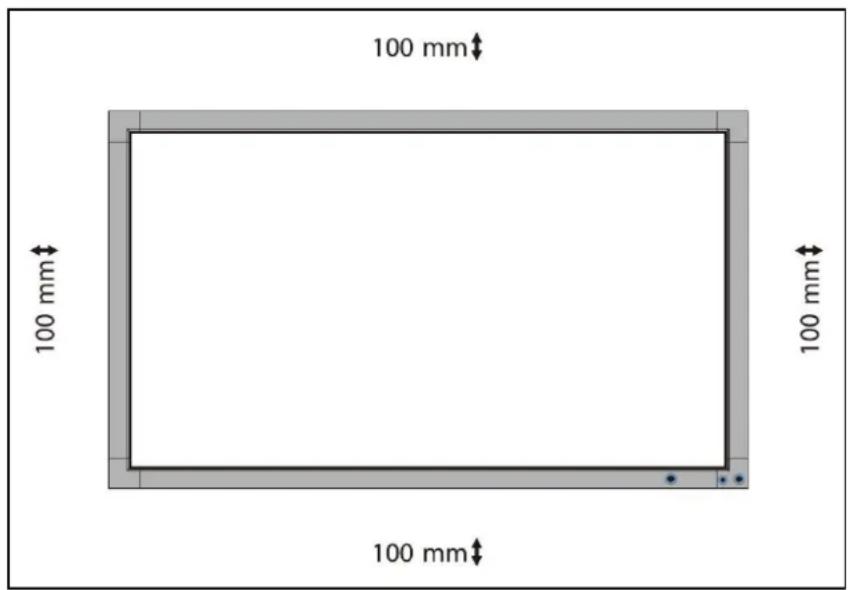

Figure 5 Ventilation Area

If you are using your monitor as part of a video wall or you are mounting them next to one another please compensate for this by allowing more ventilation area at the rear of the screens.

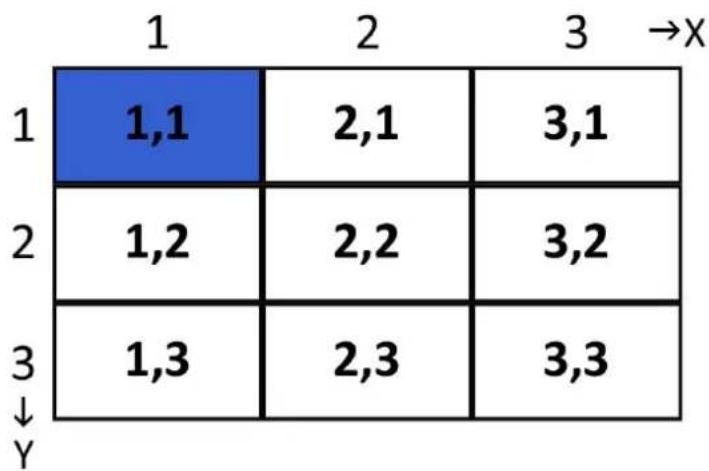

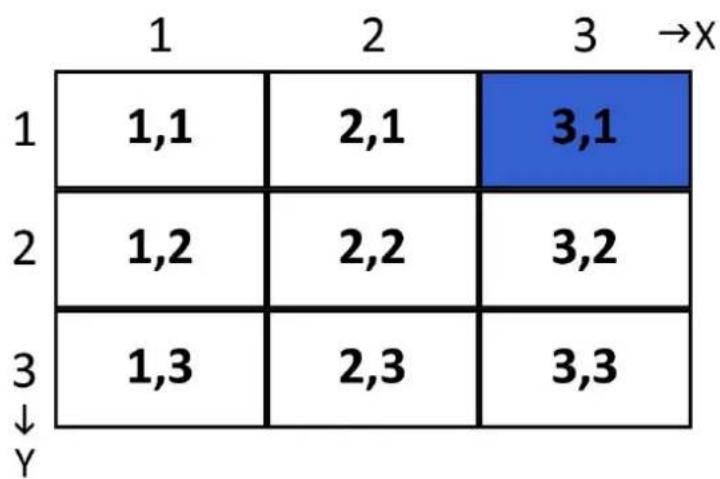

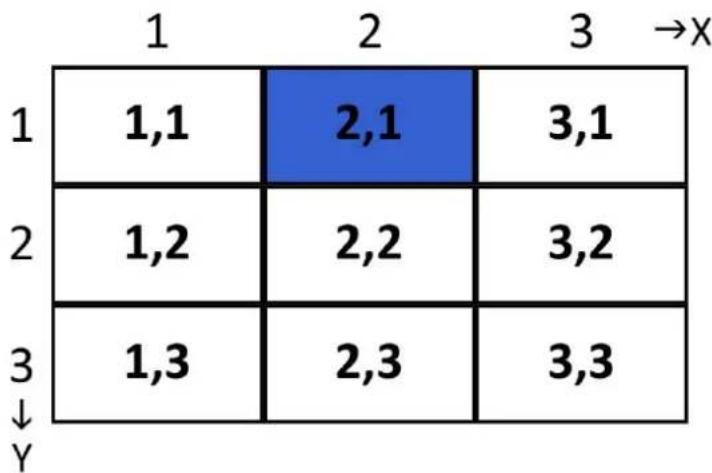

3.2 Video Wall setup

If you want to use your screen as part of a video wall you must give Multi Setup values settings in the "Option" menu. The following is an example of a 3x3 video wall:

BOARD ID	1
CURRENT X	1
CURRENT Y	1
TOTAL X	3
TOTAL Y	3

BOARD ID	1
CURRENT X	2
CURRENT Y	1
TOTAL X	3
TOTAL Y	3

BOARD ID	1
CURRENT X	3
CURRENT Y	1
TOTAL X	3
TOTAL Y	3

BOARD ID	1
CURRENT X	1
CURRENT Y	2
TOTAL X	3
TOTAL Y	3

The “Multi Crop” settings are for fine calibration of a video wall. This setting is to eliminate any black edges that you may have. In most cases you should not need to use this function.

• "LEFT EDGE" stretches the overall display horizontally from the left hand side.
• "UP EDGE" stretches the overall display vertically from above.
• "RIGHT EDGE" stretches the overall display horizontally from the right hand side.
• "DOWN EDGE" stretches the overall display horizontally from below.

Note: This function is only available when the display is being used as part of a video wall.

3.3 Internal Media Player

3.3.1 Usage

The monitor has a simple built in media player that runs directly from a USB stick. This allows you to display a series of images and videos in a continuous loop.

Begin by loading your image and video files directly onto the root drive (without any folders) of your USB stick in the order that you want them to be displayed. To find out what media formats are supported see section 3.3.2 Supported Media Files. Next, plug the USB stick into the USB port of the screen (see figure 6).

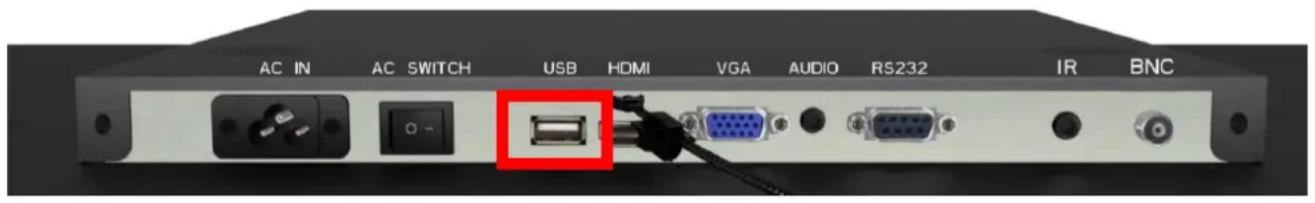

Figure 6 USB Port Location

Your media files will now display in a continuous loop. To change image duration time please see the Time section of the Main Menu.

3.3.2 Supported Media Formats

Media Type	Supported File Type
Image	JPEG	Baseline
Video	MPG, AVI, MP4	MPEG-1, MPEG-2, MPEG-4, Xvid, DivX, H264

1. This unit does NOT support WMV or FLV video file types.
2. This unit does NOT support Sony ATRAC3, DTS or Dobly HD audio file types.

Note: Video and image files should be a maximum 1920x1080 resolution (16:9 aspect ratio).

4. F.A.Qs and Troubleshooting Guide

4.1 My Video Monitor is not displaying what is on my PC

4.1.1 Input Source

Your monitor may be sourcing its display from another input. First ensure that your screen is connected to your PC (or other video source) via one of the inputs. Next, press "SOURCE" and then navigate to the input source that corresponds with the one you are using and select by pressing "PLAY".

PC-RGB

HDMI

AV

DMP

4.1.2 Display/monitor button on PC keyboard

If you are souring your video signal from a PC your keyboard may have a display/monitor button on it, especially if you are using a laptop. If your Video Monitor does not display the content of the PC try hitting this button before contacting your supplier.

4.2 My display goes into standby mode

4.2.1 Power saving function

If your Video Monitor is powered ON without being connected to a PC via a visual signal (e.g. VGA, HDMI etc.) it will automatically go into standby mode within a few minutes. If your Video Monitor is not being supplied with a video signal it will go to standby to ensure that video signal connection is connected properly. Also you must ensure that the Video Monitor is accessing the correct input. To do this you must press "SOURCE" and then navigate to the input source that corresponds with the one you are using and select by pressing "PLAY".

PC-RGB

HDMI

AV

DMP

4.3 What are my monitor's refresh rates?

If you are running you signal from your PC then some video cards with a pixel clock over 162MHz may not display the image correctly. Normally however your monitor will display the image correctly by adjusting the factory preset timing signal automatically.

Resolution	Scanning frequency
	Horizontal	Vertical
680 x 480	31.5 kHz	60 Hz
800 x 600	37.9 kHz	60 Hz
1024 x768	48.4 kHz	60 Hz
1280 x 768	48 kHz	60 Hz
1360 x 768	48 kHz	60 Hz
1280 x 1024	64 kHz	60 Hz
1600 x 1200	75 kHz	60 Hz
1920 x 1080	67.5 kHz	60 Hz

IMPORTANT: If you are using with a Macintosh PowerBook, set "Mirroring" to Off on your PowerBook. Refer to your Macintosh's owner's manual for more information about your computer's video output requirements and any special identification or configuration your monitor's image and monitor may require.

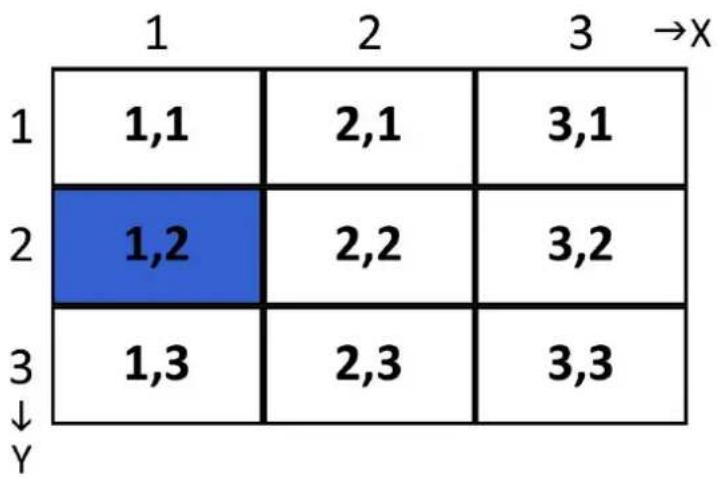

4.4 How do I use my monitor as part of a video wall?

If you want to use your screen as part of a video wall you must give Multi Setup values settings in the "Option" menu. The following is an example of a 3x3 video wall:

BOARD ID	1
CURRENT X	1
CURRENT Y	1
TOTAL X	3
TOTAL Y	3

BOARD ID	1
CURRENT X	2
CURRENT Y	1
TOTAL X	3
TOTAL Y	3

BOARD ID	1
CURRENT X	3
CURRENT Y	1
TOTAL X	3
TOTAL Y	3

BOARD ID	1
CURRENT X	1
CURRENT Y	2
TOTAL X	3
TOTAL Y	3

The “Multi Crop” settings are for fine calibration of a video wall. This setting is to eliminate any black edges that you may have. In most cases you should not need to use this function.

• "LEFT EDGE" stretches the overall display horizontally from the left hand side.
• "UP EDGE" stretches the overall display vertically from above.
• "RIGHT EDGE" stretches the overall display horizontally from the right hand side.
• "DOWN EDGE" stretches the overall display horizontally from below.

Note: This function is only available when the display is being used as part of a video wall.

4.5 My monitor's image is unstable, unfocused or swimming

Firstly check that the video signal cable should is firmly connected to the monitor and the PC. Next, check the monitor and your display card with respect to compatibility and recommended signal timings.

If your text is blurred, reformat the video mode to "non-interlaced" and use 60Hz refresh rate.
