Product Type	AV Receiver
Brand	Integra
Model	DRX-2.3
Dimensions (W x H x D)	17.13 x 6.69 x 13.19 inches
Weight	20.3 lbs (9.2 kg)
Power Consumption	600 W (standby: 0.1 W)
Amplifier Output	100 W per channel (8 ohms, 20 Hz–20 kHz, 0.08% THD, 2 channels driven)
Supported Audio Formats	Dolby Atmos, DTS:X, Dolby TrueHD, DTS-HD Master Audio, PCM, AAC, MP3, FLAC, WAV
Video Support	4K/60 Hz pass-through, HDR10, Dolby Vision, HLG
HDMI Inputs / Outputs	6 / 2 (HDCP 2.3 compliant)
Other Connections	Analog audio (3.5 mm, RCA), optical, coaxial, USB, Ethernet, Wi-Fi, Bluetooth, Phono input
Multi-Room Audio	Zone 2 pre-out, powered Zone 2/3, compatible with Integra Control app
Room Calibration	AccuEQ room acoustic calibration with AccuReflex
Smart Features	Works with Alexa, Google Assistant, Apple AirPlay 2, Spotify Connect, Tidal, Chromecast built-in
Remote Control	Yes, included (IR)
Safety Certifications	UL, CE, FCC
Operating Temperature	41°F – 95°F (5°C – 35°C)
Repairability Index	7.5 / 10 (based on design for disassembly and parts availability)
Includes	Main unit, remote control, batteries, FM/AM antenna, calibration microphone, power cord, quick start guide
Warranty	2 years limited

Frequently Asked Questions - DRX-2.3 Integra

How do I connect speakers to the Integra DRX-2.3?

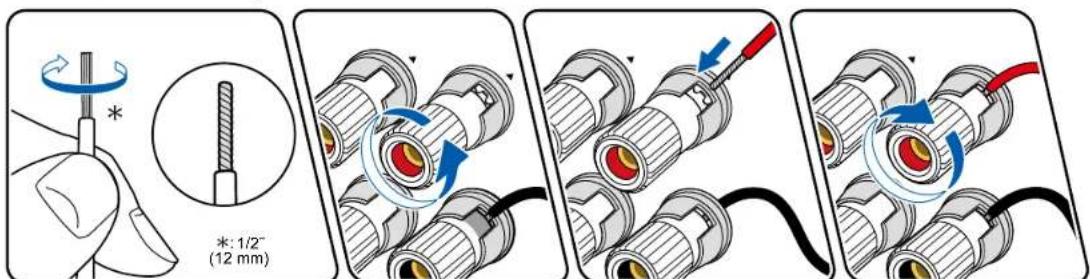

Use the binding posts on the back panel. For each channel, connect the positive (+) terminal to the speaker's positive and negative (-) to negative. Ensure speaker impedance is 6–16 ohms. Refer to the manual for proper bi-wiring or bi-amping setups.

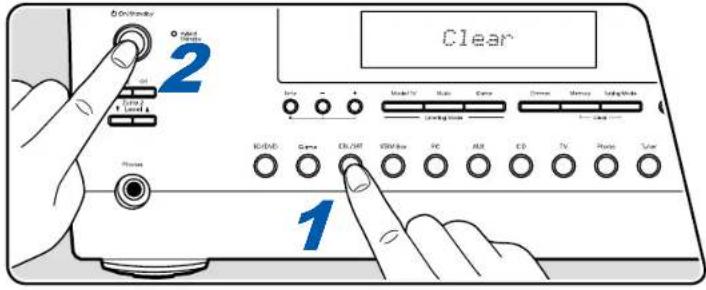

How do I perform a factory reset?

While the unit is on, press and hold the VCR/DVR button on the front panel, then press the Power button. The display will show 'Clear'. Release both buttons. This resets all settings to default.

Why is there no sound output?

Check that the correct input source is selected, speakers are properly connected, and the volume is not muted. Also verify that the receiver is set to the correct speaker configuration (e.g., 5.1.2) and that the speaker impedance matches the settings.

How do I update the firmware?

Connect the receiver to the internet via Ethernet or Wi-Fi. Go to Setup -> System Setup -> Firmware Update. Select 'Update via Network'. Follow on-screen prompts. Do not power off during update.

Can I control the receiver with my smartphone?

Yes, download the Integra Control app from the App Store or Google Play. Connect your receiver to the same network as your phone, and the app will discover it. You can control volume, inputs, and audio settings.

How to set up Dolby Atmos speakers?

Place upward-firing speakers on top of front left/right or use in-ceiling speakers. In the Setup menu, set Speaker Configuration to 'Atmos Enabled' or 'Ceiling'. Run AccuEQ calibration to optimize the sound field.

What is the maximum power output per channel?

The DRX-2.3 delivers 100 watts per channel (8 ohms, 20 Hz–20 kHz, 0.08% THD, 2 channels driven). For 4 ohm loads, power is approximately 150 watts per channel with lower distortion.

How do I clean the receiver?

Unplug the unit. Use a soft, dry cloth to wipe the exterior. Avoid liquids or abrasive cleaners. For ventilation grills, use a vacuum cleaner with a brush attachment. Never insert objects into the vents.

Does the receiver support 4K/120Hz?

No, the DRX-2.3 supports 4K/60Hz pass-through. For 4K/120Hz, you would need a newer model like the DRX-3.4. It does support HDR10, Dolby Vision, and HLG.

What should I do if the receiver says 'Check SP Wire'?

This indicates a speaker wire short circuit. Turn off the receiver and inspect all speaker connections for exposed wires touching each other or the chassis. Reconnect properly, ensuring no stray strands. Then restart the unit.

USER MANUAL DRX-2.3 Integra

Table of contents >>

Connections >>

- Connecting Speakers >>

Playback >>

Setup >>

Troubleshooting >>

Appendix >>

Supplementary Information >>

Additional Function (Firmware Update) 6

Update Information of the firmware 6

Operation of added new functions 6

Firmware Update Procedure 7

Part Names 10

Front Panel 10

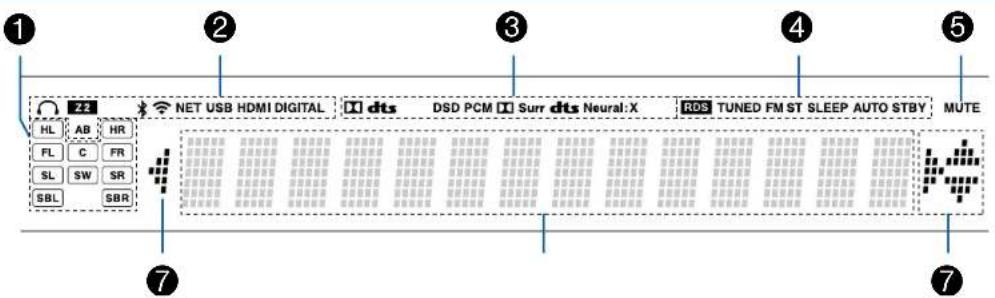

Display 12

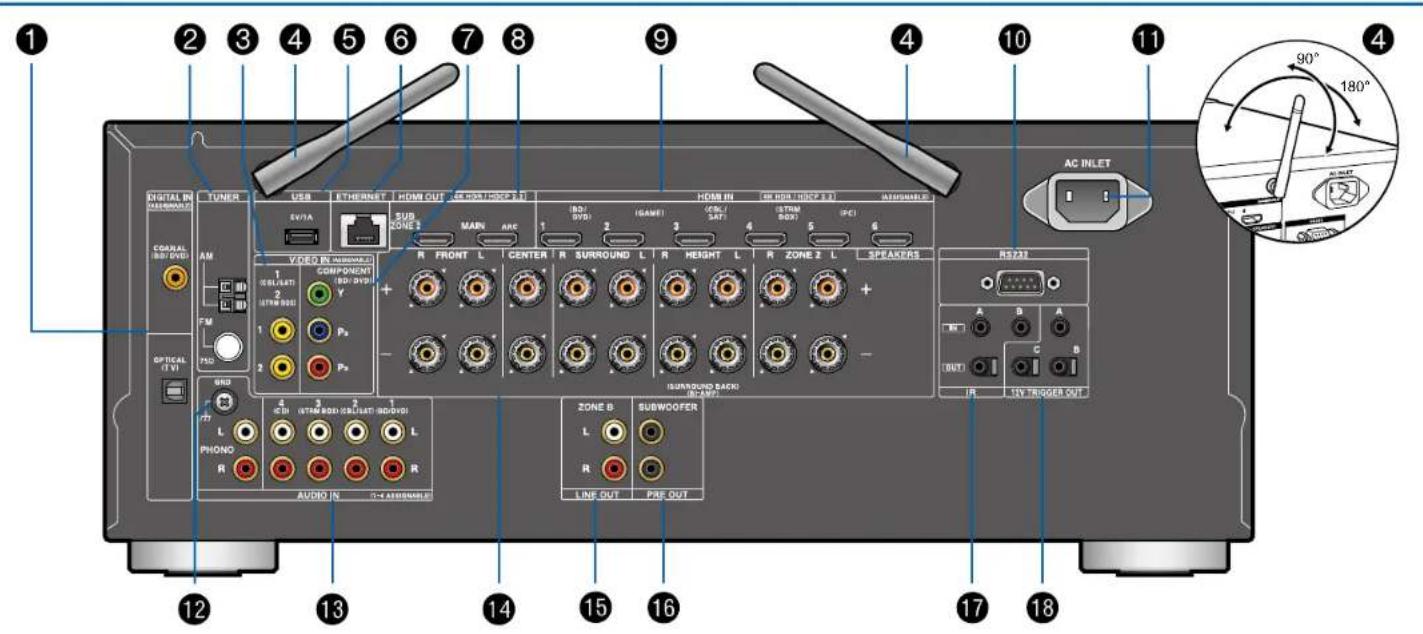

Rear Panel 13

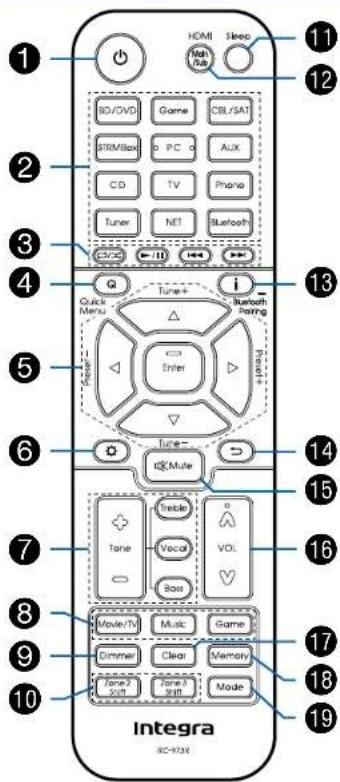

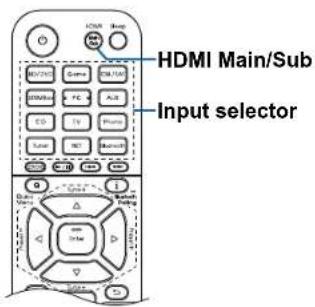

Remote Controller 15

Connections

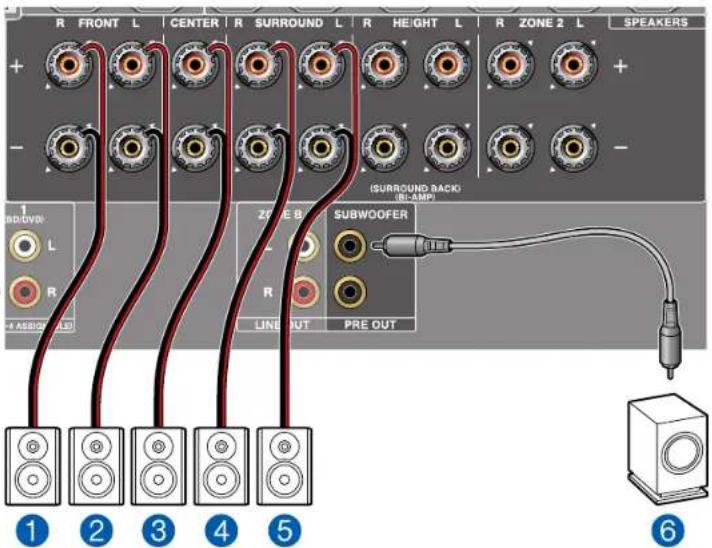

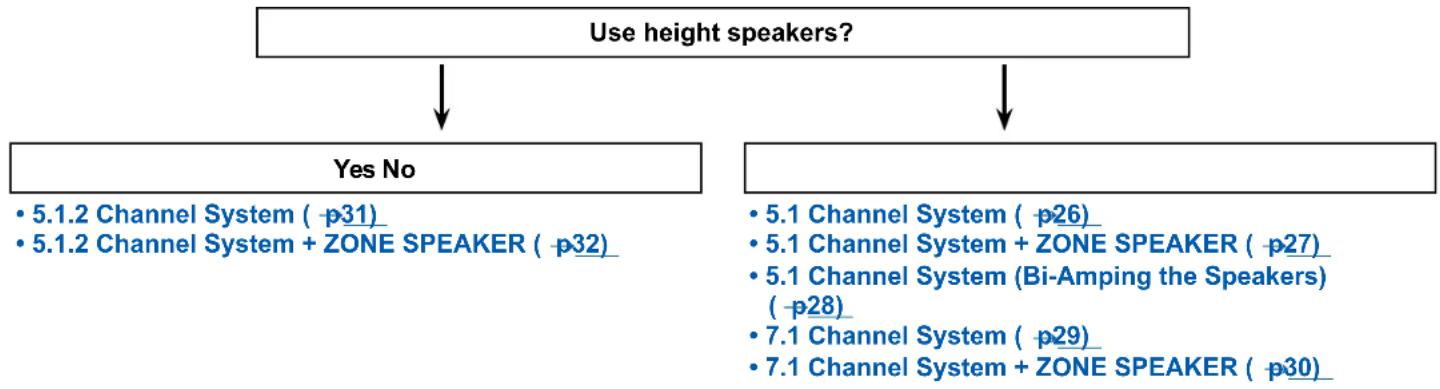

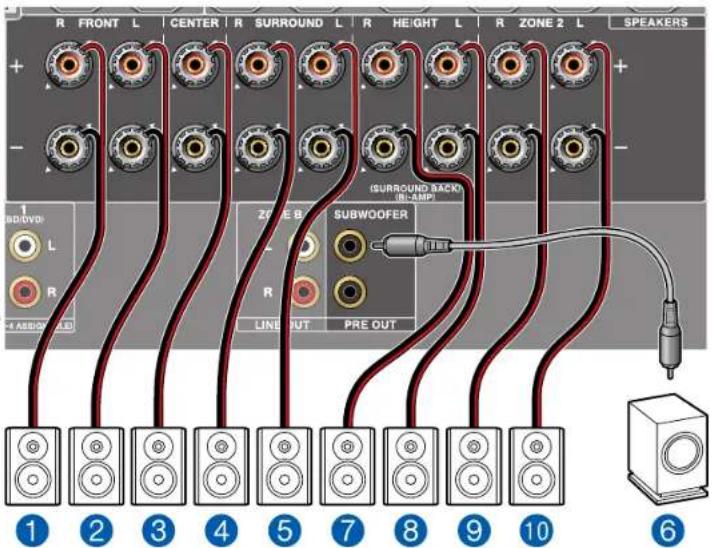

Connecting speakers 17

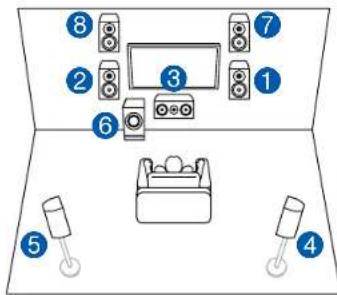

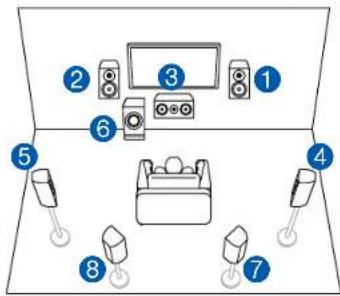

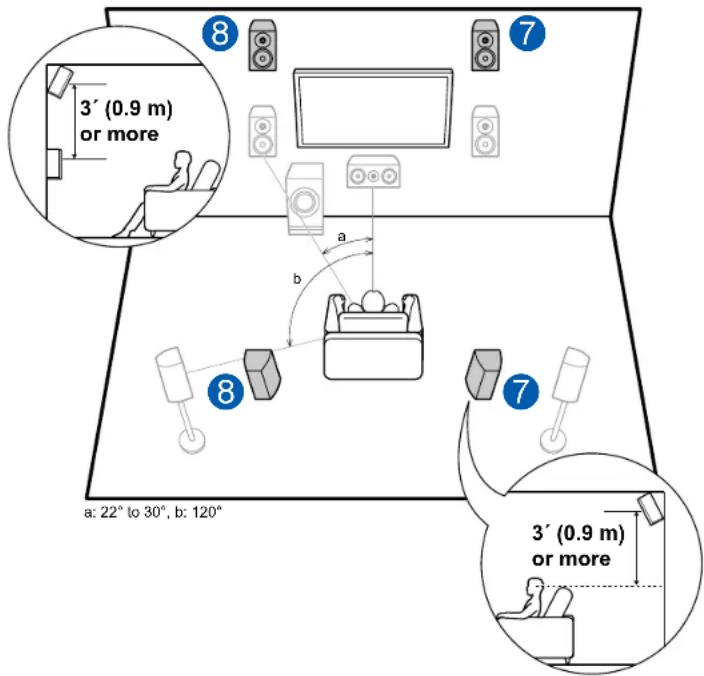

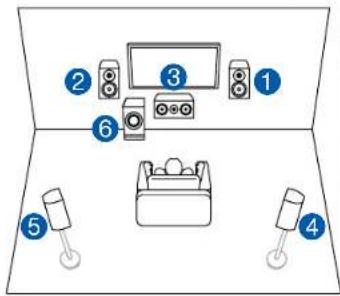

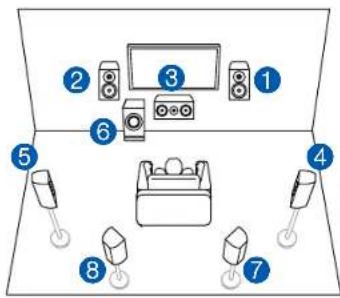

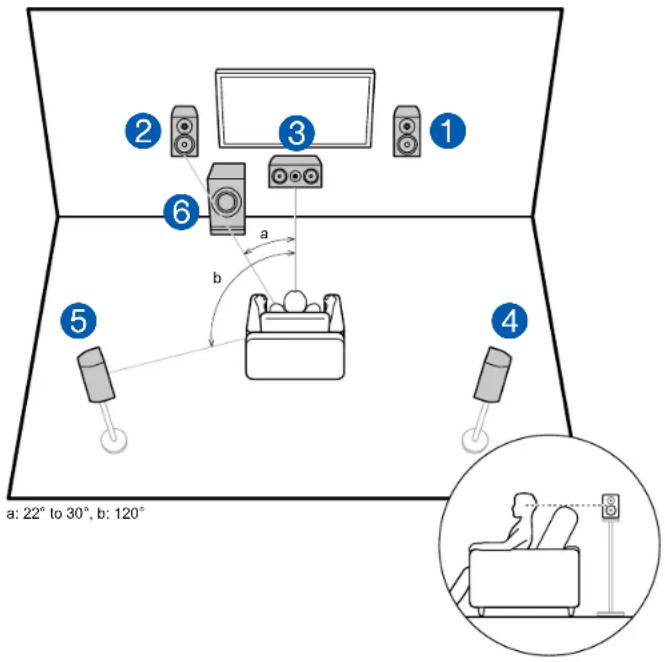

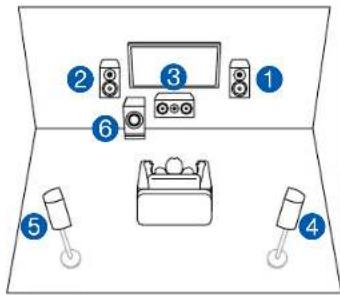

Speaker Installation 18

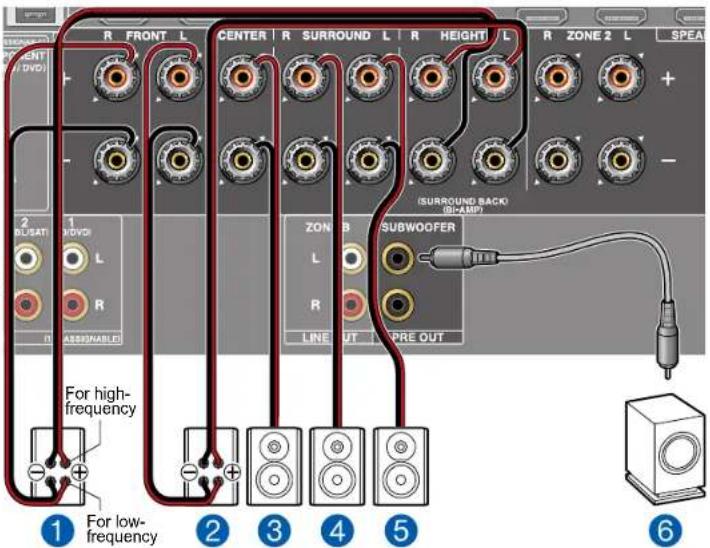

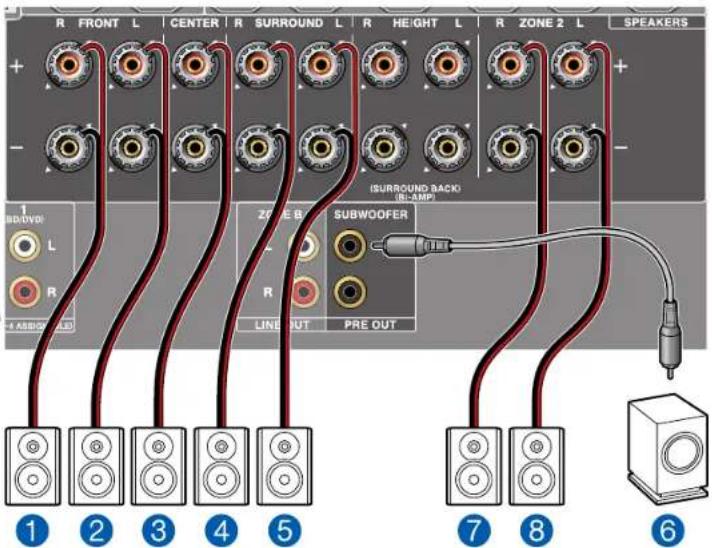

Speaker Connections and "Speaker Setup" Settings 24

Speaker combinations 33

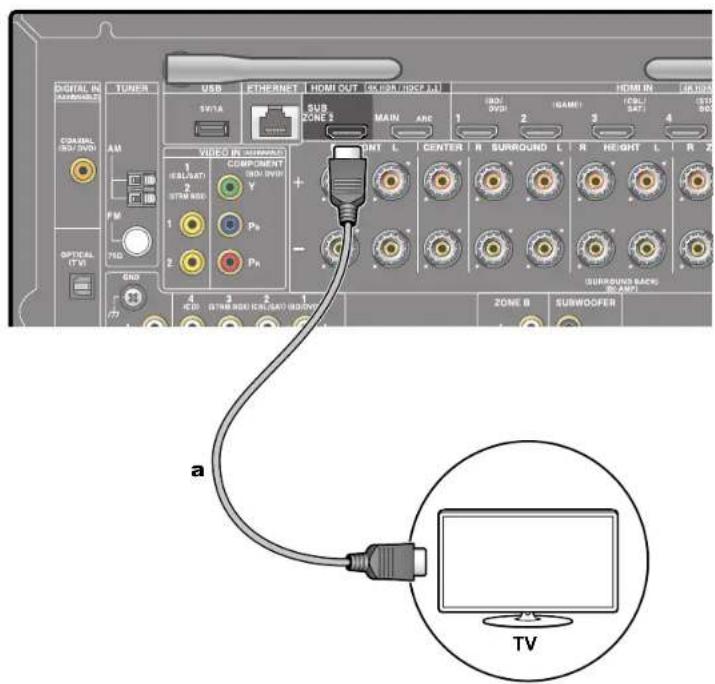

Connecting the TV 34

To ARC TV 35

To Non-ARC TV 36

Connecting Playback Devices

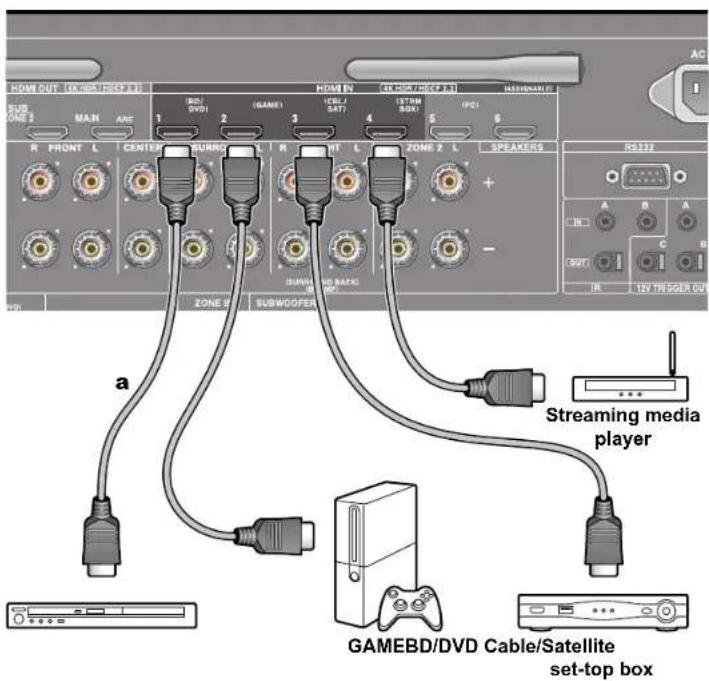

Connecting an AV Component with HDMI Jack

Mounted 37

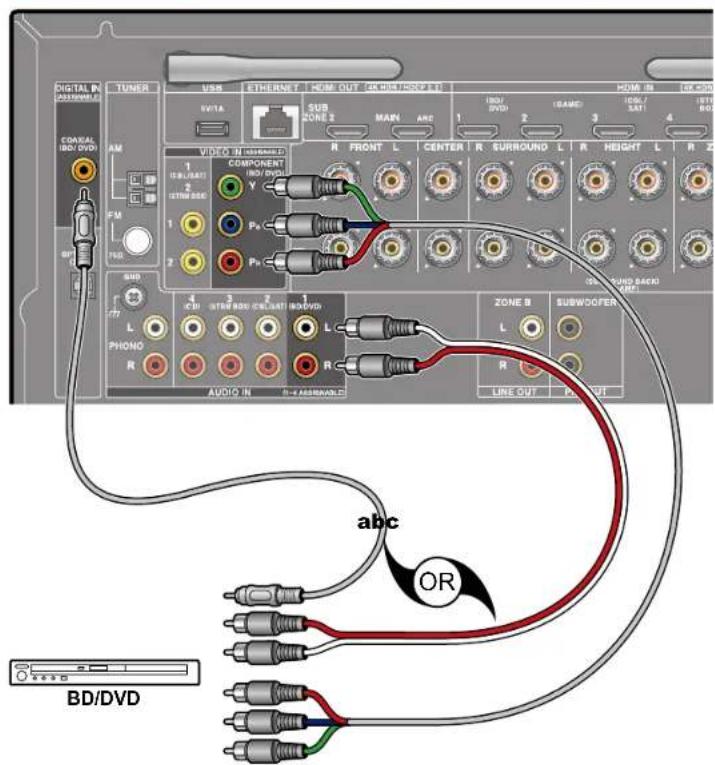

Connecting an AV Component without HDMI Jack

Mounted 38

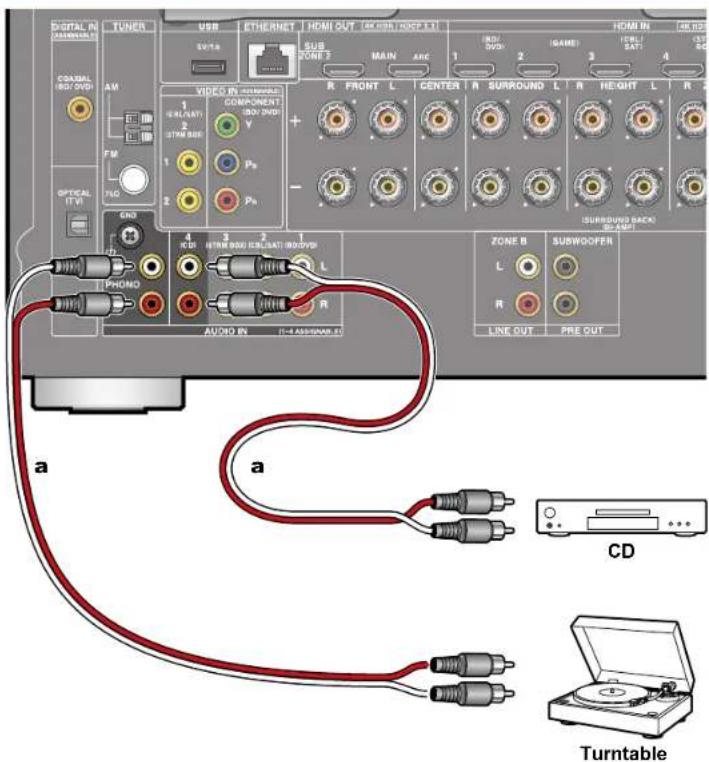

Connecting an Audio Component 39

Connecting an AV Component in a Separate Room

(Multi-zone Connection) 40

Connecting a TV (ZONE 2) 40

Connecting ZONE B 41

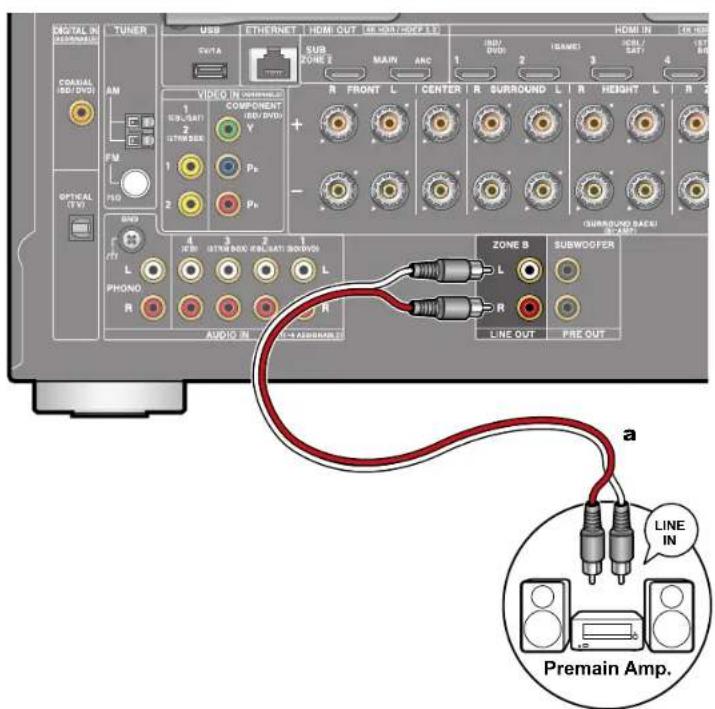

Connecting a Pre-main Amplifier (ZONE B) 41

Connecting Antennas 42

Network Connection 43

Connecting External Control Devices 44

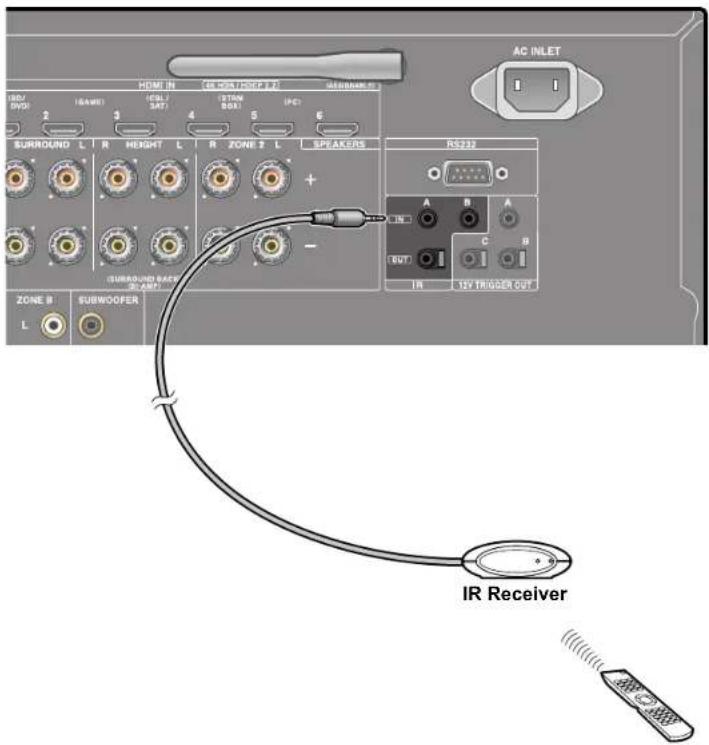

IR IN/OUT port 44

12V TRIGGER OUT jack 45

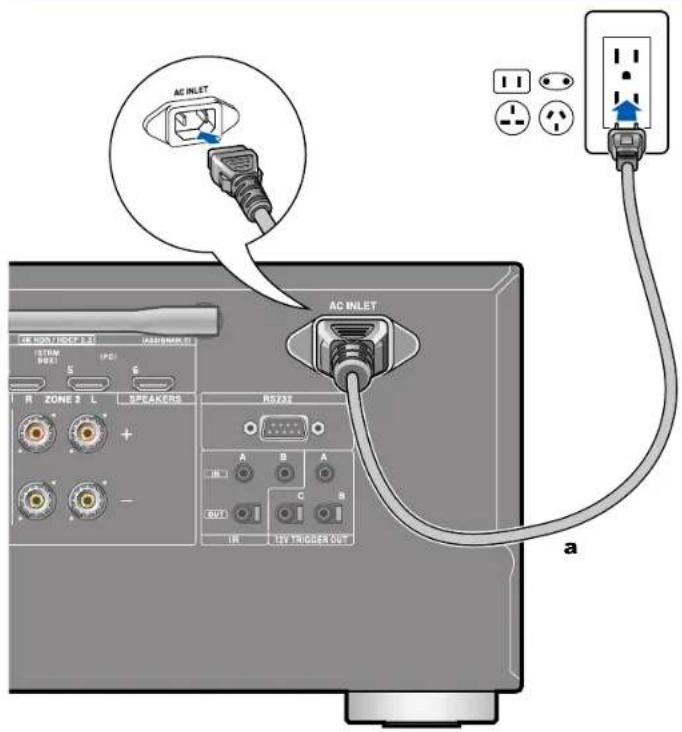

Connecting the Power Cord 46

Playback

AV Component Playback 48

Basic Operations 48

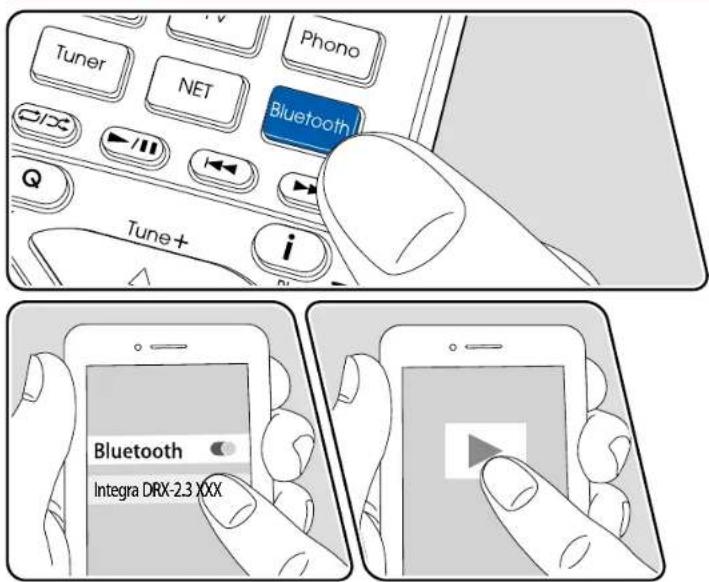

BLUETOOTH® Playback 49

Basic Operations 49

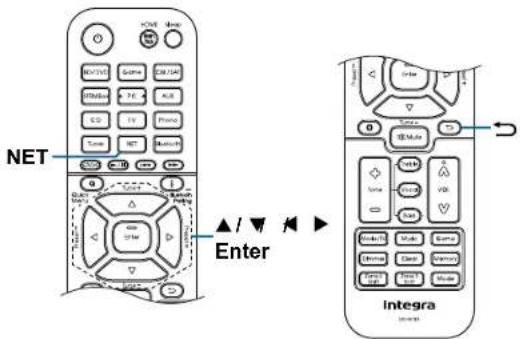

Internet Radio 50

Playing Back 50

Spotify 52

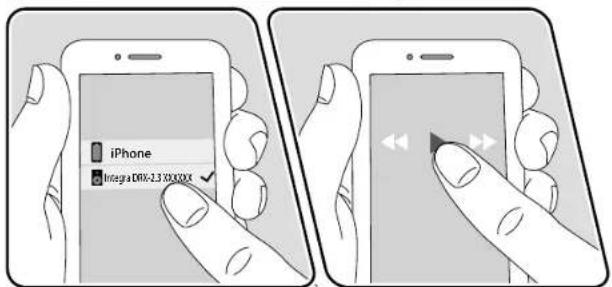

AirPlay ^® 53

Basic Operations 53

DTS Play-Fi® 54

Device and Supported Format 58

Playing back files on a PC and NAS (Music Server) 59

Windows Media® Player settings 59

Playing Back 60

Supported Audio Formats 63

Play Queue 64

Initial Setup 64

Adding Play Queue Information 64

Sort and Delete 65

Playing Back 65

Amazon Music 66

Registering this unit with Amazon Music 66

Playing Amazon Music 66

Connecting your Unit to a Sonos System 67

Required Equipment 67

Connecting your Unit to Sonos Connect 67

Setting up your Unit to work with the Sonos Connect 67

Now the fun part - listening to Sonos on your Unit 68

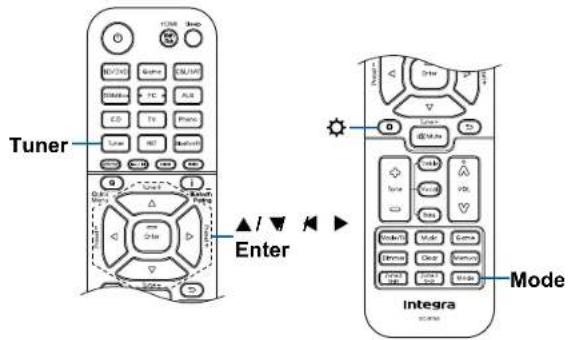

Listening To the AM/FM Radio 69

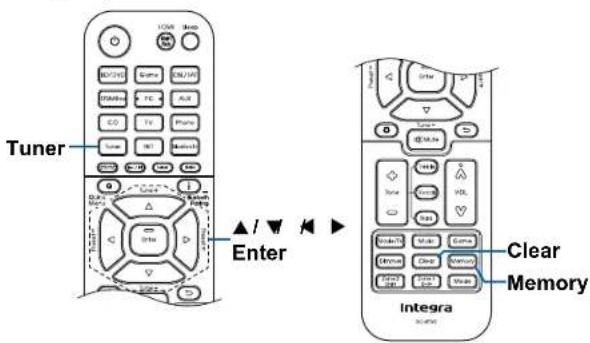

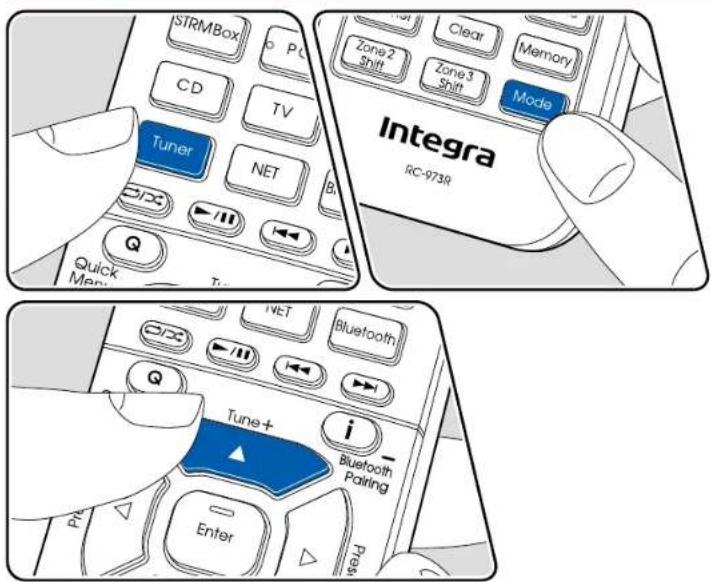

Tuning into a Radio Station 69

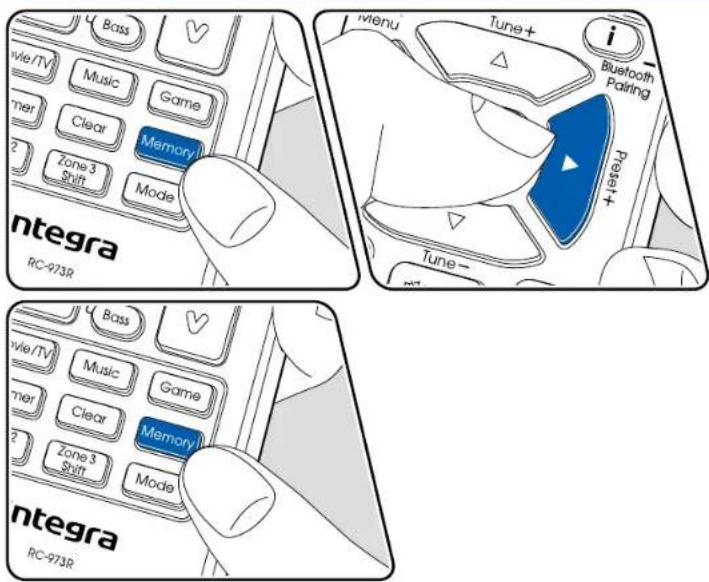

Presetting a Radio Station 71

Using RDS (Australian and Asian models) 73

Multi-zone 74

Playing Back 75

ZONE B Playback 77

Playing Back 77

Convenience functions 78

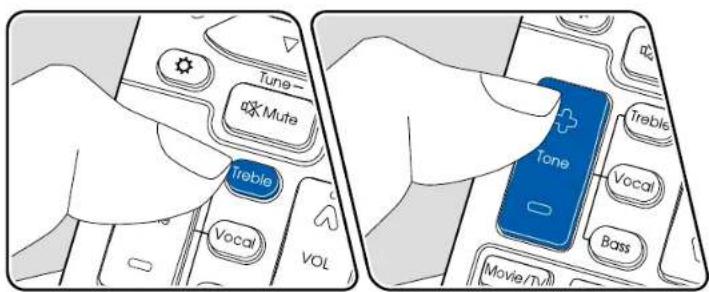

Adjusting the tone 78

Sleep Timer 79

Listening Mode 80

Selecting a Listening mode 80

Speaker Layouts and Selectable Listening Modes 82

Listening Mode Effects 85

Input Formats and Selectable Listening Modes 90

Setup

Setup Menu 101

Menu list 101

Menu operations 103

1. Input/Output Assign 104

2. Speaker 108

Initial Setup with Auto Start-up Wizard 132

Operations 132

Troubleshooting

When the unit is operating erratically 136 Troubleshooting 138

Appendix

Reducing the Power Consumption in Standby State 147

About HDMI 148

General Specifications 150

What's in the box

Line drawing of a portable electronic device with control panel and buttons (no text or symbols)

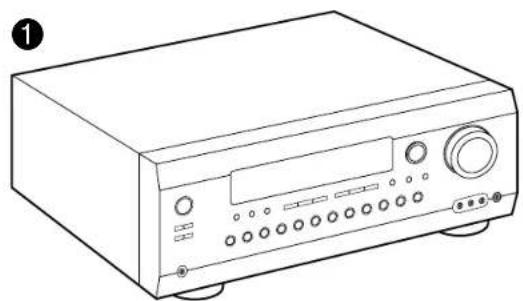

1. Main unit (1)
2. Remote controller (RC-973R) (1), Batteries (AAA/R03) (2)

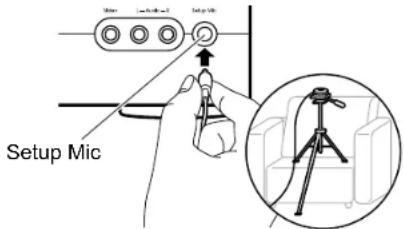

3. Speaker setup microphone (1)
   • Used during Initial Setup.
4. Indoor FM antenna (1)
5. AM loop antenna (1)
6. Power cord (1)

- Quick Start Guide (1)

* This document is an online instruction manual. It is not included as an accessory.

• Connect speakers with an impedance of 4 Ω to 16 Ω.
• The power cord must be connected only after all other connections are completed.
• We will not accept any responsibility for damage arising from the connection with equipment manufactured by other companies.
• Network services and content that can be used may no longer be available if new functions are added by updating firmware or the service providers terminate their services. Also, available services may differ depending on your area.
• Details on the firmware update will be posted on our website and through other means at a later date.
• Specifications and appearance are subject to change without prior notice.

Additional Function (Firmware Update)

This unit is equipped with a function to update the firmware via network or USB port when the firmware update is announced after purchase. This enables various functions to be added and operations to be improved.

Depending on the manufacturing timing of the product, the firmware may be switched to the updated one. In such a case, new functions may be added from the start. For how to confirm the latest firmware contents and the firmware version of your product, see the following section.

Update Information of the firmware

For the latest firmware contents and the firmware version, visit our company's website. If the firmware version of your product differs from the latest one, it is recommended to update the firmware.

To confirm the firmware version of your product, press the ⚙ button on the remote controller, and refer to "8. Miscellaneous" - "Firmware Update" - "Version" (→p127).

Operation of added new functions

If functions are added or changed from contents described in the Instruction Manual, see the following reference.

Supplementary Information »

☐Firmware Update Procedure (→p7)

Firmware Update Procedure

The update may take approx. 20 minutes to complete via network or via USB port. Existing settings are guaranteed in either updating method.

When this unit is connected to the network, notifications of firmware updates may be displayed. To update the firmware, select "Update Now" with the cursors on the remote controller, and press the Enter button. The unit automatically Enters standby mode after "Completed!" is displayed, and the update is completed.

Disclaimer: The program and accompanying online documentation are furnished to you for use at your own risk.

Our company will not be liable and you will have no remedy for damages for any claim of any kind whatsoever concerning your use of the program or the accompanying online documentation, regardless of legal theory, and whether arising in tort or contract.

In no event will our company be liable to you or any third party for any special, indirect, incidental, or consequential damages of any kind, including, but not limited to, compensation, reimbursement or damages on account of the loss of present or prospective profits, loss of data, or for any other reason whatsoever.

Updating the Firmware via Network

- While updating the firmware, do not do the following:

• Disconnecting and reconnecting cables, USB storage device, speaker setup microphone or headphones, or performing operations on the unit such as turning the power off

• Accessing this unit from a PC or smartphone using their applications

• Check that the unit is turned on, and the connection to the Internet is secured.

• Turn off the controller components (PC etc.) connected to the network.
• Stop any playing Internet radio, USB storage device, or server content.
• If the multi-zone function is active, turn it off.
• If "HDMI CEC" is set to "On", set it to "Off"

- Press ⚙. Next, select "6. Hardware" - "HDMI" and press Enter, then select "HDMI CEC" and select "Off".

* The descriptions may differ from the actual on-screen displays, however, operations and functions are the same.

Update

1. Press ⚙

The Setup menu is displayed on the TV screen.

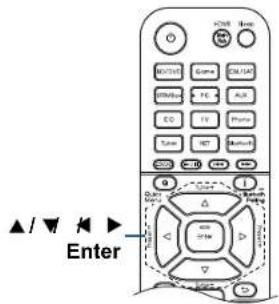

1. Select "8. Miscellaneous" - "Firmware Update" - "Update via NET" with the cursors in order, then press Enter.

• If "Firmware Update" is grayed out and cannot be selected, wait for a while until it starts up.

• If there is no updatable firmware, "Update via NET" cannot be selected.

• Press Enter with "Update" selected, and start update.

• During the update, the TV screen may go black depending on the program to be updated. In such a case, check the progress on the display of the unit. The TV screen will remain black until the update is completed and the power is turned on again.

• When "Completed!" is displayed, the update is complete.

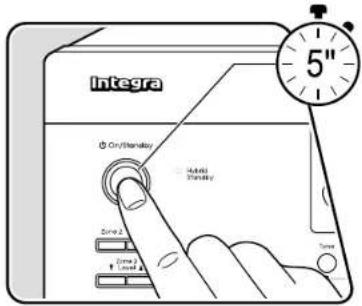

1. PressOn/Standby on the main unit to turn the unit into standby mode. The process is completed, and your firmware is updated to the latest version.
2. Do not use on the remote controller.

If an Error Message is Displayed

If an error occurs, "*-* * Error!" is displayed on the display of the unit. ("*" represents an alphanumeric character.) Refer to the following descriptions and check.

Error Code

• *-01, *-10:
LAN cable not found. Connect the LAN cable properly.
- *-02, *-03, *-04, *-05, *-06, *-11, *-13, *-14, *-16, *-17, *-18, *-20, *-21:
Internet connection error. Check the following:

– Whether the router is turned on

- Whether this unit and the router are connected via the network Unplug and plug the power cords of this unit and the router. This may solve the problem. If you are still unable to connect to the Internet, the DNS server or proxy server may be temporarily down. Check the server operation status with your Internet service provider.

• Others:
  After removing the power plug once, insert it to the outlet, and then start the operation from the beginning.

Updating via USB

• While updating the firmware, do not do the following:
• Disconnecting and reconnecting cables, USB storage device, speaker setup microphone or headphones, or performing operations on the unit such as turning the power off
• Accessing this unit from a PC or smartphone using their applications
• Prepare a 256 MB or larger USB storage device. The format of USB storage devices supports FAT16 or FAT32 file system format.
  – Media inserted into a USB card reader may not be used for this function.
• USB storage devices equipped with the security function are not supported.
• USB hubs and USB devices equipped with the hub function are not
  supported. Do not connect these devices to the unit.

- Delete any data stored on the USB storage device.

• Turn off control devices (PC etc.) connected to the network.
• Stop an Internet radio, USB storage device, or server content being played.
• If the multi-zone function is active, turn it off.
• If "HDMI CEC" is set to "On", set it to "Off".
• Press. Next, select "6. Hardware" - "HDMI" and press Enter, then select "HDMI CEC" and select "Off".
  * Depending on the USB storage device or its content, long time may be required for loading, the content may not be loaded correctly, or power may not be supplied correctly.
  * Our company will not be liable whatsoever for any loss or damage of data, or storage failure arising from the use of the USB storage device. Please note this in advance.
  * The descriptions may differ from the actual on-screen displays, however, operations and functions are the same.

Update

1. Connect the USB storage device to your PC.

2. Download the firmware file from our company's website to your PC and unzip. Firmware files are named as below.
   ONKAVR**** R****.zip
   Unzip the file on your PC. The number of unzipped files and folders varies depending on the model.

3. Copy all unzipped files and folders to the root folder of the USB storage device.

- Make sure to copy the unzipped files.

1. Connect the USB storage device to the USB port of this unit.
2. If an AC adapter is supplied with the USB storage device, connect the AC adapter, and use it with a household outlet.
3. If the USB storage device has been partitioned, each section will be treated as an independent device.

The Setup menu is displayed on the TV screen.

1. Select "8. Miscellaneous" - "Firmware Update" - "Update via USB" with the cursors in order, then press Enter.

- If "Firmware Update" is grayed out and cannot be selected, wait for a while until it starts up.

- If there is no updatable firmware, "Update via USB" cannot be selected.

1. Press Enter with "Update" selected, and start update.

- During the update, the TV screen may go black depending on the program to be updated. In such a case, check the progress on the display of the unit. The TV screen will remain black until the update is completed and the power is turned on again.

- During the update, do not turn the power off, or disconnect or reconnect the USB storage device.

- When "Completed!" is displayed, the update is complete.

1. Disconnect the USB storage device from the unit.

2. Press On/Standby on the main unit to turn the unit into standby mode. The process is completed, and your firmware is updated to the latest version.

- Do not use ⏻ on the remote controller.

If an Error Message is Displayed

If an error occurs, "*-* * Error!" is displayed on the display of the unit. ("*" represents an alphanumeric character.) Refer to the following descriptions and check.

Error Code

- *-01, *-10:

The USB storage device cannot be recognized. Check if the USB storage device or USB cable is securely inserted to the USB port of the unit. Connect the USB storage device to an external power source if it has its own power supply.

• *-05, *-13, *-20, *-21:

The firmware file is not present in the root folder of the USB storage device, or the firmware file is for another model. Retry from the download of the firmware file.

- Others:

After removing the power plug once, insert it to the outlet, and then start the operation from the beginning.

Part Names

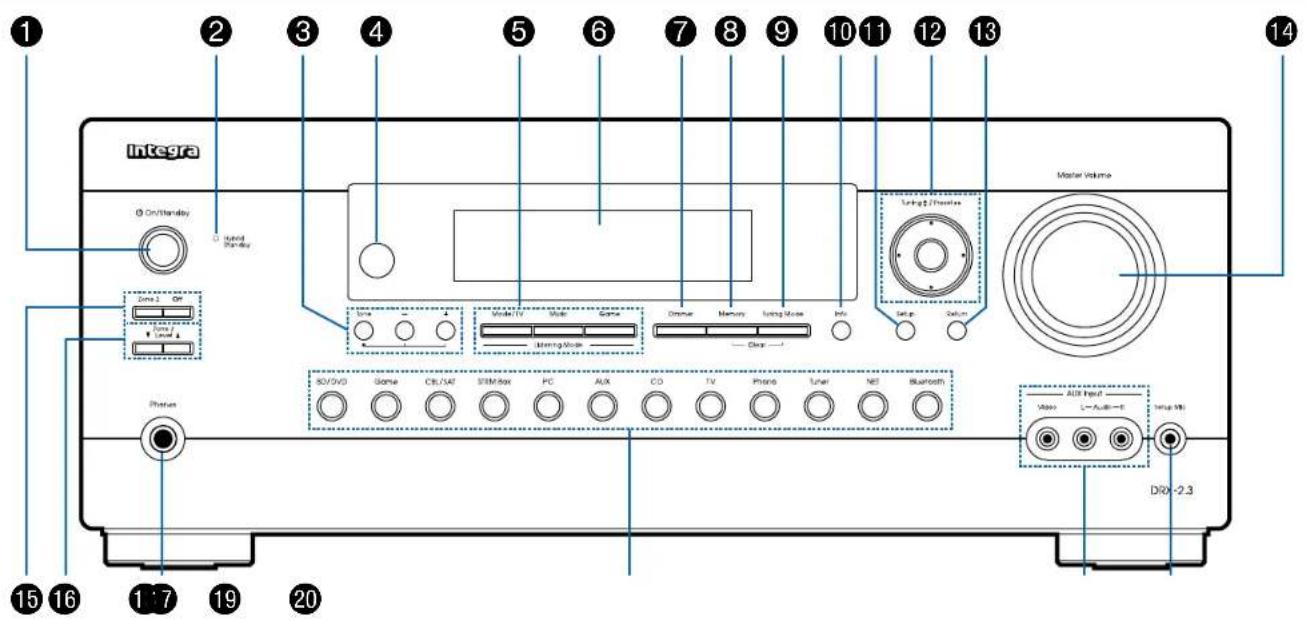

Front Panel

☐ For details, see (→p11)

1. On/Standby button

2. Hybrid Standby indicator: Lights up when any of the following functions is working or enabled in standby state of this unit. When this indicator is lighting, the power consumption in standby state increases, however, the increase in power consumption is minimized by entering the Hybrid Standby mode where only the essential circuits operate.

- HDMI CEC (→p116)

– HDMI Standby Through (→p116)

- USB Power Out at Standby (→p120)

- Network Standby (→p120)

- Bluetooth Wakeup (→p120)

1. You can adjust the sound quality of the speakers. Press the Tone button to select an item to adjust from "Bass", "Vocal" and "Treble", and press + and - to adjust. (p78)

2. Remote control sensor: Receives signals from the remote controller.

- The reception range of the remote controller is within a distance of approx. 16°/5 m, and an angle of 20° in vertical direction and 30° to right and left.

1. Listening Mode button: Press "Movie/TV", "Music" or "Game" button to change the listening mode. (p80)

2. Display (-p12)

3. Dimmer button: Switches the brightness of the display with three levels. It cannot be turned off completely.

4. Memory button: Used to register AM/FM radio stations. (-p71)

5. Tuning Mode button: Switches the tuning mode. (→p69)

6. Info button: Switches the information on the display. (p81)

7. Setup button: You can display advanced setting items on the TV and the display to have a more enjoyable experience with this unit. (→p101)

8. Cursor buttons (▲ ▼ / ◀ and Enter button: Select an item with the cursors, and press Enter to confirm your selection. When using Tuner, use them to tune in to stations. ( p69)

9. Return button: Returns the display to the previous state while setting.

10. Master Volume

11. Zone 2 button: Controls the multi-zone function. (p75) Off button: Switches the multi-zone function off

12. Zone 2 Level ▲ / ▼ buttons: Adjust the volume of the multi-zone function. (-p75)

13. Phones jack: Connect headphones with a standard plug (ø1/4"/6.3 mm).

14. Input selector buttons: Switches the input to be played.

15. AUX Input Video/Audio jacks: Input the video and audio signals from an external player with an analog audio/video cable.

16. Setup Mic jack: Connect the supplied speaker setup microphone. (p133)

Display

1. Speaker/Channel display: Displays the output channel that corresponds to the selected listening mode.
2. Lights in the following conditions.

: Headphones are connected.

Z2: ZONE 2 is on.

*: Connected by BLUETOOTH.

: Connected by Wi-Fi.

NET: Lights when connected to the network with the "NET" input selector. It will blink if incorrectly connected to the network.

USB: Lights when the "NET" input selector is selected, a USB device is connected and the USB input is selected. It will blink if the USB device is not properly connected.

HDMI: HDMI signals are input and the HDMI input is selected.

A: Outputs audio only to ZONE A.

B: Outputs audio only to ZONE B.

AB: Outputs audio to both ZONE A and ZONE B.

DIGITAL: Digital signals are input and the digital input is selected.

1. Lights according to the type of input digital audio signal and the listening mode.
2. Lights in the following conditions.

RDS (Australian and Asian models): Receiving RDS broadcasting.

TUNED: Receiving AM/FM radio.

FM ST: Receiving FM stereo.

SLEEP: Sleep timer is set. (p119)

AUTO STBY: Auto Standby is set. (→p119)

1. Blinks when muting is on.
2. Displays various information of the input signals.
3. This may light when operating with the "NET" input selector.

Rear Panel

☐For details, see (→p14)

1. DIGITAL IN OPTICAL/COAXIAL jacks: Input TV or AV component digital audio signals with a digital optical cable or digital coaxial cable.
2. TUNER AM/FM terminal: Connect the supplied antennas.
3. VIDEO IN jacks: Input AV component video signals with an analog video cable.
4. Wireless antenna: Used for Wi-Fi connection or when using a BLUETOOTH-enabled device. Adjust the angles according to the connection status.

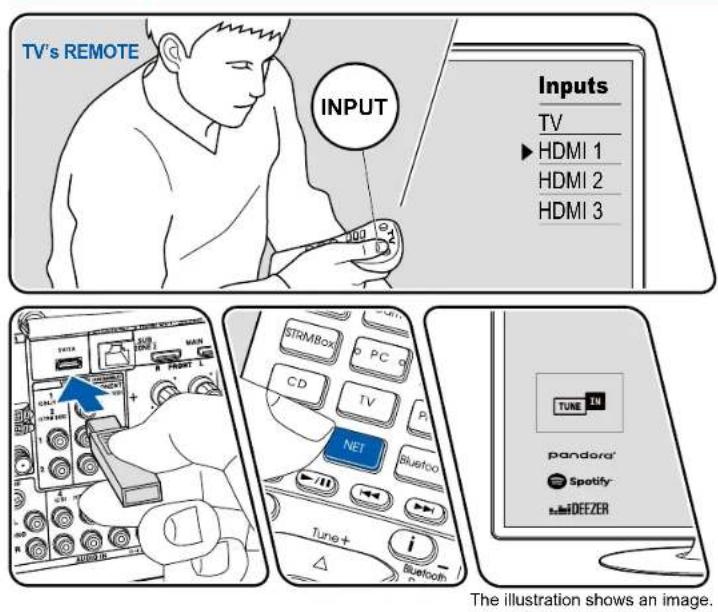

5. USB port: Connect a USB storage device to play music files. (→p56) You can also supply power (5 V/1 A) to USB devices with a USB cable.
6. ETHERNET port: Connect to the network with a LAN cable.
7. COMPONENT VIDEO IN jacks: Input AV component video signals with a component video cable. (Compatible only with 480i or 576i resolution.)
8. HDMI OUT jacks: Transmit video signals and audio signals with an HDMI cable connected to a monitor such as a TV or projector.
9. HDMI IN jacks: Transmit video signals and audio signals with an HDMI cable connected to an AV component.
10. RS-232C port: Connect a home control system equipped with an RS-232C port. For adopting a home control system, contact the specialized stores.
11. AC INLET: Connect the supplied power cord.
12. GND terminal: Connect the ground wire of the turntable.
13. AUDIO IN jacks: Input TV or AV component audio signals with an analog audio cable.
14. SPEAKERS terminals: Connect speakers with speaker cables. (North American models are compatible with banana plugs. Use a plug 4 mm in diameter. Y plug connection is not supported.)
15. ZONE B LINE OUT jacks: Connect to a pre-main amplifier with an analog audio cable, and simultaneously output audio of the same source as that of the speakers (ZONE A) connected to this unit.
16. SUBWOOFER PRE OUT jacks: Connect a powered subwoofer with a subwoofer cable. Up to two powered subwoofers can be connected. The same signal is output from each SUBWOOFER PRE OUT jack.
17. IR IN A/B, IR OUT jacks: Connect a remote control receiver unit.(→p44)
18. 12V TRIGGER OUT A/B/C jack: Connect a device equipped with a 12V trigger input jack to enable power link operation between the device and this unit. (-p45)

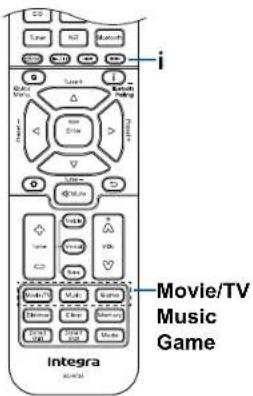

Remote Controller

1. On/Standby button

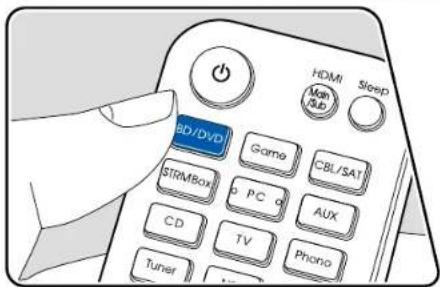

2. Input selector buttons: Switches the input to be played.
3. Play buttons: Used for playback operations for the Music Server ( -p59) or USB device ( -p56). If the unit is switched to "CEC MODE" using "19. Mode button", an HDMI CEC function-enabled AV component can be operated. (Depending on the device, operation may not be possible.)

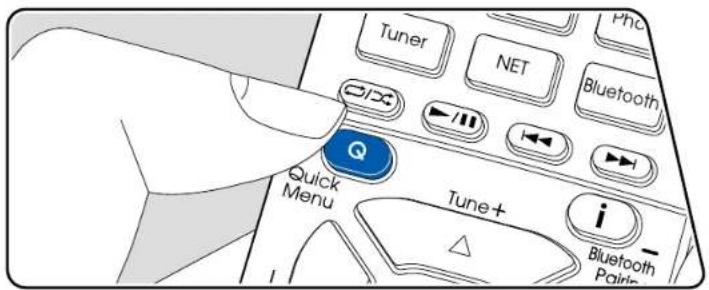

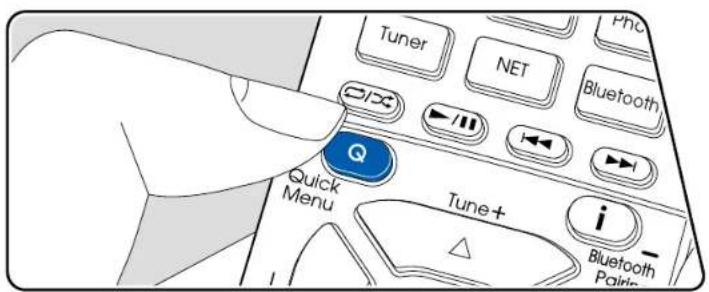

4. Q (Quick Menu) button: Pressing this button during playback can make settings such as "Tone" and "Level" quickly on the TV screen while playing. (→p129)
5. Cursor buttons and Enter button: Select an item with the cursors, and press Enter to confirm your selection. Pressing ▶ ▶an switch the screen when a music folder list or file list is not displayed on one screen on the TV.
6. Button: Display advanced setting items on the TV or the display to have a more enjoyable experience with this unit. (-p101)
7. Tone button: Adjusts the sound quality. (-p78)
8. Listening Mode button: Select a listening mode (-p80).
9. Dimmer button: Switches the brightness of the display with three levels. It cannot be turned off completely.

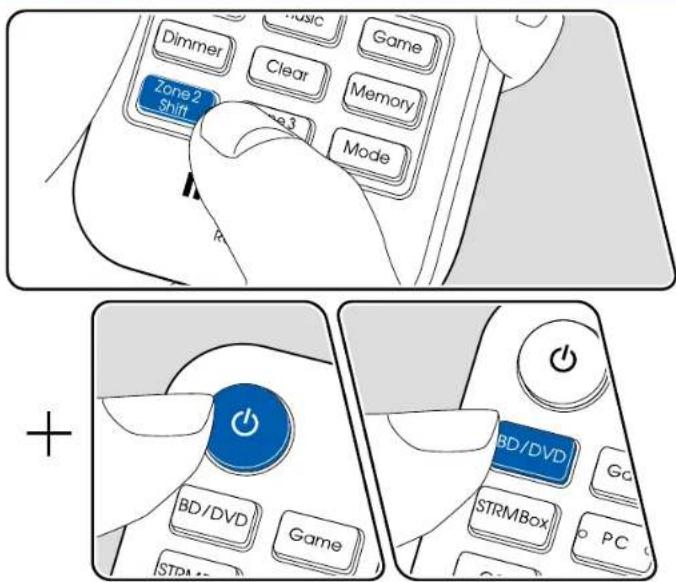

10. Zone 2 Shift button: Control the multi-zone function (→p74). (The Zone 3 Shift button cannot be used with this unit.)
11. Sleep button: Set the sleep timer. Select the time from "30 min", "60 min" and "90 min". (-p79)
12. HDMI Main/Sub button: Select the HDMI OUT jack to output video signals from "MAIN", "SUB", and "MAIN+SUB".
13. i button: Switches the information on the display and is used to operate RDS (→p73). Also, when the "BLUETOOTH" input selector is selected, pressing and holding this button for 5 seconds or more will switch to the pairing mode.
14. ➕ button: Returns the display to the previous state while setting.
15. ✉ button: Temporarily mutes audio. Press the button again to cancel muting.
16. VOLUME buttons

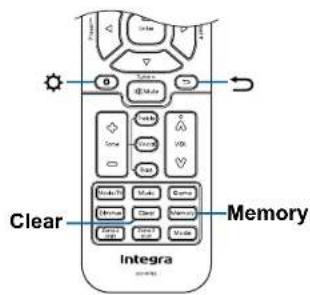

17. Clear button: Deletes all characters you have entered when entering text on the TV screen.
18. Memory button: Used to register AM/FM radio stations. (p71)
19. Mode button: Switches between automatic tuning and manual tuning for AM/FM stations (→p69). Also, when an HDMI CEC function-enabled AV component is connected to this unit, you can switch "3. Play buttons" between "CEC MODE" and "RCV MODE" (normal mode).

Connecting speakers 17

Connecting the TV 34

Connecting Playback Devices 37

Connecting an AV Component in a Separate Room

(Multi-zone Connection) 40

Connecting ZONE B 41

Connecting Antennas 42

Network Connection 43

Connecting External Control Devices 44

Connecting the Power Cord 46

Connecting speakers

You can select the layout of speakers to be installed from various patterns when using this unit. Use the following flow chart to select the speaker layout that suits your speakers and usage environment. You can check the connection method and default settings.

Speaker Installation

5.1 Channel System

This is a basic 5.1 Channel System. Front speakers output the front stereo sound, and a center speaker outputs the sound of the center of the screen, such as dialogs and vocals. Surround speakers create the back sound field. Powered subwoofer reproduces the bass sound, and creates the rich sound field. The front speakers should be positioned at ear height while the surround speakers should be positioned just above ear height. The center speaker should be set up facing the listening position at an angle. Placing the powered subwoofer between the center speaker and the front speaker gives you a natural sound even when playing music sources.

1,2 Front Speakers
3 Center Speaker
4,5 Surround Speakers
6 Powered Subwoofer

☐Speaker Layouts and Selectable Listening Modes ( -p82)

This is a 7.1 Channel System that consists of the basic 5.1 Channel System (p18) and added surround back speakers. Front speakers output the front stereo sound, and a center speaker outputs the sound of the center of the screen, such as dialogs and vocals. Surround speakers create the back sound field. Powered subwoofer reproduces the bass sound, and creates the rich sound field. Surround back speakers improves the sense of envelopment and connectivity of sound in the back sound field, and provides a more real sound field.

The front speakers should be positioned at ear height while the surround speakers should be positioned just above ear height. The center speaker should be set up facing the listening position at an angle. Placing the powered subwoofer between the center speaker and the front speaker gives you a natural sound even when playing music sources. The surround back speakers should be positioned at ear height.

- If surround back speakers are installed, be sure to install surround speakers as well.

1,2 Front Speakers
3 Center Speaker
4.5 Surround Speakers
6 Powered Subwoofer
7,8 Surround Back Speakers

☐Speaker Layouts and Selectable Listening Modes ( -p82)

5.1.2 Channel System

A 5.1.2 Channel System is a speaker layout consisting of the basic 5.1 Channel System ( p18 ) and added height speakers. Select the height speakers that suit your speakers and usage environment from the following three types.

☐Front High Speakers/Rear High Speakers Installation Example (p21)
☐Ceiling Speakers Installation Example (p22)
☐Dolby Enabled Speakers (Dolby Speakers) Installation Example (p23)

☐Front High Speakers/Rear High Speakers Installation Example

This is a system with the basic 5.1 channel system ( -p18 ) consisting of front speakers, a center speaker, surround speakers and a powered subwoofer, and added front high speakers or rear high speakers combined. Installing the height speakers will enrich the sound field feeling in the upper space. Front high speakers or rear high speakers should be installed at least 3'/0.9 m higher than the front speakers.

Front high speakers should be installed directly above the front speakers, and the distance between the rear high speakers should match the distance between the front speakers. In both cases, the speakers should be set up facing the listening position at an angle.

7,8 Height Speakers

Choose one of the following:

• Front High Speakers
• Rear High Speakers

☐Speaker Layouts and Selectable Listening Modes (p82)

a: 30^ to 55^ , b: 65^ to 100^ , c: 125^ to 150^

This is a system with the basic 5.1 channel system ( p18) consisting of front speakers, a center speaker, surround speakers and a powered subwoofer, and added top front speakers or top middle speakers or top rear speakers combined. Installing the height speakers will enrich the sound field feeling in the upper space. Install the top front speakers on the ceiling anterior to the seating position, top middle speakers on the ceiling directly above the seating position, and top rear speakers on the ceiling posterior to the seating position. The distance between each pair should match the distance between the front speakers.

- Dolby Laboratories recommends the setups of these types of height speakers to obtain the best Dolby Atmos effect.

7,8 Height Speakers

Choose one of the following:

• Top Front Speakers
  • Top Middle Speakers
• Top Rear Speakers

☐Speaker Layouts and Selectable Listening Modes ( -p82)

a: 22^ to 30^ , b: 120^

This is a system with the basic 5.1 channel system ( -p18 ) consisting of front speakers, a center speaker, surround speakers and a powered subwoofer, and added Dolby enabled speakers (front) or Dolby enabled speakers (surround) combined. Dolby enabled speakers are special speakers designed to face the ceiling, so that the sound is heard from overhead by bouncing the sound off the ceiling. Installing the height speakers will enrich the sound field feeling in the upper space.

Install them either on the front speakers or on the surround speakers.

7,8 Height Speakers

Choose one of the following:

• Dolby Enabled Speakers (Front)
• Dolby Enabled Speakers (Surround)

☐Speaker Layouts and Selectable Listening Modes ( -p82)

Speaker Connections and "Speaker Setup" Settings

Connections

■ (Note) Speaker Impedance

Connect speakers with an impedance of 4 Ω to 16 Ω. If any of the speakers to be connected has an impedance of 4 Ω or more and less than 6 Ω, set "Speaker Impedance" to "4ohms" for "Speaker Setup" in the Initial Setup section (→p132). When setting "Speaker Impedance" from the Setup menu, press ⚙ on the remote controller, and set "2. Speaker" - "Configuration" - "Speaker Impedance" (→p108) to "4ohms".

■ Connect the Speaker Cables

Make correct connection between the unit's jacks and speaker's jacks (+ side to + side, and - side to - side) for each channel. If the connection is wrong, a bass sound will not be reproduced properly due to reverse phase. Twist the wires exposed from the tip of the speaker cable so that the wires do not stick out of the speaker terminal when connecting. If the exposed wires touch the rear panel, or the + side and - side wires touch each other, a malfunction may occur.

a Subwoofer cable
Connect a powered subwoofer with this unit using a subwoofer cable. Up to two powered subwoofers can be connected. The same signal is output from each SUBWOOFER PRE OUT jack.

This is a basic 5.1 Channel System. For details of the speaker layout, refer to "Speaker Installation" (→p18).

■ "Speaker Setup" settings during Initial Setup ( p133)

• Speaker Channels: 5.1 ch

- Subwoofer: Yes

- Height Speaker: —

• Zone Speaker: No

- Bi-Amp: No

- Speaker Impedance: Set any value ( p24)

5.1 Channel System + ZONE SPEAKER

MAIN ROOM

ZONE 2

MAIN ROOM: This is a basic 5.1 Channel System. For details of the speaker layout, refer to "Speaker Installation" (p18).
ZONE 2: You can enjoy 2-ch audio in the separate room (ZONE 2) while performing 5.1-ch playback in the main room (where this unit is located). The same source can be played back in the main room and ZONE 2 simultaneously. Also, different sources can be played back in both rooms.

■ "Speaker Setup" settings during Initial Setup ( p133)

• Speaker Channels: 5.1 ch
- Subwoofer: Yes
• Height Speaker: --
• Zone Speaker: Zone 2
- Bi-Amp: No
- Speaker Impedance: Set any value ( p24)

Setup

When video and audio via HDMI input are output to ZONE 2, set "1. Input/ Output Assign" - "TV Out / OSD" - "Zone 2 HDMI" ( p104) to "Use" on the Setup menu.

5.1 Channel System (Bi-Amping the Speakers)

■ "Speaker Setup" settings during Initial Setup ( p133)

• Speaker Channels: 5.1 ch

- Subwoofer: Yes

- Height Speaker: —

• Zone Speaker: No

- Bi-Amp: Yes

- Speaker Impedance: Set any value ( p24)

You can configure a 5.1 Channel System ( p18) by connecting front speakers that support Bi-Amping connection. The Bi-Amping connection can improve the quality of the low and high pitched ranges. Be sure to remove the jumper bar connecting between the woofer jacks and tweeter jacks of the Bi-Amping supported speakers. Refer to the instruction manual of your speakers as well.

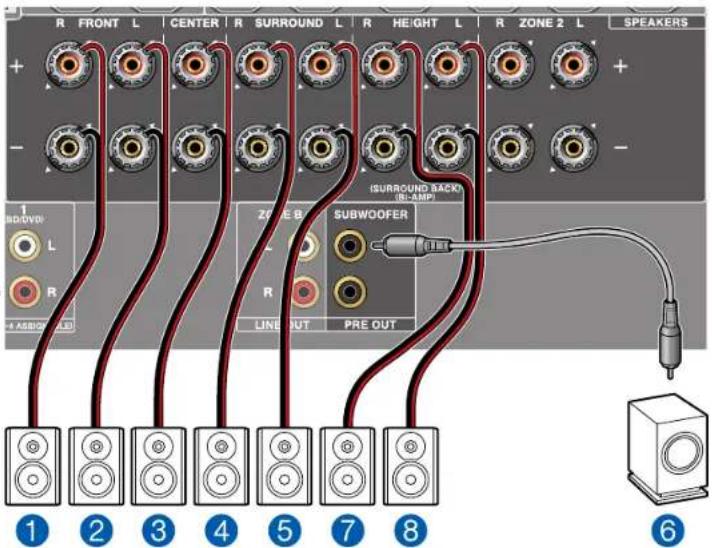

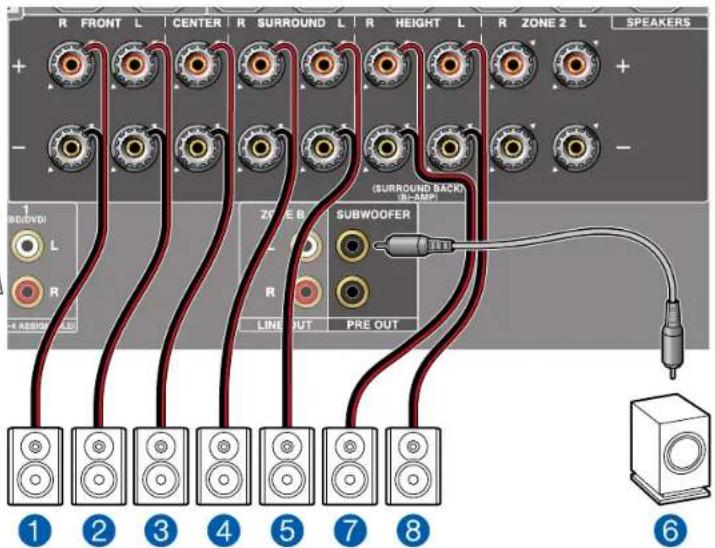

7.1 Channel System

This is a 7.1 Channel System that consists of the basic 5.1 Channel System and added surround back speakers. For details of the speaker layout, refer to "Speaker Installation" (→p19).

■ "Speaker Setup" settings during Initial Setup ( p133)

• Speaker Channels: 7.1 ch

- Subwoofer: Yes

- Height Speaker: --

• Zone Speaker: No

- Bi-Amp: No

- Speaker Impedance: Set any value ( p24)

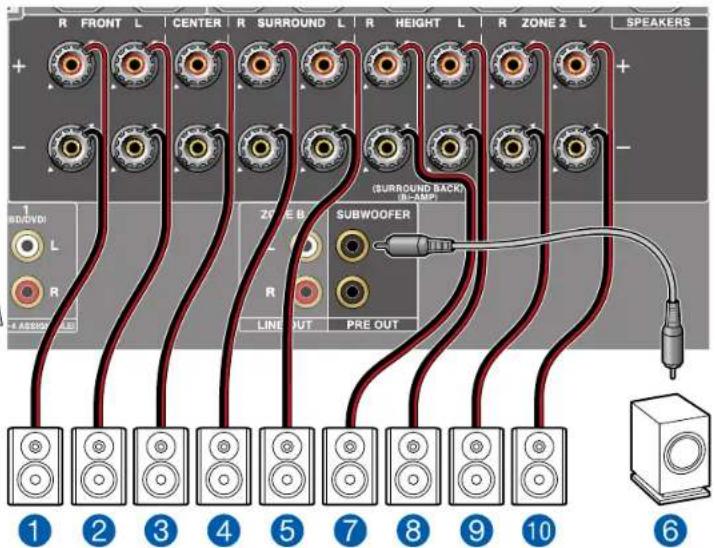

7.1 Channel System + ZONE SPEAKER

MAIN ROOM

ZONE 2

MAIN ROOM: This is a 7.1 Channel System that consists of the basic 5.1 Channel System and added surround back speakers. For details of the speaker layout, refer to "Speaker Installation" (→p19).

ZONE 2: You can enjoy 2-ch audio in the separate room (ZONE 2) while performing playback in the main room (where this unit is located). The same source can be played back in the main room and ZONE 2 simultaneously. Also, different sources can be played back in both rooms.

- While ZONE 2 playback is being performed, surround back speakers installed in the main room cannot play audio.

■ "Speaker Setup" settings during Initial Setup ( p133)

• Speaker Channels: 7.1 ch
- Subwoofer: Yes
• Height Speaker: --
• Zone Speaker: Zone 2
- Bi-Amp: No
- Speaker Impedance: Set any value ( p24)

Setup

When video and audio via HDMI input are output to ZONE 2, set "1. Input/ Output Assign" - "TV Out / OSD" - "Zone 2 HDMI" ( p104) to "Use" on the Setup menu.

This is a combination of the 5.1 Channel System and front high speakers. A front high speaker is a type of height speaker. You can select only one set of height speakers from the following three types for connection.

Front High Speakers/Rear High Speakers Installation Example (→p21)
☐ Ceiling Speakers Installation Example (p22)
☐ Dolby Enabled Speakers (Dolby Speakers) Installation Example (→p23)

■ "Speaker Setup" settings during Initial Setup ( p133)

• Speaker Channels: 5.1.2 ch
- Subwoofer: Yes
- Height Speaker: Select the type of height speaker actually installed.
• Zone Speaker: No
• Bi-Amp: No
- Speaker Impedance: Set any value ( p24)

5.1.2 Channel System + ZONE SPEAKER

MAIN ROOM

ZONE 2

MAIN ROOM: This is a combination of the 5.1 Channel System and front high speakers. A front high speaker is a type of height speaker. You can select only one set of height speakers from the following three types for connection.

☐ Front High Speakers/Rear High Speakers Installation Example (→p21)
□ Ceiling Speakers Installation Example (p22)
☐ Dolby Enabled Speakers (Dolby Speakers) Installation Example (→p23)

ZONE 2: You can enjoy 2-ch audio in the separate room (ZONE 2) while performing playback in the main room (where this unit is located). The same source can be played back in the main room and ZONE 2 simultaneously. Also, different sources can be played back in both rooms.

- While ZONE 2 playback is being performed, height speakers installed in the main room cannot play audio.

■ "Speaker Setup" settings during Initial Setup ( p133)

• Speaker Channels: 5.1.2 ch
- Subwoofer: Yes
- Height Speaker: Select the type of height speaker actually installed.
• Zone Speaker: Zone 2
- Bi-Amp: No
- Speaker Impedance: Set any value ( p24)

Setup

When video and audio via HDMI input are output to ZONE 2, set "1. Input/ Output Assign" - "TV Out / OSD" - "Zone 2 HDMI" (p104) to "Use" on the Setup menu.

Speaker combinations

Speaker Channels FRONT CENTER SURROUND				SURROUND BACK	HEIGHT Bi-AMP	ZONE 2 (ZONE SPEAKER)
2.1 ch	✓					✓ (*1) (*1)
3.1 ch	✓	✓				✓ (*1) (*1)
4.1 ch	✓		✓			✓ (*1) (*1)
5.1 ch	✓	✓	✓			✓ (*1) (*1)
6.1 ch	✓		✓	✓ (*2)
7.1 ch	✓	✓	✓	✓ (*2)
2.1.2 ch	✓				✓ (*3)
3.1.2 ch	✓	✓			✓ (*3)
4.1.2 ch	✓		✓		✓ (*3)
5.1.2 ch	✓	✓	✓		✓ (*3)

(*1) You can select either Bi-AMP or ZONE SPEAKER.
(*2) When audio is being output from the ZONE SPEAKER, surround back speakers cannot play audio.
(*3) When audio is being output from the ZONE SPEAKER, height speakers cannot play audio.

Connecting the TV

Connect this unit between a TV and AV component. Connecting this unit with the TV can output the video and audio signals of the AV component to the TV, or play the audio of the TV on this unit. Connection with the TV differs depending on whether the TV supports the ARC (Audio Return Channel) function or not. The ARC function transmits the audio signals of the TV via an HDMI cable, and plays the audio of the TV on this unit. To check if the TV supports the ARC function, refer to the instruction manual of the TV, etc.

If the TV supports the ARC (Audio Return Channel) function (*), use only the HDMI cable to connect with the TV. Use the ARC-compatible HDMI IN jack of the TV for connection.

• Another TV or projector can be connected to the HDMI OUT SUB jack. Switch between MAIN and SUB using the HDMI Main/Sub button (-p15) on the remote controller or "Quick Menu" (-p129). Note that this jack is not ARC-compatible.
• If devices with different resolutions are connected to HDMI OUT MAIN jack and SUB jack, images are output with the lower resolution.

Setup

• Settings are required to use the ARC function. Select "Yes" for "5. ARC Setup" in Initial Setup (→p132). If "No, Skip" is selected, settings are required in the Setup menu after Initial Setup is completed. Press ☐ on the remote controller, and select "6. Hardware" - "HDMI" (→p116) to make the following settings.
• Set "HDMI CEC" to "On".
• Set "Audio Return Channel" to "Auto".

- For detailed settings for TV connection, CEC function and audio output, refer to the instruction manual of the TV.

(*) ARC function: This function transmits the audio signals of the TV via an HDMI cable, and plays the audio of the TV on this unit. Connection to an ARC-compatible TV is complete with one HDMI cable. To check if the TV supports the ARC function, refer to the instruction manual of the TV, etc.

If the TV does not support the ARC (Audio Return Channel) function (*), connect an HDMI cable and digital optical cable.

• If you use a cable set-top box, etc. connected to the input jack of this unit to watch TV (without using a TV's built-in tuner), connection with a digital optical cable or analog audio cable is not required.
• Another TV or projector can be connected to the HDMI OUT SUB jack. Switch between MAIN and SUB using the HDMI Main/Sub button ( -p15) on the remote controller or "Quick Menu" ( -p129). Note that this jack is not ARC-compatible.
• If devices with different resolutions are connected to HDMI OUT MAIN jack and SUB jack, images are output with the lower resolution.

(*) ARC function: This function transmits the audio signals of the TV via an HDMI cable, and plays the audio of the TV on this unit. Connection to an ARC-compatible TV is complete with one HDMI cable. To check if the TV supports the ARC function, refer to the instruction manual of the TV, etc.

Connecting Playback Devices

Connecting an AV Component with HDMI Jack Mounted

a HDMI cable

This is a connection example of an AV component equipped with an HDMI jack. When connecting with an AV component that conforms to the CEC (Consumer Electronics Control) standard, you can use the HDMI CEC function (*) that enables linking with input selectors, etc. and the HDMI Standby Through function that can transmit video and audio signals of the AV component to the TV even if this unit is in standby mode.

• To play 4K or 1080p video, use a high speed HDMI cable.

Setup

• The HDMI CEC function and HDMI Standby Through function are automatically enabled if you select "Yes" for "5. ARC Setup" in Initial Setup (→p132). If "No, Skip" is selected, settings are required in the Setup menu after Initial Setup is completed. Press ☐ on the remote controller, and select "6. Hardware" - "HDMI" to make the settings. (→p116)
• To enjoy digital surround sound including Dolby Digital, set the audio output of the connected Blu-ray Disc player etc. to the Bitstream output.

(*)The HDMI CEC function: This function enables various linking operations with CEC-compliant devices, such as switching input selectors interlocking with a CEC-compliant player, switching audio output between TV and this unit or adjusting the volume using the remote controller of a CEC-compliant TV, and automatically switching this unit to standby when the TV is turned off.

Connecting an AV Component without HDMI Jack Mounted

a Digital coaxial cable, b Analog audio cable, c Component video cable

This is a connection example of an AV component unequipped with an HDMI jack. Select cables that match the jacks of the AV component for connection. For example, when video input is connected to the BD/DVD jack, connect the audio input to BD/DVD jack, too. Thus, video input jacks and audio input jacks should have the same name for connection. Note that video signals input to the VIDEO IN jack or the COMPONENT VIDEO IN jack are converted to HDMI video signals, and then output from the HDMI OUT jack.

• To enjoy digital surround playback in formats such as Dolby Digital, you need to make a connection for audio signals with a digital coaxial cable or a digital optical cable.
• According to the illustration, changing the input assignment ( p106 ) enables connection to jacks other than the BD/DVD jack.

Setup

- The COMPONENT VIDEO IN jacks are compatible only with 480i or 576i resolution. When connecting to the COMPONENT VIDEO IN jacks, set the output resolution of the player to 480i or 576i. If there is no option such as 480i, select interlace. If your player does not support 480i or 576i output, use the VIDEO IN jack.

- To enjoy digital surround sound including Dolby Digital, set the audio output of the connected Blu-ray Disc player etc. to the Bitstream output.

Connecting an Audio Component

a Analog audio cable

This is a connection example of an audio component. Connect a CD player using a analog audio cable. You can also connect a turntable that has an MM-type cartridge to the PHONO jack.

- If the turntable has a built-in phono equalizer, connect it to any of the AUDIO IN jacks other than the PHONO jack. Further, if the turntable uses an MC type cartridge, install a phono equalizer compatible with the MC type cartridge between the unit and the turntable, and then connect it to any of the AUDIO IN jacks other than the PHONO jack.

If the turntable has a ground wire, connect it to the GND terminal of this unit.

Connecting an AV Component in a Separate Room (Multi-zone Connection)

Connecting a TV (ZONE 2)

a HDMI cable

While a disc is played on a Blu-ray Disc player in the main room (where this unit is located), you can play the video and audio of the same Blu-ray Disc player or another AV component on the TV equipped with an HDMI IN jack in a separate room (ZONE 2). The TV in the separate room can play only the video of devices connected to the HDMI IN1 to IN3 jacks of this unit.

- The audio from externally connected AV components can be output only when the signal is 2 ch PCM audio. It may also be necessary to convert the audio output of the AV component to PCM output.

- When video and audio via HDMI input are output to ZONE 2, set "1. Input/Output Assign" - "TV Out / OSD" - "Zone 2 HDMI" (→p104) to "Use" on the Setup menu.

Connecting ZONE B

Connecting a Pre-main Amplifier (ZONE B)

a Analog audio cable

While performing playback through speakers (ZONE A) connected to the unit, you can enjoy the audio of the same source with the pre-main amplifier (ZONE B) connected to the ZONE B LINE OUT jack at the same time. Press the Q button on the remote controller for playback, and select the audio output destination on the Quick menu. ( p77)

a Indoor FM antenna, b AM loop antenna

Connect the antenna to this unit, and set up the antenna at the best position for listening while receiving radio signals. Attach the indoor FM antenna to the wall using push pins or adhesive tape.

This unit can be connected to the network using a wired LAN or Wi-Fi (wireless LAN). You can enjoy network functions such as Internet radio by network connection. If connection is made by the wired LAN, connect the router and the ETHERNET jack with the LAN cable as shown in the illustration. To connect by Wi-Fi, select "Wireless" for "4. Network Connection" in Initial Setup (p133), select your desired setting method, and then follow the on-screen instructions. To configure the setting on the Setup menu after the completion of Initial Setup, press the button on the remote controller, and select "6. Hardware" - "Network" to make the setting. (p117) For the Wi-Fi connection, stand the wireless antenna for use.

a LAN cable

Connecting External Control Devices

IR IN/OUT port

When connecting a remote control receiver unit consisting of an IR Receiver, etc. to this unit, operation using the remote controller is possible even if the remote control signal is difficult to reach (due to installation in the cabinet, etc.). It is also possible to operate this unit from other room such as ZONE 2 with a remote controller, or operate other devices with the remote controller by connecting other devices to this unit. For adopting a remote control receiver unit, contact the specialized stores.

- For the type of cable required for connection, refer to the operation manual, etc. of the remote control receiver unit.

When connecting a device equipped with a TRIGGER IN jack such as a BD/DVD player to this unit, the device can be turned on or set to standby by interlocking the operation on this unit. When the desired input is selected on the unit, power link operation will be activated with a control signal of maximum 12 V/100 mA from the 12V TRIGGER OUT A jack or maximum 12 V/25 mA when using the 12V TRIGGER OUT B or C jack. You can select the zone to output the control signal by setting each of the inputs.

- For connection, use a monaural mini plug cable (ø1/8"/3.5 mm) without resistance. Do not use a stereo mini plug cable.

Connecting the Power Cord

a Power cord

Connect the power cord after all the connections are completed.

- This unit includes a removable power cord. Be sure to connect the power cord to the AC INLET of the unit first, and then connect it to the outlet. Always disconnect the outlet side first when disconnecting the power cord.

You can play the audio from AV components, such as Blu-ray disc players through this unit.

- When a TV is connected to the HDMI OUT SUB jack, use the HDMI Main/Sub button or "Quick Menu" (→p129) to switch between MAIN and SUB.

Basic Operations

Perform the following procedure when this unit is on.

1. Switch the input on the TV to the input connected to the unit.

2. Press the input selector whose name is the same as that of the jack to which the player is connected.

For example, press BD/DVD to play the player connected to the BD/DVD jack. Press TV to listen the sound of the TV. Also, to play a device connected to the AUX Input Video/Audio jack on the front panel, press AUX.

- When the CEC link function works, the input switches automatically when a CEC compliant TV or player is connected to this unit using HDMI connection.

1. Start play on the AV component.

BLUETOOTH® Playback

You can wirelessly play the audio on a BLUETOOTH-enabled device, such as a smartphone.

Basic Operations

Perform the following procedure when this unit is on.

Pairing

1. When you press the Bluetooth button, "Now Pairing..." is displayed on this unit's display, and the pairing mode is enabled.

Now Pairing...

1. Enable (turn on) the BLUETOOTH function of the BLUETOOTH-enabled device, and then select this unit from among the devices displayed. If a password is requested, enter "0000".

2. This unit is displayed as "Integra DRX-2.3 XXXXXX". This display can be changed with the Friendly Name function (→p118) or the Integra Control Pro (can be used with the iOS or Android™).

3. To connect another BLUETOOTH-enabled device, press and hold the i button at least 5 seconds, and then perform step 2. This unit can store the pairing information of up to 8 paired devices.
4. The coverage area is approx. 48'/15 m. Note that connection is not always guaranteed with all BLUETOOTH-enabled devices.

Playing Back

1. Perform the connection procedure on the BLUETOOTH-enabled device. The input on this unit automatically switches to "BLUETOOTH".

2. Playing the music file. Turn up the volume of the BLUETOOTH-enabled device to an appropriate level.

- Due to the characteristics of BLUETOOTH wireless technology, the sound produced on this unit may slightly be behind the sound played on the BLUETOOTH-enabled device.

By connecting this unit to an Internet-connected network, you can enjoy Internet radio services, such as TuneIn Radio, etc.

• To play Internet radio services, the network needs to be connected to the Internet.
- Depending on the Internet radio service, a user registration may be required on your PC beforehand. For details of each service, visit the website of each service.

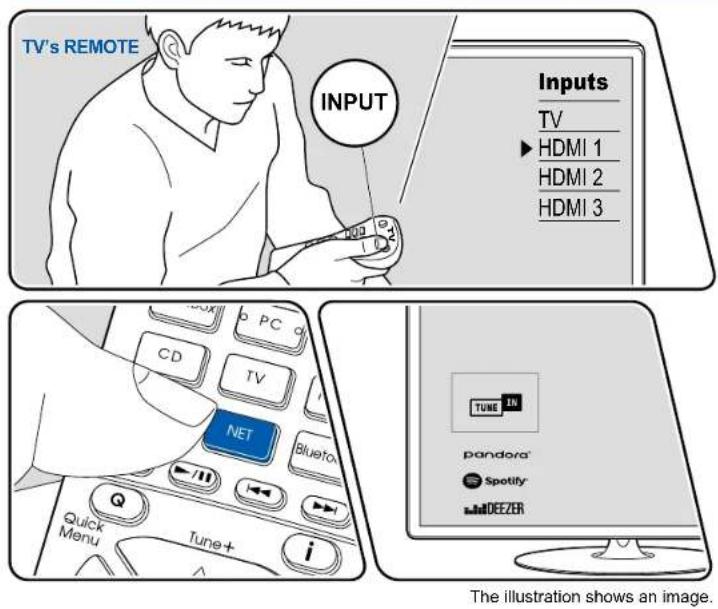

Playing Back

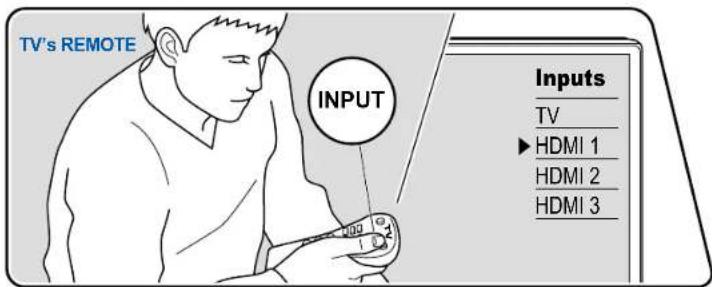

TV's REMOTE

INPUT	Inputs
	TV
	HDMI 1
	HDMI 2
	HDMI 3

Perform the following procedure when this unit is on.

1. Switch the input on the TV to the input connected to the unit.
2. Pressing NET will display the Network Functions list screen on the TV.
3. Select your preferred Internet radio service using cursor, and press Enter to confirm the selection.
4. Following the on-screen instructions, select a radio station and program using cursor, and then press Enter to play.
   • To return to the previous screen, press .

NET

1 1 1

Enter

The illustration shows an image.

Internet Radio Service Menu

You can bookmark specific stations, or delete stations that have been bookmarked. The displayed menu varies according to the service being selected. The menu icon 😊 is displayed while a station is being played. When only this icon is displayed, pressing Enter will display the menu on the screen. When multiple icons are displayed, select the 😊 icon with the cursor, and press Enter.

Regarding the Tuneln Radio Account

If you create an account on the Tuneln Radio website (tunein.com), and log in it from this unit, your favorite radio stations or programs you have followed on the website are automatically added to your "My Presets" on this unit. "My Presets" is displayed on the next level in the hierarchical structure of Tuneln Radio. To display a radio station added to "My Presets", you need log into Tuneln Radio from the unit. To log in, select "Login" - "I have a Tuneln account" in the "Tuneln Radio" top list on the unit, and then enter your user name and password.

- If you select "Login" on this unit, a registration code is displayed. By using this code, you can associate the device on the My Page section of the TuneIn Radio website so that you can log in from "Login" - "Login with a registration code" without entering the user name and password.

Spotify

Spotify®

Use your phone, tablet or computer as a remote control for Spotify. Go to spotify.com/connect to learn how.

By connecting this unit to the same network as iOS devices, such as iPhone ^® , iPod touch ^® and iPad ^® , you can enjoy music files on iOS devices wirelessly.

• Update the OS version on your iOS device to the latest version.
• Depending on the iOS version, operation screens or operation procedures on the iOS device may be different. For details, refer to the operating instructions for the iOS device.

Basic Operations

e.g., iOS 10

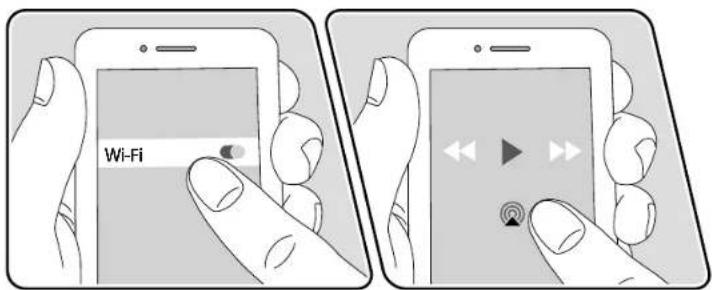

1. Connect the iOS device to the access point where this unit is connected via network.
2. Tap the AirPlay icon ☐ on the play screen of the music play application on the iOS device, and select this unit from the displayed devices.

3. Play the music file on the iOS device.

4. When "6. Hardware" - "Power Management" - "Network Standby" is set to "Off" in the Setup menu, turn this unit on manually, and press NET on the remote controller. In the factory default setting, the Network Standby function (.p120) is set to On.

5. Due to the characteristics of AirPlay wireless technology, the sound produced on this unit may slightly be behind the sound played on the AirPlay-enabled device.

You can also play the music files on a PC with iTunes (Ver. 10.2 or later) equipped. Confirm that this unit and the PC are connected to the same network beforehand. Then, press NET on this unit. Next, click the AirPlay icon 🔒 in iTunes, select this unit from the displayed devices, and start play of a music file.

DTS Play-Fi®

https://play-fi.com/

When connecting this unit to the same network as mobile devices, such as a smartphone and tablet, you can enjoy music played on the mobile device wirelessly. Music from a streaming distribution service or music in the music library on a mobile device can be played. This function also supports a playlist on iTunes. Also, connecting multiple speakers supporting DTS Play-Fi on the same network will enable "Group playback" that plays the same music in separate rooms at home. To enjoy this function, download Integra Music Control App (available on iOS or Android ^™ ).

Playing Back

1. Download Integra Music Control App using your mobile device. http://integrahometheater.jp/playfi/app_i.html

1. Connect the mobile device to the network where this unit is connected.

2. Starting up Integra Music Control App will automatically display compatible devices.

3. Select this device from the compatible devices. Then, a list of applications such as a music streaming distribution service is displayed. Select the content to play, and perform operation according to the on-screen instructions.

4. When "6. Hardware" - "Power Management" - "Network Standby" is set to "Off" in the Setup menu, turn this unit on manually, and press NET on the remote controller. In the factory default setting, the Network Standby function (→p120) is set to On.

5. For detailed operation and FAQ, visit the following URL. http://integrahometheater.jp/playfi/info_i.html
6. To use a music streaming distribution service, user registration may be required.

7. This unit does not support the following DTS Play-Fi functions.

8. Spotify
   – Wireless Surround Sound
   – Line In Rebroadcast

9. Internet Radio
   – Critical Listening
   – L/R Stereo Speaker Pairing

- Some of the settings in the "Setup menu" cannot be changed on this unit. To change those settings, cancel the connection of this unit from the application.

- Listening modes cannot be selected during playback.

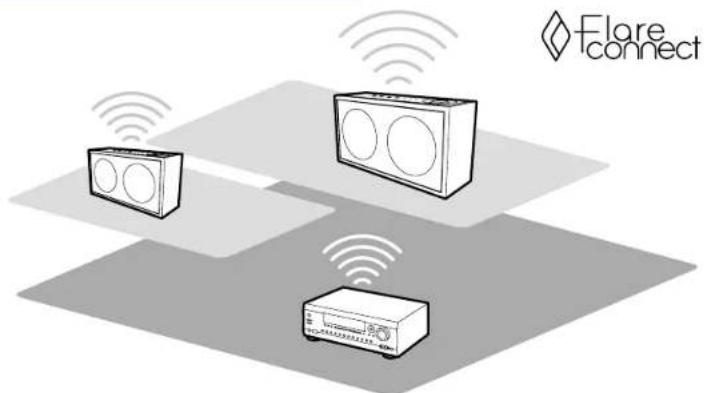

FlareConnect™

Integra

When downloading Integra Control Pro (available on iOS or Android™) to mobile devices, such as a smartphone and tablet, you can enjoy the group playback that plays the same music on multiple audio products supporting the FlareConnect function. You can play audio from external playback devices connected to each product, music from an Internet radio or network audio service such as a music streaming distribution service, and music in the music library on a mobile device.

Playing Back

1. Connect this unit and other devices supporting FlareConnect to the same network.
2. Download Integra Control Pro from App Store or Google Play™ Store.
3. Connect the mobile device to the network where this unit is connected.
4. Starting up Integra Control Pro will automatically recognize compatible devices.
5. Select the screen of the compatible device to operate, and tap the Group icon at the bottom of the screen.
6. Add a check mark for the audio product on which you want to play the same music.
7. Select the content to play, and operate according to the on-screen instructions.
8. When "6. Hardware" - "Power Management" - "Network Standby" is set to "Off" in the Setup menu, turn this unit on manually, and press NET on the remote controller. In the factory default setting, the Network Standby function (→p120) is set to On. For other devices, check their respective instruction manuals.

The illustration shows an image.

USB Storage Device

You can play music files stored on a USB storage device.

Basic Operations

The illustration shows an image.

Perform the following procedure when this unit is on.

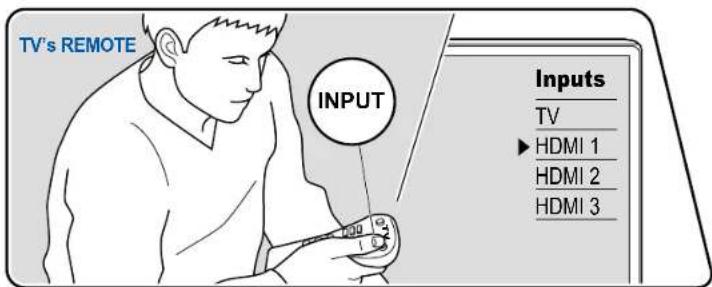

1. Switch the input on the TV to the input connected to the unit.
2. Plug your USB storage device containing music files into the USB port of this unit's rear panel.
3. Press NET to display the network service list screen.

4. Select "USB" with the cursors, and then press Enter.

5. If the "USB" indicator blinks on the display, check whether the USB storage device is plugged in properly.

6. Do not unplug the USB storage device while "Connecting..." is being displayed on the display. This may cause data corruption or malfunction.

7. Press Enter on the next screen again. The list of folders and music files on the USB storage device is displayed. Select the folder with the cursors, and press Enter to confirm your selection.

8. Select the music file with the cursors, and then press Enter to start playback.

• To return to the previous screen, press ↩
• To display an album title, artist name and album art of a file in WAV format, make the folder structure and file names as shown below when saving music files. The album art can be displayed by saving a .jpg file to display on the screen in the folder of bottom level. Note that a large volume of .jpg file may take time to be displayed, or may not be displayed.

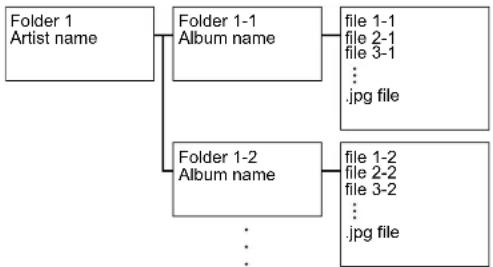


• Characters that cannot be displayed on this unit appear with "*"
• The USB port of this unit complies with the USB 2.0 standard. The transfer speed may be insufficient for some content you play, and sound interruptions, etc. may occur.
• Note that operation is not always guaranteed for all USB storage devices.
• This unit can use USB storage devices that comply with the USB mass storage class standard. Also the format of USB storage devices supports FAT16 or FAT32 file system format.

☐Device and Supported Format (→p58)

Device and Supported Format

USB Storage Device Requirements

• This unit can use USB storage devices that comply with the USB mass storage class standard.
• The format of USB storage devices supports FAT16 or FAT32 file system format.
• If the USB storage device has been partitioned, each section will be treated as an independent device.
• Up to 20,000 tracks per folder are supported, and folders can be nested up to 16 levels deep.
• USB hubs and USB storage devices with hub functions are not supported. Do not connect these devices to the unit.
• USB storage devices with security functions are not supported on this unit.
• If an AC adapter is supplied with the USB storage device, connect the AC adapter, and use it with a household outlet.
• Media inserted to the USB card reader may not be available in this function. Furthermore, depending on the USB storage device, proper reading of the contents may not be possible.
• In use of a USB storage device, Our company accepts no responsibility whatsoever for the loss or modification of data stored on a USB storage device, or malfunction of the USB storage device. We recommend that you back up the data stored on a USB storage device before using it with this unit.

Supported Audio Formats

This unit supports the following music file formats. Note that sound files that are protected by copyright cannot be played on this unit.

MP3 (.mp3/.MP3):

• Supported formats: MPEG-1/MPEG-2 Audio Layer 3
• Supported sampling rates: 44.1 kHz, 48 kHz
• Supported bitrates: Between 8 kbps and 320 kbps, and VBR

WMA (.wma/.WMA):

• Supported sampling rates: 44.1 kHz, 48 kHz
• Supported bitrates: Between 5 kbps and 320 kbps, and VBR
- WMA Pro/Voice/WMA Lossless formats are not supported.

WAV (.wav/.WAV):

WAV files contain uncompressed PCM digital audio.

• Supported sampling rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz

• Quantization bit: 8 bit, 16 bit, 24 bit

AIFF (.aiff/.aif/.AIFF/.AIF):

AIFF files contain uncompressed PCM digital audio.

• Supported sampling rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz

• Quantization bit: 8 bit, 16 bit, 24 bit

AAC (.aac/.m4a/.mp4/.3gp/.3g2/.AAC/.M4A/.MP4/.3GP/.3G2):

• Supported formats: MPEG-2/MPEG-4 Audio

• Supported sampling rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz

• Supported bitrates: Between 8 kbps and 320 kbps, and VBR

FLAC (.flac/.FLAC):

• Supported sampling rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz

• Quantization bit: 8 bit, 16 bit, 24 bit

Apple Lossless (.m4a/.mp4/.M4A/.MP4):

• Supported sampling rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz

• Quantization bit: 16 bit, 24 bit

DSD (.dsf/.dff/.DSF/.DFF):

• Supported formats: DSF/DSDIFF

• Supported sampling rates: 2.8 MHz, 5.6 MHz
- When playing files recorded with VBR (Variable bit-rate), the playback time may not be displayed correctly.
- This unit supports the gapless playback of the USB storage device in the following conditions.

When continuously playing WAV, FLAC and Apple Lossless files with the same format, sampling frequency, the number of channels and quantization bit rate.

Playing back files on a PC and NAS (Music Server)

Streaming play of music files stored on PCs or NAS devices connected to the same network as this unit is supported.

- The network servers supported by this unit are PCs that incorporate players equipped with the server functions such as Windows Media® Player 11 or 12, or NASes supporting the home network function. When using Windows Media® Player 11 or 12, you need to make the settings beforehand. Note that with PCs, only music files registered in the library of Windows Media® Player can be played.

Windows Media® Player settings

On Windows Media® Player 11

1. Turn on your PC, and start Windows Media ^® Player 11.
2. In the "Library" menu, select "Media Sharing" to display a dialog box.
3. Select the "Share my media" check box, and then click "OK" to display the compatible devices.
4. Select this unit, and then click "Allow".

- When it is clicked, the corresponding icon is checked.

1. Click "OK" to close the dialog.

- Depending on the version of Windows Media® Player, the names of items to select may differ from the above description.

On Windows Media® Player 12

1. Turn on your PC, and start Windows Media® Player 12.
2. In the "Stream" menu, select "Turn on media streaming" to display a dialog box.

- If the media streaming is already turned on, select "More streaming options..." in the "Stream" menu to display the list of playback devices in the network, and then go to step 4.

1. Click "Turn on media streaming" to display the list of playback devices in the network.
2. Select this unit in "Media streaming options" and check that it is set to "Allow".
3. Click "OK" to close the dialog.
4. Depending on the version of Windows Media® Player, the names of items to select may differ from the above description.

□Playing Back (→p60)

Playing Back

Perform the following procedure when this unit is on.

1. Switch the input on the TV to the input connected to the unit.
2. Start the server (Windows Media® Player 11, Windows Media® Player 12, or NAS device) containing the music files to play.
3. Make sure that the PC or NAS is properly connected to the same network as this unit.
4. Press NET to display the network service list screen.

- If the "NET" indicator on the display blinks, the unit is not properly connected to the network. Check the connection.

1. With the cursors, select "Music Server", and then press Enter.

1. Select the target server with the cursors, and press Enter to display the items list screen.

2. This unit cannot access pictures and videos stored on servers.

3. Depending on the server sharing settings, contents stored on the server may not be displayed.

4. With the cursors, select the music file to play, and then press Enter to start playback.

- If "No Item" is displayed on the screen, check whether the network is properly connected.

• To return to the previous screen, press ↩.
• For music files on a server, up to 20,000 tracks per folder are supported, and folders can be nested up to 16 levels deep.
• Depending on the type of media server, the unit may not recognize it, or may not be able to play its music files.

Searching music files to select

If the server you use supports search functions, the following search function can be used.

Perform the following procedure with available servers displayed using Music Server.

1. With ▲ / ▼, select the server containing music files you want to play, and select Enter.

2. With ▲/▼select the Search folder, and press Enter. The Search folder contains the following three folders.

3. "Search by Artist": Select this when searching by artist name.

4. "Search by Album": Select this when searching by album title.

5. "Search by Track": Select this when searching by track title.

6. With ▲,▼select the folder, and press Enter.

7. Input a character string to search for, and press Enter. Then, the search result is displayed.

8. With ▲/▼select the music files to play, and select Enter.

Controlling Remote Playback from a PC

You can use this unit to play music files stored on your PC by operating the PC in your home network. The unit supports remote playback via Windows Media ^® Player 12. To use the remote playback function of this unit with Windows Media ^®

Player 12, it must be configured beforehand.

Setting PC

1. Turn on your PC, and start Windows Media® Player 12.

2. In the "Stream" menu, select "Turn on media streaming" to display a dialog box.

3. If the media streaming is already turned on, select "More streaming options..." in the "Stream" menu to display the list of playback devices in the network, and then go to step 4.
4. Click "Turn on media streaming" to display the list of playback devices in the network.
5. Select this unit in "Media streaming options" and check that it is set to "Allow".
6. Click "OK" to close the dialog box.
7. Open the "Stream" menu and confirm that "Allow remote control of my Player..." is checked.
8. Depending on the version of Windows Media® Player, the names of items to select may differ from the above description.

Remote playback

1. Turn on the power of the unit.
2. Turn on your PC, and start Windows Media® Player 12.
3. Select and right-click the music file to play with Windows Media® Player 12.
4. To remotely play a music file on another server, open the target server from "Other Libraries", and select the music file to play.
5. Select this unit in "Play to" to open the "Play to" window of Windows Media® Player 12, and start playback on this unit.

- If your PC is running on Windows® 8.1, click "Play to", and select this unit. If your PC is running on Windows® 10, click "Cast to Device", and select this unit. Operations during remote playback are possible from the "Play to" window on the PC. The playback screen is displayed on the HDMI-connected TV.

1. Adjust the volume using the volume bar on the "Play to" window.

2. Sometimes, the volume displayed on the remote playback window may differ from the volume displayed on the display of this unit.

3. When the volume is changed on this unit, the value is not reflected in the "Play to" window.
4. This unit cannot play music files remotely in the following conditions.
5. It is using a network service.

- It is playing a music file on a USB storage device.

- Depending on the version of Windows Media ^ Player, the names of items to select may differ from the above description.

□Supported Audio Formats (→p63)

Supported Audio Formats

This unit supports the following music file formats. Remote play of FLAC and DSD is not supported.

MP3 (.mp3/.MP3):

• Supported formats: MPEG-1/MPEG-2 Audio Layer 3

• Supported sampling rates: 44.1 kHz, 48 kHz

• Supported bitrates: Between 8 kbps and 320 kbps, and VBR

WMA (.wma/.WMA):

• Supported sampling rates: 44.1 kHz, 48 kHz

• Supported bitrates: Between 5 kbps and 320 kbps, and VBR

- WMA Pro/Voice/WMA Lossless formats are not supported.

WAV (.wav/.WAV):

WAV files contain uncompressed PCM digital audio.

- Supported sampling rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz

• Quantization bit: 8 bit, 16 bit, 24 bit

AIFF (.aiff/.aif/.AIFF/.AIF):

AIFF files contain uncompressed PCM digital audio.

- Supported sampling rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz

• Quantization bit: 8 bit, 16 bit, 24 bit

AAC (.aac/.m4a/.mp4/.3gp/.3g2/.AAC/.M4A/.MP4/.3GP/.3G2):

• Supported formats: MPEG-2/MPEG-4 Audio

• Supported sampling rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz

• Supported bitrates: Between 8 kbps and 320 kbps, and VBR

FLAC (.flac/.FLAC):

• Supported sampling rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz

• Quantization bit: 8 bit, 16 bit, 24 bit

LPCM (Linear PCM):

• Supported sampling rates: 44.1 kHz, 48 kHz

• Quantization bit: 16 bit

Apple Lossless (.m4a/.mp4/.M4A/.MP4):

• Supported sampling rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz

• Quantization bit: 16 bit, 24 bit

DSD (.dsf/.dff/.DSF/.DFF):

• Supported formats: DSF/DSDIFF

• Supported sampling rates: 2.8 MHz, 5.6 MHz

- When playing files recorded with VBR (Variable bit-rate), the playback time may not be displayed correctly.

- Remote playback does not support the gapless playback.

Play Queue

When downloading Integra Control Pro (available on iOS or Android ^™ ) to mobile devices, such as a smartphone and tablet, you can save your favorite playlist (Play Queue information) among music files stored in the USB storage device connected to this unit and music files stored in PC or NAS connected to the same network as this unit, and you can play the music on the playlist. The Play Queue information is effective until the power cord of this unit is removed from the outlet.

Initial Setup

1. Connect this unit to your home network by the network settings on this unit.
2. Download Integra Control Pro from App Store or Google Play™ Store.
3. Connect the mobile device to the network where this unit is connected.
4. Start up Integra Control Pro, and select this unit.

Adding Play Queue Information

1. Select the "INPUT" input on the application screen, and tap the "USB" icon. Or, select the "NET" input, and tap the "USB" icon or "Music Server" icon. (Depending on the model, the icon names may be different.)

1. Tapping the "+" icon of the track you want to add will open the pop-up to add the Play Queue information.

1. Touch the "Play Now ☐", "Play Next ☐" or "Play Last ☐" icon to add the track to Play Queue.

- If there are no tracks on the Play Queue list, only "Play Now" is displayed.

Sort and Delete

1. Select the "NET" input, tap the "Play Queue" icon, and enter the Play Queue service screen.

1. Tap the "" icon of the track to sort, and drag the icon to the destination.

1. To delete a track, slide the track to the left until the trash icon changes to "?" If the device is on iOS, slide the "" icon to the left. Releasing your finger will delete the track from Play Queue.

Playing Back

Playback starts when you select "Play Now" for Play Queue addition, or select the track in the Play Queue service screen.

Amazon Music

You can use the music distribution service provided by Amazon by registering with Amazon Music. Register this unit by downloading the Integra Control Pro (available for iOS and Android ^™ ) to your mobile device, for example a smartphone or tablet, and register from the Integra Control Pro screen.

• To play Amazon Music you need to have an Amazon account and to be a member of Amazon Prime and Amazon Music Unlimited. For more information, see the Amazon website.

Amazon Music is now available in several countries. If Amazon Music is not available in your country, please visit https://music.amazon.com/ for more info.

Registering this unit with Amazon Music

• Use the Integra Control Pro to register to Amazon Music. Registration is not possible using this unit.
• Use the unit's network settings to connect to your household network.
• Use the mobile device to download the Integra Control Pro.
• Connect the mobile device to the same network as the unit.
• The unit is automatically displayed when you start the Integra Control Pro. Tap the unit when displayed to select it.
• Tap "NET" or "NETWORK" at the top of the Integra Control Pro screen, and

after switching to the network screen, tap the "Amazon Music" icon to display the Amazon Music login screen. (Depending on the model, the icon names may be different.)

- If the login screen is not displayed, but rather a screen prompting installation of Service Unlocker, then install that first.

Available services may differ depending on your area.

1. Enter the information required for the Amazon account, such as your email address and password, to log into Amazon. The Amazon Music menu is displayed when login is successful and this unit is registered. To continue to start play, proceed to step 3 in the next section.

Playing Amazon Music

1. Start the Integra Control Pro. This unit is displayed automatically when the app is started, so tap the unit when displayed to select it.
2. Tap "NET" or "NETWORK" at the top of the screen, and after switching to the network screen, tap the "Amazon Music" icon.
3. Select the content that you want to play in the menu screen for Amazon Music and start play.

- When playing Amazon Music with the remote controller, operate the input selector on the remote controller to display the Network menu and select "Amazon Music" from the menu.

Connecting your Unit to a Sonos System

Once your unit is connected to the Sonos Connect you will be able to send any music or source on your Sonos App to the unit. By going through the Sonos Connect, you can play your unit through other Sonos devices in the network in the same group, or you can just play on your unit. Further, the power of your unit turns on automatically when music starts playing on the Sonos App, and the linked function to switch input works.

- When "6. Hardware" - "Power Management" - "Network Standby" is set to "Off" in the Setup menu, turn this unit on manually, and press NET on the remote controller. In the factory default setting, the Network Standby function (-p120) is set to On.

Required Equipment

• Sonos Connect
  • RCA Audio Cable (Supplied with Sonos Connect)

Connecting your Unit to Sonos Connect

1. Connect the Sonos Connect to the AUDIO IN jack of this unit with the RCA cable supplied with the Sonos Connect. Any input can be used other than the PHONO input.

2. You can also connect with a digital cable. For details, refer to the instruction manual of the Sonos.

3. You can rename the input that is displayed on the unit to a more logical name. For example, you can change the name of input that the Sonos Connect is plugged into from "CD" (or other input) to "SONOS". Press the Button on the remote controller, select "4. Source" - "Name Edit" and then change the name.

Setting up your Unit to work with the Sonos Connect

A setup is required to play Sonos on this unit. Make the setting according to the following procedure.

1. Press the 🔒 button on the remote controller, select "6. Hardware" - "Works with SONOS", and press the Enter button.
2. Select the following items with the cursors ▲ and set each item. Input Selector:

Enable the interlocking function with the Sonos Connect. With the cursors

◀/▶ select the input selector to which the Sonos Connect is connected.

Connected Device:

Press the Enter button to display Sonos devices connected to the same network as the network of this unit. Select the Sonos Connect connected to the unit and press the Enter button.

• Products (e.g. Play:3 unequipped with an output terminal) other than the Sonos Connect are also displayed in the device list and selectable. In that case, when playback on the Sonos side starts, the input is switched, however, audio is not output. Select the room name of the connected Sonos Connect.
• Up to 32 devices can be displayed on the Sonos product list screen. If you cannot find the Sonos Connect to be interlocked, return to the previous screen, turn off the product you want to interlock, and try again.

Output Zone:

With the cursors ◀ ▶ select the ZONE where you want to listen to the music.

"Main": Outputs audio only to the main room (where this unit is located).

"Zone 2": Outputs audio only to the separate room (ZONE 2).

"Main/Zone 2": Outputs audio to both the main room and separate room.

Now the fun part - listening to Sonos on your Unit

1. Using your Sonos App select the music you want to listen to and send it to the room (or group) where your unit is located. We recommend naming your unit / Sonos Connect combination a friendly name like TV Room or Living Room where the equipment is located.
2. If the input on your unit does not change automatically when play starts, try stopping play, then starting it again.
3. You can set the volume beforehand for playing back the Sonos Connect. Press the Button on the remote controller, and select "6. Hardware" - "Works with SONOS" - "Preset Volume" (→p126) to make the setting.

Listening To the AM/FM Radio

You can receive AM and FM radio stations on this unit with the built-in tuner.

Tuning into a Radio Station

Perform the following procedure when this unit is on.

Tuning Automatically

1. Press Tuner repeatedly to select either "AM" or "FM".
2. Press Mode repeatedly to display "TunMode: Auto" on the display.

TunMode: Auto

1. When you press the cursors ▲, automatic tuning starts, and searching stops when a station is found. When tuned in to a radio station, the "TUNED" indicator on the display lights up. When tuned in to an FM radio station, the "FM ST" indicator lights up.

When FM broadcasts reception is poor: Perform the procedure for "Tuning Manually" ( p70 ). Note that if you tune manually, the reception for FM broadcasts will be monaural rather than stereo, irrespective of the sensitivity of the reception.

Tuning Manually

Note that if you tune manually, the reception for FM broadcasts will be monaural rather than stereo, irrespective of the sensitivity of the reception.

1. Press Tuner repeatedly to select either "AM" or "FM".

2. Press Mode repeatedly to display "TunMode: Manual" on the display.

TunMode:Manual

1. While pressing the cursors ▲/▼select the desired radio station.

- Each time you press the cursors ▲, the frequency changes by 1 step. If the button is held down, the frequency changes continuously, and if the button is released, the frequency stops changing.

Frequency step setting

Press ⚙, and using the cursors and Enter, select "8. Miscellaneous" - "Tuner" - "AM/FM Frequency Step" or "AM Frequency Step", and then select the frequency step for your area. Note that when this setting is changed, all radio presets are deleted.

□Presetting a Radio Station (→p71)

Presetting a Radio Station

Registration Procedure

You can preset up to 40 of your favorite AM/FM radio stations.

After tuning in to the AM/FM radio station you want to register, perform the following procedure.

1. Press Memory so that the preset number on the display blinks.

FM 87.5 MHz

1. While the preset number is blinking (approx. 8 seconds), repeatedly press the cursors ◀ to select a number between 1 and 40.
2. Press Memory again to register the station. When the station is registered, the preset number stops blinking. Repeat this steps to register your favorite AM/FM radio stations.

Selecting a Preset Radio Station

1. Press Tuner.
2. Press the cursors ◀/ ▶ to select a preset number.

Deleting a Preset Radio Station

1. Press Tuner.
2. Press the cursors ◀/ ▶ to select the preset number to delete.
3. After pressing Memory, press Clear while the preset number is blinking, and delete the preset number. When deleted, the number on the display disappears.

□Using RDS (Australian and Asian models) (p71)

Using RDS (Australian and Asian models)

RDS stands for Radio Data System, and is a method of transmitting data in FM radio signals. In regions where RDS can be used, when you tune in to a radio station broadcasting program information, the radio station name is displayed on the display. When you press ion the remote controller in this state, you can use the following functions.

Display Text Information (Radio Text)

1. While the name of the station is being displayed on the display, press i on the remote controller once. The Radio Text (RT), which is text information delivered by the station, is displayed scrolling across the display. "No Text Data" is displayed when no text information is delivered.

Search for Stations by Program Type

1. While the name of the station is being displayed on the display, press i on the remote controller twice.
2. If none of the Program Types are set for the radio station under reception, "None" is displayed.

3. Press the cursors ◀/ ▶ on the remote controller to select the Program Type you want to search for, and then press the Enter button to start the search. • The Program Types displayed are as follows: None / News (News reports) / Affairs (Current affairs) / Info (Information) / Sport / Educate (Education) / Drama / Culture / Science (Science and technology) / Varied / Pop M (Pop music) / Rock M (Rock music) / Easy M (Middle of the road music) / Light M (Light classics) / Classics (Serious classics) / Other M (Other music) / Weather / Finance / Children (Children's programmes) / Social (Social affairs) / Religion / Phone In / Travel / Leisure / Jazz (Jazz music) / Country (Country music) / Nation M (National music) / Oldies (Oldies music) / Folk M (Folk music) / Document (Documentary) • The information displayed may not match the content delivered by the station.

4. When a station is found, the station blinks on the display. Pressing the Enter button in this state will receive that station. If you don't press the Enter button, the unit starts to search for another station.

5. If no stations are found, the message "Not Found" is displayed.

6. Unusual characters may be displayed when the unit receives unsupported characters. This is not a malfunction. Also, if the signal from a station is weak, information may not be displayed.

Multi-zone

You can enjoy 2-ch audio in the separate room (ZONE 2) while performing playback in the main room (where this unit is located). The same source can be played back in the main room and ZONE 2 simultaneously. Also, different sources can be played back in both rooms. For the "NET" or "BLUETOOTH" input selector, you can select only the same source for the main room and separate room. If you select "NET" in the main room and then select "BLUETOOTH" in the separate room, the main room setting switches to "BLUETOOTH". You cannot select different stations of AM/FM broadcasts for the main room and separate room. Integra Control Pro is useful for the multi-zone playback operation. Download Integra Control Pro (available on iOS or Android™) to a mobile device, such as a smartphone and tablet to use it.

Integra

□Playing Back (→p75)

Playing Back

In the remote controller operation, while pressing and holding the Zone 2 Shift button on the remote controller, operate with each button.

1. Point the remote controller at the unit, and while pressing and holding the Zone 2 Shift button on the remote controller, press ⏻

- "Z2" on the display of the main unit lights up.

22

1. While pressing and holding the Zone 2 Shift button on the remote controller, press the input selector of the input source you want to play in the separate room. To control on the main unit, press ZONE 2 button, and then within 8 seconds, press the input selector button of the input to be played in the separate room. To play the same source in the main room and separate room, press ZONE 2 button of the main unit twice.

2. You can adjust the ZONE speaker volume with the volume button while pressing and holding the Zone 2 Shift button on the remote controller. To do this on the main unit, press Zone 2 Level ▲ button to adjust.

- If you turn the unit to standby during multi-zone playback, the Z2 indicator is dimmed, and the playback mode is switched to playback in a separate room only. Setting ZONE 2 to on while the unit is in standby also switches the playback mode to playback in a separate room only.

- When audio is being output from the ZONE SPEAKER, surround back speakers or height speakers cannot play audio.

- The audio from externally connected AV components can be output to ZONE 2 only when the audio is analog or 2 ch PCM signal. When the AV component is connected to this unit with a HDMI cable, digital coaxial cable or digital optical cable, change the audio output of the AV component to the PCM output.

- When video and audio via HDMI input are output to ZONE 2, set "1. Input/Output Assign" - "TV Out / OSD" - "Zone 2 HDMI" (-p104) to "Use" on the Setup menu.

• DSD audio signals cannot be output to ZONE 2 when selected with the "NET" input selector.
• If ZONE 2 is on, power consumption during standby will increase.

To set the function to off: While pressing and holding Zone 2 Shift button, press ⭕. Alternatively, press the Off button on the main unit.

ZONE B Playback

While performing playback through speakers (ZONE A) connected to the unit, you can enjoy the audio of the same source with the pre-main amplifier (ZONE B) connected to the ZONE B LINE OUT jack at the same time.

Playing Back

1. Press the Q button on the remote controller to select "Other" - "Zone B".
2. When ZONE 2 is On, "Zone B" cannot be selected.
3. Select an audio output destination.

Off: Outputs audio only to ZONE A. "A" on the display of the main unit lights up.

On(A+B): Outputs audio to both ZONE A and ZONE B. "A" and "B" on the display of the main unit light up.

On(B): Outputs audio only to ZONE B. "B" on the display of the main unit lights up.

AB

1. Start play on the AV component.
2. Adjust the volume on the pre-main amplifier for ZONE B.

If "On (A+B)" is selected as an audio output destination, you can select only the "Stereo" listening mode for ZONE A when using the 2.1ch speaker layout. When using a speaker layout of 3.1ch or more, you can select only the "AllCh Stereo" listening mode.

Convenience functions

Adjusting the tone

Adjusting Treble/Bass

You can adjust the sound quality of the speakers.

1. Press Treble or Bass to select the setting to adjust. Treble: Enhances or moderates the high-tone range of the speakers. Bass: Enhances or moderates the low-tone range of the speakers.
2. Press + or - for adjustment.

Adjusting Vocal

Emphasizes movie lines and music vocals to listen to them more easily. It is effective to movie lines in particular. Also, it exerts the effect even if the center speaker is not used. Select a desired level from "1" (low) to "5" (high).

1. Press Vocal.
2. Press + or - for adjustment.
3. Depending on the input source or listening mode setting, selection is not possible, or the desired effect may not be achieved.

You can allow the unit to enter standby automatically when the specified time has elapsed.

Press Sleep button on the remote controller to select the time from "30 min", "60 min" and "90 min".

"Off": The unit does not automatically enter standby mode.

You can also set this by pressing the button on the remote controller and selecting "6. Hardware" - "Power Management" - "Sleep Timer" (→p119) on the Setup menu.

Listening Mode

This unit is equipped with a variety of listening modes, and you can select the optimum listening mode for movies, TV, music, and games by pressing Movie/TV, Music, and Game.

Selecting a Listening mode

1. Press one from among Movie/TV, Music, and Game during playback.

2. Press the selected button repeatedly to switch the modes displayed on the display of the main unit.

DTS

• Each of Movie/TV, Music and Game buttons stores the listening mode that was selected last. If content incompatible of the listening mode selected last is played, the most standard listening mode for the content is automatically selected.
• For details of the effects of each listening mode, refer to "Listening Mode Effects" (p85).
• For listening modes selectable for each audio format of input signals, refer to "Input Formats and Selectable Listening Modes" (-p90).

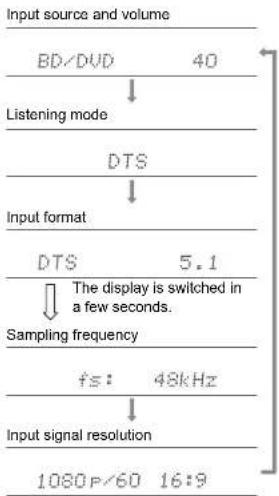

Checking the input format and listening mode

Pressing jbutton on the remote controller or INFO button on the main unit repeatedly will switch the display of the main unit in the following order.

- The display content for the BLUETOOTH input is different.

- Not all the information is necessarily displayed.

Speaker Layouts and Selectable Listening Modes

See the following table for selectable listening modes for each speaker layout.

Speaker layout

Listening mode 2.1 ch 3.1 ch 4.1 ch 5.1 ch 6.1 ch 7.1 ch 2.1.2 ch 3.1 2 ch 4.1.2 ch 5.1.2 ch
DD (Dolby Audio - DD)		(*1) (*1) (*2) (*2) (*2) (*2) (*2)	√	√			√	√	√
DD+ (Dolby Audio - DD+)		(*1) (*1) (*2) (*1) (*1) (*1) (*1) (*1)	√	√		√	√	√	√
DTHD (Dolby Audio - TrueHD)		(*1) (*1) (*2) (*1) (*1) (*1) (*1) (*1)	√	√		√	√	√	√
Atmos			√	√	√	√	√	√	√
Atmos 2.0/2.1	√
Atmos 3.0/3.1		√
Atmos 4.0/4.1			√
Atmos 5.0/5.1			√
Atmos 6.0/6.1				√
Atmos 7.0/7.1					√
Atmos 2.0.2/2.1.2						√
Atmos 3.0.2/3.1.2							√
Dsur (Dolby Audio - Surr)	√	√	√	√	√	√	√	√	√	√
Dsur 2.0/2.1 (Dolby Audio - Surr)	√
Dsur 3.0/3.1 (Dolby Audio - Surr)		√
Dsur 4.0/4.1 (Dolby Audio - Surr)			√
Dsur 5.0/5.1 (Dolby Audio - Surr)				√
Dsur 6.0/6.1 (Dolby Audio - Surr)					√
Dsur 7.0/7.1 (Dolby Audio - Surr)						√
Dsur 2.0.2/2.1.2 (Dolby Audio - Surr)							√
Dsur 3.0.2/3.1.2 (Dolby Audio - Surr)								√

*1: Reproduced with the sound field according to the number of channels of input signals.
*2: Not output from surround back speakers or height speakers.
*3: Not output from height speakers.
*4: Output only from front speakers.
*5: Output only from front speakers and center speaker.

Listening Mode Effects

Updating of listening modes

Listening modes such as DTS Virtual:X, ☑toms 2.0 and ☑sur 2.0 are added when the firmware is updated after purchase or the firmware is switched in the product production process. For details of firmware update, see "Additional Function (Firmware Update)" (-p6).

In alphabetical order

AllCh Stereo

This mode is ideal for background music. Stereo sound is played through the surround speakers as well as the front speakers, creating a stereo image.

Direct

This listening mode can be selected for all input signals. Processing that affects sound quality is shut down, and sound closer to the original is reproduced. The sound is reproduced with the sound field based on the number of channels in the input signal. For example, a 2 ch signal is output only from the front speakers. Note that the sound adjustment is not available when this mode is selected.

Atmos

(Firmware version before supporting Atmos 2.0, etc.)

Selectable at the time of inputting Dolby Atmos audio format when surround back speakers or height speakers are connected. This mode faithfully reproduces the stereophonic sound design recorded in the Dolby Atmos audio format. Unlike existing surround systems, Dolby Atmos does not rely on channels, but rather enables the accurate placement of sound objects that have independent motion in a 3D space with even greater clarity. Dolby Atmos is an optional audio format for Blu-ray Discs and achieves a more stereophonic sound field by introducing a sound field above the listener.

- To enable transfer of this audio format, connect via an HDMI cable and set the audio output on the player to Bitstream output.

Atmos

(Firmware version supporting Atmbs 2.0, etc.)

Since this mode calculates the positional data of audio recorded in Dolby Atmos audio in real-time and outputs it from appropriate speakers, you can enjoy the natural and stereophonic sound field of Dolby Atmos with any speaker layout including connection of only front speakers. Also, the Dolby Atmos sound design can be reproduced more faithfully by connecting surround back speakers or height speakers. You can select this mode when inputting the Dolby Amos audio format.

Unlike existing surround systems, Dolby Atmos does not rely on channels, but rather enables the accurate placement of sound objects that have independent motion in a 3D space with even greater clarity. Dolby Atmos is an optional audio format for Blu-ray Discs and achieves a more stereophonic sound field by introducing a sound field above the listener.

According to the speaker layout, the following listening modes are displayed.

• Atmos 2.0/2.1: When only front speakers are installed
• Atmos 3.0/3.1: When front speakers and center speaker are installed
• Atmos 4.0/4.1: When front speakers and surround speakers are installed
• Atmos 5.0/5.1: When front speakers, center speaker and surround speakers are installed
• Atmos 6.0/6.1: When front speakers, surround speakers and surround back speakers are installed
• Atmos 7.0/7.1: When front speakers, center speaker, surround speakers and surround back speakers are installed
• Atmos 2.0.2/2.1.2: When front speakers and height speakers are installed
• Atmos 3.0.2/3.1.2: When front speakers, center speaker and height speakers are installed
• Atmos: Selectable in the "4.1.2 ch" or "5.1.2 ch" setting with surround speakers and height speakers installed.

- To enable transfer of this audio format, connect via an HDMI cable and set the audio output on the player to Bitstream output.

- When "Speaker Virtualizer" (→p112) is set to "Off" (Default: On), modes other than ☒ Atmos cannot be selected.

This mode faithfully reproduces the sound design recorded in the Dolby Digital audio format.

Dolby Digital is a multi-channel digital format developed by Dolby Laboratories, Inc. and is widely adopted for use in movie production. It is also a standard audio format for DVD-Video and Blu-ray Discs. It is possible to record a maximum of 5.1 channels on a DVD-Video or Blu-ray Disc; two front channels, one center channel, two surround channels, and the LFE channel dedicated to the bass region (sound elements for the subwoofer).

- To enable transfer of this audio format, connect via a digital cable and set audio output on the player to Bitstream output.

This mode faithfully reproduces the sound design recorded in the Dolby Digital Plus audio format.

The Dolby Digital Plus format has been improved based on Dolby Digital, increasing the number of channels and endeavoring to improve sound quality by giving more flexibility in data bit rates. Dolby Digital Plus is an optional audio format based on 5.1 ch for Blu-ray Discs. It is possible to record a maximum of 7.1 channels with additional channels such as the surround back channel.

- To enable transfer of this audio format, connect via an HDMI cable and set audio output on the player to Bitstream output.

(Firmware version before supporting D5ur 2.0, etc.)

This listening mode expands actual channels to more channels for playback according to the configuration of the connected speakers by expanding the input signals from 2 ch or 5.1 ch to 5.1 ch, 7.1 ch or 5.1.2 ch.

- This mode cannot be selected when DTS signal is input.

(Firmware version supporting DSur 2.0, etc.)

This listening mode expands 2 ch or 5.1 ch input signals to 5.1 ch, 7.1 ch or 5.1.2 ch. This mode expands actual channels to more channels for playback according to the configuration of the connected speakers. Also, even if there is no speaker for expansion, for example when only front speakers are connected, audio of

surround channel or height channel is virtually created for expansion playback. - This mode cannot be selected when DTS signal is input.

According to the speaker layout, the following listening modes are displayed.

• DSur 2.0/2.1: When only front speakers are installed
• DOSur 3.0/3.1: When front speakers and center speaker are installed
• D Sur 4.0/4.1: When front speakers and surround speakers are installed
• DOSur 5.0/5.1: When front speakers, center speaker and surround speakers are installed

- DSur 6.0/6.1: When front speakers, surround speakers and surround back speakers are installed

- DSur 7.0/7.1: When front speakers, center speaker, surround speakers and surround back speakers are installed

- D Sur 2.0.2/2.1.2: When front speakers and height speakers are installed

- Sur 3.0.2/3.1.2: When front speakers, center speaker and height speakers are installed

- D Sur: Selectable in the "4.1.2 ch" or "5.1.2 ch" setting with surround speakers and height speakers installed.

- When "Speaker Virtualizer" (→p112) is set to "Off" (Default: On), modes other than ☐Sur cannot be selected.

DTHD (Dolby Audio - TrueHD)

This mode faithfully reproduces the sound design recorded in the Dolby TrueHD audio format.

The Dolby TrueHD audio format is a "lossless" format expanded based on the lossless compression technology referred to as MLP, and it faithfully reproduces the master audio recorded in the studio. Dolby TrueHD is an optional audio format based on 5.1 ch for Blu-ray Discs. It is possible to record a maximum of 7.1 channels with additional channels such as the surround back channel. 7.1 ch is recorded at 96 kHz/24 bit, and 5.1 ch is recorded at 192 kHz/24 bit.

- To enable transfer of this audio format, connect via an HDMI cable and set audio output on the player to Bitstream output.

DSD

This mode is suitable for playing sources recorded in DSD.

• This unit supports the DSD signal input from the HDMI input terminal.
  However, depending on the connected player, better sound may be obtained

by setting the output on the player side to the PCM output.

- This listening mode cannot be selected if the output setting on your Blu-ray Disc/DVD player is not set to DSD.

DTS

This mode faithfully reproduces the sound design recorded in the DTS audio format.

The DTS audio format is a multi-channel digital format developed by DTS, Inc. This format is an optional audio format for DVD-Video and a standard format for Blu-ray Discs. It enables recording of 5.1 channels; two front channels, one center channel, two surround channels, and the LFE channel dedicated to the bass region (sound elements for the subwoofer). The content is recorded with a rich volume of data, with a maximum sampling rate of 48 kHz, at a resolution of 24 bits and a bit rate of 1.5 Mbps.

- To enable transfer of this audio format, connect via a digital cable and set audio output on the player to Bitstream output.

DTS 96/24

This mode faithfully reproduces the sound design recorded in the DTS 96/24 audio format.

The DTS 96/24 format is an optional audio format for DVD-Video and Blu-ray Discs. It enables recording of 5.1 channels; two front channels, one center channel, two surround channels, and the LFE channel dedicated to the bass region (sound elements for the subwoofer). Detailed reproduction is achieved by recording the content at a sampling rate of 96 kHz and at a resolution of 24 bits.

- To enable transfer of this audio format, connect via a digital cable and set audio output on the player to Bitstream output.

DTS Express

This mode faithfully reproduces the sound design recorded in the DTS Express audio format.

DTS Express is an optional audio format based on 5.1 ch for Blu-ray Discs. It is possible to record a maximum of 7.1 channels with additional channels such as the surround back channel. It also supports low bit rates.

- To enable transfer of this audio format, connect via an HDMI cable and set audio output on the player to Bitstream output.

■ DTS-HD HR (DTS-HD High Resolution)

This mode faithfully reproduces the sound design recorded in the DTS-HD High Resolution Audio audio format.

DTS-HD High Resolution Audio is an optional audio format based on 5.1 ch for Blu-ray Discs. It is possible to record a maximum of 7.1 channels with additional channels such as the surround back channel at a sampling rate of 96 kHz and at a resolution of 24 bits.

To enable transfer of this audio format, connect via an HDMI cable and set audio output on the player to Bitstream output.

■ DTS-HD MSTR (DTS-HD Master Audio)

This mode faithfully reproduces the sound design recorded in the DTS-HD Master Audio audio format.

DTS-HD Master Audio is an optional audio format based on 5.1 ch for Blu-ray Discs. It is possible to record a maximum of 7.1 channels with additional channels such as the surround back channel using the lossless audio reproduction technology. 96 kHz/24 bit is supported for 7.1 ch, and 192 kHz/24 bit is supported for 5.1 ch.

- To enable transfer of this audio format, connect via an HDMI cable and set audio output on the player to Bitstream output.

DTS Neural:X

This listening mode expands actual channels to more channels for playback to suit the configuration of the connected speakers by expanding the input signals from 2 channels or 5.1 channels to 5.1 channels or 7.1 channels respectively.

- This mode cannot be selected when Dolby signal is input.

DTS Virtual:X

(Firmware version supporting DTS Virtual:X)

DTS Virtual:X listening mode uses the proprietary audio processing technology to create spacious 3D sound including audio from up above without connecting height speakers.

This mode can be selected in any speaker layout such as front speakers-only connection. You can enjoy your favorite movies or TV programs with a more immersive audio experience.

- This mode cannot be selected when Dolby signal is input or height speakers

- This mode cannot be selected when "Speaker Virtualizer" (→p112) is set to "Off" (Default: On).

DTS:X

This mode faithfully reproduces the sound design recorded in the DTS:X audio format.

The DTS:X audio format is a combination of the mixing method based on traditional channel based formats (5.1 ch and 7.1 ch) and object based dynamic audio mixing, and it is characterized by the precise positioning of sounds and the ability to express sound movement.

- To enable transfer of this audio format, connect via an HDMI cable and set audio output on the player to Bitstream output.

ES Discrete (DTS-ES Discrete)

This mode faithfully reproduces the sound design recorded in the DTS-ES Discrete audio format.

DTS-ES Discrete is an optional audio format based on 5.1 ch for DVD-Video and Blu-ray Discs. It is possible to record a maximum of 6.1 channels with a monaural surround back channel added.

- To enable transfer of this audio format, connect via a digital cable and set audio output on the player to Bitstream output.

ES Matrix (DTS-ES Matrix)

This mode faithfully reproduces the sound design recorded in the DTS-ES Matrix audio format.

DTS-ES Matrix is an optional audio format based on 5.1 ch for DVD-Video and Blu-ray Discs. A monaural surround back channel is inserted to this format by matrix encoding. During playback, 6.1 channel-playback is achieved by the matrix decoder on this unit.

- To enable transfer of this audio format, connect via a digital cable and set audio output on the player to Bitstream output.

Full Mono

In this mode, all speakers output the same sound in mono, so the sound you hear is the same regardless of where you are within the listening room.

Game-Action

This mode is suitable for games with a lot of action.

Game-Rock

This mode is suitable for games with rock content.

Game-RPG

This mode is suitable for role-playing games.

Game-Sports

This mode is suitable for sports games.

Mono

In this mode, monaural audio is played from the center speaker at the time of inputting an analog signal or PCM signal. If there is no center speaker connected, monaural audio is played from the front speakers.

Multich (Multichannel)

This mode is suitable to play sources recorded in multichannel PCM.

Orchestra

This mode is suitable for classical or operatic music. This mode emphasizes the surround channels in order to widen the sound image, and simulates the natural reverberation of a large hall.

Stereo

In this mode, sound is output from the right and left front speakers and subwoofer.

Studio-Mix

This mode is suitable for rock or pop music. This mode creates a lively sound field with a powerful acoustic image as if you are at a club or rock concert.

■ T-D (Theater-Dimensional)

In this mode, you can enjoy a virtual playback of multichannel surround sound

even with only two or three speakers. This works by controlling how sounds reach the listener's left and right ears.

- This mode cannot be selected when "Speaker Virtualizer" (→p112) is set to "Off" (Default: On).

TV Logic

Suitable for TV shows produced in a TV studio. This mode gives clarity to voices by enhancing the entire surround sounds, and creates a realistic acoustic image.

Unplugged

Suitable for acoustic instruments, vocals and jazz. This mode emphasizes the front sound field image, giving the impression of being in front of the stage.

Input Formats and Selectable Listening Modes

You can select a variety of listening modes according to the audio format of the signal to be input.

• List of listening modes selectable with the Movie/TV button (p90)
• List of listening modes selectable with the Music button (-p93)
• List of listening modes selectable with the Game button (-p96)
• Selectable listening modes when headphones are connected are Mono, Direct, and Stereo only.

Movie/TV button

Input Format Listening Mode
Analog Direct
	Mono
	DSur
	DTS Neural:X
	DTS Virtual:X ^1*2
	TV Logic ^3
	AllCh Stereo ^4
	Full Mono ^4
	T-D ^1

- Cannot be selected if "Speaker Virtualizer" is set to "Off".

- Cannot be selected when height speakers are installed

"Surround speakers or height speakers need to be installed.

^14 A center speaker, surround speakers, or height speakers need to be installed.

Input Format Listening Mode
PCM	Direct
Music files (except DSD/Dolby TrueHD)	Mono
	DSur
	DTS Neural: X^1
	DTS Virtual: X^23
	TV Logic ^56
	AllCh Stereo ^55
	Full Mono ^5
	T-D ^72

- Cannot be selected when the input format is monaural.

- Cannot be selected if "Speaker Virtualizer" is set to "Off".

" Cannot be selected when height speakers are installed.

-4 Surround speakers or height speakers need to be installed.

- A center speaker, surround speakers, or height speakers need to be installed.

Input Format Listening Mode
Multich PCM Direct
	Multich ^1
	DSur
	DTS Neural:X
	DTS Virtual:X ^2,3
	TV Logic ^4
	AllCh Stereo ^5
	Full Mono ^5
	T-D ^2
A center speaker or surround speakers need to be installed.Cannot be selected if "Speaker Virtualizer" is set to "Off".Cannot be selected when height speakers are installed.Surround speakers or height speakers need to be installed.A center speaker, surround speakers, or height speakers need to be installed.

☐Speaker Layouts and Selectable Listening Modes (p82)

• Cannot be selected when the input format is monaural or 2 ch.
  ^2 A center speaker or surround speakers need to be installed.
  " Cannot be selected if "Speaker Virtualizer" is set to "Off".
• Cannot be selected when height speakers are installed.
• Surround speakers or height speakers need to be installed.
  A center speaker, surround speakers, or height speakers need to be

installed.
Input Format Listening Mode

D Atmos ^-1	Direct
	D Atmos
	TV Logic
	AllCh Stereo
	Full Mono
	T-D ^-2

• With the firmware version before supporting D mos 2.0, etc., you can
  select the DD+ or DDD listening mode when surround back
  speakers or height speakers are not connected.
• Cannot be selected if "Speaker Virtualizer" is set to "Off".

Input Format Listening Mode

DD Direct
	DD^1'2
	DSur
	TV Logic ^3
	AllCh Stereo ^4
	Full Mono ^4
	T-D ^5

** Cannot be selected when the input format is 2 ch.
3. A center speaker or surround speakers need to be installed
- Surround speakers or height speakers need to be installed.
^31 A center speaker, surround speakers, or height speakers need to be
installed.
- Cannot be selected if "Speaker Virtualizer" is set to "Off".

Input Format Listening Mode

DD+ Direct
	DD+ ^12 *3
	DSur
	TV Logic ^4
	AllCh Stereo ^5
	Full Mono ^6
	T-D ^7

• Cannot be selected when the input format is 2 ch.
  7 A center speaker or surround speakers need to be installed
  If the input source is Blu-ray Disc and the speaker layout is 5.1 ch or less,
  DD+ cannot be selected. Instead, the listening mode for DD can
  be selected
  Surround speakers or height speakers need to be installed.
  ^-1 A center speaker, surround speakers, or height speakers need to be
  installed.
  * Cannot be selected if "Speaker Virtualizer" is set to "Off".

Input Format Listening Mode

DTHD Direct

DTHD^1/2

DSur

TV Logic ^3

AllCh Stereo ^4

Full Mono ^4

T-D ^5

“ Cannot be selected when the input format is 2 ch.
3 A center speaker or surround speakers need to be installed
» Surround speakers or height speakers need to be installed.
* A center speaker, surround speakers, or height speakers need to be
installed
* Cannot be selected if "Speaker Virtualizer" is set to "Off".

Input Format Listening Mode

DTS Direct
	DTS^1^2
	DTS Neural: X^3
	DTS Virtual: X^4^5
	TV Logic ^6
	AllCh Stereo ^7
	Full Mono ^7
	T-D ^4

• Cannot be selected when the input format is 2 ch.
  “ A center speaker or surround speakers need to be installed.
  ^31 Cannot be selected when the input format is monaural.
  * Cannot be selected if "Speaker Virtualizer" is set to "Off"
• Cannot be selected when height speakers are installed.
  * Surround speakers or height speakers need to be installed.
• A center speaker, surround speakers, or height speakers need to be installed.

☐Speaker Layouts and Selectable Listening Modes (p82)

** Cannot be selected when the input format is 2 ch.
A center speaker or surround speakers need to be installed.
* Cannot be selected when the input format is monaural.
* Cannot be selected if "Speaker Virtualizer" is set to "Off".
- Cannot be selected when height speakers are installed.
"Surround speakers or height speakers need to be installed.
A center speaker, surround speakers, or height speakers need to be installed.

Input Format Listening Mode
DTS Express Direct
	DTS Express ^1 ^2
	DTS Neural: X^3
	DTS Virtual: X^4·5
	TV Logic ^6
	AllCh Stereo ^7
	Full Mono ^7
	T-D ^4

• Cannot be selected when the input format is 2 ch.
• A center speaker or surround speakers need to be installed.
  * Cannot be selected when the input format is monaural.
  ^3 Cannot be selected if "Speaker Virtualizer" is set to "Off".
• Cannot be selected when height speakers are installed.
• Surround speakers or height speakers need to be installed.
  A center speaker, surround speakers, or height speakers need to be installed.

Input Format Listening Mode
DTS-HD HR Direct
	DTS-HD HR^*1 2
	DTS Neural: X^*3
	DTS Virtual: X^*4 6
	TV Logic8
	AllCh Stereo7
	Full Mono7
	T-D4

** Cannot be selected when the input format is 2 ch.
A center speaker or surround speakers need to be installed.
* Cannot be selected when the input format is monaural.
* Cannot be selected if "Speaker Virtualizer" is set to "Off".
- Cannot be selected when height speakers are installed.
"Surround speakers or height speakers need to be installed.
A center speaker, surround speakers, or height speakers need to be installed.

Input Format Listening Mode
DTS-HD MSTR Direct
	DTS-HD MSTR ^11*2
	DTS Neural: X^*3
	DTS Virtual: X^4*6
	TV Logic ^5
	AllCh Stereo ^7
	Full Mono ^7
	T-D ^4

... Cannot be selected when the input format is 2 ch.
A center speaker or surround speakers need to be installed.
- Cannot be selected when the input format is monaural.
^34 Cannot be selected if "Speaker Virtualizer" is set to "Off".
- Cannot be selected when height speakers are installed.
- Surround speakers or height speakers need to be installed.
A center speaker, surround speakers, or height speakers need to be installed.

Input Format Listening Mode
DTS-ES Direct
	DTS^*1
	ES Matrix^*2
	ES Discrete^*2
	DTS Neural:X
	DTS Virtual: X^3/4
	TV Logic*5
	AllCh Stereo*6
	Full Mono*6
	T-D*3

^* This can only be selected when no surround back speaker is connected.
Surround back speakers need to be installed.
- Cannot be selected if "Speaker Virtualizer" is set to "Off".
* Cannot be selected when height speakers are installed.
* Surround speakers or height speakers need to be installed.
^6 A center speaker, surround speakers, or height speakers need to be
installed

Input Format Listening Mode
DTS:X Direct
	DTS:X
	DTS Virtual: X^*2
	TV Logic ^3
	AllCh Stereo ^4
	Full Mono ^4
	T-D ^1

• Cannot be selected if "Speaker Virtualizer" is set to "Off".
• Cannot be selected when height speakers are installed.
  * Surround speakers or height speakers need to be installed.
  * A center speaker, surround speakers, or height speakers need to be installed.

☐Speaker Layouts and Selectable Listening Modes (p82)

- Cannot be selected if "Speaker Virtualizer" is set to "Off".

^2 Cannot be selected when height speakers are installed.

"Surround speakers or height speakers need to be installed

A center speaker, surround speakers, or height speakers need to be installed.

Input Format Listening Mode
PCM	Direct
Music files (except DSD/Dolby TrueHD)	Stereo
	DSur
	DTS Neural: X^1
	DTS Virtual: X^2-3
	Orchestra ^4
	Unplugged ^4
	Studio-Mix ^4
	AllCh Stereo ^5
	Full Mono ^5

- Cannot be selected when the input format is monaural.

* Cannot be selected if "Speaker Virtualizer" is set to "Off".

* Cannot be selected when height speakers are installed.

3) Surround speakers or height speakers need to be installed

A center speaker, surround speakers, or height speakers need to be installed.

Input Format Listening Mode
Multich PCM Direct
	Stereo
	Multich ^1
	DDSur
	DTS Neural:X
	DTS Virtual: X^23
	Orchestra ^4
	Unplugged ^4
	Studio-Mix ^4
	AllCh Stereo ^5
	Full Mono ^6

A center speaker or surround speakers need to be installed.

* Cannot be selected if "Speaker Virtualizer" is set to "Off"

- Cannot be selected when height speakers are installed.

^14 Surround speakers or height speakers need to be installed.

- A center speaker, surround speakers, or height speakers need to be installed.

Input Format Listening Mode
DSD Direct
	Stereo
	DSD^*1*2
	DDDSur
	DTS Neural:X
	DTS Virtual: X^3*4
	Orchestra ^5
	Unplugged ^5
	Studio-Mix ^5
	AllCh Stereo ^6
	Full Mono ^6

“ Cannot be selected when the input format is monaural or 2 ch.
- A center speaker or surround speakers need to be installed.
- Cannot be selected if "Speaker Virtualizer" is set to "Off".
% Cannot be selected when height speakers are installed.
Cannot be selected when height speakers are installed.
^9 Surround speakers of height speakers need to be installed. ^10 A center speaker, surround speakers, or height speakers need to be installed.

Input Format Listening Mode
☒ Atmos ^1	Direct
	Stereo
	☒ Atmos
	Orchestra
	Unplugged
	Studio-Mix
	AllCh Stereo
	Full Mono

• With the firmware version before supporting IM mos 2.0, etc., you can select the IN+ or DIPD listening mode when surround back speakers or height speakers are not connected.

☐Speaker Layouts and Selectable Listening Modes (p82)

- Cannot be selected when the input format is 2 ch

^2 A center speaker or surround speakers need to be installed

- Surround speakers or height speakers need to be installed.

^1 A center speaker, surround speakers, or height speakers need to be installed.

Input Format Listening Mode

DD+ Direct
	Stereo
	DD+ ^1,2,3
	DSur
	Orchestra ^4
	Unplugged ^4
	Studio-Mix ^4
	AllCh Stereo ^5
	Full Mono ^5

- Cannot be selected when the input format is 2 ch.

A center speaker or surround speakers need to be installed. If the input source in Blu-ray Dino and the speaker layout is 5.1 oh or less.

- If the input source is Bio-ray Disc and the speaker layout is 3.1 for FDD+ cannot be selected. Instead, the listening mode for DDD can be selected.

- Surround speakers or height speakers need to be installed. - A center speaker, surround speakers, or height speakers need to be installed.

Input Format Listening Mode

DTHD Direct
	Stereo
	DTHD^*1*2
	DSur
	Orchestra*3
	Unplugged*3
	Studio-Mix*3
	AllCh Stereo*4
	Full Mono*4

- Cannot be selected when the input format is 2 ch.

^2 A center speaker or surround speakers need to be installed.

- Surround speakers or height speakers need to be installed.

^14 A center speaker, surround speakers, or height speakers need to be installed.

Input Format Listening Mode

DTS Direct
	Stereo
	DTS^*1*2
	DTS Neural: X^*3
	DTS Virtual: X^*4*5
	Orchestra ^6
	Unplugged ^6
	Studio-Mix ^6
	AllCh Stereo ^7
	Full Mono ^7

“ Cannot be selected when the input format is 2 ch.

A center speaker or surround speakers need to be installed.

- Cannot be selected when the input format is monaural.

- Cannot be selected if "Speaker Virtualizer" is set to "Off".

- Cannot be selected when height speakers are installed.

^26 Surround speakers or height speakers need to be installed.

A center speaker, surround speakers, or height speakers need to be installed.

Input Format Listening Mode

DTS 96/24 Direct
	Stereo
	DTS 96/24 ^1*2
	DTS Neural: X^3
	DTS Virtual: X^4*6
	Orchestra ^6
	Unplugged ^8
	Studio-Mix ^8
	AllCh Stereo ^7
	Full Mono ^7

* Cannot be selected when the input format is 2 ch.

^2 A center speaker or surround speakers need to be installed.

- Cannot be selected when the input format is monaural.

* Cannot be selected if "Speaker Virtualizer" is set to "Off"

^15 Cannot be selected when height speakers are installed.

^6 Surround speakers or height speakers need to be installed.

A center speaker, surround speakers, or height speakers need to be installed.

☐Speaker Layouts and Selectable Listening Modes (p82)

• Cannot be selected when the input format is 2 ch.
  ^2 A center speaker or surround speakers need to be installed.
• Cannot be selected when the input format is monaural.
  * Cannot be selected if "Speaker Virtualizer" is set to "Off".
  ^4 Cannot be selected when height speakers are installed.
• Surbound speakers of height speakers need to be installed.
  A center speaker, surround speakers, or height speakers need to be installed.

Input Format Listening Mode

DTS-HD HR Direct
	Stereo
	DTS-HD HR^*1*2
	DTS Neural: X^*3
	DTS Virtual: X^*4*5
	Orchestra ^76
	Unplugged ^8
	Studio-Mix ^8
	AllCh Stered ^7
	Full Mono ^7

• Cannot be selected when the input format is 2 ch.
  ^2 A center speaker or surround speakers need to be installed.
• Cannot be selected when the input format is monaural.
• Cannot be selected if "Speaker Virtualizer" is set to "Off".
  ^4 Cannot be selected when height speakers are installed.
• Surround speakers of height speakers need to be installed.
  A center speaker, surround speakers, or height speakers need to be installed.

Input Format Listening Mode

DTS-HD MSTR Direct
	Stereo
	DTS-HD MSTR ^172
	DTS Neural: X^3
	DTS Virtual: X^476
	Orchestra ^16
	Unplugged ^18
	Studio-Mix ^3
	AllCh Stereo ^7
	Full Mono ^7

* Cannot be selected when the input format is 2 ch.
^2 A center speaker or surround speakers need to be installed.
- Cannot be selected when the input format is monaural.
" Cannot be selected if "Speaker Virtualizer" is set to "Off"
^5 Cannot be selected when height speakers are installed.
* Surround speakers of height speakers need to be installed.
A center speaker, surround speakers, or height speakers need to be installed.

☐Speaker Layouts and Selectable Listening Modes (p82)

This can only be selected when no surround back speaker is connected.
- Surround back speakers need to be installed
"Cannot be selected if "Speaker Virtualizer" is set to "Off".
- Cannot be selected when height speakers are installed.
→ Surround speakers or height speakers need to be installed.
* A center speaker, surround speakers, or height speakers need to be installed.

Input Format Listening Mode
DTS:X Direct
	Stereo
	DTS:X
	DTS Virtual: X^1 12
	Orchestra ^3
	Unplugged ^3
	Studio-Mix ^3
	AllCh Stereo ^4
	Full Mono ^4

• Cannot be selected if "Speaker Virtualizer" is set to "Off".
• Cannot be selected when height speakers are installed.
• Surround speakers or height speakers need to be installed.
  ^4 A center speaker, surround speakers, or height speakers need to be installed.

Game button

Input Format Listening Mode
Analog Direct
	DSur
	DTS Neural:X
	DTS Virtual:X*1*2
	Game-RPG*3
	Game-Action*3
	Game-Rock*3
	Game-Sports*3
	AllCh Stereo*4
	Full Mono*4
	T-D*1

• Cannot be selected if "Speaker Virtualizer" is set to "Off".
  -2 Cannot be selected when height speakers are installed.
• Surround speakers need to be installed.
  ^24 Surround speakers or height speakers need to be installed.
• A center speaker, surround speakers, or height speakers need to be installed.

Input Format Listening Mode

PCMMusic files (except DSD/Dolby TrueHD)	Direct
	DD Sur
	DTS Neural: X^1
	DTS Virtual: X^2 3
	Game-RPG ^4
	Game-Action ^4
	Game-Rock ^4
	Game-Sports ^4
	AllCh Stereo ^5
	Full Mono ^5
	T-D ^2

“ Cannot be selected when the input format is monaural.
= Cannot be selected if "Speaker Virtualizer" is set to "Off".
3 Cannot be selected when height speakers are installed.
* Surround speakers or height speakers need to be installed.
* A center speaker, surround speakers, or height speakers need to be installed.

☐Speaker Layouts and Selectable Listening Modes (p82)

A center speaker or surround speakers need to be installed.

- Cannot be selected if "Speaker Virtualizer" is set to "Off".

- Cannot be selected when height speakers are installed.

- Surround speakers or height speakers need to be installed.

A center speaker, surround speakers, or height speakers need to be installed.

Input Format Listening Mode

DSD Direct
	DSD^*1 · ^2
	☑DSur
	DTS Neural:X
	DTS Virtual: X^*3 · ^4
	Game-RPG ^5
	Game-Action ^5
	Game-Rock ^5
	Game-Sports ^5
	AllCh Stereo ^6
	Full Mono ^6
	T-D ^3

- Cannot be selected when the input format is monaural or 2 ch.

2 A center speaker or surround speakers need to be installed.

- Cannot be selected if "Speaker Virtualizer" is set to "Off",

- Cannot be selected when height speakers are installed.

- Surround speakers of height speakers need to be installed.

* A center speaker, surround speakers, or height speakers need to be installed.

Input Format Listening Mode

Atmos ^1	Direct
	Atmos
	Game-RPG
	Game-Action
	Game-Rock
	Game-Sports
	AllCh Stereo
	Full Mono
	T-D ^2

With the firmware version before supporting Cosmos 2.0, etc., you can

select the DDD+ or DTHD listening mode when surround back

speakers or height speakers are not connected.

- Cannot be selected if "Speaker Virtualizer" is set to "Off".

Input Format Listening Mode

DD Direct
	DD ^1 ^2
	DSur
	Game-RPG ^3
	Game-Action ^3
	Game-Rock ^3
	Game-Sports ^3
	AllCh Stereo ^4
	Full Mono ^4
	T-D ^5

^1 Cannot be selected when the input format is 2 ch.
A center speaker or surround speakers need to be installed.
- Surround speakers or height speakers need to be installed.
^4 A center speaker, surround speakers, or height speakers need to be installed.
"Cannot be selected if "Speaker Virtualizer" is set to "Off".

☐Speaker Layouts and Selectable Listening Modes (p82)

** Cannot be selected when the input format is 2 ch.
- A center speaker or surround speakers need to be installed.
If the input source is Blu-ray Disc and the speaker layout is 5.1 ch or less,
DD+ cannot be selected. Instead, the listening mode for DD can
be selected.
^1 Surround speakers or height speakers need to be installed.
- A center speaker, surround speakers, or height speakers need to be
installed.
* Cannot be selected if "Speaker Virtualizer" is set to "Off".

Input Format Listening Mode

DTHD Direct
	DTHD^1*2
	DSur
	Game-RPG*3
	Game-Action*3
	Game-Rock*3
	Game-Sports*3
	AllCh Stereo*4
	Full Mono*4
	T-D*5

• Cannot be selected when the input format is 2 ch.
  2 A center speaker or surround speakers need to be installed.
  "Surround speakers or height speakers need to be installed.
• A center speaker, surround speakers, or height speakers need to be
  installed.
• Cannot be selected if "Speaker Virtualizer" is set to "Off".

Input Format Listening Mode

DTS Direct
	DTS^11*2
	DTS Neural: X^*3
	DTS Virtual: X^*4*5
	Game-RPG*8
	Game-Action*8
	Game-Rock*9
	Game-Sports*9
	AllCh Stereo*7
	Full Mono*7
	T-D*4

• Cannot be selected when the input format is 2 ch.
  * A center speaker or surround speakers need to be installed.
  " Cannot be selected when the input format is monaural.
• Cannot be selected if "Speaker Virtualizer" is set to "Off"
• Cannot be selected when height speakers are installed.
  * Surround speakers or height speakers need to be installed.
  A center speaker, surround speakers, or height speakers need to be
  installed.

Input Format Listening Mode

DTS 96/24 Direct
	DTS 96/24 ^1 ^2
	DTS Neural: X^3
	DTS Virtual: X^4 ^5
	Game-RPG ^6
	Game-Action ^6
	Game-Rock ^6
	Game-Sports ^6
	AllCh Stereo ^7
	Full Mono ^7
	T-D ^4

“ Cannot be selected when the input format is 2 ch.
= A center speaker or surround speakers need to be installed.
^2 Cannot be selected when the input format is monaural.
* Cannot be selected if "Speaker Virtualizer" is set to "Off
* Cannot be selected when height speakers are installed.
* Surround speakers or height speakers need to be installed.
^17 A center speaker, surround speakers, or height speakers need to be installed.

☐Speaker Layouts and Selectable Listening Modes (p82)

• Cannot be selected when the input format is 2 ch.
  ^2 A center speaker or surround speakers need to be installed.
  ^27 Cannot be selected when the input format is monaural.
• Cannot be selected if "Speaker Virtualizer" is set to "Off"
  ^2 Cannot be selected when height speakers are installed.
  * Surround speakers or height speakers need to be installed.
  A center speaker, surround speakers, or height speakers need to be installed.

Input Format Listening Mode

DTS-HD HR Direct
	DTS-HD HR^*1 2
	DTS Neural: X^*3
	DTS Virtual: X^*4 *5
	Game-RPG*8
	Game-Action*8
	Game-Rock5
	Game-Sports5
	AllCh Stereo7
	Full Mono7
	T-D*4

• Cannot be selected when the input format is 2 ch.
  ^2 A center speaker or surround speakers need to be installed.
  ^39 Cannot be selected when the input format is monaural.
• Cannot be selected if "Speaker Virtualizer" is set to "Off
• Cannot be selected when height speakers are installed.
  Surround speakers or height speakers need to be installed.
  A center speaker, surround speakers, or height speakers need to be installed.

Input Format Listening Mode

DTS-HD MSTR Direct
	DTS-HD MSTR ^1 2
	DTS Neural:X ^3
	DTS Virtual:X ^4 5
	Game-RPG6
	Game-Action6
	Game-Rock6
	Game-Sports6
	AllCh Stereo7
	Full Mono7
	T-D4

“ Cannot be selected when the input format is 2 ch.
= A center speaker or surround speakers need to be installed.
^2 Cannot be selected when the input format is monaural.
* Cannot be selected if "Speaker Virtualizer" is set to "Off
* Cannot be selected when height speakers are installed.
* Surround speakers or height speakers need to be installed.
^17 A center speaker, surround speakers, or height speakers need to be installed.

☐Speaker Layouts and Selectable Listening Modes (p82)

• This can only be selected when no surround back speaker is connected.
  ^2 Surround back speakers need to be installed.
• Cannot be selected if "Speaker Virtualizer" is set to "Off".
• Cannot be selected when height speakers are installed.
  Surround speakers or height speakers need to be installed.
• A center speaker, surround speakers, or height speakers need to be installed.

Input Format Listening Mode
DTS:X Direct
	DTS:X
	DTS Virtual: X^*1 *2
	Game-RPG*3
	Game-Action*3
	Game-Rock*3
	Game-Sports*3
	AllCh Stereo*4
	Full Mono*4
	T-D*1

" Cannot be selected if "Speaker Virtualizer" is set to "Off".
- Cannot be selected when height speakers are installed
Surround speakers or height speakers need to be installed.
A center speaker, surround speakers, or height speakers need to be installed.

☐Speaker Layouts and Selectable Listening Modes (p82)

Setup Menu

Menu list

You can configure advanced settings to have a more enjoyable experience with this unit. For operation details, refer to "Menu operations". (→p103)
1.Input/Output Assign	1. TV Out / OSD	Make settings for TV output and On-Screen Displays (OSD) that appear on the TV.	p104
	2. HDMI Input Change input assignment between the input selectors and HDMI IN jacks.		p105
	3. Video Input	Change input assignment between the input selectors and COMPONENT VIDEO IN jacks and theVIDEO IN jacks.	p106
	4. Digital Audio Input	Change input assignment between the input selectors and DIGITAL IN COAXIAL/OPTICAL jacks.	p107
	5. Analog Audio Input	Change input assignment between the input selectors and AUDIO IN jacks.	p107
2. Speaker	1. Configuration	Change the settings of connection environment of the speakers.	p108
	2. Crossover Change the settings of crossover frequencies.		p108
	3. Distance Set the distance from each speaker to the listening position.		p110
	4. Level Calibration Adjust the volume level of each speaker.		p110
	5. Dolby Enabled Speaker	Change the settings of Dolby Enabled Speakers. p111
	6. Equalizer Settings	Adjust the output volume of the range for each connected speaker.	p111
	7. Speaker Virtualizer	The Speaker Virtualizer function can be switched between On and Off.	p112
3. Audio Adjust	1. Multiplex/Mono	Change the settings of multiplex audio playback.	p112
	2. Dolby	Change the setting of when Dolby signals are input.	p112
	3. DTS	Change the setting of when DTS signals are input.	p113
	4. LFE Level	Set the low-frequency effect (LFE) level for Dolby Digital series, DTS series, Multichannel PCM,and DSD signals.	p113
	5. Volume	Change the Volume settings.	p113
4. Source	1. IntelliVolume	Adjust the volume level when there are differences in volume level among multiple devicesconnected to this unit.	p114
	2. Name Edit	Set an easy name for each input.	p114
	Audio Select	Select the priority for input selection when multiple audio sources are connected to one input selector.	p114
	Video Select	When "TUNER", "NET", or "BLUETOOTH" input is selected, you can set the input from whichvideo is displayed on the TV.	p115

5. Listening Mode Preset	1. BD/DVD	Preset the favorite listening mode when "BD/DVD" input is selected.	p115
	2. GAME Preset the favorite listening mode when "GAME" input is selected.		p115
	3. CBL/SAT Preset the favorite listening mode when "CBL/SAT" input is selected.		p115
	4. STRM BOX Preset the favorite listening mode when "STRM BOX" input is selected.		p115
	5. PC Preset the favorite listening mode when "PC" input is selected.		p115
	6. AUX Preset the favorite listening mode when "AUX" input is selected.		p115
	7. CD Preset the favorite listening mode when "CD" input is selected.		p115
	8. TV Preset the favorite listening mode when "TV" input is selected.		p115
	9. PHONO Preset the favorite listening mode when "PHONO" input is selected.		p115
	10. TUNER Preset the favorite listening mode when "TUNER" input is selected.		p115
	11. NET Preset the favorite listening mode when "NET" input is selected.		p115
	12. BLUETOOTH	Preset the favorite listening mode when "BLUETOOTH" input is selected.	p115
6. Hardware	1. HDMI	Change the settings for the HDMI functions.	p116
	2. Network	Change the settings for the Network functions.	p117
	3. Bluetooth	Change the settings for the Bluetooth function.	p119
	4. Power Management	Change the settings for the power-save function.	p119
	5. 12V Trigger A	Change the settings for 12V Trigger A OUT jack.	p120
	6. 12V Trigger B	Change the settings for 12V Trigger B OUT jack.	p122
	7. 12V Trigger C	Change the settings for 12V Trigger C OUT jack.	p124
	8. Works with SONOS	Change the settings to connect with the Sonos Connect.	p125
7. Multi Zone	1. Zone 2	Change the settings for Zone 2.	p126
	2. Remote Play Zone	Change the settings for remote play.	p126
8. Miscellaneous	1. Tuner	Change the frequency step for the tuner.	p127
	2. Remote ID	Change the remote controller ID.	p127
	3. Firmware Update	Change the settings for Firmware Update.	p127
	4. Initial Setup	Make the initial setup from the setup menu.	p127
	5. Lock	Lock the Setup menu so that the settings cannot be changed.	p127
	6. Factory Reset	All the settings are restored to factory defaults.	p128

Use the on-screen displays (OSD) that appear on the TV to make the settings. Press ☐ on the remote controller to display the Setup menu.

Select the item with the cursors ▲ of the remote controller, and press Enter to confirm your selection.

Use the cursors ↗ to change the default values.

• To return to the previous screen, press

• To exit the settings, press ⚙

Make settings for TV output and On-Screen Displays (OSD) that appear on the TV.

Setting Item Default Value Setting Details
HDMI Out MAIN Select the HDMI jack to be connected with the TV."MAIN": When connecting the TV to the HDMI OUT MAIN jack"SUB": When connecting the TV to the HDMI OUT SUB jack"MAIN+SUB": When connecting to both the MAIN and SUB jacks• If devices with different resolutions are connected to HDMI OUT MAIN jack and SUB jack, images are output with the lower resolution.
Dolby Vision MAIN	To output Dolby Vision video from the player to a TV that supports Dolby Vision, select either the HDMI OUT MAIN jack or HDMI OUT SUB jack to which the Dolby Vision-supported TV is connected. This setting is only necessary if you have set "HDMI Out" to "MAIN+SUB" and you have connected a TV to both the MAIN and SUB jacks."MAIN": To output Dolby Vision video to a Dolby Vision-supported TV connected to the HDMI OUT MAIN jack."SUB": To output Dolby Vision video to a Dolby Vision-supported TV connected to the HDMI OUT SUB jack.• After selecting "MAIN" or "SUB", if the video on the TV does not appear correctly, set this to "Off".
1080p -> 4K Upscaling	Off When using a TV that supports 4K, video signals input at 1080p can be automatically upscaled to 4K for output."Off": When this function is not to be used"Auto": When this function is to be usedSelect "Off" if your TV does not support 4K.

Setting Item Default Value Setting Details
Super Resolution 2	When you have set "1080p -> 4K Upscaling" to "Auto", you can select the degree of video signal correction from "Off" and between "1" (weak) and "3" (strong).
Zone2 HDMI Not Use	Make the setting when you output to the Zone 2 TV connected to the HDMI OUT ZONE 2/SUB jack. "Use": Enable this function "Not Use": Disable this function · When video and audio via HDMI input are output to ZONE 2, set to "Use".
OSD Language	English	Select the on-screen display language from the following. English, German, French, Spanish, Italian, Dutch, Swedish, Russian, Chinese
Impose OSD On Set	whether or not to display information such as volume adjustment or switching of input on the TV screen. "On": OSD is displayed on the TV. "Off": OSD is not displayed on the TV. · OSD may not be displayed depending on the input signal even if "On" is selected. In this case, change the resolution of the connected device.

Mini Player OSD Always On You can display on the TV the images from another input selected last while playing the audio from NET or BLUETOOTH input. After switching the input to NET or BLUETOOTH, play the images and audio. And then when you press Mode on the remote controller, the image is displayed in full-screen mode, and the audio information (Mini Player) for NET or BLUETOOTH is displayed in the corner of the screen. You can set whether to always display this Mini Player on the screen. "Always On": The Mini Player is always displayed. "Auto Off": The Mini Player turns off automatically in 30 seconds after displayed. If operation such as changing the volume is performed, it is displayed again for 30 seconds.Each time the Mode button is pressed, the image display/non-display can be switched.This setting cannot be selected if "Impose OSD" is set to "Off".

Screen Saver 3 minutes Set the time to start the screen saver.Select a value from "3 minutes", "5 minutes", "10 minutes" and "Off".

2. HDMI Input

Change input assignment between the input selectors and HDMI IN jacks.

Setting Item Default Value Setting Details
BD/DVD HDMI 1 (HDCP2.2)	"HDMI 1 (HDCP 2.2)" to "HDMI 6 (HDCP 2.2)": Assign a desired HDMI IN jack to the BD/DVD button. If you do not assign a jack, select "--". To select an HDMI IN jack already assigned to another input selector, change its setting to "---" first.
GAME HDMI 2 (HDCP2.2)	"HDMI 1 (HDCP 2.2)" to "HDMI 6 (HDCP 2.2)": Assign a desired HDMI IN jack to the Game button. If you do not assign a jack, select "--". To select an HDMI IN jack already assigned to another input selector, change its setting to "---" first.
CBL/SAT HDMI 3 (HDCP2.2)	"HDMI 1 (HDCP 2.2)" to "HDMI 6 (HDCP 2.2)": Assign a desired HDMI IN jack to the CBL/SAT button. If you do not assign a jack, select "--". To select an HDMI IN jack already assigned to another input selector, change its setting to "---" first.
STRM BOX HDMI 4 (HDCP2.2)	"HDMI 1 (HDCP 2.2)" to "HDMI 6 (HDCP 2.2)": Assign a desired HDMI IN jack to the STRM Box button. If you do not assign a jack, select "--". To select an HDMI IN jack already assigned to another input selector, change its setting to "---" first.
PC HDMI 5 (HDCP2.2)	"HDMI 1 (HDCP 2.2)" to "HDMI 6 (HDCP 2.2)": Assign a desired HDMI IN jack to the PC button. If you do not assign a jack, select "---". To select an HDMI IN jack already assigned to another input selector, change its setting to "---" first.
CD	---	"HDMI 1 (HDCP 2.2)" to "HDMI 6 (HDCP 2.2)": Assign a desired HDMI IN jack to the CD button. If you do not assign a jack, select "---". To select an HDMI IN jack already assigned to another input selector, change its setting to "---" first.

TV --- "HDMI 1 (HDCP 2.2)" to "HDMI 6 (HDCP 2.2)";Assign a desired HDMI IN jack to the TV button. If you do not assign a jack, select "--". To select an HDMI IN jack already assigned to another input selector, change its setting to "--" first.

PHONO --- "HDMI 1 (HDCP 2.2)" to "HDMI 6 (HDCP 2.2)";Assign a desired HDMI IN jack to the PHONO button. If you do not assign a jack, select "--". To select an HDMI IN jack already assigned to another input selector, change its setting to "--" first.

3. Video Input

Change input assignment between the input selectors and COMPONENT VIDEO IN jacks and the VIDEO IN jacks. If you do not assign a jack, select "--".

Setting Item Default Value Setting Details

BD/DVD COMPONENT "COMPONENT": Assign the COMPONENT VIDEOIN jacks to the BD/DVD button."VIDEO 1", "VIDEO 2": Assign a desired VIDEO INjack to the BD/DVD button.
GAME --- "COMPONENT": Assign the COMPONENT VIDEOIN jacks to the Game button."VIDEO 1", "VIDEO 2": Assign a desired VIDEO INjack to the Game button.
CBL/SAT VIDEO 1 "COMPONENT": Assign the COMPONENT VIDEOIN jacks to the CBL/SAT button."VIDEO 1", "VIDEO 2": Assign a desired VIDEO INjack to the CBL/SAT button.
STRM BOX VIDEO 2 "COMPONENT": Assign the COMPONENT VIDEOIN jacks to the STRM Box button."VIDEO 1", "VIDEO 2": Assign a desired VIDEO INjack to the STRM Box button.
PC	--- "COMPONENT": Assign the COMPONENT VIDEOIN jacks to the PC button."VIDEO 1", "VIDEO 2": Assign a desired VIDEO INjack to the PC button.
CD	--- "COMPONENT": Assign the COMPONENT VIDEOIN jacks to the CD button."VIDEO 1", "VIDEO 2": Assign a desired VIDEO INjack to the CD button.
TV --- "COMPONENT": Assign the COMPONENT VIDEOIN jacks to the TV button."VIDEO 1", "VIDEO 2": Assign a desired VIDEO INjack to the TV button.
PHONO --- "COMPONENT": Assign the COMPONENT VIDEOIN jacks to the PHONO button."VIDEO 1", "VIDEO 2": Assign a desired VIDEO INjack to the PHONO button.

Change input assignment between the input selectors and DIGITAL IN COAXIAL/OPTICAL jacks. If you do not assign a jack, select "--".

Setting Item Default Value Setting Details
BD/DVD COAXIAL	"COAXIAL", "OPTICAL": Assign a desired DIGITAL IN jack to the BD/DVD button.
GAME --- "COAXIAL", "OPTICAL": Assign a desired DIGITAL IN jack to the Game button.
CBL/SAT --- "COAXIAL", "OPTICAL": Assign a desired DIGITAL IN jack to the CBL/SAT button.
STRM BOX --- "COAXIAL", "OPTICAL": Assign a desired DIGITAL IN jack to the STRM Box button.
PC --- "COAXIAL", "OPTICAL": Assign a desired DIGITAL IN jack to the PC button.
CD --- "COAXIAL", "OPTICAL": Assign a desired DIGITAL IN jack to the CD button.
TV OPTICAL "COAXIAL", "OPTICAL": Assign a desired DIGITAL IN jack to the TV button.
PHONO	---	"COAXIAL", "OPTICAL": Assign a desired DIGITAL IN jack to the PHONO button.

• Supported sampling rates for PCM signals (stereo, mono) from a digital input are 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz/16 bit, 20 bit, and 24 bit.

5. Analog Audio Input

Change input assignment between the input selectors and AUDIO IN jacks. If you do not assign a jack, select "--".

Setting Item Default Value Setting Details
BD/DVD	AUDIO 1	"AUDIO 1" to "AUDIO 4": Assign a desired AUDIO IN jack to the BD/DVD button.
GAME --- "AUDIO 1" to "AUDIO 4": Assign a desired AUDIO IN jack to the Game button.
CBL/SAT	AUDIO 2	"AUDIO 1" to "AUDIO 4": Assign a desired AUDIO IN jack to the CBL/SAT button.
STRM BOX	AUDIO 3	"AUDIO 1" to "AUDIO 4": Assign a desired AUDIO IN jack to the STRM Box button.
PC --- "AUDIO 1" to "AUDIO 4": Assign a desired AUDIO IN jack to the PC button.
CD AUDIO 4	"AUDIO 1" to "AUDIO 4": Assign a desired AUDIO IN jack to the CD button.
TV --- "AUDIO 1" to "AUDIO 4": Assign a desired AUDIO IN jack to the TV button.
PHONO	PHONO	The setting cannot be changed.

Change the settings of connection environment of the speakers.

Setting Item Default Value Setting Details
SpeakerChannels	7.1 ch Select "2.1 ch", "3.1 ch", "4.1 ch", "5.1 ch", "6.1 ch", "7.1 ch", "2.1.2 ch", "3.1.2 ch", "4.1.2 ch" or "5.1.2 ch" to suit the number of speaker channels connected.
Subwoofer Yes Set	whether a subwoofer is connected or not."Yes": When a subwoofer is connected"No": When a subwoofer is not connected
Height Speaker Top Middle Set the speaker type if height speakers are connected to the SURROUND BACK or HEIGHT terminals.Select "Top Middle", "Top Rear", "Rear High", "Dolby Speaker (Front)", "Dolby Speaker (Surr)", "Front High" or "Top Front" according to the type and layout of the connected speakers.If the item cannot be selected even though connection is correct, check if the setting in "Speaker Channels" matches the number of connected channels.
Zone Speaker No Set whether speakers are connected to Zone 2 speaker terminals."Zone 2": When speakers are connected to Zone 2 speaker terminals"No": When speakers are not connected to Zone 2 speaker terminals

Setting Item Default Value Setting Details
Bi-Amp No Set whether the front speakers are bi-amp connected. "No": When front speakers are not bi-amp connected "Yes": When front speakers are bi-amp connectedThis setting is fixed to "No" if "Zone Speaker" is set to "Zone 2".This setting cannot be selected when surround back speakers or height speakers are installed.
Speaker Impedance	6 ohms or above	Set the impedance (Ω) of the connected speakers. "4ohms": When any of the connected speakers have 4 Ω or more to less than 6 Ω impedance "6 ohms or above": When the connected speakers all have 6 Ω or more impedanceFor impedance, check the indications on the back of the speakers or their instruction manual.

2. Crossover

Change the settings of crossover frequencies.

Setting Item Default	It Value Setting Details
Front	100 Hz	Select the crossover frequency from "40 Hz" to "200 Hz" to start outputting frequencies for each channel."Full Band": Full band will be output.If "Configuration" - "Subwoofer" is set to "No", "Front" is fixed to "Full Band", and the low pitched range of the other channels is output from the front speakers. Refer to the instruction manual of your speakers to make the setting.

Setting Item Default Value Setting Details

Center 100 Hz Select the crossover frequency from "40 Hz" to "200 Hz" to start outputting frequencies for each channel."Full Band": Full band will be output."Full Band" can be selected only when "Front" is set to "Full Band".If the item cannot be selected even though connection is correct, check if the setting in "Configuration" - "Speaker Channels" matches the number of connected channels.

Height 100 Hz Select the crossover frequency from "40 Hz" to "200 Hz" to start outputting frequencies for each channel."Full Band": Full band will be output."Full Band" can be selected only when "Front" is set to "Full Band".If the item cannot be selected even though connection is correct, check if the setting in "Configuration" - "Speaker Channels" matches the number of connected channels.

Surround 100 Hz Select the crossover frequency from "40 Hz" to "200 Hz" to start outputting frequencies for each channel."Full Band": Full band will be output."Full Band" can be selected only when "Front" is set to "Full Band".If the item cannot be selected even though connection is correct, check if the setting in "Configuration" - "Speaker Channels" matches the number of connected channels.

Setting Item Default Value Setting Details
Surround Back 100	Hz Select the crossover frequency from "40 Hz" to "200 Hz" to start outputting frequencies for each channel."Full Band": Full band will be output."Full Band" can be selected only when "Surround" is set to "Full Band".If the item cannot be selected even though connection is correct, check if the setting in "Configuration" - "Speaker Channels" matches the number of connected channels.
LPF of LFE 120 Hz	Set the low-pass filter for LFE (low-frequency effect) signals in order to pass only the lower frequency signals than the set value, and thus cancel unwanted noises. The low-pass filter is effective only on sources with LFE channel.The value from "80 Hz" to "120 Hz" can be set."Off": When this function is not used
Double Bass On This can be selected		only when "Configuration"- "Subwoofer" is set to "Yes" and "Front" is set to "Full Band".Bass output is boosted by feeding bass sounds from the front right and left, and center speakers to the subwoofer."On": Bass output is boosted."Off": Bass output is not boosted.This function is not automatically set even if AccuEQ Room Calibration is performed.

Set the distance from each speaker to the listening position.

Setting Item Default Value Setting Details
Front Left 12.0 ft/3.	60 m Specify the c	distance between each speaker and the listening position.
Center 12.0 ft/3.60	m Specify the dist	ance between each speaker and the listening position.
Front Right 12.0 ft/3.	60 m Specify the	distance between each speaker and the listening position.
Height Left 9.0 ft/2.	70 m Specify the c	distance between each speaker and the listening position.The setting cannot be changed if "Configuration" - "Zone Speaker" is set to "Zone 2" and Zone 2 is on.
Height Right 9.0 ft/2.	70 m Specify the	distance between each speaker and the listening position.The setting cannot be changed if "Configuration" - "Zone Speaker" is set to "Zone 2" and Zone 2 is on.
Surround Right 7.0	ft/2.10 m Specify the	distance between each speaker and the listening position.
Surr Back Right 7.0	ft/2.10 m Specify the	distance between each speaker and the listening position.The setting cannot be changed if "Configuration" - "Zone Speaker" is set to "Zone 2" and Zone 2 is on.
Surr Back Left	7.0 ft/2.10 m Specify the distance between each speaker and the listening position.The setting cannot be changed if "Configuration" - "Zone Speaker" is set to "Zone 2" and Zone 2 is on.
Surround Left	7.0 ft/2.10 m	Specify the distance between each speaker and the listening position.
Subwoofer	12.0 ft/3.60 m Specify the distance between each speaker and the listening position.

• Default values vary depending on the regions.

- The unit of distance can be changed by pressing the Mode button on the remote controller. When using the unit "feet", the setting is available in increments of 0.1 ft from 0.1 ft to 30.0 ft. When using the unit "meter", the setting is available in increments of 0.03 m from 0.03 m to 9.00 m.

4. Level Calibration

Adjust the volume level of each speaker.

Setting Item Default	It Value Setting Details
Front Left	0 dB	Select a value between "-12 dB" and "+12 dB"(in 1 dB increments). A test tone will be output each time you change the value. Select the desired level.
Center	0 dB	Select a value between "-12 dB" and "+12 dB"(in 1 dB increments). A test tone will be output each time you change the value. Select the desired level.
Front Right	0 dB	Select a value between "-12 dB" and "+12 dB"(in 1 dB increments). A test tone will be output each time you change the value. Select the desired level.
Height Left	0 dB	Select a value between "-12 dB" and "+12 dB"(in 1 dB increments). A test tone will be output each time you change the value. Select the desired level.• The setting cannot be changed if "Configuration" - "Zone Speaker" is set to "Zone 2" and Zone 2 is on.
Height Right	0 dB	Select a value between "-12 dB" and "+12 dB"(in 1 dB increments). A test tone will be output each time you change the value. Select the desired level.• The setting cannot be changed if "Configuration" - "Zone Speaker" is set to "Zone 2" and Zone 2 is on.
Surround Right	0 dB	Select a value between "-12 dB" and "+12 dB"(in 1 dB increments). A test tone will be output each time you change the value. Select the desired level.
Surr Back Right	0 dB	Select a value between "-12 dB" and "+12 dB"(in 1 dB increments). A test tone will be output each time you change the value. Select the desired level.• The setting cannot be changed if "Configuration" - "Zone Speaker" is set to "Zone 2" and Zone 2 is on.

Setting Item Default Value Setting Details
Surr Back Left 0 dB	Select a value between "-12 dB" and "+12 dB"(in 1 dB increments). A test tone will be output each time you change the value. Select the desired level.The setting cannot be changed if "Configuration"- "Zone Speaker" is set to "Zone 2" and Zone 2 is on.
Surround Left 0 dB	Select a value between "-12 dB" and "+12 dB"(in 1 dB increments). A test tone will be output each time you change the value. Select the desired level.
Subwoofer 0 dB Select a value between "-15 dB" and "+12 dB"(in 1 dB increments). A test tone will be output each time you change the value. Select the desired level.

5. Dolby Enabled Speaker

Change the settings of Dolby Enabled Speakers.

Setting Item Default Value Setting Details
Dolby EnabledSpeaker to Ceiling	6.0 ft/1.80 m Set the distance between the Dolby EnabledSpeaker and the ceiling. Select between "0.1 ft/0.03 m" and "15.0 ft/4.50 m" (0.1 ft/0.03 m units).The unit of distance (ft/m) is displayed using the unit selected for the "Distance" setting.
AccuReflex Off You can enhance the reflection effect of DolbyEnabled Speakers from the ceiling."Off": When this function is not used"On": When this function is used

• This setting can be selected when "Configuration" - "Height Speaker" is set to "Dolby Speaker".

6. Equalizer Settings

You can adjust the output volume of the range for each connected speaker. Adjust the volume of different sound ranges for each speaker. You can set three different equalizers in Preset 1 to 3. The number of frequencies that can be selected for each speaker is up to five bands for the Subwoofer and nine bands for the other speakers.

Setting Item Default Value Setting Details
Front 0.0 dB		After selecting the speaker frequency between "25 Hz" and "16 kHz" with the cursors ▲Adjust the volume of that frequency between "-6.0 dB" and "+6.0 dB" with ▲▼
Center 0.0 dB		After selecting the speaker frequency between "25 Hz" and "16 kHz" with the cursors ▲Adjust the volume of that frequency between "-6.0 dB" and "+6.0 dB" with ▲▼
Height	0.0 dB	After selecting the speaker frequency between "25 Hz" and "16 kHz" with the cursors ▲Adjust the volume of that frequency between "-6.0 dB" and "+6.0 dB" with ▲▼The setting cannot be changed if "Configuration" - "Zone Speaker" is set to "Zone 2" and Zone 2 is on.
Surround	0.0 dB	After selecting the speaker frequency between "25 Hz" and "16 kHz" with the cursors ▲Adjust the volume of that frequency between "-6.0 dB" and "+6.0 dB" with ▲▼
Surround Back	0.0 dB	After selecting the speaker frequency between "25 Hz" and "16 kHz" with the cursors ▲Adjust the volume of that frequency between "-6.0 dB" and "+6.0 dB" with ▲▼The setting cannot be changed if "Configuration" - "Zone Speaker" is set to "Zone 2" and Zone 2 is on.
Subwoofer 0.0 dB		After selecting the speaker frequency between "25 Hz" and "160 Hz" with the cursors ▲, adjust the volume of that frequency between "-6.0 dB" and "+6.0 dB" with ▲.▼This cannot be selected if "Configuration" - "Subwoofer" is set to "No".

• Depending on the input source or listening mode setting, the desired effect may not be achieved.

7. Speaker Virtualizer

The Speaker Virtualizer function can be switched between On and Off.

Setting Item Default Value Setting Details
SpeakerVirtualizer	On "On": The listening mode with virtual speaker effect such as T-D can be selected."Off": The listening mode with virtual speaker effect such as T-D cannot be selected.

3. Audio Adjust

1. Multiplex/Mono

Change the settings of multiplex audio playback.

Setting Item Default Value Setting Details
Multiplex Input Channel	Main Set the audio channel or language to be output when playing multiplex audio or multilingual broadcasts, etc."Main": Main channel only"Sub": Sub channel only"Main/Sub": Main and sub channels are output at the same time.For multiplex audio broadcasts, pressing the i button on the remote controller will display "1+1" on the main unit's display.
Mono Input Channel	Left + Right Set the input channel to play 2-ch digital sources such as Dolby Digital, or 2-ch analog/PCM sources in the Mono listening mode."Left": Left channel only"Right": Right channel only"Left + Right": Left and right channels

2. Dolby

Change the setting of when Dolby signals are input.

Setting Item Default Value Setting Details
Loudness Management	On When playing	Dolby TrueHD, enable the dialog normalization function which keeps the volume of dialog at a certain level. Note that when this setting is Off, the Late Night function that allows you to enjoy surround at low volumes is fixed to off when playing Dolby Digital Plus/Dolby TrueHD. "On": When this function is used "Off": When this function is not used

Change the setting of when DTS signals are input.

Setting Item Default Value Setting Details

DTS Auto Surround

On When inputting DTS signals that include extended channel information, the optimum listening mode is automatically selected according to the extended information contained in the input signal and the speaker configuration of this unit when playing in the straight decoding listening mode. "On": When this function is used "Off": Audio is played using the same number of channels in the input signal according to the speaker configuration of this unit. • If this function is set to "Off", the ES Matrix and ES Discrete listening modes cannot be selected.

4. LFE Level

Set the low-frequency effect (LFE) level for Dolby Digital series, DTS series, Multichannel PCM, and DSD signals.

Setting Item Default Value Setting Details

LFE Level 0 dB Select the low-frequency effect (LFE) level of each signal from "0 dB" to "-∞ dB". If the low-frequency effect sound is too strong, select "-20 dB" or "-∞ dB".

5. Volume

Change the Volume settings.

Setting Item Default Value Setting Details
Mute Level dB Set the volume lowered from the listening volume when muting is on. Select a value from “ dB”, “-40 dB” and “-20 dB”.
Maximum Volume Off Set the maximum value to prevent the volume from becoming too loud. Select a value from "Off", and "50" to "99".
Power On Volume Last Set the volume level of when the power is turned on. Select a value from "Last" (Volume level before entering standby mode), "Min", "1" to "99" and "Max". • You cannot set a higher value than that of "Maximum Volume".
Headphone Level 0 dB		Adjust the output level of headphones. Select a value between "-12 dB" and "+12 dB".

Adjust the volume level when there are differences in volume level among multiple devices connected to this unit. Select the input selector to make the setting.

Setting Item Default Value Setting Details
IntelliVolume 0 dB	Select a value between "-12 dB" and "+12 dB".Set a negative value if the volume of the target device is larger than the others and a positive value if smaller. To check the audio, play back the connected device.This function does not work in Zone 2.

2. Name Edit

Set an easy name for each input. The set name appears on the main unit's display. Select the input selector to make the setting.

Setting Item Default Value Setting Details

Name Edit Input name 1. Select a character or symbol with the cursors, and press Enter.Repeat this operation to input up to 10 characters."A/a": Switches between upper and lower cases.(Pressing Mode on the remote controller also toggles between upper and lower cases)"←" "→": Moves the cursor in the arrow direction."×": Removes a character on the left of the cursor."×" Enters a space.• Pressing Clear on the remote controller will remove all the input characters.2. After inputting, select "OK" with the cursors, and press Enter.The input name will be saved.To restore the name to the default value, pressClear on the remote controller on the input screen.Then while nothing is entered, select "OK", and press Enter.

• To name a preset radio station, press Tuner on the remote controller, select AM/FM, and select the preset number.
• This cannot be set if the "NET" or "BLUETOOTH" input is selected.

Audio Select

Select the priority for input selection when multiple audio sources are connected to one input selector, for example, connections to both the "BD/DVD" HDMI IN jack and the "BD/DVD" AUDIO IN jack. The setting can be made for each input selector button. Select the input selector to make the setting. Note that some of the default values cannot be changed.

Setting Item Default Value Setting Details
Audio Select BD/DVD:	"ARC": When giving priority to the input signal from ARC-compatible TV.
HDMI	This item can be selected only when "6. Hardware" - "HDMI" - "Audio Return Channel" is set to "Auto" and also the "TV" input is selected.
GAME:
HDMI
CBL/SAT:
HDMI	"HDMI": When giving priority to the input signal from HDMI IN jacks
STRM BOX:
HDMI	This item can be selected only when the input to be set is assigned to the HDMI jack in the "1. Input/Output Assign" - "HDMI Input" setting.
PC:
HDMI
AUX:	"COAXIAL": When giving priority to the input signal from DIGITAL IN COAXIAL jacks
Analog	This item can be selected only when the input to be set is assigned to the COAXIAL jack in the "1. Input/Output Assign" - "Digital Audio Input" setting.
CD:
OPTICAL
PHONO:
Analog
TV:	"OPTICAL": When giving priority to the input signal from DIGITAL IN OPTICAL jacks
OPTICAL	This item can be selected only when the input to be set is assigned to the OPTICAL jack in the "1. Input/Output Assign" - "Digital Audio Input" setting.
	"Analog": When giving priority to the input signal from AUDIO IN jacks
	This item can be selected only when the input to be set is assigned to the AUDIO IN jack in the "1. Input/Output Assign" - "Analog Audio Input" setting.

PCM Fixed Mode Off Select whether to fix input signals to PCM (except multi-channel PCM) when you select "HDMI", "COAXIAL", or "OPTICAL" in the "Audio Select" setting. Set this item to "On" if noise is produced or truncation occurs at the beginning of a track when playing PCM sources. Select "Off" normally.Each time the "Audio Select" setting is changed, the setting is restored to "Off".

• The setting cannot be changed when "Tuner", "NET", or "BLUETOOTH" input is selected.

Video Select

When "Tuner", "NET", or "BLUETOOTH" input is selected, you can set the input from which video is displayed on the TV.

Setting Item Default Value Setting Details

Video Select Last "Last": Select the video input played last.
	"BD/DVD", "GAME", "CBL/SAT", "STRM BOX", "PC", "AUX", "CD", "TV", "PHONO": Play the video of each input.This setting is effective for an input selector assigned in "1. Input/Output Assign" - "HDMI Input" and "Video Input".

• If the OSD language is set to Chinese, you can select this setting only when "Tuner" is selected as input. (European, Australian, Asian and Taiwanese models)

5. Listening Mode Preset

You can preset your favorite listening mode to each input. (For example, you can always apply straight decode to the Dolby TrueHD source of Blu-ray Disc to play it in unchanged sound field.)

When the list of input sources is displayed, set the signal type and listening mode.

Although it is possible to select the listening mode during playback, the selected mode will be reset when the unit enters standby mode.

Setting Item Default Value Setting Details

Analog/PCM All Ch	Stereo Set the listening mode for playing PCM signals of CD and analog signals of record and cassette tape.
Dolby Dolby Audio -	Surr	Set the listening mode for playing Dolby Digital, Dolby Digital Plus and Dolby TrueHD signals. • Input signals are played as they are input if you select "Straight Decode".
DTS DTS Neural:X	Set the listening mode for playing digital audio signals in DTS and DTS-HD High Resolution formats. Select the listening mode specified for Blu-ray or such other DTS-HD Master Audio source. • Input signals are played as they are input if you select "Straight Decode".
Other	Dolby Audio - Surr	Set the listening mode for playing audio such as DVD-audio and DSD signals. • Input signals are played as they are input if you select "Straight Decode".

• Available listening modes vary depending on speaker configuration and the input signal.

- Setting "Last Valid" will always select the last selected mode.

- Only "Analog" can be set to the "TUNER" or "AUX" input.

- "Digital" and "DSD" can be set to the "NET" input.

- Only "Digital" can be set to the "BLUETOOTH" input.

Change the settings of the HDMI function.

Setting Item Default Value Setting Details

HDMI CEC Off Setting this to "On" enables the input selection link and other link functions with HDMI-connected CEC-compatible device. "On": When this function is used "Off": When this function is not used When this setting is changed, turn off and then on again the power of all connected devices. Depending on the TV to use, a link setting may be required on the TV. This function is effective only when the device is connected to the HDMI OUT MAIN terminal. Setting this to "On" and closing the operation screen will display the name of the connected CEC-compatible device and "CEC On" on the main unit's display. When this function is set to "On", the power consumption in standby state increases, however, the increase in power consumption is minimized by automatically entering the Hybrid Standby mode where only the essential circuits operate. If you operate the Master Volume dial on the main unit when this setting is "On" and audio is output from the TV speakers, audio will be output also from the speakers connected to this unit. To output audio from only either of them, change the setting of this unit or TV, or reduce the volume of this unit. If abnormal behavior is observed when this is set to "On", set it to "Off". If a connected device is not CEC-compatible, or if you are not sure whether it is compatible, set it to "Off".

Setting Item Default Value Setting Details

HDMI Standby Through

Off When this is set to anything other than "Off", you can play the video and audio of an HDMI-connected player on the TV even if the unit is in standby mode. Also, only "Auto" and "Auto(Eco)" can be selected if "HDMI CEC" is set to "On". If you select anything else, set "HDMI CEC" to "Off". ·When this function is set to a value other than "Off", the power consumption in standby state increases, however, the increase in power consumption is minimized by automatically entering the Hybrid Standby mode where only the essential circuits operate."BD/DVD", "GAME", "CBL/SAT", "STRM BOX", "PC", "CD", "TV", "PHONO": For example, if you select "BD/DVD", you can play the device connected to the "BD/DVD" jack on the TV even if the unit is in standby mode. Select this setting if you have decided which player to use with this function."Last": You can play on the TV the video and audio of the input selected immediately before the unit is switched to standby. When "Last" is selected, you can switch the input of the unit using the remote controller or the Integra Control Pro even in the standby mode."Auto", "Auto (Eco)": Select either of the settings if the connected player conforms to the CEC standard. You can play the video and audio of the player on the TV using the CEC link function, irrespective of what input is selected immediately before the unit is switched to standby. ·To play a non-CEC compliant player on the TV, turn the unit on and switch the input. ·When using a CEC-compliant TV, you can reduce the power consumption in standby mode by selecting "Auto (Eco)".

Audio TV Out Off You can enjoy audio through the speakers of the TV while this unit is on. "On": When this function is used "Off": When this function is not usedThis setting is fixed to "Auto" if you set "1. Input/ Output Assign" - "TV Out/OSD" - "HDMI Out" or "Other" - "HDMI Out" in the "Quick Menu" to "MAIN" or "MAIN+SUB" and set "HDMI CEC" to "On". If you change this setting, set "HDMI CEC" to "Off".Listening mode cannot be changed while "Audio TV Out" is set to "On" and audio is being output from the TV.Depending on your TV or input signal of the connected device, audio may not be output from the TV even if this is set to "On". In such a case, audio is output from the speakers of the unit.Audio is output from this unit if you operate the Master Volume dial on this unit when audio that is input to this unit is output from your TV speakers. If you do not want to output audio, change the setting of this unit or TV, or reduce the volume of this unit.
Audio Return Channel	Auto (*) You can enjoy the sound of the HDMI-connected ARC-compatible TV through the speakers connected to the unit.To use this function, set "HDMI CEC" to "On" beforehand."Auto": When enjoying the TV sound through the speakers of this unit"Off": When not using the ARC function
Auto Lip Sync On This setting automatically corrects desynchronization between the video and audio signals based on the information from the HDMI Lip Sync-compatible TV."On": When enabling the automatic correction function"Off": When not using the automatic correction function

2. Network

Change the settings of the Network function.

- When LAN is configured with a DHCP, set "DHCP" to "Enable" to configure the setting automatically. ("Enable" is set by default) To assign fixed IP addresses to each components, you must set "DHCP" to "Disable", assign an address to this unit in the "IP Address" setting, and set information related to your LAN, such as Subnet Mask and Gateway.

Setting Item Default Value Setting Details

Wi-Fi Off(Wired) Connect the unit to the network via a wireless LAN router. "On": Wireless LAN connection "Off(Wired): Wired LAN connection · When switching between "On" and "Off(Wired)", stop the Network service. Also, when group playback is in process, cancel the group playback once, and then switch the setting.
Wi-Fi Setup	-	Configure wireless LAN settings by pressing Enter with "Start" displayed.
Wi-Fi Status	-	The information of the connected access point is displayed. "SSID": SSID of the connected access point. "Signal": Signal strength of the connected access point. "Status": Status of the connected access point.
MAC Address	-	Check the MAC address of this unit. This value is specific to the component and cannot be changed.
DHCP	Enable	"Enable": Auto configuration by DHCP "Disable": Manual configuration without DHCP · If you select "Disable", set "IP Address", "Subnet Mask", "Gateway", and "DNS Server" manually.
IP Address	0.0.0.0	Displays/Sets the IP address.
Subnet Mask	0.0.0.0	Displays/Sets the subnet mask.
Gateway	0.0.0.0	Displays/Sets the gateway.
DNS Server	0.0.0.0	Displays/Sets the primary DNS server.
Proxy URL	-	Displays/Sets the proxy server URL.

Proxy Port 8080 Displays/Sets the proxy server port number when you input "Proxy URL".

Friendly Name Integra DRX-2.3XXXXXX

Change the model name of this unit which is displayed on the device connected to the network to an easily recognized name.1. Press Enter to display the Edit screen.2. Select a character or symbol with the cursors, and press Enter.Repeat this operation to input up to 31 characters."A/a": Switches between upper and lower cases.(Pressing Mode on the remote controller also toggles between upper and lower cases)"←" "→": Moves the cursor in the arrow direction."Remove a character on the left of the cursor."Enters a space.Pressing Clear on the remote controller will remove all the input characters.3. After inputting, select "OK" with the cursors, and press Enter.The input name will be saved.

Setting Item Default Value Setting Details

AirPlay Password		You can set a password of up to 31 digits so that only registered users can use AirPlay®.1. Press Enter to display the Edit screen.2. Select a character or symbol with the cursors, and press Enter.Repeat this operation to input up to 31 characters."A/a": Switches between upper and lower cases.(Pressing Mode on the remote controller also toggles between upper and lower cases)"←" "→": Moves the cursor in the arrow direction."× Removes a character on the left of the cursor."□ Enters a space.To select whether to mask the password with "*" or display it in plain text, press Memory on the remote controller.Pressing Clear on the remote controller will remove all the input characters.3. After inputting, select "OK" with the cursors, and press Enter.The input password will be saved.
Usage Data No To	improve the quality	of our products and services,we may collect information about your usage via a network. Select "Yes" if you agree to our collecting this information. Select "No" if you do not want us to collect this information.You can set this after confirming the Privacy Policy. When you select "Usage Data" and press Enter, the Privacy Policy is displayed.(The same screen is displayed only once while setting the network connection.) If you agree to the collection of the information, this setting also becomes "Yes". Note that if you select "No" for this setting after you agree to the Privacy Policy, the information will not be collected.
Network Check -	You	can check the network connection.Press Enter when "Start" is displayed.

• Wait for a while if "Network" cannot be selected. It can be selected when the network function is activated.

Change the settings for the Bluetooth function.

Setting Item Default Value Setting Details
Bluetooth On Select whether or not to use the BLUETOOTH function."On": Enables connection with a BLUETOOTH-enabled device by using the BLUETOOTH function. Select "On" also when making various BLUETOOTH settings."Off": When not using the BLUETOOTH function
Auto Input Change	On The input of the unit can be automatically switched to "BLUETOOTH" when connection is made from a BLUETOOTH-enabled device to the unit."On": The input is automatically set to "BLUETOOTH" when a BLUETOOTH-enabled device is connected."Off": The function is disabled.If the input is not switched automatically, set this to "Off", and change the input manually.
Auto Reconnect On This function automatically reconnects to the BLUETOOTH-enabled device connected last when you change the input to "BLUETOOTH"."On": When this function is used"Off": When this function is not usedThis may not work with some BLUETOOTH-enabled devices.
Pairing Information	- You can initialize the pairing information stored on this unit.Pressing Enter when "Clear" is displayed initializes the pairing information stored on this unit.This function does not initialize the pairing information on the BLUETOOTH-enabled device. When pairing the unit again with the device, be sure to clear the pairing information on the BLUETOOTH-enabled device beforehand. For information on how to clear the pairing information, refer to the instruction manual of the BLUETOOTH-enabled device.

Setting Item Default Value Setting Details

Device - Displays the name of the BLUETOOTH-enabled device connected to the unit. • The name is not displayed when "Status" is "Ready" and "Pairing".

Status - Displays the status of the BLUETOOTH-enabled device connected to the unit. "Ready": Not paired "Pairing": Paired "Connected": Successfully connected

• Wait for a while if "Bluetooth" cannot be selected. It can be selected when the BLUETOOTH function is activated.

4. Power Management

Change the settings for the power-save function.

Setting Item Default	Value Setting Details
Sleep Timer Off You can allow the unit to enter standby automatically when the specified time elapses. Select a value from "30 minutes", "60 minutes" and "90 minutes". "Off": The unit does not automatically enter standby mode.
Auto Standby On/Off This setting allows the unit to enter standby mode automatically after 20 minutes of inactivity without any video or audio input. (When "USB Power Out at Standby" or "Network Standby" is enabled, the unit enters the Hybrid Standby mode which minimizes the increase in power consumption.) "On": The unit automatically enters standby mode ("AUTO STBY" lights up). "Off": The unit does not automatically enter standby mode. · "Auto Standby" is displayed on the main unit's display and TV screen 30 seconds before entering standby mode. · "Auto Standby" does not work when Zone 2 is active. · Default values vary depending on the regions.

Auto Standby in HDMI Standby Through	Off Enable or disable "Auto Standby" while "HDMI Standby Through" is on. "On": The setting is enabled. "Off": The setting is disabled. · This setting cannot be set to "On" if "Auto Standby" and "HDMI Standby Through" are set to "Off".
USB Power Out at Standby	Off When this function is set to "On", electricity can be supplied to the device connected to the USB port even if this unit is in standby mode. · When this function is set to "On", the power consumption in standby state increases, however, the increase in power consumption is minimized by automatically entering the Hybrid Standby mode where only the essential circuits operate.
Network Standby On

Setting Item Default Value Setting Details

Bluetooth Wakeup Off

This function wakes up the unit on standby by connecting a BLUETOOTH-enabled device. "On": When this function is used "Off": When this function is not usedWhen this function is set to "On", the power consumption in standby state increases, however, the increase in power consumption is minimized by automatically entering the Hybrid Standby mode where only the essential circuits operate.This setting is fixed to "Off" if "Bluetooth" - "Auto Input Change" is set to "Off".

• Wait for a while if "Network Standby" and "Bluetooth Wakeup" cannot be selected. It can be selected when the network function is activated.

5. 12V Trigger A

Set when outputting the control signal (maximum 12 V/100 mA) through the 12V TRIGGER OUT A jack. Different settings can be set for each input selector. You can enable power link operation when you connect the unit and the external devices equipped with 12V trigger input jack.

Setting Item Default Value Setting Details

Delay 0 sec Set after how many seconds the 12V trigger output will occur in response to the unit's operation. As some devices cause a large current when they turn on, delay the output if such devices are connected. Select a value between "0 sec" to "3 sec".

BD/DVD Main Set the 12V trigger output setting to each input. "Off": No output "Main": Output when "BD/DVD" is selected as input for main room. "Zone 2": Output when "BD/DVD" is selected as input for ZONE2. "Main/Zone 2": Output when "BD/DVD" is selected as input for main room or ZONE2.

Setting Item Default Value Setting Details

GAME Main Set the 12V trigger output setting to each input. "Off": No output"Main": Output when "GAME" is selected as input for main room."Zone 2": Output when "GAME" is selected as input for ZONE2."Main/Zone 2": Output when "GAME" is selected as input for main room or ZONE2.

CBL/SAT Main Set the 12V trigger output setting to each input. "Off": No output"Main": Output when "CBL/SAT" is selected as input for main room."Zone 2": Output when "CBL/SAT" is selected as input for ZONE2."Main/Zone 2": Output when "CBL/SAT" is selected as input for main room or ZONE2.

STRM BOX Main Set the 12V trigger output setting to each input. "Off": No output"Main": Output when "STRM BOX" is selected as input for main room."Zone 2": Output when "STRM BOX" is selected as input for ZONE2."Main/Zone 2": Output when "STRM BOX" is selected as input for main room or ZONE2.

PC Main Set the 12V trigger output setting to each input. "Off": No output"Main": Output when "PC" is selected as input for main room."Zone 2": Output when "PC" is selected as input for ZONE2."Main/Zone 2": Output when "PC" is selected as input for main room or ZONE2.

Setting Item Default Value Setting Details

AUX Main Set the 12V trigger output setting to each input. "Off": No output"Main": Output when "AUX" is selected as input for main room."Zone 2": Output when "AUX" is selected as input for ZONE2."Main/Zone 2": Output when "AUX" is selected as input for main room or ZONE2.

CD Main Set the 12V trigger output setting to each input. "Off": No output"Main": Output when "CD" is selected as input for main room."Zone 2": Output when "CD" is selected as input for ZONE2."Main/Zone 2": Output when "CD" is selected as input for main room or ZONE2.

TV Main Set the 12V trigger output setting to each input. "Off": No output"Main": Output when "TV" is selected as input for main room."Zone 2": Output when "TV" is selected as input for ZONE2."Main/Zone 2": Output when "TV" is selected as input for main room or ZONE2.

PHONO Main Set the 12V trigger output setting to each input. "Off": No output"Main": Output when "PHONO" is selected as input for main room."Zone 2": Output when "PHONO" is selected as input for ZONE2."Main/Zone 2": Output when "PHONO" is selected as input for main room or ZONE2.

TUNER Main Set the 12V trigger output setting to each input.
	"Off": No output"Main": Output when "TUNER" is selected as input for main room."Zone 2": Output when "TUNER" is selected as input for ZONE2."Main/Zone 2": Output when "TUNER" is selected as input for main room or ZONE2.
NET Main Set the 12V trigger output setting to each input.
	"Off": No output"Main": Output when "NET" is selected as input for main room."Zone 2": Output when "NET" is selected as input for ZONE2."Main/Zone 2": Output when "NET" is selected as input for main room or ZONE2.
BLUETOOTH Main Set the 12V trigger output setting to each input.
	"Off": No output"Main": Output when "BLUETOOTH" is selected as input for main room."Zone 2": Output when "BLUETOOTH" is selected as input for ZONE2."Main/Zone 2": Output when "BLUETOOTH" is selected as input for main room or ZONE2.

6. 12V Trigger B

Set when outputting the control signal (maximum 12 V/25 mA) through the 12V TRIGGER OUT B jack. Different settings can be set for each input selector. You can enable power link operation when you connect the unit and the external devices equipped with 12V trigger input jack.

Setting Item Default Value Setting Details

Delay 1 sec Set after how many seconds the 12V trigger output will occur in response to the unit's operation. As some devices cause a large current when they turn on, delay the output if such devices are connected. Select a value between "0 sec" to "3 sec".
BD/DVD Zone 2 Set the 12V trigger output setting to each input."Off": No output"Main": Output when "BD/DVD" is selected as input for main room."Zone 2": Output when "BD/DVD" is selected as input for ZONE2."Main/Zone 2": Output when "BD/DVD" is selected as input for main room or ZONE2.
GAME Zone 2 Set the 12V trigger output setting to each input."Off": No output"Main": Output when "GAME" is selected as input for main room."Zone 2": Output when "GAME" is selected as input for ZONE2."Main/Zone 2": Output when "GAME" is selected as input for main room or ZONE2.
CBL/SAT	Zone 2 Set the 12V trigger output setting to each input."Off": No output"Main": Output when "CBL/SAT" is selected as input for main room."Zone 2": Output when "CBL/SAT" is selected as input for ZONE2."Main/Zone 2": Output when "CBL/SAT" is selected as input for main room or ZONE2.

Setting Item Default Value Setting Details
STRM BOX Zone 2	Set the 12V trigger output setting to each input."Off": No output"Main": Output when "STRM BOX" is selected as input for main room."Zone 2": Output when "STRM BOX" is selected as input for ZONE2."Main/Zone 2": Output when "STRM BOX" is selected as input for main room or ZONE2.
PC Zone 2 Set the	12V trigger output setting to each input."Off": No output"Main": Output when "PC" is selected as input for main room."Zone 2": Output when "PC" is selected as input for ZONE2."Main/Zone 2": Output when "PC" is selected as input for main room or ZONE2.
AUX Zone 2 Set the	12V trigger output setting to each input."Off": No output"Main": Output when "AUX" is selected as input for main room."Zone 2": Output when "AUX" is selected as input for ZONE2."Main/Zone 2": Output when "AUX" is selected as input for main room or ZONE2.
CD Zone 2 Set the	12V trigger output setting to each input."Off": No output"Main": Output when "CD" is selected as input for main room."Zone 2": Output when "CD" is selected as input for ZONE2."Main/Zone 2": Output when "CD" is selected as input for main room or ZONE2.

Setting Item Default Value Setting Details

TV Zone 2 Set the 12V trigger output setting to each input."Off": No output"Main": Output when "TV" is selected as input for main room."Zone 2": Output when "TV" is selected as input for ZONE2."Main/Zone 2": Output when "TV" is selected as input for main room or ZONE2.

PHONO Zone 2 Set the 12V trigger output setting to each input."Off": No output"Main": Output when "PHONO" is selected as input for main room."Zone 2": Output when "PHONO" is selected as input for ZONE2."Main/Zone 2": Output when "PHONO" is selected as input for main room or ZONE2.

TUNER Zone 2 Set the 12V trigger output setting to each input."Off": No output"Main": Output when "TUNER" is selected as input for main room."Zone 2": Output when "TUNER" is selected as input for ZONE2."Main/Zone 2": Output when "TUNER" is selected as input for main room or ZONE2.

NET Zone 2 Set the 12V trigger output setting to each input."Off": No output"Main": Output when "NET" is selected as input for main room."Zone 2": Output when "NET" is selected as input for ZONE2."Main/Zone 2": Output when "NET" is selected as input for main room or ZONE2.

BLUETOOTH Zone 2 Set the 12V trigger output setting to each input.
	"Off": No output"Main": Output when "BLUETOOTH" is selected as input for main room."Zone 2": Output when "BLUETOOTH" is selected as input for ZONE2."Main/Zone 2": Output when "BLUETOOTH" is selected as input for main room or ZONE2.

7. 12V Trigger C

Set when outputting the control signal (maximum 12 V/25 mA) through the 12V TRIGGER OUT C jack. Different settings can be set for each input selector. You can enable power link operation when you connect the unit and the external devices equipped with 12V trigger input jack.

Setting Item Default Value Setting Details

Delay 2 sec Set after how many seconds the 12V trigger outputwill occur in response to the unit's operation. Assome devices cause a large current when they turnon, delay the output if such devices are connected.Select a value between "0 sec" to "3 sec".

BD/DVD Main/Zone 2 Set the 12V trigger output setting to each input."Off": No output"Main": Output when "BD/DVD" is selected as inputfor main room."Zone 2": Output when "BD/DVD" is selected asinput for ZONE2."Main/Zone 2": Output when "BD/DVD" is selectedas input for main room or ZONE2.

GAME Main/Zone 2 Set the 12V trigger output setting to each input."Off": No output"Main": Output when "GAME" is selected as inputfor main room."Zone 2": Output when "GAME" is selected as inputfor ZONE2."Main/Zone 2": Output when "GAME" is selected asinput for main room or ZONE2.

Setting Item Default Value Setting Details

CBL/SAT Main/Zone 2 Set the 12V trigger output setting to each input.
	"Off": No output"Main": Output when "CBL/SAT" is selected as input for main room."Zone 2": Output when "CBL/SAT" is selected as input for ZONE2."Main/Zone 2": Output when "CBL/SAT" is selected as input for main room or ZONE2.
STRM BOX Main/Zone 2 Set the 12V trigger output setting to each input.
	"Off": No output"Main": Output when "STRM BOX" is selected as input for main room."Zone 2": Output when "STRM BOX" is selected as input for ZONE2."Main/Zone 2": Output when "STRM BOX" is selected as input for main room or ZONE2.
PC	Main/Zone 2 Set the 12V trigger output setting to each input."Off": No output"Main": Output when "PC" is selected as input for main room."Zone 2": Output when "PC" is selected as input for ZONE2."Main/Zone 2": Output when "PC" is selected as input for main room or ZONE2.
AUX	Main/Zone 2 Set the 12V trigger output setting to each input."Off": No output"Main": Output when "AUX" is selected as input for main room."Zone 2": Output when "AUX" is selected as input for ZONE2."Main/Zone 2": Output when "AUX" is selected as input for main room or ZONE2.

Setting Item Default Value Setting Details

CD Main/Zone 2 Set the 12V trigger output setting to each input. "Off": No output"Main": Output when "CD" is selected as input for main room."Zone 2": Output when "CD" is selected as input for ZONE2."Main/Zone 2": Output when "CD" is selected as input for main room or ZONE2.

TV Main/Zone 2 Set the 12V trigger output setting to each input. "Off": No output"Main": Output when "TV" is selected as input for main room."Zone 2": Output when "TV" is selected as input for ZONE2."Main/Zone 2": Output when "TV" is selected as input for main room or ZONE2.

PHONO Main/Zone 2 Set the 12V trigger output setting to each input. "Off": No output"Main": Output when "PHONO" is selected as input for main room."Zone 2": Output when "PHONO" is selected as input for ZONE2."Main/Zone 2": Output when "PHONO" is selected as input for main room or ZONE2.

TUNER Main/Zone 2 Set the 12V trigger output setting to each input. "Off": No output"Main": Output when "TUNER" is selected as input for main room."Zone 2": Output when "TUNER" is selected as input for ZONE2."Main/Zone 2": Output when "TUNER" is selected as input for main room or ZONE2.

Setting Item Default Value Setting Details

NET Main/Zone 2 Set the 12V trigger output setting to each input."Off": No output"Main": Output when "NET" is selected as input for main room."Zone 2": Output when "NET" is selected as input for ZONE2."Main/Zone 2": Output when "NET" is selected as input for main room or ZONE2.

BLUETOOTH Main/Zone 2 Set the 12V trigger output setting to each input."Off": No output"Main": Output when "BLUETOOTH" is selected as input for main room."Zone 2": Output when "BLUETOOTH" is selected as input for ZONE2."Main/Zone 2": Output when "BLUETOOTH" is selected as input for main room or ZONE2.

8. Works with SONOS

Change the settings to connect with the Sonos Connect.

Setting Item Default Value Setting Details

Input Selector Off Select the input selector to which the SonosConnect is connected.Selecting "Off" disables the interlock function with Sonos.

Setting Item Default Value Setting Details
Connected Device	Displays the Sonos Connect connected to the same network as the network of this unit. Press the Enter button to select the connected Sonos Connect.Products (e.g. Play:3 unequipped with an output terminal) other than the Sonos Connect are also displayed in the device list and selectable. In that case, when playback on the Sonos side starts, the input is switched, however, audio is not output. Select the room name of the connected Sonos Connect.Up to 32 devices can be displayed on the Sonos product list screen. If you cannot find the Sonos Connect to be interlocked, return to the previous screen, turn off the product you want to interlock, and try again.To use this function, set "Input Selector" beforehand.
Output Zone Main	Select the zone where you want to listen to the music."Main": Outputs audio only to the main room (where this unit is located)."Zone 2": Outputs audio only to the separate room (ZONE 2)."Main/Zone 2": Outputs audio to both the main room and separate room.To use this function, set "Input Selector" beforehand.
Preset Volume Main:Last Zone 2:Last		You can set the volume beforehand for playing back the Sonos Connect. You can set volumes for the main room (where this unit is located) and separate room (ZONE 2) respectively. Select a value from "Last" (Volume level before entering standby mode), "Min", "1" to "99" and "Max".To use this function, set "Input Selector" beforehand.

7. Multi Zone

1. Zone 2

Change the settings for Zone 2.

Setting Item Default	It Value Setting Details
Maximum Volume Off Set the maximum value for Zone 2 to prevent the volume from becoming too loud. Select a value from "Off", and "50" to "99".
Power On Volume Last Set the Zone 2 volume level of when the unit is turned on. Select a value from "Last" (Volume level when the unit was turned off), "Min", "1" to "99" and "Max".• You cannot set a higher value than that of "Maximum Volume".

2. Remote Play Zone

Change the settings for remote play.

Setting Item Default Value Setting Details
Remote Play Zone	Auto	When playing with AirPlay or Spotify Connect, or when using the Music Server function to play remotely from your PC, you can set whether to play in the main room (where this unit is located) or in a separate room (ZONE 2). "Auto": When the main room input is NET, music is played in the main room. When the separate room input is NET and the main room input is other than NET, then the music is played in the separate room. "Main", "Zone 2": Select when limiting the play zone to a particular room. For example, when playing only in the separate room, select "Zone 2". • This function may not work if playback is already proceeding with the same network function.

Change the frequency step for the tuner.

Setting Item Default Value Setting Details
AM/FM Frequency Step (North American models)	10 kHz/0.2 MHz Select a frequency step to suit your residential area.Select "10 kHz/0.2 MHz" or "9 kHz/0.05 MHz".When this setting is changed, all radio presets are deleted.
AM Frequency Step (Australian and Asian models)	9 kHz Select a frequency step to suit your residential area.Select "10 kHz" or "9 kHz".When this setting is changed, all radio presets are deleted.

2. Remote ID

Change the remote controller ID.

Setting Item Default Value Setting Details

Remote ID 1 If multiple Integra/ONKYO products are installed in the same room, select the ID for the remote control used with this unit from "1", "2" and "3" to prevent interference between the unit and other Integra/ONKYO products. After changing the ID on the main unit, set the same ID on the remote controller as the main unit with the following procedure.While pressing and holding the Mode button, press the following buttons for approx. 3 seconds.To change the remote controller ID to "1": Movie/TVTo change the remote controller ID to "2": MusicTo change the remote controller ID to "3": Game

3. Firmware Update

Change the settings for Firmware Update.

Setting Item Default Value Setting Details
Update Notice Enable Availability of a network. "Enable": Notify updates "Disable": Do not notify updates		firmware update is notified via network. "Enable": Notify updates "Disable": Do not notify updates
Version - The current firmware version is displayed.
Update via NET	- Press Enter to select when updating the firmware via network. · This setting cannot be selected if you do not have Internet access or there is no updatable firmware.
Update via USB	- Press Enter to select when updating the firmware via USB. · This setting cannot be selected if a USB storage device is not connected or there is no updatable firmware in the USB storage device.

• Wait for a while if "Firmware Update" cannot be selected. It can be selected when the network function is activated.

4. Initial Setup

Make the initial setup from the setup menu.

- Wait for a while if "Initial Setup" cannot be selected. It can be selected when the network function is activated.

5. Lock

Lock the Setup menu so that the settings cannot be changed.

Setting Item Default Value Setting Details
Setup Parameter	Unlocked	Lock the Setup menu so that the settings cannot be changed. "Locked": The menu is locked. "Unlocked": The menu is unlocked.

All the settings are restored to factory defaults.

Setting Item Default Value Setting Details

Factory Reset - All the settings are restored to factory defaults. Select "Start", and press the Enter button.If "Factory Reset" is performed, your settings are restored to the default values. Be sure to note down your setting contents beforehand.

Quick Menu

Menu operations

You can quickly adjust the settings you frequently use, such as tone adjustments, etc.

You can make the settings on the TV screen during playback. Press Q on the remote controller to display the Quick Menu.

Select the item with the cursors ▲ of the remote controller, and press Enter to confirm your selection.

Use the cursors to change the settings.

• To return to the previous screen, press ⊃
• To exit the settings, press Q.

Tone

Bass: Enhances or moderates the low-tone range of the speakers.

Vocal: Emphasizes movie lines and music vocals to listen to them more easily.

Treble: Enhances or moderates the high-tone range of the speakers.

• It cannot be set if the listening mode is Direct.
• Depending on the input source or listening mode setting, selection is not possible, or the desired effect may not be achieved.

Level

Center: Adjust the speaker level of the center speaker while listening to the sound.

Subwoofer: Adjust the speaker level of the subwoofer while listening to the sound.

- If you set the unit to the standby mode, the adjustments you made will be restored to the previous statuses.

AccuEQ

AccuEQ Room Calibration: Enable or disable the equalizer function that corrects for sound distortion caused by the acoustic environment of the room. To enable this setting, normally select "On (All Ch)", and to disable only the front speakers, select "On (ex. L/R)". The setting can be set for each input.

Equalizer: Select "Preset 1" to "Preset 3" configured in "2. Speaker" - "Equalizer Settings" in the Setup menu. When this is set to "Off", the same sound field setting is applied to all ranges.

Cinema Filter: Adjusts the soundtrack with the enhanced high range so that it suits a home theater. In this function, the following listening modes can be used: Dolby Audio - DD, Dolby Audio - DD+, Dolby Audio - Surr, Dolby Audio - TrueHD, Multichannel, DTS, DTS-ES, DTS 96/24, DTS-HD High Resolution, DTS-HD Master Audio, DTS Neural:X, DTS Express and DSD.

- It cannot be set if the listening mode is Direct.

Other

A/V Sync: If the video is behind the audio, you can delay the audio to offset the gap. The setting can be set for each input.

- It cannot be set if the listening mode is Direct.

Music Optimizer: Improve the quality of the compressed audio. Playback sound of lossy compressed files such as MP3 will be improved. The setting can be set for each input. This works in signals whose sampling frequencies are 48 kHz or less. The setting is not effective in the bitstream signals.

- It cannot be set if the listening mode is Direct.

Late Night: Enable small sounds to be easily heard in detail. It is useful when you need to reduce the volume while watching a movie late night. You can enjoy the effect only when playing the Dolby series and DTS series input signals.

• This function cannot be used in the following cases.
• When playing Dolby Digital Plus or Dolby TrueHD with "Loudness Management" set to "Off"
• When the input signal is DTS:X, and "Dialog Control" is not 0 dB

Center Spread: Adjust the width of the sound field of the front channel when playing in the Dolby Audio - DSur listening mode. To spread the width of the sound field to the right and left, set to "On". To concentrate the sound in the center, set to "Off".

- Depending on the speaker settings, "Off" is applied.

Dialog Control: You can increase the volume of dialog portion of the audio up to 6 dB by 1 dB step so that you can hear the dialog easily in noisy atmosphere.

- This cannot be set for content other than DTS:X.

- Depending on the content, this function may not be selected.

HDMI Out: Select the HDMI OUT jack to output video signals from "Main", "SUB", and "Main+SUB".

Zone B: Select an audio output method from among "Off", "On (A+B)" and "On (B)".

Web Setup

Menu operations

You can make the settings for the network function of this unit using an Internet browser on a PC, smartphone, etc.

1. Press ⚙ on the remote controller to display the Setup menu.
2. Select "6. Hardware" - "Network" with the cursors, and then take a note of the IP address displayed in "IP Address".
3. Start the Internet browser on your PC, smartphone, etc. and enter the IP address of this unit in the URL field.
4. Information for the unit (Web Setup screen) is displayed in the Internet browser.

1. After changing the settings, select "Save" to save the settings.

Device Information

You can change the Friendly Name, set an AirPlay Password, etc.

Control4: Register this unit if you are using a Control4 system.

Firmware Update: Select the firmware file you have downloaded to your PC so you can update this unit.

Network Setting

Status: You can see information for the network such as the MAC address and IP address of this unit.

Network Connection: You can select a network connection method. If you select "Wireless", select an access point from "Wi-Fi Setup" to connect.

DHCP: You can change DHCP settings. If you select "Off", set "IP Address", "Subnet Mask", "Gateway" and "DNS Server" manually.

Proxy: Display and set the URL for the proxy server.

Initial Setup with Auto Start-up Wizard

Operations

When you turn the unit on for the first time after purchase, the Initial Setup screen is automatically displayed on the TV to allow you to make settings required for startup using simple operations following on-screen guidance.

1. Switch the input of the TV to the input connected to the unit.

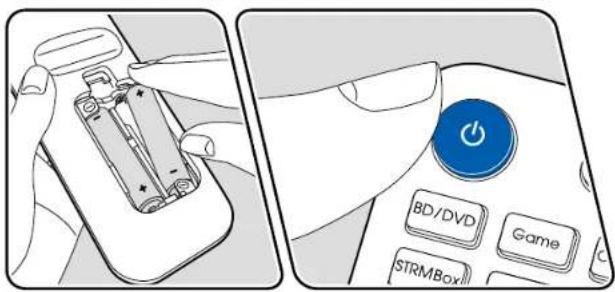

2. Put batteries into the remote controller of this unit.
3. Press don the remote controller to turn the unit on.
4. When the language selection screen is displayed on TV, select the language with the cursors ▲ and press Enter.
5. Select the item with the cursors of the remote controller, and press Enter to confirm your selection. To return to the previous screen, press ➔
6. If you have terminated the Initial Setup halfway, turn this unit to standby mode. Then turning the power on again can display the Initial Setup again. The Initial Setup appears on the screen each time the power is turned on unless the Initial Set up is completed or "Never Show Again" is selected on the first screen.

- To perform the Initial Setup again after the setting is completed, press ⚙ select "8. Miscellaneous" - "Initial Setup", and press Enter.

1. Speaker Setup

Select the connected speaker configuration.

Note that the image on the screen changes each time you select the number of channels in "Speaker Channels".

2. AccuEQ Room Calibration

Place the supplied speaker setup microphone at the listening position. The unit automatically measures the test tones output from each speaker, and sets the optimum volume level for each speaker, the crossover frequencies, and the distance from the listening position. This also automatically adjusts the equalizers for the speakers, and enables correction of sound distortion caused by the acoustic environment of the room.

• It takes between 3 and 12 minutes for calibration to be completed. Each speaker outputs the test tone at high volume during measurement, so be careful of your surroundings. Also, keep the room as quiet as possible during measurement.
• If you connect a subwoofer, check the power and volume of the subwoofer. Set the subwoofer volume to more than half.

• If the power of this unit suddenly turns off, the wires in the speaker cables have touched the rear panel or other wires, and the protection circuit is working. Twist the wires again securely, and make sure they do not stick out of the speaker terminals when connecting.

• Place the supplied speaker setup microphone at the listening position, and connect it to the Setup Mic jack on the main unit.

When placing the speaker setup microphone on a tripod, refer to the illustration.

1. Confirm a test tone is output from the subwoofer and press Enter.
2. Press Enter. Then, test tones are output from each speaker, and the connected speakers and the noise in the surrounding environment are automatically measured.
3. The measurement results in step 3 are displayed. Select "Next", and press Enter. The test tones are output again. Then, the unit automatically sets the optimum volume level, crossover frequency, etc.
4. When the measurement is completed, the measurement results are displayed. You can check each setting using the cursors ◀ ▶ Select "Save" and press Enter to save the settings.
5. Disconnect the speaker setup microphone.

3. Multi Zone Sound Check

Output test tones to ZONE 2 to enjoy audio in a separate room (ZONE 2) in addition to the main room.

4. Network Connection

Make the network connection settings. There are two methods for network connection.

"Wired": Use a wired LAN to connect to a network.

"Wireless": Wi-Fi connection using an access point such as a wireless LAN router. There are two methods for Wi-Fi connection.

"Scan Networks": Search for an access point from this unit. Find out the SSID of the access point beforehand.

"Use iOS Device (iOS7 or later)": Share the Wi-Fi settings of your iOS device with this unit.

If you select "Scan Networks", there are another two types of connection methods. Check the following.

"Enter Password": Enter the password (or key) of the access point to connect. "Push Button": If the access point is equipped with an automatic setting button, you can connect without entering the password.

- If the SSID of the access point is not displayed, select "Other..." with the cursor ▶ on the SSID list screen, press Enter, and then follow the on-screen instructions.

Keyboard Input

To switch between upper and lower cases, select "A/a" on the screen, and press Enter on the remote controller.

Press Memory on the remote controller to select whether to mask the password with "*" or display it in plain text. Pressing Clear on the remote controller will remove all the input characters.

- A confirmation screen asking you whether to agree to the privacy policy is displayed during network setting. If you agree, select "Accept" and press Enter.

5. ARC Setup

To connect with an ARC-compatible TV, select "Yes". The ARC setting on this unit turns on, and you can listen to the TV's audio through this unit.

- If you select "Yes", the HDMI CEC function is enabled and power consumption increases during standby.

Before starting the procedure

Problems may be solved by simply turning the power on/off or disconnecting/connecting the power cord, which is easier than working on the connection, setting and operating procedure. Try the simple measures on both the unit and the connected device. If the problem is that the video or audio is not output or the HDMI linked operation does not work, disconnecting/connecting the HDMI cable may solve it. When reconnecting, be careful not to wind the HDMI cable since if wound the HDMI cable may not fit well. After reconnecting, turn off and on the unit and the connected device.

• The AV receiver contains a microPC for signal processing and control functions. In very rare situations, severe interference, noise from an external source, or static electricity may cause it to lockup. In the unlikely event that this happens, unplug the power cord from the wall outlet, wait at least 5 seconds, and then plug it back in.
• Our company is not responsible for damages (such as CD rental fees) due to unsuccessful recordings caused by the unit's malfunction. Before you record important data, make sure that the material will be recorded correctly.

When the unit is operating erratically 136

Try restarting the unit 136

Resetting the unit

(this resets the unit settings to the default) 137

Troubleshooting 138

Power 138
■ Audio 138
■ Listening Modes 140
■ Video 141
■ Linked operation 141

■ Tuner 142
■ BLUETOOTH function 142
■ Network function 143
USB storage device 144
■ Wireless LAN Network 144
■ ZONE B function 145
■ Multi-zone function 145
■ Remote Controller 145
■ Display 146
■ Others 146

When the unit is operating erratically

☐Try restarting the unit

Restarting this unit may solve the problem. After turning the unit to standby mode, press and hold the On/Standby button of the main unit for at least 5 seconds, and then restart the unit. (The settings on this unit are kept.) If the problem persists after restarting the unit, unplug and plug the power cords or HDMI cable of this unit and connected devices.

☐ Resetting the unit (this resets the unit settings to the default)

If the restart of the unit does not solve the problem, reset the unit, and restore all the settings to the factory default at the time of purchase. This may solve the problem. If the unit is reset, your settings are restored to the default values. Be sure to note down your setting contents before performing the following operations.

1. While pressing and holding CBL/SAT of the input selector on the main unit with the unit turned on, press the ⏻ On/Standby button.
2. "Clear" is displayed on the display, and the unit returns to the standby state. Do not remove the power cord until "Clear" disappears from the display.
   To reset the remote controller, while pressing and holding Mode, press Clear at least 3 seconds.

Troubleshooting

Power

☐ When the power is turned on, "AMP Diag Mode" appears on the display of the main unit.

- The protection circuit function may have operated. If the unit suddenly enters the standby state and "AMP Diag Mode" appears on the display of the main unit when the power is turned on again, this function is diagnosing whether or not the main unit is malfunctioning or there is an abnormality with the speaker cable connection. When the diagnosis is complete, the following messages are displayed.

CH SP WIRE	If the unit returns to the normal ON state after "CH SP WIRE" appears on the display, the speaker cable may have been short-circuited. After setting the power of this unit to standby state, connect the speaker cable again. Twist the wires exposed from the tip of the speaker cable so that the wires do not stick out of the speaker terminal.
NG: * * * * *	If the operation has stopped with "NG" displayed on the display, set the power of this unit to standby state immediately and remove the power plug from the outlet. The unit may be malfunctioning. Consult a dealer.

☐The unit turns off unexpectedly

• If "6. Hardware" - "Power Management" - "Auto Standby" on the Setup menu is activated, the unit automatically enters the standby mode.
• The protection circuit function may have operated due to an abnormal rise in temperature of the unit. In such a case, the power turns off repeatedly even if the power is turned on each time. Secure sufficient ventilation space around the unit, wait for a while until the temperature of the unit decreases. Then, turn the power on again.

WARNING: If smoke, smell or abnormal noise is produced by the unit, unplug the power cord from the outlet immediately, and contact the dealer or our company's Support.

Audio

• Make sure that the speaker setup microphone is no longer connected.
• Confirm that the connection between the output jack on the connected device and the input jack on this unit is correct.
• Make sure that none of the connecting cables are bent, twisted, or damaged.
• If the MUTE indicator on the display blinks, press ⚙️ on the remote controller to cancel muting.
• While headphones are connected to the Phones jack, no sound is output from the speakers.
• When "4. Source" - "Audio Select" - "PCM Fixed Mode" in the Setup menu is set to "On", no sound is played if signals other than PCM are input. Change the setting to Off.
  Check the following if the problem persists after you have confirmed the above.

□No sound from the TV

• Change the input selector on this unit to the position of the terminal to which the TV is connected.
• If the TV does not support the ARC function, along with the connection by an HDMI cable, connect the TV with this unit using a digital optical cable.

☐No sound from a connected player

• Change the input selector on this unit to the position of the terminal to which the player is connected.
• Check the digital audio output setting on the connected device. On some game consoles, such as those supporting DVD, the default setting may be off.
• For some DVD-Video discs, you need to select an audio output format from a menu.

☐A speaker produces no sound

• Make sure that the polarity (+/-) of the speaker cables is correct, and that no bare wires are in contact with the metal part of speaker terminals.
• Make sure that the speaker cables are not shorting out.
• Check "Connect the Speaker Cables" (→p24) to see if the speaker connections have been made correctly. Settings for the speaker connection environment need to be made in "Speaker Setup" in Initial Setup. Check "Initial Setup with Auto Start-up Wizard" (→p132).
• Depending on the input signal and listening mode, not much sound may be output from speakers. Select another listening mode to see if sound is output.
• If surround back speakers are installed, be sure to install surround speakers as well.
• A maximum of 5.1 ch playback is possible when Bi-Amping connection is used. Be sure to remove the jumper bar on the speakers when using Bi-Amping connection.

☐The subwoofer produces no sound

If the setting of the front speakers is "Full Band", the low range elements will be output from the front speakers instead of from the subwoofer during 2 ch audio input of TV or music. To output the sound from the subwoofer, make one of the following settings.

1. Change the setting for the front speakers to a setting of crossover frequency value other than "Full Band".
   The range below the specified frequency will be output from the subwoofer instead of from the front speakers. If your front speakers have a high low-range reproduction capability, changing this setting is not recommended.

2. Change "Double Bass" to "On".

The low range elements of the front speakers will be output from both the front speakers and the subwoofer. Due to this, the bass sound may be emphasized too much. In such a case, do not change the setting, or make the setting with the above option 1.

- For the setting details, refer to "2. Speaker" - "Crossover" in the Setup menu.

- If the input signals do not contain subwoofer audio elements (LFE), the subwoofer may produce no sound.

( p24)

( p108)

Noise can be heard

• Using cable ties to bundle audio pin cables, power cords, speaker cables, etc. may degrade the audio performance. Do not bundle the cords.
• An audio cable may be picking up interference. Change the position of the cables.

☐The beginning of audio received by an HDMI IN cannot be heard

- Since it takes longer to identify the format of an HDMI signal than it does for other digital audio signals, audio output may not start immediately.

□Sound suddenly reduces

- When using the unit for extended periods with the temperature inside the unit exceeding a certain temperature, the volume may be reduced automatically to protect the circuits.

□Sound suddenly changes

- The volume of ZONE A is restored to default if ZONE 2 is set to on while ZONE B is set to "On (B)".

Listening Modes

• To enjoy digital surround playback in formats such as Dolby Digital, you need to make a connection for audio signals with an HDMI cable, digital coaxial cable or digital optical cable. Also, audio output need to be set to Bitstream output on the connected Blu-ray Disc player, etc.
• Press i on the remote controller several times to switch the display of the main unit, and you can check the input format.

Check the following if the problem persists after you have confirmed the above.

☐Cannot select a desired listening mode

- Depending on the connection status of the speaker, some listening modes may not be selected. Refer to "Speaker Layouts and Selectable Listening Modes" (→p82) or "Input Formats and Selectable Listening Modes" (→p90) in "Listening Mode".

☐ Cannot listen to the sound in Dolby TrueHD, Dolby Atmos or DTS-HD Master Audio format

- If the audio in Dolby TrueHD, Dolby Atmos or DTS-HD Master Audio format cannot be output correctly in the source format, set "BD video supplementary sound" (or reencode, secondary sound, video additional audio, etc.) to "Off" in the setting of a connected Blu-ray Disc player, etc. After changing the setting, switch the listening mode to that for each source, and confirm.

About DTS signals

• With media that switches suddenly from DTS to PCM, PCM playback may not start immediately. In such a case, stop playback on the player side for approx. 3 seconds or more. Then, resume playback. The playback will be performed normally.
• DTS playback may not be performed normally on some CD and LD players even if the player and this unit are digitally connected. If some processing (e.g., output level adjustment, sampling frequency conversion, or frequency characteristic conversion) has been executed for the DTS signal being output, this unit cannot recognize it as a genuine DTS signal, and noise may occur.
• While playing a DTS-compatible disc, if a pause or skip operation is performed on your player, noise may occur for a short period. This is not a malfunction.

Video

• Confirm that the connection between the output jack on the connected device and the input jack on this unit is correct.
• Make sure that none of the connecting cables are bent, twisted, or damaged.
• When the TV image is blurry or unclear, the power cord or connection cables of the unit may have interfered. In such a case, keep distance between TV antenna cable and cables of the unit.
• Check the switching of the input screen on the monitor side such as a TV.

Check the following if the problem persists after you have confirmed the above.

□No image appears

- Change the input selector on this unit to the position of the terminal to which the player is connected.

☐No image from a device connected to HDMI IN jack

• To display video from the connected player on the TV while the unit is in standby, you need to enable "6. Hardware" - "HDMI" - "HDMI Standby Through" in the Setup menu. For details of the HDMI Standby Through function, refer to "5. Hardware" - "HDMI" in the Setup menu. (p116)
• To output video to a TV connected to the HDMI OUT SUB jack, press the Q button on the remote controller to display "Quick Menu" and select "Other" - "HDMI Out", or press the HDMI Main/Sub button on the remote controller. Then, select the HDMI OUT jack for output.
• Check if "Resolution Error" is displayed on the main unit display when video input via HDMI IN jack is not displayed. In this case, the TV does not support the resolution of the video input from the player. Change the setting on the player.
• Normal operation with an HDMI-DVI adapter is not guaranteed. In addition, video signals output from a PC are not guaranteed.

□Images flicker

- The output resolution of the player may not be compatible with the resolution of the TV. If the player is connected to this unit with an HDMI cable, change the output resolution on the player. Also this may be solved by changing the screen mode on the TV.

□Video and audio are out of synch

- Depending on the settings on your TV and connection environment, the video may be behind the audio. Press Q on the remote controller to display "Quick Menu", select "Other" - "A/V Sync", and make the adjustment. (p129)

Linked operation

☐ HDMI linked operation does not work with CEC-compliant devices, such as a TV

• In the Setup menu of the unit, set "6. Hardware" - "HDMI" - "HDMI CEC" to "On".
• It is also necessary to set HDMI linking on the CEC-compliant device. Check the instruction manual.

Tuner

□Poor reception or much noise

• Recheck the antenna connection.
• Move the antenna away from the speaker cord or power cord.
• Move the unit away from your TV or PC.
• Passing cars or airplanes in the vicinity can cause interference.
• If radio waves are blocked by concrete walls, etc., radio reception may be poor.
• Change the reception mode to mono (-p70).
• Operating the remote controller during AM reception may cause noise.
• FM reception may be clearer if you use the antenna jack on the wall used for the TV.

BLUETOOTH function

• Unplug and plug the power cord of the unit, or turn off and on the BLUETOOTH-enabled device. Restart of the BLUETOOTH-enabled device may be effective.
• BLUETOOTH-enabled devices must support the A2DP profile.
• Because a radio wave interference will occur, this unit may not be used near devices such as a microwave oven or cordless phone which use the radio wave in the 2.4 GHz range.
• A metallic object near the unit can affect on the radio wave, and BLUETOOTH connection may not be possible.
  Check the following if the problem persists after you have confirmed the above.

□Cannot connect with this unit

- Check if the BLUETOOTH function of the BLUETOOTH-enabled device is enabled. (→p119)

☐ Music playback is unavailable on the unit even after successful BLUETOOTH connection

• When the audio volume of your BLUETOOTH-enabled device is set low, the audio may not be played back. Turn up the volume of the BLUETOOTH-enabled device.
• Depending on the BLUETOOTH-enabled device, the Send/Receive selector switch may be equipped. Select Send mode.
• Depending on the characteristics or specifications of the BLUETOOTH-enabled device, music may not be played back on this unit.

□Sound is interrupted

- There may a problem with the BLUETOOTH-enabled device. Check the information on a web page.

☐ The audio quality is poor after connection with a BLUETOOTH-enabled device

- The BLUETOOTH reception is poor. Move the BLUETOOTH-enabled device closer to the unit, or remove any obstacle between the BLUETOOTH-enabled device and this unit.

• If you cannot select a network service, start up the network function to select it. It may take approx. one minute to start it up.
• When the NET indicator is blinking, this unit is not properly connected to the home network.
• Unplug and plug the power cords of this unit and the router, or restart the router.
• If the desired router is not displayed in the access point list, it may be set to hide SSID, or the ANY connection may be off. Change the setting and try again.
  Check the following if the problem persists after you have confirmed the above.

□Cannot access the Internet radio

• In the case the service provider has terminated the service, the network service or contents may not be used on this unit.
- Check if your modem and router are properly connected, and they are both turned on.
- Check if the LAN side port on the router is properly connected to this unit.
- Check if connecting to Internet from other devices is possible. If it is not possible, turn off all devices connected to the network, wait for a while, and then turn on the devices again.
- If only the specific radio station is unavailable for listening, check if he registered URL is correct, and if the format distributed from the radio station is supported by this unit.
- Depending on ISP, setting the proxy server is required.
- Check if the router and modem you are using are supported by your ISP.

☐Cannot access the network server

• This unit needs to be connected to the same router as the network server.
• This unit supports the Windows Media® Player 11 or 12 network servers, or NASes that support the home network function.
• Windows Media® Player may require some settings. Refer to "Playing back files on a PC and NAS (Music Server)".
• When using a PC, only the music files registered in the library of Windows Media® Player can be played.

( p59)

☐Sound is interrupted when playing music files on the network server

• Check if the network server meets the requirements for operation.
• When the PC is serving as the network server, quit application software other than the server software (Windows Media® Player 12, etc.).
• If the PC is downloading or copying large files, the playback sound may be interrupted.

USB storage device

☐USB storage device is not displayed

• Check if the USB storage device or USB cable is securely inserted to the USB port of the unit.
• Disconnect the USB storage device once from the unit, and then reconnect it.
  • Performance of the hard disk that receive power from the USB port of the unit is not guaranteed.
• Depending on the type of content, the playback may not be performed normally. Check the types of supported file formats.
• Operations of USB storage devices equipped with security functions are not guaranteed.

Wireless LAN Network

- Unplug and plug the power cords of this unit and the wireless LAN router, check the power-on status of the wireless LAN router, or restart the wireless LAN router.

Check the following if the problem persists after you have confirmed the above.

□Cannot access wireless LAN network

• The wireless LAN router setting may be switched to Manual. Restore the setting to Auto.
• Try the manual set-up. The connection may succeed.
• When the wireless LAN router is in stealth mode (mode to hide SSID) or when the ANY connection is off, the SSID is not displayed. Change the setting and try again.
• Check if the SSID and encryption settings (WEP, etc.) are correct. Match the network settings with the settings of this unit.
• Connection to an SSID that includes multi-byte characters is not supported. Set the SSID of the wireless LAN router using single-byte alphanumeric characters only, and try again.

☐Connected to an SSID different from the selected SSID

- Some wireless LAN routers allow you to set multiple SSIDs for one unit. If connecting to such a router using the automatic setting button, you may end up connecting to an SSID different from the SSID you want to connect to. If this occurs, use the connection method requiring you to enter a password

□Playback sound is interrupted, or communication is not possible

• You may not receive radio waves due to poor radio wave conditions. Shorten the distance from the wireless LAN router, or remove obstacles to improve visibility, and connect again. Install the unit away from microwave ovens or other access points. It is recommended to install the wireless LAN router and the unit in the same room.
• If there is a metallic object near the unit, wireless LAN connection may not be possible because the metal affects the radio wave.
• When other wireless LAN devices are used near the unit, other symptoms may occur, such as interrupted playback and impossible communication. You can avoid those problems by changing the channel of your wireless LAN router. For instructions on changing channels, refer to the instruction manual supplied with your wireless LAN router.
• There may not be enough bandwidth available in wireless LAN. Use a wired LAN for connection.

ZONE B function

☐Cannot output audio to ZONE B

- To output audio to ZONE B, set the audio output destination to "On (A+B)" or "On (B)".

(→p77)

Multi-zone function

☐Cannot ZONE-output the audio of externally connected AV components

• To output audio from an externally connected AV component to ZONE 2, connect it to any of HDMI IN1 to IN3 jacks. If the AV component is not equipped with an HDMI jack, use a digital coaxial cable, digital optical cable or analog audio cable. Also, the audio from externally connected AV components can be output to ZONE 2 only when the audio is analog or 2ch PCM signal. When the AV component is connected to this unit with an HDMI cable, digital coaxial cable or digital optical cable, change the audio output of the AV component to the PCM output.
• When video and audio via HDMI input are output to ZONE 2, set "1. Input/Output Assign" - "TV Out / OSD" - "Zone 2 HDMI" (→p104) to "Use" on the Setup menu.

Others

- If the audio signal is from the NET input selector, the zone output is not possible for DSD audio signals.

Remote Controller

• Make sure that the batteries are inserted with the correct polarity.
• Insert new batteries. Do not mix different types of batteries, or old and new batteries.
• Make sure that the sensor of the main unit is not subjected to direct sunlight or inverter-type fluorescent lights. Relocate it if necessary.
• If the main unit is installed in a rack or cabinet with colored-glass doors, or if the doors are closed, the remote controller may not work normally.

Display

☐The display does not light up

- When the Dimmer function is working, the display may go dim. Press the Dimmer button, and change the brightness level of the display. (—p11)

Others

☐Strange noise can be heard from the unit

- If you have connected another device to the same outlet as this unit, strange noise may occur under the influence of the device. If the symptom is remedied by removing the power plug of the other device from the outlet, use different outlets for this unit and the device.

☐ The message "Noise Error" appears during AccuEQ Room Calibration

- This can be caused by a malfunction in your speaker unit. Check the speaker output, etc.

☐ The measurement results of AccuEQ Room Calibration show different distances to the speakers from the actual ones

- Depending on the speakers you are using, some errors may occur in the measurement results. If this is the case, make the settings in "2. Speaker" - "Distance" in the Setup menu. (p110)

☐ The measurement results of AccuEQ Room Calibration show that the volume level of the subwoofer has been corrected to the lower limit

- The volume level correction of the subwoofer may not have been completed. Lower the volume of the subwoofer before AccuEQ Room Calibration measurement.

Reducing the Power Consumption in Standby State

When the following functions are enabled, the power consumption in standby state increases. To reduce the power consumption in standby state, check each setting and set the functions to "Off".

• HDMI CEC (→p116)
  – HDMI Standby Through (→p116)
• USB Power Out at Standby (→p120)
• Network Standby (→p120)
• Bluetooth Wakeup (→p120)

About HDMI

Compatible functions

HDMI (High Definition Multimedia Interface) is a digital interface standard for connecting TVs, projectors, Blu-ray Disc/DVD players, digital tuners, and other video components. Several separate video and audio cables have been required to connect AV components so far. With HDMI, a single cable can transmit control signals, digital video and digital audio (2-channel PCM, multichannel digital audio, and multichannel PCM).

HDMI CEC function:

By connecting a device that complies with CEC (Consumer Electronics Control) of the HDMI standard using an HDMI cable, a variety of linked operations between devices are possible. This function enables various linking operations with players, such as switching input selectors interlocking with a player, adjusting the volume of this unit using the remote controller of a TV, and automatically switching this unit to standby when the TV is turned off.

The unit is designed to link with products that comply with the CEC standard, however, linked operation is not always guaranteed with all CEC devices.

For linked functions to work properly, do not connect CEC-compliant devices exceeding the connectable number to the HDMI jack as shown below.

• Blu-ray Disc/DVD players: up to 3 units
• Blu-ray Disc/DVD recorders: up to 3 units
• Cable TV tuner, terrestrial digital tuner, and satellite broadcasting tuner: up to 4 units

Operation has been confirmed on the following devices: (As of January 2019) Toshiba brand televisions; Sharp brand televisions; Onkyo and Integra brand RIHD-compatible players; Toshiba brand players and recorders; Sharp brand players and recorders (when used with a Sharp brand television)

ARC (Audio Return Channel):

By connecting an ARC-compliant TV with a single HDMI cable, you can output the audio and video from this unit to the TV, and also input the audio from the TV to this unit.

HDMI Standby Through:

Even if this unit is in standby mode, the input signals from AV components can be transmitted to the TV.

Deep Color:

By connecting devices supporting Deep Color, video signals input from the devices can be reproduced on the TV with even more colors.

x.v.Color™:

This technology reproduces even more realistic colors by expanding the color gamut.

3D:

You can transmit 3D video signals from AV components to the TV.

4K:

This unit supports 4K (3840×2160p) and 4K SMPTE (4096×2160p) video signals.

Lip Sync:

This setting automatically corrects desynchronization between the video and audio signals based on the information from the HDMI Lip Sync-compatible TV.

Copyright Protection:

The HDMI jack of this unit conforms to the Revision 1.4 and Revision 2.2 standards of the HDCP (High-bandwidth Digital Content Protection), a copy protection system for digital video signals. Other devices connected to the unit must also conform to the HDCP standards.

Supported Audio Formats

2 ch linear PCM:

32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, 16/20/24 bit

Multi-channel linear PCM:

Maximum 7.1 channels, 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, 16/20/24 bit

Bitstream:

Dolby Atmos, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS, DTS:X, DTS-HD High Resolution Audio, DTS-HD Master Audio, DTS 96/24, DTS-ES, DTS Express

DSD:

Supported sampling rates: 2.8 MHz

Your Blu-ray Disc/DVD player must also support the HDMI output of the above audio formats.

Supported resolutions

HDMI IN1 to IN6:

• Copyright protection technology: HDCP1.4/HDCP2.2
• Color space (Color Depth):

- 720×480i 60 Hz, 720×576i 50 Hz, 720×480p 60 Hz, 720×576p 50 Hz,

1920×1080i 50/60 Hz, 1280×720p 24/25/30/50/60 Hz, 1680×720p

24/25/30/50/60 Hz, 1920×1080p 24/25/30/50/60 Hz, 2560×1080p

24/25/30/50/60 Hz, 4K (3840×2160p) 24/25/30 Hz, 4K SMPTE

(4096×2160p) 24/25/30 Hz : RGB/YCbCr4:4:4 (8/10/12 bit), YCbCr4:2:2 (12 bit)

- 4K (3840×2160p) 50/60 Hz, 4K SMPTE (4096×2160p) 50/60 Hz : RGB/

YCbCr4:4:4 (8 bit), YCbCr4:2:2 (12 bit), YCbCr4:2:0 (8/10/12 bit)

General Specifications

Amplifier Section

Rated Output Power (FTC) (North American)

With 8 ohm loads, both channels driven, from 20-20,000 Hz; rated 80 watts per channel minimum RMS power, with no more than 0.08% total harmonic distortion from 250 milliwatts to rated output.

Rated Output Power (IEC) (Asian and Australian) 7 ch × 135 W at 6 ohms, 1 kHz, 1 ch driven of 1% THD

Maximum Effective Output Power (North American) 170 W at 6 ohms, 1 kHz, 1 ch driven of 10% THD

Maximum Effective Output Power (JEITA) 7 ch × 160 W at 6 ohms, 1 kHz, 1 ch driven of 10%THD (Asian and Australian)

Dynamic Power (*)

* IEC60268-Short-term maximum output power

160 W (3 Ω, Front)

125 W (4 Ω, Front)

85 W (8 Ω, Front)

THD+N (Total Harmonic Distortion+Noise)

0.08% (20 Hz - 20,000 Hz, half power)

Input Sensitivity and Impedance

200 mV/47 kΩ (LINE (RCA))

3.5 mV/47 kΩ (PHONO MM)

Rated RCA Output Level and Impedance

1 V/470 Ω (SUBWOOFER PRE OUT)

200 mV/2.3 kΩ (ZONE B LINE OUT)

Phono Maximum Input Signal Voltage 70 mV (MM 1 kHz 0.5%)

Frequency Response 5 Hz - 100 kHz/+1 dB, -3 dB (Direct)

Tone Control Characteristics ±10 dB, 20 Hz (BASS) ±10 dB, 20 kHz (TREBLE)

Signal to Noise Ratio

106 dB (IHF-A, LINE IN, SP OUT)

80 dB (IHF-A, PHONO IN, SP OUT)

Speaker Impedance

4 Ω - 16 Ω (Normal)

8 Ω - 16 Ω (Bi-Wiring)

Headphone Rated Output

80 mW + 80 mW (32 Ω, 1 kHz, 10% THD)

Supported impedance of Headphones 8 Ω - 600 Ω

Headphones Frequency Response

10 Hz - 100 kHz

Video Section

Signal level

1 Vp-p/75 Ω (Composite Video)

1 Vp-p/75 Ω (Component Video Y)

0.7 Vp-p/75 Ω (Component Video Pb/Pr)

Maximum resolution supported by component video 480i/576i

Tuner Section

FM Tuning Frequency Range

87.5 MHz - 107.9 MHz (North American)

87.5 MHz - 108.0 MHz, RDS (Others)

50 dB quieting sensitivity (FM MONO)

1.0 μV, 11.2 dBf (IHF, 75 Ω)

AM Tuning Frequency Range

530 kHz - 1710 kHz (North American)

522/530 kHz - 1611/1710 kHz (Others)

Preset Channel

40

Network Section

Ethernet LAN

10BASE-T/100BASE-TX

Wireless LAN

IEEE 802.11 a/b/g/n standard

(Wi-Fi® standard)

5 GHz/2.4 GHz band

BLUETOOTH Section

Communication system

BLUETOOTH Specification version 4.1+LE

Frequency band

2.4 GHz band

Modulation method

FHSS (Frequency Hopping Spread Spectrum)

Compatible BLUETOOTH profiles

A2DP 1.2

AVRCP 1.3

Supported Codecs

SBC

AAC

Transmission range (A2DP)

20 Hz - 20 kHz (Sampling frequency 44.1 kHz)

Maximum communication range

Line of sight approx. 15 m (*)

* The actual range will vary depending on factors such as obstacles between devices, magnetic fields around a microwave oven, static electricity, cordless phone, reception sensitivity, antenna's performance, operating system, software application, etc.

General

Power Supply

AC 120 V, 60 Hz (North American)

AC 220 - 240 V, 50/60 Hz (Others)

Power Consumption

460 W (North American)

450 W (Others)

0.15 W (Full Standby mode)

1.8 W (Network Standby (wired)) (North American)

1.9 W (Network Standby (wired)) (Others)

2 W (Network Standby (wireless))

1.7 W (Bluetooth Wakeup) (North American)

1.8 W (Bluetooth Wakeup) (Others)

0.15 W (HDMI CEC)

2.1 W (Standby mode (ALL ON)) (North American)

2.3 W (Standby mode (ALL ON)) (Others)

55 W (No-sound)

6 W (HDMI Standby Through) (North American)

6.1 W (HDMI Standby Through) (Others)

Dimensions (W × H × D)

435 mm × 174 mm × 376.5 mm

17-1/8" × 6-7/8" × 14-13/16"

Weight

9.6 kg (21.2 lbs.) (North American)

9.8 kg (21.6 lbs.) (Others)

HDMI

Input

IN1 (BD/DVD), IN2 (GAME), IN3 (CBL/SAT), IN4 (STRM BOX), IN5 (PC),

IN6

Output

OUT MAIN (ARC), OUT ZONE 2/SUB

Supported

Deep Color, x.v.Color™, Lip Sync, Audio Return Channel, 3D,

4K 60 Hz, CEC, Extended Colorimetry (sYCC601, Adobe RGB, Adobe

YCC601), Content Type, HDR (HDR10, BT.2020, HLG), Dolby Vision

Maximum Video Resolution

4K 60 Hz (YCbCr 4:4:4)

Video Inputs

Component

IN1 (BD/DVD)

Composite

IN1 (CBL/SAT), IN2 (STRM BOX), AUX (front)

■ Supported input resolutions

HDMI input

4K, 1080p/24, 1080p, 1080i, 720p, 480p/576p

Component input

480i/576i

Composite input

480i/576i

- Signals are output from the HDMI OUT jack of this unit to the TV with the same resolution as the input resolution. When using a TV that supports 4K, 1080p HDMI video signals can also be output as 4K.

Audio Inputs

Digital

OPTICAL (TV)

COAXIAL (BD/DVD)

Analog

BD/DVD, CBL/SAT, STRM BOX, CD, PHONO, AUX (front)

Audio Outputs

Analog

ZONE B LINE OUT

2 SUBWOOFER PRE OUT

Speaker Outputs

FRONT L/R, CENTER, SURROUND L/R, HEIGHT 1 L/R or SURROUND BACK L/R, ZONE 2 L/R (North American models are compatible with banana plugs.)

Phones

PHONES (Front, ø 6.3 mm, 1/4")

Others

Setup Mic: 1 (Front)

USB: 1 (Ver. 2.0, 5 V/1.0 A)

Ethernet: 1

RS232:1

IR IN : 2 (A/B)

IR OUT : 1

12V TRIGGER OUT : 3 (A:100 mA, B:25 mA, C:25 mA)

Specifications and features are subject to change without notice.

License and Trademark

Integra

SN 29403647_EN

(C) Copyright 2019 Onkyo & Pioneer Corporation Japan. All rights reserved. http://www.piercostart/servd its Privacy Policy, available at [H1902-0
