| Product Type | Bookshelf Speaker |
| Recommended Amplifier Power | 20 - 150 watts |
| Impedance | 8 ohms (nominal) |
| Wiring | Single wiring, bi-wiring, bi-amping (removable jumper straps) |
| Speaker Wire Gauge | 18 gauge (1.0 mm dia) for runs up to 25 ft (7.5 m); 16 gauge up to 50 ft; 14 gauge up to 100 ft; 12 gauge for longer runs |
| Placement | Bookshelf or stand; tweeter at ear level; equilateral triangle listening position recommended |
| Bass Response | Varies with proximity to walls and corners |
| Toe-in | 5 to 10 degrees inward recommended |
| Surround Sound Use | Can be used as surround speakers; mount on walls at least 2 ft above ear height |
| Cabinet Material | Wood veneer, vinyl, anodized aluminum, or high gloss polyester lacquer |
| Grille | Removable; clean with lint brush or vacuum |
| Port | Bass reflex port; clean with lint brush |
| Safety | Avoid excessive volume; turn down if distortion or clipping heard; protect tweeters from amplifier clipping |
| Cabinet Care | Dust with soft cloth; use damp cloth with glass cleaner for heavy soil; avoid abrasives |
| Warranty | Contact dealer or PSB for service |
Frequently Asked Questions - Alpha P3 PSB
User questions about Alpha P3 PSB
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Loudspeaker in PDF format for free! Find your manual Alpha P3 - PSB and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Alpha P3 by PSB.
USER MANUAL Alpha P3 PSB
Thank you for your purchase. Our speakers are designed to make high-performance sound easy to bring into your life. They have the wide frequency and dynamic range, natural tonal balance, and precise spatial imaging needed to make both music and movies powerfully lifelike and enjoyable. All of our models match closely in tonal balance to allow easy mixing in home theater systems.
The quick-start instructions below will get you going. But we hope you will read through this booklet to help assure your maximum enjoyment.
I. QUICK-START GUIDE
A. Be sure power to your amplifier/receiver and other electronics is off before making connections.
B. Install bumpers or feet with adjustable levelers or spikes.
- Bumpers and Support Bars (Bookshelf and Center Channel Speakers)
Attach the adhesive-backed bumpers near the corners of bookshelf and center channel speakers, to protect the finish of the speaker and the finish of the furniture beneath. For centre channel speakers supplied with support bars, position the bar to aim the speaker toward the listening position.
- Molded Feet and Stabilizers, Adjustable Rubber Levelers and Adjustable Spikes (Tower Speakers)
If not already attached, screw the supplied moulded feet into the threaded inserts located in the corners of the speaker bottom. In some models, speaker spikes for carpet use or threaded rubber isolation levelers for hard floor use can be inserted into the feet. In other models, spikes or levelers go directly into the threaded inserts in the pedestal base on the bottom of the speaker rather than into feet.
a) Carpet Use
Screw four spikes with four lock nuts into the inserts located in the four corners of the speaker bottom, Locate the speakers and adjust to the desired height (higher for thicker carpet) and tighten the lock nuts with the wrench.
b) Hard Floor Use
Screw four threaded rubber isolation bumpers with four lock nuts into the inserts located in the four corners of the speaker bottom. Adjust and tighten the lock nuts with nut wrench.
C. Position your main speakers, as symmetrically as possible, at a comfortable listening distance—slightly closer to each other than they are to you. (For surround speakers, see later instructions.)
D. Using standard 18 gauge (1.0mm dia) lamp wire or better, connect the Red (positive) terminal on each channel of your amp/receiver to a Red terminal post on that channel's speaker, and the Black (negative) terminal to a Black terminal post on the speaker.
E. Setting the volume low beforehand, turn on your associated equipment, find a comfortable listening volume—and enjoy your favourite audio and/or video selections.
F. After you have settled in with your speakers, read through this booklet. Be sure to read "Protecting Your Investment."
II. ADDITIONAL DETAILS ON CONNECTING YOUR SPEAKERS
A. Important: Always turn off your electronic equipment before connecting speakers. If you don't, severe damage to equipment and/or your ears may result.
B. Selecting Speaker Wire
We recommend the following gauge of standard two-conductor wire for the wiring distances specified; if you prefer, you can use thicker (lower-gauge) wire.
| Under 25 ft (7.5 m): | 18-gauge or 1.0 mm dia (lamp cord) |
| 25-50 ft (7.5-15 m): | 16-gauge or 1.3 mm dia (heater cord) |
| 50-100 ft (15-30 m): | 14-gauge or 1.6 mm dia |
| Over 100 ft (>30 m): | 12-gauge or 2.0 mm dia |
C. Connecting In Phase
Connect speakers identically to your amplifier or receiver on each
channel—Red amp/receiver terminal to Red speaker terminal, Black to Black. This will ensure that the diaphragms of the speakers on both channels move forward and backward together ("in-phase"), rather than in opposition ("out-of-phase"). In-phase connection provides maximum clarity and bass, while out-of-phase connection results in frequency cancellations and produces thinner and less distinct sound—with less bass, vague vocal quality, and no solid centre image. To help insure the proper connection, the two separate conducting wires in a standard two-conductor speaker cable are coded in one way or another to be distinguishable from each other. (The jacket of one wire may be ribbed or marked with "+" signs, or one wire under the insulation may be a different colour from the other.) Use this wire-coding, together with the amp/receiver and speaker colour-coding, to be sure you are connecting the same wire of a given pair to a like-coded terminal at both ends of your connection.
D. Be sure all wiring terminals, are tightened firmly secure, but be careful not to overtighten and damage the connectors.


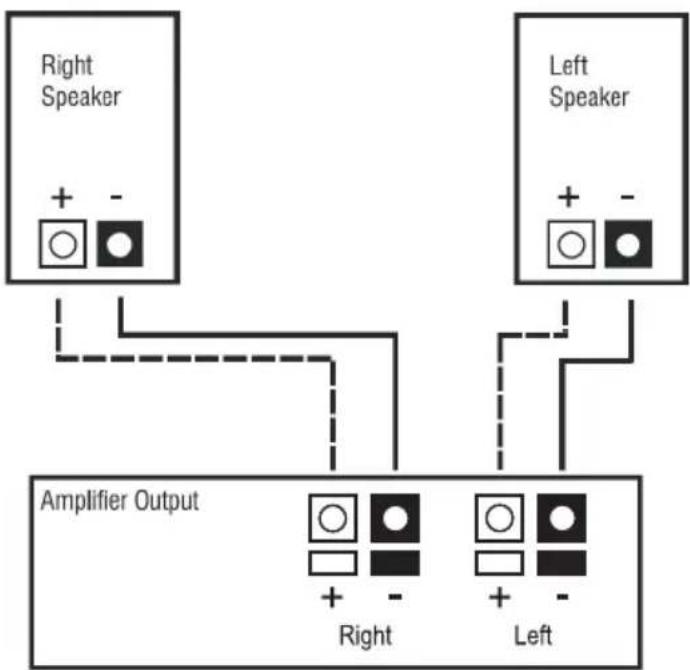

Figure 1: Wiring in Phase Between Speakers and Amplifier
E. Bi-wiring and Bi-amping
The metal jumper strap that connects the two sets of terminals on some of our speakers is removable. This allows you to connect either separate cables to the separated woofer and tweeter terminals ("bi-wiring") or separate amplifiers ("bi-amping"). With Bi-Amp hookup you must use either identical amplifiers or amplifiers adjusted to have the same voltage gain. Consult your PSB dealer for further information. (Illustrations are for one speaker hookup only). With single cable inputs, the jumper straps
must be in place and both sets of terminals tightened firmly.
end

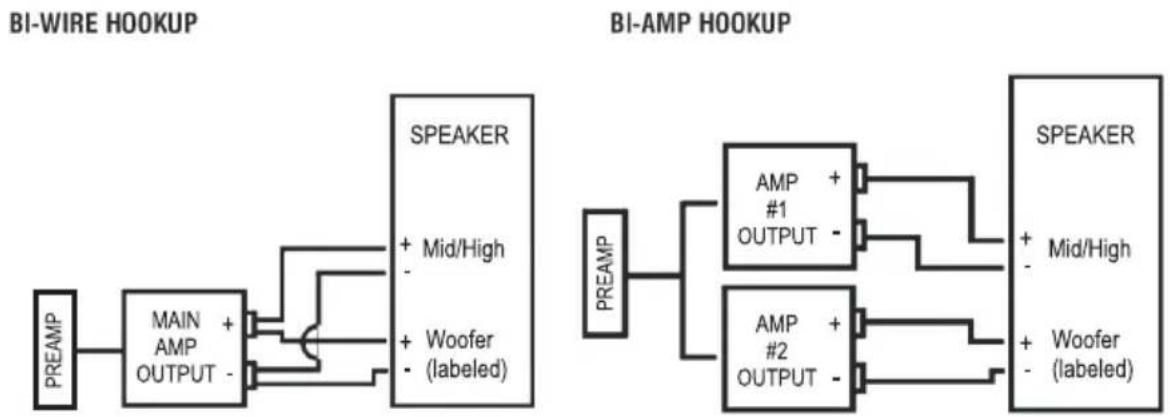

Figure 2: Bi-wire and Bi-amp Wiring Between Speakers and Amplifier
III. SPEAKER PLACEMENT—MAXIMIZING YOUR ENJOYMENT
The positioning of your main left-right speakers for stereo or home theatre can play a major role in their performance. We hope you will read through the placement discussion on these next few pages, beginning with these basics:
A. The optimum placement height for main speakers is normally with their tweeters at about the same height as your ears when you are seated. Our tower speakers are designed for optimal listening when seated. For our compact monitors, we recommend using generally available accessory speaker stands to achieve the right height if you are not using existing shelves or furniture. You may prefer to tilt the speakers towards ear level if the proper height is not possible.
B. You will generally get the best imaging and other spatial qualities if your speakers and your usual seating position form an almost equilateral triangle, with the speakers not quite as far apart from each other as they are from you. If you must sit closer to one speaker than the other, use the Balance control on your electronics (or the individual level controls on home theatre channels) to give the more distant speaker a balancing boost in volume.
C. The best high-frequency dispersion, producing the widest "sweet spot" in which you and others can sit and enjoy optimum high-frequency definition, will result when your speaker enclosures are positioned vertically rather than horizontally. If you need to place compact monitor enclosures horizontally, the speakers will still perform very well, but the seating area where you will enjoy optimum sound will become more narrow. We suggest you position the tweeters to the outside away from the centre line.
D. If you sit equally distant from both speakers, angling the speakers inward ("toeing them in") about 5 to 10 degrees usually produces the best convergence of high frequencies where you listen. Different listening positions may require different toe-in.
E. To go beyond these basics and experiment with positioning for optimum performance, please read the placement guidelines that follow. They are about the speakers, the room, and you.
1. The Speakers in Relation to Room Boundaries
The position of your speakers with respect to the walls, floor, and ceiling of your listening room will often affect their sound in major ways.
a) The closer you place speakers to the boundary surfaces of your room, the greater the proportion of bass in their overall sound. This is due to the enclosing, "focusing" effects of nearby surfaces on longer-wavelength (lower) frequencies. Positioning the speakers near the intersection of two surfaces (wall and wall, wall and floor, or wall and ceiling) will produce more apparent bass than placement near a single surface. The greatest proportion of bass is delivered by placement near three intersecting surfaces—in a room corner near the floor or ceiling, where the convergence of the two walls and the floor/ceiling produces an amplifying effect that is a bit like that of a megaphone. And the least bass comes from placing a speaker away from all boundaries. Your own tastes should decide what proportion of bass response seems right in your room.
b) The combination of the three dimensions of your room generally will produce at least three points in the room where the frequency response you experience related to a given position (of either the speaker or you) will either greatly increase or almost disappear. The most obvious effects are on low frequencies, but mid-frequency effects, while usually subtler, are also often present. Keep in mind, then, that very small changes in positioning (of the speakers or you) may produce major or subtle changes.
c) Distances of speakers from the walls can make great differences in the number, strength, and particular frequencies of secondary reflections—changing frequency-balance, sonic spaciousness, and definition. Most listeners prefer their speakers at least a few inches from all walls, but the choice is yours to determine by listening.
2. You in Relation to the Speakers
Where you sit in relation to your speakers obviously makes a difference too. The proportions of the particular triangle formed by your speakers and you matter. (You may need to send more power to the more distant speaker to compensate if you get much further from one speaker than the other.) The overall distances involved also matter. As you get further from the speakers, more sound reflected from your room's surfaces (in contrast to the sound coming directly from the speakers) reaches your ears, and the original spatial relationships in a recording are changed as your room "takes over." Sometimes the result is a mellower, more "integrated" sound. Other times, it's a more strident or annoyingly "echoey"—or other—quality. Once again, the particular dimensions of your room play a part. And depending on what seems more realistic and/or enjoyable to your ears, you may choose to sit at a great distance or have close-up, "near-field" sound.
Keep in mind that the right "toe-in," the right speaker height, and a reasonably symmetrical distance from the speakers all tend to work together to deliver the best high-frequency definition and imaging.
3. You in Relation to Room Boundaries
Changing your own position with respect to a room's boundaries may also bring a big effect, sometimes for a small change. Getting further from the wall behind you may make sound more precise and localized. Getting closer may make sound more "mellow" and integrated. Coming too close—to back wall, side wall, or (especially) a corner—may trigger a major sonic peak or cancellation of a certain band of frequencies. It depends on factors we can't cover fully here but do get into on our web site - www.psbspeakers.com.
Remember too, with respect to your own positioning, that it may—or may not—be easier to change your own seating location than to move your speakers. As with so much else in life, the one certain rule is that you shouldn't fix, or worry about, what isn't broken (audibly in this case), especially if it means moving heavy furniture.
As you consider the three relationships we have outlined, the idea is to manipulate whatever variable is easiest and most productive for improving your listening experience.
Be sure to base your judgements on listening to a good variety of recordings of vocals, and acoustic instruments, soloists, different movies and musical instruments to most easily recognize tonal balance shifts.
Your surround speakers and how they are positioned will determine the sonic realism of movies and multi-channel audio.
Most surround sound is meant more to create greater depth and overall ambience than to localize effects as coming from a particular spot. This is especially true of Dolby Pro-Logic surround sound, in which both surround channels carry the same (monophonic) information and can't be differentiated from each other. With Dolby Digital and DTS surround sound, there is very definite localization of some surround effects. How much you prefer these localized effects vs. overall sonic depth and diffusion is up to your listening preferences. If you are listening to multi-channel music, you may want the maximum localization of instruments. But if your main concern is the surround effects in movies, they tend to depend more on front-to-back movement than on specific localization. You can locate and aim your surround speakers to produce the effects you prefer, whether precisely pinpointed or pleasantly diffused. Although some people prefer to have their surround speakers behind them on stands at ear height, most find it easiest and best to mount compact monitors on the walls, at least two feet above your ear height when you are seated.
If your listening room is small, aiming the speakers to diffuse their sound somewhat may produce the best overall surround illusion. They can be mounted, for instance, on the side walls and aimed to bounce sound off the rear walls, or vice versa. If you opt for localization of sound from the surrounds, the speakers should face your listening spot, aimed at or slightly above your seated position. Speakers mounted on the side walls generally will sound best when placed a foot or two behind your seating area. Our illustration shows some typical placement options.


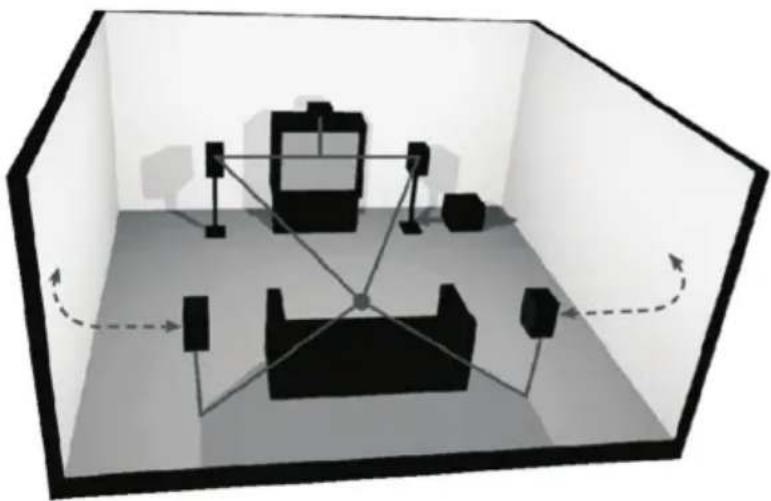

3D diagram of a room interior with furniture and lighting fixtures, no text or symbols presentFigure 3: Positioning Speakers for Music and Home Theatre
V. PROTECTING YOUR INVESTMENT
A. For full, year-after-year enjoyment from your speakers, you should respect their limits. They will produce room-filling volume in average-sized rooms—and handle peak momentary levels at those volumes without audible strain. But avoid louder-than-life playback of music or movies, especially in large rooms. Even the most “bulletproof” speakers can be damaged by excessive volume levels, especially for long periods.
B. When listening to music or movies at very loud volume, you shouldn't turn up bass or treble all the way or close thereto. This sends tremendously increased, disproportionate power into the speakers, and may well damage them. Some loudness compensation ("Loudness") controls, which boost both bass and treble, can also be troublesome at high volume. They are intended only for low-volume listening.
C. Finally, you should be aware that when amplifiers and receivers are pushed to their limits to produce excessive volume levels, they are driven into “clipping” and can do severe damage—especially to tweeters. Often, the damage is done by underpowered amplifiers, which may reach their limits very soon. When such units begin to “clip” the audio waveform, they may generate high-frequency “spikes” of tremendous power. More tweeters have probably been destroyed by this phenomenon than any other. If using your speakers at loud levels, listen carefully for any sign of harsh, garbled midrange and diminishing intelligibility—and turn the volume down right away if you detect it.
D. Recommended Power
We recommend amplifiers and receivers rated from a range of 20-150 watts with our compact systems, 20-200 watts with our tower models. For playing at consistently room-filling volume, a minimum of 50 watts is usually a good idea. As just indicated in the paragraph above, be wary of driving low-powered amplifiers to their limits.
We recommend a maximum of 80-150 watts for sustained program material—as, for instance, with organ pedal tones of long duration, or minutes-long subterranean special effects in movies.
Be aware amplifiers with equal power rating may not play equally loud. Those with higher dynamic power ratings, better satisfy the power requirements. Some have protective circuitry that curtails power available in demanding situations.
E. Cabinet Care
Cabinets have varying materials and finishes, including wood veneers, vinyl, anodized aluminum and high gloss "poly lacquers" and should be treated as you would furniture with similar finishes. Dust lightly with a soft cloth; avoiding abrasives. If necessary, wipe carefully with a cloth slightly dampened with glass cleaner to remove heavy soil.
F. Grilles and Ports
A lint brush does a good job of cleaning grilles. Removable grilles can be taken off and vacuumed if you prefer. If need be, you can use a lint brush to clean ports. Avoid touching speaker diaphragms. Particularly, pushing in the domes will permanently damage tweeters.
VI. IN CASE OF PROBLEMS
A. Lower power if a speaker begins to sound distorted, or seems to be missing certain frequencies, to check first to see whether playing at somewhat lower volume seems to clear up the problem. As we noted under "Recommended Power," it can be especially important to turn down the volume right away if you have pushed a low-powered amplifier or receiver past its comfortable limits.
B. Isolate the problem to the electronics or the speakers and, if the speakers, to specific speakers. Interchange the speaker wire connections on your amplifier or receiver between channels, so that the left speaker is connected to the right channel, or vice versa. If the problem shifts to the other speaker, the problem is not in the speaker but in the electronics.
C. Another component—or, very often, a cable or connection problem between components—may be at fault. If the problem stays in the same speaker, irrespective of the channel to which it's connected—and after changing the connecting wire—chances are the speaker itself probably needs service.
D. See your dealer if you require service. PSB dealers are equipped to handle almost all problems. If you have moved since your purchase, the nearest authorized PSB dealer should be able to help you. If the problem is not resolved, please contact us, providing the Model name, Serial Number, date of purchase, dealer name, and a full description of the problem.
We appreciate your purchase, and hope this owner's guide helps you enjoy the exceptional satisfaction that PSB speaker systems have to offer. We wish you many years of enjoyable listening!
Notes on environmental protection
At the end of its useful life, this product must not be disposed of with regular household waste but must be returned to a collection point for the recycling of electrical and electronic equipment. The symbol on the product, user's manual and packaging, point this out.
The materials can be reused in accordance with their markings. Through re-use, recycling of raw materials, or other forms of recycling of old products, you are making an important contribution to the protection of our environment.
Your local administrative office can advise you of the responsible waste disposal point.
PSB Speakers
633 Granite Court
Pickering, Ontario L1W 3K1
CANADÁ
www.psbspeakers.com
888-772-0000 (905) 831-6555 Fax: 905-837-6357
PSB OM-200 Rev B 0916
