DH-310 - Humidifier German Pool - Free user manual and instructions

Product Type	Humidifier
Brand	German Pool
Model	DH-310
Dimensions (H x W x D)	Approx. 350 x 250 x 200 mm
Weight	Approx. 2.5 kg
Power Supply	220-240 V, 50/60 Hz
Power Consumption	25 W
Water Tank Capacity	3.5 L
Humidification Method	Ultrasonic
Coverage Area	Up to 30 m²
Noise Level	< 35 dB(A)
Control Type	Manual dial or digital (not specified)
Humidity Setting	Adjustable mist output
Auto Shut-off	Yes, when water tank is empty
Filter Type	Replaceable demineralization cartridge
Cleaning	Regular descaling with vinegar or citric acid
Safety Features	Overheat protection, tip-over switch
Spare Parts Available	Filter, water tank, nozzle
Warranty	1 year (check local terms)
Additional Features	Quiet operation, easy fill, night light (optional)

Frequently Asked Questions - DH-310 German Pool

How do I clean the German Pool DH-310 humidifier?

Unplug the unit and empty the water tank. Use a soft cloth dampened with mild detergent to wipe the exterior. For descaling, fill the tank with a mixture of water and white vinegar (1:1) and let it sit for 30 minutes. Rinse thoroughly before use.

What type of water should I use?

Use distilled or demineralized water to prevent mineral buildup. Tap water may cause white dust and scale deposits.

Why is there no mist coming out?

Check if the water tank is filled. Ensure the unit is on a level surface and the water level is above the minimum mark. If the transducer is dirty, clean it with a soft brush.

How often should I replace the filter?

The demineralization cartridge should be replaced every 2-3 months depending on water hardness. Check the condition regularly.

Can I use essential oils in this humidifier?

No, the DH-310 is not designed for essential oils. Adding oils may damage the unit and void the warranty.

What is the recommended humidity level?

Maintain indoor relative humidity between 40% and 60% for comfort and health. Use a hygrometer to monitor.

How do I store the humidifier when not in use?

Empty and dry the water tank completely. Clean the unit and store it in a cool, dry place away from direct sunlight.

The unit is making a loud noise. What should I do?

Loud noise may indicate low water level or a dirty transducer. Refill the tank and clean the transducer. If the noise persists, contact customer support.

Is the humidifier safe to use around children and pets?

Yes, it is safe when used according to instructions. Place it on a stable surface out of reach of children to avoid tipping.

Where can I get spare parts?

Spare parts such as filters and water tanks are available from German Pool service centers or authorized retailers. Check the official website for compatibility.

USER MANUAL DH-310 German Pool

Line drawing of a German air conditioner unit with control panel and wheels (no text or symbols on the device itself)

Please read these instructions and warranty information carefully before use and keep them handy for future reference.

CE

For safety purpose, you should read the instructions carefully before using the appliance for the first time. Save the instructions for future reference.

The appliance is designed for domestic use and may only be installed and operated in accordance with these instructions for use.

1. Unplug the power supply cord before cleaning or storage.
2. Do not immerse the unit in water, or place it close to water.
3. Do not put the unit close to heat-generating devices or near flammable and dangerous materials.
4. Never put your fingers or any stick-form objects into the air inlet or outlet grille.
5. Do not sit or stand on the unit.
6. Discard water collected in the tank as instructed.
7. Install drain piping at a downward direction to make sure that condensed water can be drained continuously.
8. Place and operate the unit on a stable and level floor.
9. Do not spray or splash water directly onto the unit.
10. Do not spray any pesticide nor flammable liquid onto the unit.
11. Do not place any heavy object or let children and pets sit on the unit.
12. Do not operate dehumidifier in a small and confined space.
13. Damaged power cord must be replaced by a licensed technician.
14. Maintain the below minimum clearance around the dehumidifier during operation:

主機

Body

• Press the button once to start operation with the default low fan speed.
• Press it again to stop the operation.
• The green Power indicator will light up when the unit is plugged in, regardless of whether the unit is in operation or not.

Fan Speed Button

• Press to set the desired fan speed. It can be adjusted between high speed and low speed.
• The right Fan Speed indicator will light up in green when the unit is set to run in low fan speed. The left Fan Speed indicator will light up in red when you program the unit to run in high fan speed.

Tank Full Indicator

- The Tank Full indicator will light up in red when the water tank is full. If light is on, empty the water out of the water tank and make sure the tank is returned to its position properly.

B. 基本操作步驟

1. 啟動

When the unit is plugged in, a buzzer will beep and the unit will be set to run at low fan speed by default. Press ⏻ button to start operation.

2. Set Fan Speed

Press 🤒 button to set the desired fan speed between high and low.

3. Stop Operation

Press ⏻ button again to stop the operation.

Note:

• Never stop the unit by unplugging the power cord.
• When the ambient temperature is between 5^irc C and 12^irc C, the unit will pause every 30 min to defrost automatically.
• When the ambient temperature is between 12^irc C and 20^irc C, the unit will pause every 45 min to defrost automatically.
• When the ambient temperature is between 20^irc C and 35^irc C, auto-defrost will not be activated.

C. 水箱排水

When the water tank is full, the Tank Full indicator will light up, the operation will stop automatically. A buzzer will beep 15 times to alert the user to empty the water from the water tank.

清空水箱

Line drawing of a portable air conditioner unit with a hand inserting a plug into the air gap (no text or symbols)

輕按水箱兩側並用雙手將水箱拉出。

Hold the top and bottom center of the water tank with both hands and pull it out gently.

Emptying the Water Tank

Pure technical line drawing of a mechanical component with droplet symbols (no text or labels)

倒轉水箱將水清空。 Discard the collected water.

Line drawing of a hand inserting a card into an air conditioner unit (no text or symbols)

將水箱放回原位，水滿指示燈即會熄滅。

Return water tank to its original position. The Tank Full indicator will go off.

註：

• Do not remove the float from the water tank. The water full sensor will no longer be able to detect the water level correctly without the float and water may leak from the water tank.
• If the water tank is dirty, wash it with cold or lukewarm water. Do not use detergent, scouring pads, chemically treated dust cloths, gasoline, benzene, thinner, or other solvents, as these can scratch and damage the tank and cause water leakage.
• When replacing the water tank, press the tank firmly into place with both hands. If the tank is not positioned properly, the "Tank Full" sensor will still be activated, and the dehumidifier will not operate.

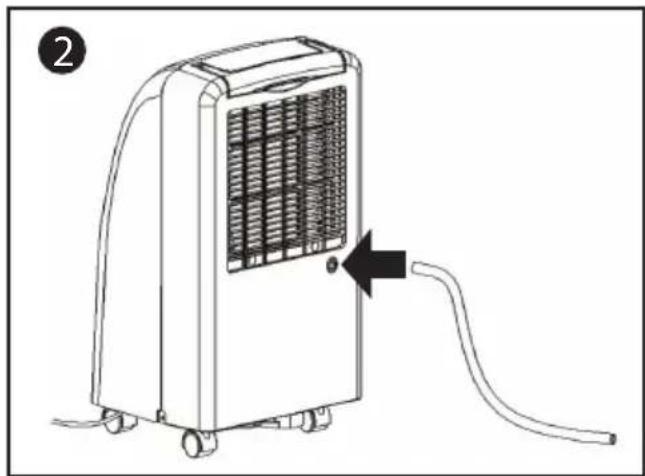

持續性排水

The unit features a continuous drainage port. Connect a plastic hose (with an inner diameter of 9mm) to the continuous drainage port for draining water in the tank continuously.

Line drawing of a portable air conditioner unit with a hand holding the right-handled button (no text or symbols)

Line drawing of a portable air conditioner unit with a black arrow pointing to its side, connected to a cable (no text or symbols present)

警告

In order to avoid electric shocks, please power off the machine and pull out the plug before cleaning or repair.

A. 機身清洗

採用柔軟微濕的布擦拭機身。

A. Cleaning the Body

Wipe the unit body with a soft damp cloth.

B. 過濾網清洗

Line drawing of a portable air conditioner unit with a hand inserting a fan into the top panel, showing airflow direction (no text or symbols)

Illustration showing a water tap spraying into a pool onto a solar panel, with a black dot above (no text or symbols)

B. Cleaning the Filter

Line drawing of a portable air conditioner unit with a hand operating it, showing airflow direction (no text or symbols)

1. Pull up to remove the air filter.

2. Cleaning: Run a vacuum cleaner lightly over the surface of air filter to remove dirt. If the air filter is exceptionally dirty, wash it with warm water and a mild cleanser and dry thoroughly.

3. Insert the filter into the unit smoothly.

C. Dehumidifier Storage

When the unit is not being used for a long time and you want to store it, please follow the steps below:

1. Empty any water left in the water tank.

2. Fold up the power supply cord and put it in the water tank.

3. Clean the air filter.

4. Store in a cool and dry place.

When you run into any problems operating this product, use the table below to troubleshoot the problems.

故障現象 Phenomenon	原因分析 Possible Cause	處理方法 Solution
機器不運轉。The unit does not operate.	電源線是否有正常連接好?Has the power cord been disconnected?	將插頭和插座連接好。Plug the power cord into the outlet.
	滿水指示燈有亮著嗎?(水箱水滿或未放到位)Is the Tank Full indicator blinking?(The tank is full or in a wrong position.)	將水箱中的水排出並將其放回機身的正確位置。Empty the water in the water tank and then reposition the tank.
	室溫是否在35°C之上或5°C之下?Is the room temperature above 35°C or below 5°C	因本產品並不適用於過熱或過冷的環境,保護裝置啟動,因此機器暫時不工作。This product is not designed to be used in an environment too cold or too hot. The protection device is activated and the unit cannot be started temporarily.
	室溫是否在5°C至20°C之間?Is the room temperature between 5°C and 20°C?	正進行自動除霜,因此機器暫時不工作。Auto-defrost is in progress. The unit cannot be started temporarily.
抽濕功能無法啟動。The dehumidifying function does not work.	濾網是否被阻塞?Is the air filter clogged?	按照“清潔及保養”一欄將濾網清洗乾淨。Clean the air filter as instructed under “Care & Maintenance”.
	入風口或出風口是否被堵塞了?Is the air inlet or air outlet obstructed?	將阻塞物從入風口或出風口清除。Remove the obstruction from the air inlet or outlet.
運轉時噪音大。Operation is noisy.	機器是否傾斜放置?Is the unit tilted or unsteady?	將機器移放至水平,穩固機器位置。Move the unit to a stable and sturdy location.
	濾網是否被阻塞?Is the air filter clogged?	按照“清潔及保養”一欄將濾網清洗乾淨。Clean the air filter as instructed under “Care & Maintenance”.

注意：如問題持續發生，請關機及拔除電源插頭，並送回本公司維修。
Note : If the problem persists or other abnormal situations occur, turn off the machine and pull out the plug. Then contact our Repair Centre for help.

Cartoon illustration of a smiling book character falling (no text or symbols)

Do not place unit on uneven surface.

Cartoon illustration of a smiling pill character with arms and legs, holding a pencil and a plus sign (no text or symbols)

Do not insert any sharp objects into air inlet/air outlet.

Cartoon illustration of a steaming character reacting to a kettle (no text or symbols present)

Do not operate unit near radiators, kettles or any object that releases steam.

Cartoon character sitting on a chair with curtains in the background (no text or symbols)

Do not operate unit near windows or doors opening to the outdoor.

Cartoon illustration of a character with surprised expression, standing between two rectangular frames (no text or symbols)

Do not obstruct air inlet and outlet.

Cartoon illustration of a smiling robot using a phone to connect a card (no text or symbols present)

Unplug power when the unit is not in use for an extended period.

Cartoon illustration of a character spraying water from a spray bottle (no text or symbols)

Do not spray any liquid onto unit.

Cartoon character with exaggerated facial expression and limbs (no text or symbols)

1. 請勿擺放任何物件在機身上。 Do not put heavy objects on top of unit.

Cartoon illustration of a character pouring liquid from a bottle to another bottle (no text or symbols)

Wash the air filter once every 2 weeks with cold water. (Do not use water >40°C, alcohol, petroleum or benzene)

Cartoon illustration of a book character sitting on a rope, no text or symbols present

When draining water continuously, make sure drain hose is not tangled.

Cartoon illustration of a smiling sun and a running character (no text or symbols)

Do not place filter directly under the sun when driving.

Cartoon illustration of a smiling book character holding a box with steam rising (no text or symbols)

移動、搬運本機前，請先倒出水箱內積水。 Empty water tank before moving unit.

型號 Model DH-310
電壓 Voltage 220-240 V
頻率 Frequency 50 Hz
功率 Power 235 W
電流 Electric Current 1.09 A
抽濕能力 Dehumidifying Capacity 10 L / day
適用室溫 Applicable Room Temperature	5°C - 35°C
水箱容量 Capacity: Water Storage 1.8 L
尺寸 Dimensions (H) 476 mm	(W) 264 mm(D) 291 mm
包裝尺寸 Packing Dimensions (H) 508 mm	(W) 302 mm(D) 323 mm
淨重 Net Weight 9.9 kg
總重連包裝 Gross Weight With Packing 10.9 kg

產品規格及設計如有變更，恕不另行通知。

Specifications are subject to change without prior notice.

中英文版本如有出入，一概以中文版為準。

If there is any inconsistency or ambiguity between the English version and the Chinese version,

the Chinese version shall prevail.

請填妥以下空格並與發票一併保存，以便維修時核對資料。用戶提供本公司之所有資料必須正確無誤，否則免費保用將會無效。Please fill out the form below. This information and the purchase invoice will be required for any repairs. Warranty will be invalid if information provided is found to be inaccurate.

Warranty Terms & Conditions

Under normal operations, the product will receive a 1-year full warranty provided by German Pool (effective starting from the date of purchase).

* This warranty is not valid until Customer's registration information is returned to and received by our Service Centre within 10 days of purchase via one of the following methods:
1) Visit our website and register online: www.germanpool.com/warranty.
2) Complete all fields on the attached Warranty Card and mail it back to our Customer Service Centre along with a photocopy of the purchase invoice (Warranty Card and invoice copy will not be returned to Customer).

1. Customer who fails to present original purchase invoice will be disqualified for free warranty.

2. Customer should always follow the operating instructions. This warranty does not apply to:

3. labour costs for on-site installation, check-up, repair, replacement of parts and other transportation costs;

4. damages caused by accidents of any kind (including transport and others);

5. operating failures resulted from incorrect voltage, improper operations and unauthorized installations or repairs.

6. This warranty is invalid if:

7. purchase invoice is modified by unauthorized party;

8. product is used for any commercial or industrial applications;
9. product is repaired or modified by unauthorized personnel, or unauthorized parts are installed;

10. serial number is modified, damaged or removed from the product.

11. German Pool will, in its discretion, repair or replace any defective part.

12. This warranty will be void if there is any transfer of ownership from the original purchaser.

Repair Centre - Small Appliances

German Pool (Hong Kong) Limited

8/F, China Travel (Cargo) Logistics Centre

1 Cheong Tung Road

Hung Hom, Kowloon, Hong Kong

Tel : [phone]

Fax : [phone]

Email : [e-mail]

Room 2 & 3, Upper Ground Floor, Newport Centre 116 Ma Tau Kok Road, Tokwawan, Kowloon, Hong Kong

電話(Tel)：傳真

[phone]

[phone]

(Fax): 電郵

[phone]

[phone]

(E-mail):

[e-mail]

© All rights reserved. Copying, reproducing or using the contents of this manual is not allowed without prior authorization from German Pool.

www.germanpool.com
