Product Type	LED TV
Brand	Bush
Model	32/233
Screen Size	32 inches (81 cm) diagonal
Resolution	1366 x 768 pixels (HD Ready)
Refresh Rate	60 Hz
Dimensions (without stand)	732 x 432 x 77 mm
Dimensions (with stand)	732 x 475 x 180 mm
Weight (without stand)	3.9 kg
Weight (with stand)	4.1 kg
Power Consumption (typical)	50 W
Standby Power Consumption	< 0.5 W
Power Input	AC 100-240V, 50/60 Hz
Tuner	DVB-T/T2, DVB-C
HDMI Ports	2
USB Ports	1
Composite Input	1
Headphone Jack	1 (3.5 mm)
Built-in Wi-Fi	No
Smart TV	No
Remote Control	Included (batteries not included)
VESA Mount Compatible	100 x 100 mm
Cleaning Instructions	Unplug TV, wipe screen with soft dry cloth. Do not use liquids or abrasives.
Safety Note	Do not expose to rain or moisture. Use only specified power source. Keep ventilation slots uncovered.
Spare Parts Availability	Remote control, stand, power cord available from authorized service centers.

Frequently Asked Questions - 32/233 BUSH

How do I connect external devices to my Bush 32/233 TV?

Use the HDMI ports for devices like set-top boxes or gaming consoles. For older devices, use the composite input (yellow, white, red). Connect via USB for media playback.

Why is there no sound from the TV?

Check if the TV is muted or volume is low. Ensure external devices are properly connected. If using headphones, unplug them. Try a power reset: unplug TV for 30 seconds, then plug back in.

How can I tune digital channels?

Press the Menu button, go to Channel or Installation, select Auto Tuning or Auto Scan. Ensure antenna is connected. The TV will search for DVB-T/T2 and DVB-C channels.

Can I mount this TV on a wall?

Yes, the TV supports VESA 100x100 mm wall mounts. Use a suitable wall bracket and follow the mounting instructions carefully. Ensure the wall can support the weight.

What should I do if the remote control stops working?

Replace batteries. Check for obstacles between remote and TV. Point directly at the IR receiver. If still not working, try resetting the remote by removing batteries and pressing all buttons for 5 seconds.

How do I perform a factory reset?

Go to Menu > Settings > System > Factory Reset. Enter the PIN (default 0000 if prompted). This will erase all settings and channels.

Why is the picture quality poor?

Ensure the source signal is HD. Adjust picture settings: press Menu, go to Picture and set mode to Standard or Vivid. Check antenna connection for interference. Use a signal booster if needed.

Can I connect Bluetooth headphones?

The Bush 32/233 does not have built-in Bluetooth. Use wired headphones via the 3.5mm headphone jack or a Bluetooth transmitter plugged into the audio output.

How do I clean the TV screen safely?

Unplug the TV. Use a soft, dry microfiber cloth to gently wipe the screen. Do not use paper towels, alcohol, or any liquids. For stubborn dirt, slightly dampen the cloth with water and wipe immediately.

What is the warranty period for this TV?

The Bush 32/233 typically comes with a 1-year limited warranty covering manufacturing defects. Register your product on the Bush website and retain proof of purchase for service claims.

USER MANUAL 32/233 BUSH

HD Ready LED TV with USB Media Player

User Guide

Line drawing of a flat-screen computer monitor with blank screen (no text or symbols)

Model No

32/233

Important Safety Instructions

IMPORTANT - Please read these instructions. All the safety and operating instructions should be read before the appliance is operated.

Warnings

• To reduce the risk of fi re, electric shock or damage to the television, do not expose it to dust, rain or moisture, or place any objects fi lled with liquids on or near the television.
• Do not place the television in a confined space. Ensure that nothing can obstruct the ventilation openings at the rear of the television.

To prevent the spread of fi re, keep candles or other open fl ames away from this product at all times

- Dispose of this television and any components including batteries in an environmentally friendly manner. If in doubt, please contact your local authority for details of recycling.

Safety

• For your safety, this appliance is fitted with a fused moulded 3 pin mains plug. Should the fuse need to be replaced, ensure that any replacement is of the same amperage and approved with the BSI mark.
• The television should be connected to a main socket outlet with a protective earthing connection.
• Never try and replace the mains plug unless you have adequate qualifications and are legally authorised to do so. In the event that a replacement Mains cable is required, contact the manufacturer for a suitable replacement.
• Never use the television if it is damaged in any way.
• Always place the television on a fl at level surface avoiding anywhere which may be subject to strong vibration.
• Ensure the television is not placed on top of the power cable as the weight of the television may damage the cable and cause a safety hazard.
• Never place mobile phones, speakers or any other device which may cause magnetic or radio interference with the television. If interference is apparent, move the device causing the interference, near the television.

• To disconnect the apparatus from the mains, please use the mains plug located on the underside/rear of the TV. The mains plug shall remain readily operable.

• Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.

• Install the product at least 5cm from the wall for ventilation.
• Ensure that the power switch on the unit and the mains plug are always easily accessible.

WARNING: Excessive noise when using earphones and headphones can cause loss of hearing.

Maintenance

• To clean this unit, wipe with a soft, dry cloth. If the surfaces are extremely dirty, use a soft cloth dipped in a soap and water solution or a mild detergent solution.
• Never use alcohol, paint thinner or benzene to clean this unit.
• Before using a chemically treated cloth, read the instructions that came with the cloth carefully.

CAUTION: If water or other liquid enters the television through the display panel surface or back cover a malfunction may occur.

Packaging

• The safest way to transport your item is in the original box/packaging - please save your packaging for this.
• You will need original box/packaging in the event of warranty/service repair or support. We are unable to carry out warranty/service if you are unable to package the item correctly.

Important Safety Instructions

IMPORTANT - Please read these instructions. All the safety and operating instructions should be read before the appliance is operated.

Important Information - Regarding Use of Video Games, Computers, Captions or Other Fixed Image Displays

The extended use of fi xed image program material can cause a permanent "shadow image" on the LCD/LED panel.

This background image is viewable on normal programs in the form of a stationary fi xed image. This type of irreversible LCD/LED panel deterioration can be limited by observing the following steps:

1. Reduce the brightness/contrast setting to a minimum viewing level.
2. Do not display the fixed image for extended periods of time.
3. Turn the power off when not in actual use.

Examples of images that you need to watch out for are as follows (this is not an exhaustive list):

• TV Channel Logos: e.g. Shopping channel logos and pricing displays-especially if they are bright and stationary.
• Moving or low contrast graphics are less likely to cause ageing of the screen.
• Time Displays
• Teletext: Do not view a stationary page for a long period of time
  • TV/DVD Menus: e.g. Listings of DVD disc content
• Pause Mode: Do not leave the TV in pause mode for long periods of time, e.g. When watching DVDs or videos.

Important - Once 'shadow image/screen burn' occurs, it will never disappear and is not repairable under warranty.

How do I dispose of this product?

UK: Waste electrical products should not be disposed of with household waste. Separate disposal facilities exist. For your nearest facilities, please see www.recycle-more.co.uk or in store for details.

ROI: Waste electrical products should not be disposed of with household waste. Separate disposal facilities exist. Check with your Local Authority or retailer for recycling advice.

Batteries

• Do not expose batteries to high temperatures, excessive heat, prolonged sunshine or fire as this may cause leakage, explosion or ignition.
• Observe the correct polarity when inserting batteries.
• Do not use different types of batteries together or mix old and new batteries.
• Dispose of batteries in an environmentally friendly way.
• Certain regions may regulate the disposal of batteries.

Please consult your local authority.

Cd

Contents

Manufacturers Guarantee Information 3

Important Safety Instructions 4-5

What is included in the box 9

Attaching the stand 10

Detaching the stand and securing the TV to a wall 11

Wall mounting 12

Getting Started - Initial Set Up 13

Remote Control 15

TV Buttons and Input Source Menu 16

Connections 17-19

TV Menu Operation 21-27

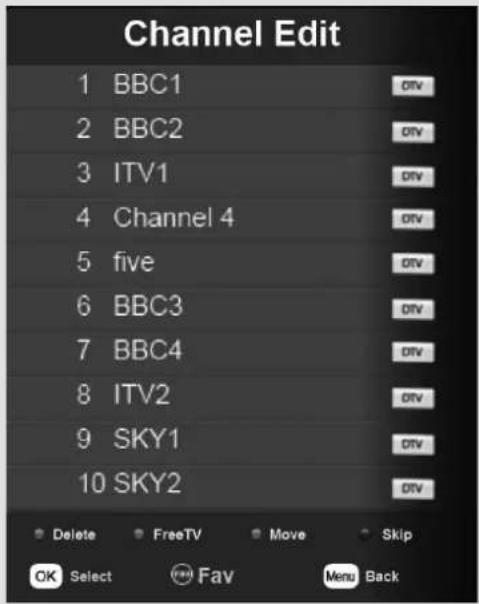

Channel Menu 21

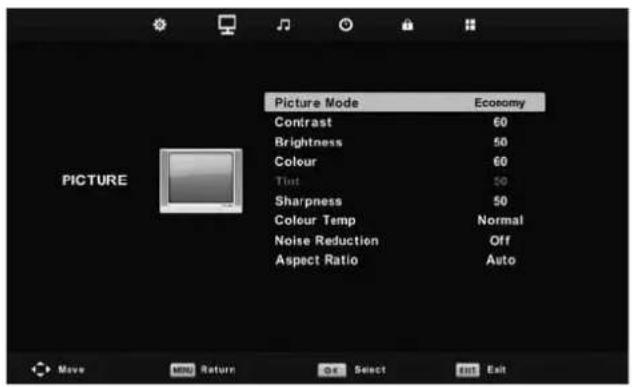

Picture Menu 22-23

Sound Menu 24

Time Menu 25

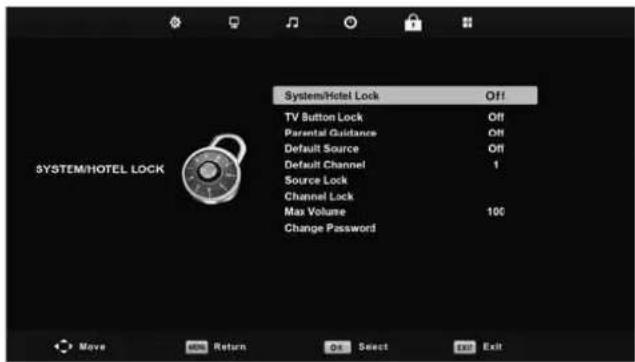

System/Hotel Lock Menu 26

Setup Menu 27

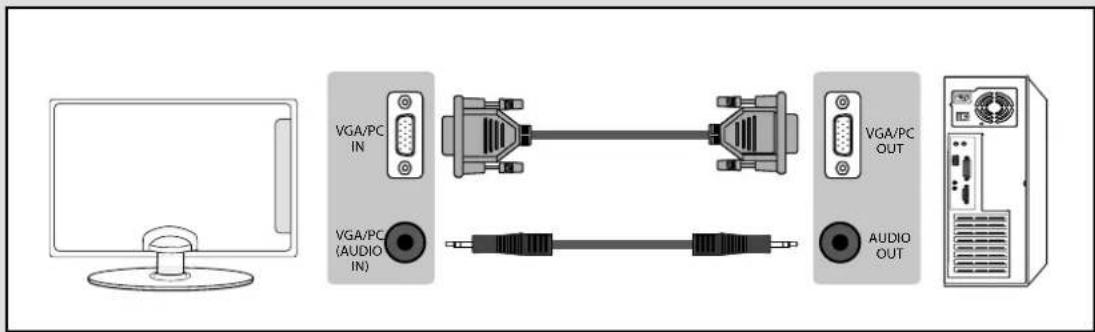

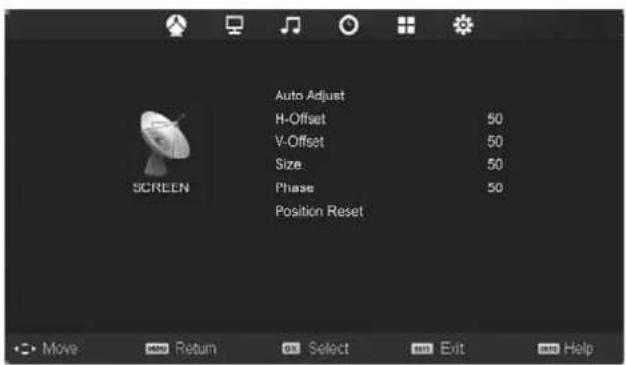

PC Settings 28

7 Day TV Guide 29

USB Record Digital / Freeview 30

USB Mode / Media Player 31

General Information 32-35

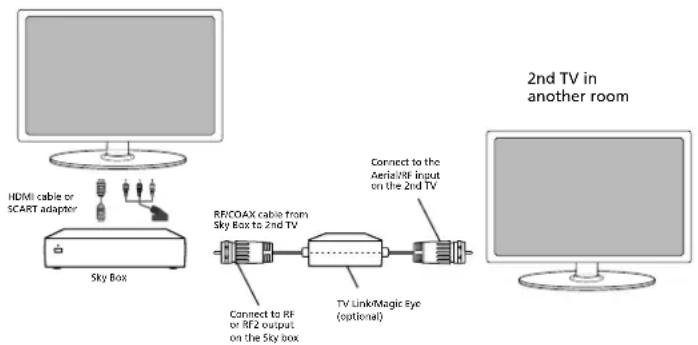

Using your TV with a Sky digital set top box 32

Frequently Asked Questions 33-34

Technical Specifications 35

What Is Included In The Box

Accessories

Included with this TV are the following accessories:

1 x User Guide

1 x Remote Control & AAA Batteries

Two black-and-white photos: one showing a remote control with keypad and buttons, the other showing two batteries (no visible text or symbols)

1 x Quick Start Guide

1 x Mini Component / YPbPr

Close-up of a black USB cable with three connectors (no text or symbols visible)

1 × TV

Front view of a black flat-screen television displaying (no visible text or symbols)

1 x SCART to AV cable

Black and gray electronic device with two leads, no visible text or symbols

1 x RF Cable

1 x Stand Installation Pack

3 x ST (4x14)

3 x ST (3.7x18)

Please save your box/packaging as you will need this in the event of warranty/service repair or support. We are unable to carry out warranty/service if you are unable to package it correctly. The safest way to package your item in the event of warranty/service repair is in its original box/packaging.

Attaching The Stand

To complete the stand installation you will require a cross head screw driver.

The Stand Installation pack comes with two different types of screws.

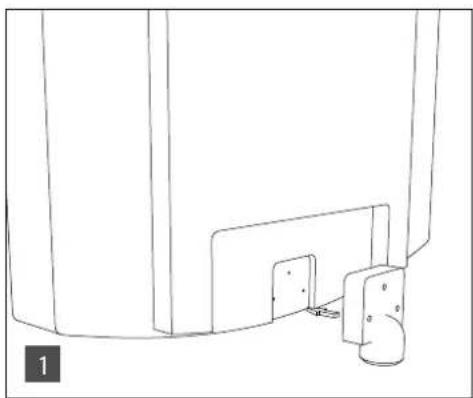

fig 1) Attach the stand neck to the rear of the TV set.

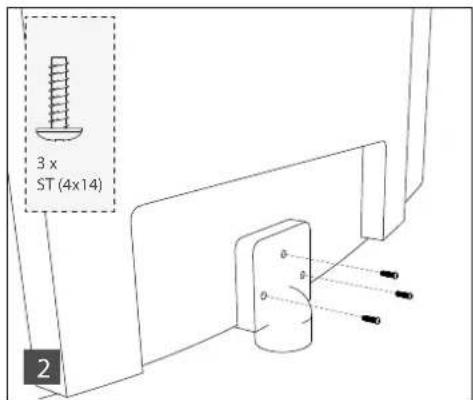

fig 2) Secure the neck to the TV using the 3 x ST(4x14) screws provided.

fig 3) Attach the stand base to the neck.

fig 4) Secure the base to the neck using the 3 x ST (3.7x18) screws provided.

HELPFUL ADVICE FOR FIRST TIME STAND INSTALLATION

When securing the self-tapping screw/s into the base of the stand (on first installation) the screw/s will be naturally tight as they create a thread in the plastic of the stand neck in order to support a TV of this size.

a) Ensure the cross head screw driver tip sits correctly into the head of the screw and that it is not too big or small.

b) Screw in all screws individually and partially before tightening all of the screws fully.

c) If they become very tight try loosening them slightly and then re-tightening them once again as this will continue the process of creating the thread for the screws.

3 x ST(4x14)

3 × ST(3.7×18)

Simple line drawing of a cabinet or enclosure with two doors and a base, no text or symbols present

Detaching The Stand And Securing The TV To A Wall

Detaching the Stand

To detach the stand please remove the 3 screws highlighted then remove the stand neck and base from the rear of the TV set.

Simple line drawing of a door with two doors and a handle (no text or symbols)

Securing the TV to a Wall

For maximum security in the home when using a TV with its stand anti-tip straps should be fitted. These are available from supermarket websites and other websites and are an easy, inexpensive and effective way of ensuring your TV stays safely upright. Straps are designed to be attached to the rear of the TV and then tethered to the wall or the furniture the TV is stood on.

Note - Please ensure that children do not climb on the TV set.

A) Using one or both of the top wall-mounting holes and screws (the screws are already supplied in the wall mounting holes) fasten one end of the fastening cord/s to the TV.

B) Secure the other end of the fastening cord/s to your wall. (you will need screws/fi xings suitable for your wall type - available separately from most DIY stores)

Simple line drawing of a vertical monitor or stand with a horizontal line and a vertical line extending upward (no text or symbols)

The Royal Society for the Prevention of Accidents is urging people to take care with flat-screen televisions.

RoSPA stated in 2010 that “Toddlers are particularly at risk of pulling flat-screen televisions on to themselves. They are unsteady on their feet and are attracted by colourful television images.”

The risk is increased as televisions become lighter.

Wall Mounting

IMPORTANT - Before drilling any holes in the wall ensure you are not drilling where there could be any electric wires, water or gas pipes.

Diagram of a computer monitor with directional arrows indicating orientation (no text or symbols)

1) Remove the four screws highlighted below.

2) The wall mount can now be easily attached to the mounting holes on the rear of the TV. These holes are indicated in the picture below.

For VESA wall mounting information please refer to the Technical Specification page.

IMPORTANT – If wall mounting this TV, only use the screws already provided in the wall mounting holes. Using other screws which are longer could cause irreparable damage to internal parts.

For optimum viewing, if wall mounting the TV higher than eye level, the TV should be tilted downwards so that the TV's screen is 'face on'. See fig 1 and 2 below.

Getting Started - Initial Set Up

1) Using the RF cable supplied, connect the TV to the TV Aerial wall socket (Fig A)

Connect the power cable to the Electrical outlet (Fig B)

2) Switch on the television using the power on/off switch located on the side/underside of the TV.
3) Insert the batteries supplied into the Remote control and press the Standby button to power on the TV
4) You will now be welcomed with the initial set-up screen. If it does not appear, on the remote control, please press [MENU] then 8-8-8-8 and the menu will appear. Press OK on the remote control and tuning will start.*
5) After tuning the following screen will appear.*

If you are missing channels, the reason for this is likely to be signal strength, you should consider connecting signal booster and re-tuning the TV.

* Screen shots/images are shown for illustration purposes only and may change dependent on model/region

Important

As part of our ongoing development to reduce power consumption, we have added an extra function to this Television called 'Ecohome' (you will see this during the first time installation set up). Power consumption using the Ecohome function is approximately 15% lower than some other modes. The picture brightness is reduced using the Ecohome function. If this function is not suitable for your viewing environment, you can select other modes as necessary. (Please note, 'Demo' mode is for optimum default picture settings, however, power consumption is approximately 15% higher than 'Ecohome' mode)

Please refer to the user guide section 'Picture settings' in order to change the mode to one that maybe more suitable for your environment. There is also a shortcut button on the remote control called 'P-Mode' should you wish to change to another mode.

1

2

3

4

5

Remote Control

Viewing remote control - TV

1. STANDBY
2. MUTE
3. DTV
4. RADIO
5. DVD
6. USB
7. NUMBER BUTTONS
8. TV GUIDE
9. To return to the previous channel viewed
10. P.MODE - Scrolls through picture mode options
11. VOL▲/▼
12. CH ▲/▼
13. S.MODE - Scrolls through sound mode options
14. FAV - To display favourites menu
15. MENU
16. EXIT
17. (▲) Allows you to navigate the on-screen menus and adjust the system settings to your preference
18. SOURCE/AV
19. INFO - Press once for now/next channel information. Press twice for programme information about current programme

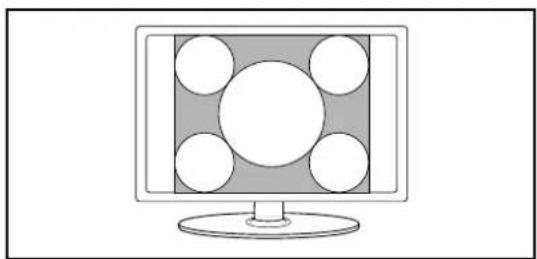

20. ASPECT
21. SLEEP
22. SUBTITLE
23. AUDIO
24. TEXT
25. TEXT HOLD
26. DISPLAY
27. TEXTZOOM/DVD ZOOM
28. DVD Menu/Record

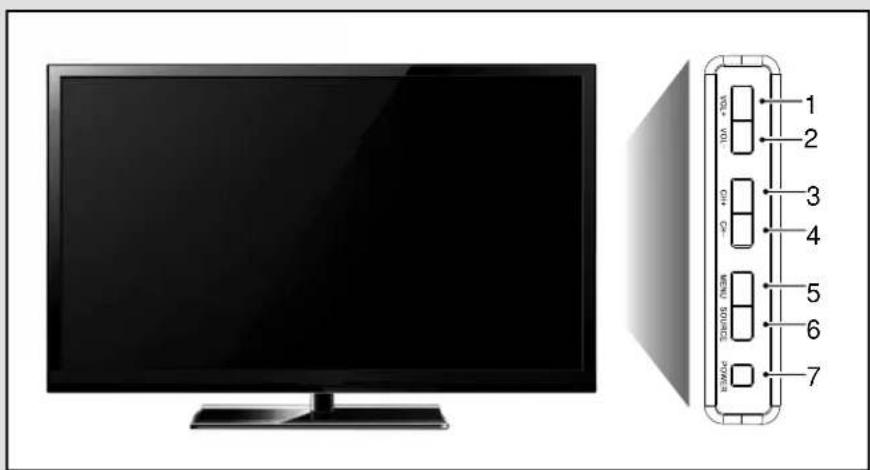

TV Buttons & Source Menu

1. Volume up and menu right
2. Volume down and menu left
3. Programme/Channel up and menu up

4. Programme/Channel down and menu down

5. Displays Menu/OSD

6. Displays the input source menu
7. Standby Power On/Off

Choosing Mode Input/Source

To switch between the different input/connections.

A) Using the buttons on the remote control:

1) Press [SOURCE/ AV] - The source menu will appear
2) Press [V] or [A] to select the input you require.
3) Press [OK]
B) Using the buttons on the Television:

1) Press [SOURCE]
2) Scroll up / down using CH+/CH- buttons to the input/source you require
3) Press Vol+ to change input/source to the one selected.

Example of Source menu depending on the TV model

Illustration of a computer monitor with blank screen and two gray geometric shapes below (no text or symbols)

1 EARPHONE Earphone Socket
2 COAX Audio Out Digital Coax output
3 Video Video Input
4 L/R Audio in Component Audio input
5 COMPONENT (HD) Component input (YPbPr)
6 HDMI 1 HDMI input
7 HDMI 2 HDMI input
8 VGA PC VGA-PC input
9 VGA PC Audio In 3.5mm PC audio input

10 RF IN RF / TV Aerial Input

11 HDMI 3 HDMI input

12 USB USB Input

13 CI CARD IN Common Interface module

Connections

Connecting a Camcorder, Camera or Games Console

Source should be set to Composite / AV

Connecting a DVD Player/Recorder, Video Recorder or Cable/Satellite Box via SCART to AV cable

Source should be set to Composite / AV

Connecting a High Definition (HD) Device

Option 1 - via HDMI to HDMI cable

A HDMI cable can output both video and audio and enables you to enjoy digital-quality video and audio with minimal loss of quality.

Source should be set to the corresponding HDMI Port (HDMI 1, HDMI 2, etc)

Diagram showing connection between a computer monitor, switch, and CD/DVD unit (no text or symbols)

Note: This model TV can not be used as a PC/laptop monitor via HDMI input. The HDMI Input is provided to view digital content with compatible external devices..

Connections

Connecting a High Definition (HD) Device

Option 2 - via Component cable

If you are supplied with a cable from the device which has RED, GREEN, BLUE, RED & WHITE connectors you must connect via Component (for picture) and by phono cable (for sound).

TV Source should be set to Component / YPbPr

Connecting to a device with VGA/PC output (Laptop or Desktop Computer)

Source should be set to VGA/PC

Connecting to an external audio device (Amplifiers, Surround Sound, Sound Bars etc)

When connecting via the TV's 3.5mm Earphone output, this will disable the TV speakers.

There are two options to connect a device via the 3.5mm Earphone Output.

Note: Connecting cables are shown for example only and may not be included. Please check 'What Is Included In The Box' page.

Channel Menu

Auto Tuning

Allows you to retune the television for all digital channels, digital radio stations and analogue channels.

Analogue Manual Tuning

Allows you to manually tune your analogue signal

Freeview Manual Tuning

Allows you to manually tune your digital signal

Channel Edit

Allows you to delete, move, skip and add favourite channels.

Schedule List

Lists your programme reminders

Signal Information

Displays signal strength information

CI Information

Pay per view services require a "smartcard" to be inserted into the TV. If you subscribe to a pay per view service the provider will issue you with a 'CAM' and a "smartcard". The CAM can then be inserted into the COMMON INTERFACE PORT (CI Card In).

To access this menu, press [MENU] button on the remote control. To enter a sub menu press [OK]

If you wish to make changes to any of the default settings, use the scroll buttons. To confirm any settings press [OK] button.

To exit this menu at anytime, press [EXIT] button.

Tip: If you do not press any buttons for 30 seconds, the menu will automatically exit. You can change the length of time before the menu exits automatically - see 'Menu Duration' section.

Picture Menu

Picture Mode

• Dynamic - Recommended settings for fast moving pictures
- Standard - Default settings
- Mild - Set to be lighter in colour and less bright
- Personal - Lets you manually alter all the settings
- Economy - Power saving mode which reduces the energy used by up to 25% (by reducing the power to the LED/LCD panel). In Economy mode, the TV will switch itself to Standby mode after 3-5 hours in the event that the TV buttons or remote control buttons are not pressed (change the picture mode to another setting to de-activate this function)

Contrast

Switch the balance between black and white

Brightness

Increase or decrease the brightness of the picture

Colour

Increases the colour from black and white

Tint

Lets you increase or decrease the level of tint within the picture

Sharpness

Increase or decrease the sharpness of the picture

Colour Temperature

• Normal - Default settings
- Warm - Increases red within the picture
• Cool - Increases blue within the picture

Noise Reduction

• Off - Turns noise reduction off
• Low - Minor system adjustment
  • Middle - Medium system adjustments
  • High - Maximum system adjustments
• Default - Default settings

To access this menu, press [MENU] button on the remote control and scroll right.

To enter a sub menu press [OK]

If you wish to make changes to any of the default settings, use the scroll buttons. To confirm any settings press [OK] button.

To exit this menu at anytime, press [EXIT] button.

Picture Menu

Aspect Ratio

Within the UK the picture format varies depending on the channel/broadcast. There are a number of different options to best meet your needs

• Auto - Automatically displays the best picture format. So the picture is in the correct position. May have black lines at the top/bottom and/or sides.
• Original - Will display the picture from the broadcaster without any change
  • 4:3 - Displays the 4:3 picture in its original size. Side bars are shown to fill the 16:9 screen

Simple line drawing of a computer monitor with five circular buttons on the front panel (no text or symbols)

• 16:9 - Fills the screen with a regular 16:9 signal and 4:3 will stretch to fill the screen

Simple line drawing of a computer monitor with five circular windows on the screen (no text or symbols)

• 14:9 - Displays the 14:9 picture in the correct proportion. As a result side bars are shown on the screen

Illustration of a computer monitor with a central blank screen and surrounding circular elements (no text or symbols)

- Zoom - The picture is the correct proportion but zoomed in to fill the screen

Illustration of a computer monitor with a circular design on the screen (no text or symbols)

Sound Menu

Sound Mode

• Standard - Default settings
  • Music - Emphasises music over voices
  • Movie - Provides live and full sound for movies
  • Sports - Emphasises sound for sports
  • Personal - Selects your personal sound settings

Treble

To adjust the amount of high frequency within the sound

Bass

To adjust the amount of low frequency within the sound

Balance

To switch the so und between the left and right speakers

Auto Volume Level (AVL)

When 'on' is selected, the volume will stay at a constant level regardless of input/source

Digital Output

• Off - Off
  • Auto - Selects the best settings automatically
• PCM - Select this option if you are connecting to a Stereo Hi-fi via coax cable (Pulse-code modulation (PCM) is a digital representation of an analogue signal)

Audio Description

This allows the user to increase and decrease the AD (Audio Description) volume level.

(Audio Description is a service available on certain programmes. It provides a description of what is happening during the selected programme for a person who is visually impaired)

Audio Delay

Enables the user to adjust setting to sync picture and audio

Tip: Treble and bass levels can only be adjusted when the sound mode 'Personal' is selected.

Time Menu

Clock

Shows the date and time

Off Time

Allows you to set a specific time for your TV to turn off

On Time

Allows you to set a specific time for your TV to turn on, the channel it will then display, the source it will be on and also the volume. This function can then be toggled to repeat every day or a certain day.

Time Zone

Change your current time zone

Sleep Timer

Lets you set the sleep timer so the television automatically switches off after a set amount of time. Off -> 10min -> 20min -> 30min -> 60min -> 90min -> 120min -> 180min -> 240min

Auto standby

Set Auto standby between 3 hours, 4 hours and 5 hours ( to turn off this function you must exit Home Mode in the Picture Menu)

OSD Timer

Lets you adjust the amount of time the On Screen Menu stays on the screen before disappearing

To access this menu, press [MENU] button on the remote control and scroll right. To enter a sub menu press [OK]

If you wish to make changes to any of the default settings, use the scroll buttons. To confirm any settings press [OK] button.

To exit this menu at anytime, press [EXIT] button.

System/Hotel Lock Menu

System/Hotel Lock

Allows you to lock or unlock the menu. You will be asked to enter a 4 digit password use the ◀button to quit the password input. Use the ▶button to clear. Default password is 0000

TV Button Lock

Allows you to lock the buttons on the side of the TV set

Parental Guidance

Allows you to set the rating to block certain content based on age information

Default Source

Allows the user to set the default source. The default source is the source the TV starts on when first switched on

Default Channel

Allows the user to set a channel as the default channel on the Digital source. The default channel is the channel the TV starts on when first switched on

Source Lock

Allows you to lock the source menu

Channel Lock

Allows you to lock certain channels manually

Max Volume

Allows you to adjust and set the maximum volume

Change Password

Allows you to change the password

To access this menu, press [MENU] button on the remote control and scroll right.

To enter a sub menu press [OK]

If you wish to make changes to any of the default settings, use the scroll buttons. To confirm any settings press [OK] button.

To exit this menu at anytime, press [EXIT] button.

Setup Menu

Language

Allows you to change the language of the menu

Audio language

Allows the user to change the audio language

Subtitle Language

Allows the user to change the subtitle language

Hearing Impaired

This allows the user to turn on the Hearing Impaired function, this produces subtitles on the screen which provide a description of what is happening during the selected program.

PVR File System

Allows you to view the format and performance of a USB key

Blue Screen

Changes the background when there is no input between clear and a blue background (Only available on some sources)

First Time Installation

Allows you to retune the television for all digital channels, digital radio stations and analogue channels

Reset TV

This resets the menus to factory settings and will erase all TV channels stored on the television

Software Update (USB)

This menu lets you install the new software/fi rmware onto the television. Further details of how to do this will be issued with the fi rmware. Contact the helpline or refer to the 'product support' section of the website

HDMI CEC (Consumer Electronic Control)

Allows HDMI devices to control each other and allows the user to operate multiple devices with one remote control. (only available with compatible devices)

LED Status

Allows the user to switch the LED Power indicator light ON or OFF, when the TV is being operated. (When this option is set to OFF the LED Power indicator light will a ash when the remote control is used)

PC Settings

Auto Adjust

Lets you automatically configure the television to be used as a computer monitor

H Offset

Changes the horizontal position of the picture

V Offset

Changes the vertical position of the picture

Size

Increase picture size

Phase

To adjust delay time of phase in order to reduce the noise of picture

Position Reset

Changes back to the factory settings

To access this menu, press [MENU] button on the remote control and scroll right. To enter a sub menu press [OK]

If you wish to make changes to any of the default settings, use the scroll buttons. To confirm any settings press [OK] button.

To exit this menu at anytime, press [EXIT] button.

Tip: If the computer is left in-active for a period of time, the television will switch into a 'sleep' state (the screen will power off to save power). To switch back on press the standby button.

7 Day TV Guide

TV Guide is available in Digital TV mode. It provides information about forthcoming programmes (where supported by the freeview channel). You can view the start and end time of all programmes and on all channels for the next 7 days and set reminders.

1) Press [TV GUIDE]. The following 7 Day TV Guide will appear.

7 Day TV GUIDE

10 Years Younger: The Challenge

Season 2

Support worker Janice Cassidy's lifestyle of long working hours and a penchant for tanning has taken its toll, while the stress of bringing up two daughters and heavy smoking has affected interior designer Shere Morady. Surgeon Jan Stanek and the team set out to provide

04 Aug 2010 10:42

BBC1	05:00-06:00	10 Years Younger: The Challenge
BBC2	06:00-06:30	The Simpsons
ITV1	06:30-07:00	Hollyoaks
Channel 4	07:00-08:00	Channel 4 News
five	08:00-09:00	How to Look Good Naked
BBC3	09:00-10:00	Newlyweds: The One Year Itch
BBC4	10:00-11:15	Big Brother
ITV2	11:15-11:45	The Big Bang Theory

Remind

Prev Day Move View

Next Day i Display

2) Navigate through the menu using ▲▼▶◀

You can now:

Record a programme by pressing RED (USB device must be connected)

Set a reminder by pressing GREEN

View a previous day by pressing YELLOW

View the next day by pressing BLUE

3) Press [EXIT] to exit the 7 day TV Guide.

USB Record - Digital / Freeview Mode

USB Record – Digital/Freeview Mode

Built into this television is a USB record facility. This function is available in Digital/Freeview mode when used in conjunction with a compatible USB memory stick or USB hard drive. The benefits of this are as follows:

• Pause live TV and then playback, fast forward and rewind (up to live TV)
• One button record, if you decide you want to record the current programme
• Easy programmable recording from the 7 day TV Guide
• Record TV and watch/listen back on your computer/laptop

Due to the nature of the product, it is necessary to use a high speed USB memory stick (as the TV reads from and writes to the memory stick at the same time, some memory sticks may not be suitable)

You can purchase high speed memory sticks from some computer stores, alternatively, we have a selection of tested and compatible memory sticks available to purchase directly from the helpline/web site.

Minimum Specification - USB Memory Stick

Read Speed 20 MB/s (Mega Byte Per Second)

Write Speed 6 MB/s (Mega Byte Per Second)

If you wish to use a USB portable hard drive larger than 32GB, please refer to the FAQ section at the rear of this user guide.

Pause Live TV (Time Shift)

Pausing Live TV is very simple.

▶II - Press the play/pause button and the television will pause and the live content will be recorded. To resume watching press play/pause again.
- Press fast forward to go forward in a recording (i.e. to skip adverts)
- Press fast rewind to go back in a recording (i.e. if you fast forwarded too far)

Tip: When you switch the TV to standby or change channel the Time Shift memory is wiped. To restart time shift you must press play/pause button.

One Button Record

At any point in time you may decide to record the current channel that you are watching. To do this you need to press the red button highlighted below.

Tip: This television contains one TV tuner, therefore it can only record the channel you are watching or record one channel while the television is in standby mode.

Note: USB record function is only available in Digital/Freeview TV mode. Due to copyright laws and illegal copying/recording it is not possible to record to/from any other input/output source.

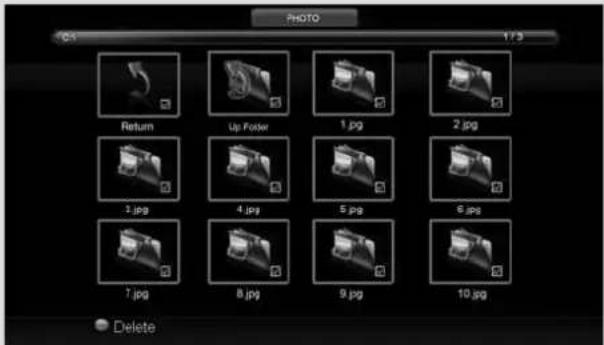

USB Mode / Media Player

USB mode offers playback of various different types of content that you have saved on your USB Memory Stick.

On switching to USB source the menu screen will appear. The content will be divided into Photo, Music, Movie and Text based on file type.

1) You can navigate through the menus using the scroll ▲buttons. To confirm the item you wish to play/view press [OK] button.
2) Select the drive you require. (If your drive only has 1 partition you will only see 1 item).
3) You can now access the item. Press OK to view.
4) While viewing you control the item using (Fig A) or by pressing (i) and using ▲and (OK)

Tip: If you experience a playback issue, please ensure the files being used are the correct format (example - the picture plays but no sound) See technical specification page for compatible file types

1)

2)

3)

4)

Fig A

Using Your TV With a Sky Digital Set Top Box

Option 1) Connecting your TV to your Sky box (when both the TV and Sky Box are located in the same room)

Depending on your Sky Box & TV model, connect either by SCART or HDMI cables (available separately)

If connecting by SCART, select the 'Input source' on the TV to Composite/AV.

If connecting by HDMI, select the 'Input source' on the TV as HDMI (if the TV has more than 1 HDMI port, ensure you select the input source to match the HDMI numbered port on the rear of the TV)

If you wish to use your Sky remote to operate the TV's functions, you will need a Sky remote control (Revision 9 or later) and you will need to programme a 4 digit code into it. See bottom of this page.

Option 2) Connecting your TV to your Sky box (when your Sky box is located in a different room to the TV)

Please note, if you are adding a 'Magic Eye/TV Link' to your system so that you can use your Sky remote control to change the Sky channel in the room where the 2nd TV is located, please refer to the instructions included with the TV link/magic eye in order to ensure the RF or RF2 output on your Sky box is powered on. (The red LED light on the TV link/magic eye will light up if the RF / RF2 output is correctly set up) If you do not have the instructions that came with the TV link/magic eye, instructions on how to do it can be found on our web site.

1) To tune the TV to the Sky box, on the 2nd TV, select the 'Analogue' input source.
2) Select the channel that you wish to store the Sky box/channel on. (If you do not use channels 1-5 because you no longer have analogue terrestrial channels after digital switchover, you may choose to select channel 1 to store the Sky box/channel, if you still have and use analogue channels 1-5, you may for example decide that channel 6 is the best option for you)
3) Press the corresponding number on the remote control to select the desired analogue channel chosen as per point 2 above.
4) On the TV remote control, press Menu. Now navigate through the menus to select Manual Tuning or Analogue Manual tuning (refer to the Tuning/Channel menu section of this user guide if necessary)
5) Manually tune in the channel (usually, the Sky box is at a frequency between 800Mhz and 850Mhz) once the Sky box/channel is found, press 'OK' to store it.

If you wish to use your Sky remote to operate the TV's functions, you will need a Sky remote control (Revision 9 or later) and you will need to programme a 4 digit code into it. Please see below.

Using a Sky Remote or a Universal Remote to operate your TV - Sky Remote Control, If you wish to use your Sky remote to operate the basic functions of your TV, you need to programme a 4 digit code into it. Please note. you will need the latest Sky Revision 9 remote control as this is the only version that includes the latest software/firmware necessary to operate this model of TV. The code required for this television is 2134. If you wish to upgrade/replace your existing Sky remote control to the latest version, you can do so on our web site.

Universal Remote Control, If you wish to use a Universal remote control to operate your TV, please refer to the web site for a full list of codes. (Please note we only have codes for One for All branded remote controls, if you have an alternative brand of Universal remote, please refer to the manufacturer for the code.)

Frequently Asked Questions

General I would like to have louder sound by connecting additional speakers.	Subject to the TV model and connections, it is possible to connect the TV to an external amplifier or surround sound (subject to connections/inputs on the device) as follows:-1) Connect a COAX cable* from the TV's COAX output to your amplifier/surround systems COAX input2) Connect a 3.5mm jack to L/R phono cable* from the TV's headphone socket (where fitted) to your amplifier/surround sound L/R input. Please note sound to the TV's speakers will be disabled.*cables and switches mentioned are available to purchase separately from your retailer.
General Why are some options in the menu unavailable and greyed out.	Some options are only available in certain sources, i.e. HDMI, PC/VGA. They are unavailable in the other sources where they have no affect.
General Can stop my TV turning off after 4hrs?	Yes.In the time settings menu, scroll down to Auto standby and select OFF.
TV I have tuned in Digital TV but I am not receiving any or all of the channels and/or the channels I receive are breaking up.	1) Check you are in an area that can receive Freeview. Visit www.freeview.co.uk2) Check you are using an aerial that is able to receive a good digital signal. In most cases, you will need an outdoor digital hi-gain/wideband aerial. In areas that have excellent Freeview coverage, you may be able to use a loft type aerial but it is highly likely that you will also need to connect a booster between the back of the TV and the TV aerial wall socket. Unfortunately, to receive a good enough digital signal, it is not possible to use a portable/indoor type aerial. This may change once the analogue signal is switched off in 2012 and the Digital signal strength is increased.
TV I have re-tuned my television but when I switch it off it is not storing the channels.	Complete a first time installation, please refer to the set-up menu section of the manual of how to do this.
VCR/DVD Recorder I have connected the TV to my VCR or DVD Recorder via SCART but it is not recording.	In addition to connecting via SCART, you should connect the aerial cable from the wall socket to your VCR/DVD Recorder and another aerial cable from the VCR/DVD Recorder to the TV.
Game Consoles I have connected my PS3 to the TV via HDMI, but I am not receiving any pictures or sound on my TV.	1) Ensure the TVs source is on HDMI2) Check your settings on your PS3 are as per the PS3 instruction manual.

Frequently Asked Questions

Game Consoles	I have connected my Xbox 360 to the TV via Component Cables (Red, Green & Blue) but I am not receiving any sound.	Component cables only provide HD Pictures. For the sound you will need to connect the Red & White audio cables on the Xbox to the Red & White phono inputs on the rear of the TV. Please refer to the ‘Connections’ pages.
USB Mode I have inserted a USB Memory Key, but the TV does not recognise it.		Ensure the USB Memory Key is formatted to type FAT32.
USB Mode Using a USB portable hard drive.		If you wish to use a portable hard drive larger than 32GB, please note that it must be formatted to the FAT32 file system in order to operate on this TV. Windows XP/Vista computers are only capable of formatting up to 32GB, therefore, you will need a software programme/utility to format larger hard drives. Please refer to the web site for more information.
USB Record / TV models only	I cannot change the channel, access the menu or use the red button	During Time Shift you cannot change the channel, access the menu or use the red button
USB Record / TV models only	When using the USB to record the picture ‘breaks up’ or experience loss of sound.	Check the USB Memory Stick meet the minimum requirements of Read Speed - 20 MB/s (Mega Byte Per Second), Write Speed - 6 MB/s (Mega Byte Per Second)
System Lock	I have changed the password on the television and now forgotten it.	There is a master password of 4711, to gain access to the TV menu and reset the normal password.

Note:

Supplier may change TV software and on screen graphics without warning

Technical Specification

Product Fiche

Supplier	Bush
Model ID	32/233
Energy efficiency class	A+
Visible screen size (diagonal)	81cm / 32 inches
On mode model average power consumption	31 W
Annual energy consumption *1	45 kWh
Standby power consumption *2	<0.5 W
Off mode power consumption	0 W
Screen resolution	1366 (w) x 768 (H)
*1: Energy consumption XYZ kWh per year, based on the power consumption of the television operating 4 hours per day for 365 days. The actual energy consumption will depend on how the television is used.*2: When the TV is turned off with the remote control/standby button and no function is active.

Additional Technical Information
RF	75 ohm Antenna / PAL-SECAM
Video Inputs 3 x HDMI, 1 x VGA/PC, 1 x USB, 1 x Composite/Video, 1 x Mini Component/YPbPr
Sound Inputs	1 x shared audio for Composite/Video & Component/YPbPr,1 x 3.5mm jack for PC audio input
Sound Outputs 1 x Coax Audio output, 1 x 3.5mm headphone jack
Speaker/Sound watts (RMS)	2 x 8W
Dimensions including stand (mm)	733W x 482H x 180D
Net weight	5.6 kgs
Energy Consumption Info
Voltage and power consumption 110-240v 50 / 60Hz31 / 45 / 70W (Ecohome / Standard / Max)EEI - A+ (Energy Rating)

Compatible files in USB Mode

Media File Ext.		Codec		Remark
		Video Audio
Movie	.mpg MPEG-1, MPEG-2		MP3, WMA, AAC	Max Resolution: 1920x1080Max Data rate: 40 Mbps
	.avi	DivX, Xvid, MJPEG, MPEG-4 SP/ASP, H.264		Max Resolution: 1920x1080Max Data rate: 20 Mbps
	.ts MPEG-2, H.264
	.mov/.mkv	MPEG-4 SP/ASP, H.264
	.dat MPEG-1
	.mp4	MPEG-4 SP/ASP, H.264
		MPEG-1, MPEG-2		Max Resolution: 720x576Max Data rate: 40 Mbps
	.vob MPEG-2
Music	.mp3 - MP3			Sample Rate 8K-48KHzBit rate: 32K - 320KbpsChannel: Mono/Stereo
	.wma - WMA
	.m4a/.aac	- AAC		Sample Rate 16K-48KHzBit rate: 32K ~ 442KbpsChannel: Mono/Stereo
Photo	.jpg/.jpeg	Progressive JPEG		Max Resolution: 1024x768
		Baseline JPEG		Max Resolution: 8192x8192
	.bmp	BMP		Max Resolution: 6500x6500Pixel Depth 1/4/8/16/24/32 bpp
	.png	Non-Interlaced		Max Resolution: 3000x3000
		Interlaced		Max Resolution: 1500x1500
