Product Type	Front-loading washing machine
Brand	Bush
Model	F841QW
Capacity	8 kg
Spin Speed	1400 rpm
Energy Class	A+++
Dimensions (H x W x D)	85 cm x 60 cm x 55 cm
Weight	70 kg
Power Consumption (per cycle)	1.02 kWh
Water Consumption (per cycle)	50 L
Noise Level (wash/spin)	54 dB / 76 dB
Drum Material	Stainless steel
Number of Programs	15
Temperature Options	Cold, 20°C, 30°C, 40°C, 60°C, 90°C
Delay Start	Up to 24 hours
Child Lock	Yes
Drum Cleaning Cycle	Yes
Anti-Crease	Yes
Sponge Filter	Yes (in drawer)
Installation Type	Freestanding
Color	White
Warranty	2 years

Frequently Asked Questions - F841QW BUSH

What is the capacity of the Bush F841QW washing machine?

The Bush F841QW has a capacity of 8 kg, suitable for medium to large households.

How do I clean the detergent drawer?

Remove the drawer by pressing the release lever. Wash it under warm water with a soft brush. Ensure the sponge filter inside the drawer housing is also cleaned regularly.

What does error code E30 mean?

Error code E30 indicates a door lock issue. Check if the door is fully closed and the lock mechanism is free of obstructions. If the problem persists, contact customer support.

Can I use liquid detergent?

Yes, you can use liquid detergent. Pour it into the appropriate compartment (marked with II) and ensure the detergent flap is inserted for liquid use to avoid overdosing.

How do I clean the drum filter?

The drum filter (located at the bottom front) should be cleaned every 3 months. Open the access cover, unscrew the filter, remove any debris, and rinse it under running water.

What is the maximum spin speed?

The maximum spin speed is 1400 rpm, which helps reduce drying time. You can adjust it for delicate fabrics.

Why is the machine vibrating excessively?

Excessive vibration may be due to unbalanced load or transport bolts not removed. Ensure the machine is level and the load is evenly distributed.

How do I activate the child lock?

Press and hold the Child Lock button (usually for 3 seconds) until the indicator lights up. This prevents accidental button presses during a cycle.

What spare parts are available for this model?

Common spare parts include door seal, drain pump, belt, heating element, and control board. They can be ordered from Bush authorized service centers or online spare parts retailers.

How do I perform a drum cleaning cycle?

Select the Drum Clean program (if available) or run a hot cycle (90°C) with an empty drum and a washing machine cleaner. This removes detergent residues and bacteria.

USER MANUAL F841QW BUSH

Installation & User Instructions – Please keep for future reference

F841QW

F841QS

F841QB

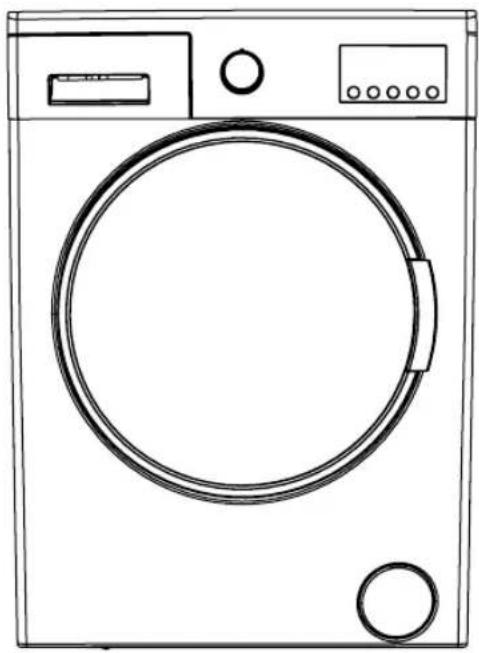

Line drawing of a front-loading washing machine with circular vent and control panel (no text or symbols)

F841QW-F841QS-F841QB

Important – Please read these instructions fully before installing or using

These instructions contain important information which will help you get the best from your appliance and ensure safe and correct installation, use and maintenance.

If you need help or have damaged or missing parts, call the

Customer Helpline:0345 257 7271

Safety Information

Parts

Installation

Unpacking your washing machine 4

Removing the packing bolts 4

Adjusting the feet

Water inlet hose connection 5

Drain hose connection

Electrical connection

Introduction of control panel 7

Detergent drawer

Program selection

Electronic display

Auxiliary functions

Child Lock

Cancelling Programme

Finishing Programme

Program Selection Guide 15

User Instructions

Before first use

Preparing for a wash 16

Error Signals

Care and Maintenance 18

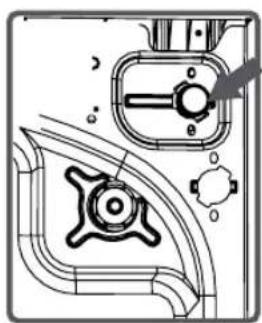

Water inlet filters

Pump filter

Detergent drawer

Siphon plug

Cabinet 19

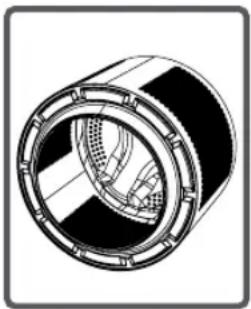

Drum 20

Trouble Shooting

Technical Specifications 23

Guarantee 24

3

4

8

10

10

12

14

14

14

16

16

17

18

18

19

19

21

Product codes

F841QS

F841QS

F841QB

Safety Information

Important — Please read these Instructions fully before Installation

Before use During use

• The installation of this appliance is best carried out by 2 people.
• Dispose of all packing carefully and responsibly.
• This appliance is for indoor use only. Only install in a dry indoor environment.
• The appliance MUST be positioned on a firm level base.
• Do not position the appliance where it is exposed to direct sunlight or heat sources as this will age the plastic and rubber components.
• Warning: Ensure all 4 packing bolts have been removed.
• Ensure the appliance is connected directly to a domestic mains water supply.
• Warning: This washing machine MUST only be connected to a cold water supply.
• Ensure all electrical connections are as stated in this document.
• Ensure the appliance is plugged into a separate earthed socket that is easily accessible.
• Ensure the power lead is not trapped under the appliance.
• Do not connect the appliance to the power supply until installation is complete.
• This appliance is for domestic/household use only and is not suitable for commercial use.

• Check that the water hose joints and connections are secure and there are no leaks. If the hoses leak, do not use until the leaks have been stopped.

• This appliance is not to be used by children or persons with reduced physical, sensory or mental capabilities, Persons with lack of experience and knowledge.

• Do not use a multiple socket or extension cord.
• Do not use if the power lead is damaged. It must be replaced by the manufacturer, their approved service agent or similarly qualified person.

Customer Helpline: 0345 257 7271.

• Do not insert the plug into the power supply with wet hands.
• Do not touch or use the appliance when barefoot or with wet or damp hands.
• Do not open the detergent drawer during a wash cycle.
• Do not touch the porthole (door) during the washing cycle - it will get hot.
• Never force the machine door open while the machine is running.
• Do not open the door if water is visible through the porthole.
• Do not wash foam rubber or sponge like materials on a hot wash.
• The machine can reach high temperatures while running. Do not touch the drain hose or waste water during draining.
• Do not forget that the packing material of your machine may be hazardous for children.
• Keep your pet away from your machine.
• Do not use flammable detergent, sprays or dry cleaning agents in or near to the appliance.
• Do not remove or insert the plug in the presence of flammable gas.
• The appliance should not be put on a carpet which can block the air ventilation on the bottom side.
• Do not place heavy objects or sources of heat or damp on top of the washing machine.
• Only use detergents which are suitable for automatic washing machines and follow the detergent manufacturers recommendations.
• Do not use this appliance if there are any missing or damaged parts.
• Do not attempt to repair the appliance yourself. Contact the manufacturer, their approved service agent or the Customer Helpline: 0345 257 7271.

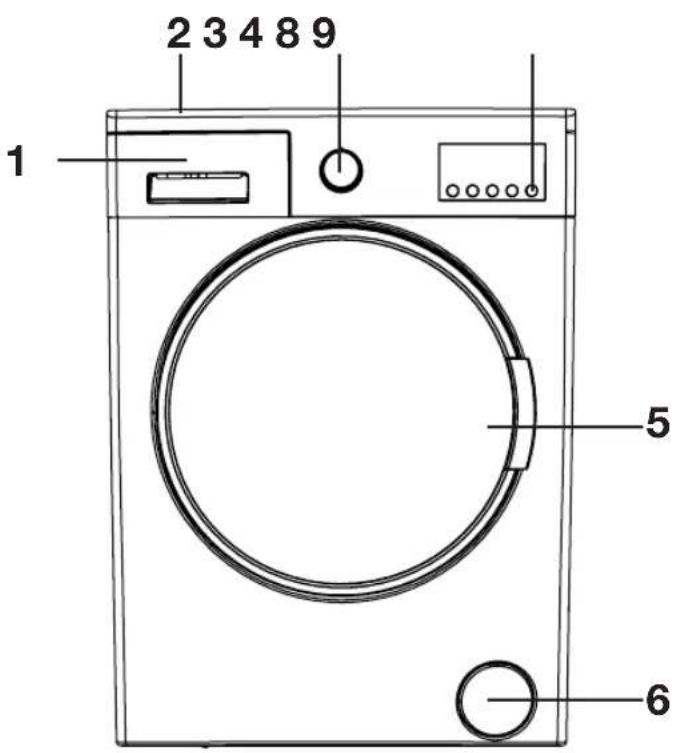

Please familiarise yourself with the parts and accessories listed below

Front

1. Detergent drawer
2. Top panel
3. Start / Pause button
4. Program selection dial
5. Door
6. Filter

Back

7.Packing bolt x 4
8.Power lead
9.Drain hose
10. Water inlet

Accessories Included

Line drawing of a coiled hose with connectors (no text or symbols)

Waterinlethosex1

Plastic plug x 4

Unpacking your washing machine

Caution: 2 people are required to unpack the washing machine, it is recommended that gloves are worn.

a: Carefully remove all packaging materials including the foam base, dispose of correctly.

Note: When opened, water droplets may be visible in the drum etc. this is normal as each appliance is factory tested.

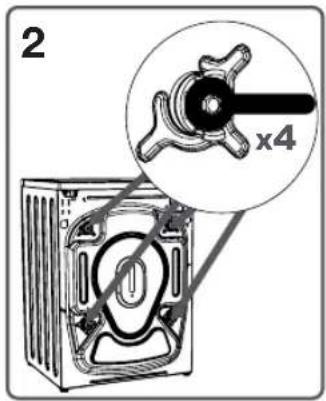

Removing the packing bolts

Important: The packing bolts are designed to support the internal components during transit, these MUST be removed before use.

a: Loosen the screws by rotating counterclockwise with a suitable wrench. (1 & 2)

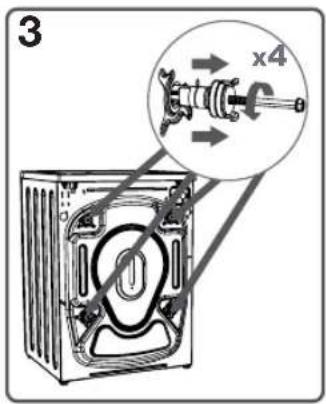

b: Remove the bolts by pulling them. (3)

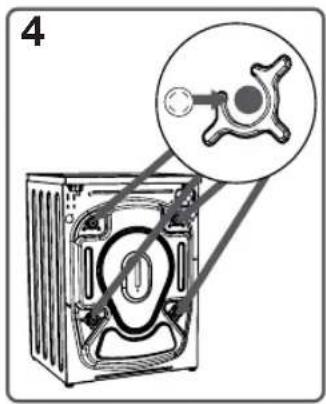

c: When the transport bolts have been removed, insert the plastic transport screw taps found in the accessories bag into the holes. (4)

Adjusting the feet

a: For your machine to work efficiently with minimum vibration it should be settled on flat, non-slippery, firm ground.

b: You can adjust the balance of your machine by changing the positioning of its feet.

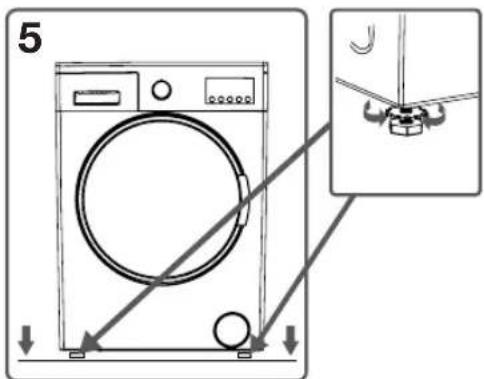

c: First, loosen the plastic adjustment nut. (5)

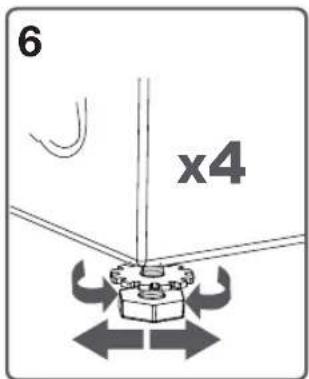

d: Adjust by rotating the feet upwards or downwards. (6)

e: After the desired position has been reached, tighten the plastic adjustment nut again by rotating it upwards.

Note: Never put cartons, wooden blocks or similar materials under the machine to balance irregularities in the level of the ground.

Water Inlet hose connections

Important: This washing machine MUST only be connected to a cold water supply.

a: Connect the water inlet hose, the angled connection attaches to the water inlet on the back of the washing machine. (7)

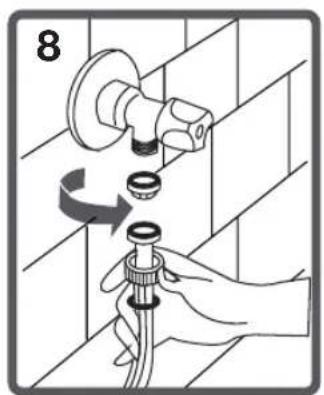

b: The straight connection attaches to the water supply valve. (8)
c: Ensure all seals are in place before connecting.

Important: Only tighten the hose connection nut by hand - do not overtighten.

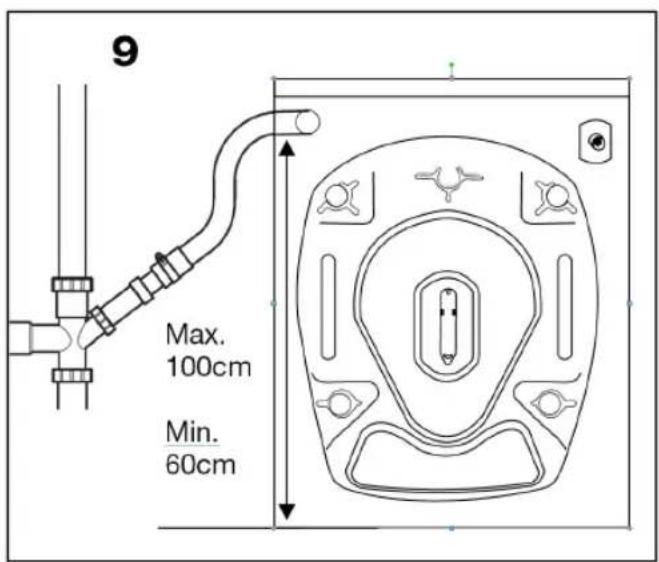

Drain hose connections

Important: The height of the top of the curve in the drain hose MUST be between 60 - 100cm from the floor. (9)

Important: The end of the water drain hose may be fitted directly to the waste water outlet hole or a special apparatus mounted on the outlet bracket of the wash-stand.

Important: Never attempt to extend the water drain hose by adding extra parts.

Electrical connections

Any electrical work that is required to install this washing machine MUST be carried out by a qualified electrician.

Warning: THIS APPLIANCE MUST BE EARTHED

Before making any electrical connections, ensure that:

• Ensure the power socket is suitable for the maximum power of the washing machine (fuses in the power circuit must be 13 amp).
• The supply voltage should be the same as that indicated in the technical specifications (page 17) and the appliance rating plate (located where shown).
• The appliance should be earthed and in compliance with the applicable law.
• Additional earth cables should not be necessary if the plug and socket are earthed. If necessary, an additional earth cable should be attached to the earth terminal on the back of the washing machine and earthed.
• When installed, the power socket must be within easy reach.
• The use of adapters, multiple connectors or extension cables are not recommended.
• The appliance must be connected to a 220-240 volt 50 cycle AC supply by means of a three pin socket, suitably earthed and protected by a 13 amp fuse.
• Should the fuse need to be replaced, a 13 amp fuse approved to BS1363/A must be used.
• The plug contains a removable fuse cover that must be refitted when the fuse is replaced. If the fuse cover is lost or damaged, the plug must not be used until a replacement cover has been fitted or the plug is replaced.
• A damaged plug should be cut off as close to the plug body as possible, the fuse should be removed and the plug disposed of safely.

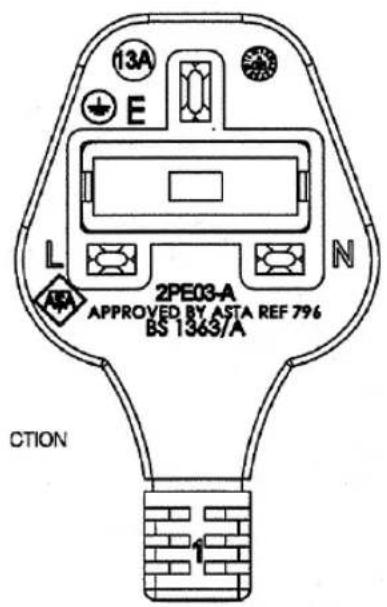

Plug replacement (UK & Ireland only)

Should you need to replace the plug; the wires in the power cable are coloured in the following way:

Blue - Neutral 'N'

Brown – Live 'L'

Green & Yellow – Earth 'E'

As the colours of the wires in the power cable may not correspond with the coloured markings identifying the terminals in your plug, and proceed as follows:

The green & yellow wire must be connected to the terminal in the plug that is marked with the letter E or by the earth symbol.

The blue wire must be connected to the terminal that is marked with the letter N.

The brown wire must be connected to the terminal that is marked with the letter L.

If the power lead is damaged, it must be replaced by a qualified electrician.

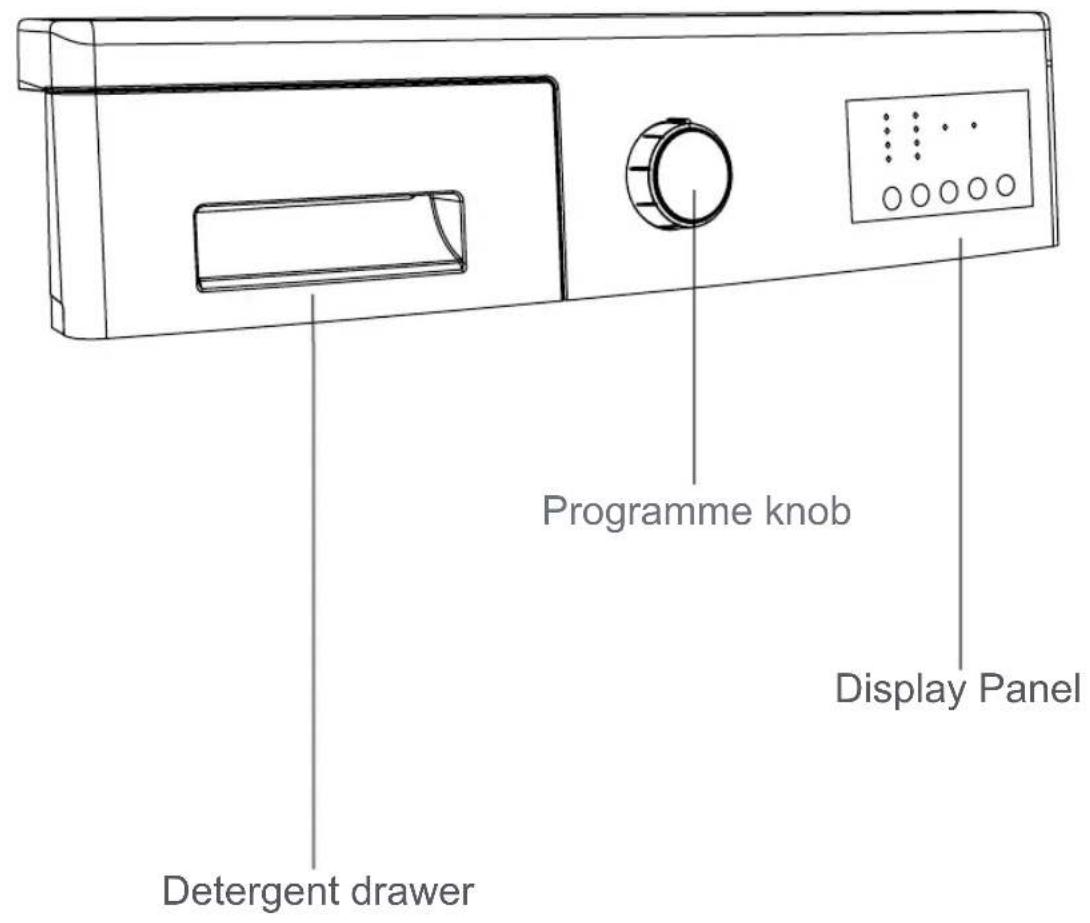

Introduction of control panel

Introduction of control panel

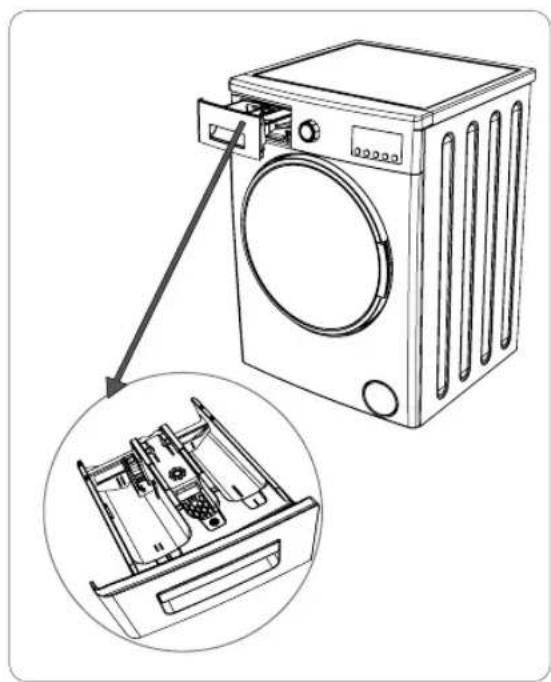

Detergent drawer

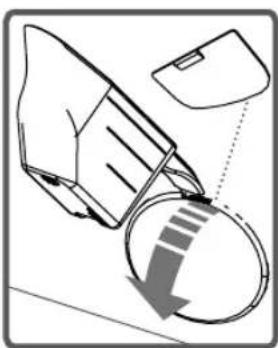

You can use the liquid level determination plate when you want to wash your laundry with liquid detergent. You can use your liquid detergents in all programs without prewashing. Place the liquid detergent apparatus in the second compartment (which is available inside the machine) of the detergent drawer (*) and set the detergent amount. (Use the recommended amount of liquid detergent by detergent producers). Do not exceed the MAX level, use only for liquid detergent, do not use this apparatus for powder detergent and take it out.)

Line drawing of a washing machine with a close-up inset showing internal components (no text or symbols)

Technical line drawing of a mechanical device with internal components and directional arrows (no text or symbols)

Liquid Detergent Apparatus

Main wash detergent compartment

Softener

Compartment

Pre-wash detergent compartment

Powder detergent level stages

Technical line drawing of a mechanical component or housing (no text or symbols)

Powder detergent spade (*)

(*) Machinery specifications may vary depending on the product purchased.

Introduction of control panel

Detergent drawer

Sections

Main wash detergent compartment:

In this compartment, only materials like detergent (liquid or powder), lime preventer and such can be used. You can find the liquid detergent apparatus inside your machine at first installation. (*)

Technical line drawing of a device with two views: top shows internal components, bottom shows external devices (no text or symbols)

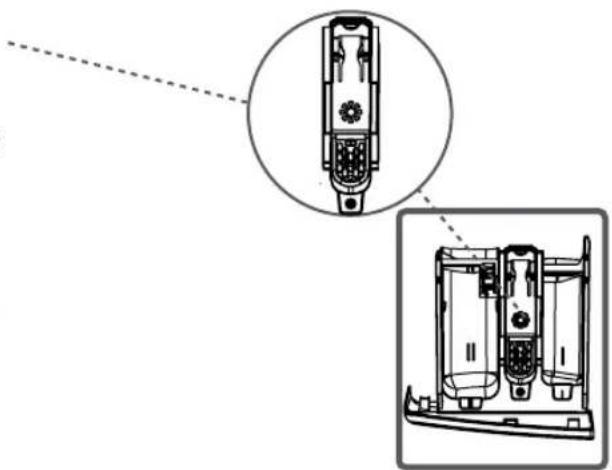

Fabric conditioner, starch, detergent compartment:

You can use softener for your laundry (recommended amount and type by the producer is recommended). Sometimes the fabric conditioners you use for your laundry mar remain in this compartment. The reason for this is that the conditioner is not viscous. To prevent this situation, more liquid softeners are recommended to be used or the softener could be thinned and then used.

Technical line drawing of a device with internal components and a magnified inset showing internal structure (no text or symbols)

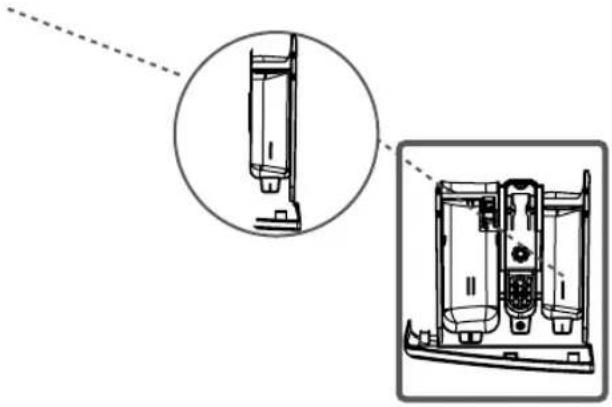

Pre-wash detergent compartment:

This compartment must only be used when the pre-wash feature is selected. Pre-wash feature is recommended for very dirty laundry.

Technical line drawing of a device interior with an inset close-up showing internal components (no text or symbols)

(*) Machinery specifications may vary depending on the product purchased.

Introduction of control panel

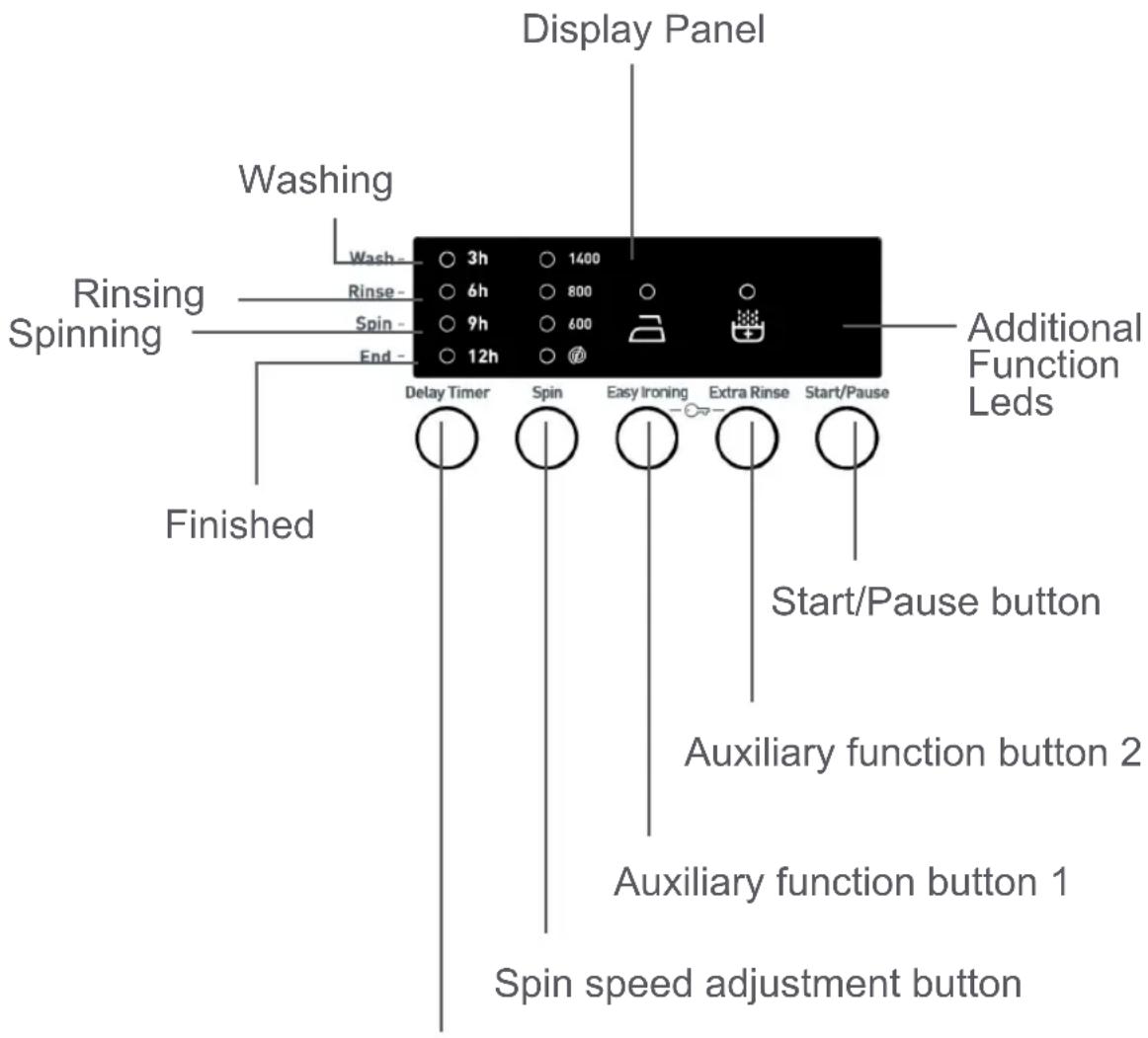

Program selection

Electronic display

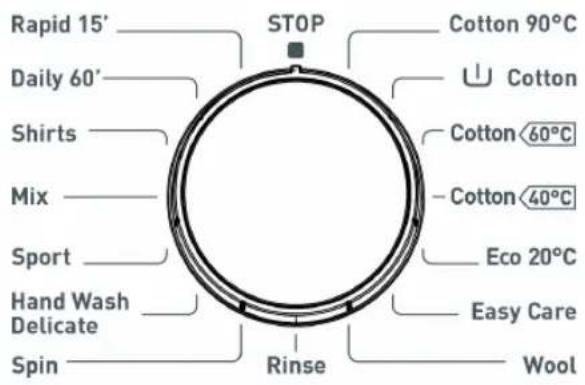

Program selection dial

With the program knob, you can select the program with which you desire to wash your clothes. You can select programs by turning the program knob in both directions. You must be careful that the adjustment sign of the program knob is exactly on the program you want to select. If you move the program knob to 0 (off) position, while your machine is running, your program will be cancelled.

Note: If you want to activate an additional function after the machine has started washing, press the additional function button that you want to use. If the additional function selected can still be used at that program stage, the LED of the function button will be turned on and the function will be added to the program. If the LED is not turned on, the function selected is not possible at that stage of the current program and will not be activated.

On the display panel, you can see the washing delay timer of your machine, speed setting of your machine, the auxiliary functions you have selected and the stage of the programme you are running on your machine ( ▶ pre wash/wash state, 📋 rinsing stage, 🌐 spinning stage).

Furthermore, electronic display will warn you by means of led combinations that will turn on its display when a fault occurs on your machine and notify you of the completion of the washing programme by revealing expression of "Finished" on the display as soon as the washing programme you have selected has finished as well.

Introduction of control panel

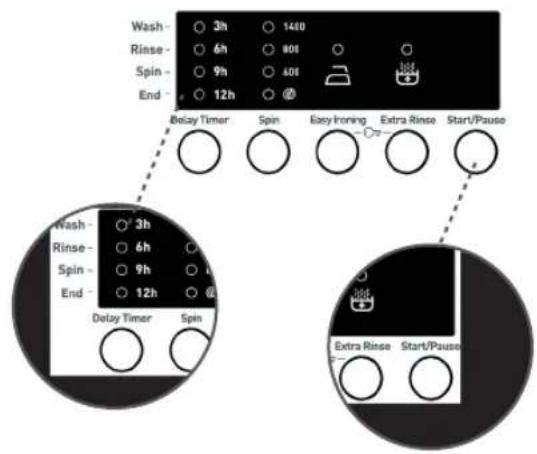

Electronic display

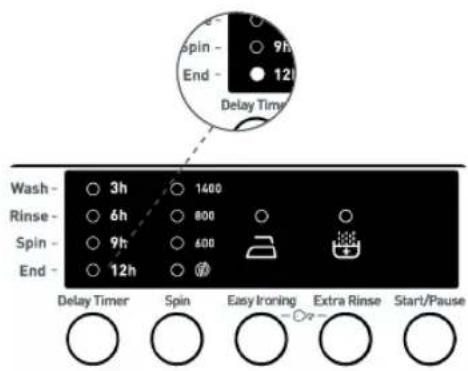

Delayed start auxiliary function

Introduction of control panel

Auxiliary functions

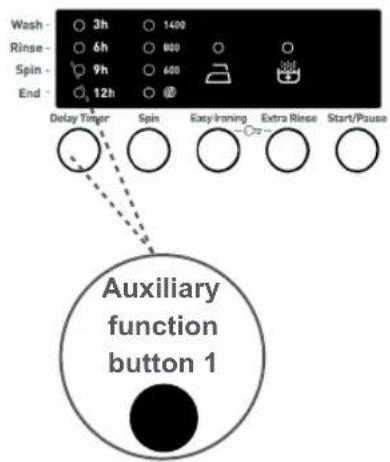

1- Delay timer

By using this auxiliary function, you can make your machine to start the washing operation with delays between "3h, 6h, 9h, 12h".

To use auxiliary function of delayed start:

• Press the delayed start button once.
• "3 h" led shall appear.
• Press on delayed start button until the time, on which you want washing operation to be started.
• To activate the time delay you have selected in the programme, you may press on any auxiliary function button you like except "Start/Pause" button.

If you have skipped the time delay you want to set, you can go back to the time desired by keeping pressed on time delay button.

If you want to cancel the time delay, you just have to press the time delay button until all of the time adjustment leds on the display panel turn off.

To run time delay function, your machine is required to be operated by pressing on Start/Standby button.

Introduction of control panel

Auxiliary functions

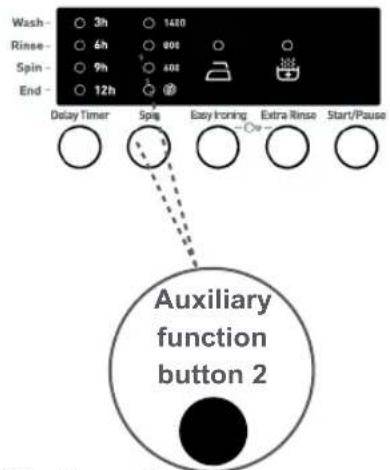

2- Spin Speed Selection

You can adjust the spin speed of your laundry with the spin speed setting button.

When you select a new programme, the max. spin speed of the programme you have selected shall be displayed on the display panel. By pressing the spin speed setting button, you can change the spin speed of the selected programme between its max. value. If you have skipped the spin speed you want to set, you can re-switch to the revolution by keeping the speed setting button pressed.

3- Easy ironing

You can enable your clothing to be taken out less wrinkled as the washing operation is completed by employing this auxiliary function.

You may make the programme active by pressing the easy ironing auxiliary function button when the led light of the symbol turns on.

4- Extra Rinse

You can make additional rinse operation on your laundry by using this additional function.

You may make the programme active by pressing the extra rinsing auxiliary function button when the led light of the symbol turns on.

Start/Pause button

By pressing on the Start/Pause button, you may start the programme you have selected or suspend a running programme. If you switch your machine to the standby mode, the Start/Pause led on the electronic display will blink.

Introduction of control panel

Child Lock

To avoid programme flow from being affected if programme buttons are pressed or programme button is turned when performing washing operation in your machine, child lock is available.

Child lock will be activated in case pressed on both auxiliary functions 3 and 4 at the same time for more than 3 seconds. You can see the auxiliary function leds on the display when activated.

If pressed any button while child lock is active, the Additional Function Leds will blink on the display.

If while the child lock is engaged and any programme is running, the programme knob is switched to the CANCEL position and another programme is selected, the programme previously selected continues from where it left.

To deactivate it, it will be sufficient to press on the same buttons for more than 3 seconds. When the child lock is deactivated, the Additional Function Leds will blink on the display.

Cancelling Programme

If you want to cancel any programme running:

1 - Switch the programme knob to "CANCEL" position.
2- Your machine will stop the washing operation and the programme will be cancelled.
3- To get rid of the water accumulated in the machine switch the programme knob to any programme.
4- Your machine will perform the necessary discharge operation and cancel the programme.
5- You can run your machine by selecting a new programme.

Finishing Programme

Your machine will stop by itself as soon as the programme you have selected finishes.

- End led will blink on the display panel.

• You can open the machine's door and remove the laundry.
• Leave the door of your machine open to allow the inner part of your machine to dry after removing your laundries.
• Switch the programme knob to CANCEL position.
• Unplug your machine.
• Turn the water tap off.

Program Selection Guide

Program Washing temperature (°C)	Prog.Time(mins)	Deter-gent com-part.	Max load capacity(kg)	Type of laundry
Cotton 90°	90° 207	2 8,0 Very dirty, cotton and flax	on and flax	textiles. (Underwears, linen, tablecloth, towel(maximum 4,0 kg), bedclothes, etc.
Pre-wash cotton	60°	165	1&2	Dirty cotton and flax textiles. (Underwears, linen, tablecloth, towel (maximum 4,0 kg), bedclothes, etc.
Cotton eco	60° 200	2 8,0 Dirty cotton and flax textiles.	(Underwear, linen, tablecloth, towel (maximum 4,0 kg), bedclothes, etc.
Cotton	40° 190	2 8,0 Dirty cotton and flax textiles.	(Underwear, linen, tablecloth, towel (maximum 4,0 kg), bedclothes, etc.
Eco	20° 98 2	4,0 Less dirty, cotton and linen	textiles. (Underwear, bedsheet, tablecloth, towel(max. 2 kg) bedcloth, etc.
Easy care	40° 91 2	3,5 Very dirty or synthetic-mixed	textiles. (Nylon socks, shirts, blouses, synthetic-including trousers etc.)
Wool	30° 49 2	2,5 Woolen clothing with machine wash labels.
Rinse	- 42 - 8,0	If you want to additionally rinse	your laundry upon completion of washingoperation, you may use this programme for any type of laundry.
Spin	- 17 - 8,0	If you want to additionally wring	your laundry upon completion of washingoperation, you may use this programme for any type of laundry.
Hand wash/ delicate	30° 90 2	2,5 Laundry recommended for hand wash or sensitive laundry.
Sports wear	30° 79 2	3,5 Sportswear
Mixed	30° 85 2	3,5 Dirty cotton, synthetics, colour and flax textiles can be washed together.
Blouses / shirts	60° 110	2 4,0 Dirty cotton, synthetic and synthetic-mixed shirts and blouses can be washed together.
Daily 60 min.	60° 60 2	4,0 You can wash your dirty cotton, colour and flax textiles at 60°C in 60 minutes.
Rapid 15 min.	30° 15 2	2,0 You can wash your slightly stained, cotton, coloured and flax textile within only 15 minutes.

(*) You can use softeners in all programs (except spinning and draining programs) optionally. When you arrange the quantity of the softener, comply with the warning of the softener producer. Fill your softener in the ⚙ softener) compartment of the detergent drawer.
Note: Durations vary according to wash load (weight and type), tap water, ambient temperature and selected extra functions.

Before first use

a: Plug in the machine.

b: Open the water tap.

c: There may be water left inside your machine after factory tests and trials. It is recommended that the first wash cycle be carried out with no laundry, to remove this water; pour half a measuring cup of normal laundry detergent into compartment 2 and select cotton program at 90°C.

Preparing for a wash

Laundry

• Sort your clothes according to their types (cotton, synthetic, delicate, woolen, etc.), washing temperatures and level of dirtiness.
• Never wash your white and coloured clothes together.
• Since your new coloured clothes may release dye on the first wash, wash them separately.
• Remove any small objects from the pockets of your clothes.
• Ensure that all zips and buttons on your clothes are fastened.
• Remove the plastic or metal hooks of curtains or place them inside a washing bag and tie.
• Turn clothes such as trousers, knitted fabrics, t-shirts and sweat shirts inside out.
• Wash your small clothes like socks and handkerchiefs in a washing bag.

Placing clothes into the machine

• Open the door of your machine.
• Put your clothes into your machine in a well-balanced manner.
• Place your clothes loosely in the machine.
• When you shut the door of your machine, be careful that no cloth is jammed between the cover and the gasket.
• Shut the door of your machine securely, otherwise your machine will not start the washing process.

Detergent

The quantity of detergent to be loaded into the machine will depend on the following criteria:

- Your detergent consumption will change depending on how dirty the clothes are. For your

slightly dirty clothes, do not pre-wash and put a small amount of detergent in compartment 2 of the detergent drawer.

• For your excessively dirty clothes, select a program with pre-washing; fill 14 portion of the detergent in compartment 1 in the detergent drawer and the remaining portion in compartment 2.
• Use detergents developed especially for automatic washing machines. The quantities that will be used for your clothes are written on the packaging of the detergents.
• As the hardness of your water increases, the amount of the detergent to be consumed will also increase.
• As the amount of clothing increases, the amount of the detergent that will need to be used will also increase.
• Fill your softener in the softener compartment in your detergent drawer. Do not exceed the MAX level. Otherwise, the softener will diffuse in the washing water via the siphon.
• Concentrated softeners with high viscosity should be diluted with water before loading in the drawer. This is because high-viscosity softeners obstruct the siphon and prevent the flow of the softener.
• You can use liquid detergents in all programs without pre-washing. For this, mount the liquid detergent level plate in the second compartment of the detergent drawer and arrange the amount of liquid detergent according to the levels on this plate.

Your machine is equipped with systems which will take the necessary precautions and warn you in case of any. IMPORTANT: IT CAN TAKE UPTO 10 MINUTES FOR ERROR TO REGISTER.

Failure code Probable failure Process to be followed
EC		The door is not shut properly. Shut the door properly so that you hear the click. If the problem persists, turn off the machine unplug and contact the nearest authorised service agent immediately.
EC		The water level in your machine is below heater. The pressure of your water supply may be low or water supply may be blocked.	Turn on the tap fully. The water supply may be interrupted. If the problem persists, your machine will automatically stop after a while.Unplug your machine, turn off the tap and contact the nearest authorised service agent immediately.
EC		The pump has failed or the pump filter is obstructed.	Clean the pump filter.If the problem persists and contact the nearest authorised service agent immediately. (*)
EC		Your machine has excessive amount of water.	Your machine will discharge water by itself. Pursuant to discharging operation, turn off your machine and unplug it. Turn off your tap and contact the nearest authorised service.

(*) See the section regarding the care and maintenance of your machine.

Before cleaning your washing machine.

a: Unplug your machine from the mains power supply.

b: Close the water tap.

Water inlet filters

On the tap part of your machine's water inlet hose and at the ends of water inlet valves, there are filters to prevent entrance of the dirt and foreign materials in the water to the machine. If the machine is unable to receive sufficient water although your water tap is fully opened, these filters should be cleaned.

• Remove the water inlet hose.
• Remove the filters found on the water inlet valves by using a pincer and wash thoroughly with a brush. (1)
• Clean the filters of the water inlet hoses located on the tap side by removing manually together with the seal. (2)
  • After you clean the filters, you can fit them the same way as you have removed them.

- You can reattach the pump cover in the reverse order that you removed it.

Danger of being scalded! The water inside the pump maybe hot- wait for it to cool.

(*) Machinery specifications may vary depending on the product purchased.

1

Technical line drawing of a mechanical component with no visible text or symbols

2

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

Pump filter

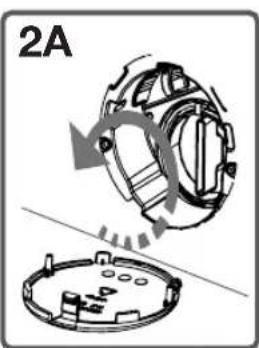

The pump filter system elongates the life of your pump, which is used to drain the dirty water. It prevents lint to enter the pump. Cleaning of your pump filter in every 2-3 months is recommended. To clean your pump filter:

- To open the pump cover, you can use the powder detergent spade (*) or liquid detergent level plate coming out of your machine. (1-A & 2-A)

- Before opening the filter cover, place a cup in front of the filter cover to prevent flow of the remaining water in the machine. - Clean the foreign materials in the filter with a brush and flush with clean water. (3-A) - Check for the rotation of the pump manually. - After cleaning the filter, fit the filter cover and tighten it by rotating it in clockwise direction.

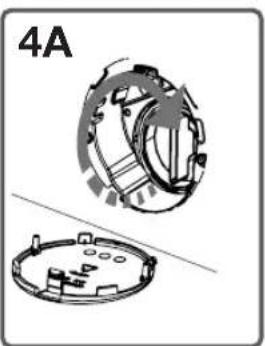

(4-A)

• Remove the foreign materials from the filter.
• Do not forget that if you do not fit in the filter cover properly, it will leak water.
• While closing the pump cover, ensure that the parts on the inner side of the cover to match the holes on the front panel side. (5-A)

1A

Diagram showing a mechanical component with a circular arrow indicating rotation or force direction (no text or symbols present)

3A

Line drawing of hands performing a manual manual manipulation or cleaning procedure (no text or symbols)

Technical illustration of a mechanical assembly with two views: top shows a circular component with internal gear-like structure, bottom shows a cross-sectional view (no text or symbols)

5A

Diagram of mechanical components with no visible text or symbols

Detergent drawer

Detergents may form sediments in your detergent drawer or in the housing of the detergent drawer over time. To clean the sediment, pull out the detergent drawer from time to time. To pull out the detergent drawer:

• Pull the detergent drawer to the end. (1)
- Keep on pulling by depressing on the section shown below in the detergent drawer and keep pulling and then remove the detergent drawer. (2&3)
- Clean the detergent drawer with a soft brush like an old toothbrush and flush with clean water
- Collect residues in the housing of the detergent drawer without dropping them inside the machine.
- Assemble the detergent drawer after drying it using a towel or dry cloth.

- Do not wash your detergent drawer in dishwasher!

1

Illustration of a hand inserting a file into a folder with an arrow indicating direction (no text or symbols present)

2

Illustration of hands operating a device with a magnifying glass and arrow indicating action (no text or symbols)

3

Diagram showing a document being inserted into a storage unit, with an arrow pointing to the document (no text or symbols present)

Liquid Detergent Apparatus (\*)

Take out the liquid detergent level apparatus for cleaning and maintenance purposes as shown in the picture and clean well detergent residues. Put the apparatus back into its place. Make sure no residues are left inside.

(*) Machinery specifications may vary depending on the product purchased.

Siphon plug

Pull out the detergent drawer. Remove the siphon plug and clean the residues of the softener thoroughly. Fit the cleaned siphon plug in its location. Check it is placed properly.(3)

Cabinet

Clean the exterior surface of the cabinet of your machine with lukewarm water and a cleaning substance that will not damage the cabinet. After rinsing with clean water, wipe it with a soft and dry cloth.

Note: To get the best out of your machine. We recommend that you periodically run a wash cycle with limescale remover, especially in hard water drear.

Note: After each wash leave the door to the machine open to help air the drawer and reduce any mould build up;

Technical line drawing of a mechanical device with an open lid and internal components (no text or symbols)

Technical line drawing of a mechanical device with internal components and an arrow indicating direction (no text or symbols)

Line drawing of a ceiling-mounted air conditioner unit with fan and cooling fan (no text or symbols)

Line drawing of a mechanical device with an arrow indicating direction (no text or symbols)

Diagram of a mechanical lever system with an upward arrow indicating motion (no text or symbols present)

Technical line drawing of a structural frame with vertical slats and a central circular component (no text or symbols)

Note: Wipe the door seal ideally after each wash;

Note: Undertake a maintenance wash every 4-6 weeks with the drum empty. This wash should be undertaken with lime scale and detergent remover;

Drum

Do not leave metallic objects such as needles, paper clips, coins etc. in your machine. This objects lead to formation of rust stains in the drum. To clean such rust stains, use a non-chlorine cleaning agent and follow the instructions of manufacturers of the cleaning agent. Never use wire wool or similar hard objects for cleaning rust stains.

Technical illustration of a cylindrical mechanical component with internal grooves and mounting holes (no text or symbols)

All repairs to the machine must be carried out by an authorised repair agent. When a repair is required or you are unable to eliminate the failure with the help of the information below:

a: Unplug the machine.
b: Close the water tap.
c: Contact the nearest authorised repair agent.

FAILURE PROBABLE CAUSE METHODS OF
ELIMINATION

Your machine does not operate.	It is unplugged. Insert the plug into the socket.
	Your fuse is defective. Change your fuse.
	The electric power is off. Check the electric power.
	Start/pause button has not been pressed.	Press the start/pause button.
	The programme knob is in the 0 (off) position.	Turn the programme knob to the desired position.
	The door is not shut properly. Shut the door properly. You should hear the click.
Your machine does not receive water.	Water tap is closed. Open water tap.
	The water inlet hose may be bent. Check the water inlet hose.
	The water inlet hose is obstructed. Clean the filters of water inlet hose. (*)
	The valve inlet filter is obstructed. Clean the valve inlet filters. (*)
	The door is not shut properly. Shut the door properly. You should hear the click.
Your machine is not draining water.	The drain hose is obstructed or bent. Check the drain hose.
	The pump filter is obstructed. Clean the pump filter. (*)
	The clothes are not placed inside the machine in a well-balanced manner.	Spread the clothes inside the machine in an orderly and well-balanced manner.
Your machine is vibrating.	The feet of your machine are not adjusted.	Adjust the feet. (**)
	Transportation screws are not removed.	Remove transportation screws. (**)
Your machine is vibrating.	There are only few clothes in the device.	It does not prevent operation of the machine.
	Excessive amount of clothes are filled in the machine or the clothes are not placed in a well-balanced manner.	Do not exceed the recommended quantity of clothes and spread your clothes in the machine in a well-balanced manner.
	Your machine is touching a rigid object.	Ensure machine is not in contact with hard objects.

(*) See the section concerning the care and maintenance of your machine.
(**) See the section concerning installation of your machine.

FAILURE PROBABLE CAUSE METHODS OF

		ELIMINATION
Excessive foam in the detergent drawer.	Too much detergent has been used.	Press the start/pause button.In order to stop the foam,dilute one table-spoon of softener in half liter of water and pour it in the detergent drawer.Press the start/pause button after 5-10 minutes.Arrange the amount of the detergent properly in the next washing process.
	Wrong detergent has been used. Use only the detergents produced for full automatic machines.
The washing result is poor.	Your laundry is too dirty for the programme you have selected.	Select a suitable programme. (see page 8)
	The amount of detergent used is not sufficient.	Use more detergent.
The washing result is not good.	Clothes exceeding the maximum capacity have been loaded in the machine.	Put the clothes in your machine in a manner not to exceed its maximum capacity.
	Your water may be hard. Use the amount of detergent specified by the detergent manufacturer.
	Distribution of the clothes in your machine is not well-balanced.	Spread the clothes inside the machine in an orderly and well-balanced manner .
The water is drained from the machine as soon as it is filled.	The end of the water drain hose is in a position too low according to the machine.	Position the water drain at an appropriate height.(**)
No water is seen in the drum during washing.	No failure. The water is in the lower part of the drum.	-
There are residues of detergent on the clothes.	Some detergents contain ingredients which are not soluble in water and which may form white stains on your clothes.	By adjusting your machine, carry out an additional rinse, or eliminate the stains after drying, with a brush.
There are grey stains on the clothes.	These stains may be caused by oil,cream or ointment .	In the next washing operation, use the maximum detergent amount declared by the detergent producer.
The spinning process is not done or starts with delay .	No failure. The unbalanced load control may work in that way.	The unbalanced load control system will try to distribute your clothes in a homogenous manner. After your clothes are distributed, passage to spinning process will be realized. In the next washing process,place your clothes into the machine in a well-balanced manner.

(*) See the section concerning the care and maintenance of your machine.
(**) See the section concerning installation of your machine.

Technical Specifications

Model / Item	F841QW F841QB F841QS
Power supply	(220-240) V ~/50Hz (220-240) V ~/50Hz (220-240) V ~/50Hz
Max working current	10 amp 10 amp 10 amp
Water pressure	Maximum : 1MpaMinumum : 0.01 MPa	Maximum : 1MpaMinumum : 0.01 MPa	Maximum : 1MpaMinumum : 0.01 MPa
Maximum power	2200 watt 2200 watt 2200 watt
Maximum washing load (dry)	8 kg 8 kg 8 kg
Spinning speed	1400 rpm 1400 rpm 1400 rpm
Washing pro-grammes	15 15	15
Size	845 x 597 x 557	845 x 597 x 557	845 x 597 x 557
Net weight	75 kg 75 kg	75 kg

Disposal Information

Simple line drawing of a trash bin with crossed lines indicating no waste or prohibition (no text or symbols)

The symbol on the product or its packaging indicates that this product may not be treated as household waste. Instead it should be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling this product, please contact your local council office, your household waste disposal service or the shop where the product was purchased.

Argos

Product Guarantee

This product is guaranteed against manufacturing defects for a period of

Year

This product is guaranteed for twelve months from the date of original purchase. Any defect that arises due to faulty materials or workmanship will either be replaced, refunded or repaired free of charge where possible during this period by the dealer from whom you purchased the unit.

The guarantee is subject to the following provisions:

• The guarantee does not cover accidental damage, misuse, cabinet parts, knobs or consumable items.
• The product must be correctly installed and operated in accordance with the instructions contained in this manual.
• It must be used solely for domestic purpose.
• The guarantee will be rendered invalid if the product is re-sold or has been damaged by inexpert repair.
• Specifications are subject to change without notice.
• The manufacturer disclaims any liability for the incidental or consequential damages.
• The guarantee is in addition to, and does not diminish your statutory or legal rights.
• In the event of a problem with the product with in the guarantee period call the Customer Helpline: 0845 600 4632.

Guarantor: Argos Ltd

489 - 499 Avebury Boulevard

Central Milton Keynes

MK9 2NW
