EJK-G1733(WH) - Kettle Elba - Free user manual and instructions

Product Type	Electric Kettle
Brand	Elba
Model	EJK-G1733(WH)
Color	White
Capacity	1.7 Liters
Power	1500-2200 W
Voltage	220-240 V, 50/60 Hz
Material	Plastic body, stainless steel heating element
Weight	Approx. 1.0 kg
Dimensions (HxWxD)	Approx. 23 x 21 x 15 cm
Cordless Base	Yes, 360° rotational base
Auto Shut-Off	Yes, when water reaches boiling point
Boil-Dry Protection	Yes, automatically turns off if empty
Water Level Indicator	Yes, transparent window with markings
Concealed Heating Element	Yes, easy to clean
Removable Filter	Yes, mesh filter for limescale
Lid Opening	One-touch button, wide opening
Cleaning	Wipe exterior with damp cloth; descale interior regularly
Safety	Auto shut-off, boil-dry protection, cool-touch handle
Spare Parts	Filter, base (contact Elba service)
Warranty	Typically 1-2 years (check retailer)

Frequently Asked Questions - EJK-G1733(WH) Elba

What is the capacity of the Elba EJK-G1733(WH) kettle?

The kettle has a capacity of 1.7 liters, ideal for making tea or coffee for multiple cups.

How do I descale the kettle?

Fill the kettle with a mixture of equal parts water and white vinegar, boil, let sit for 15 minutes, then rinse thoroughly. Alternatively, use a commercial descaling solution.

Does the kettle automatically shut off?

Yes, the kettle has an auto shut-off function that turns it off once the water reaches boiling point.

Can I use the kettle without water?

No, the kettle has boil-dry protection that automatically switches it off if it is operated without water to prevent damage.

Is the heating element concealed?

Yes, the heating element is concealed, making the interior easier to clean and reducing limescale buildup.

How do I clean the filter?

Remove the filter from the spout, rinse it under running water, and use a soft brush to remove debris. Replace it when it shows wear.

What should I do if the kettle does not turn on?

Check that the base is plugged into a working outlet and that the kettle is properly seated on the base. Ensure the auto shut-off hasn't been triggered due to low water.

Is the kettle cordless?

Yes, the kettle sits on a 360° rotational base with a cord, allowing easy lifting and pouring.

What material is the kettle body made of?

The body is made of high-quality plastic (white color), which is lightweight and durable.

How can I obtain spare parts?

Contact Elba customer service or an authorized service center for spare parts such as the filter or base unit. Check the user manual for contact details.

USER MANUAL EJK-G1733(WH) Elba

White ELBA water heater with black lid and control panel (no visible text or symbols)

ELBA

JUG KETTLE

MODEL: EJK-G1733(WH)

Owner's Manual

Please read this manual carefully before operating your set.

Retain it for future reference.

Record model number and serial number of the set.

See the label attached on the set and quote this information to your dealer when you require service.

For The Warranty Terms & Conditions, Please Refer To Warranty Certificate.

IMPORTANT SAFEGUARDS

When using this appliance, basic precautions should always be followed, including the following:

1. Read all instructions before using.

2. Do not operate the appliance with damaged power cord or plug, after the appliance malfunction, or if it is dropped or damaged in any manner. Return the appliance to the nearest authorized dealer or after-sales service center for examination, repair, electrical or mechanical adjustment.

3. Do not use the appliance if the plug, the mains cord or other parts are damaged.

4. Do not let the power cord hang over edge of table or counter or hot surface.

5. Do not place the appliance on or near gas stove or electric burner, or in a heated oven.

6. When removing the plug from wall outlet, grasp the plug to pull and not the cable.

7. Never use any accessories or parts from other manufacturers or that ELBA does not specifically recommended.

8. Should the base station become moist or wet, remove the plug from the wall outlet immediately.

9. Never immerse the jug kettle and base station in water or any other liquids nor rinse it under the tap. Use only a moist cloth to clean the exterior jug kettle and dry cloth to wipe the base station.

10. This appliance is only be used with the base station provided.

11. Warning: If the jug kettle is overfilled, boiling water may be ejected.

12. Children should be supervised to ensure that they do not play with the appliance.

13. Close supervision is necessary when your appliance is being used near children or infirm persons.

14. Do not operate the appliance for other than its intended use.

15. Do not use this jug kettle outdoors.

16. This appliance is for domestic use only.

17. This appliance is not intended for used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety.

18. Save these instructions for future reference.

SPECIAL SAFETY INSTRUCTIONS FOR USING THIS JUG KETTLE

1. Use only cold water to boil water.
2. Water level must be filled above the MIN line and below the MAX line.
3. Always power off the jug kettle before removing from the base station.
4. Always ensure that the lid is tightly closed.
5. Never immerse the base station in water or any other liquids.
6. The base station must not become wet.
7. The jug kettle body used must be match with the jug kettle base station.

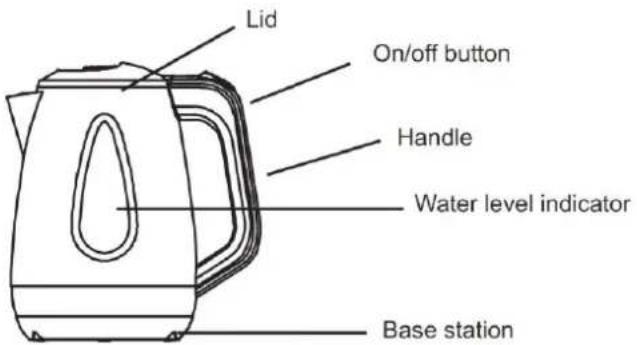

PRODUCT DESCRIPTION

OPERATING THE APPLIANCE

Before using the appliance for the first time, water should be boiled in 2 times without any additives.

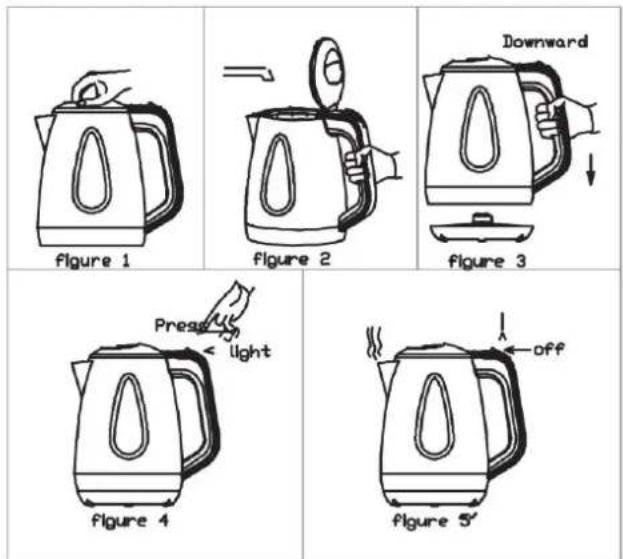

1. Figure 1: Press the lid to open.
2. Figure 2: Fill water into the jug kettle and close the lid.
   Warning: Do not overfill water into the jug kettle. Refer to the water level indicator for MAX and MIN water level indication.
3. Figure 3: Place the jug kettle on the base station. Connect the plug to wall outlet and power on the jug kettle.
4. Figure 4: Press the on/off button- "I" at the handle. The control lamp on the water level indicator shows that the water is beginning to boil. After water boils, the on/off button will automatically switch to "0". Power off the appliance and disconnect the plug from wall outlet.

CLEANING AND MAINTENANCE

1. Always remove the plug from wall outlet when not in used.

Note: Do not rinse the jug kettle and base station under the tap water or any other liquids. Do not use abrasive cleaning agents, sources, etc. to clean the jug kettle.

ENVIRONMENT-FRIENDLY DISPOSAL

You can help to protect the environment!

Please remember to respect the local regulations: hand in the non-working electrical equipments to an appropriate waste disposal centre.

ELBA
