Product Type	2-Person, 3-Season Backpacking Tent
Capacity	2 People
Dimensions (Floor)	7 ft 6 in (L) x 4 ft 4 in (W) / 28.5 sq ft
Dimensions (Interior Height)	40 in (101 cm)
Packed Size	14 x 6 in (35.6 x 15.2 cm)
Weight (Minimum)	2 lbs 15 oz (1.33 kg)
Weight (Packed)	3 lbs 3 oz (1.45 kg)
Pole Material	DAC Featherlite NSL Aluminum
Pole Configuration	Single Arch with Cross Pole
Flysheet Material	40D 240T Polyester Ripstop with PU Coating (1500mm)
Floor Material	40D 240T Nylon Taffeta with PU Coating (3000mm)
Mesh Material	No-See-Um Mesh
Vestibule	1, 6 sq ft (0.56 sq m)
Doors	1 Side Entry
Ventilation	Mesh canopy with adjustable vent at foot
Setup Type	Pole Sleeve or Clip (Hubbed)
Seam Sealing	Factory Taped Seams on Fly and Floor
Warranty	Limited Lifetime Warranty
Intended Use	Backpacking, Bike Touring, Thru-Hiking

Frequently Asked Questions - Spitfire 2 EUREKA

How do I set up the Eureka Spitfire 2 tent?

The Spitfire 2 uses a single-pole arch design. Lay out the tent body, assemble the pole sections, insert the pole into the sleeves or clips at the corners, then stake the corners. Attach the fly over the top and stake the vestibule. Refer to the included instructions for details.

Is the Spitfire 2 truly waterproof?

Yes, the fly has a 1500mm PU coating and the floor has a 3000mm coating, along with factory taped seams. It is designed to withstand moderate rain, but always ensure proper site selection and seam sealing for extended exposure.

What is the packed size and weight?

The minimum weight is 2 lbs 15 oz (1.33 kg) and packed weight is 3 lbs 3 oz (1.45 kg). Packed dimensions are 14 x 6 inches (35.6 x 15.2 cm), making it ideal for lightweight backpacking.

How many people can sleep in this tent?

The tent is designed for 2 people. The floor area is 28.5 sq ft (2.65 sq m), which provides enough space for two sleeping pads with minimal extra room.

Can I use the tent without the fly?

Yes, the Spitfire 2 has a mesh canopy that can be deployed without the fly for stargazing or warmer nights. However, the fly provides weather protection and should be used in rain or wind.

How do I clean and maintain the tent?

Wipe down with a damp cloth and mild soap. Avoid machine washing. Rinse zippers with fresh water after use in salty or sandy conditions. Store the tent dry and loosely rolled to prevent mildew. Reapply seam sealer as needed.

Is the tent suitable for snow or winter camping?

No, the Spitfire 2 is a 3-season tent designed for spring, summer, and fall. It is not intended for heavy snow loads. For winter use, consider a 4-season tent with stronger poles and a full coverage fly.

Can I repair a broken pole?

Yes, the DAC Featherlite NSL poles are repairable. Replacement pole sections are available through Eureka's spare parts program. For minor cracks, a splint can be used temporarily.

Does the tent have a footprint?

A separate footprint is not included but can be purchased as an accessory. Using a footprint protects the tent floor from abrasion and moisture.

Where can I find replacement parts or accessories?

Replacement parts, such as poles, stakes, and guy lines, are available from Eureka's official website or authorized dealers. Contact Eureka customer service for specific inquiries.

USER MANUAL Spitfire 2 EUREKA

Eureka! Set-Up Instructions

Spitfire Solo (#2628314)

Spitfire 2 (#2628318)

Contents of Carry bag

Tent body

Tent fly

Pole bag: 2 poles with prebends to make hoops, 1 longer

(head-end pole) & 1 shorter (foot-end pole)

Stake bag: stakes & guyout cords

Setting up the Tent Body

1. Spread the tent body out, floor side down. Locate the yellow webbing stake out loop, as this marks the head-end of the tent. Securely stake the yellow webbing loop to the ground.
2. Assemble the two poles, placing the longer pole near the head-end of the tent & the shorter pole near the foot area.
3. Starting near the head-end of the tent, insert the tip of the long pole into the grommet (metal ring) located in the black webbing stake out loop. Insert the other pole tip into the grommet on the opposite side of the tent. Reach down to the tent body & connect all of the black plastic clips to the pole.
4. Repeat the process near the foot-end of the tent with second, shorter pole
5. To raise your tent, grasp the black webbing loop with the side-release buckle at the tip of the foot-end. As you pull the webbing, the poles will raise. When fully tensioned, the poles will be upright. Securely stake the black webbing loop to the ground.

6. Further secure the tent to the ground by using stakes in the black webbing loops at the base of each pole.

7. The tent body will now be erect, properly tensioned, and anchored to the ground.

Attaching the Fly Sheet

1. Unfold the fly & drape it over the tent matching the yellow webbing on the fly with the yellow webbing on the tent body. Align and center the fly on the tent body so the fly's seams follow the tent body's poles.
2. Clip together the side-release buckle on the yellow webbing.
3. Locate the bright green webbing guyout loops on the outside of the flysheet, reaching under the guyout loops, wrap the hook/loop closure around the underlying pole to secure the fly to the pole. Secure the guyout loops at both the head-end & foot-end poles.
4. Clip together the side-release buckles in the black webbing at the tip of foot-end.
5. Now clip the buckles at the base of the foot-end pole.
6. Further tension the fly by pulling the webbing through the 4 side-release buckles you have closed.
7. Using stakes, secure the two remaining stake-out loops on the fly to create your vestibules.
8. Guyouts: Attach the two provided guyout cords to the green webbing guyout loops on the head-end pole. If you expect severe weather, utilize the guyouts on the foot-end pole. Get in the habit of always using the guyouts, even in good weather.

OTHER FEATURES

Special Feature:

This tent features a poke-up vent in the fly. Lift the vent open & prop it open with the stay. One can access the vent from inside the tent through the zipper located in the ceiling.

Microscopic view of a material cross-section with visible layered structure (no text or symbols)

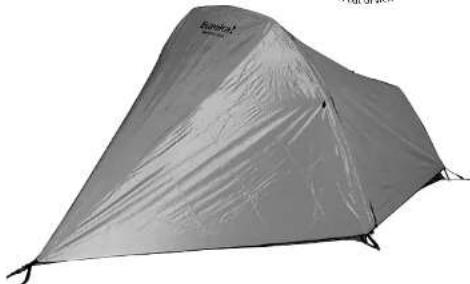

Gray camping tent with visible tarp, no text or symbols on the tent itself

FOR LIFE OUTDOORS.

SEAM SEALING:

We recommend use of a sealer such as Kenyon Seam Sealer 3 or McNett Outdoor SeamGrip*.

• Work in a fully ventilated area.

- Set the tent up or lay the tent out flat. Taut seams allow for even application and penetration of the scaler.

- Decide which seams need to be sealed. For example, seams that will be exposed to rain, runoff, or ground level water are a must for sealing, while seams on uncoated nylon or mesh panels don't need treatment. There is no need to seal the seams in the roof or the factory taped seams. We recommend sealing both floor and fly seams and reinforcements.

- Apply sealant to the inside and outside of all exposed seams. Several thin layers will work better than one thick layer. Read and follow manufacture's instructions.

STAKING:

All tents need to be staked down to keep them from blowing away. Focusing the tent by placing heavy objects inside is just not adequate.

- Once the tent body is erected, stake it out before the fly is put on. This enables you to square the tent up to ensure that the fly goes on properly and that the seams align with the frame. Pull the base of the tent laut between each web stake out loop or ring & pin. Make sure that all corners are square. It is important that you don't stake the tent out too tightly. You will know it's too tight, if the door zippers can not be easily operated. Drive stakes through the web loops, or with ring & pin, drive the stake just outside the ring so that the "J hook catches it. Tie a piece of cord or web into a loop through the ring to be used as a large stake loop if needed.

- With the tent properly staked, drape the fly over the frame, attach its tent connection points and stake down any pull outs.

- Do not attempt to remove the stakes by pulling on the tent becket loop, as this could cause the fabric to tear. The best way is to pry on the stake itself.

STAKING IN SPECIAL CONDITIONS:

- Sand. Use long, broad stakes with plenty of surface area in loose soil.

- Hard, Rocky, or Frozen Soil. Steel stakes work best. Store steel stakes separately. Their sharp edges can cut fabric and leave rust stains, which might damage your tent.

- Snow. Use "dead man" anchors. Tie tent to buried objects (branches, tent bags, or stuff sacks filled with snow; or tie tents to snow shoes, skis, or ski poles, which are stuck in the snow.

GUY LINES:

Do not depend upon staking alone to keep your tent secure during high winds. Most tent models have built-in loops or rings at optimal guy out locations. It's important to put in the extra time guying out your tent. Correctly done, it can save your tent during exceptional weather.

- Make sure that the top fly is securely attached to the tent frame. Ties, hook and loop, or dog-bones and elastic loops are sewn to the underside of the fly for this purpose.

- Attach parachute cord to the loops/rings and stake them in the ground three or four feet from the edge of the tent. If staked too close to the tent, wind can cause an upward pull that could dislodge the stakes.

- If your tent does not have loops or rings for guy outs, attach guy lines 1/3 to 1/2 of the way up the framework on the main sidewalls. This enables the guy line to support the lower section of the pole, while the upper pole can flex and deflect wind gusts. It is best to run two cords at an angle from the side of the guy out. This prevents all movement, except toward the anchor. The guy lines will work together through opposition. See illustrations.

CONDENSATION & VENTING:

Through perspiration and breathing, an adult gives off about a pint of water overnight. If it cannot escape, the water vapor condenses to liquid. Most often, water found in the tent is a result of this condensation rather than from the tent leaking. Condensation often forms where the sleeping bag touches the side of the tent, under the sleeping pad, or on coated surfaces such as the door flaps. A tent's double wall construction allows the vapor to escape through the roof to the outside, keeping the inside of the tent dry.

Leave the windows partially open at night to provide cross ventilation and further reduce condensation. Cross ventilation becomes more important in very humid or extremely cold conditions when the permeable roof is less effective. The features that enhance ventilation are windows short sheeted fly (bottom venting), roof vents, and High/Low venting doors. These are specific to each tent model.

Given the importance of proper ventilation. We use High/Low venting in most of our tents. This allows cooler air in through the low vents and warmer, moist air up and out through the high vents. High/Low venting is accomplished within the inner tent via roof vents, doors and windows. It is important to vent the vestibule. Unvented, it can inhibit airflow into the tent. Our tent vestibules profit from the ability to "short sheet" by means of zippers & toggles and staked vestibule pull outs create a bellowing effect.

Most of our tents are equipped with a High/Low venting door. This design allows increased airflow into the tent from the bottom. Open the low vent/window to admit cool air, allowing the warmer air out through the high roof vents. When rain and wind prevent the low vent from being opened, the high door vent can still be used. Fly overhangs or vestibules protect it.

ULTRAVIOLET LIGHT:

Ultraviolet light damage to tent fabric is caused by excessive exposure to sunlight. While our fabrics are UV resistant, any synthetic fabric is susceptible to UV degradation. UV damage will cause nylon and polyester to become brittle and tear easily. We recommend that you use the rain fly even on clear days. It acts as a sunscreen to the tent. A rain fly is both easier and less expensive to replace if damaged. UV damage can be minimized by erecting tents on shaded sites with low exposure to direct sunlight.

GENERAL POLE CARE:

- Never let tent poles snap together as this can damage the pole end. - Do not drop tent or pole bags on their ends and do not bounce a tent bag on its end to get the tent out. These actions may cut the shock cord and damage the pole ends.

- The aluminum frame may bend slightly and take a "set" through usage; this normally does not affect the performance of the frame.

GENERAL TENT CARE:

- Sweep the tent floor daily to prevent damage from stones.

• Try not to wear shoes inside your tent.

- Use a ground cloth whenever possible.

- Do not keep food inside a tent. Hungry critters will chew through tent fabric in search of food.

STORAGE:

• Make sure the tent is completely dry, then store loosely rolled, in a dry, cool place. To prevent dust from collecting on the tent, cover it with a cloth. This allows the nylon/polyester fabric to breathe.

- Ideally, the tent poles should be stored in their fully assembled state. This reduces the tension on the shock cord, prolonging its life.

- The tent bag should be used only as a carry sack and not for storage.

COLOR TRANSFER:

- Do to the nature of tent fabrics, color can transfer from darker to lighter fabrics when the two fabrics are in contact over time when wet, clamp or exposed to the combination of moisture and high heat. This does not effect the tent's performance. To prevent / minimize color transfer, always make sure your tent is completely dry prior to packing and storage.

CLEANING:

- Clean the tent by setting it up and wiping it down with a mild soap (liquid hand soap) and lukewarm water solution. Rinse thoroughly and dry completely. Never use detergent, washing machines or dryers because they can damage the tent's protective coating and seams. After cleaning, be sure the tent is completely dry, especially the heavier, double-stitched areas such as the seams, before storing or mold / mildew are likely to grow.

- Clean the tent poles with a cloth and lubricate them with silicone spray. This is especially necessary after ocean side camping to remove salt spray so the poles don't corrode or slay gritty.

- Clean the zippers with a quick dip in water and then dry them off. This is especially important if you've been camping in a location with sand/dirt. If you don't clean the zippers, the sliders will wear out and eventually the teeth will become inoperable.

ALTERNATIONS OR MODIFICATIONS:

DO NOT misuse, modify or alter this product in any way from its condition at the time of sale. Alteration, modification or any use of this product contrary to the accompanying written instructions shall void the warranty. Moreover, any misuse, alteration or modification of the product shall absolve Johnson Outdoors Gear LLC of any liability for property damages or injuries sustained as a result of such misuse, modification or alteration.

LIMITED WARRANTY:

What Is Covered: Johnson Outdoors Gear LLC warrants to the original purchaser that its products are free from defects in material and workmanship, for the life of the product, except as qualified below. The life of the product is determined from the date of purchase until such time as the product is no longer serviceable due to normal wear and tear.

What Is Not Covered: Johnson Outdoors Gear LLC shall not be responsible for the natural breakdown of materials that occurs inevitably with extended use (e.g., Ultra Violet UV) light damage on tents, exhausted zippersi, or defects caused by accident, abuse, alteration, animal attack, storm damage, misuse or improper care.

THERE ARE NO OTHER EXPRESS WARRANTIES BEYOND THE TERMS OF THIS LIMITED WARRANTY.

IN NO EVENT SHALL JOHNSON OUTDOORS GEAR LLC BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES.

Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

What Johnson Outdoors Gear LLC Will Do: If after inspection we find that a product failed due to a manufacturing or material defect, we will repair or replace the product, at our option, without charge.

How to Obtain Warranty Service: Return the product, freight prepaid, to the Dealer from whom it was purchased; or, contact our Customer Satisfaction Department for return authorization: toll free 1-800-572-8822. Collect shipments or shipments without return authorization cannot be accepted. The product registration card packaged with our product need not be returned for the warranty to be effective and for you to receive warranty service.

Repairs: If your Johnson Outdoors Gear LLC product needs service or repair due to normal wear and tear, animal attack, accident or some other reason that is not covered under the warranty we will provide the necessary service for a reasonable charge, plus shipping and handling. We require that products accepted for any repair be properly cleaned according to our recommended care instructions. Please send your product or component that requires repair (e.g., tent fly), postage prepaid, along with a description of what needs attention. For service and repairs, please contact our Customer Satisfaction Department toll free f. 1,900 572 8822

How State Law Relates To This Warranty: This warranty gives you specific legal rights, and you may have other rights that vary from state to state.

JOHNSON OUTDOORS GEAR INC

Our brands are part of the Johnson Outdoors family of products. Visit all the brands at johnsonoutdoors.com

We support the "Leave No Trace" Seven

Principles:

1. PLAN AHEAD AND PREPARE

2. TRAVEL & CAMP ON DURABLE SURFACES

DISPOSE OF WASTE PROPER

1. LEAVE WHAT YOU FIND

S. MINIMIZE CAMPFIRE IMPACTS

1. RESPECT WILDLIFE

2. BE COURTEOUS OF OTHER VISITORS

REV 062714
